Certification:ISO9001, QS, TUV
Type:Single-Arm, Double-Arm
Product Service:Petroleum Product, Gasoline, Diesel, and Chemical
Model No.:Am61/63/64
Pipeline Material:CS, SS, Low-Temp. CS, Lined with PTFE
Seal:Viton, PTFE
Nominal Diameter:DN80~DN400 (3''~16'')
Design Pressure:-0.06~10MPa
Design Temp.:-196~250℃
Operating Mode:Manual / Electro-Hydraulic
Packaging & Delivery:
Package Size: 1800.00cm * 200.00cm * 200.00cm
Package Gross Weight: 25000.000kg

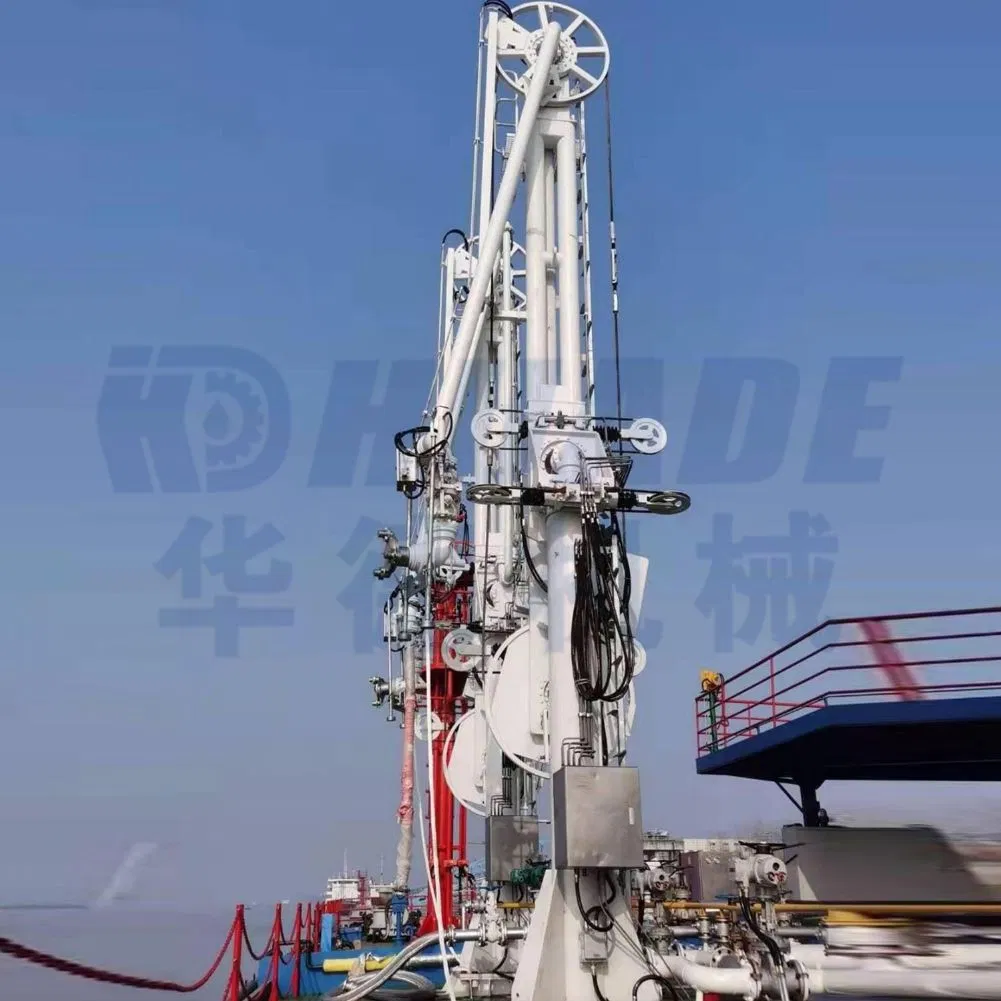

Marine Loading Arms (MLAs) are essential for transferring various fluids such as oil, chemicals, LPG, and LNG between ships and storage facilities. Typical features and benefits include:
- High Efficiency: Designed to handle large volumes of fluids efficiently, reducing loading and unloading times.
- Safety: Incorporates advanced features like emergency release systems (ERS) and quick connect/disconnect couplers (QC/DC).
- Durability: Constructed from robust materials to withstand harsh marine environments with low maintenance.
- Flexibility: Tailored to specific ship sizes, tidal conditions, and range of fluids.
- Environmental Protection: Zero-emission technologies to minimize impact during transfer.

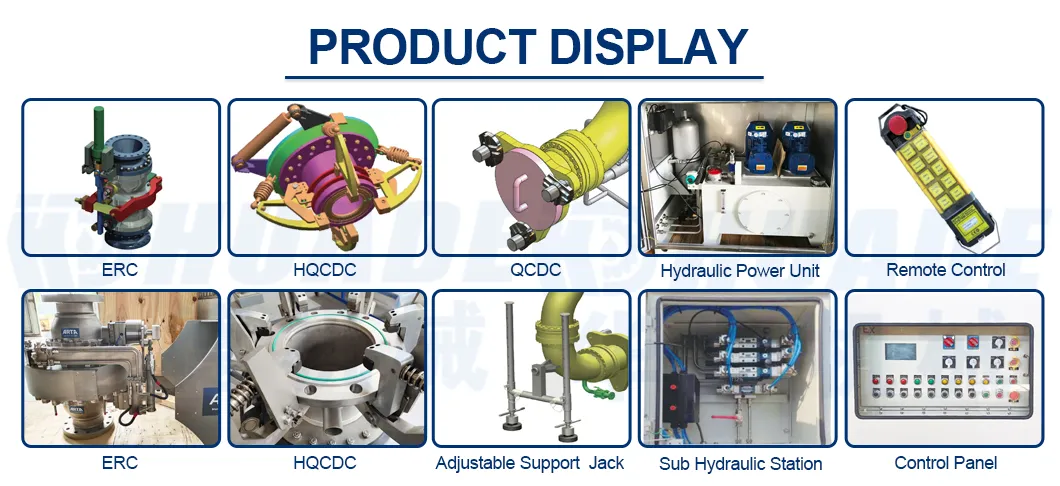

Emergency Release Coupler (ERC): Installed to separate the MLA from the tank ship in cases of fire, typhoon, or ship drift, preventing damage and pollution.
Quick Connect/Disconnect Coupler (QCDC): Provides means to quickly and easily connect to the tanker flange without bolts or nuts, saving manpower and time.

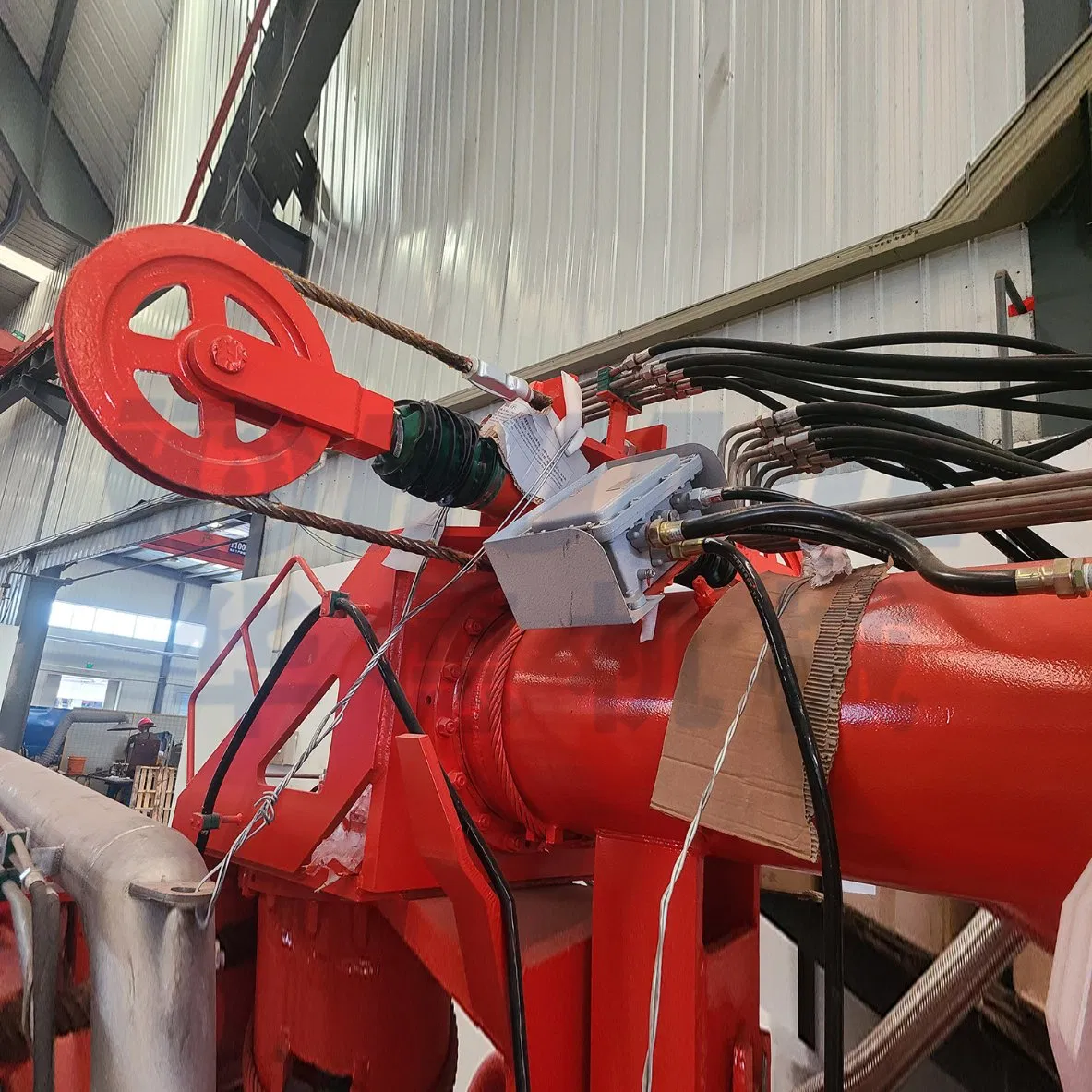

Electro-hydraulic Control System: Includes LCP, HPP, and PLC systems for remote monitoring and operation of multiple MLAs from a central control room.
| Item |
Data |
| Nominal Diameter | DN80~DN400(3''~16'') |
| Design Pressure | -0.06~10MPa |
| Design Temp. | -196~250ºC |
| Pipeline Material | Carbon Steel, Stainless Steel, Low-Temperature Steel, Lined with PTFE |
| Product Service | Petroleum Product, Gasoline, Diesel, and Chemical |
| Operating Mode | Manual / Electro-hydraulic |

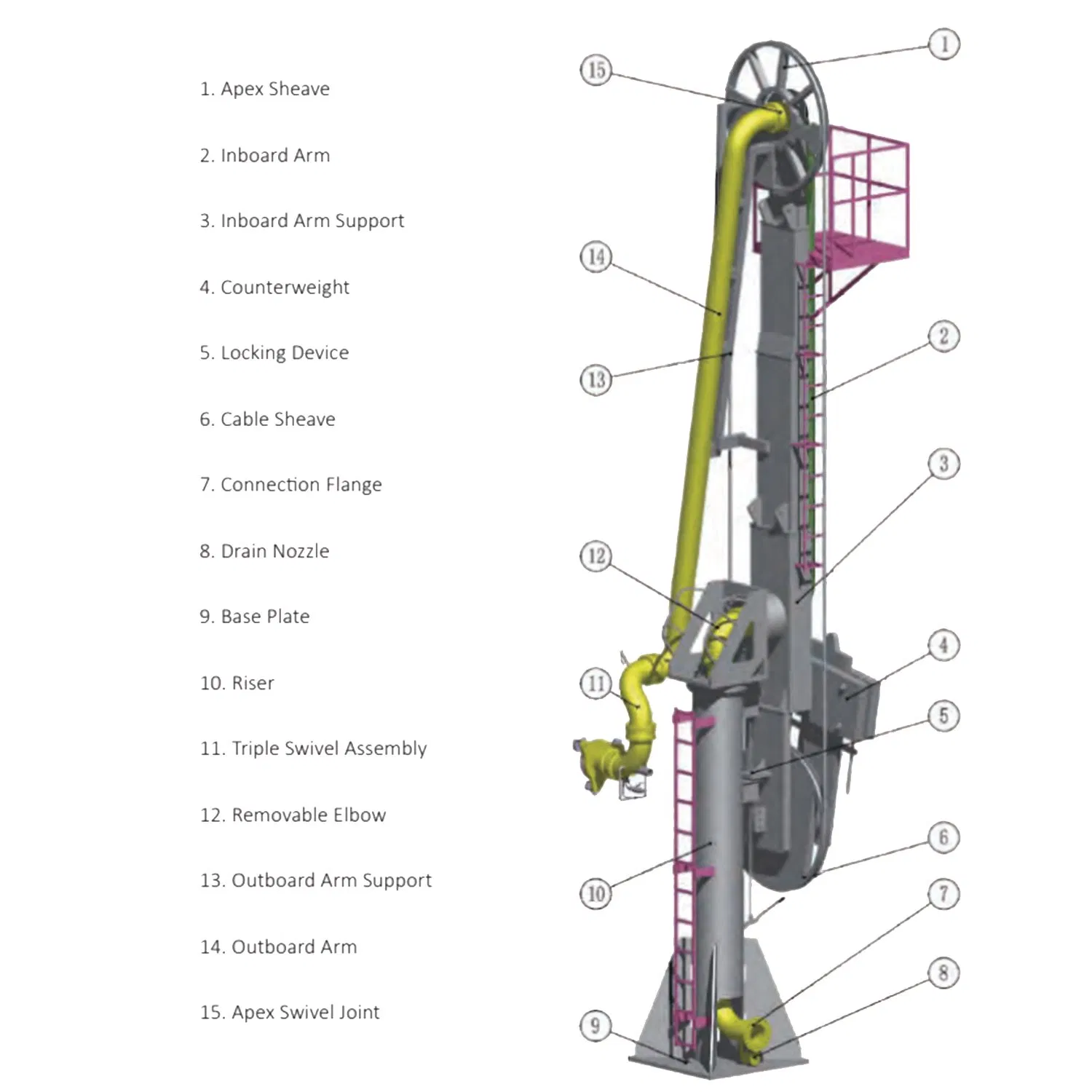

Typical Structure Models:
- AM61M: Manual operation, double counterweight, normally less than 8", for small jetties.
- AM63M: Manual operation, rotary counterweight, easy seal change, normally less than 10".
- AM63H: Electro-hydraulic operation, up to 16", applicable for sea jetties, supports ERC and HQCDC.
- AM64H: Electro-hydraulic, supports 16" liquid line with 8" vapor line.

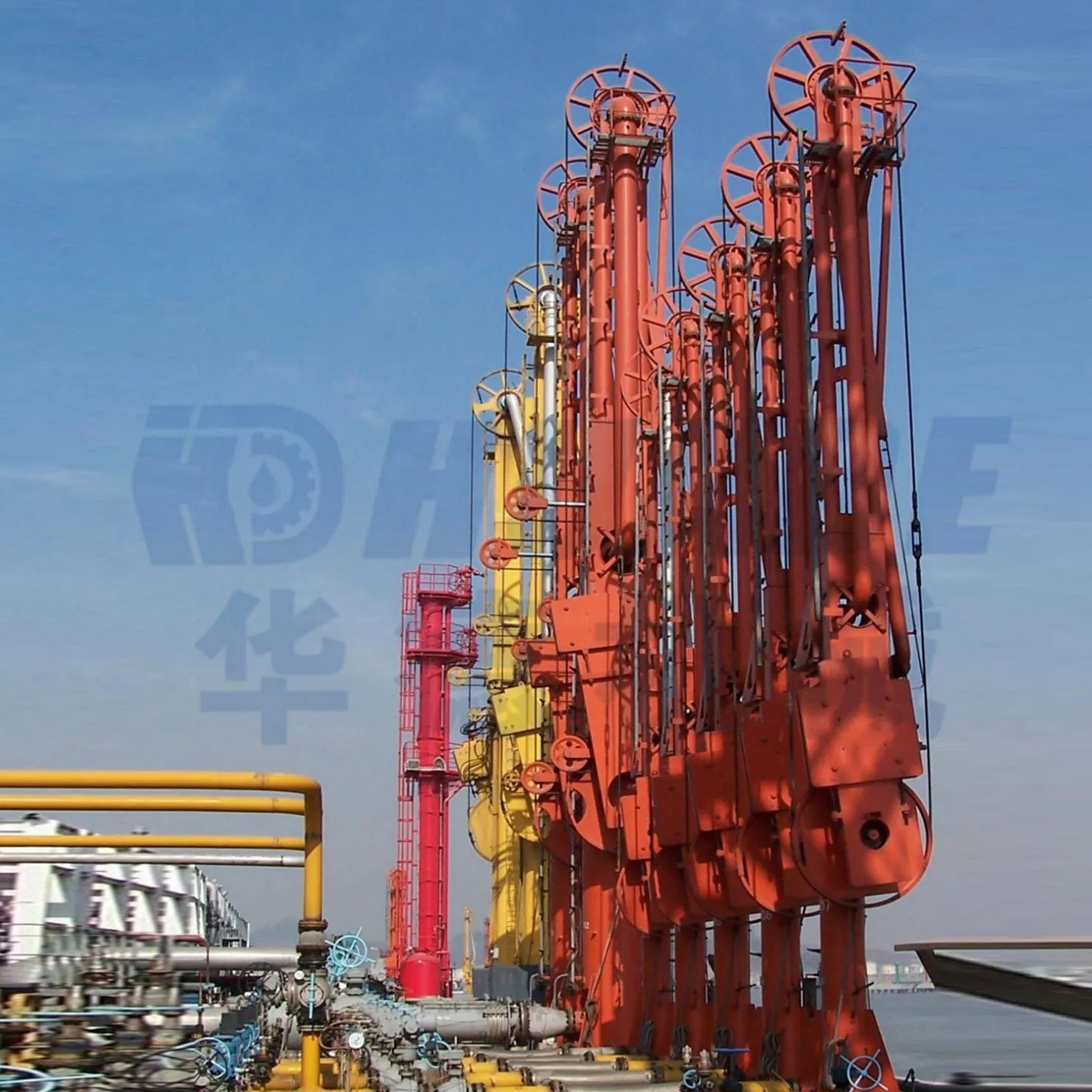

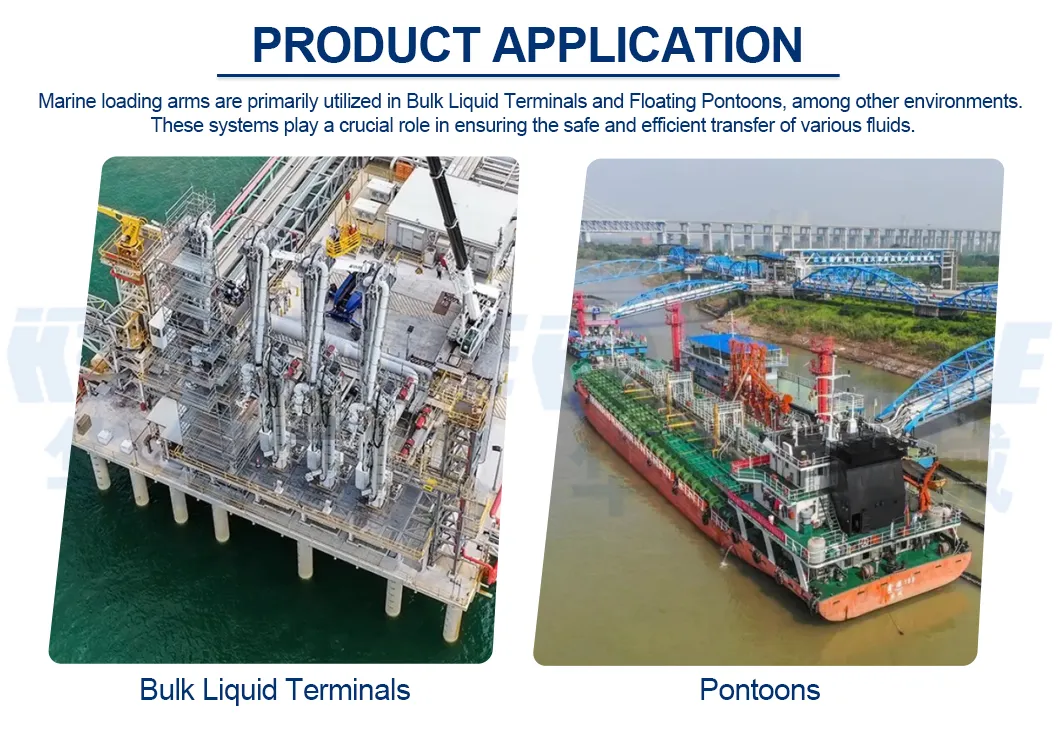

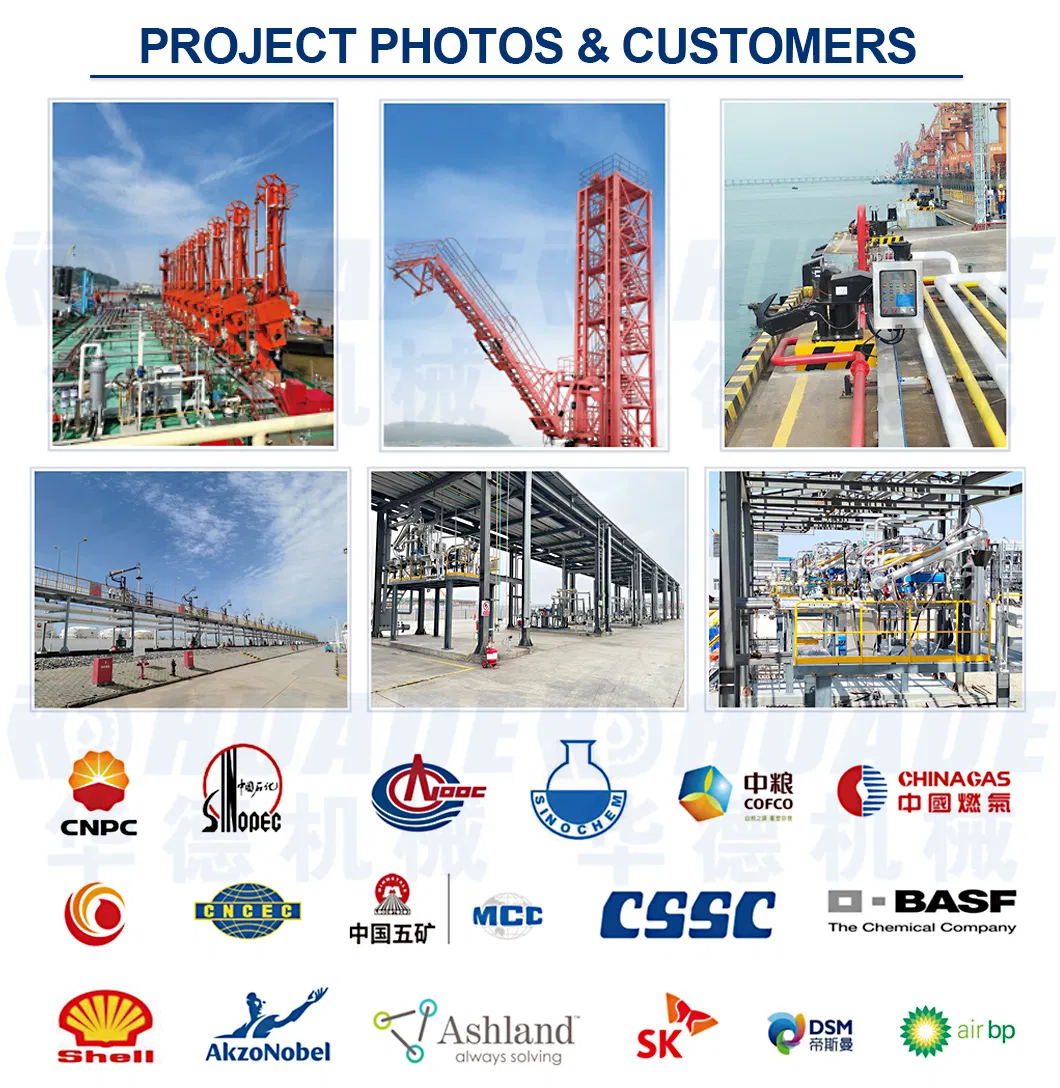

Bulk Liquid Terminals: Essential for loading and unloading crude oil, refined products, and chemicals with high security and efficiency.

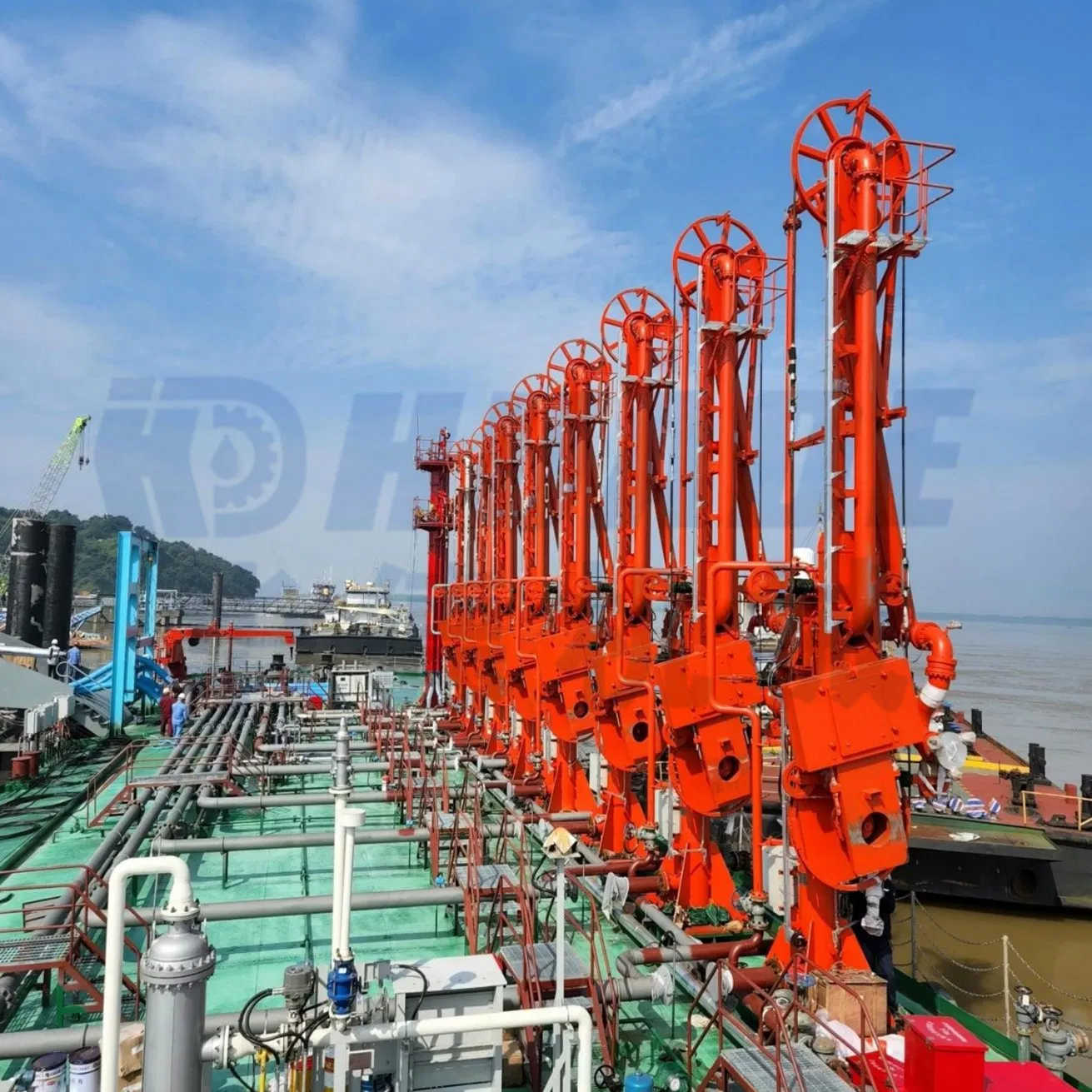

Pontoons: Facilitates transfer between vessels and floating docks, offering high flexibility for vessel movement.

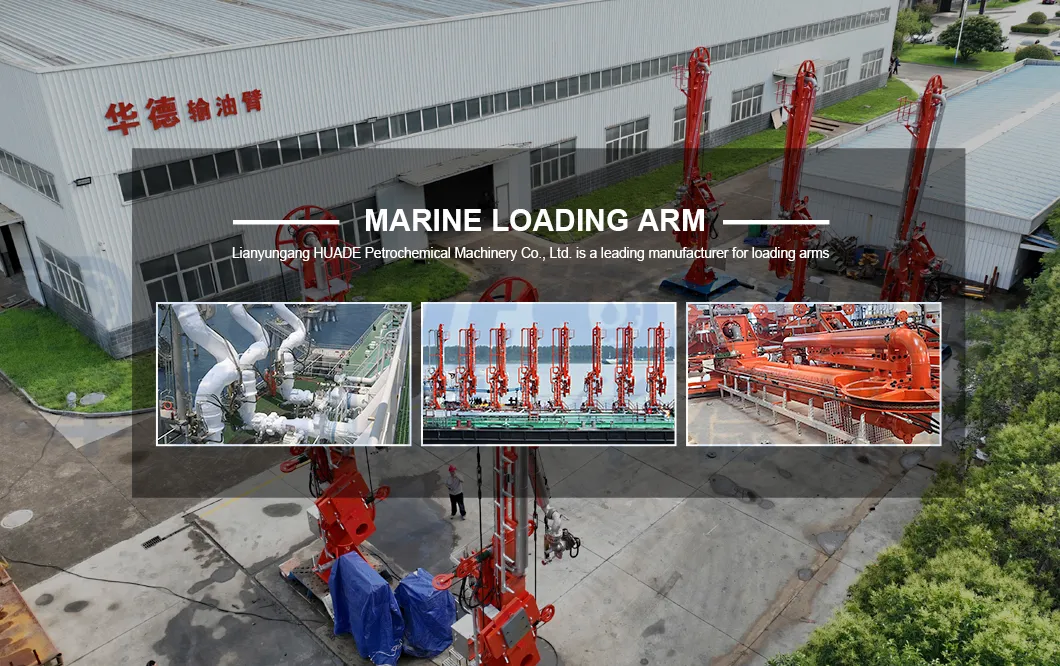

We are a leading manufacturer specializing in the design, manufacturing, and supply of land loading arms, marine loading arms, floating suction units, and loading skids. With German-imported technologies as our foundation, we have evolved into a national high-tech enterprise.
Our facilities include a factory area of over 12 acres and a workshop of 20,000 m², equipped with more than 120 sets of advanced manufacturing and testing equipment. We hold ISO9001/ISO14001/ISO45001 certifications and production licenses for special equipment.
1. What is your production lead time?
It depends on the specific product, but generally, delivery can be made within 30-60 days.
2. What payment terms do you offer?
We typically offer payment terms of 30% deposit and 70% before shipment, but this can be negotiated based on order details.
3. Can you apply the customer's brand to the product?
Yes, we can provide OEM services and apply the required branding.
4. How do you ensure product quality?
We have a strict quality control process including inspections at every production stage to ensure the highest standards.
5. What documentation and certifications are provided?
We provide all necessary documentation, including material certificates, inspection reports, and compliance certificates.
6. How long is the warranty period?
The warranty is 12 months from commissioning or 18 months from delivery, whichever comes first.
