Industry High-Speed Egg Fruit Pick and Place 4 Axis Delta Parallel Robot Arm

Customization:	Available
Application:	Welding, Loading, Forging
Control Mode:	Point to Point Control

Send Inquiry

Product Description

Basic Information

Model NO.

DR-800

Drive Mode

Pneumatic

Number of Axes

3+1

Working Space

X=800mm, Y=250mm, φ=800mm

Max Load

3kg

Condition

New

Certification

ISO, CE

Transport Package

Wooden Case

Capacity

500PC/Year

Product Description

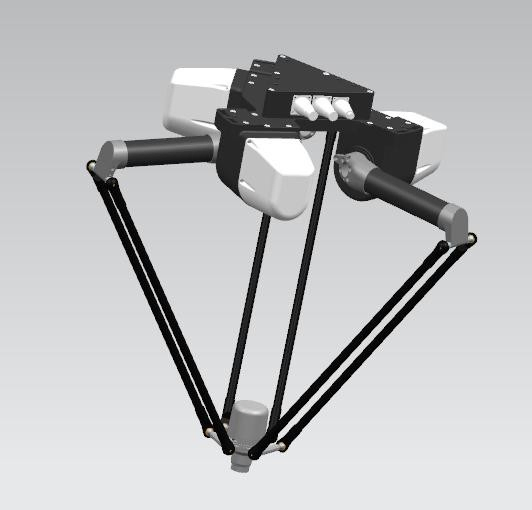

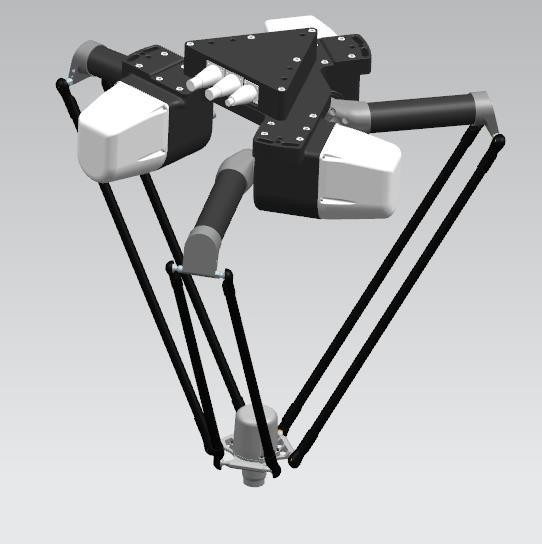

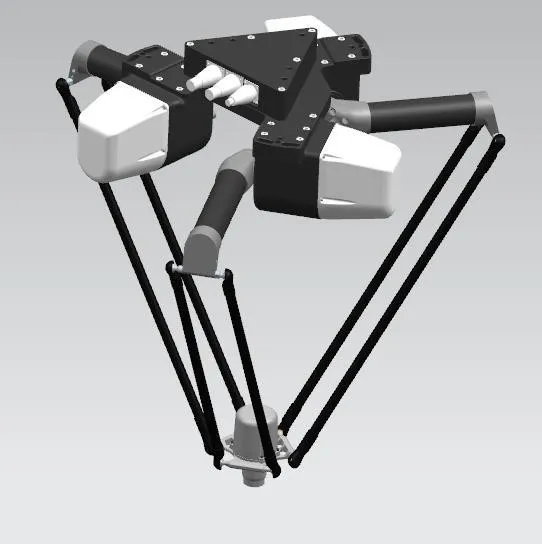

The delta robot is a classic parallel robot configuration with three-dimensional xyz translation and z-axis rotation. It has the advantages of high speed, high precision, high reliability, easy to use, and low maintenance cost. It is widely used in high-speed sorting and packaging areas.

★

Key Functions & Features

Speed Range: 70-150 times / min
Accuracy: Repeat positioning up to ±0.1mm
Application: Food, medicine, daily chemicals, electronics, etc.
Design: Unique compression spring for extended life
Precision: Universal joint with 0.5° rotation accuracy

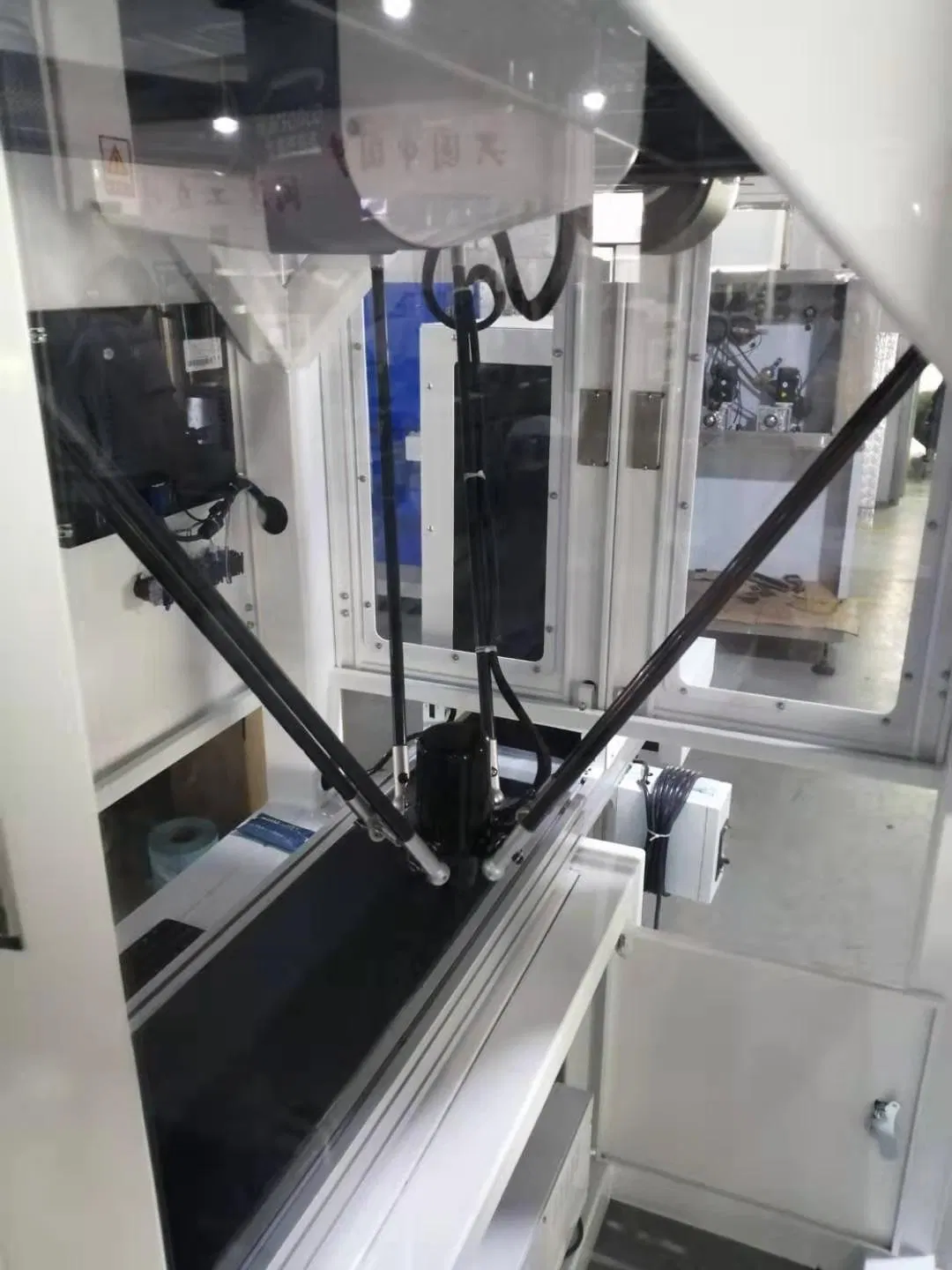

Installation: Inverted installation with good tracking
Handling: Visual dynamic tracking and ultra-high-speed pick up
Structure: High rigidity, small self-weight load ratio

Technical Parameters

Model		CR-800DJ
Degree of Freedom	Four axes	Repeat Accuracy	±0.1 mm
Rated Load	3 kg	Work Plan	X=800mm Y=250mm
Max Operating Speed	0.4 sec / beat	Visual Module	Optional (130w camera)
Motion Instruction	PTP, LINE, PICK, PLACE	Angle Accuracy	0.5°
Speed (BPM)	70-150	HMI	7 inch teach pendant
Noise Level	<70db	Robot Weight	68kg
Protection Level	IP56	Power Input	220V / 3kw
Installation	Inverted	Maximum Speed	6 m/s

Frequently Asked Questions

1. What is the maximum load capacity of the DR-800 Delta Robot? The DR-800 is designed to handle a maximum rated load of 3kg, making it ideal for lightweight pick and place tasks.

2. What is the repetition accuracy of this robot arm? It offers high-precision performance with a repeat positioning accuracy of up to ±0.1mm.

3. Which industries commonly use the Delta Parallel Robot? This robot is widely utilized in the food, medicine, daily chemicals, and electronics industries for high-speed sorting and packaging.

4. How many cycles per minute can the robot complete? The speed range is between 70 to 150 times per minute, depending on the specific application and payload.

5. Does the system support visual tracking? Yes, a visual positioning module is optional, featuring a 130w camera with addable lens and light source for dynamic tracking.

6. What are the installation requirements for the DR-800? The robot uses an inverted installation method, which provides excellent tracking performance and saves floor space.
