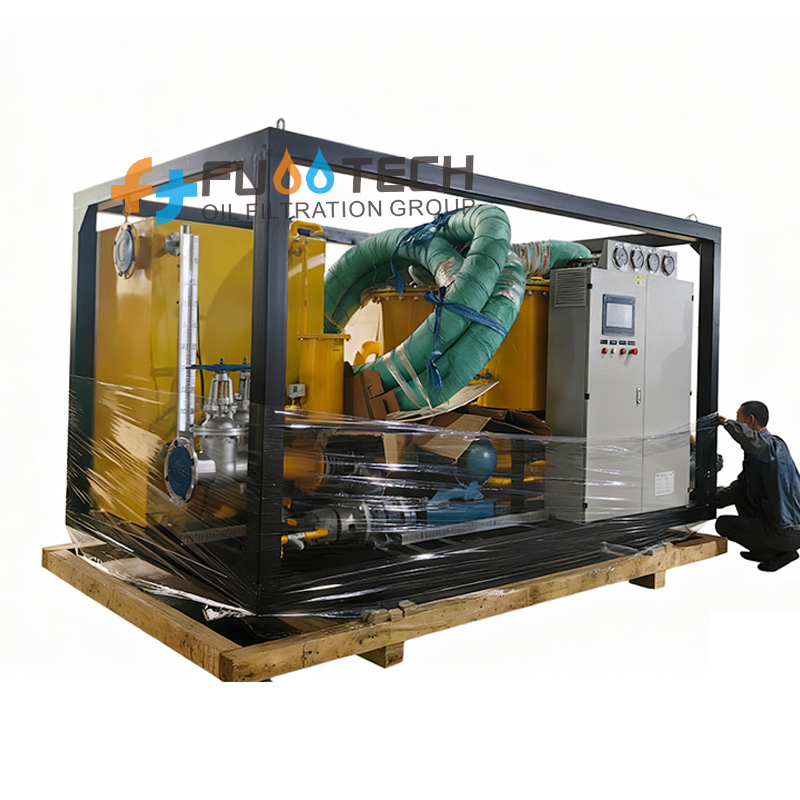

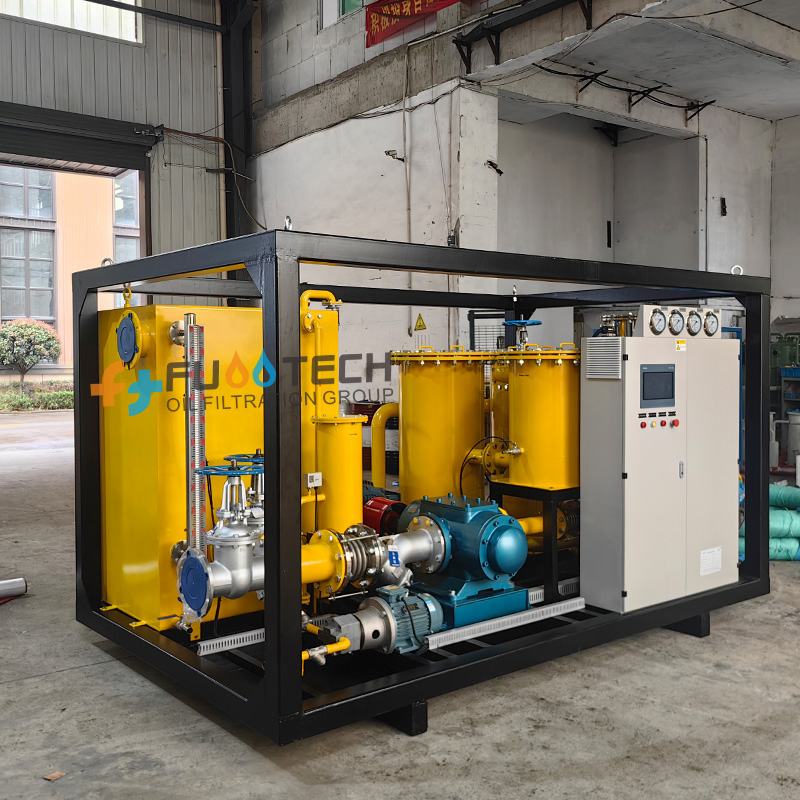

High Velocity Oil Flushing System High Velocity Oil Flushing Skid

Customization:	Available
Certification:	ISO9001, CE
Application:	Turbine Oil, Lubricant Oil

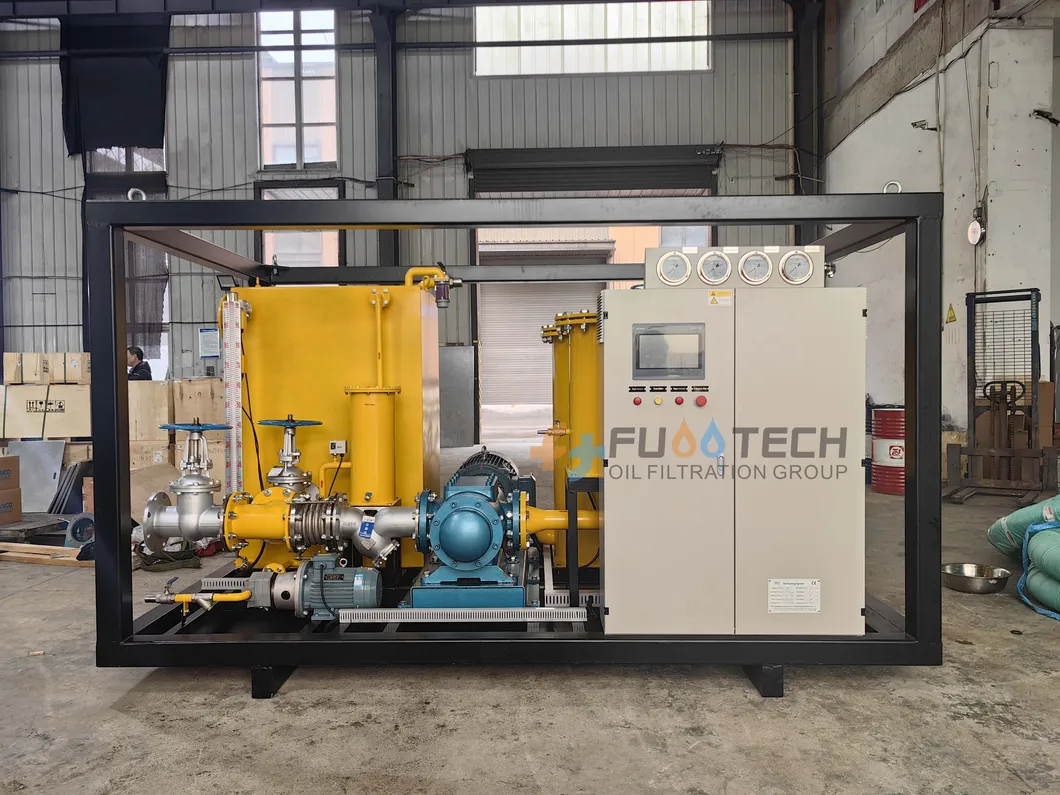

High Velocity Oil Flushing System

Designed for rapid cleaning and maintenance of large-scale industrial oil systems.

Basic Specifications

Model NO.

FT-FL

Voltage

220V

Power Supply

380 V, 50 Hz, 3 Phase

Discharge Pressure

0-10 Bar

Applications

Lube & Hydraulic Pipeline System

Certificates

CE, ISO, SGS

Continuous Work

≥ 150h

Warranty

1 Year

Electrical Components

Schneider

HS Code

8421299090

Product Description

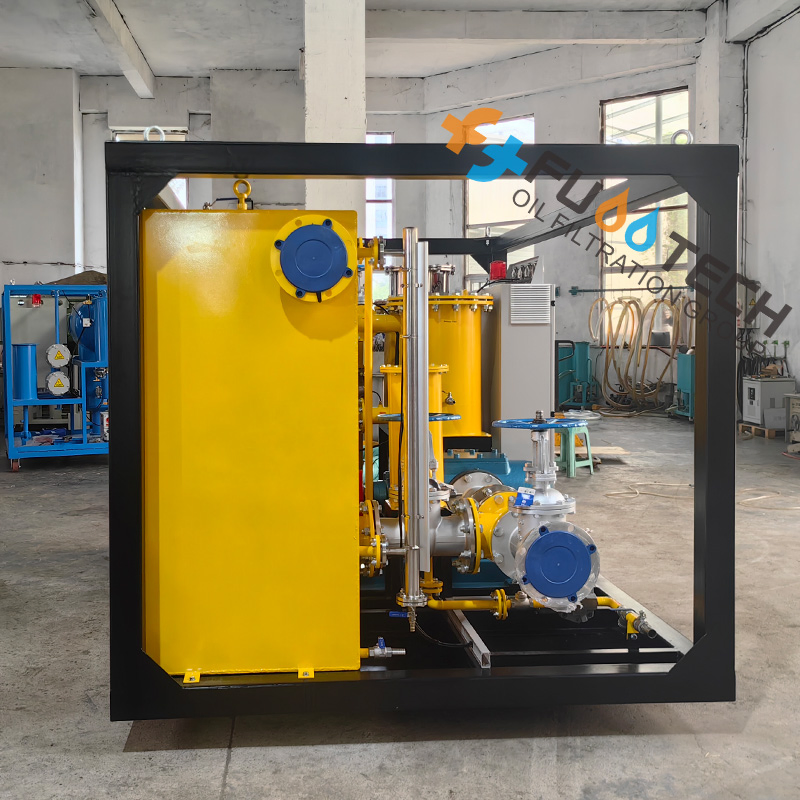

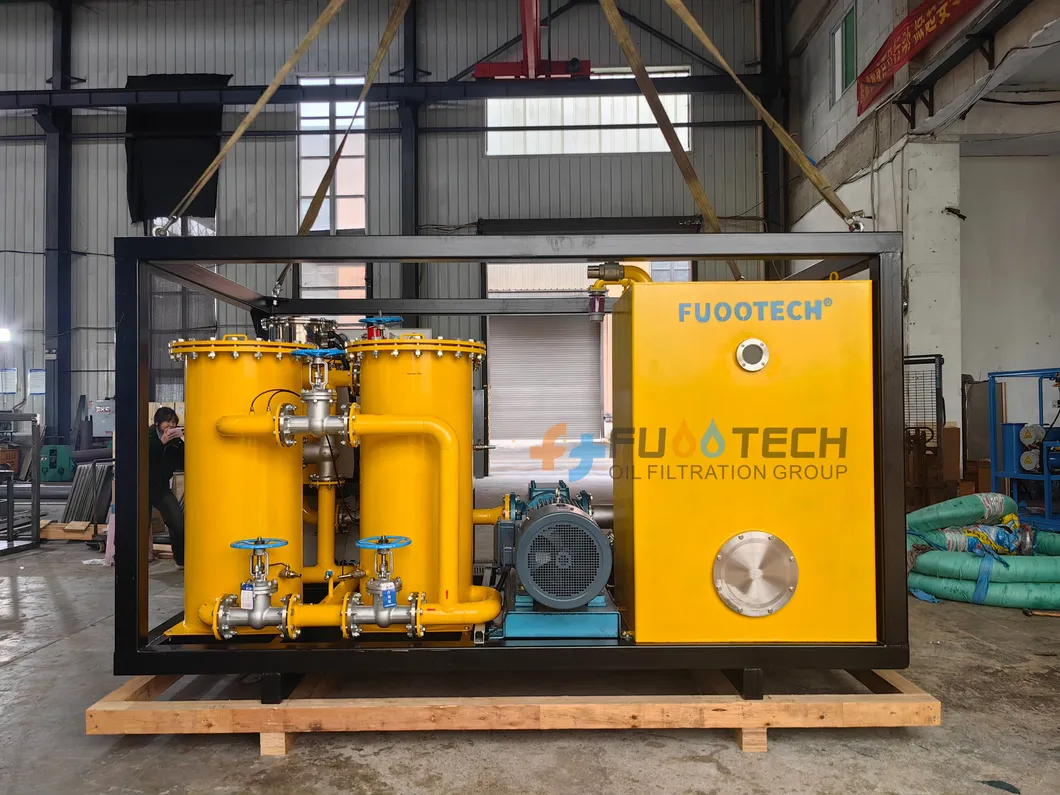

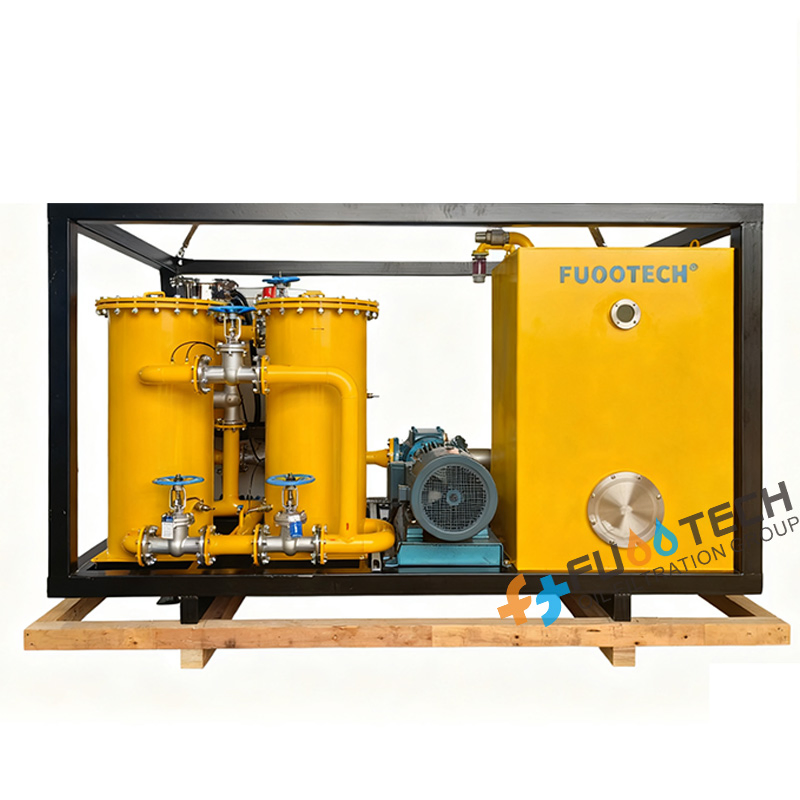

The High Velocity Oil Flushing Skid is specially designed for flushing and cleaning the oil system of large-scale equipment. It is used to completely and quickly remove particles, debris, sludge, and moisture inside the oil system to ensure safe production and reliable operation of the equipment.

Industries We Specialize in:

✓ LNG & Power Generation
✓ Steel Industry
✓ Petrochemical & Refining
✓ Oil & Gas
✓ Chemical Manufacturing

Types of Systems We Flush:

✓ Steam & Gas Turbines
✓ Reciprocating Compressors
✓ Stationary Engines
✓ Hydraulic & Seal Support Systems
✓ Refrigeration Compressors

Key Features & Advantages

01 Durable Oil Pump installed for high performance in varied applications.

02 Rapid oil delivery and transfer functions between tanks and drums.

03 Selectable modes: Flushing only, Fine Filtration, or High-precision Filtration.

04 Heavy duty heating system and stainless steel oil tank equipment.

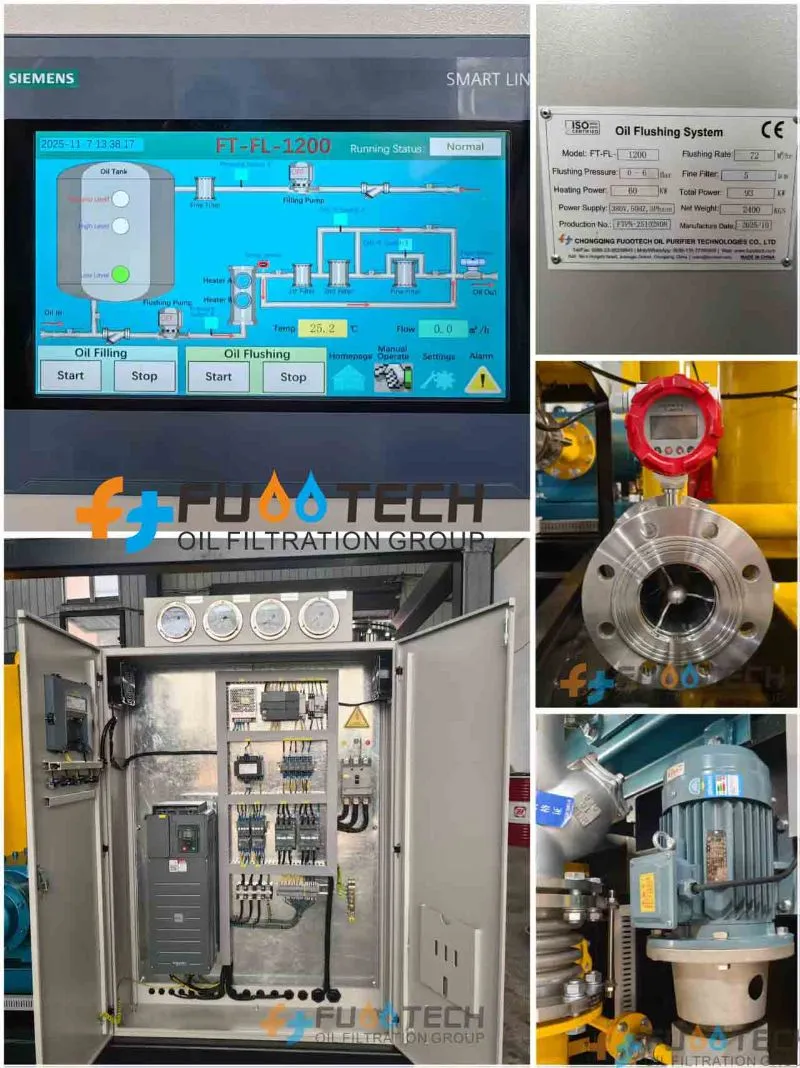

05 Real-time monitoring via integrated flow meters.

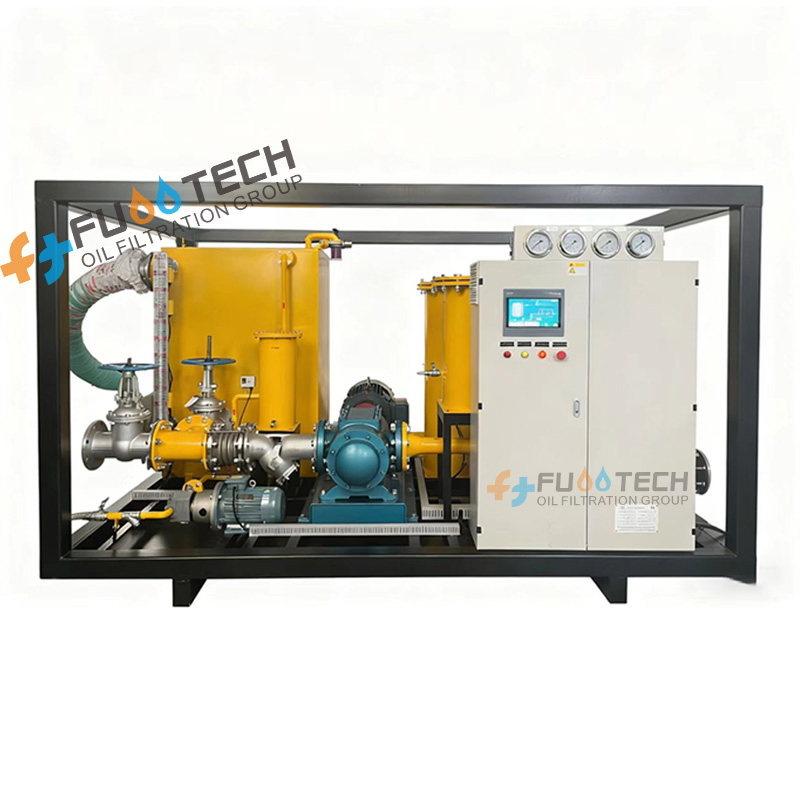

06 PLC + HMI control system for high automation and ease of use.

07 Built-in oil pan structure to prevent ground pollution.

08 Complete circuit, overload, and leakage protection functions.

Technical Parameters

Parameter	FT-FL-600	FT-FL-1200	FT-FL-2000	FT-FL-4000	FT-FL-5500
Flushing rate (L/min)	600	1200	2000	4000	5500
Filter Stage	3	3	3	3	3
Power Supply	380 V, 50 Hz, 3 phase
Size (mm)	2000×1500×1750	3200×2000×2020	3600×2100×2100	4000×2100×2050	4800×2200×2150
Approx. Weight (KG)	1600	2500	3800	4500	6200

Note: Dimensions and weights are subject to change based on technical specifications. Customization is available.

Frequently Asked Questions

What is the primary purpose of a high velocity oil flushing system?

It is designed to rapidly remove contaminants such as particles, sludge, debris, and moisture from large-scale oil systems (like turbines and compressors) to ensure equipment reliability and prevent damage during operation.

Can this system be used for different types of oil?

Yes, it is primarily designed for lube oil and hydraulic oil pipeline systems across various industries including power generation, steel, and petrochemical plants.

What are the different filtration modes available?

The system offers three selectable functions: flushing only, flushing combined with fine filtration, and a high-precision filtration mode to meet specific cleanliness requirements.

Is the system automated?

Yes, it is equipped with a PLC and HMI (Human Machine Interface) system, allowing for convenient operation and a high degree of automation during the flushing process.

What safety protections are integrated into the skid?

The unit includes comprehensive protection features such as short circuit protection, overload protection, voltage loss protection, and leakage protection to ensure operator and equipment safety.

Are custom specifications available for different flow rates?

Absolutely. While standard models range from 600 to 5500 L/min, all technical specifications can be customized to meet the specific requirements of the client's oil system.
