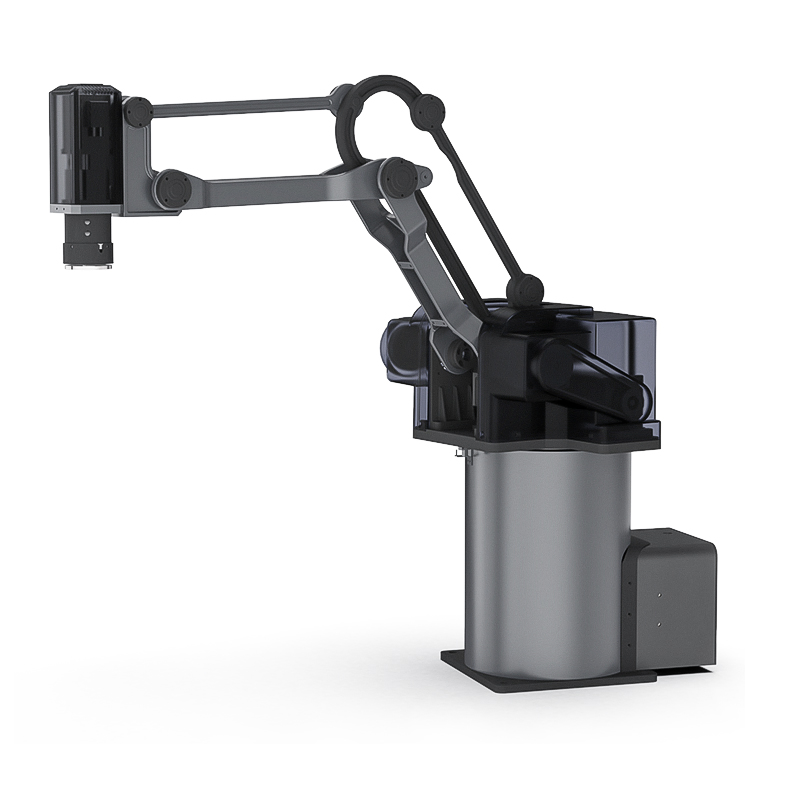

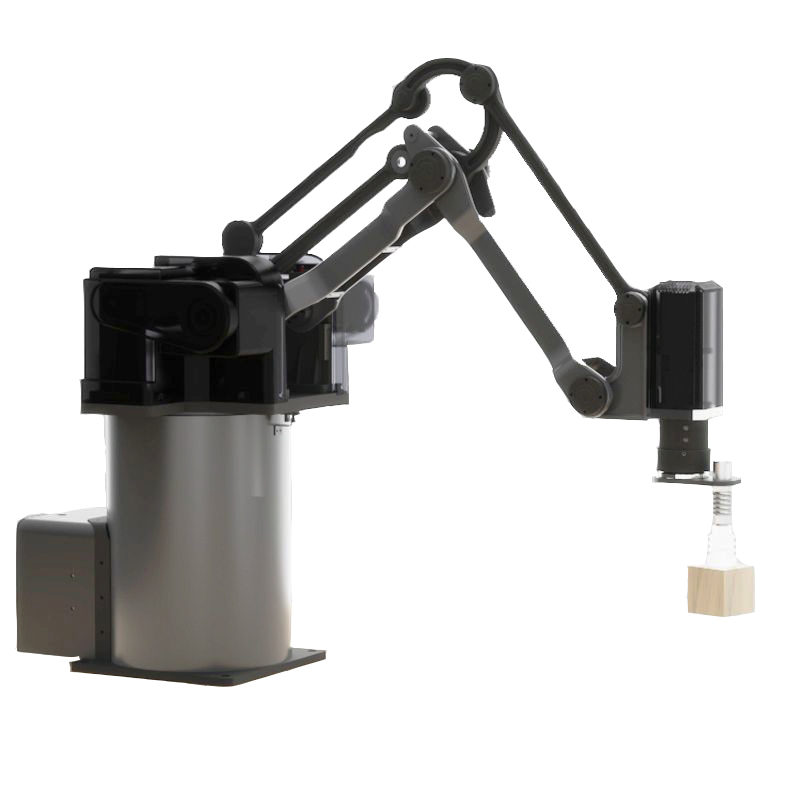

4086A Intelligent Robot Automatic Palletizing Arm Concrete Bricks Pneumatic Manipulator

Technical Specifications

Model NO.

ZKBOT-4086 (Servo high-speed version)

Degrees of Freedom

4-axis

Drive Mode

Electric

Type

Cartesian Robot

Payload

3kg

Repeat Positioning

±0.05mm

Maximum Reach

750mm

Working Voltage

AC220V/110V

Power Consumption

100W

Robot Weight

37kg

Drive Configuration

Servo Motor 750W*1 + 400W*2 + 100W*1

Communication

Serial Port, 10 Inputs, 10 Outputs

Certification

CE

Package Size

150cm * 150cm * 150cm

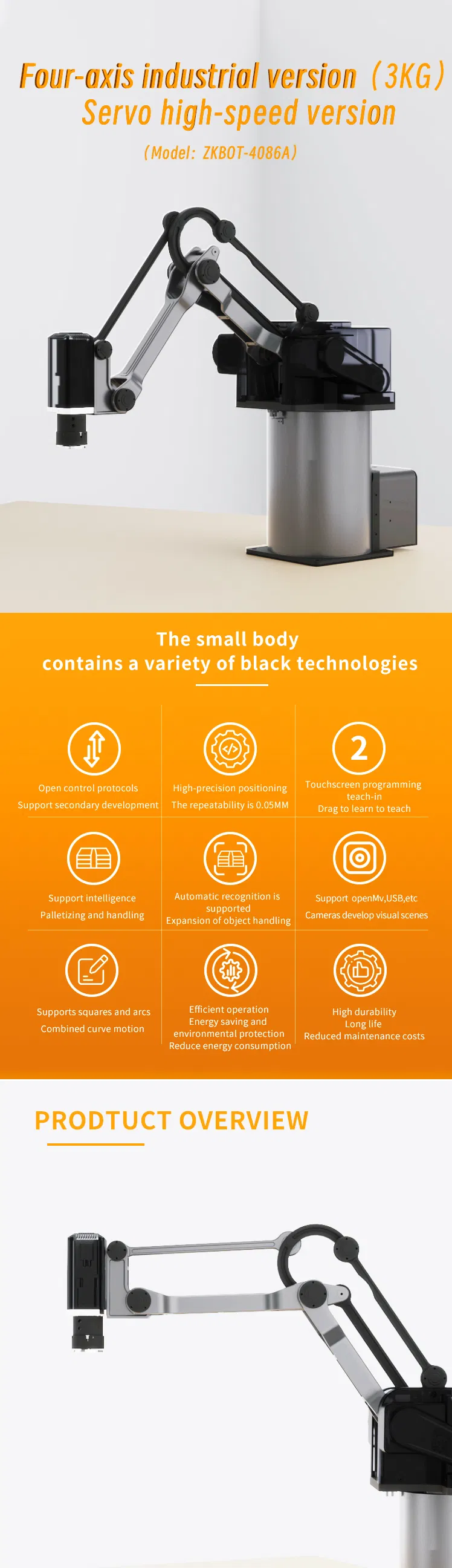

Product Overview

Our Industrial Mechanical Arm is designed for high-precision tasks including handling, palletizing, loading/unloading, assembly, and gluing. It features a robust 4-axis configuration powered by advanced servo motors and helical gear reducers.

⚙️

High Precision

Equipped with closed-loop encoder motors ensuring no lost steps and ±0.05mm repeated accuracy.

🖱️

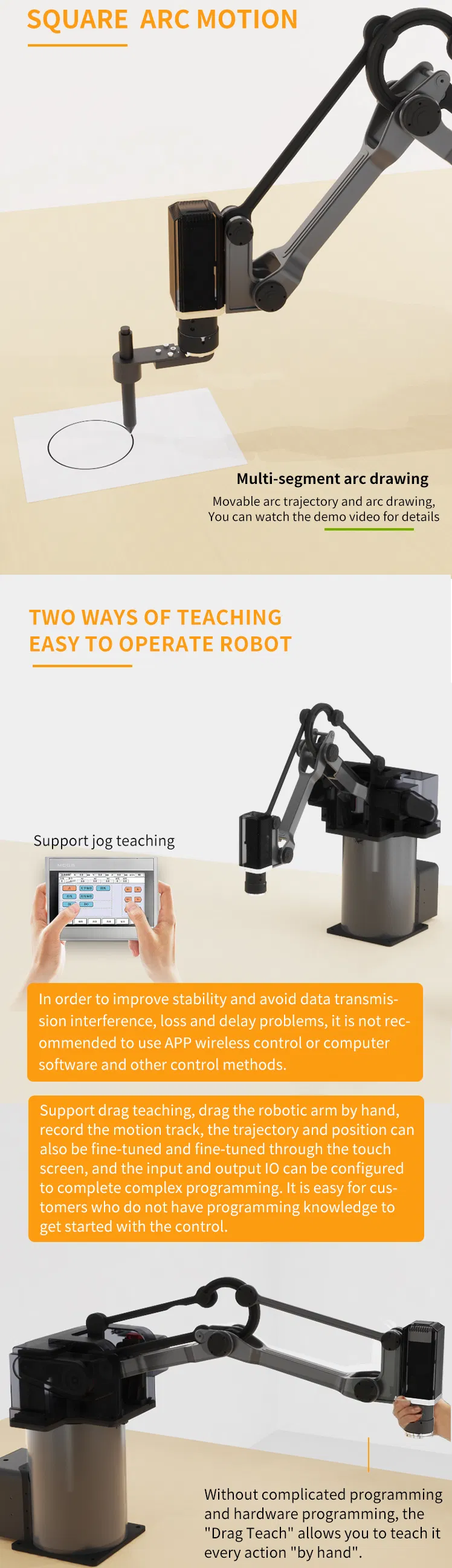

Drag Teaching

Easy manual teaching by dragging the arm. No complex programming required for basic motion tracks.

👁️

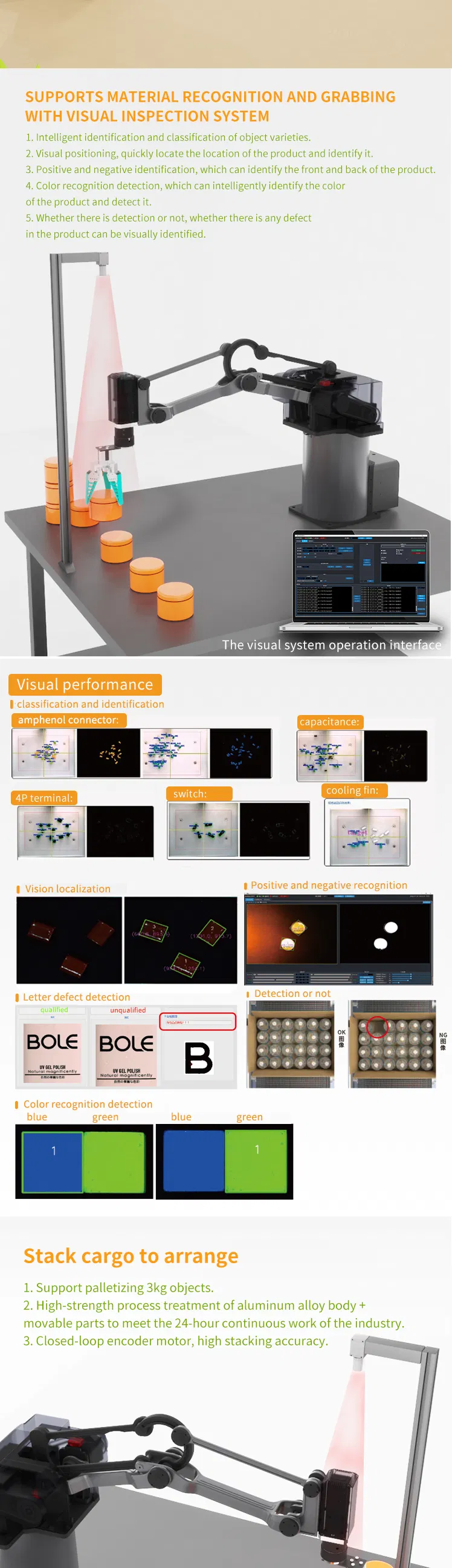

Visual Intelligence

Supports OpenMv and USB cameras for defect detection, color recognition, and positioning.

🛡️

Safety First

Equipped with permanent magnet brakes to prevent damage during sudden power-off situations.

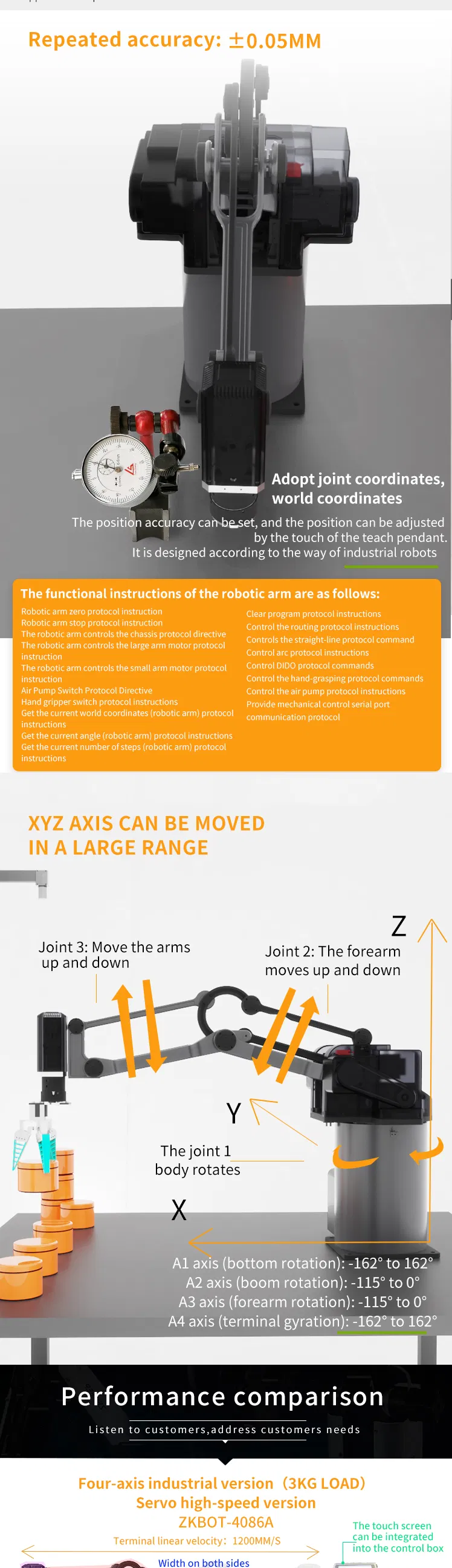

Visual Representation

Handling & Functionality

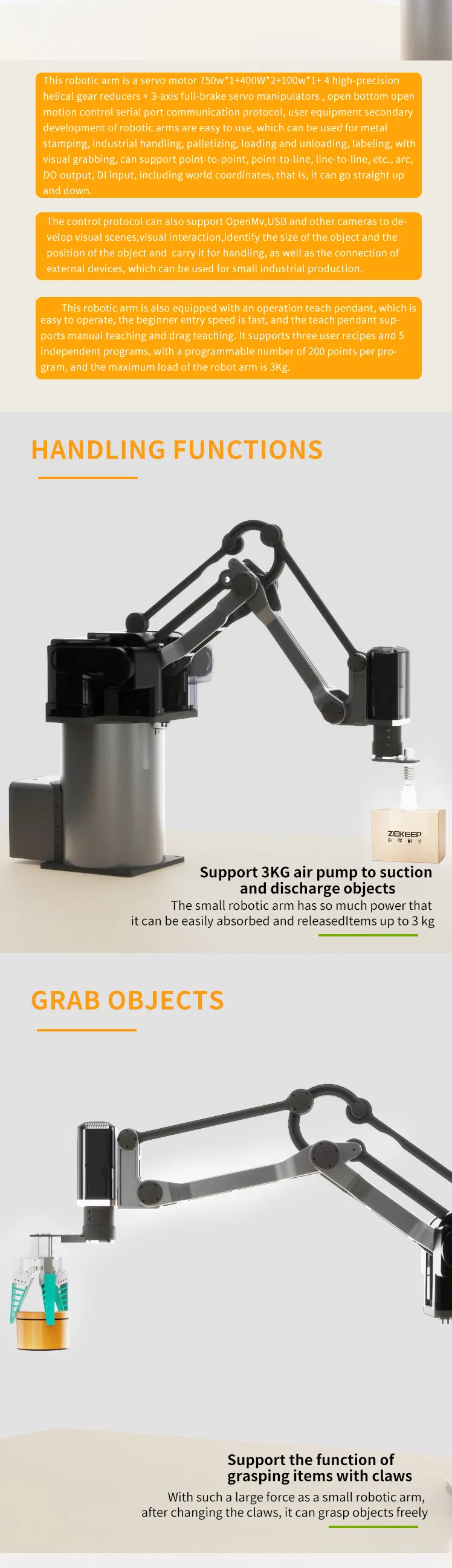

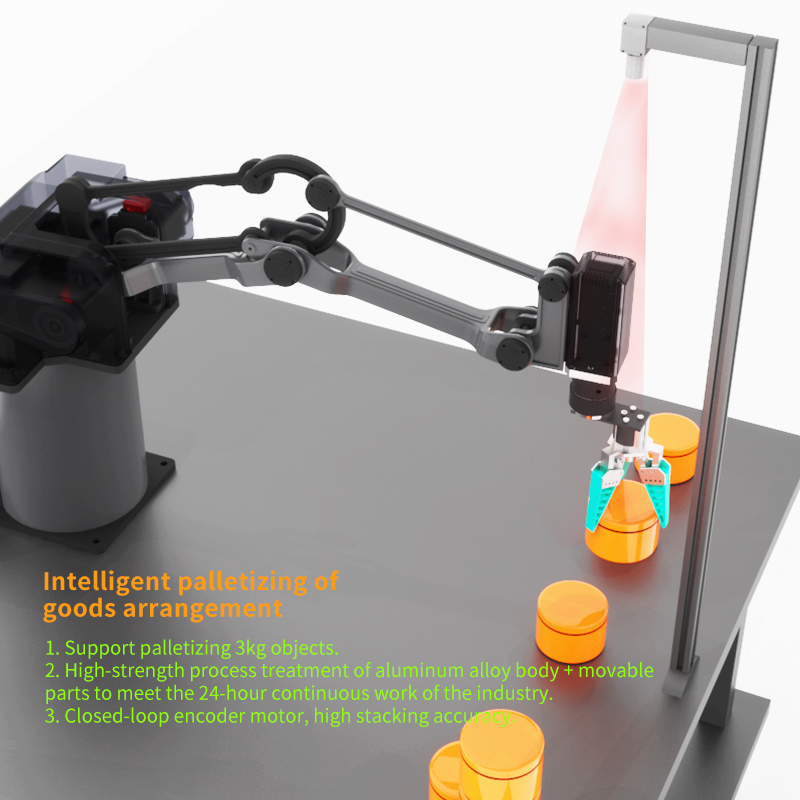

Powerful Suction: Supports 3KG air pump for efficient suction and discharge of materials.
Versatile Gripping: Interchangeable claws for free grasping of diverse objects.
Complex Motion: Supports square, arc, and multi-segment trajectory movements.
Industrial Ready: Aluminum alloy body designed for 24-hour continuous operation.

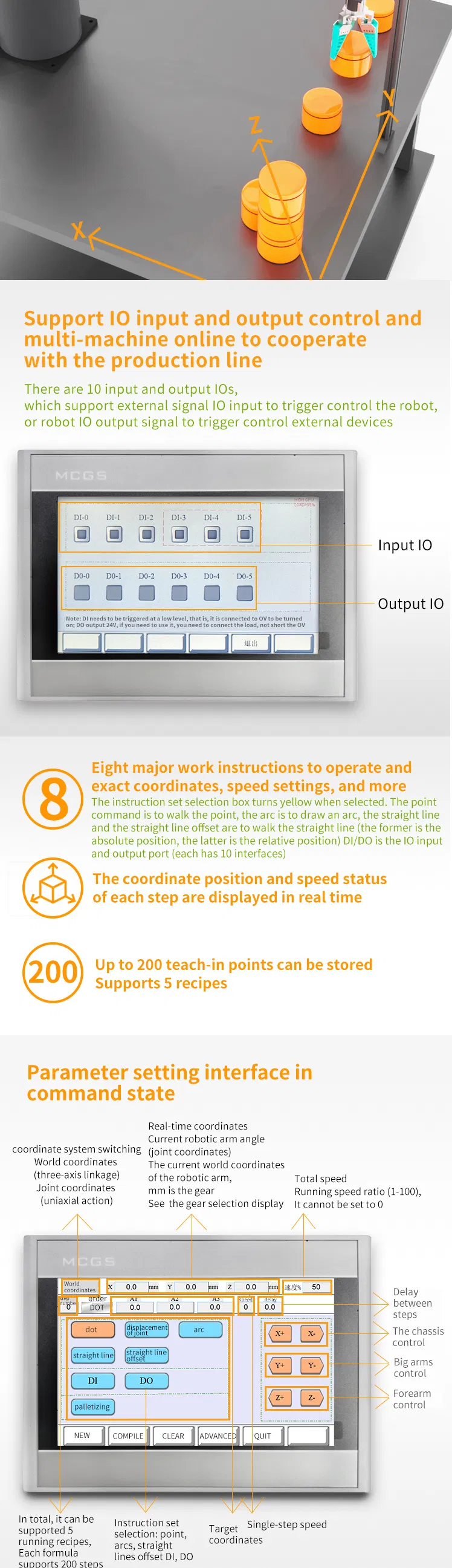

I/O Control: 10 inputs and 10 outputs to trigger external devices or respond to external signals.
