High Safety Knuckle Boom Crane Industrial Machinery Jacketed Top Land Lined Cantilever Loading and Unloading Equipment Arm

Customization:	Available
After-sales Service:	Lifetime Maintenance Services
Warranty:	12 Months (or as Per Customer Requirements)

i

Basic Info.

Condition

New

Customized

Certification

ISO9001, QS, TUV

Type

Single-Arm, Double-Arm

Storage Objects

Solid, Liquid, Gas

Pipeline Material

CS, Ss, Aluminum Alloy, Steel Lined with PTFE, etc

Applicable Tank

Applicable for Top Tankers.

Balance Mode

Spring Cylinder or Counterweight

Design Temp.

- 196 ~ + 250°c

Nominal Diameter

DN25~DN200

Applicable Products

Oil Products, Petrochemicals, LNG and Other Fluids

Operating Method

Manual, Pneumatic or Hydrauilc

Design Pressure

-0.06~5.0MPa

Production Capacity

4000 Sets/Year

★

Product Description

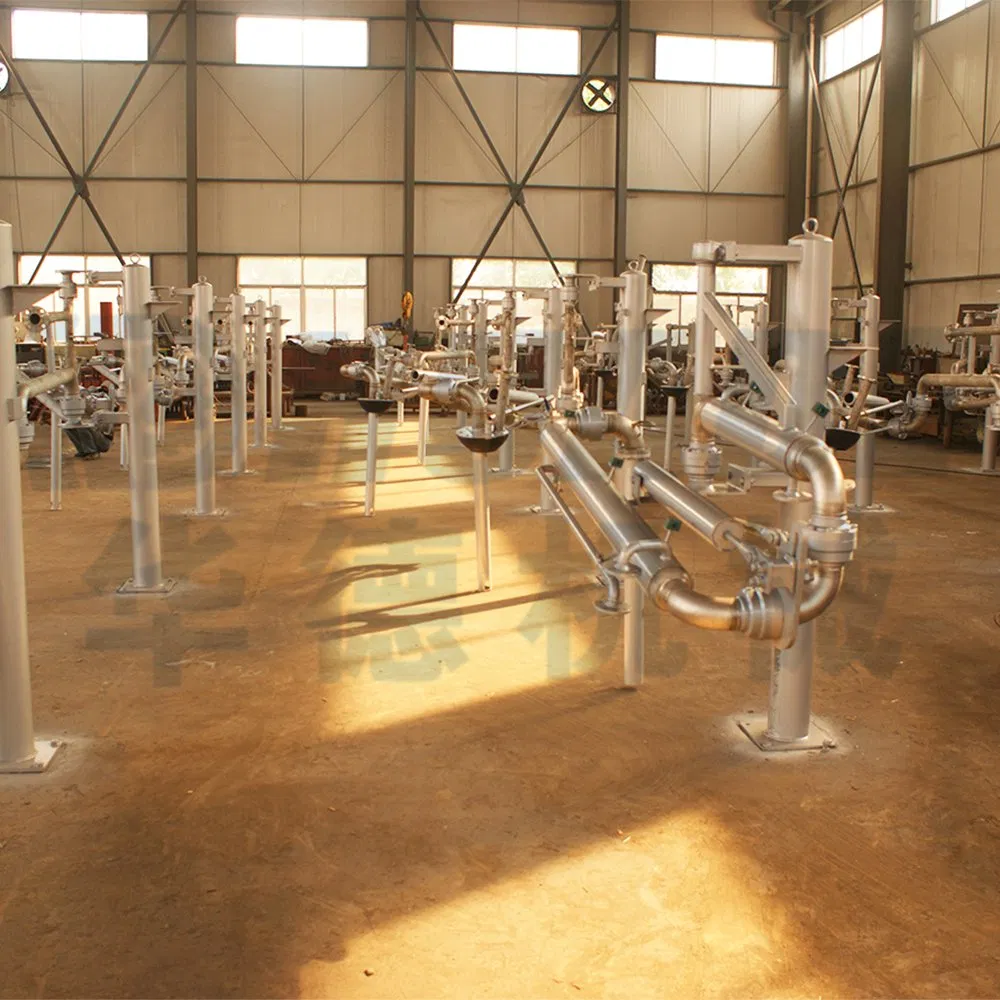

The Top Loading Arm with Two Arms is a specialized device designed for efficient and safe liquid transfer from the top of road or rail tankers.

Flexibility and ManeuverabilityMultiple swivel joints allow it to reach different loading positions flexibly, custom-designed to meet site requirements.

Safety FeaturesOptional emergency shut-off, overfill protection, and vapor recovery systems to minimize risks.

High Flow DesignEngineered for high flow rates ensuring rapid and efficient liquid loading.

Multiple Balance SystemsEquipped with advanced spring or counterweight mechanisms for smooth and precise movements.

Antistatic DeviceIntegrated systems effectively eliminate static electricity during fluid movement.

Vapor Recovery (Optional)Collects volatile organic compounds (VOCs) to reduce environmental impact.

⚙

Product Parameters

ITEM	SPECIFICATION
Nominal Diameter	DN25 ~ DN200 (1"-8")
Design Pressure	-0.06MPa ~ 5.0MPa
Design Temp.	-196ºC ~ 250ºC
Pipeline Material	CS, SS, Aluminum Alloy, Steel lined with PTFE, etc.
Operating Method	Manual, Pneumatic or Hydrauilc
Balance Mode	Spring cylinder or counterweight

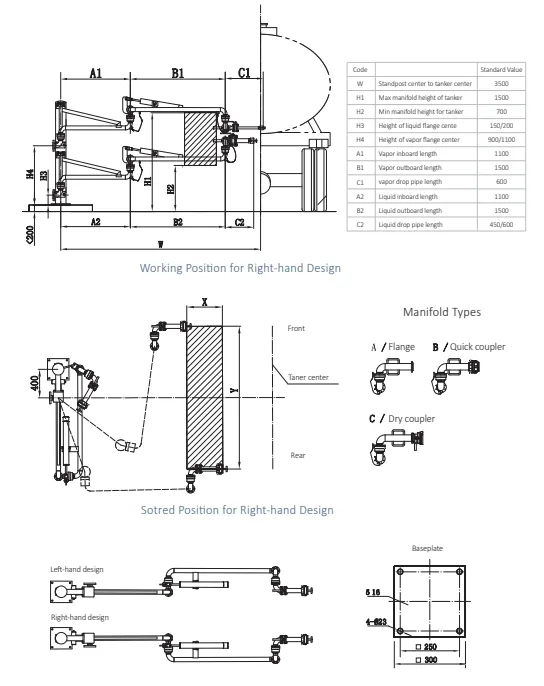

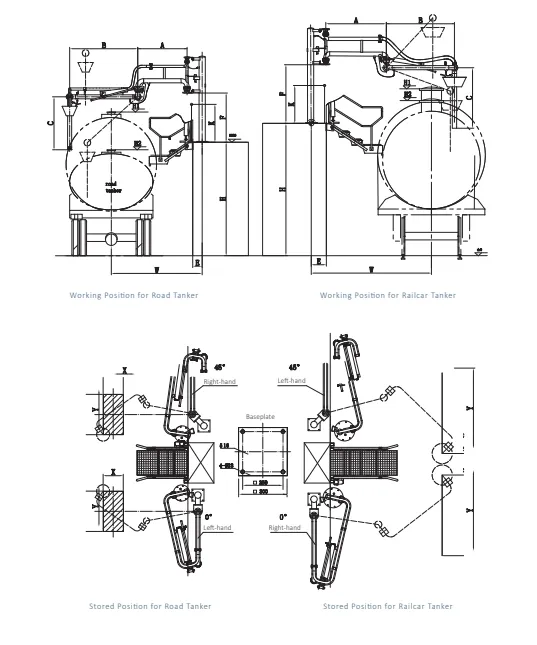

Structural Diagrams:

✔

Application Areas

Oil and GasTransfer of crude oil, refined petroleum, and LNG at refineries and terminals.

Chemical IndustryHandling corrosive, hazardous, or high-viscosity chemicals safely.

Food & BeverageHygienic designs for milk, edible oils, syrups, and juices.

PharmaceuticalsSafe handling of solvents meeting stringent hygiene standards.

Water TreatmentTransfer of chlorine, sulfuric acid, and other agents.
