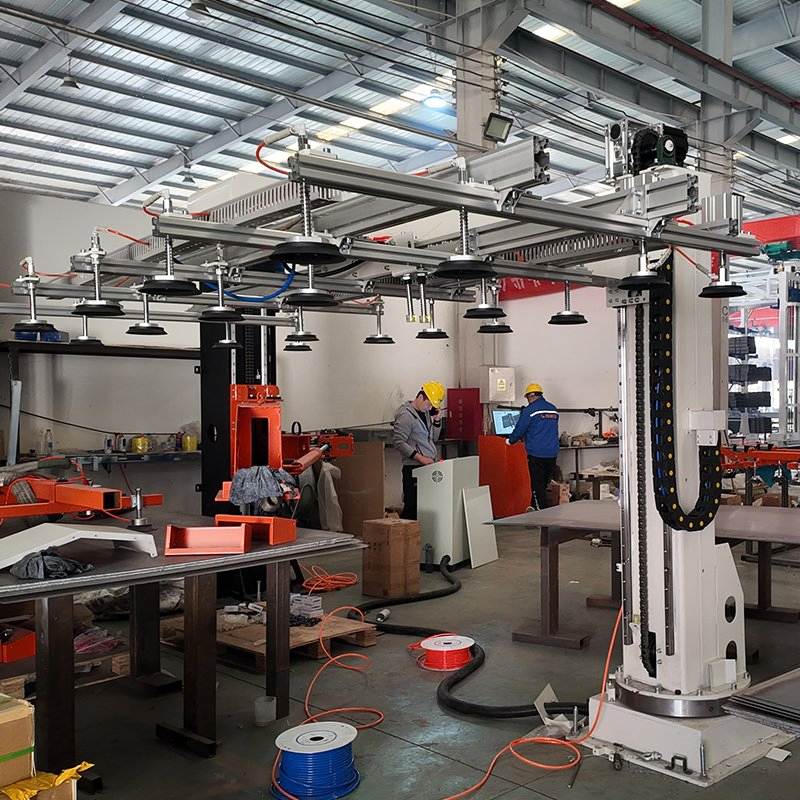

Labor Saving Robotic Arm for Automated Sheet Loading and Transport

1 / 5

Labor Saving Robotic Arm for Automated Sheet Loading and Transport

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.	HC-R3015-500
Payload Capacity	200 kg
Reach	2000 mm
Column Height	Electric: 4m / Pneumatic: 3.3m
Plate Thickness	8-20mm
Board Weight	300-1000kg
Power Mode	Pneumatic/Electric
Number of Suction Cups	8-10
HS Code	8428909090
Production Capacity	10,000 sets/Year

Product Description

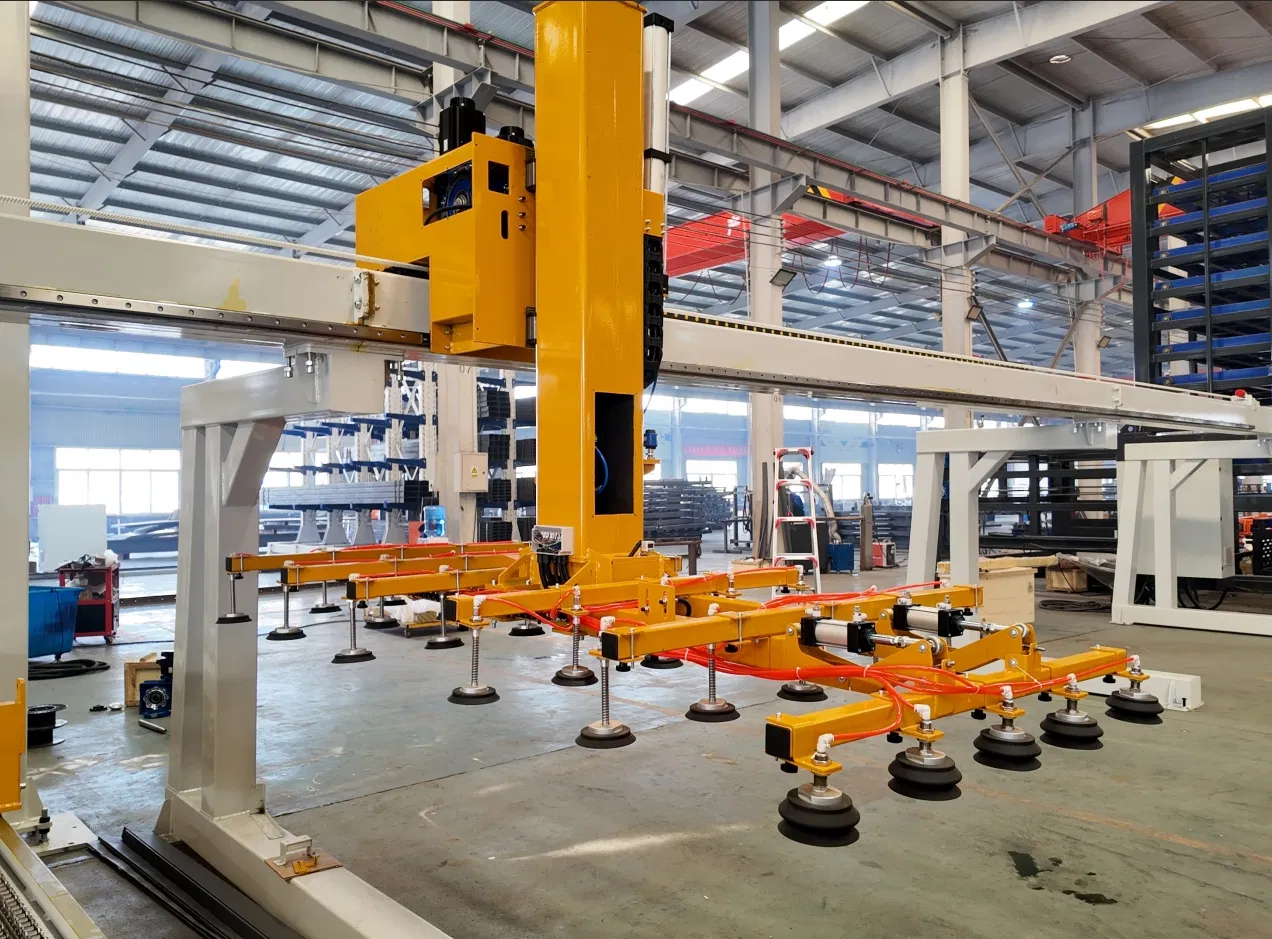

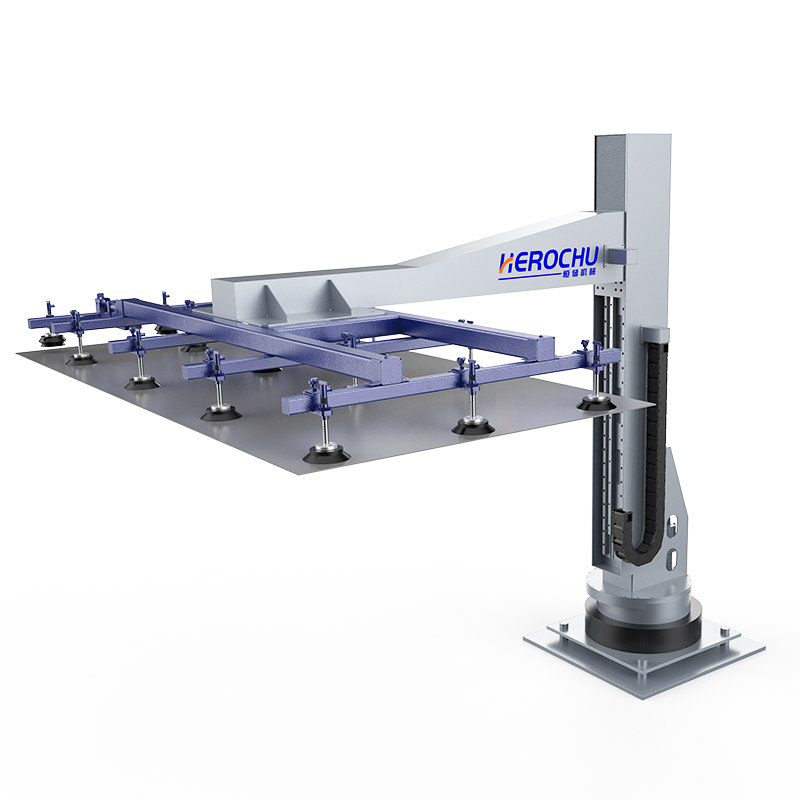

This 3-axis robot is a professional automatic handling equipment designed for plate materials including metal, wood, and plastic. It integrates three linear motion axes (X/Y/Z) and customized grabbing accessories to solve industrial pain points such as heavy plate weight, manual handling risks, and low efficiency.

★Key Features

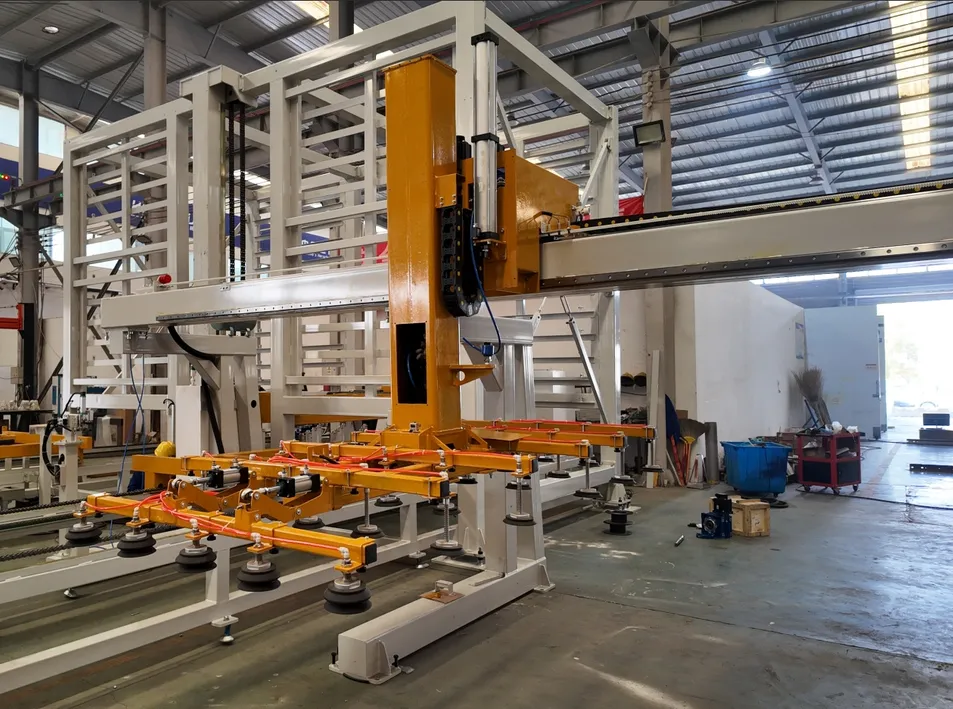

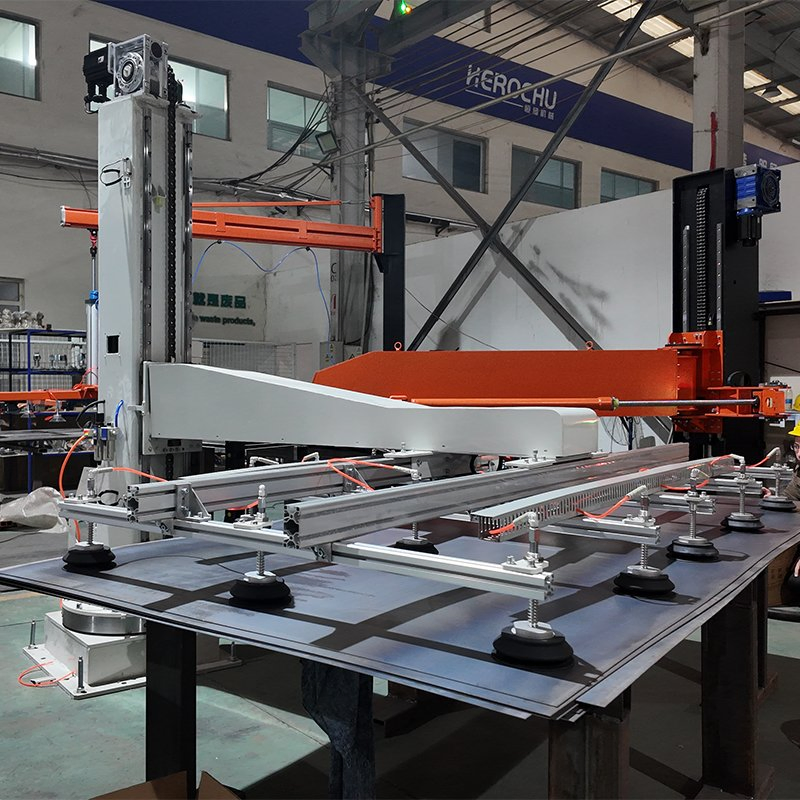

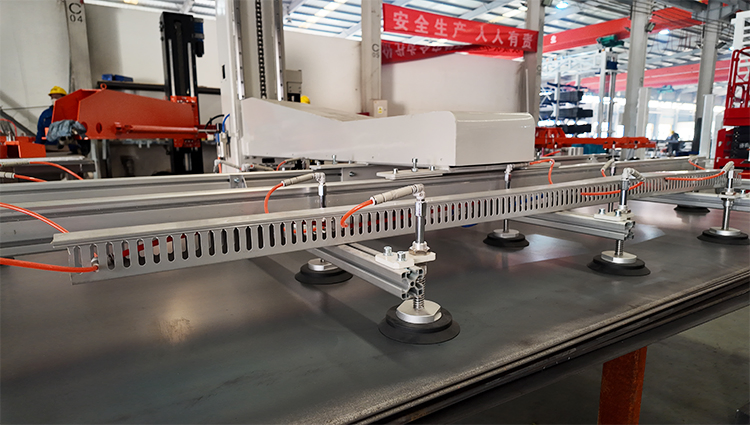

Specialized for Plate Handling Customized vacuum suction cups and mechanical clamps ensure no scratches on surfaces and stable grabbing for sheets up to 2m x 3m.

High Load & Precision Supports a maximum load of 300kg with a repeat positioning accuracy of ±0.05mm, meeting high-precision industrial requirements.

Space-Saving Design Compact structure fits narrow warehouse channels and tight production lines, maximizing your available workspace.

24H Automatic Operation Driven by servo motors for continuous work without fatigue, improving efficiency by 60% compared to manual labor.

Technical Specifications

1Axis Configuration

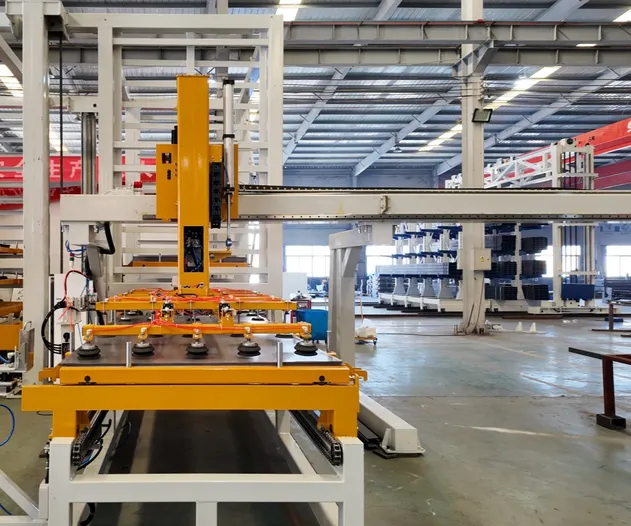

Axis 1 (Base Rotation): Allows swiveling between material racks and machine beds.

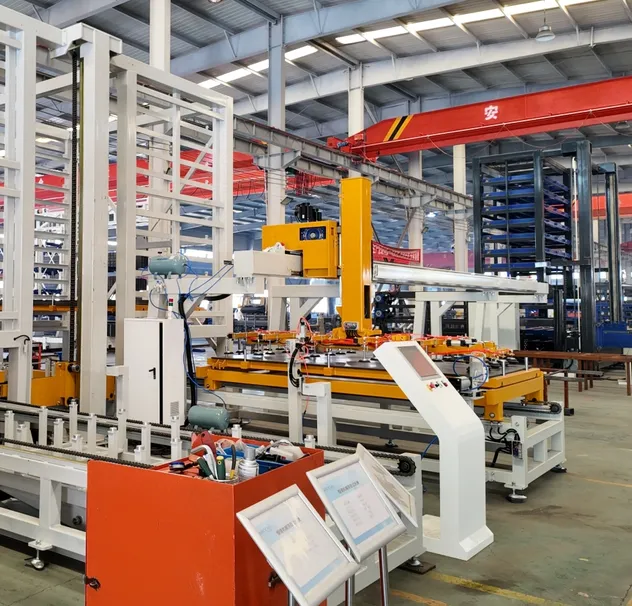

Axis 2 (Elbow Lift): Provides vertical reach for different pallet levels.

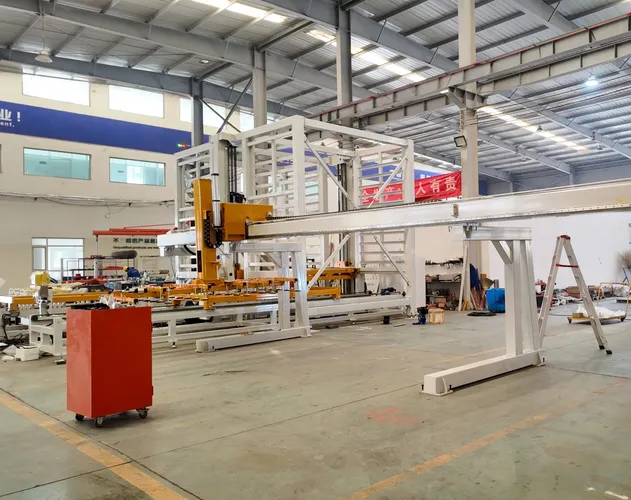

Axis 3 (Wrist Tilt): Enables precise gripper angle adjustments.

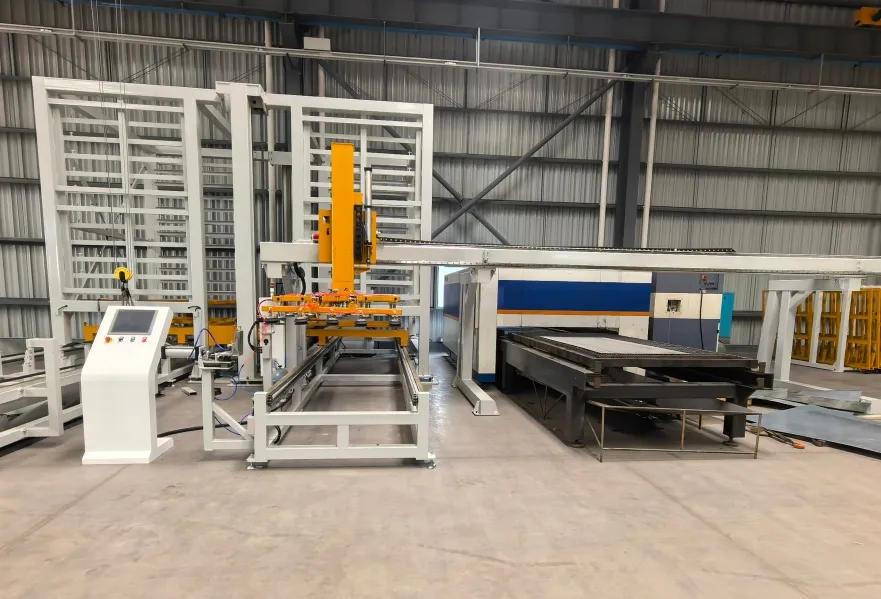

Available Models

100 kg Model Ideal for high-speed processing of light gauge materials like stainless steel and aluminum.

200 kg Model The versatile workhorse for standard sheet sizes and thicknesses in general fabrication.

300 kg Model Engineered for heavy plate operations, loading thick steel plates with unwavering stability.

After Sales Service

Standard Warranty: 12 months or 2,000 operating hours.

Extended Warranty: Optional coverage available up to 12 months.

Global Support: 24/7 technical assistance and spare parts supply.

Training: Comprehensive on-site or remote operation and maintenance training.

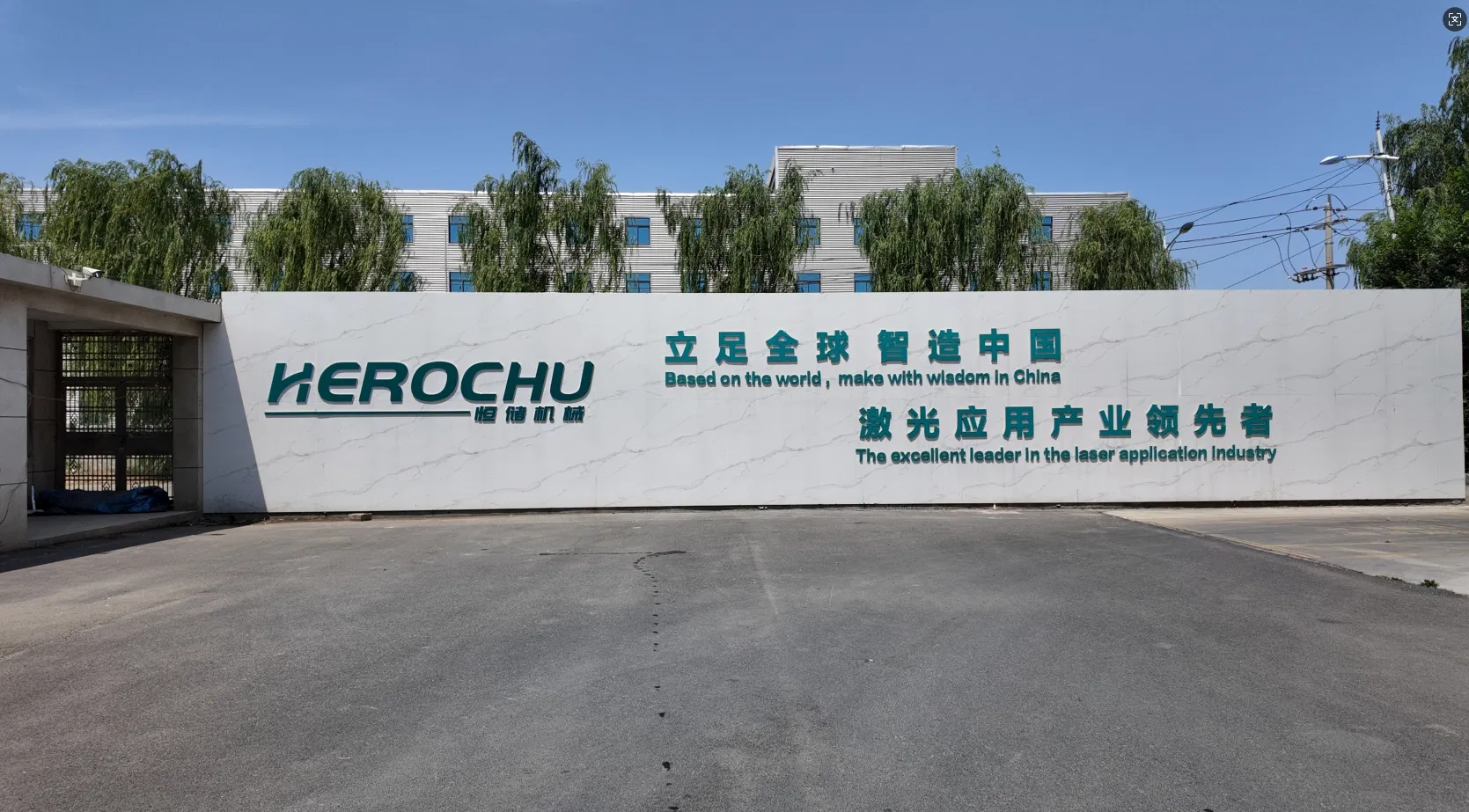

Manufacturing Excellence

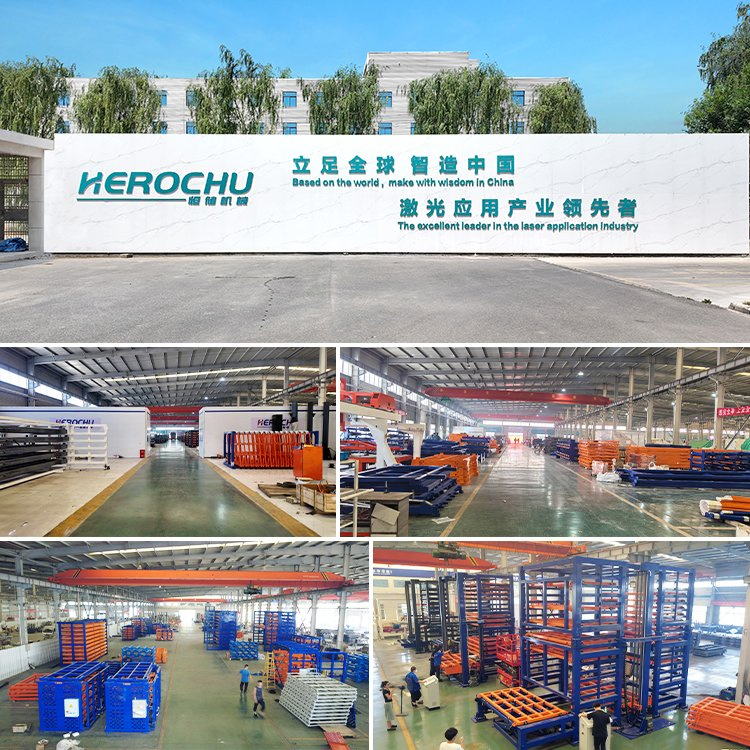

Our facility integrates R&D, production, and service, focusing on intelligent sheet metal storage and automated loading systems. A dedicated quality inspection team conducts item-by-item inspections, ensuring every interface and component meets strict standards.

Frequently Asked Questions

Q1: How can I choose the right robotic arm for my needs?

Please provide details regarding the material type, dimensions (size/thickness), and the maximum weight of the plates you need to transport. Our team will recommend the most suitable model based on these parameters.

Q2: Do you offer integrated loading and unloading systems?

Yes. We provide both standalone loading arms and fully integrated systems. We will need to know your laser cutting machine table size and your preferred loading method (board rack, exchange platform, or material warehouse).

Q3: Is on-site installation and debugging available?

Yes, we provide professional installation and debugging services globally. Our technical teams have successfully served customers in the United States, Russia, South Korea, Qatar, Mexico, and many other regions.

Q4: How is product quality guaranteed?

We implement ISO9001 quality standards and hold CE certifications. Every unit undergoes rigorous load testing and inspection before leaving the factory to ensure structural safety and stability.

Q5: Can I visit the factory or see the equipment in action?

We welcome on-site visits to our 10,000 square meter modern facility. We can also arrange live video inspections to demonstrate our manufacturing strength and product performance.

Q6: What materials can the robotic arm handle?

The system is designed for a wide range of flat materials, including stainless steel, aluminum, brass, wood panels, and plastic plates, without causing surface scratches.
