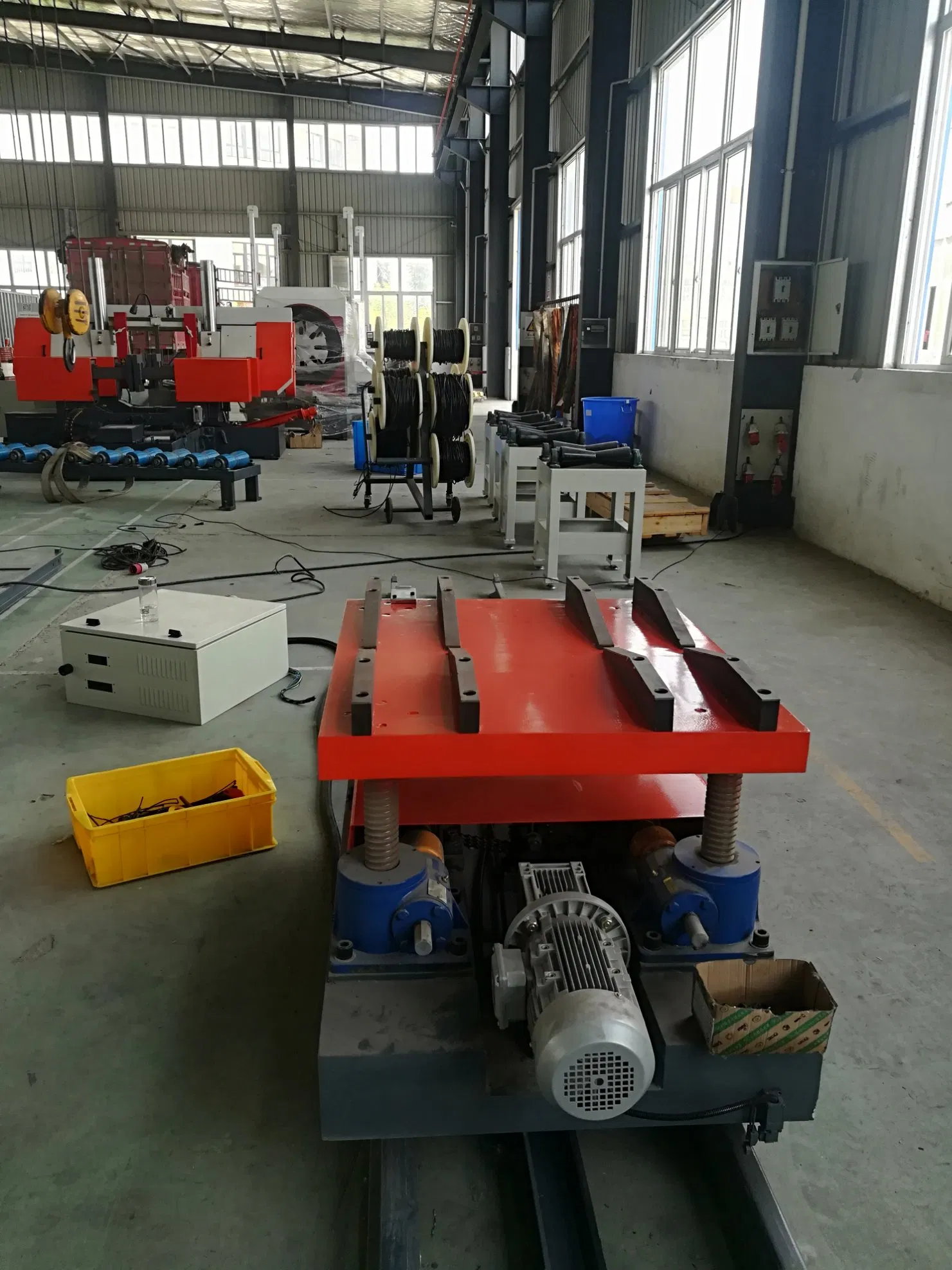

Lateral Conveying System for Piping Fabrication-Pipe Convey

Still deciding? Get samples of $ !
Request Sample

Product Description

i

Basic Information

Model NO.
PHLTS-16A2/24A2/32A2
Structure
Conveyor System
Material
Alloy/Carbon Steel
Material Feature
Fire Resistant
Application
Mining Transport
Condition
New
Structure (Chain)
Roller Chain
Usage
Transportation Chain
Origin
China
HS Code
8428392000

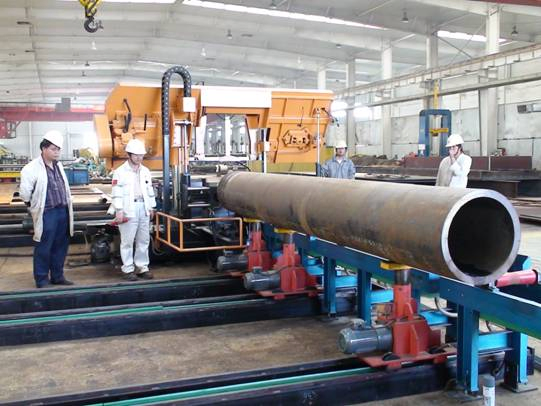

Pipe Transverse Automatic Conveying System

Models: PHLTS-16A1/A2, 24A1/A2, 32A1/A2

Performance Features:

  • Conveying the pipe or spool pieces transversely during beveling or automatic welding processes.
  • Significant increase in automation levels for pipe fabrication plants.
  • Reduces operational hazards typically associated with manual hoisting.

Technical Parameters

Pipe Diameter
DN50~600 (φ 60~610)
Conveying Length
≥ 1000MM
Line Length
7.5M (Customizable)
Line Height
800MM

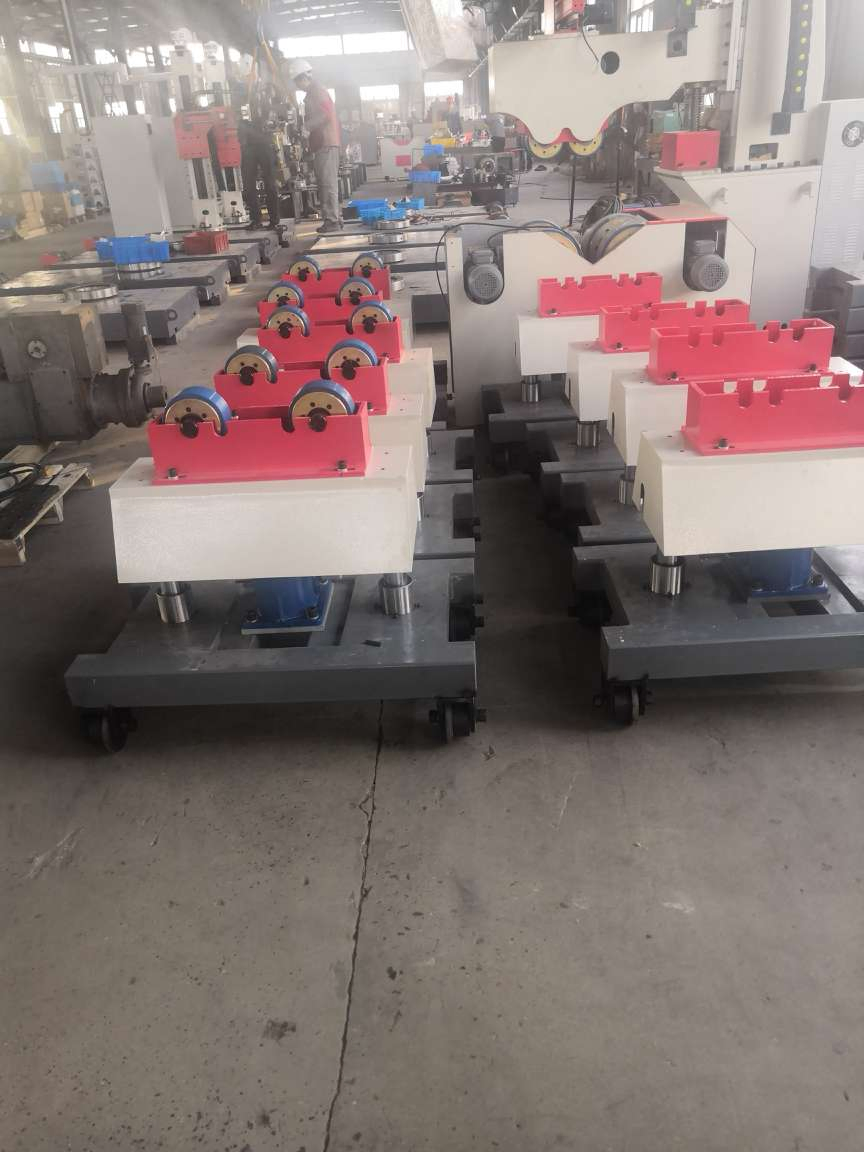

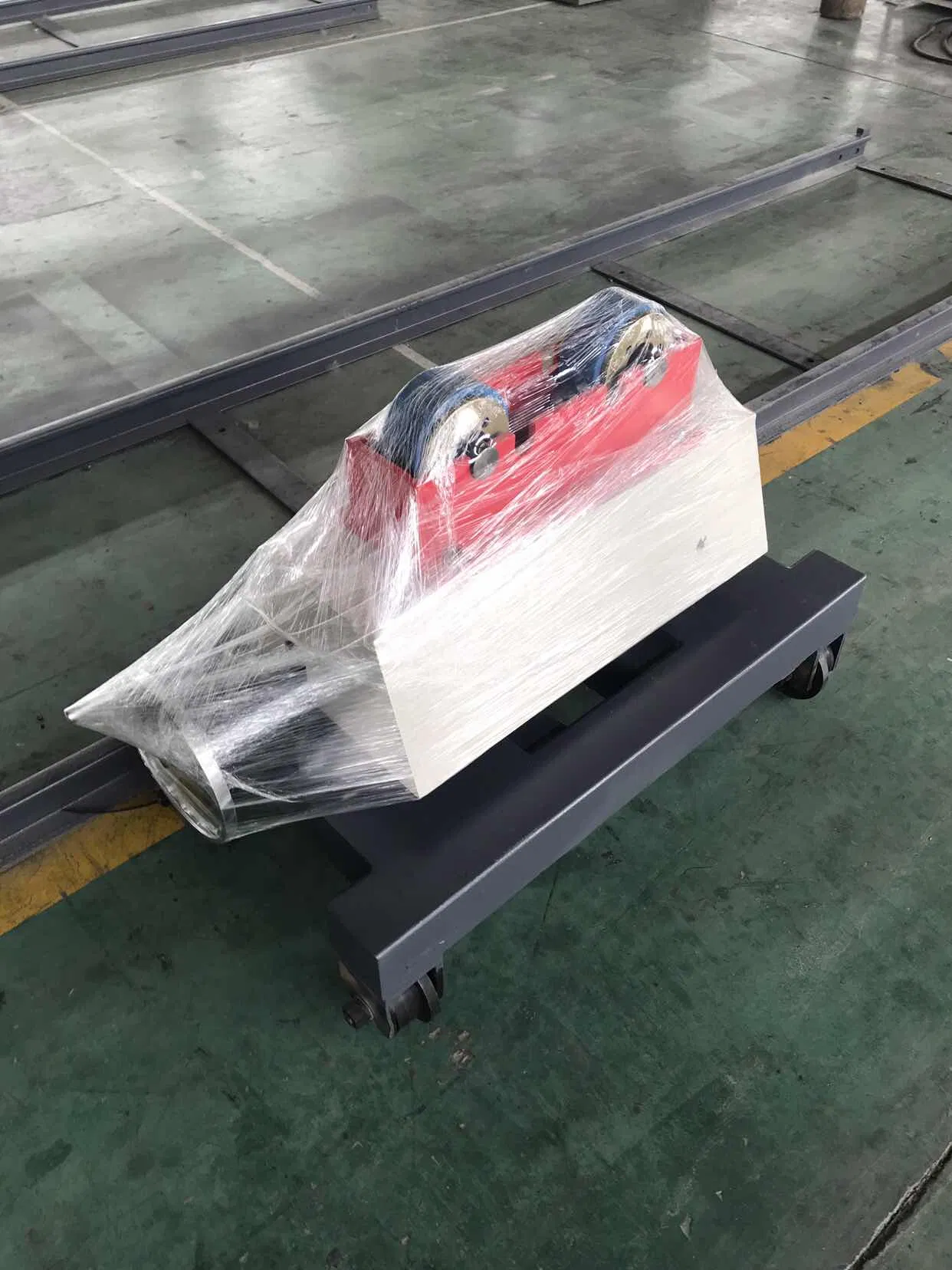

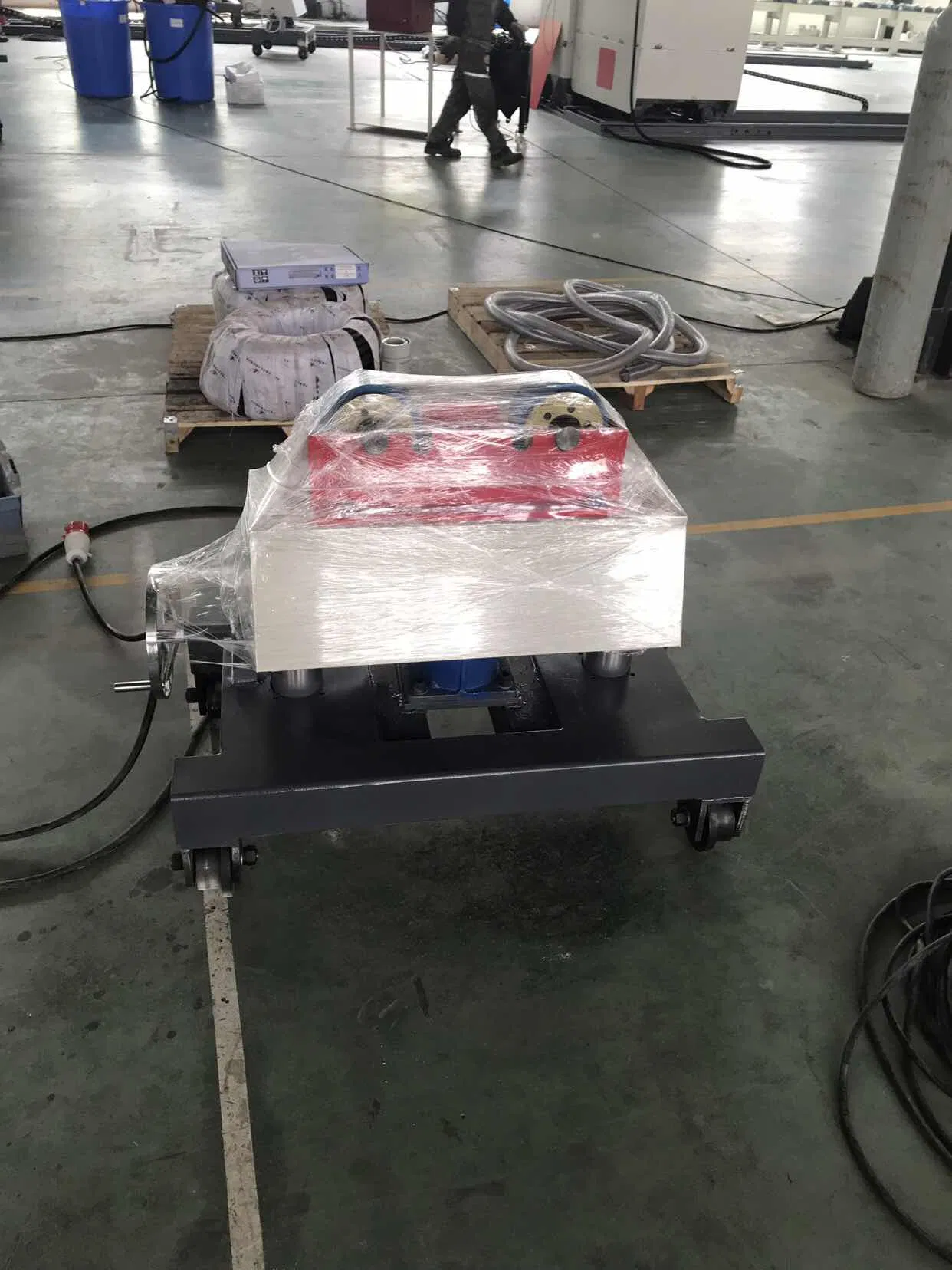

Trolley Number
4 Sets
Lifter Mechanism
Electric Screw Lifter
Lifter Route
± 30MM
Speed
0-10M/min
Max Loading
2500KGS / 5000KGS
📋

Industry Profile

The company is a professional manufacturer of pipe fabrication machines. We provide specialized pipe beveling and chamfering machines, welding systems, pipe/elbow/flange fitting-up equipment, intelligent warehouses, and complete fabrication lines.

The manufacturer maintains partnerships with major energy and engineering corporations globally across sectors including Oil & Gas, Petroleum, Petrochemical, Offshore Engineering, Nuclear Energy, Thermal Power, and Shipbuilding. Products are exported extensively to Southeast Asia, Africa, Europe, and the Americas.

🛠

After Sales Service

  • Service Goal: Prioritizing customer needs and perspectives.
  • Standard: Client satisfaction is our baseline requirement.
  • Approach: Professional, comprehensive, and detailed support.
  • Commitment: Rapid and efficient resolution of all technical issues raised by clients.
?

Frequently Asked Questions

Are you a manufacturer or a trading company?
We are a factory-based company specializing in pipe fabrication equipment.
What is the applicable pipe diameter for this conveying system?
The system is designed for pipe diameters ranging from DN50 to DN600 (φ 60mm to 610mm).
How much weight can the system handle?
Depending on the configuration, the maximum loading capability is either 2500KGS or 5000KGS.
What is the standard delivery time for orders?
Generally, it is 30-40 days for in-stock items and 60-80 days for custom or non-stock production, depending on the quantity.
What are your standard payment terms?
For orders over 1000 USD, we typically require 40% T/T in advance, with the remaining balance due before shipment.
Can the conveying line length be customized?
Yes, while the standard line length is 7.5M, it can be adjusted based on specific customer requirements and facility layout.
