Lateral Conveying System for Piping Fabrication

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

📋

Basic Information

Model NO.PHLTS-16A2/24A2/32A2

StructureConveyor System

MaterialAlloy/Carbon Steel

Material FeatureFire Resistant

ApplicationChemical, Mining, Power Plant

ConditionNew

UsageTransportation Chain

OriginChina

📦

Packaging & Delivery

Package Size300.00cm * 200.00cm * 150.00cm

Gross Weight1000.000kg

⚙️

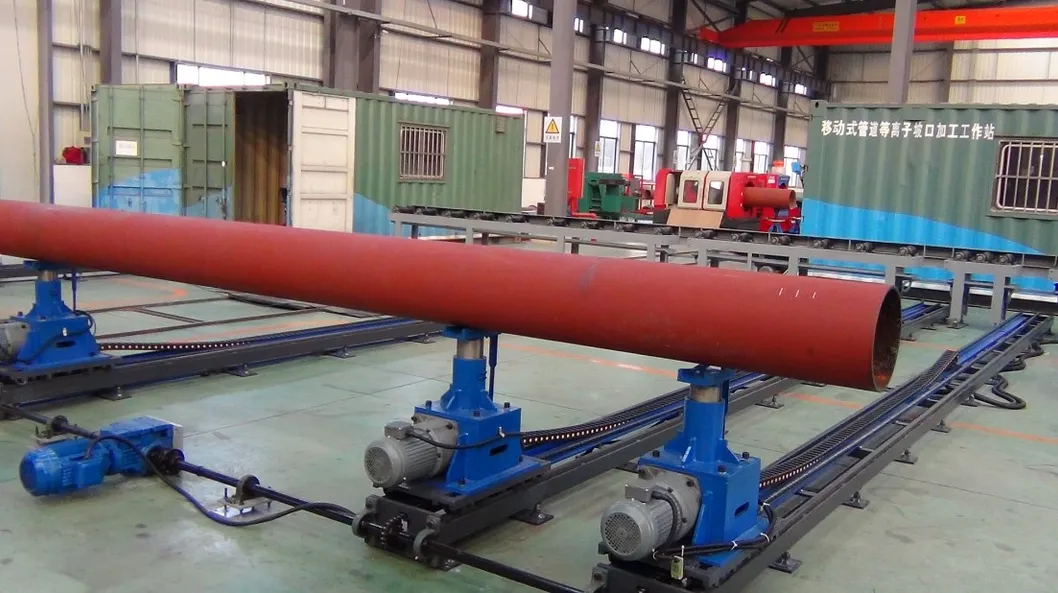

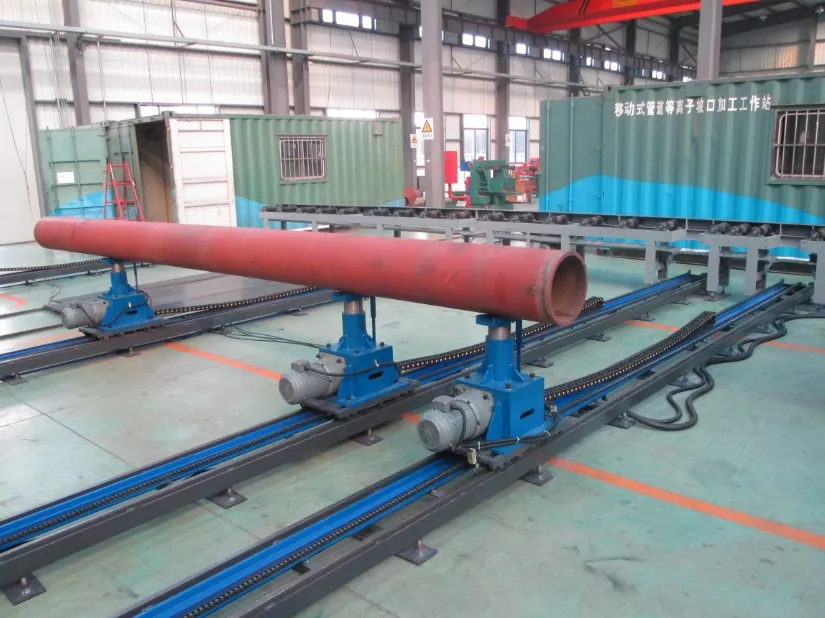

Pipe Transverse Automatic Conveying System

Performance Features: This system is designed for conveying pipe or spool pieces transversely during beveling or automatic welding processes. It significantly increases automation levels in pipe fabrication plants and minimizes hazards associated with hoisting operations.

Technical Parameters

Pipe diameter applicable: DN50~600 (φ 60~610)
Conveying length: ≥ 1000MM (Customizable)
Line height: 800MM

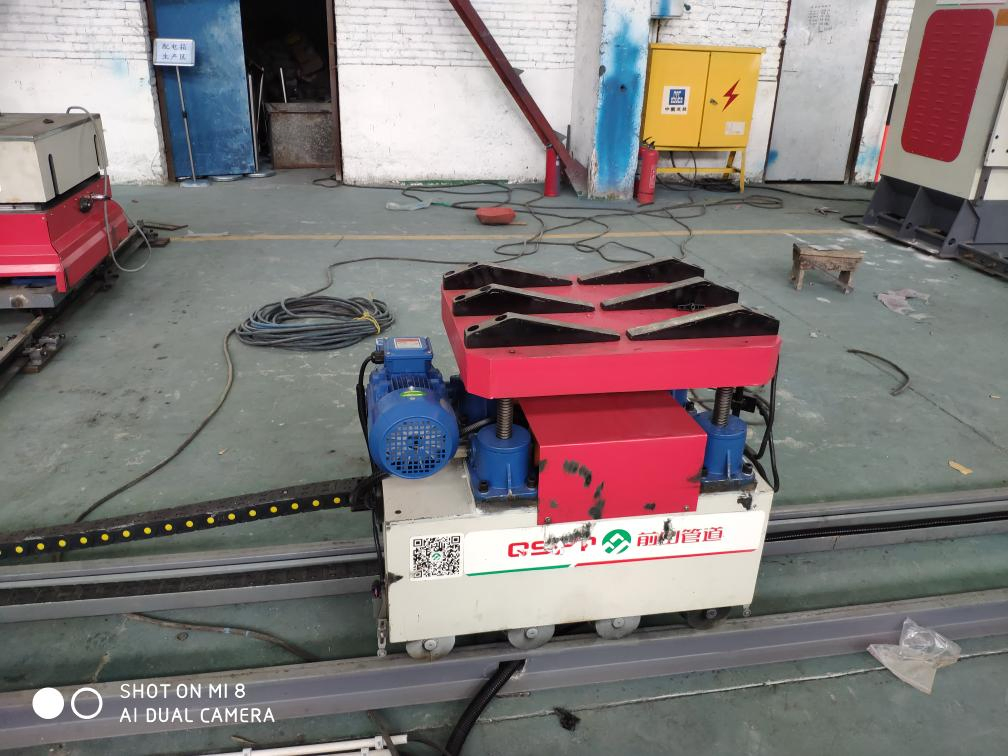

Trolley number: 4 sets

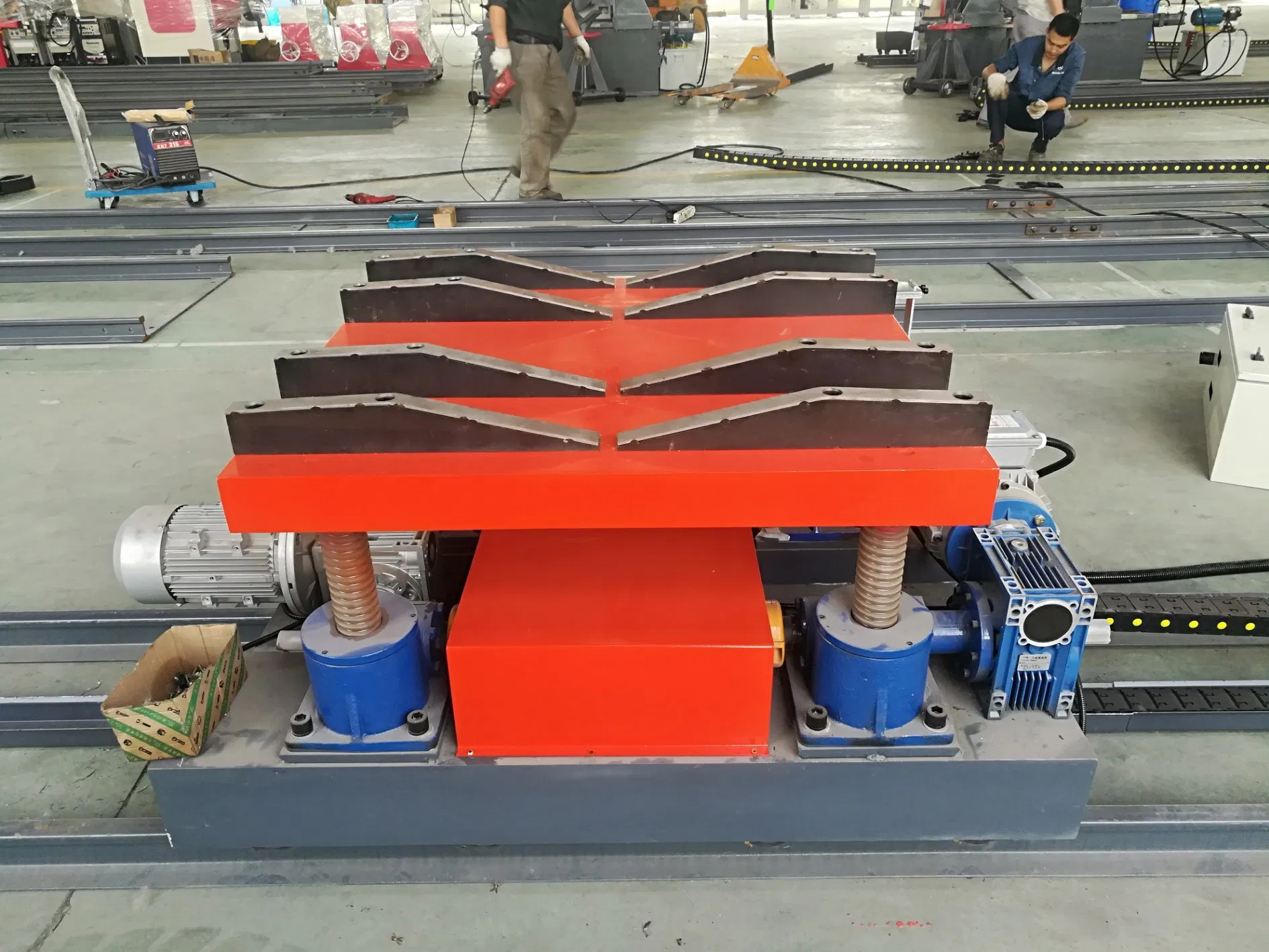

Lifter mechanism: Electric screw lifter (Route: ± 30MM)
Conveying mechanism: Chain sprocket mechanism
Speed of conveying: 0-10M/min
Max loading capability: 2500KGS / 5000KGS

🖼️

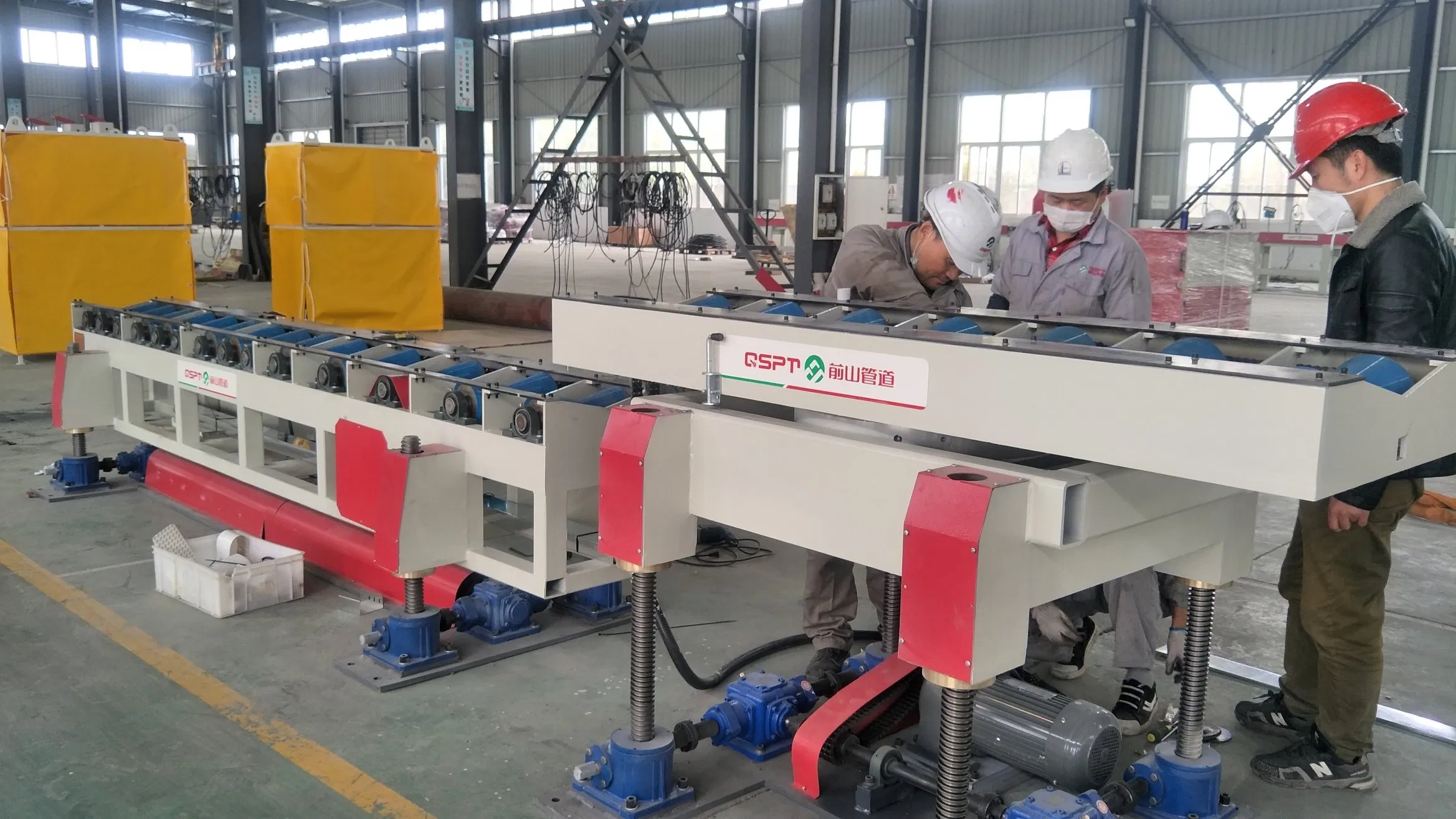

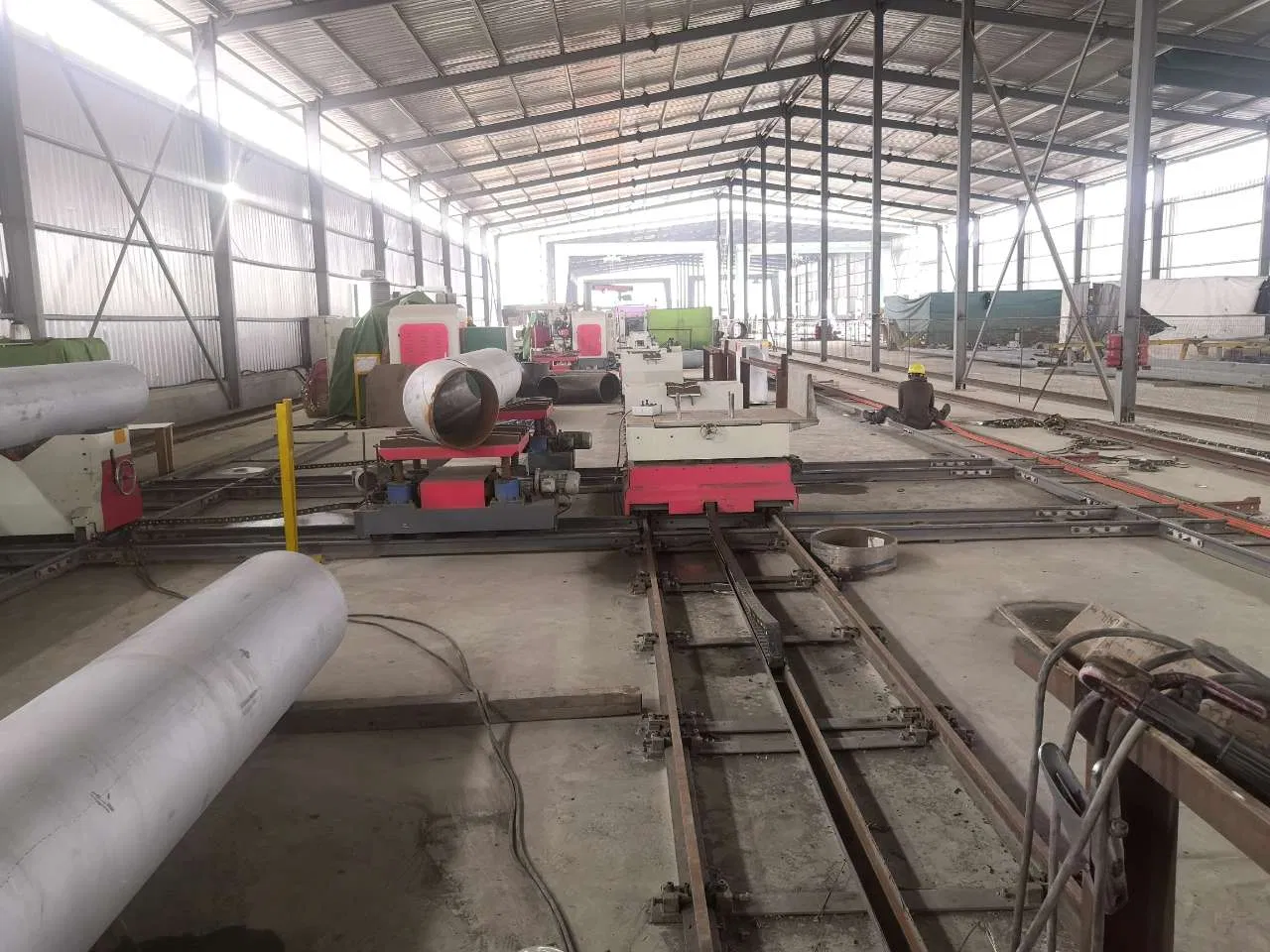

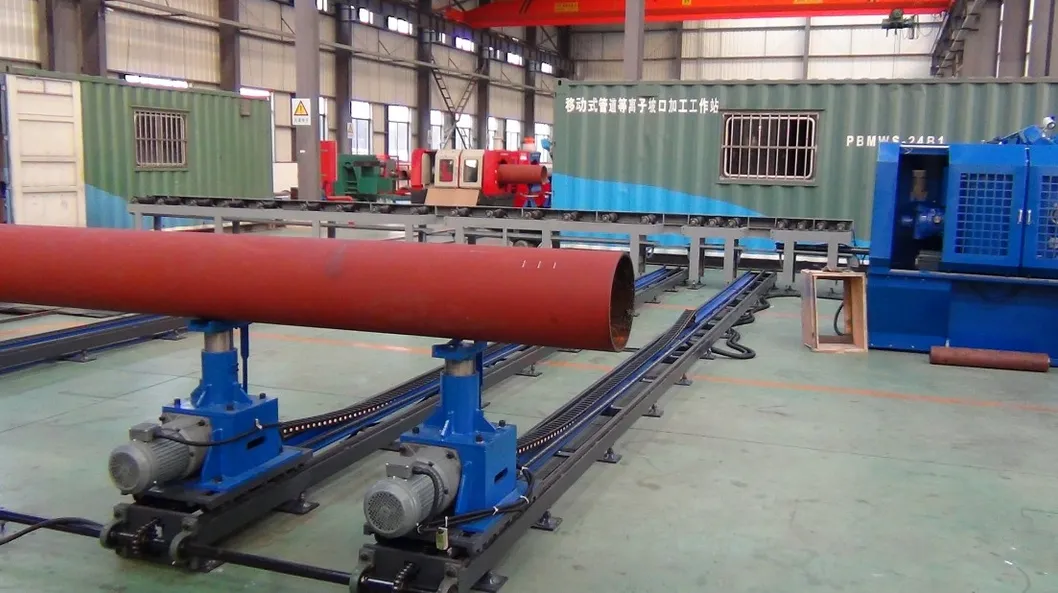

Product Gallery

Lateral Conveying System for Piping Fabrication

🏢

Company Overview

As a professional manufacturer of pipe fabrication machinery, we provide integrated solutions including pipe beveling/chamfering machines, welding systems, fitting-up equipment, and intelligent pipe warehouses. Our technology has been implemented across diverse sectors such as Oil & Gas, Petrochemical, Nuclear Energy, and Shipbuilding on a global scale.

After-Sales Commitment

Approach: Professional, comprehensive, and detailed support.
Mission: To quickly and efficiently resolve all technical issues without cost limitations.
Standard: Full client satisfaction is our baseline requirement.

❓

Frequently Asked Questions

Q: Are you a trading company or a manufacturer? A: We are a factory-based company specializing in professional pipe fabrication machinery production.

Q: What is the typical delivery timeframe? A: Generally, it is 30-40 days for in-stock items. For non-stock or customized orders, the lead time is approximately 60-80 days depending on quantity.

Q: What pipe diameters can this conveying system handle? A: The standard system supports pipe diameters from DN50 to DN600 (φ 60~610mm).

Q: Is the conveying speed adjustable? A: Yes, the system features a chain sprocket mechanism with an adjustable conveying speed of 0-10 meters per minute.

Q: What are your standard terms of payment? A: For orders above 1000 USD, we require a 40% T/T advance payment, with the balance due before shipment.

Q: Can the conveyor length be customized? A: Yes, while the standard length is 7.5M, we can customize the line length and height based on your specific workshop requirements.
