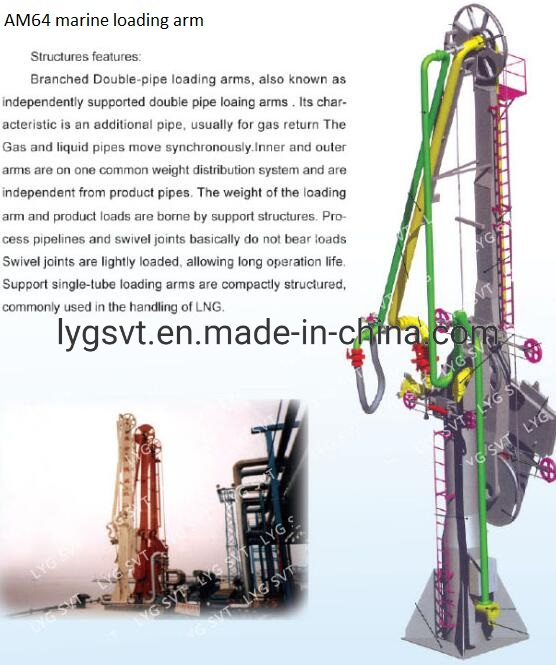

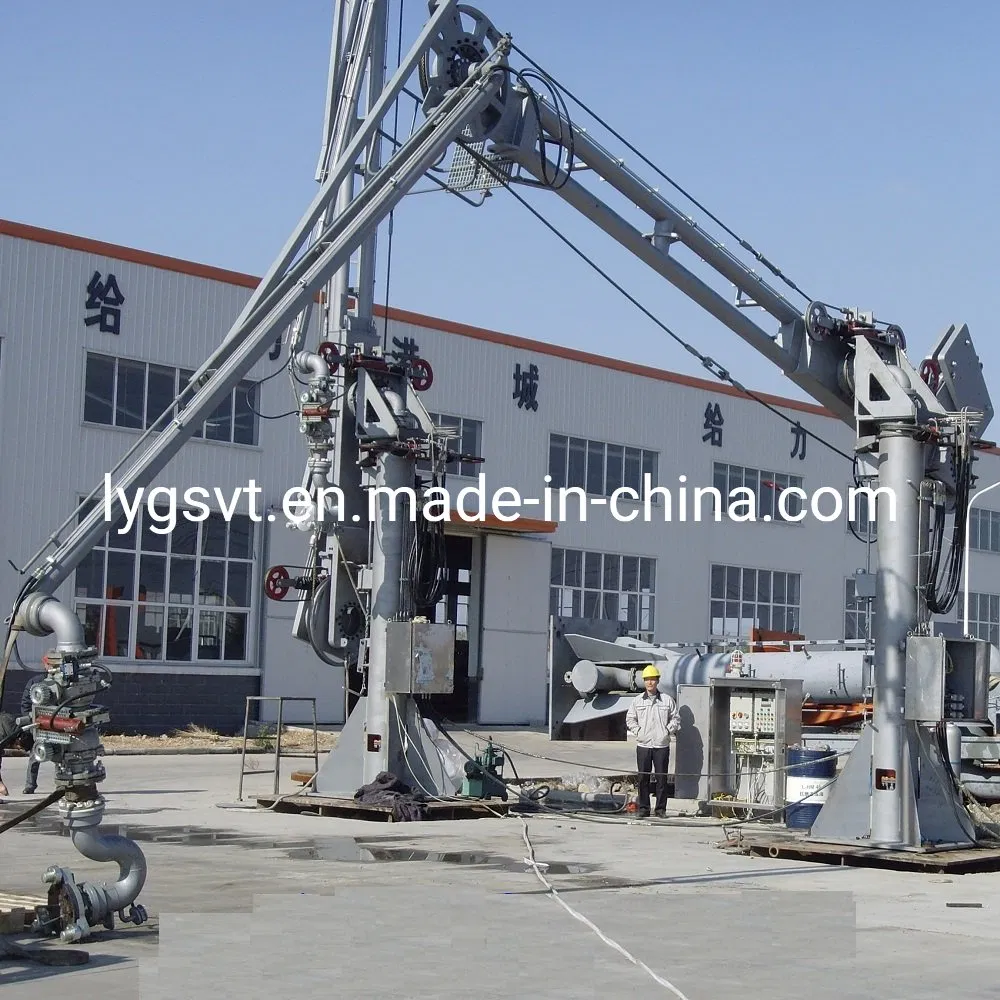

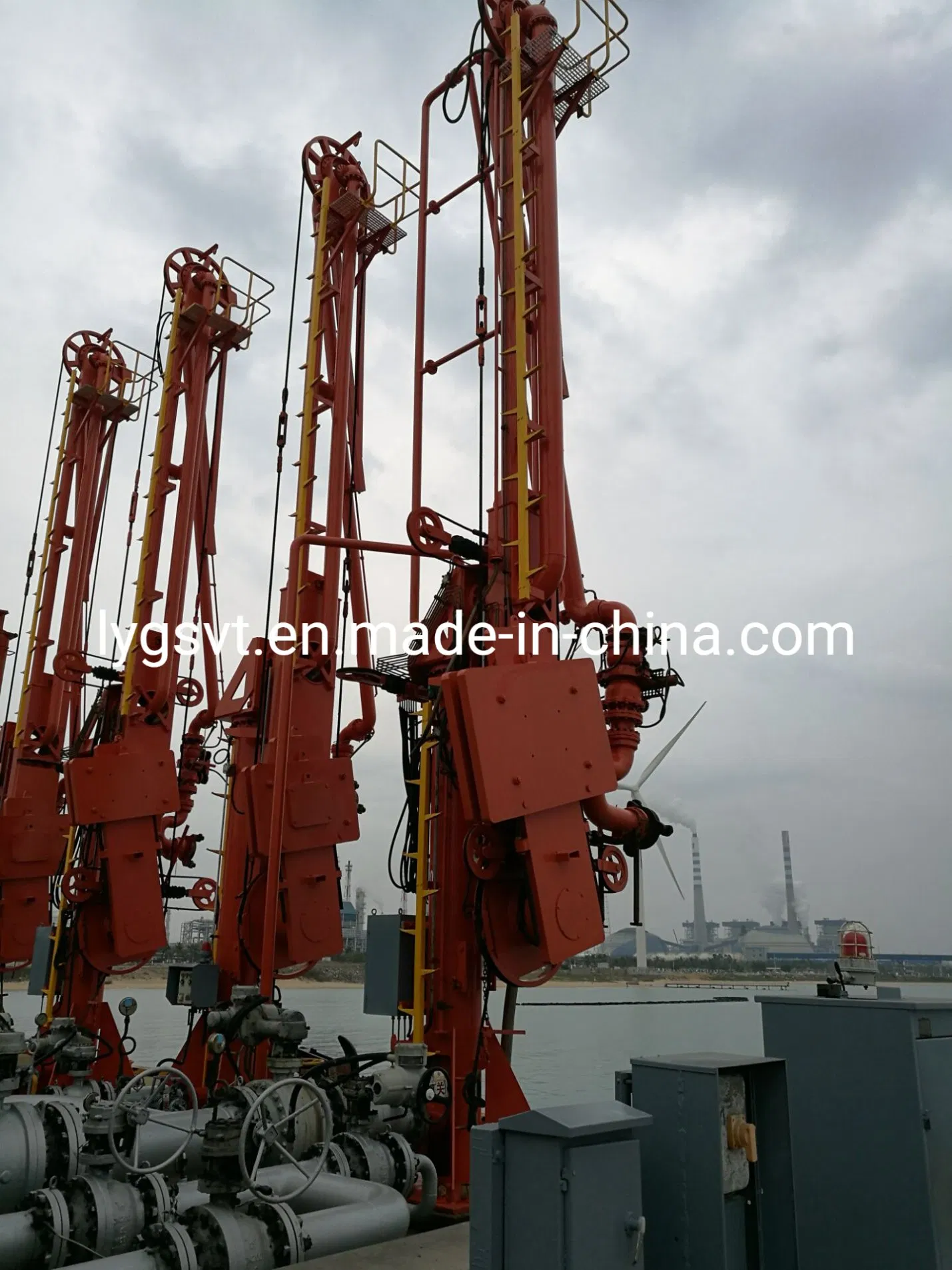

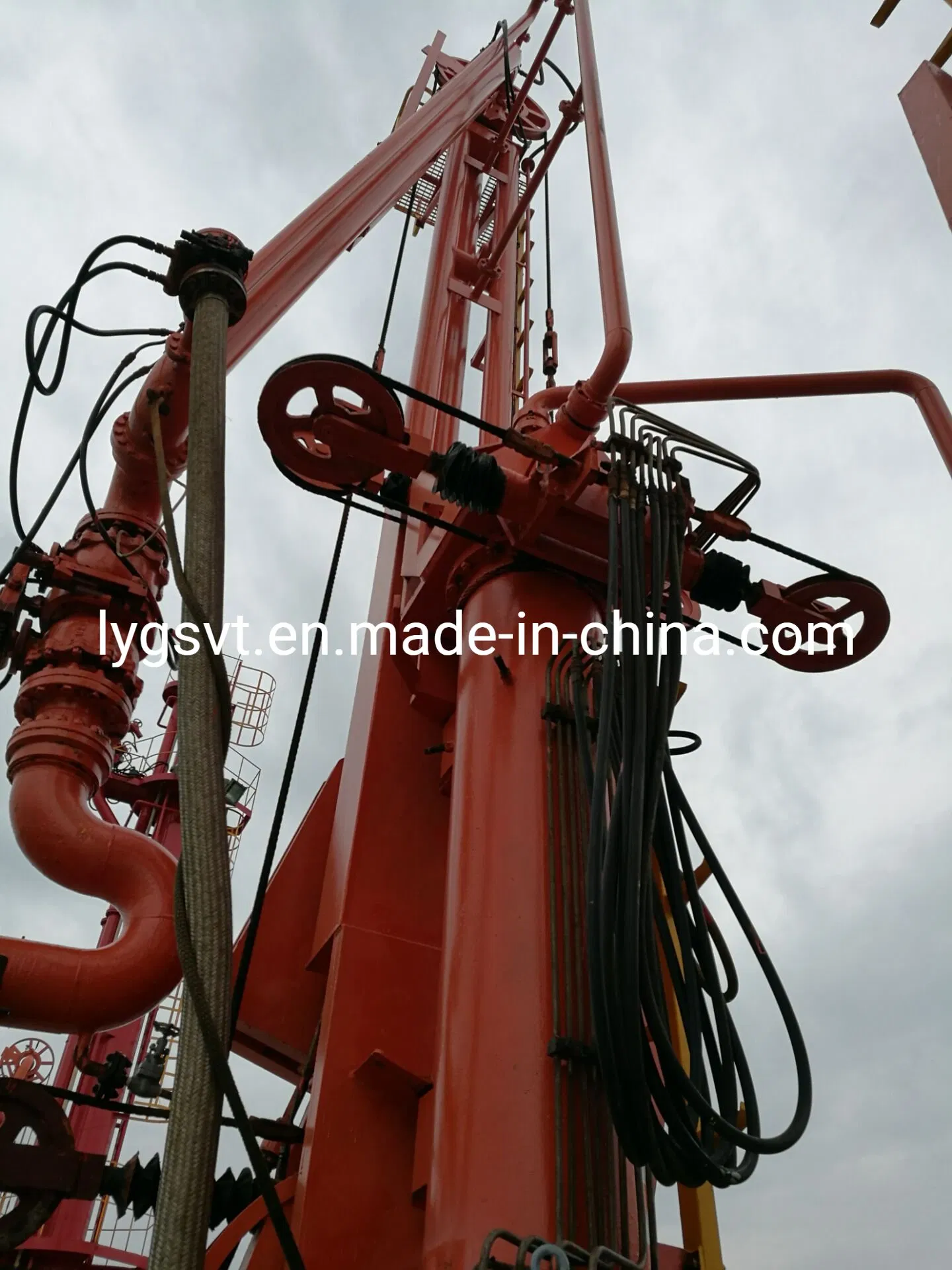

Marine Loading Arm is an articulated pipe system designed for the transfer of liquids or gases. This system can be operated manually or hydraulically to suit different operational requirements.

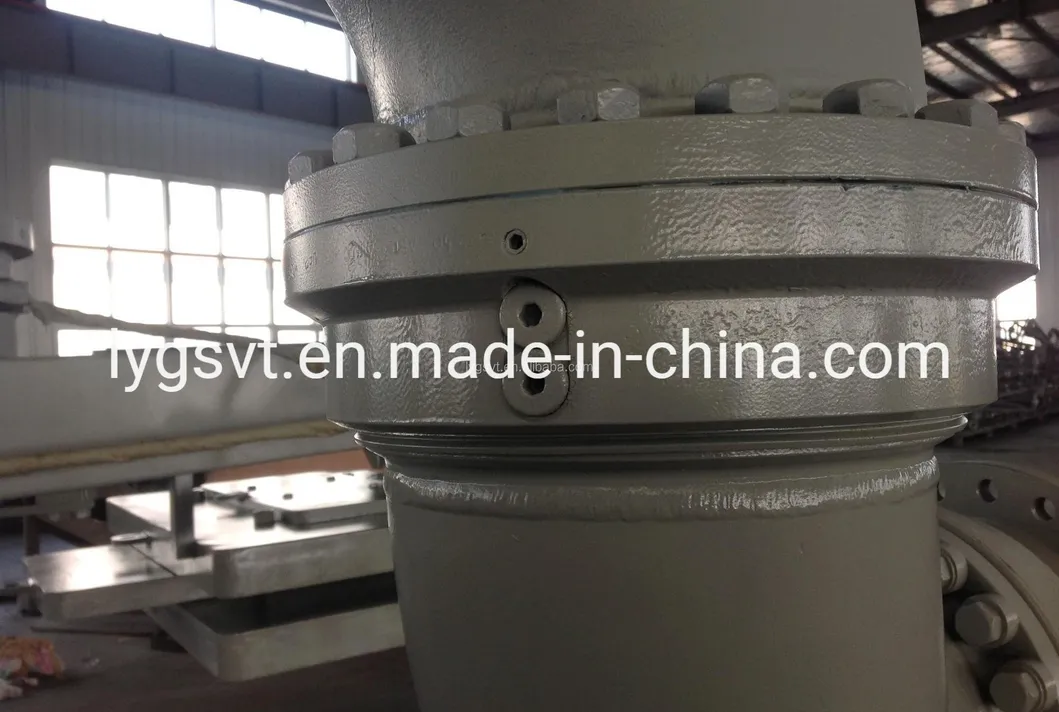

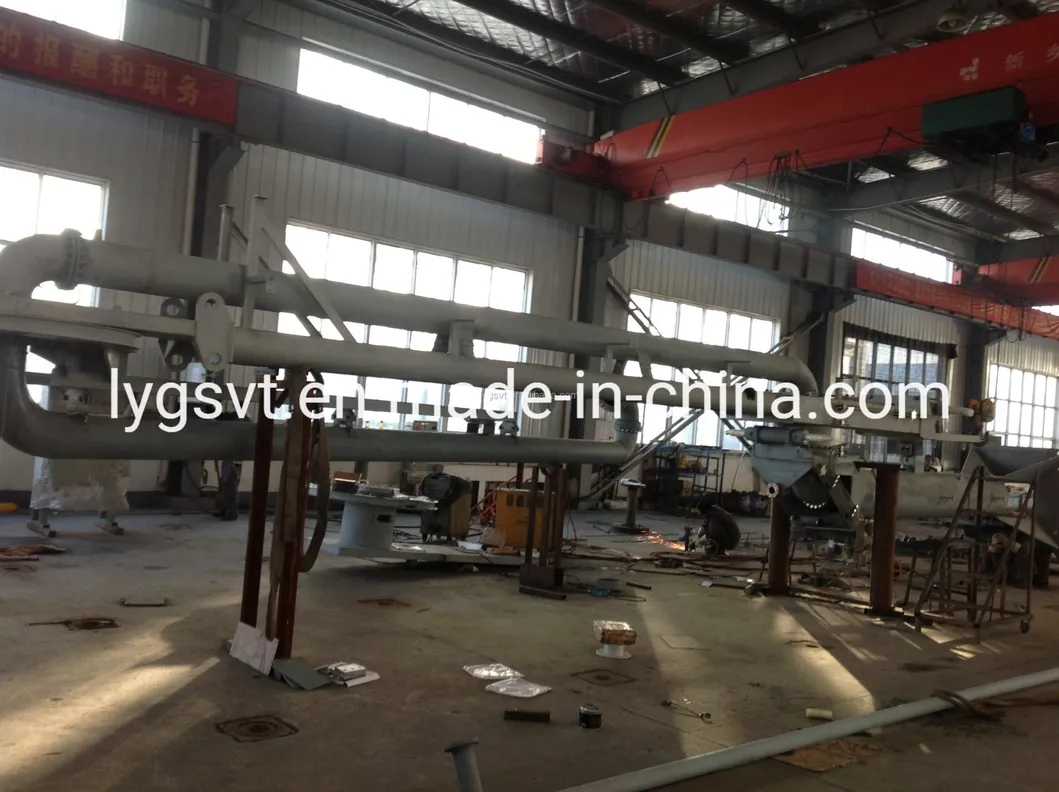

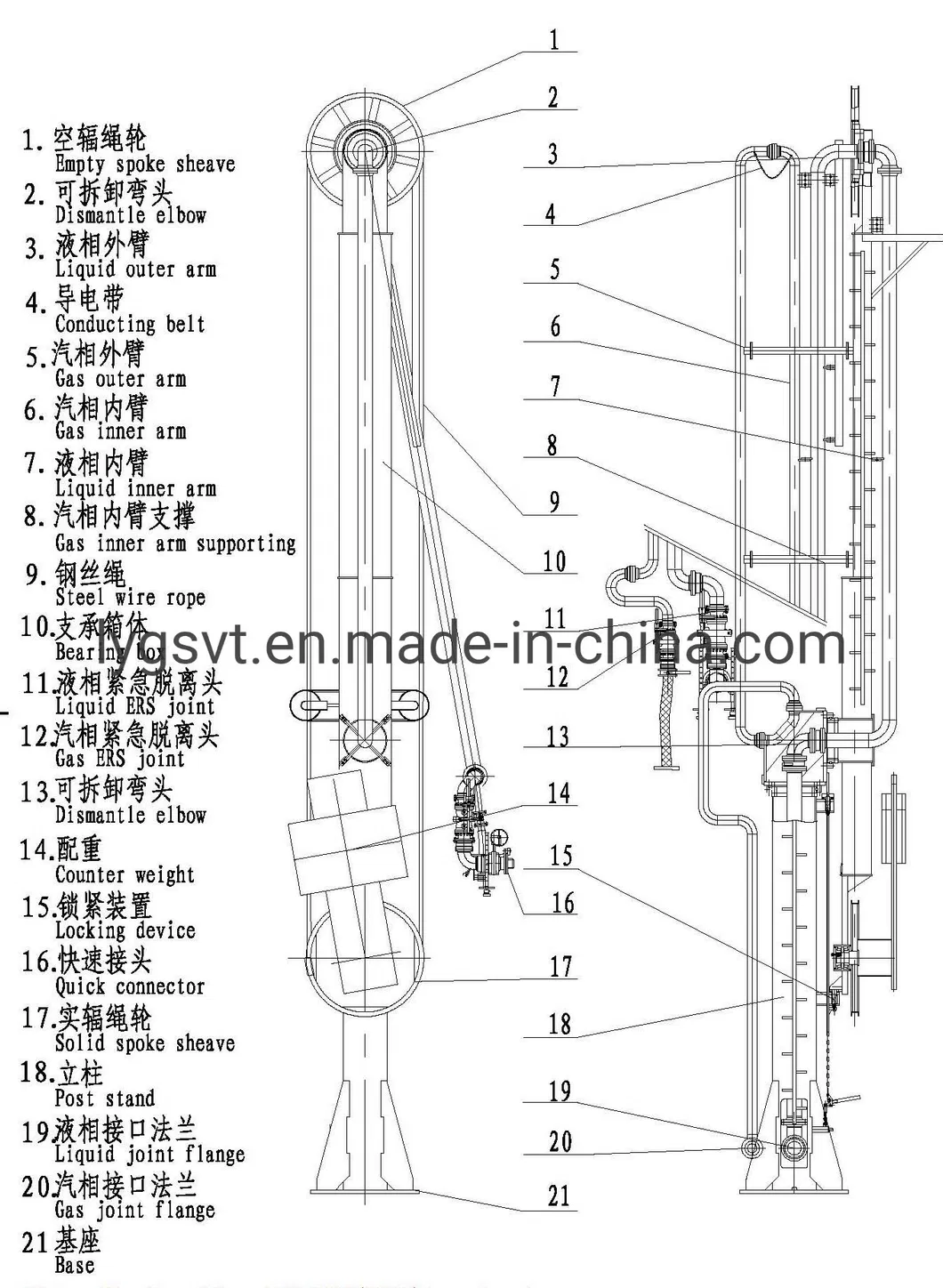

A standard marine loading arm comprises several key components: base riser, inboard arm, outboard arm, balancing assembly, supporting structure, and the operating system. The articulation is ensured by specialized swivel arrangements, allowing for complete movement in all planes.
| Service Product | Oil, Gasoline, Diesel, LPG, LNG and all kinds of liquid |
| Nominal Diameter | DN200 ~ DN600 (8" to 24") |
| Design Pressure | -0.08 Mpa ~ +2.5 MPa |
| Design Temperature | -196°C ~ +250°C |
| Pipe Material | Carbon steel, stainless steel, low-temperature steel, line with PTFE |
| Operation Method | Manual operated, hydraulic operated |
| Optional Equipment | Position Monitoring system (PMS), Hydraulic power units (HPU), Quick Connect/Disconnect Coupler (QC/DC), PLC Control Panel, Emergency Release System (ERS) |
The design of the marine loading arm is tailored to specific client requirements and environmental conditions. Key design parameters include:

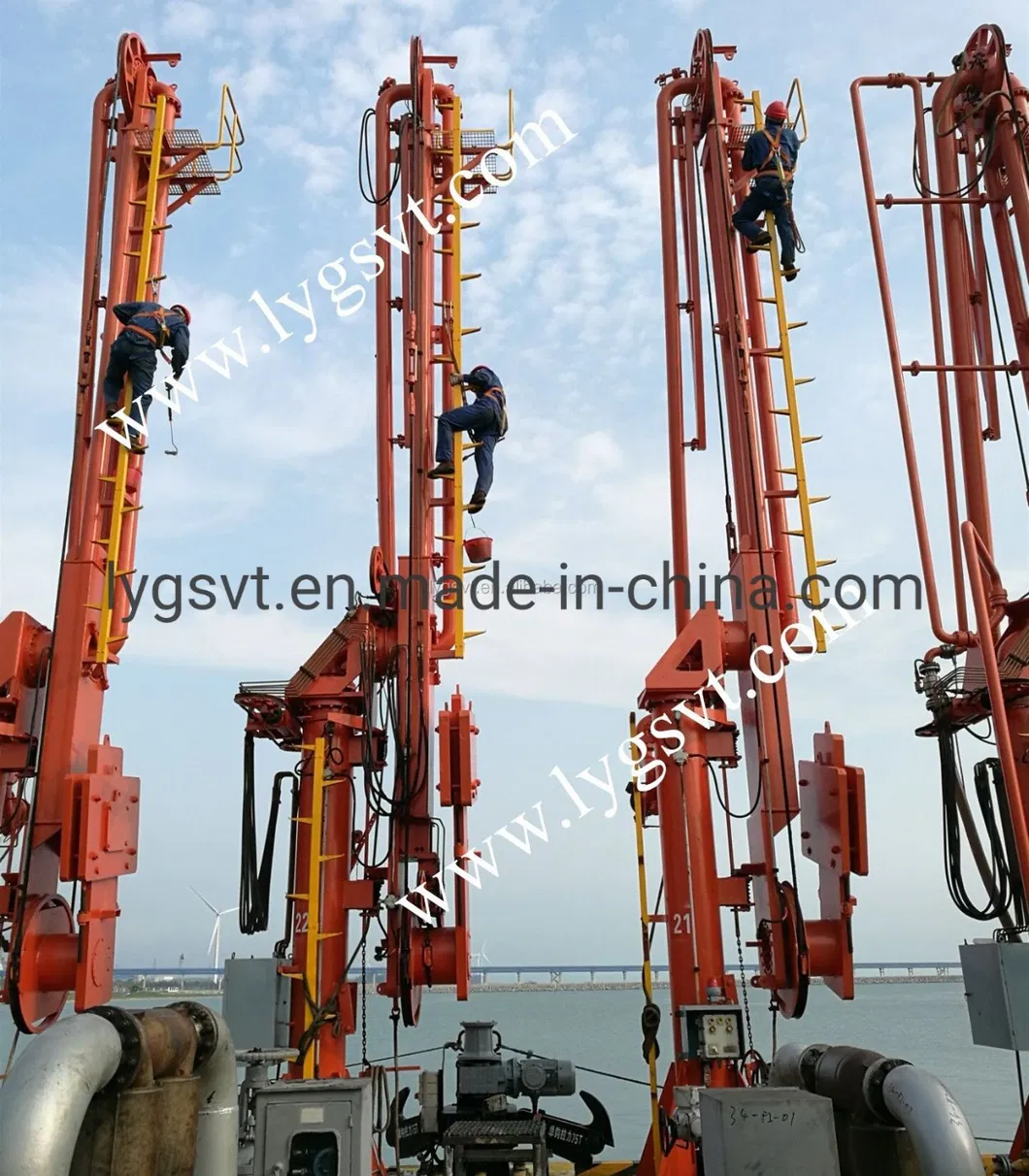

Comprehensive on-site services are provided including installation, commissioning, maintenance, and automatic system upgrading.
Warranty Period: 12 months from the date of startup or 18 months after delivery, whichever occurs first.
