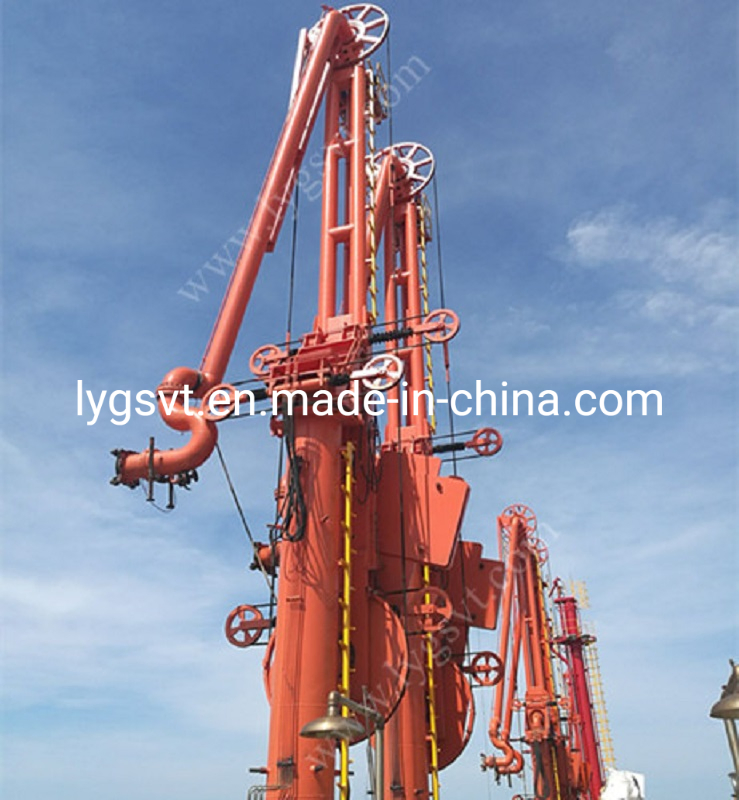

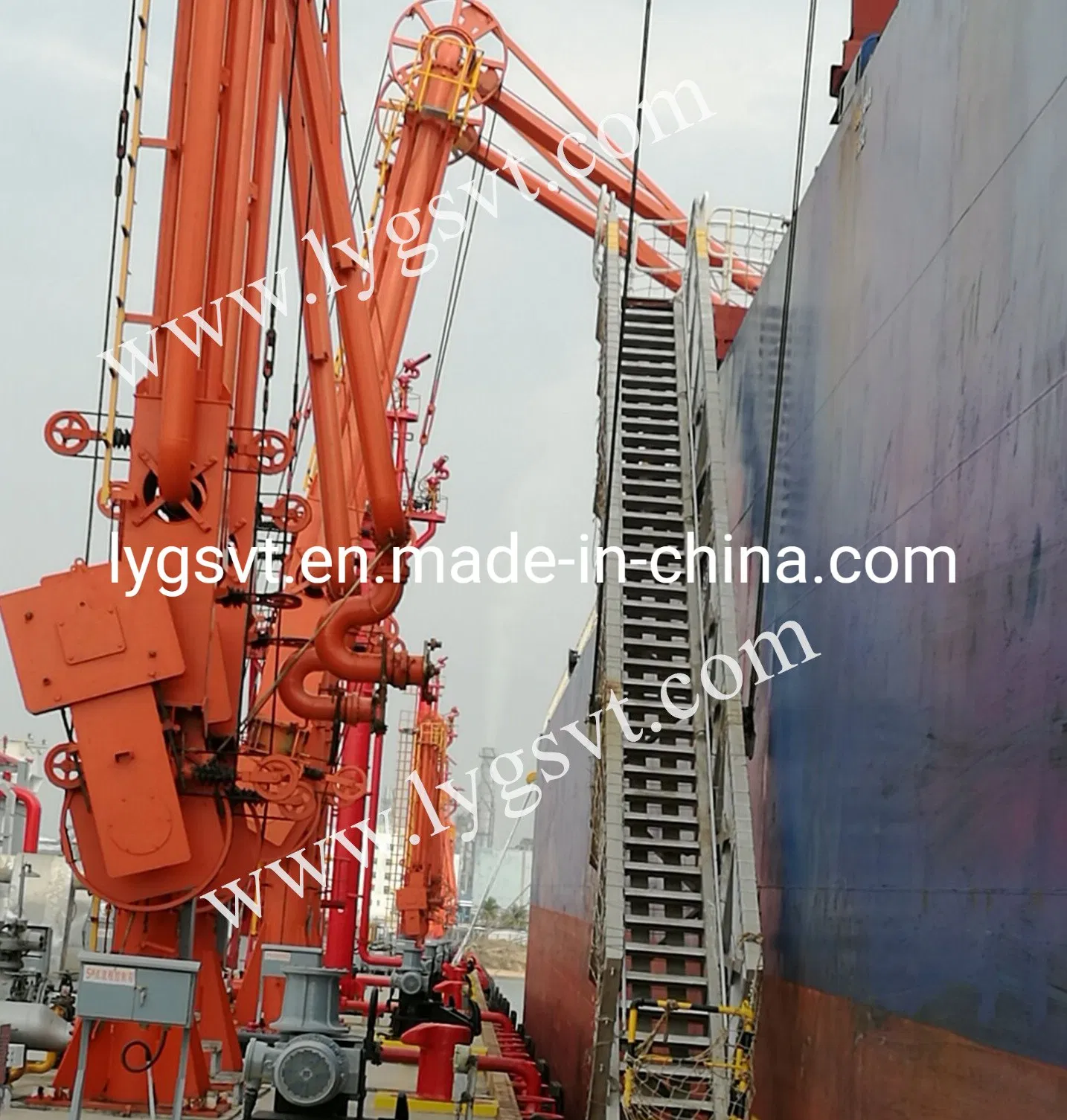

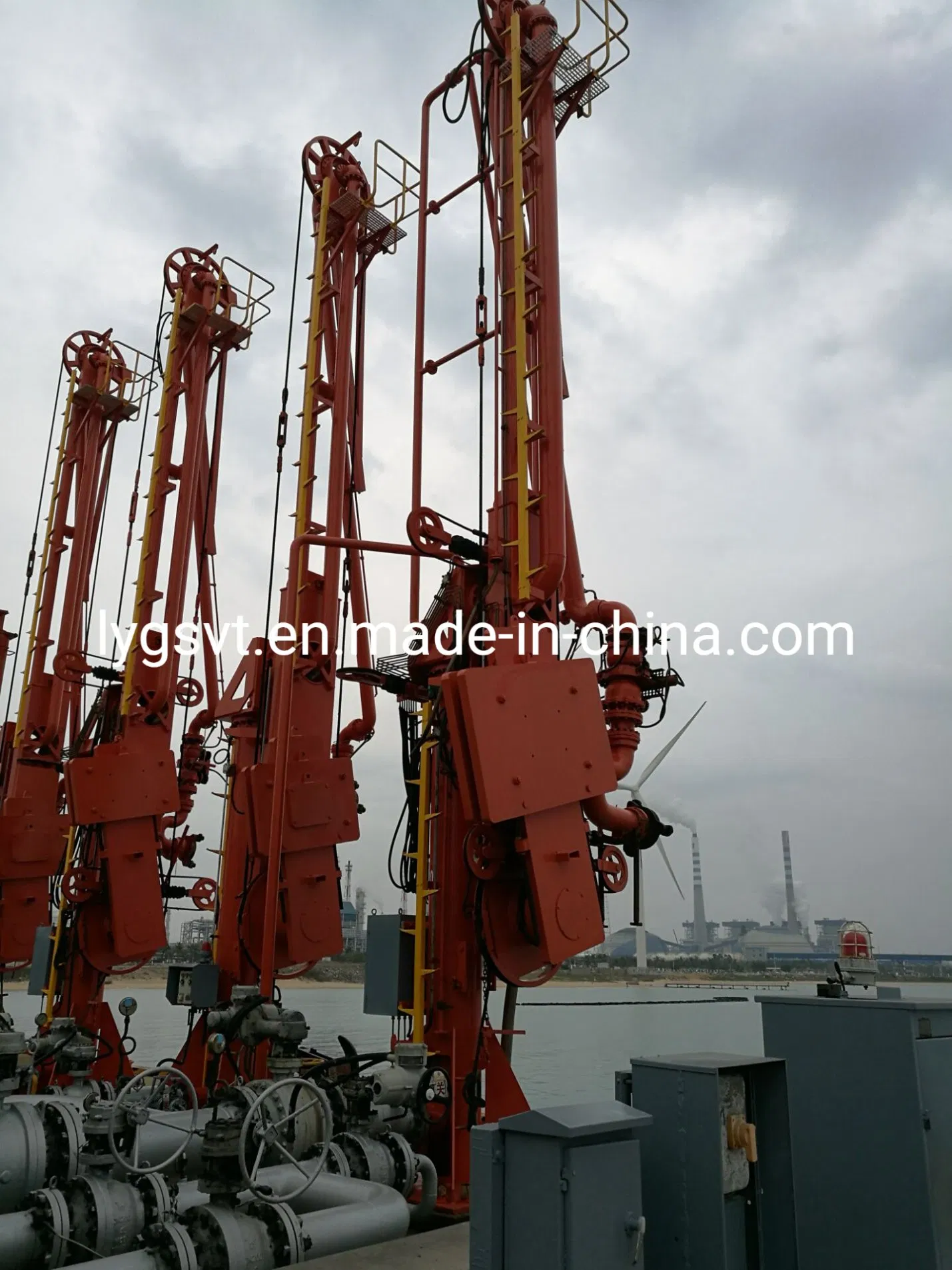

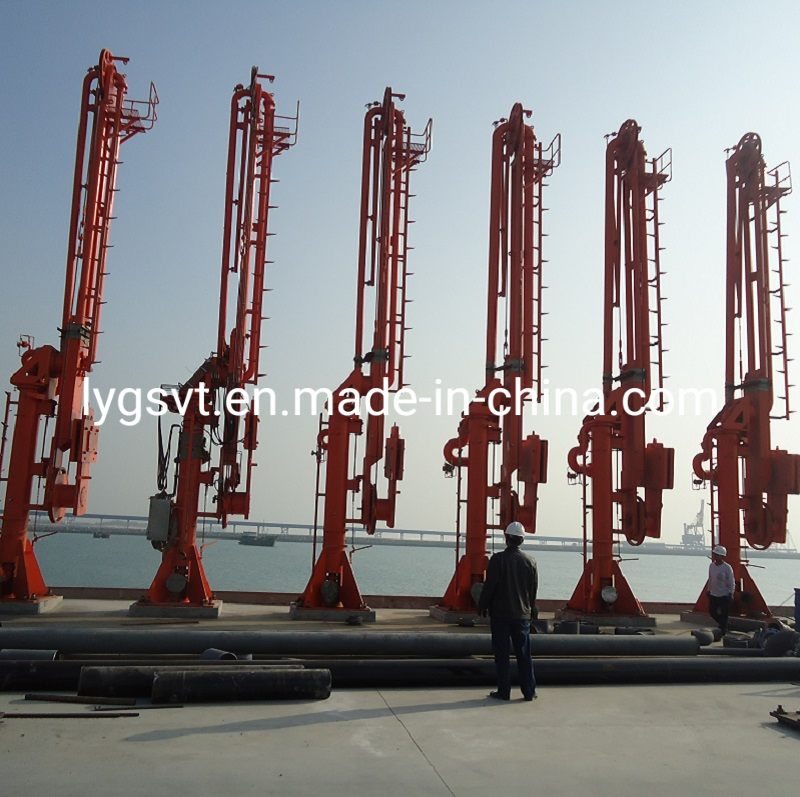

LNG Marine Loading Arm for Liquefied Natural Gas
LNG Marine Loading Arm for Liquefied Natural Gas
LNG Marine Loading Arm for Liquefied Natural Gas
LNG Marine Loading Arm for Liquefied Natural Gas
LNG Marine Loading Arm for Liquefied Natural Gas
1 / 5
LNG Marine Loading Arm for Liquefied Natural Gas
LNG Marine Loading Arm for Liquefied Natural Gas
LNG Marine Loading Arm for Liquefied Natural Gas
LNG Marine Loading Arm for Liquefied Natural Gas
LNG Marine Loading Arm for Liquefied Natural Gas

LNG Marine Loading Arm for Liquefied Natural Gas

Customization: Available
After-sales Service: Technical Support, Installation Guide, Spare Parts
Warranty: 1.5 Years
Send Inquiry

Product Description

📋
Basic Information
Model NO. AM64H Condition New
Certification ISO9001 Storage Objects Liquid
Nominal Diameter Liquid DN200~DN600 Pipelines Material Carbon Steel, Stainless Steel, Low-Temperature Steel
Application LNG, Cryogenic Ethylene, Low Temperature Liquid
Operation Method Hydraulic Operated Specification 8" to 24"
Production Capacity 200 Sets/Year Origin China
⚓
Product Description
Marine Loading Arm is an articulated pipe system specifically designed for the safe and efficient transfer of liquids or gases. These systems can be operated manually or hydraulically depending on the specific operational requirements.
A marine loading arm comprises several key components: base riser, inboard arm, outboard arm, balancing assembly, supporting structure, and an advanced operating system. The articulation is ensured by high-precision swivel arrangements, allowing for complete movement in all planes.
Our range of loading arms is designed to handle almost any liquid and compressed gas product, facilitating transfers from river barges, ships, and ocean-going super tankers.

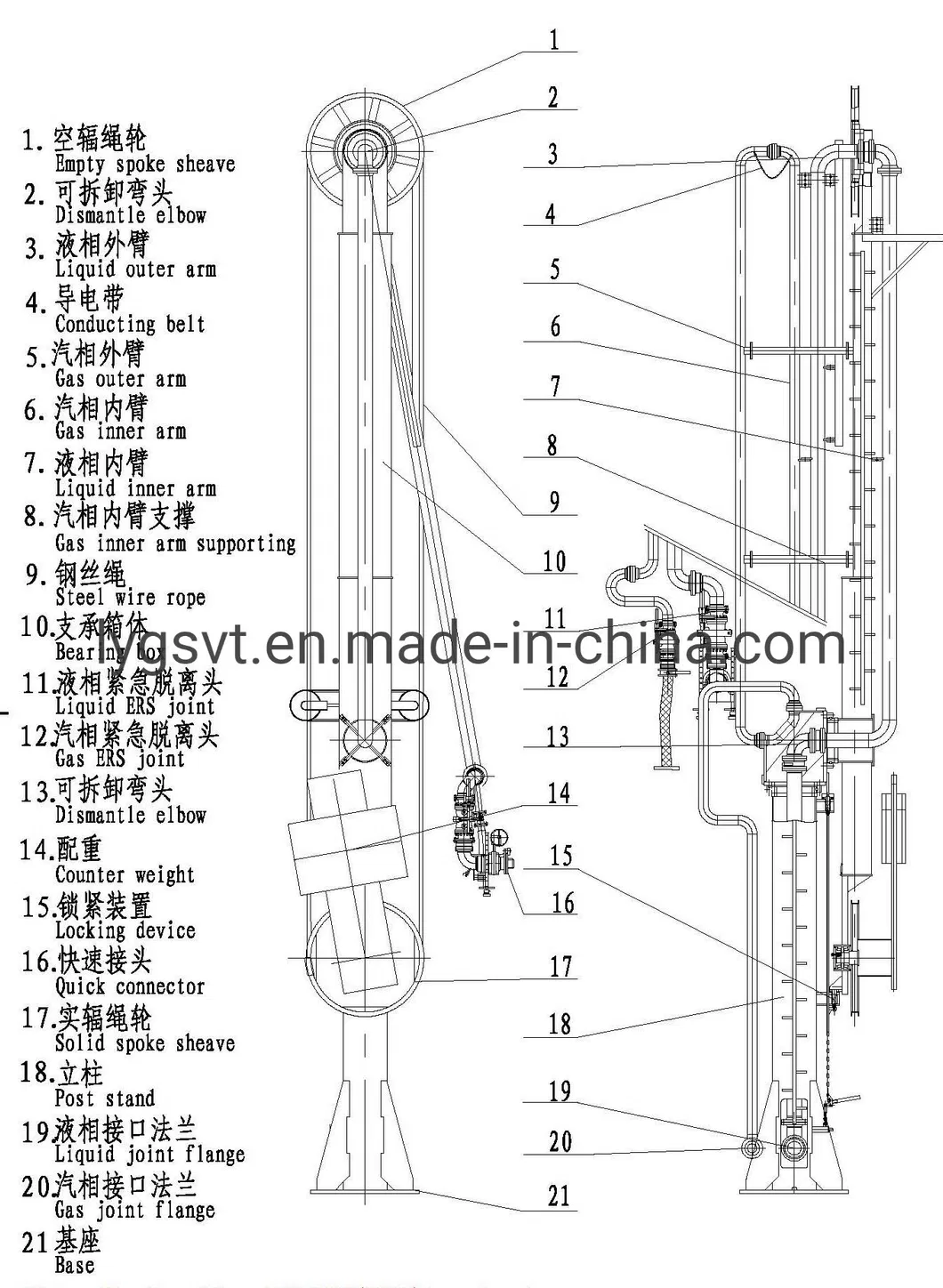

AM64- Double Pipe Marine Loading Arm with Separate Support Structure
Double Pipe Marine Loading Arm
⚙️
Technical Parameters
Service Product Oil, Gasoline, Diesel, LPG, LNG and all kinds of liquid
Nominal Diameter DN200 ~ DN600 (8" to 24")
Design Pressure -0.08 Mpa ~ +2.5 MPa
Design Temperature -196°C ~ +250°C
Pipe Material Carbon steel, stainless steel, low-temperature steel, line with PTFE
Optional Equipment Position Monitor system (PMS), Hydraulic power units (HPU), QC/DC, PLC Control, Emergency Release System (ERS)
Design Specifications:
The design varies based on tidal range, ship tonnage, and environmental parameters:
  • Design wind speed (static): ≤55M/S
  • Design wind speed (operating): ≤ 16 M/S
  • Earthquake resistance coefficient: 0.3 G
  • Maximum reach: 30 Meters
  • Vessel Tonnage Capacity: 50,000 tons
🖼️
Detailed Photos

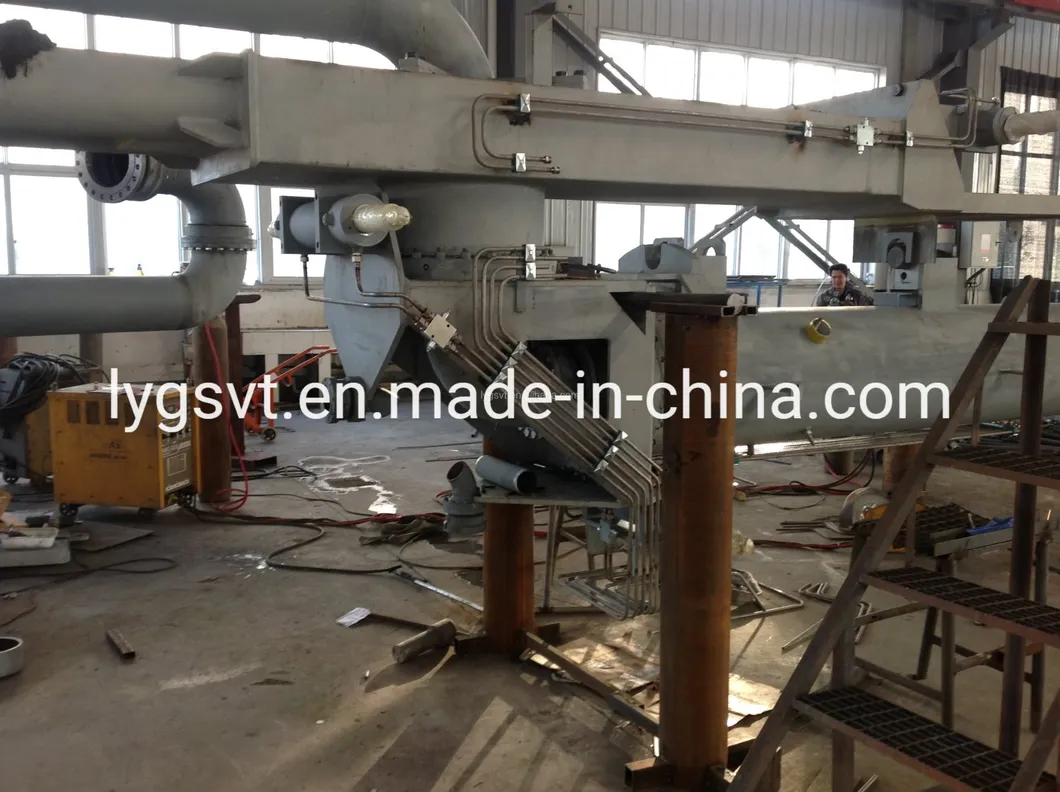

Detail 1

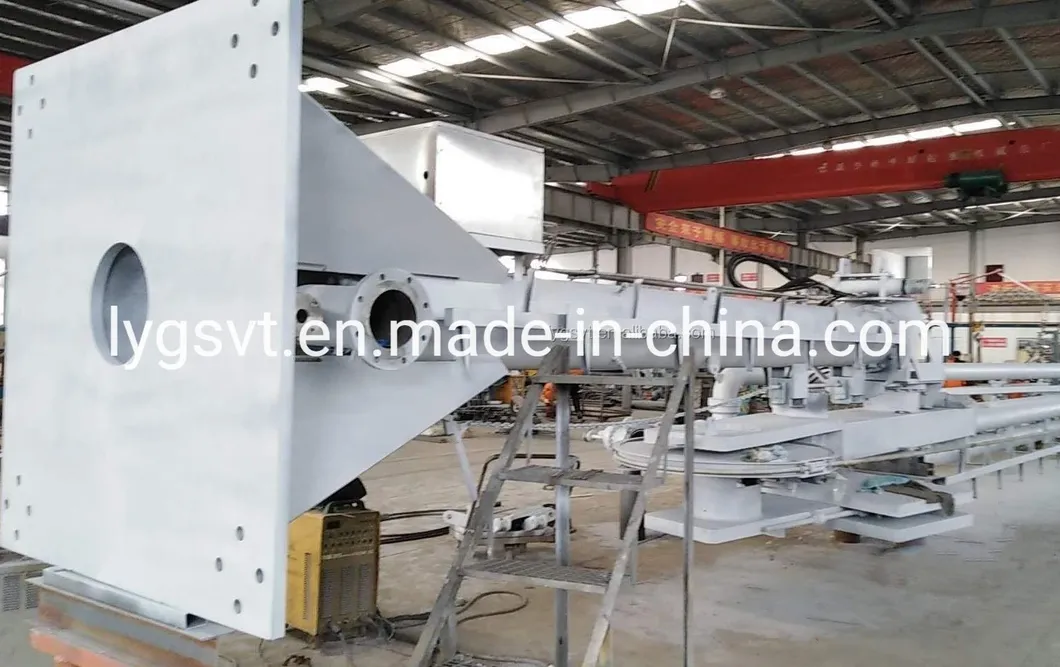

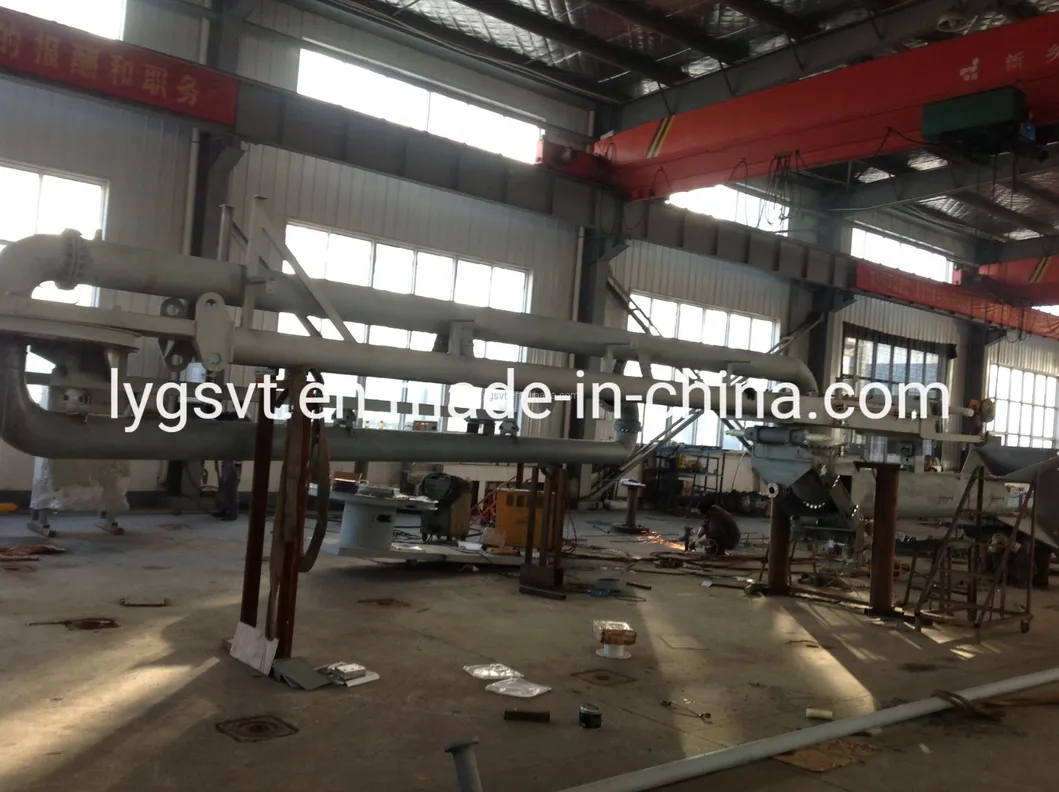

Detail 2

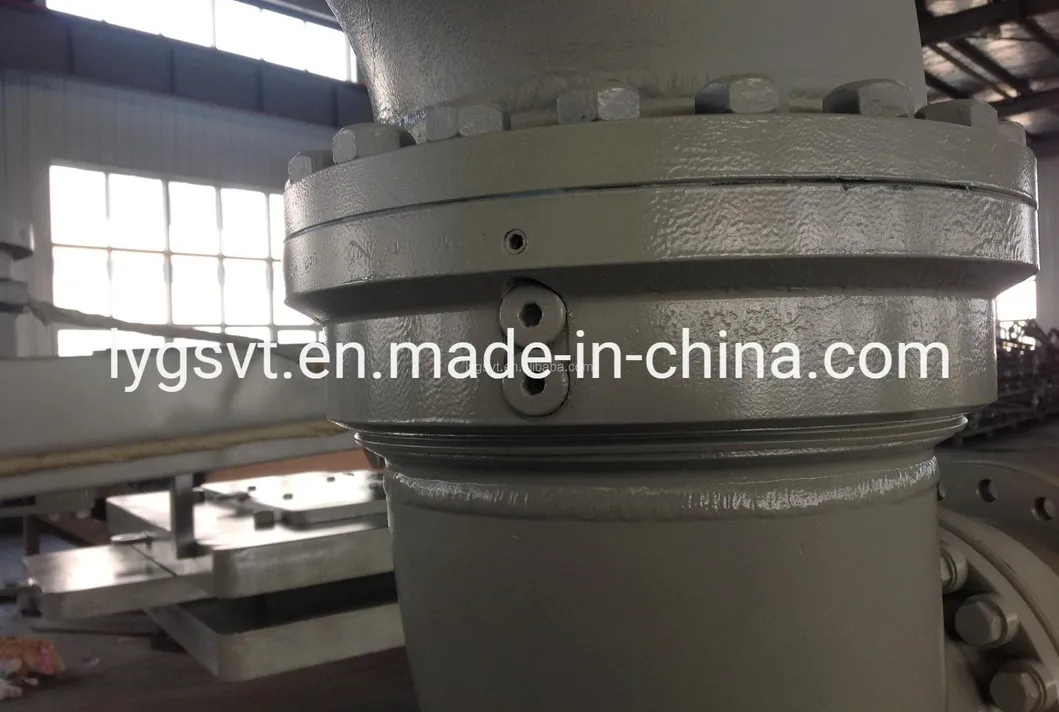

Detail 3
Detail 4
📦
Packaging & Shipping

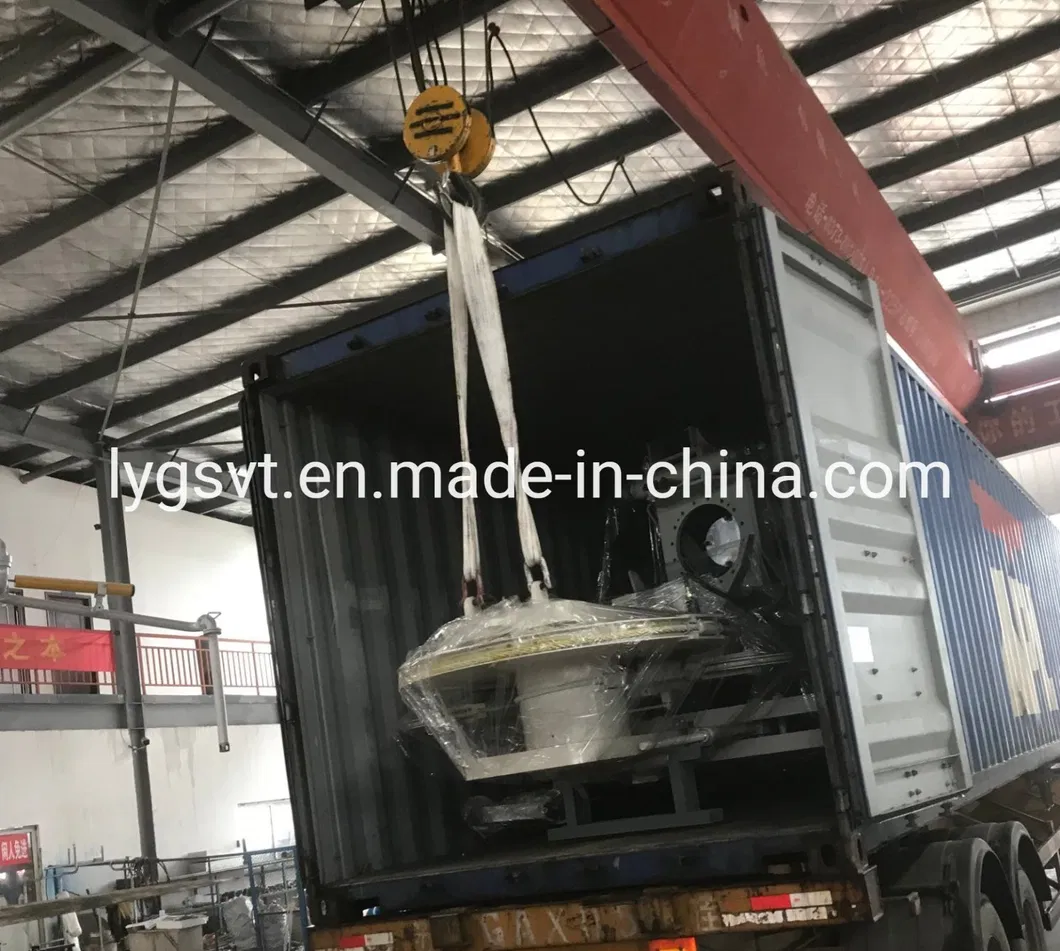

Packaging 1

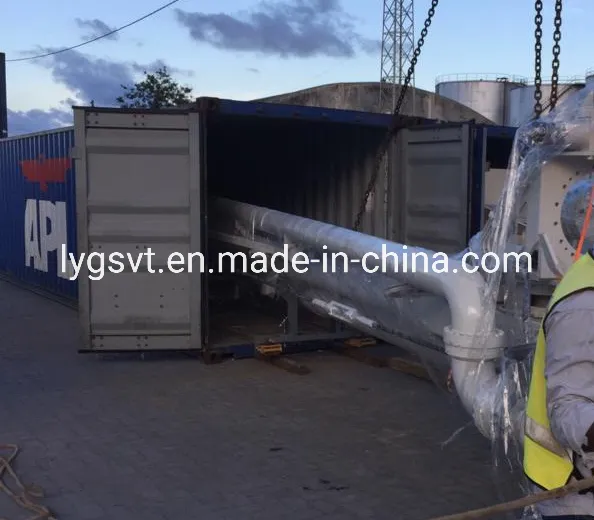

Packaging 2

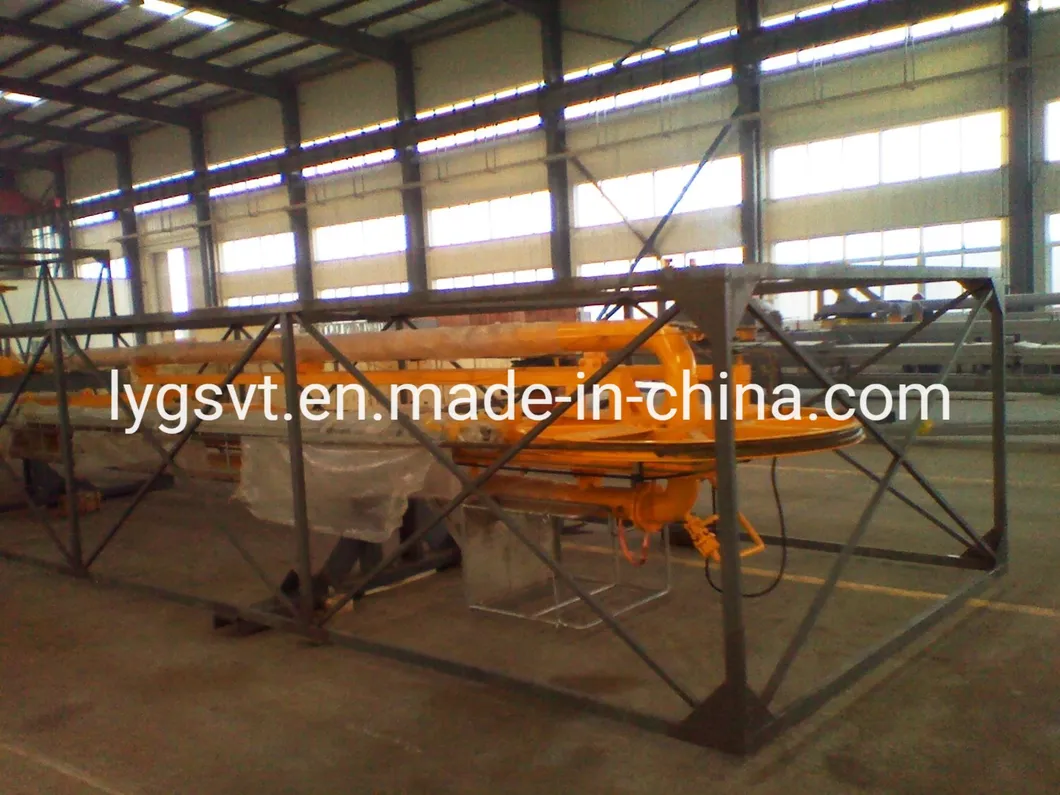

Shipping 1

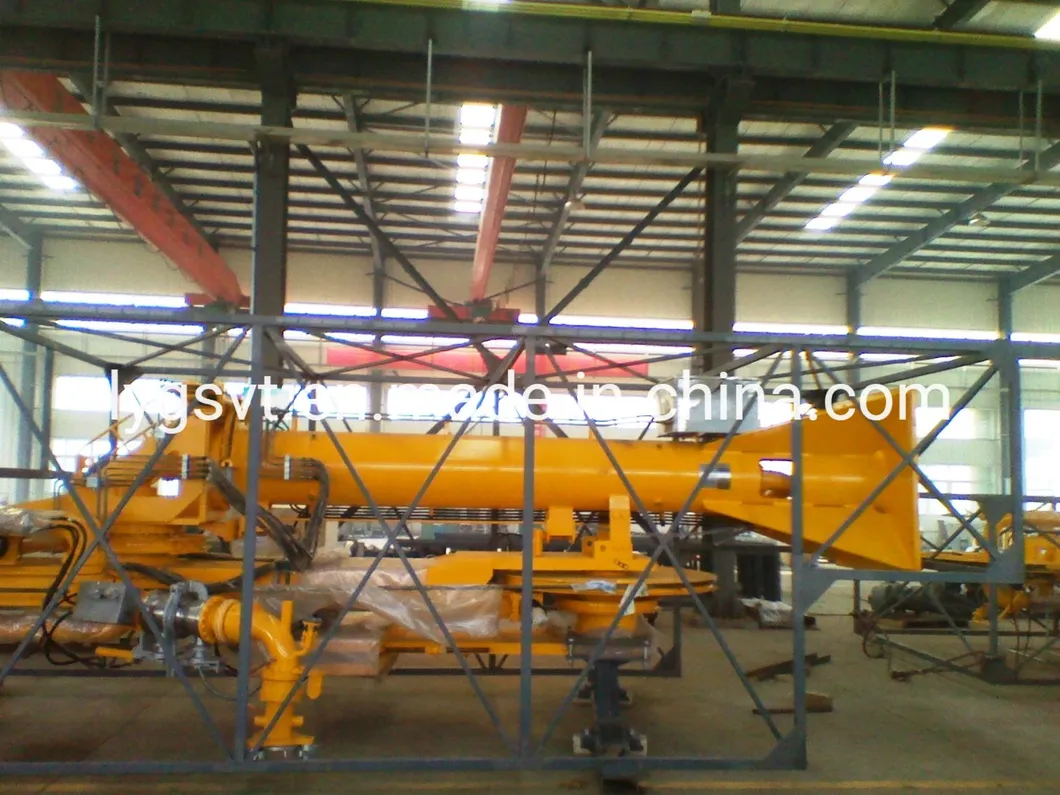

Shipping 2

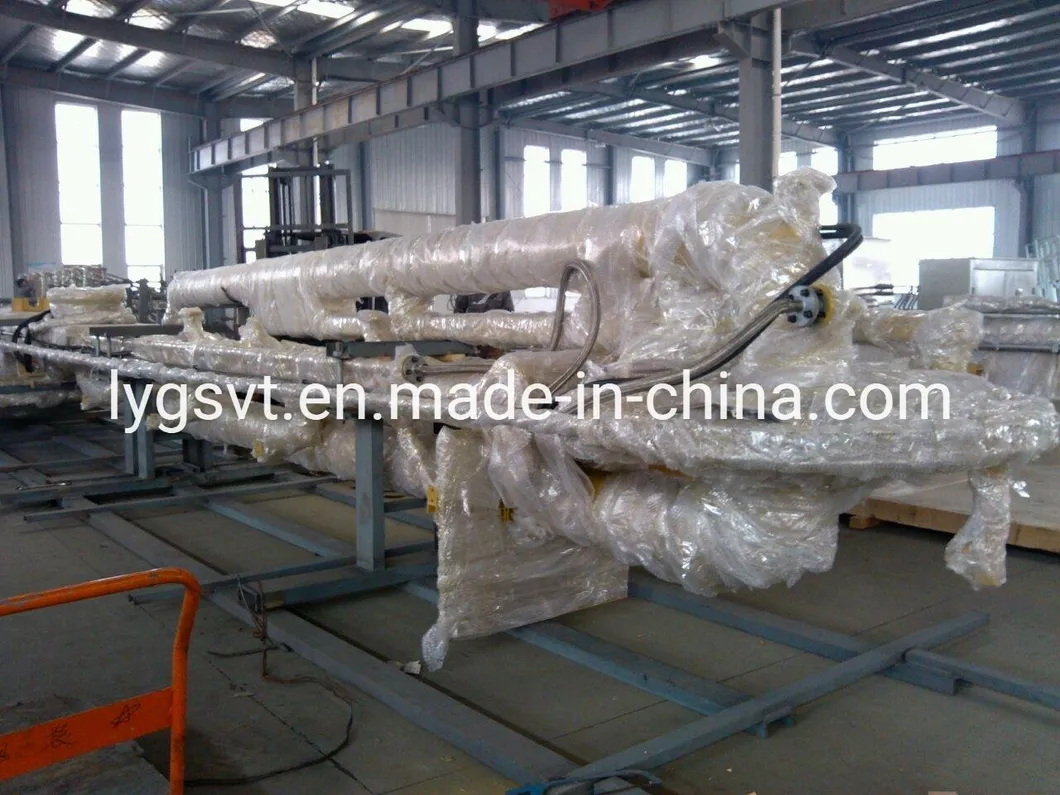

Logistics 1

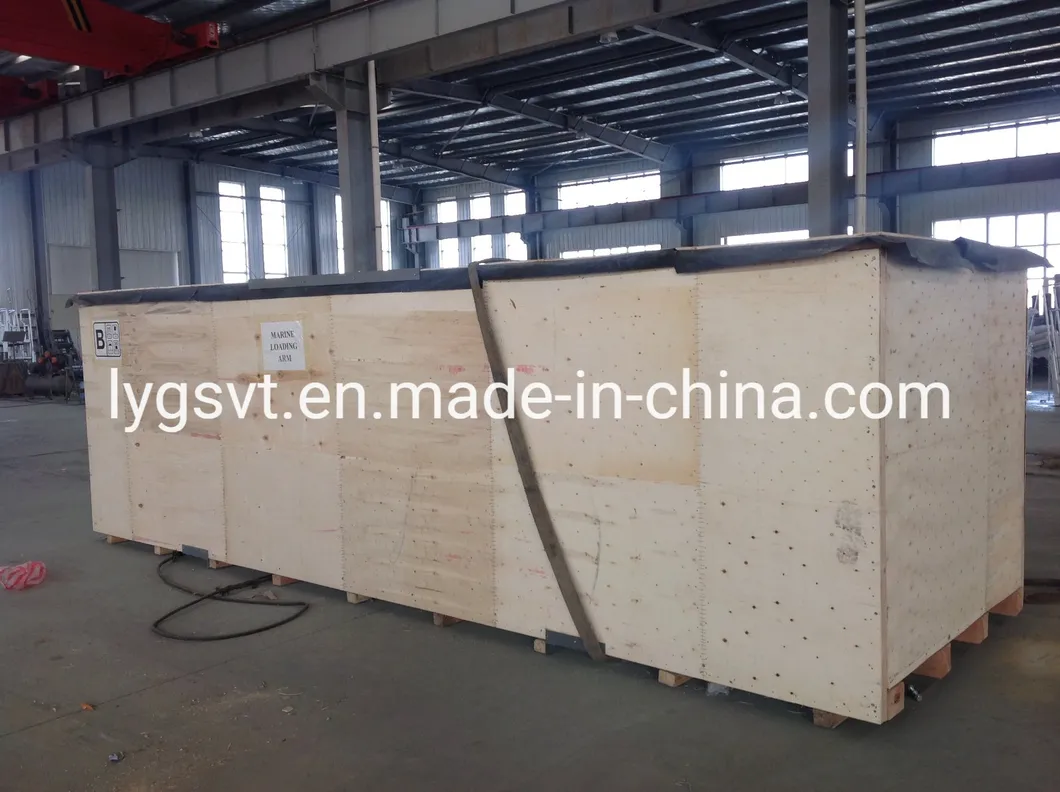

Logistics 2
🛠️
After Sales Service
Comprehensive on-site and after-sales services are provided, including installation, commissioning, maintenance, and automatic system upgrading for all products.
Warranty: 12 months from the date of startup or 18 months after delivery, whichever occurs first.

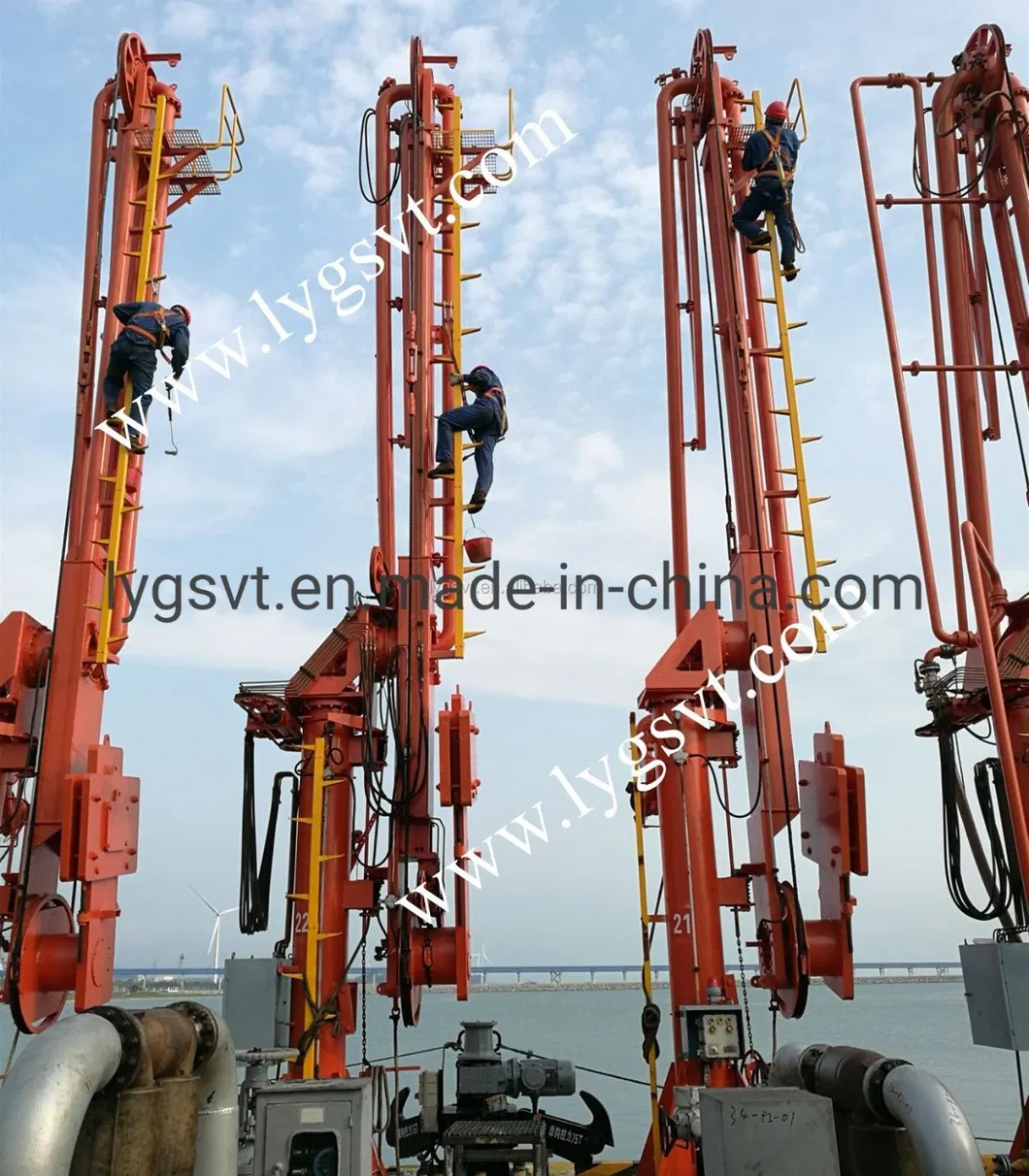

Service Support
🏢
Company Profile
The company specializes in the design, manufacture, and installation of fluid equipment including Land Loading Arms, Marine Loading Arms, Internal Floating Roofs, Floating Suction Units, Folding Stairs, Platforms, and Automatic Quantitative Loading Systems.
Our team comprises professional technical personnel with extensive experience in mechanical design and engineering construction. We operate under a strict quality management system, ensuring excellence from procurement to after-sales support. Equipped with modern processing, welding, and testing facilities, we provide reliable technical solutions worldwide.
❓
Frequently Asked Questions
What types of liquids can the Marine Loading Arm handle?
It is designed to handle a wide range of products including Oil, Gasoline, Diesel, LPG, LNG, and various other chemical liquids.
What is the standard design temperature range?
Our loading arms can operate in extreme temperatures ranging from -196°C (for cryogenic applications like LNG) up to +250°C.
Are the loading arms customizable?
Yes, the design is customized based on client requirements, including tidal ranges, ship tonnage, and specific environmental factors such as wind and earthquake loads.
What operation methods are available?
The systems can be configured for either manual operation or electro-hydraulic operation for larger or more complex installations.
What safety features are included?
Optional safety equipment includes Emergency Release Systems (ERS), Position Monitoring Systems (PMS), and Quick Connect/Disconnect Couplers (QC/DC).
What materials are used for the piping?
Pipes are typically constructed from Carbon Steel, Stainless Steel, or Low-Temperature Steel, with optional PTFE lining for corrosive substances.
