Liftora Arm
1 / 5
| Model NO. | AL2543 | Operation Pressure | Pn4.0 |
| Applicable Medium | Water, Crude Oil, Gasoline, Diesel etc | Structure | Seamless Pipe with Swivel Joint |
| Material | Ss, CS, PTFE Lined etc | Color | Light Grey or Customized |
| Quality Guarantee | 1 Year | Seals | PTFE |
| Application | Truck Tanker, Rail Tanker, Marine | Specification | DN50, DN80, DN100, DN150 |
| Origin | China | HS Code | 8428909090 |

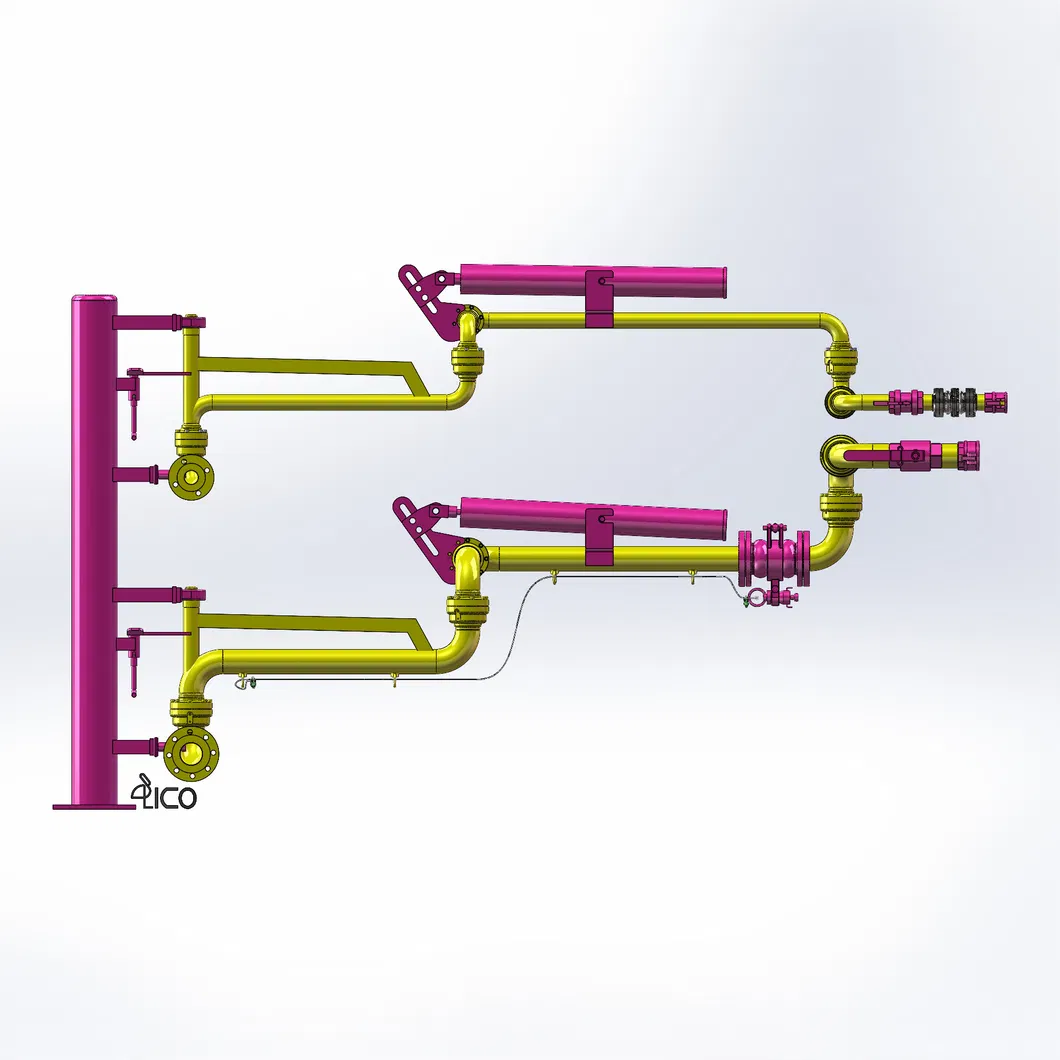

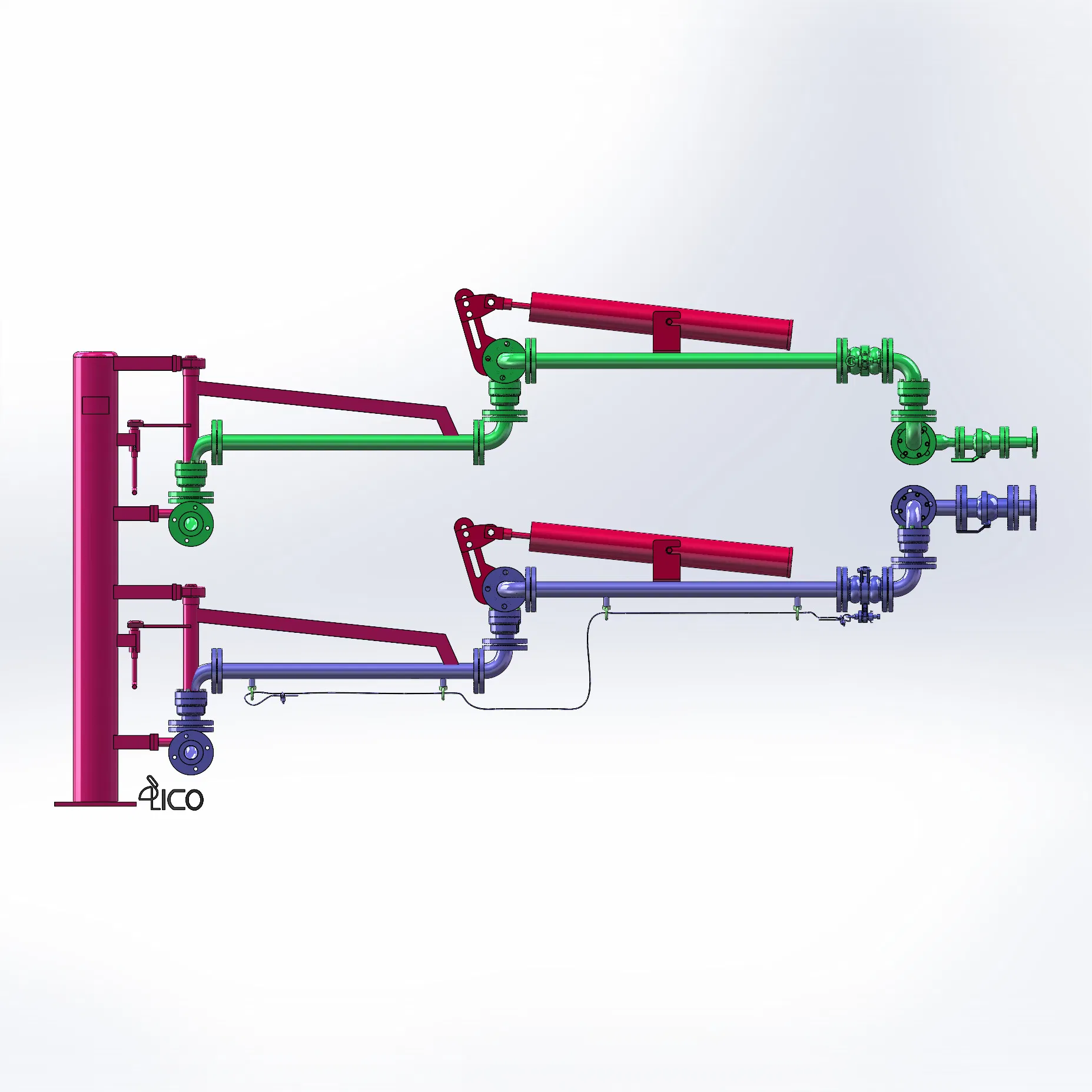

The structure of AL2543 Loading arm:
The AL2543 bottom-loading arm is designed for high-volatility media like LPG and liquid ammonia, suitable for bottom loading/unloading of road/rail tankers. With a design pressure of 2.5MPa (test pressure 3.75MPa) and temperature range of -40ºC~+60ºC, it features 304 stainless steel pipelines, copper quick connectors, and PTFE main seals for corrosion resistance and tight sealing. Equipped with a spring cylinder balancing system and anti-static device, it enables 3D movement with low operational force (unbalanced torque <5Kg·M), widely used in safe loading operations across petrochemical and chemical industries.

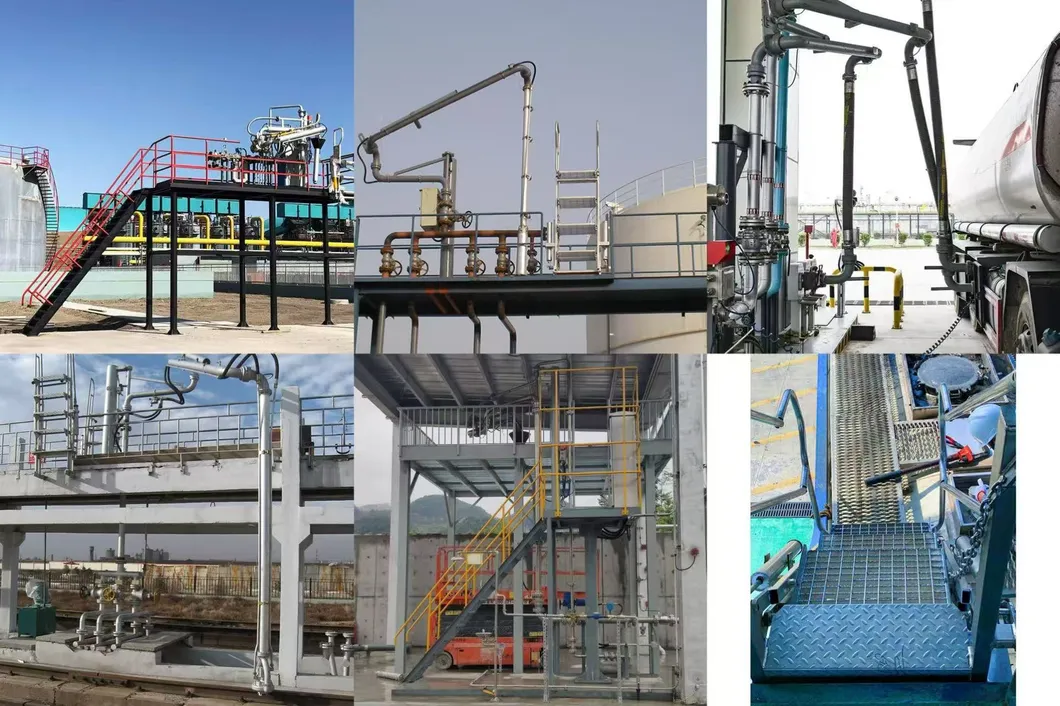

Our land loading arm is especially designed for transporting fluid between piping system and tanker, which shall be designed for different tanker, liquids and site conditions. Equipped with loading platform, folding stairs and safety cage to make the land loading arm into a complete loading system. By level location or quantitative monitoring, while fluid level exceed the present value, provide the sound and visual alarm or the remote signal.
According to the products, models and requirements of customers, the operating modes could be manual, pneumatic or hydraulic etc.
| AL1402 typical loading arm features | |
| Places Applied | Top open loading |
| Applications | Product oil, chemicals |
| Nominal Diameter | DN25~DN200 (1"~8") |
| Working Temperature | -196~250ºC |
| Working Pressure | PN1.0~PN4.0 |
| Material of pipeline | Carbon steel, stainless steel, aluminum, low-temperature steel, PTFE lined etc. |

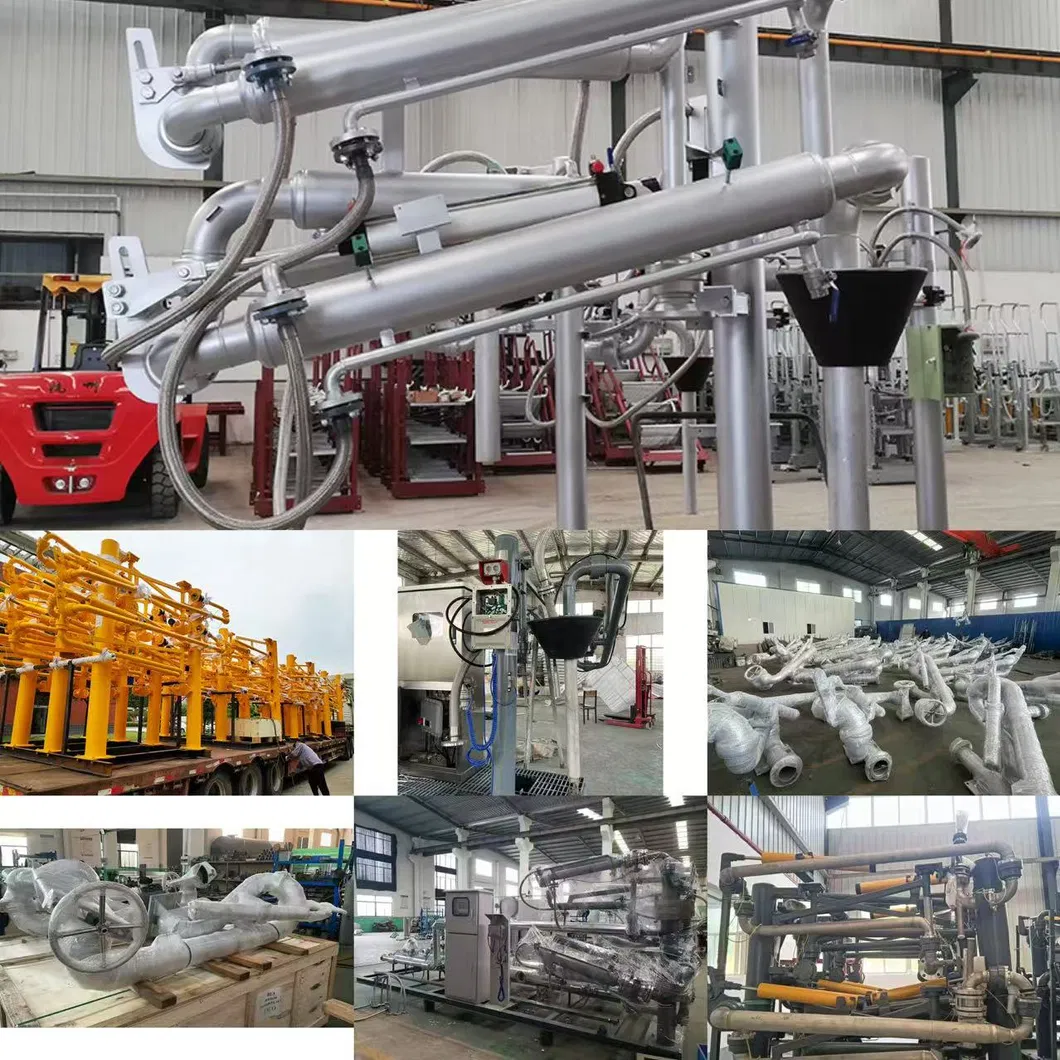

The enterprise is mainly engaged in the R&D, design, manufacturing, sales and maintenance of petrochemical storage and transportation equipment and accessories, as well as petrochemical storage and transportation automation control systems. Its products include loading arms, floating roofs, marine arms, network shells, movable ladders, loading control systems, skid-mounted equipment, etc., and it is a high-tech enterprise.
As a professional manufacturer of petrochemical storage and transportation machinery and automatic control systems, the products are widely used in large and medium-sized petrochemical enterprises. Products such as loading arms, jibs, floating roofs, movable ladders and skid-mounted equipment are exported globally and have been recognized by domestic and foreign customers. The company attaches great importance to talent development and strictly controls product quality, regarding quality as the cornerstone of its development.
