Liftora Arm
1 / 5
| Model NO. | AL1403 |
| Certification | ISO 9001:2000 |
| Power Source | Manual |
| Operation Pressure | Pn4.0 |
| Applicable Medium | Water, Crude Oil, Gasiline, Diesel etc |
| Structure | Seamless Pipe with Swivel Joint |
| Material | Ss, CS, PTFE Lined etc |
| Color | Light Grey or Customized |
| Quality Guarantee | 1 Year |
| Application | Truck Tanker, Rail Tanker, Marine |

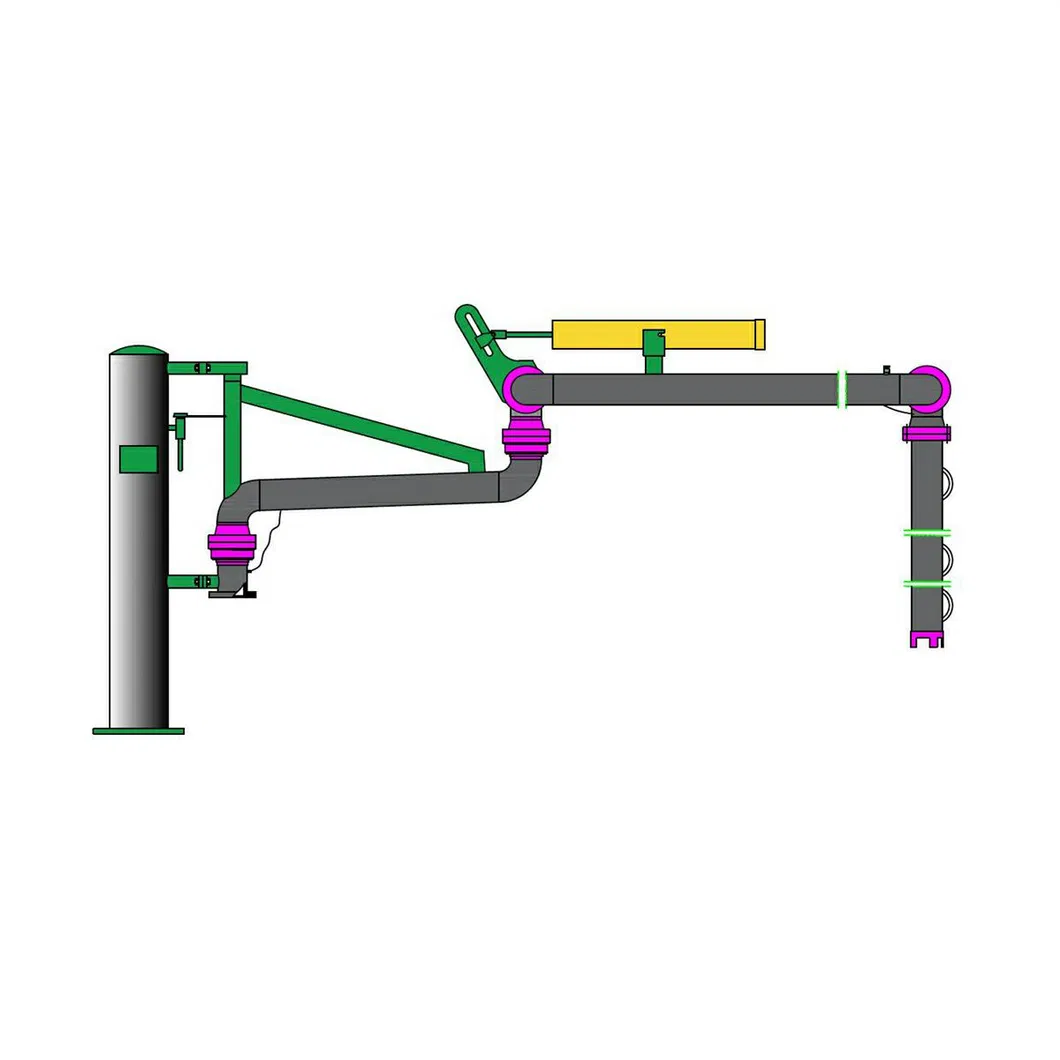

The structure of AL1403 Loading arm:
AL1403 is mainly applied in petrochemical and warehousing logistics sectors for top-loading and unloading operations of normal-temperature liquid media such as crude oil, heavy oil, and acid-base solutions. It is compatible with truck/train tank cars and storage tanks, especially suitable for transferring abrasive or corrosive media like asphalt and sulfuric acid in high-load and corrosive environments.
The top-loading design streamlines operations and improves efficiency, while flexible swivel joints, high-seal components, and a spring balancer ensure easy operation, leak-proof performance, and a robust structure capable of withstanding frequent use, reducing maintenance costs and ensuring safe and stable operation in petrochemical scenarios.

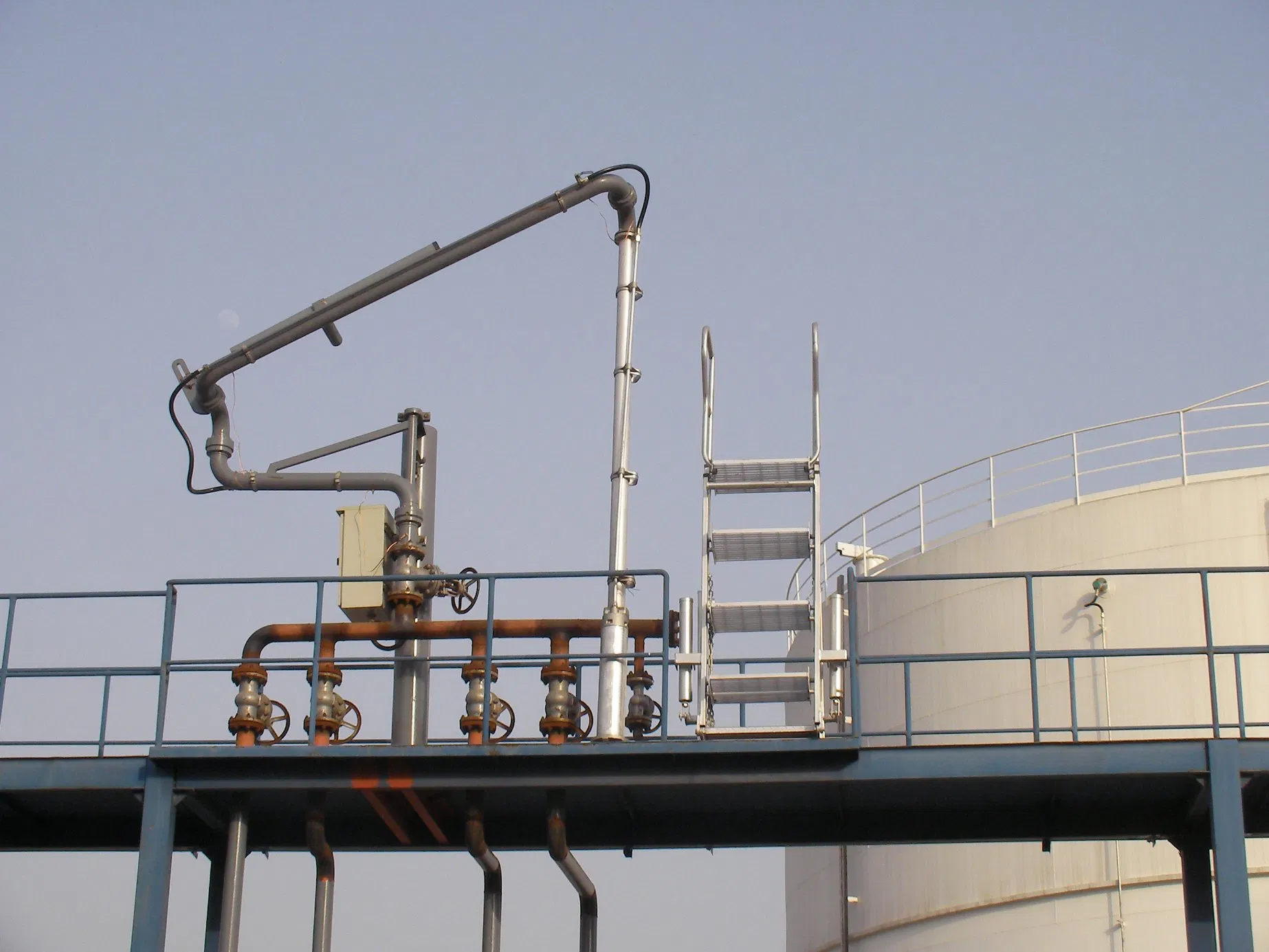

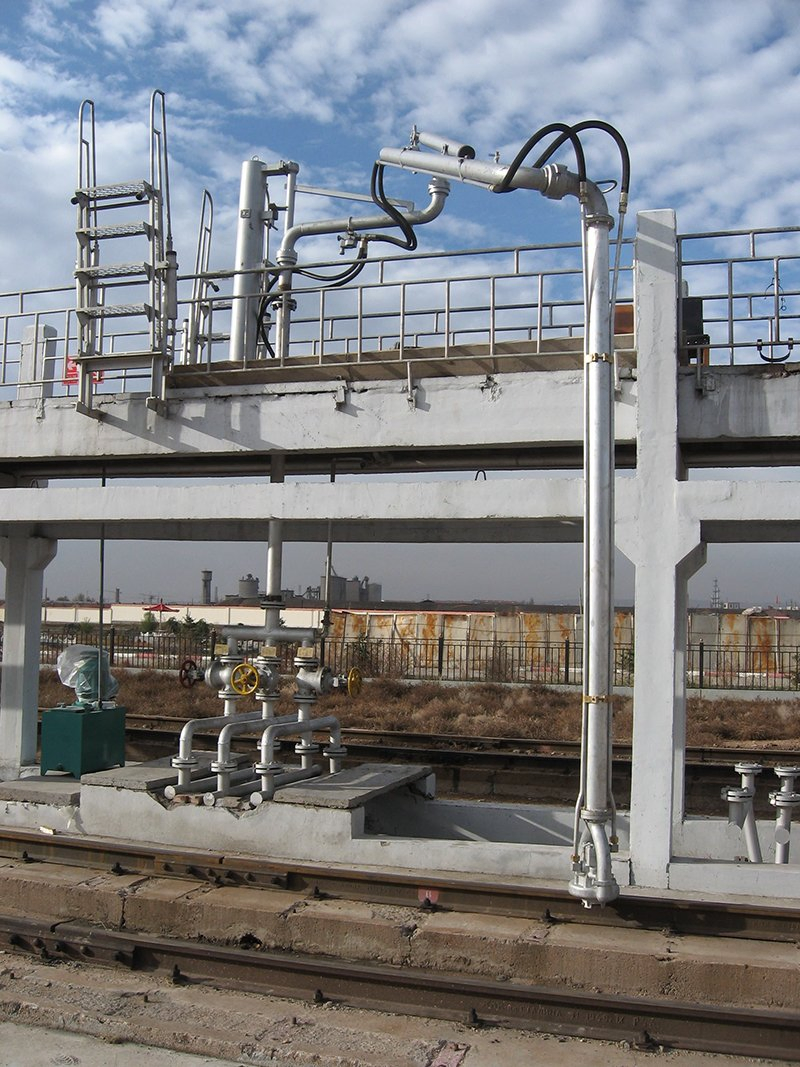

Our loading arm on site:

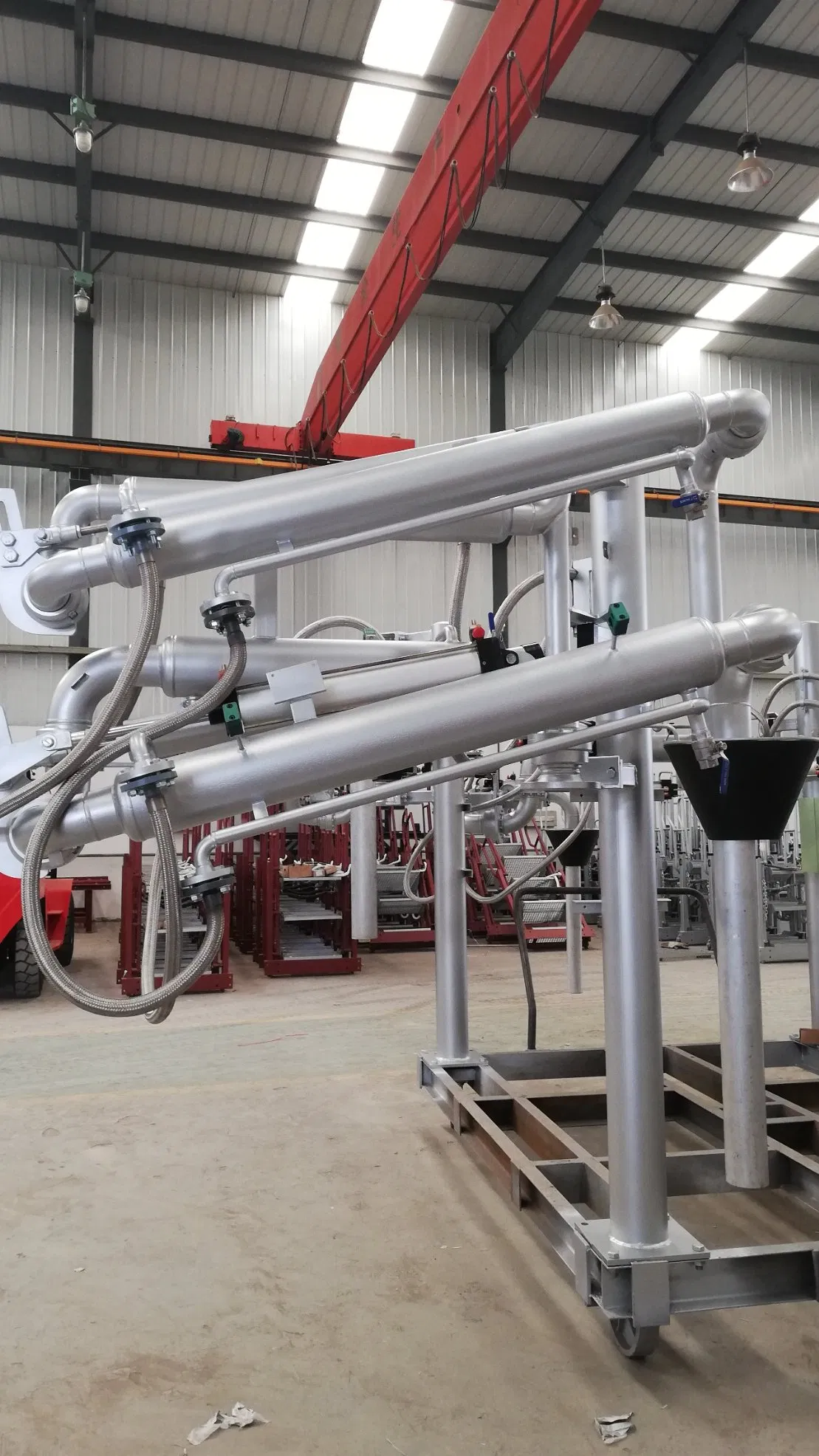

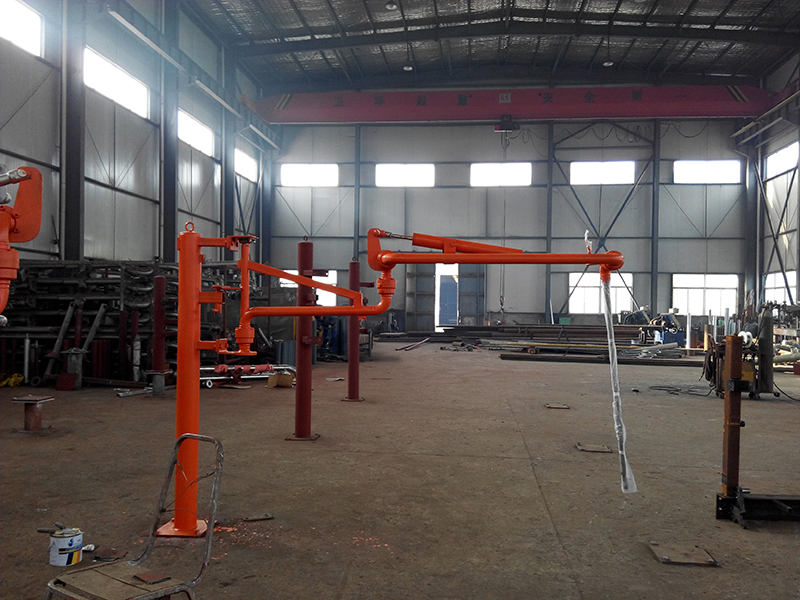

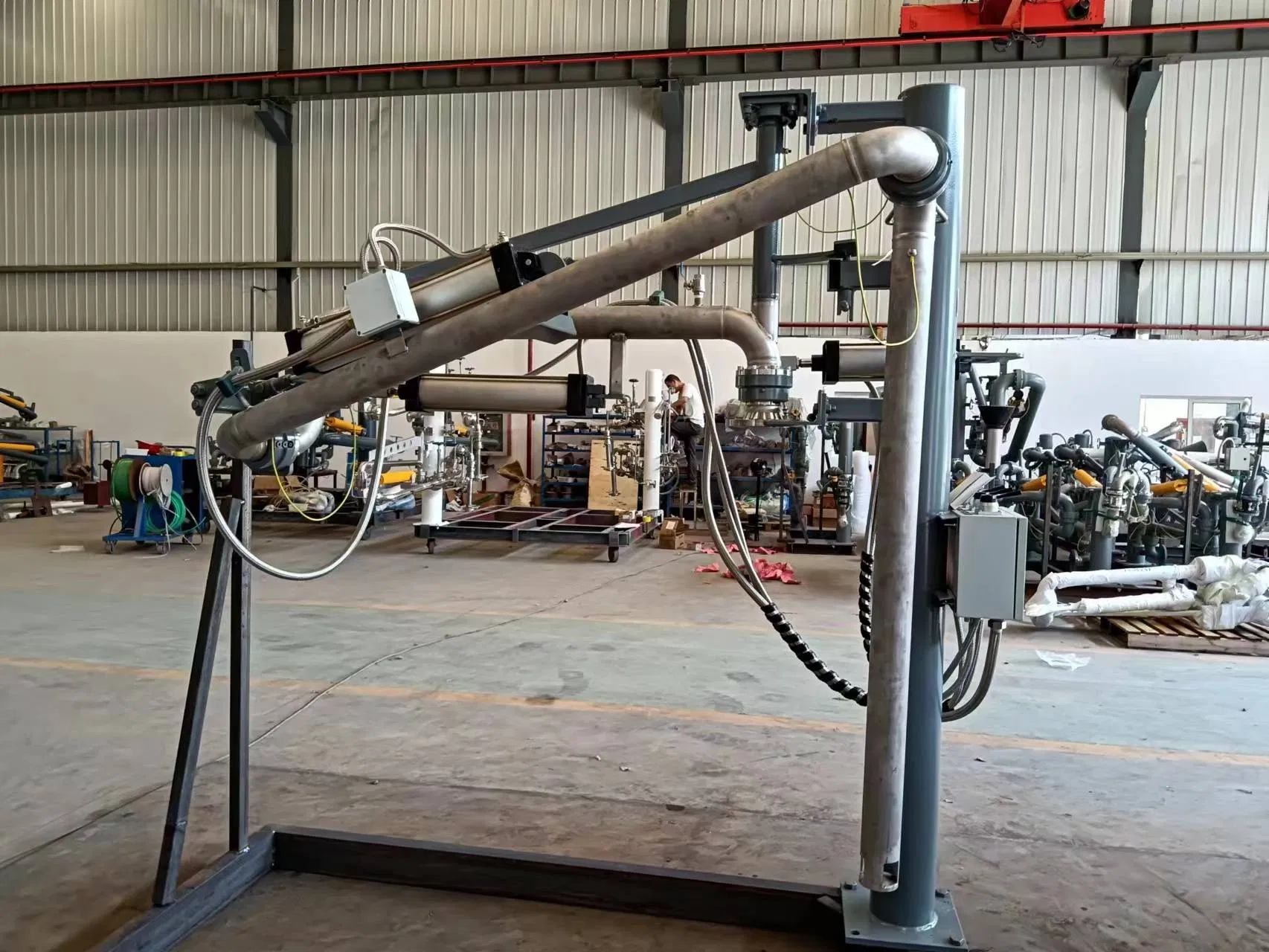

Our loading arm in the workshop:
Our land loading arm is especially designed for transporting fluid between piping system and tanker, which shall be designed for different tanker, liquids and site conditions. Equipped with loading platform, folding stairs and safety cage to make the land loading arm into a complete loading system.
| AL1402/1403 Series Technical Data | |
|---|---|
| Places Applied | Top open loading |
| Applications | Product oil, chemicals |
| Nominal Diameter | DN25~DN200 (1"~8") |
| Working Temperature | -196~250ºC |
| Working Pressure | PN1.0~PN4.0 |
| Material of pipeline | Carbon steel, stainless steel, aluminum, low-temperature steel, PTFE lined etc. |
Overseas project cases:
The company is mainly engaged in the R&D, design, manufacturing, sales and maintenance of petrochemical storage and transportation equipment and accessories, as well as petrochemical storage and transportation automation control systems. Its products include loading arms, floating roofs, marine arms, network shells, movable ladders, loading control systems, skid-mounted equipment, etc., and it is a high-tech enterprise.
As a professional manufacturer, the products are widely used in large and medium-sized petrochemical enterprises. Products such as loading arms, jibs, floating roofs, movable ladders and skid-mounted equipment are exported to Vietnam, Indonesia, France, Nigeria, South Africa, Italy, Saudi Arabia, etc., and have been recognized by domestic and foreign customers. The company attaches great importance to talent development and strictly controls product quality, regarding "quality" as the cornerstone of its development.
