Loading Arm Al1412: for Low-Viscosity Liquid Loading and Unloading

1 / 5

Loading Arm Al1412: for Low-Viscosity Liquid Loading and Unloading

Customization:	Available
Warranty:	One Year
Condition:	New

Send Inquiry

Product Description

📋 Basic Information

Model NO.

1412

Certification

ISO9001

Tank Material

Metal Tank

Type

Middle Pressure Equipment

Storage Objects

Liquid, Gas

Application

Truck, Rail, Marine

Color

Light Gray or Customized

Seals

PTFE

Specification

DN50, DN80, DN100, DN150

Trademark

LOADARM

Production Capacity

5000 Sets / Year

🚚 Product Description

●

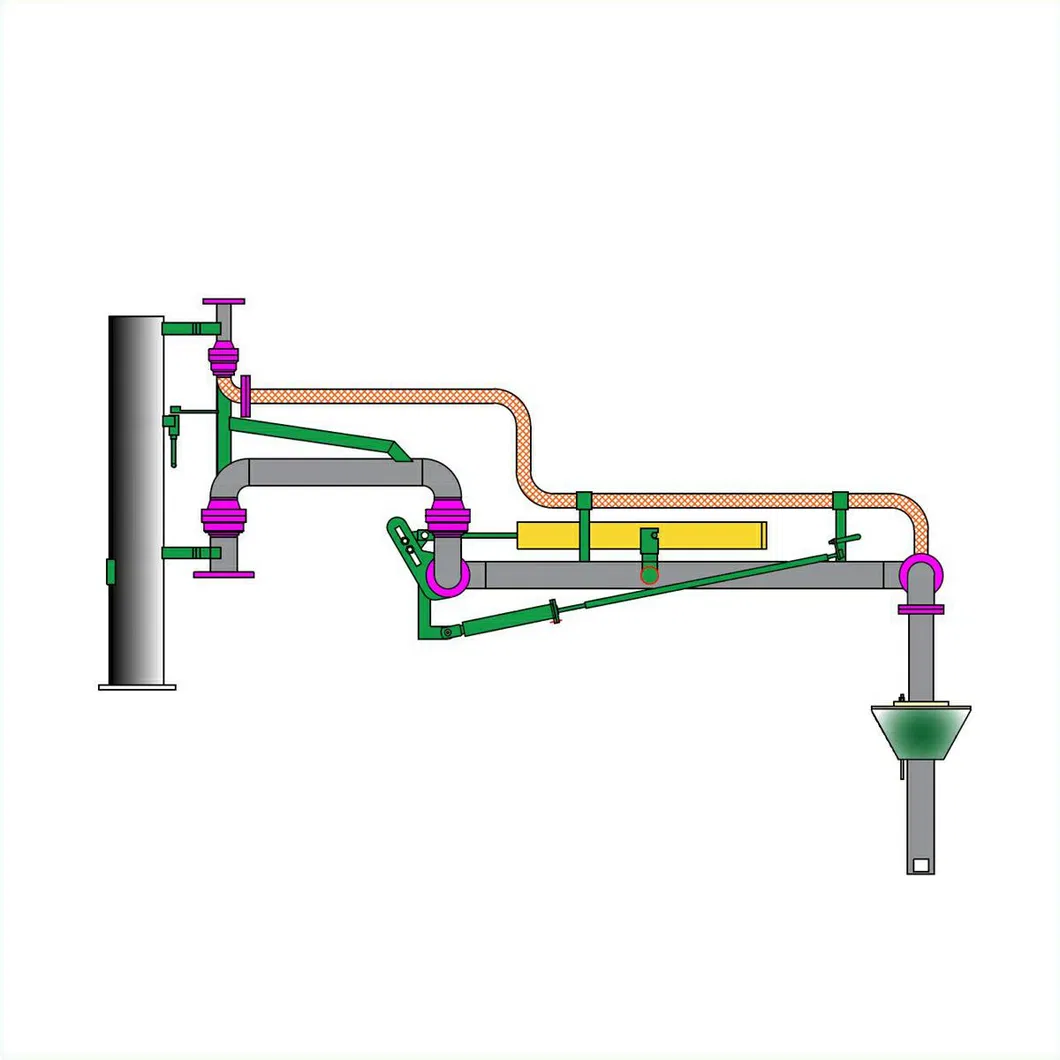

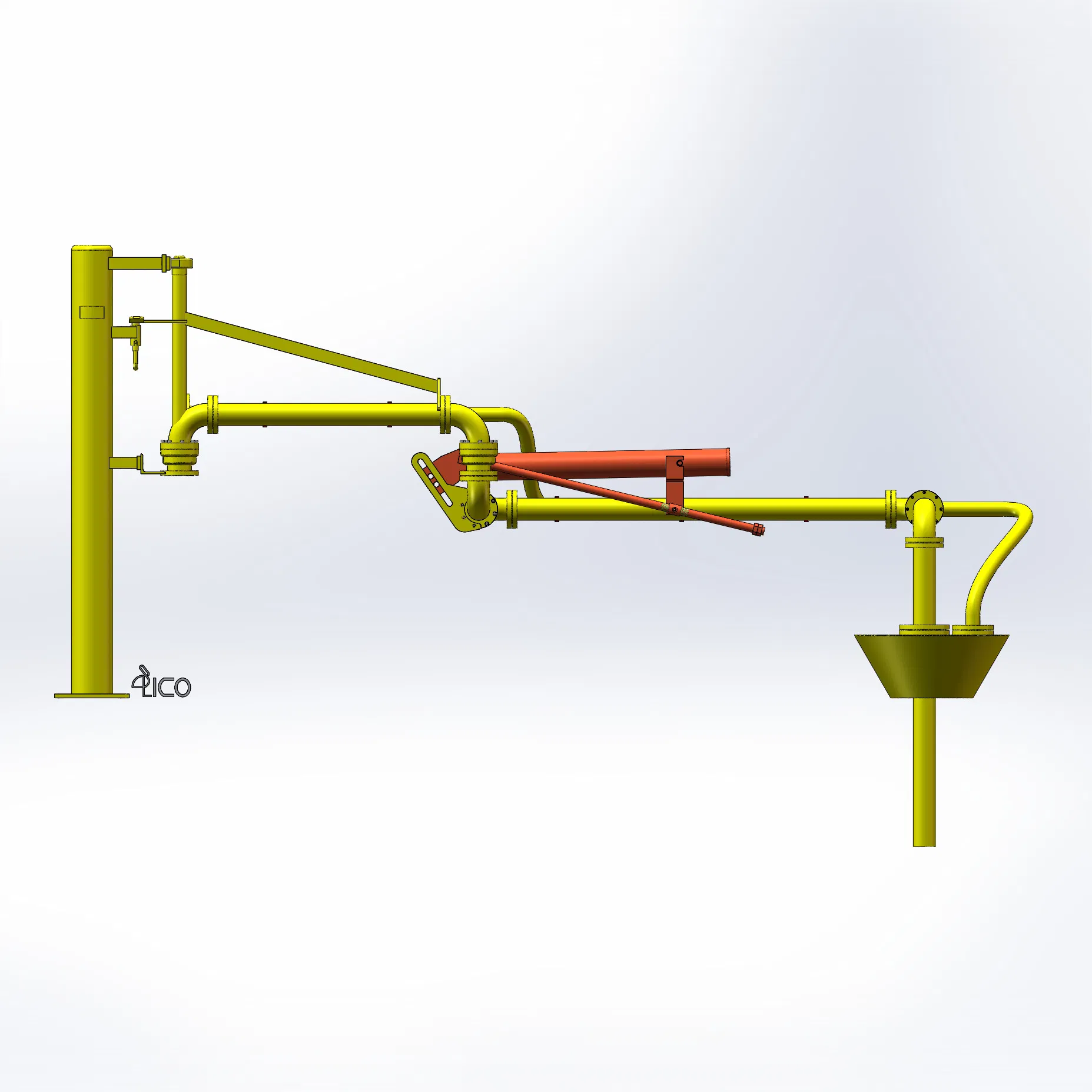

The structure of AL1412 Loading arm:

The AL1412 loading arm is a top-mounted, enclosed liquid-loading device. Comprising 5 swivel joints (4 for liquid phase, 1 for gas phase), it features a downward-facing liquid-phase interface and an upward-facing gas-phase one. Made of materials like carbon steel or stainless steel, it suits -196°C to 250°C. It's widely used for loading and unloading volatile and toxic media such as gasoline and chemical products in trucks and trains.

●

Our land loading arm is especially designed for transporting fluid between piping system and tanker, which shall be designed for different tanker, liquids and site conditions.

●

Equipped with loading platform, folding stairs and safety cage to make the land loading arm into a complete loading system.

●

By level location or quantitative monitoring, while fluid level exceed the present value, provide the sound and visual alarm or the remote signal.

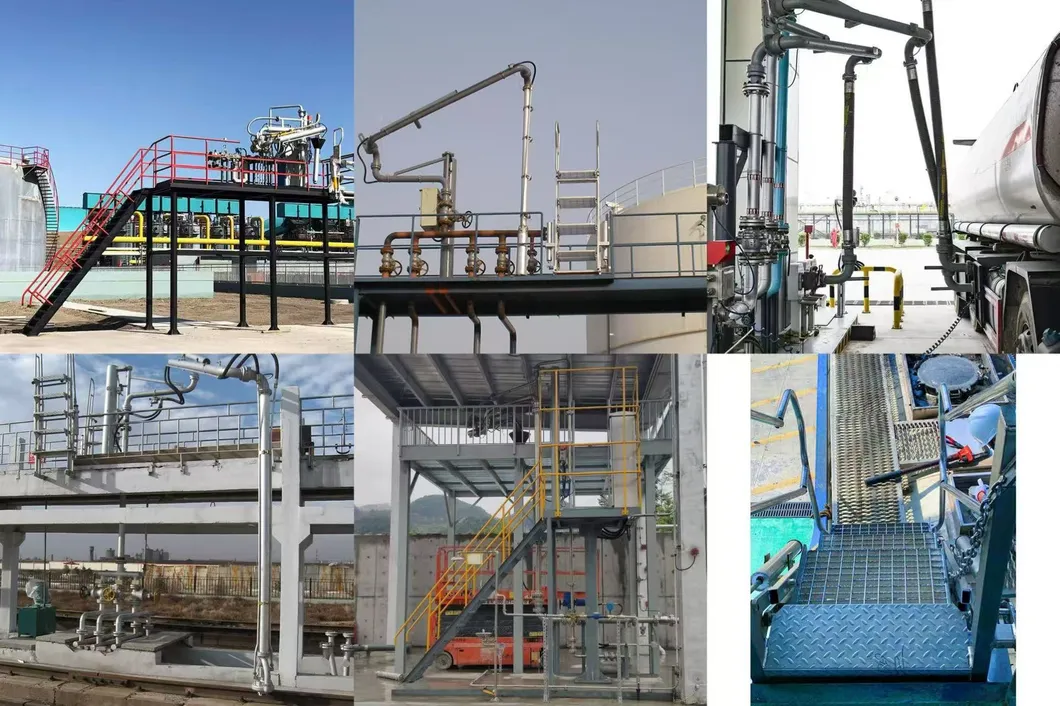

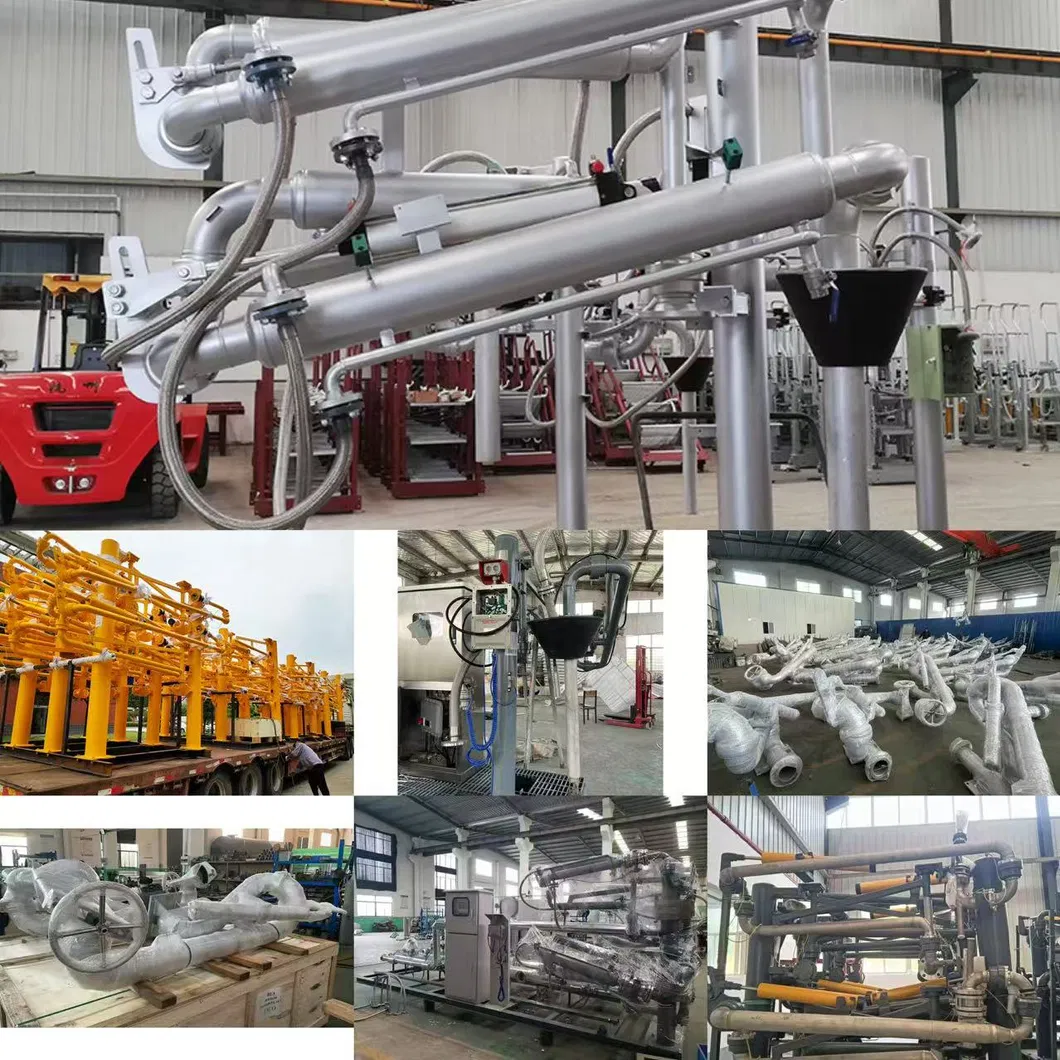

📷 On-Site & Workshop Display

📊 Technical Parameters

AL1412 Typical Loading Arm Specifications
Places Applied	Top open loading
Applications	Product oil, chemicals
Nominal Diameter	DN25~DN200 (1"~8")
Working Temperature	-196~250ºC
Working Pressure	PN1.0~PN4.0
Material of Pipeline	Carbon steel, stainless steel, aluminum, low-temperature steel, PTFE lined etc.

🌍 Overseas Project Cases

🏭 Professional Manufacturer Profile

We are mainly engaged in the R&D, design, manufacturing, sales and maintenance of petrochemical storage and transportation equipment and accessories, as well as petrochemical storage and transportation automation control systems. Our products include loading arms, floating roofs, marine arms, network shells, movable ladders, loading control systems, and skid-mounted equipment.

As a professional manufacturer, our products are widely used in large and medium-sized petrochemical enterprises. We export to Vietnam, Indonesia, France, Nigeria, South Africa, Italy, Saudi Arabia, and other international markets. We strictly control product quality, regarding it as the cornerstone of development, and continue to adhere to technological innovation to provide high-quality, energy-saving, and environmental protection solutions.

❓ Frequently Asked Questions

1. What is your production period or delivery time?

Delivery time can be within 20 days. For special products, it could be within 30-50 days depending on the specifications.

2. What payment terms do you offer?

We accept T/T (Telegraphic Transfer) before shipment or L/C (Letter of Credit).

3. Can you provide OEM services or custom nameplates?

Yes, we welcome OEM requests and can use the customer's specific nameplates for the products.

4. How do you ensure the quality of your products?

We maintain a strict quality control process, including inspections at every stage, RT tests, PT tests, and hydraulic tests. We hold ISO certification and TUV welding certificates.

5. Can you provide documentation and certifications?

Yes, we provide all necessary documentation including material certificates, inspection reports, and customs clearance certificates (CO, Form E, etc.).

6. How long is your warranty period?

The standard warranty is 12 months from commissioning or 18 months from delivery, whichever comes first. In some cases, we can provide a 2-year warranty.
