Liftora Arm
1 / 5
| Model NO. | AL1412 |
| Certification | ISO 9001:2000 |
| Power Source | Manual |
| Operation Pressure | Pn4.0 |
| Applicable Medium | Water, Crude Oil, Gasiline, Diesel etc |
| Structure | Seamless Pipe with Swivel Joint |
| Material | Ss, CS, PTFE Lined etc |
| Color | Light Grey or Customized |
| Quality Guarantee | 1 Year |
| Seals | Viton or PTFE |
| Application | Truck Tanker, Rail Tanker, Marine |
| Specification | DN50, DN80, DN100, DN150 |
| Origin | China |
| Production Capacity | 5000 Sets / Year |
| Package Size | 100.00cm * 200.00cm * 100.00cm |
| Package Gross Weight | 888.000kg |

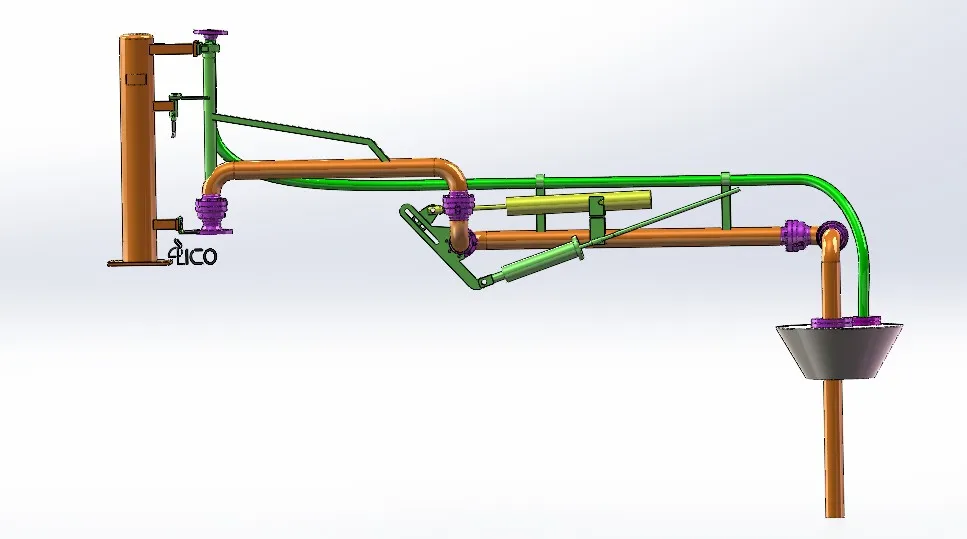

The structure of AL1412 Loading arm:
AL1412 is a top closed loading arm designed for petroleum, chemical and other industries, used for closed loading and unloading of volatile or toxic liquid media such as LPG, liquid ammonia and gasoline. It realizes medium transmission and volatile gas recovery through swivel joints and gas phase pipes to reduce leakage and pollution. With tracing function for low-temperature environments and corrosion-resistant/explosion-proof materials like aluminum alloy, it replaces hoses to enhance safety and efficiency, serving as an environmentally friendly and reliable loading/unloading equipment.

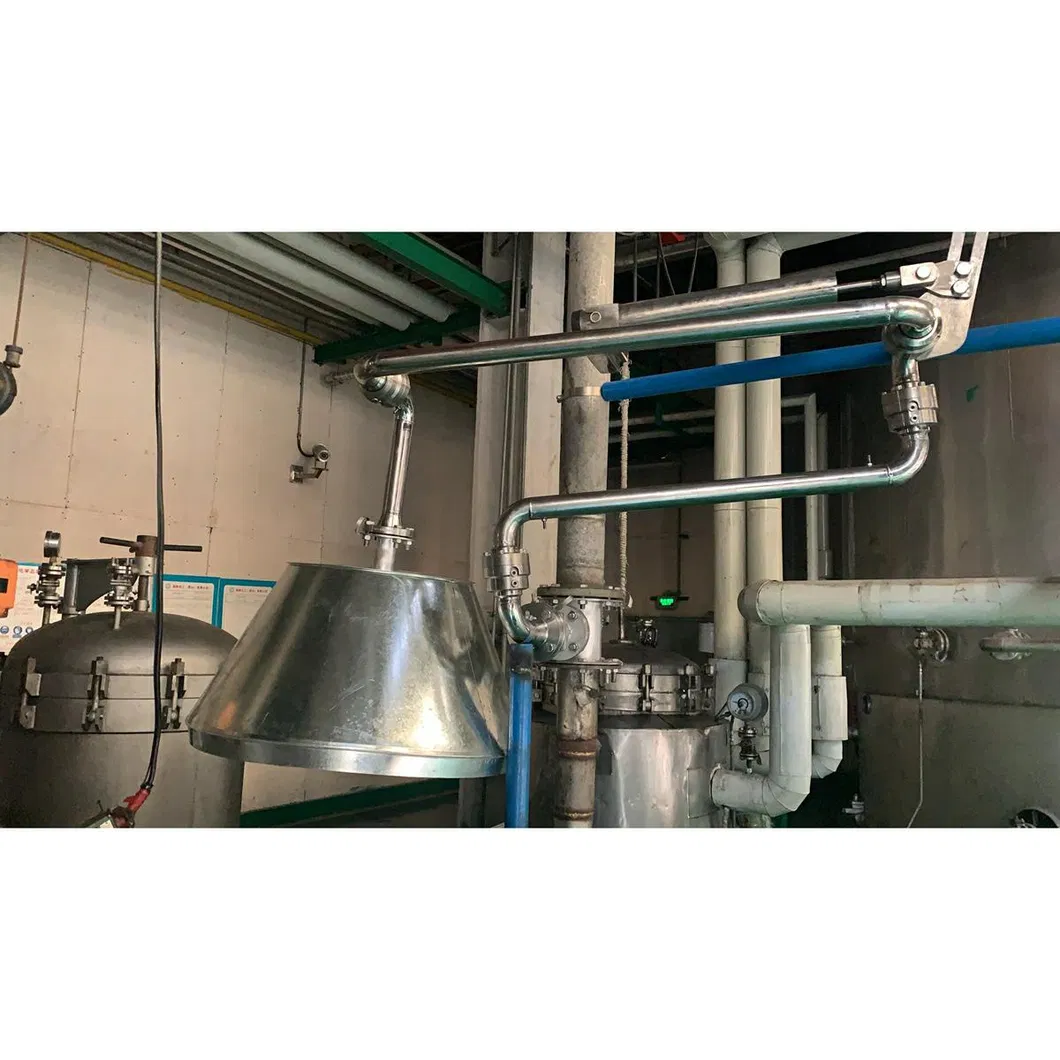

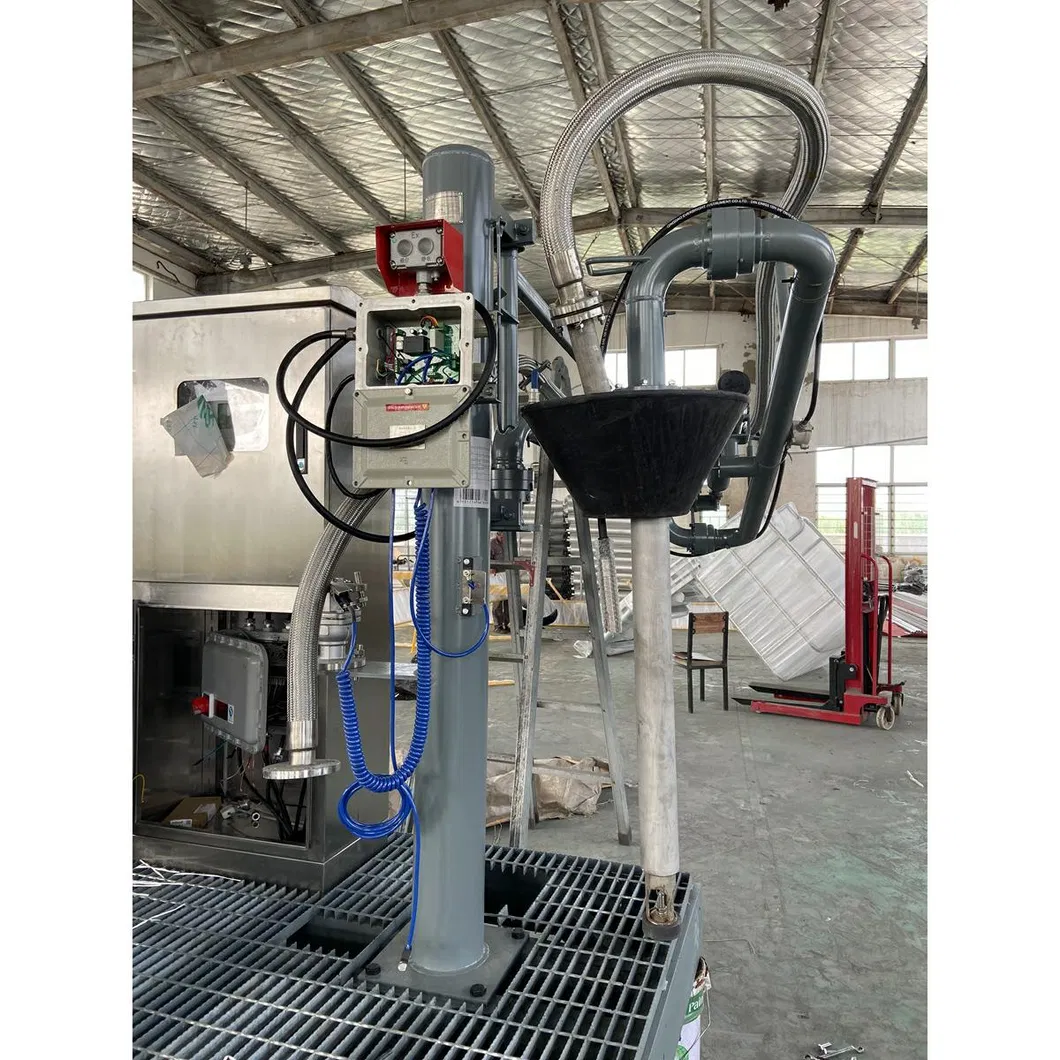

Our loading arm on site:

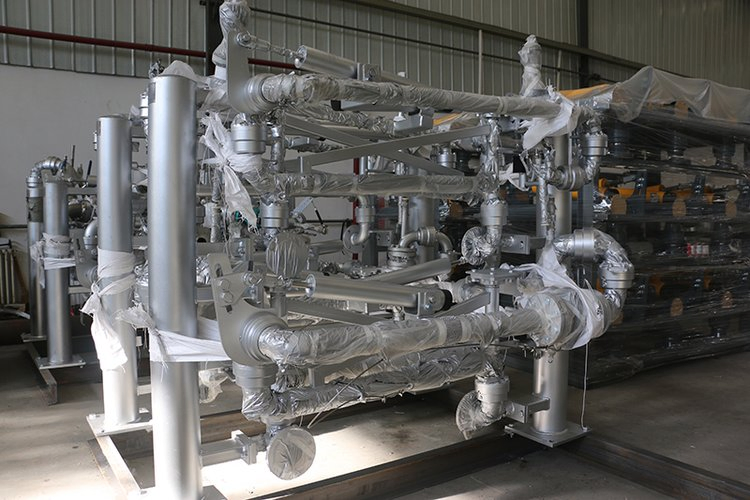

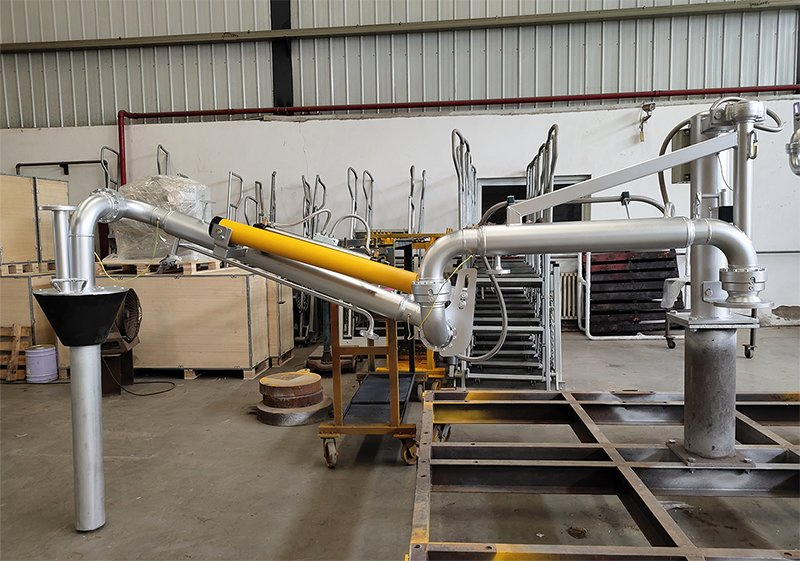

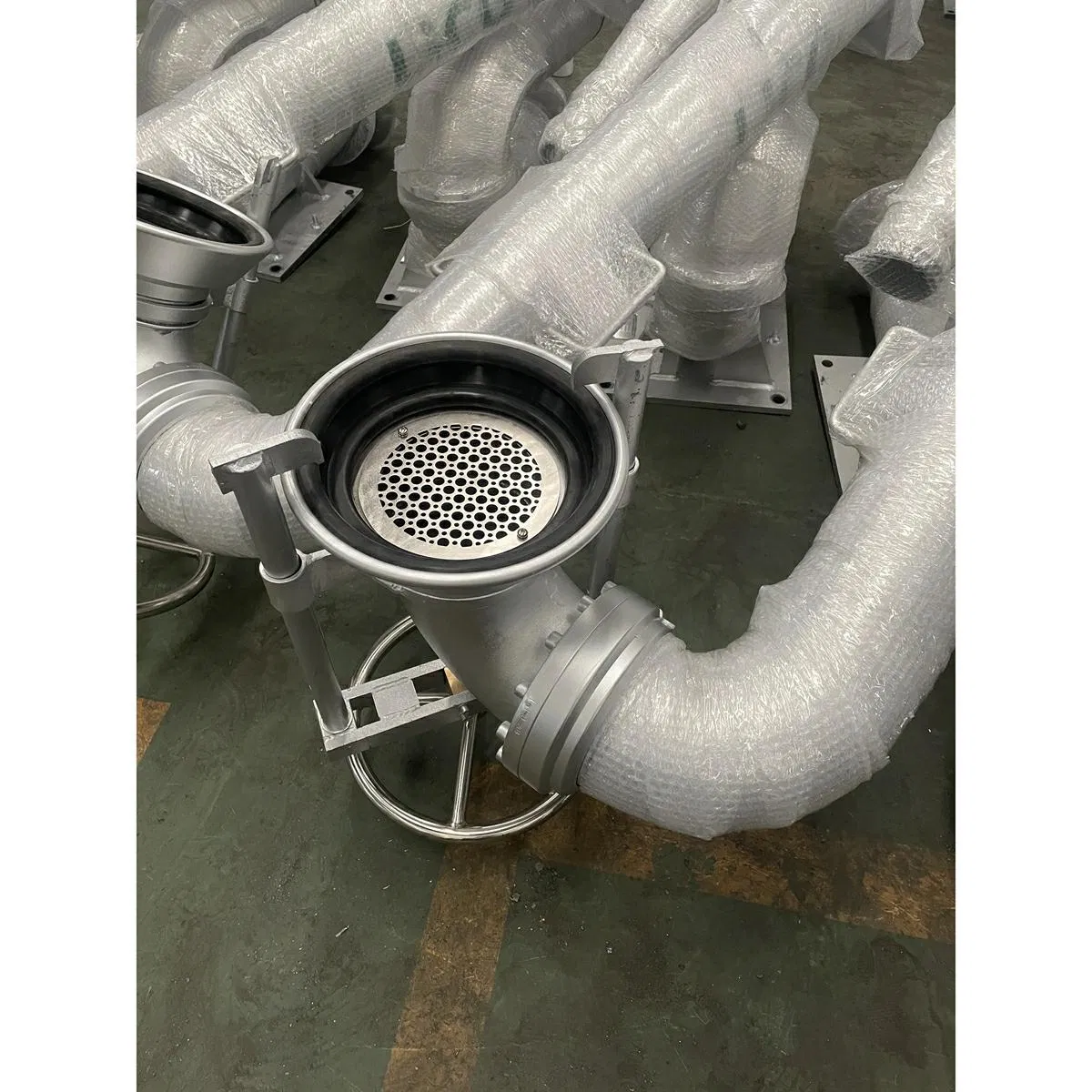

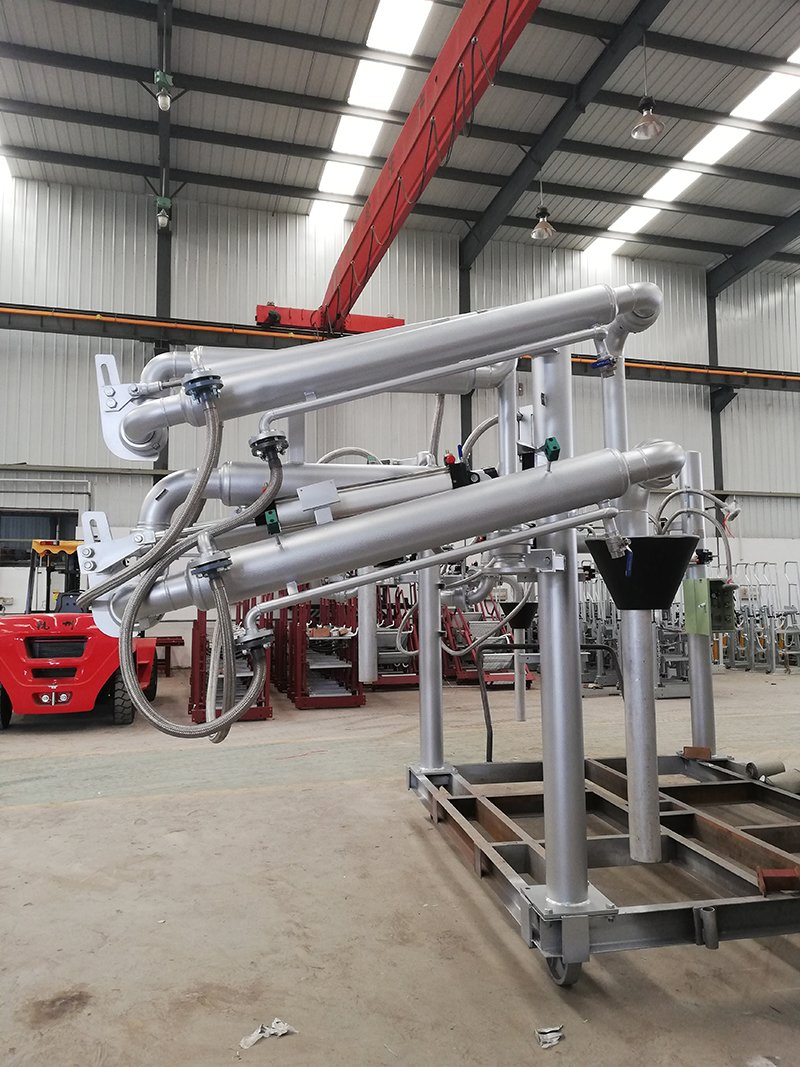

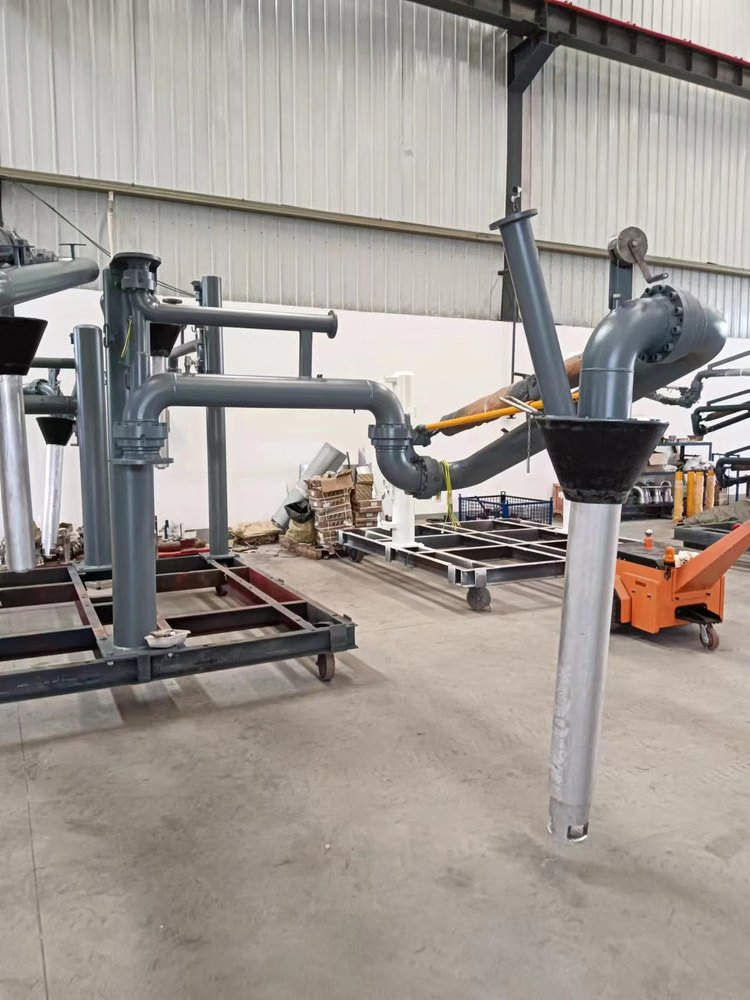

Our loading arm in the workshop:
Our land loading arm is especially designed for transporting fluid between piping system and tanker, which shall be designed for different tanker, liquids and site conditions.
Equipped with loading platform, folding stairs and safety cage to make the land loading arm into a complete loading system. By level location or quantitative monitoring, while fluid level exceed the present value, provide the sound and visual alarm or the remote signal.
According to the products, models and requirements of customers, the operating modes could be manual, pneumatic or hydraulic etc.
| AL1412 Typical Loading Arm Parameters | |
|---|---|
| Places Applied | Top open loading |
| Applications | Product oil, chemicals |
| Nominal Diameter | DN25~DN200 (1"~8") |
| Working Temperature | -196~250ºC |
| Working Pressure | PN1.0~PN4.0 |
| Material of pipeline | Carbon steel, stainless steel, aluminum, low-temperature steel, PTFE lined etc. |
Overseas project cases:
Our expertise lies in the R&D, design, manufacturing, and maintenance of petrochemical storage and transportation equipment. Our product range includes loading arms, floating roofs, marine arms, network shells, movable ladders, loading control systems, and skid-mounted equipment.
As a professional manufacturer, our products are widely utilized in large and medium-sized petrochemical enterprises. Our solutions are exported globally to regions including Vietnam, Indonesia, France, Nigeria, South Africa, Italy, and Saudi Arabia. We prioritize technological innovation and strict quality control to provide high-quality, energy-saving, and environmentally friendly products.
