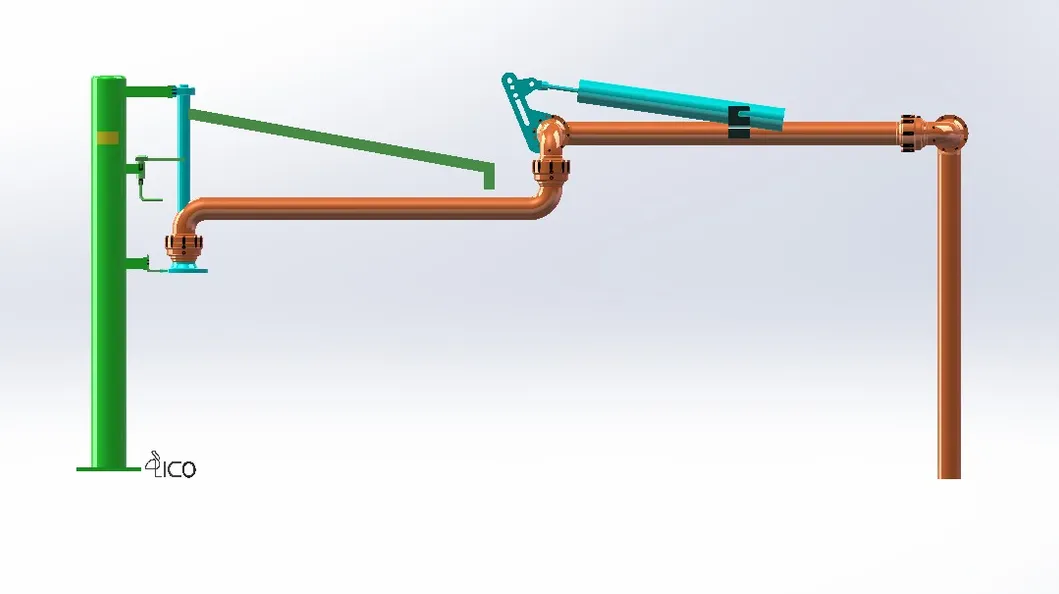

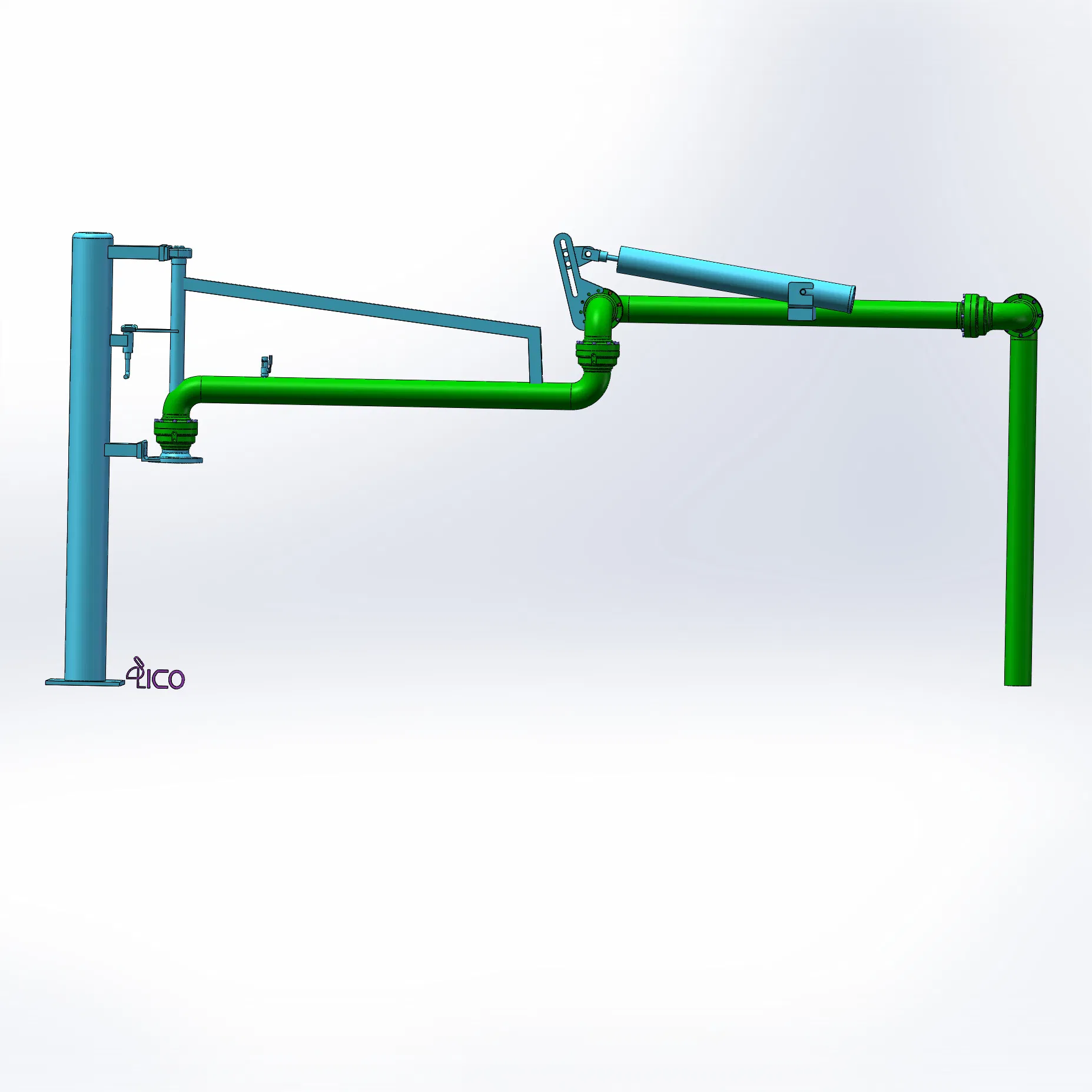

The structure of AL1503 Loading arm:
The AL1503 is a high-performance loading arm, specifically engineered for overhead loading and unloading of various industrial liquids, including volatile chemicals and petroleum products. Its robust construction with corrosion-resistant materials ensures durability in harsh environments.
The advanced swivel joint system allows for flexible positioning, enabling seamless connection with tank trucks and boosting operational efficiency. With a reliable sealing mechanism, it minimizes leakage risks, enhancing safety during handling. Additionally, its modular design simplifies maintenance, making the AL1503 a top choice for efficient and secure industrial liquid transfer.
Our land loading arm is especially designed for transporting fluid between piping system and tanker, which shall be designed for different tanker, liquids and site conditions. Equipped with loading platform, folding stairs and safety cage to make the land loading arm into a complete loading system. By level location or quantitative monitoring, while fluid level exceed the present value, provide the sound and visual alarm or the remote signal.
Basic Technical Data
AL1503 Typical Loading Arm Specifications
Places Applied
Top open loading
Applications
Product oil, chemicals
Nominal Diameter
DN25~DN200 (1"~8")
Working Temperature
-196~250ºC
Working Pressure
PN1.0~PN4.0
Material of pipeline
Carbon steel, stainless steel, aluminum, low-temperature steel, PTFE lined etc.

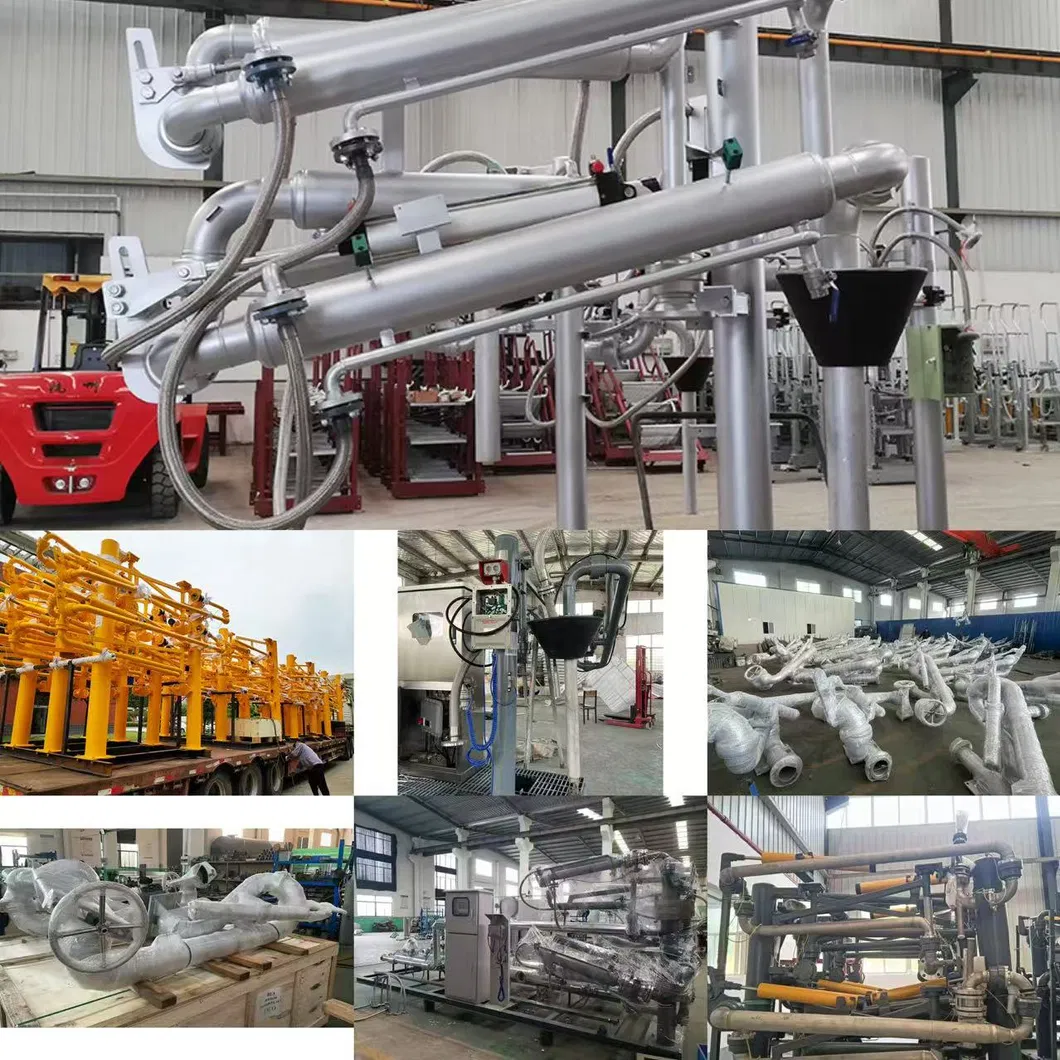

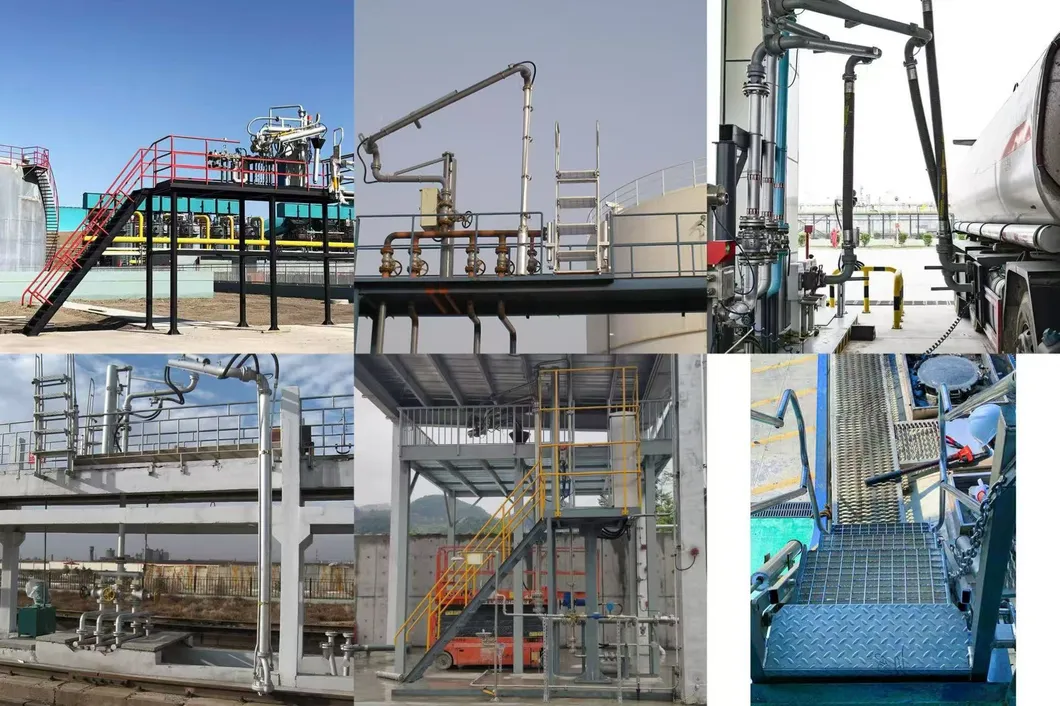

On-site & Workshop Display
Packaging & Delivery
Package Size
100.00cm * 200.00cm * 100.00cm
Gross Weight
888.000kg
Professional Capabilities
The manufacturer is mainly engaged in the R&D, design, manufacturing, sales and maintenance of petrochemical storage and transportation equipment and accessories, as well as petrochemical storage and transportation automation control systems. Its products include loading arms, floating roofs, marine arms, network shells, movable ladders, loading control systems, skid-mounted equipment, etc.
As a professional manufacturer of petrochemical storage and transportation machinery, the products are widely used in large and medium-sized petrochemical enterprises. Products such as loading arms, jibs, floating roofs, movable ladders and skid-mounted equipment are exported to Vietnam, Indonesia, France, Nigeria, South Africa, Italy, Saudi Arabia, etc. The company attaches great importance to talent development and strictly controls product quality, regarding "quality" as the cornerstone of its development.
Frequently Asked Questions
1 What is your production period or delivery time?
Delivery time can be within 20 days. For special products, it could be within 30-50 days.
2 What payment terms do you offer?
T/T before shipment or L/C can be accepted.
3 Can you do OEM or use the customer's name plate?
Yes, we can accept and welcome OEM requirements and customized name plates.
4 How do you make sure of the quality of your products?
We have a strict quality control process in the factory, including inspections at every stage of production, RT test, PT test, and hydraulic test. We hold ISO certification and welding certificates from TUV.
5 Can you provide documentation and certifications?
Yes, we provide all necessary documentation including material certificates, inspection reports, and customs clearance certificates such as CO, Form E, etc.
6 How long is your warranty period?
12 months from commissioning or 18 months from delivery, whichever comes first. In some cases, we can supply a 2-year warranty.
