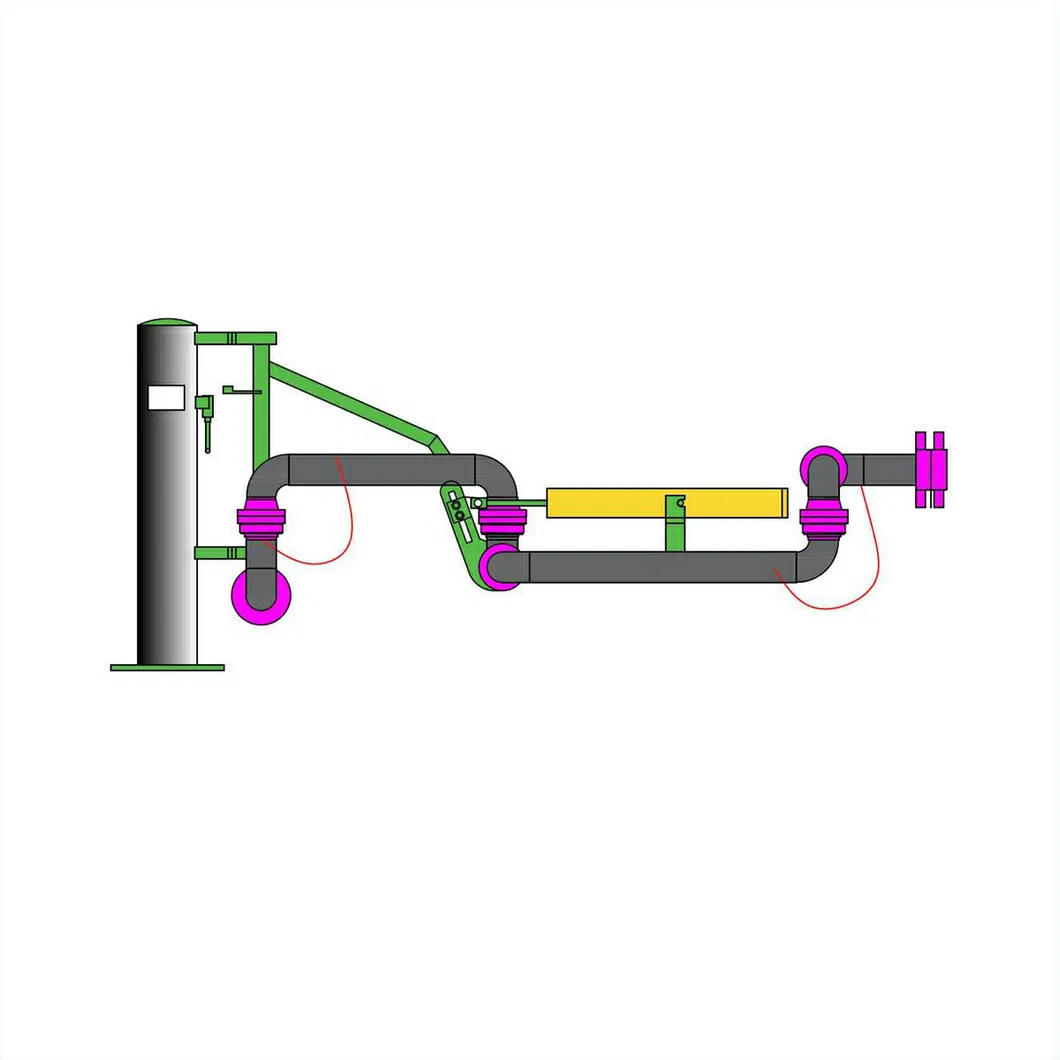

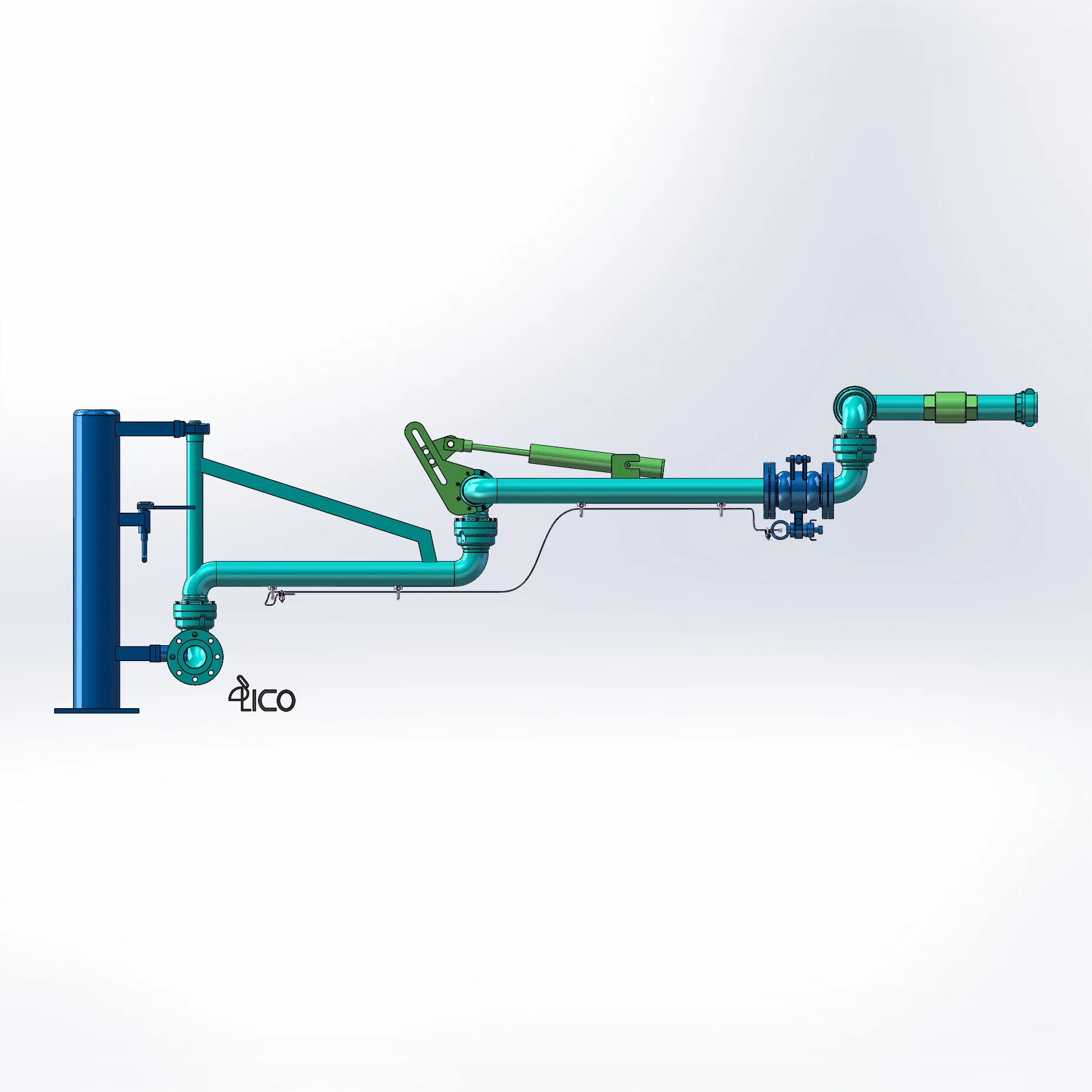

Crane AL2503 is designed for the bottom loading and unloading of trucks and trains. It is perfectly suited for crude oil, residual oil, and various chemical media. The swivel joints are constructed from alloy steel and stainless steel to ensure flexible rotation and reliable sealing.
The system operates effectively under a pressure range of -0.08Mpa to 2.5Mpa and temperatures from -196ºC to +160ºC. It features diverse pipeline materials for high stability and efficiency. Equipped with loading platforms, folding stairs, and safety cages, it forms a complete, safe loading system.
| Technical Specifications | Details |
|---|---|
| Places Applied | Bottom closed loading or unloading |
| Applications | Product oil, chemicals, etc. |
| Nominal Diameter | DN50 ~ DN150 |
| Working Temperature | -196ºC to +250ºC |
| Working Pressure | PN1.0 ~ PN4.0 |
| Pipeline Material | Carbon steel, stainless steel, aluminum, PTFE lined, etc. |
We are dedicated to the R&D, design, manufacturing, and maintenance of petrochemical storage and transportation equipment. Our product range includes loading arms, floating roofs, marine arms, network shells, and automated loading control systems. As a high-tech enterprise, we focus on technological innovation and strict quality control.
Our systems are widely utilized by large and medium-sized petrochemical enterprises globally. We have successfully exported products to Vietnam, Indonesia, France, Nigeria, South Africa, Italy, and Saudi Arabia, earning a reputation for superior quality and environmental protection.
