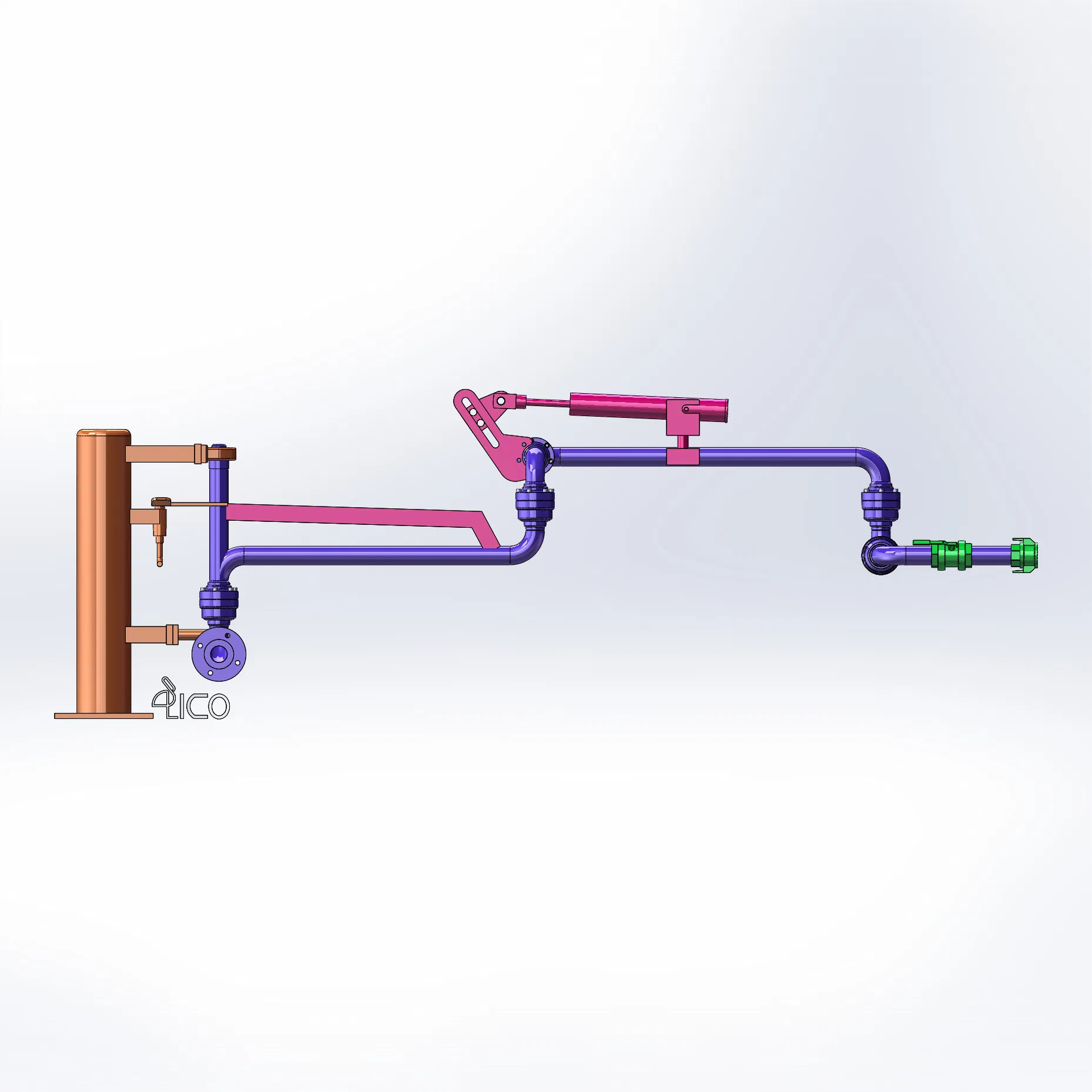

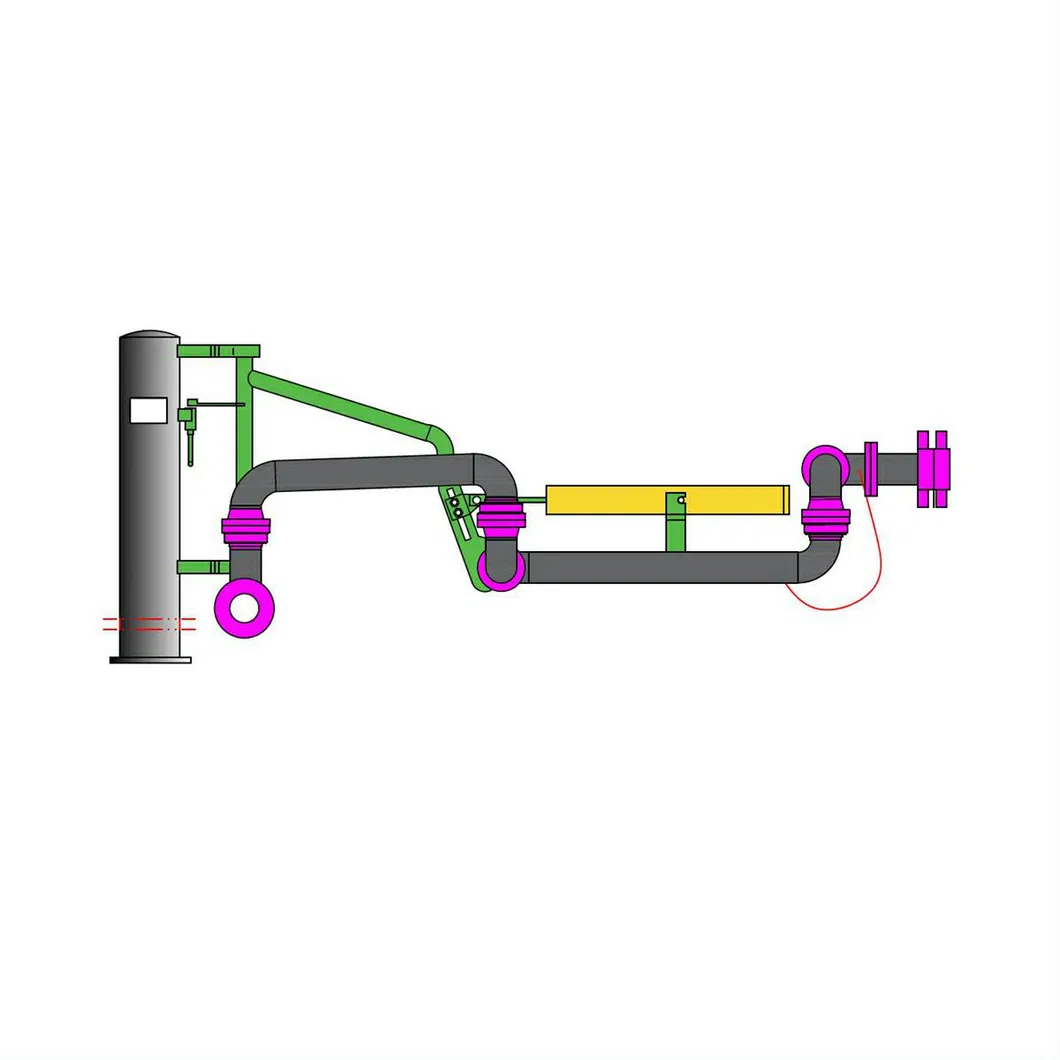

The structure of AL2504 Loading arm:
AL2504 is a bottom loading arm specially designed for high-viscosity or poorly flowable media like crude oil and residual oil, suitable for side bottom loading/unloading of tank cars in petrochemical plants, ports, railway freight yards, etc. Its bottom-closed structure reduces liquid splashing and volatilization, minimizing fire risks and environmental pollution, with a working pressure range of -0.08MPa to +2.5MPa for various pressure conditions.
Key advantages include: optimized flow channel design for high-viscosity media to prevent blockages and residues, improving loading efficiency; safer and more stable bottom-loading operation compared to top-loading, reducing manual intervention; and a robust structure for long-term reliable use in complex environments, making it an ideal choice for handling hard-to-flow liquids in industries.
Our land loading arm is especially designed for transporting fluid between piping system and tanker, which shall be designed for different tanker, liquids and site conditions. Equipped with loading platform, folding stairs and safety cage to make the land loading arm into a complete loading system. By level location or quantitative monitoring, while fluid level exceed the present value, provide the sound and visual alarm or the remote signal.

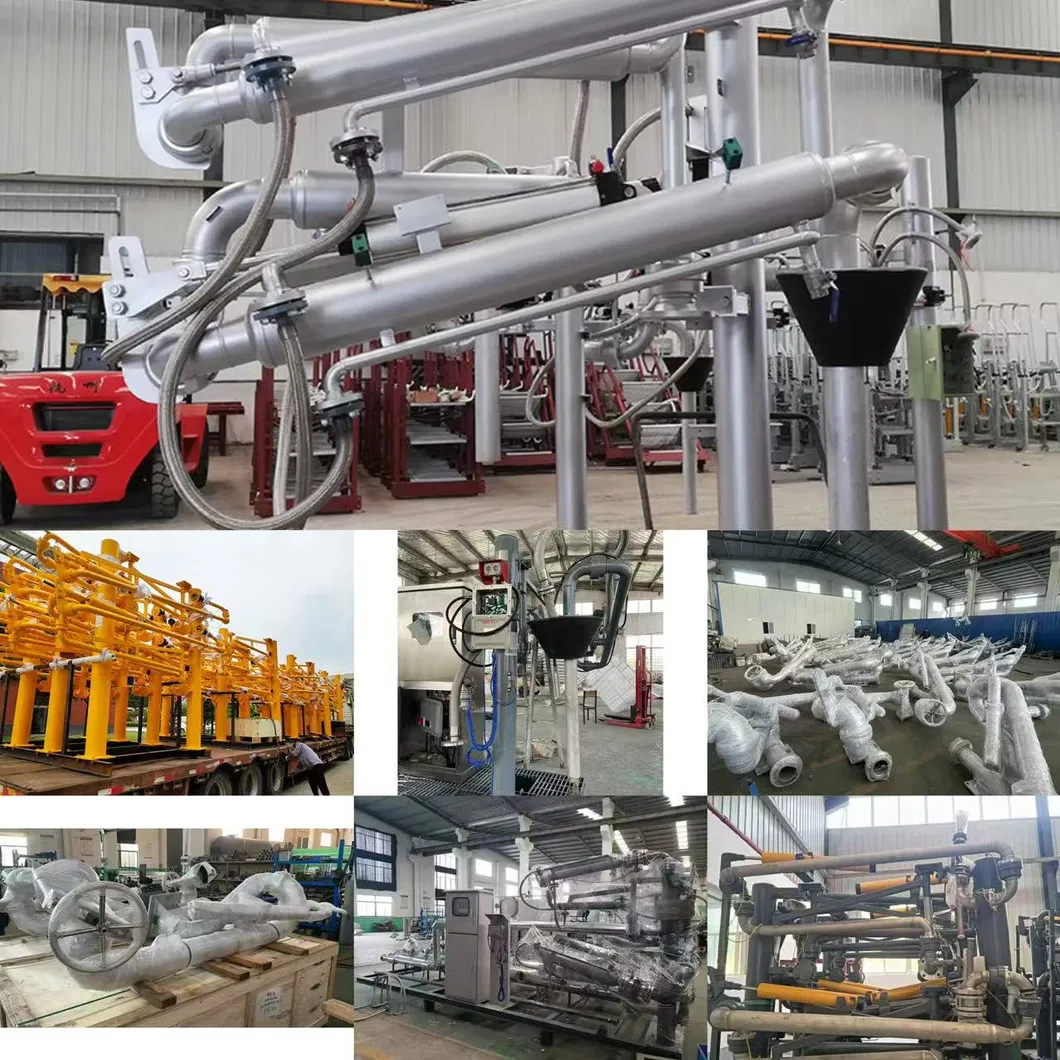

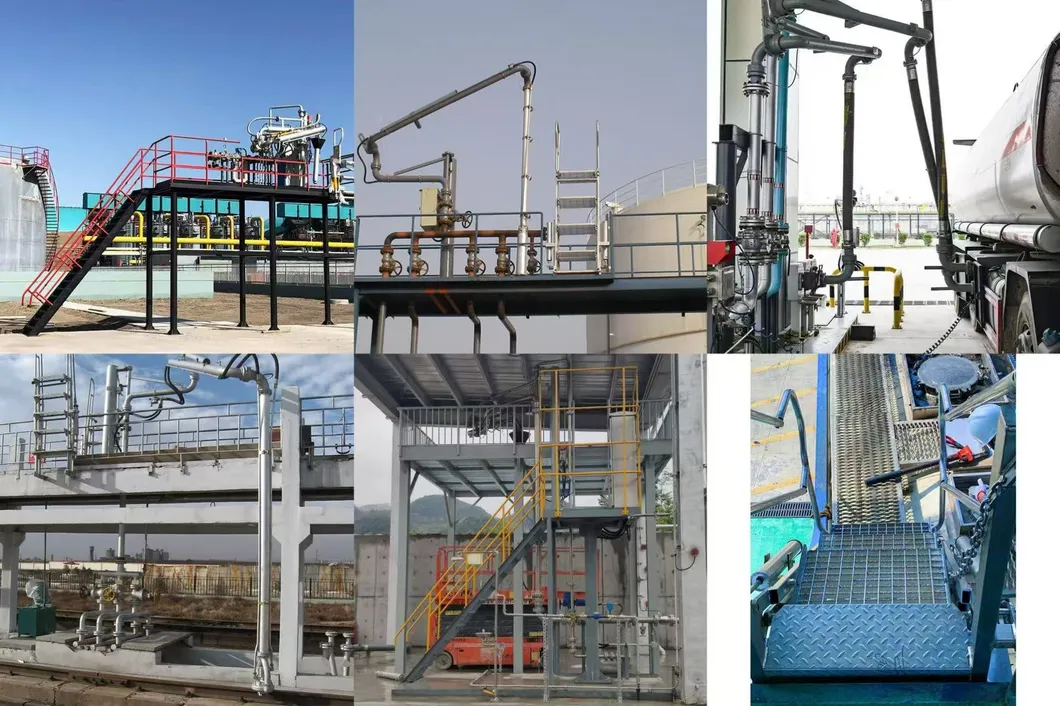

Our loading arm on site & in workshop:
| AL1402 Technical Data (Typical Model Specifications) | |
|---|---|
| Places Applied | Top open loading |
| Applications | Product oil, chemicals |
| Nominal Diameter | DN25~DN200 (1"~8") |
| Working Temperature | -196~250ºC |
| Working Pressure | PN1.0~PN4.0 |
| Material of Pipeline | Carbon steel, stainless steel, aluminum, low-temperature steel, PTFE lined etc. |
Overseas project cases:
We are mainly engaged in the R&D, design, manufacturing, sales and maintenance of petrochemical storage and transportation equipment and accessories, as well as petrochemical storage and transportation automation control systems. Our products include loading arms, floating roofs, marine arms, network shells, movable ladders, loading control systems, skid-mounted equipment, etc.
As a professional manufacturer of petrochemical machinery, our products are widely used in large and medium-sized petrochemical enterprises. Loading arms, jibs, floating roofs, movable ladders and skid-mounted equipment are exported to Vietnam, Indonesia, France, Nigeria, South Africa, Italy, Saudi Arabia, etc. We attach great importance to talent development and strictly control product quality as the cornerstone of our development.
We continue to adhere to product technological innovation, closely track the development of domestic and foreign equipment, and provide customers with high-quality products featuring cutting-edge technology, energy conservation, and environmental protection.
