Experienced Low Temperature Cryogenic LNG Loading Arm (Manufacturer)

Customization:	Available
Certification:	ISO 9001:2000
Power Source:	Manual

Send Inquiry

Product Description

⚙️ Basic Info.

Model NO.

AL2543

Operation Pressure

Pn4.0

Applicable Medium

Water, Crude Oil, Gasoline, Diesel etc

Structure

Seamless Pipe with Swivel Joint

Material

Ss, CS, PTFE Lined etc

Color

Light Grey or Customized

Quality Guarantee

1 Year

Seals

PTFE

Application

Truck Tanker, Rail Tanker, Marine

Accessories One

Quick Coupling, Vacuum Breaker

Accessories Two

Break Away Coupling, Liquid Level Alarm

Transport Package

Pallet or Plywood Case

Specification

DN50, DN80, DN100, DN150

Trademark

LOADARM

Origin

China

HS Code

8428909090

Production Capacity

5000 Sets / Year

📦 Product Description

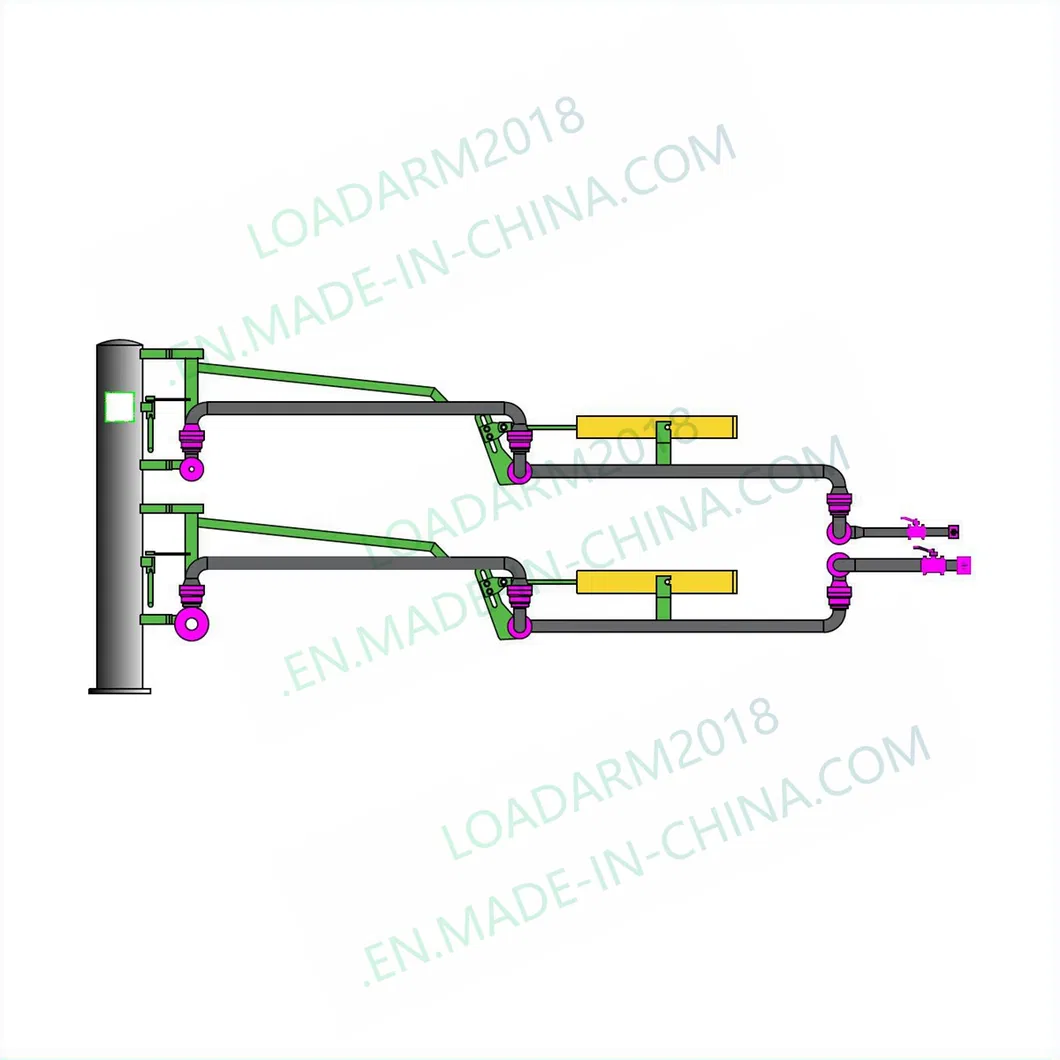

The structure of AL2543 Loading arm:

Our loading arm on site:

Our loading arm in the workshop:

📘 General Introduction for Land Loading Arm

✔ Our land loading arm is especially designed for transporting fluid between piping system and tanker, which shall be designed for different tanker, liquids and site conditions.
✔ Equipped with loading platform, folding stairs and safety cage to make the land loading arm into a complete loading system.
✔ By level location or quantitative monitoring, while fluid level exceed the present value, provide the sound and visual alarm or the remote signal.
✔ According to the products, models and requirements of customers, the operating modes could be manual, pneumatic or hydraulic etc.

Basic Technical Data:

AL1402 Typical Loading Arm (Easy Operation & Maintenance)
Places Applied	Top open loading
Applications	Product oil, chemicals
Nominal Diameter	DN25~DN200 (1"~8")
Working Temperature	-196~250ºC
Working Pressure	PN1.0~PN4.0
Material of pipeline	Carbon steel, stainless steel, aluminum, low-temperature steel, PTFE lined etc.

Overseas project cases:

❓ Frequently Asked Questions

1. What materials are used for the AL2543 loading arm construction?

The loading arm is constructed using high-quality materials such as Stainless Steel (SS), Carbon Steel (CS), and can be PTFE-lined to suit different chemical requirements.

2. What are the typical applications for this equipment?

It is primarily used for fluid transport in truck tankers, rail tankers, and marine applications, handling mediums like water, crude oil, gasoline, and diesel.

3. What is the standard working temperature range for your loading arms?

Based on the technical data, our loading arms can operate in extreme conditions ranging from -196ºC to 250ºC.

4. Does the system include safety features?

Yes, the system can be equipped with safety cages, liquid level alarms, and sound/visual alarms to prevent overfill or hazardous conditions.

5. Can the operation mode be customized?

Yes, depending on customer requirements, the operating modes can be configured for manual, pneumatic, or hydraulic control.

6. What is the quality guarantee period for the AL2543?

We provide a 1-year quality guarantee for the AL2543 loading arm model.
