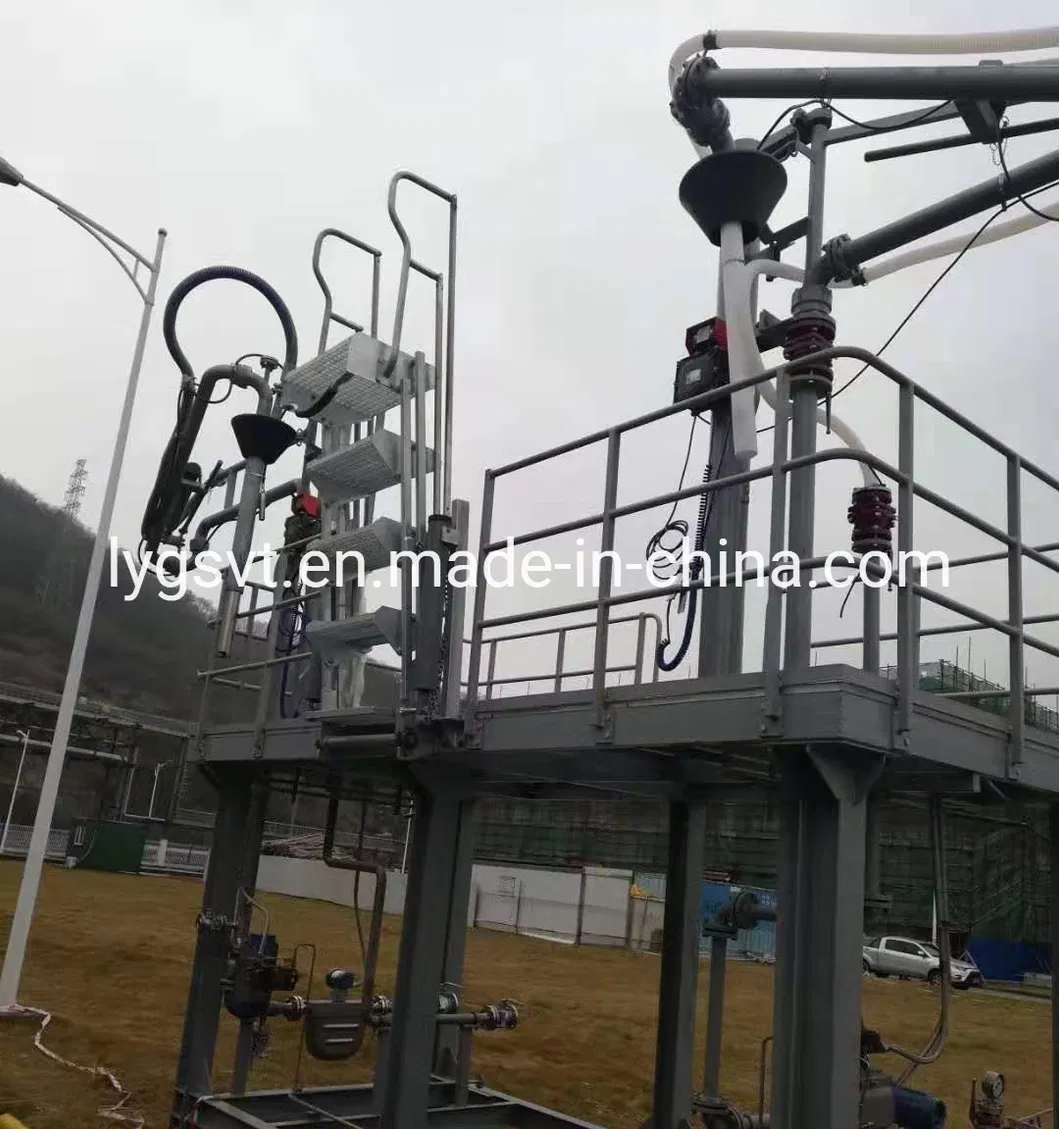

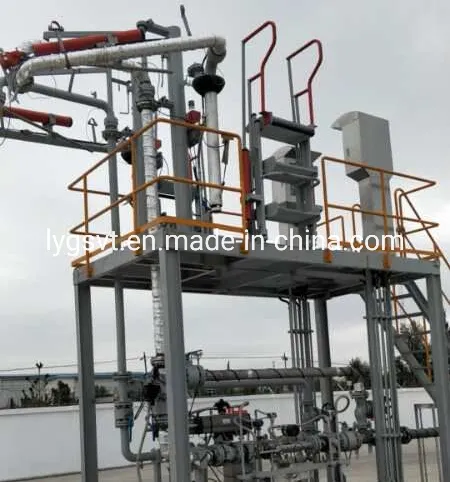

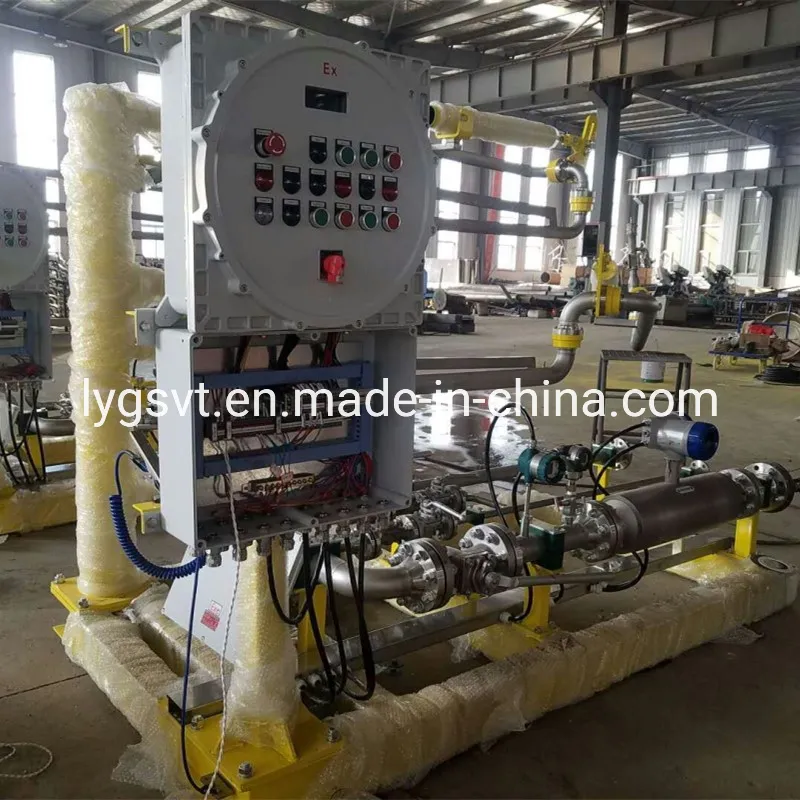

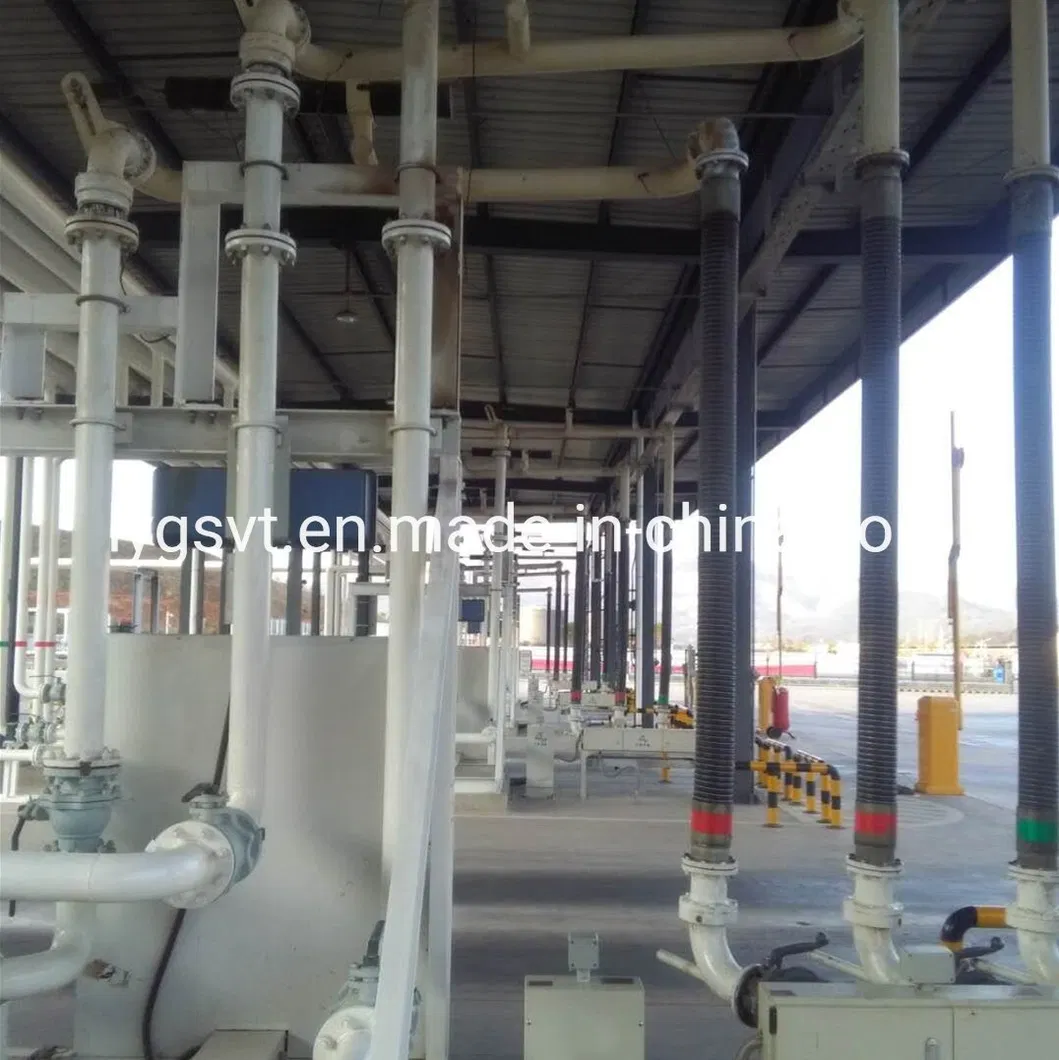

Our land loading arm is especially designed for transporting fluid between piping system and tanker, which shall be designed for different tanker, liquids and site conditions. Equipped with loading platform, folding stairs and safety cage to make the land loading arm into a complete loading system.

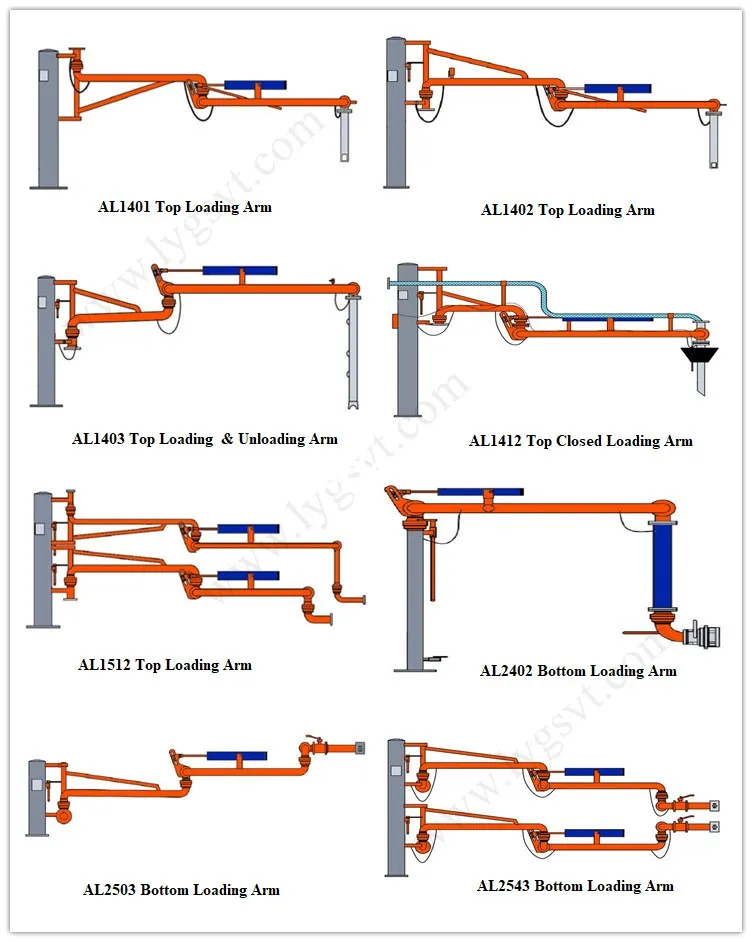

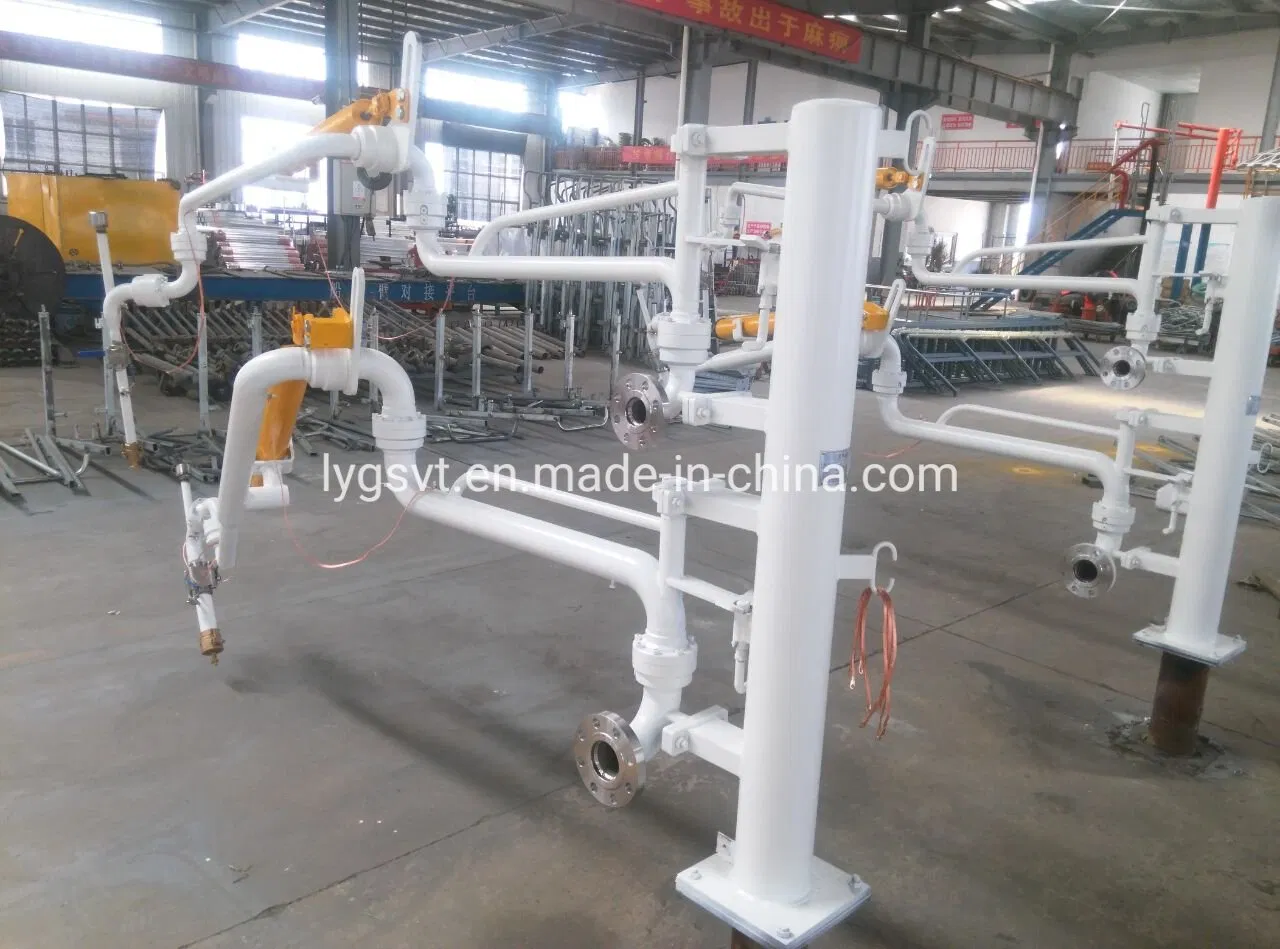

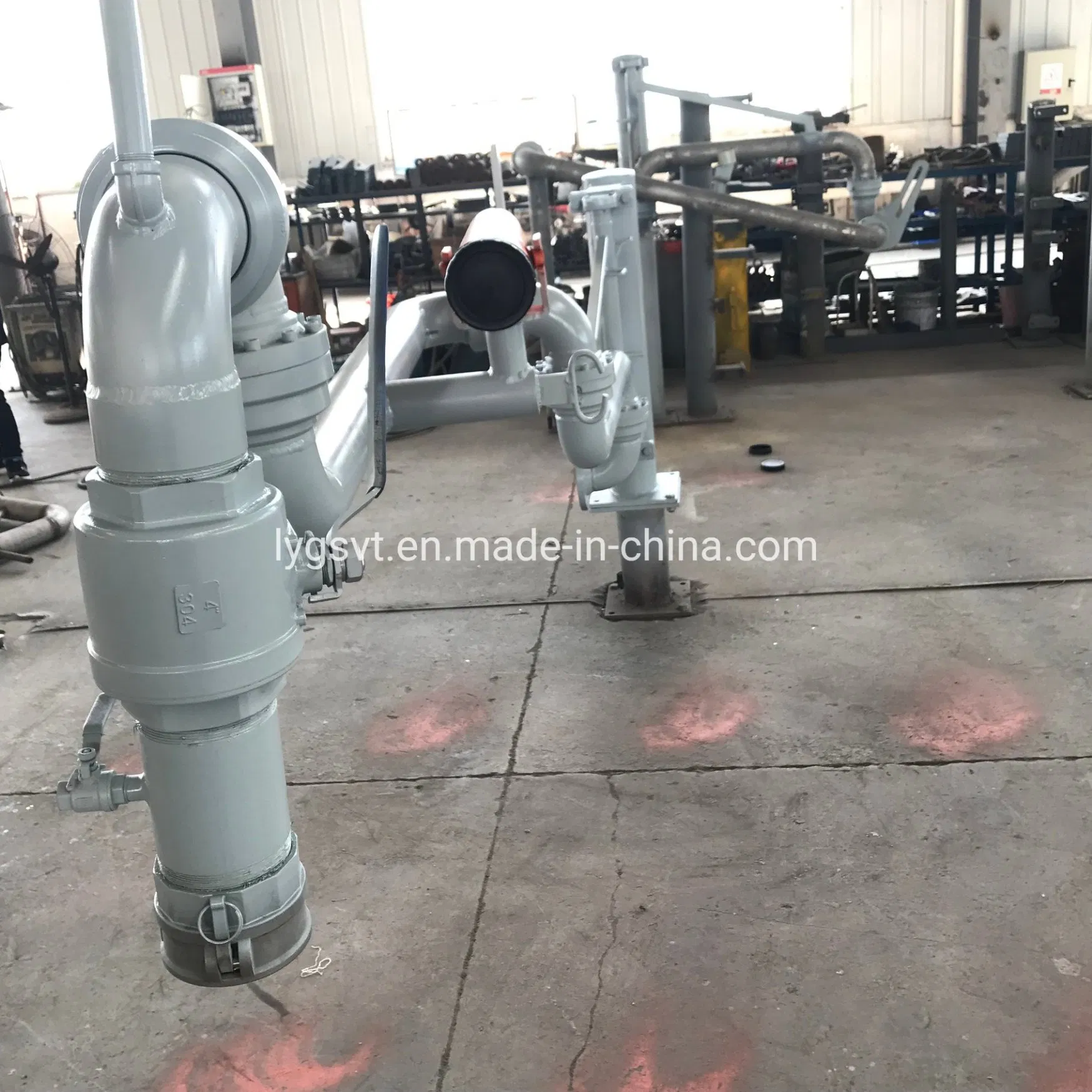

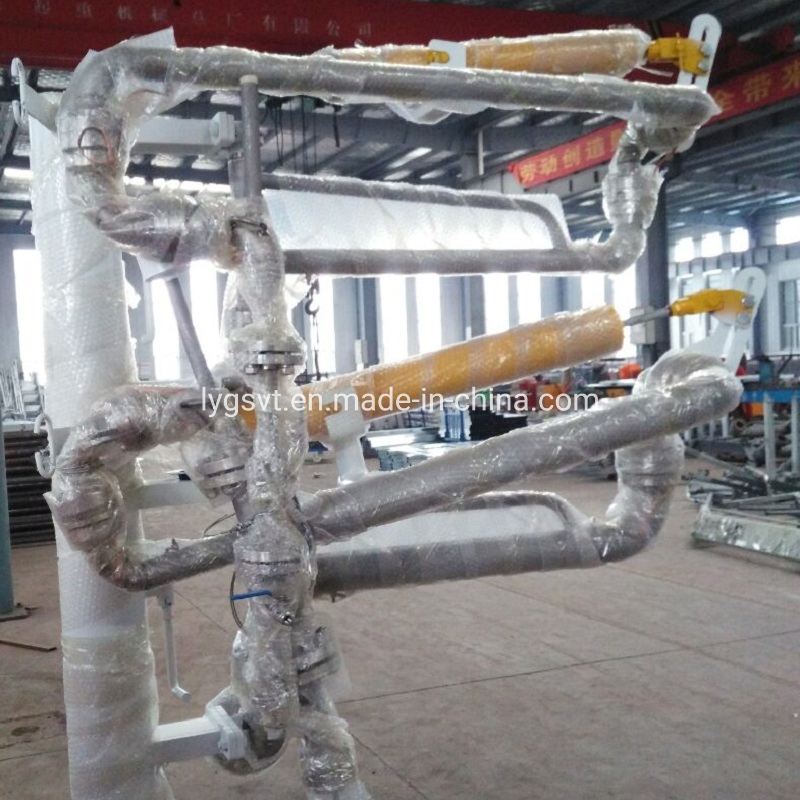

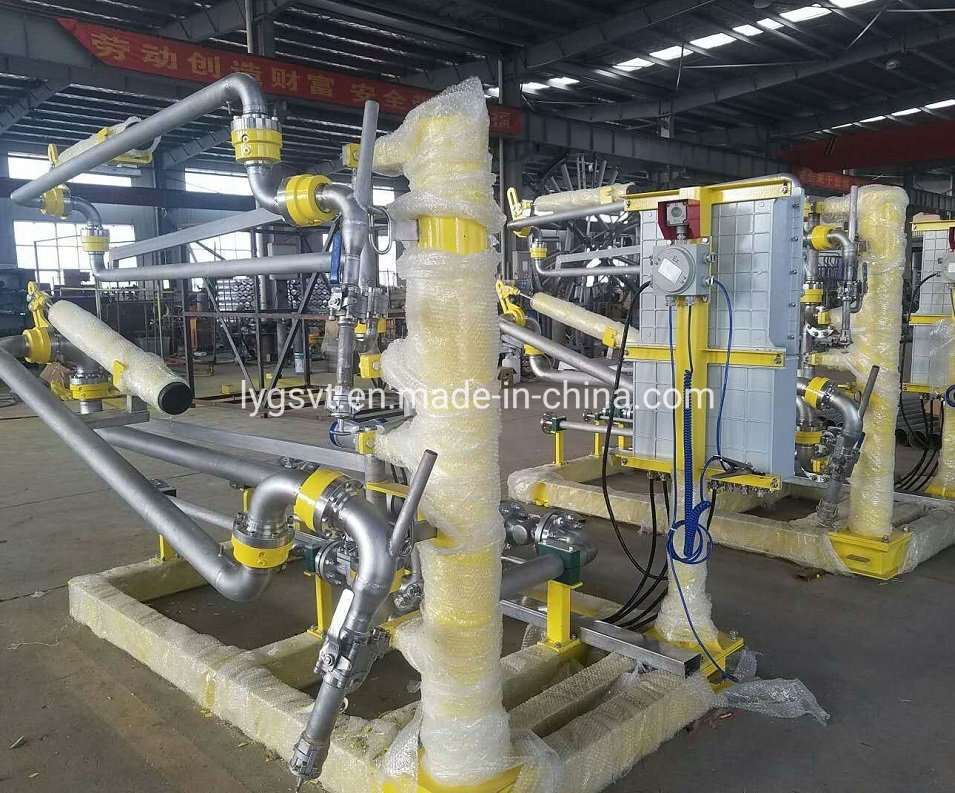

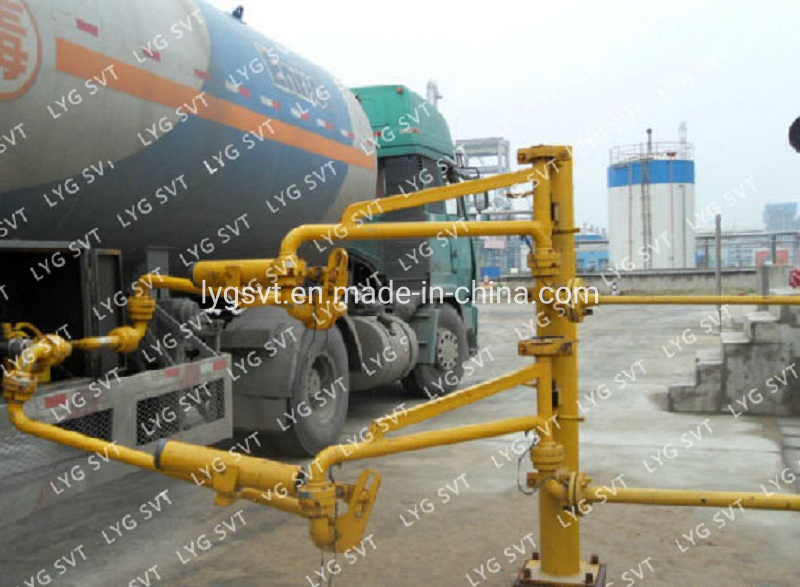

AL2543 bottom loading arm is a typical type arm for loading & unloading, mainly for products such as LPG, liquid ammonia, liquefied gas, etc. This type of loading arm usually connects to the tanker by flanges or quick couplings, and it has good sealing performance.

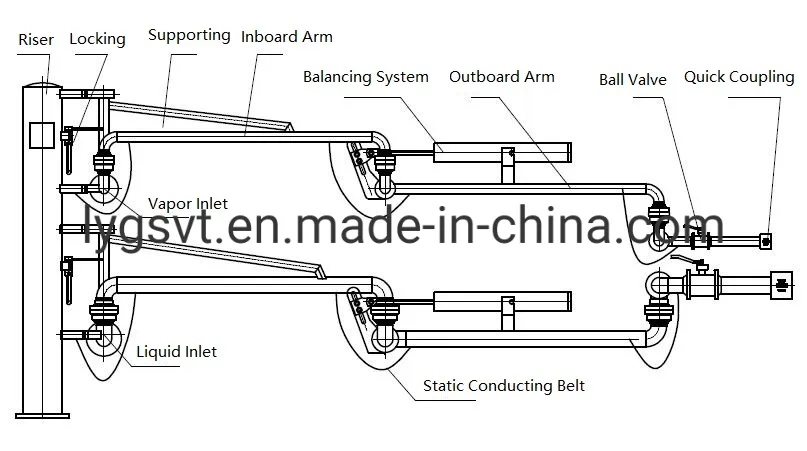

AL2543 Structure Drawing

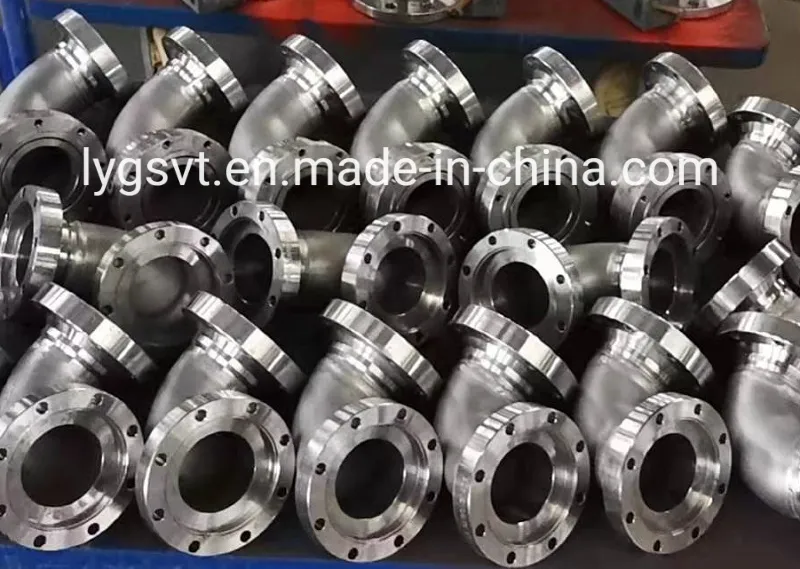

Double base swivel joints are made of carbon steel, stainless steel ASTM304 or ASTM316.
PTFE seal rings ensure no leakage.

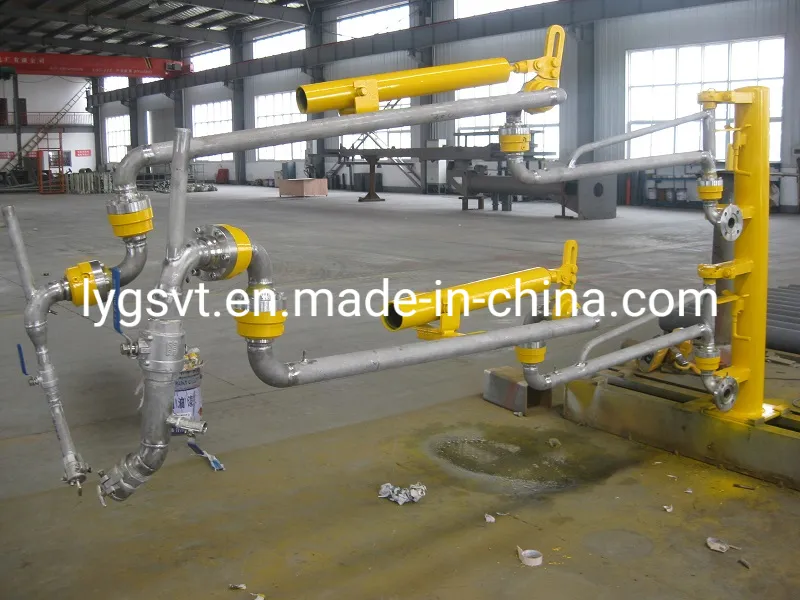

Balancing of the arm is made by a spring balance cylinder.
Be able to move along with road tanker during loading within normal range.
High quality surface treatment and coating make loading arms have excellent weather-resistance.
Numerous accessories are available to make a loading arm more effective and safety.
Specializing in the design, manufacture, sale, and installation of Land Loading Arms, Marine Loading Arms, Internal Floating Roofs, Floating Suction Units, Folding Stairs and Platforms, Gangway Towers, and Automatic Quantitative Loading Systems.
Equipped with professional technical personnel engaged in mechanical design and engineering construction. We strictly perform ISO9001 Quality Management Systems throughout design, procurement, production, and sales. With various types of processing, welding, and testing equipment, we provide customers with comprehensive technical support and after-sales service.
What media can the AL2543 loading arm handle?
The AL2543 is specifically designed for LPG, liquid ammonia, liquefied gas, and various chemicals.
What materials are used for the piping system?
Depending on your requirements, we offer carbon steel, stainless steel, and PTFE-lined pipelines.
What is the design temperature range for this equipment?
The loading arm is engineered to operate in temperatures ranging from as low as -196°C up to +250°C.
How is the balance of the loading arm maintained?
The arm is balanced using a high-precision spring balance cylinder, allowing for easy manual operation.
Does the loading arm support movement during the process?
Yes, it is designed to move along with the road tanker during loading within a safe normal range to prevent stress on connections.
What is the maximum design pressure for the AL2543?
The design pressure range is from -0.06MPa up to a maximum of 5.0MPa.
