LPG Storage Terminal Truck Top Loading Arm

1 / 5

LPG Storage Terminal Truck Top Loading Arm

Customization:	Available
After-sales Service:	1 Year Garantee
Warranty:	1 Year

Send Inquiry

Product Description

Basic Specifications

Model NO.

AL1402

Certification

ISO 9001:2000

Power Source

Manual

Operation Pressure

Pn4.0

Applicable Medium

Water, Crude Oil, Gasoline, Diesel etc

Structure

Seamless Pipe with Swivel Joint

Material

SS, CS, PTFE Lined etc

Color

Light Grey or Customized

Quality Guarantee

1 Year

Seals

PTFE

Application

Truck Tanker, Rail Tanker, Marine

Accessories

Quick Coupling, Vacuum Breaker, Break Away Coupling

Trademark

LOADARM

Origin

China

HS Code

8428909090

Production Capacity

5000 Sets / Year

Product Description

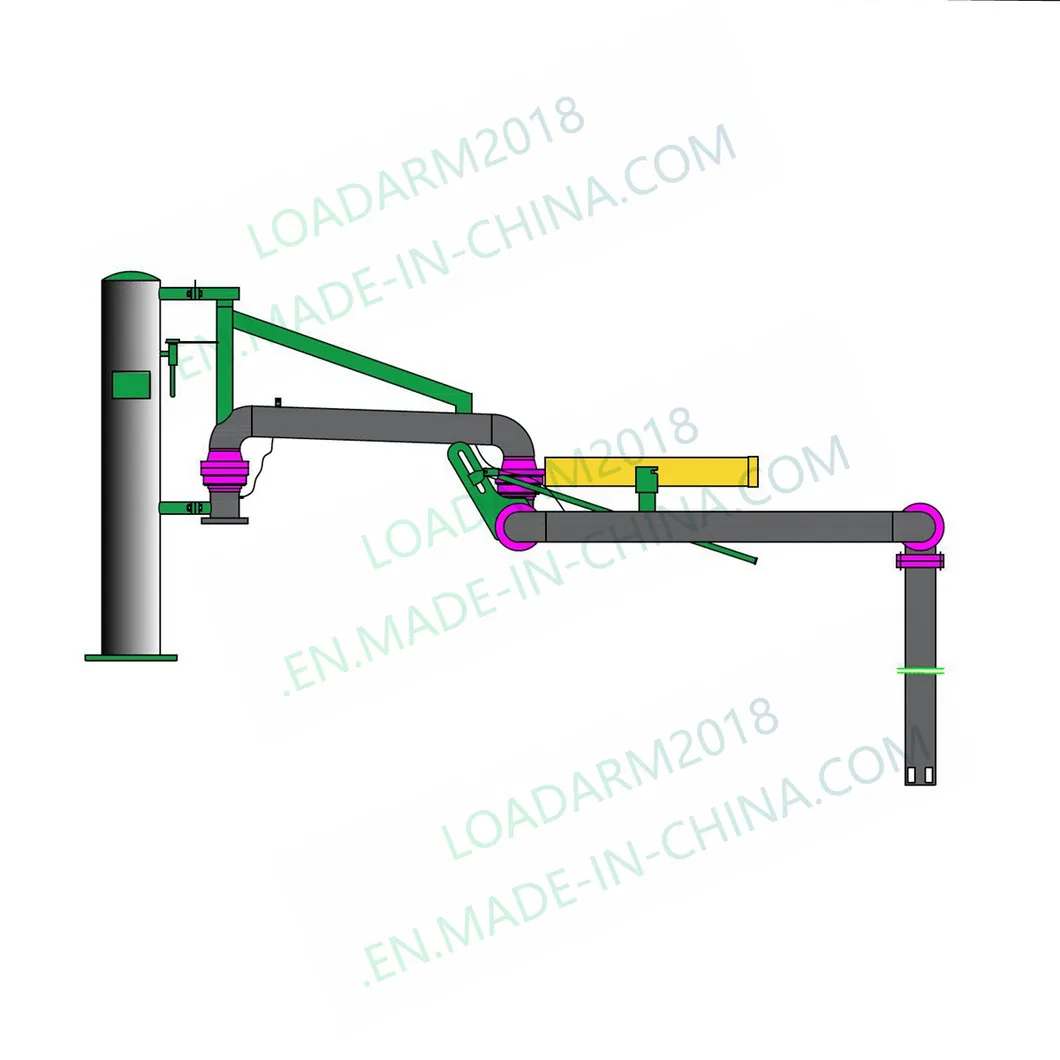

The structure of AL1402 Loading arm:

Our loading arm on site:

Our loading arm in the workshop:

General Introduction for land loading arm

Our land loading arm is especially designed for transporting fluid between piping system and tanker, which shall be designed for different tanker, liquids and site conditions. Equipped with loading platform, folding stairs and safety cage to make the land loading arm into a complete loading system. By level location or quantitative monitoring, while fluid level exceed the present value, provide the sound and visual alarm or the remote signal. According to the products, models and requirements of customers, the operating modes could be manual, pneumatic or hydraulic etc.

Technical Data

AL1402 Loading Arm Specification
Places Applied	Top open loading
Applications	Product oil, chemicals
Nominal Diameter	DN25~DN200 (1"~8")
Working Temperature	-196~250ºC
Working Pressure	PN1.0~PN4.0
Material of pipeline	Carbon steel, stainless steel, aluminum, low-temperature steel, PTFE lined etc.

Overseas Project Cases

Frequently Asked Questions

Q: What fluids can the AL1402 Loading Arm handle?

A: It is suitable for a wide range of mediums including water, crude oil, gasoline, diesel, and various chemicals.

Q: What are the primary construction materials?

A: The pipeline can be constructed from carbon steel, stainless steel, aluminum, low-temperature steel, or can be PTFE lined based on the requirements.

Q: What is the operating temperature range?

A: The equipment is designed to operate in extreme conditions ranging from -196ºC to 250ºC.

Q: Can the operating mode be customized?

A: Yes, depending on customer needs, the loading arm can be operated manually, pneumatically, or hydraulically.

Q: Are safety alarms available?

A: Yes, it can be equipped with level monitoring systems that provide visual and sound alarms if fluid levels exceed set limits.

Q: What are the available sizes for this model?

A: Standard specifications include DN50, DN80, DN100, and DN150, with nominal diameters available from DN25 up to DN200.
