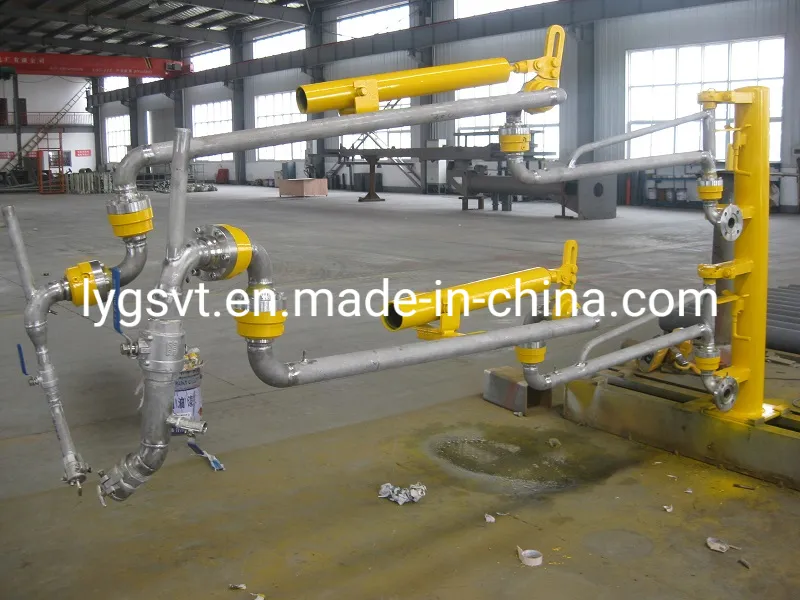

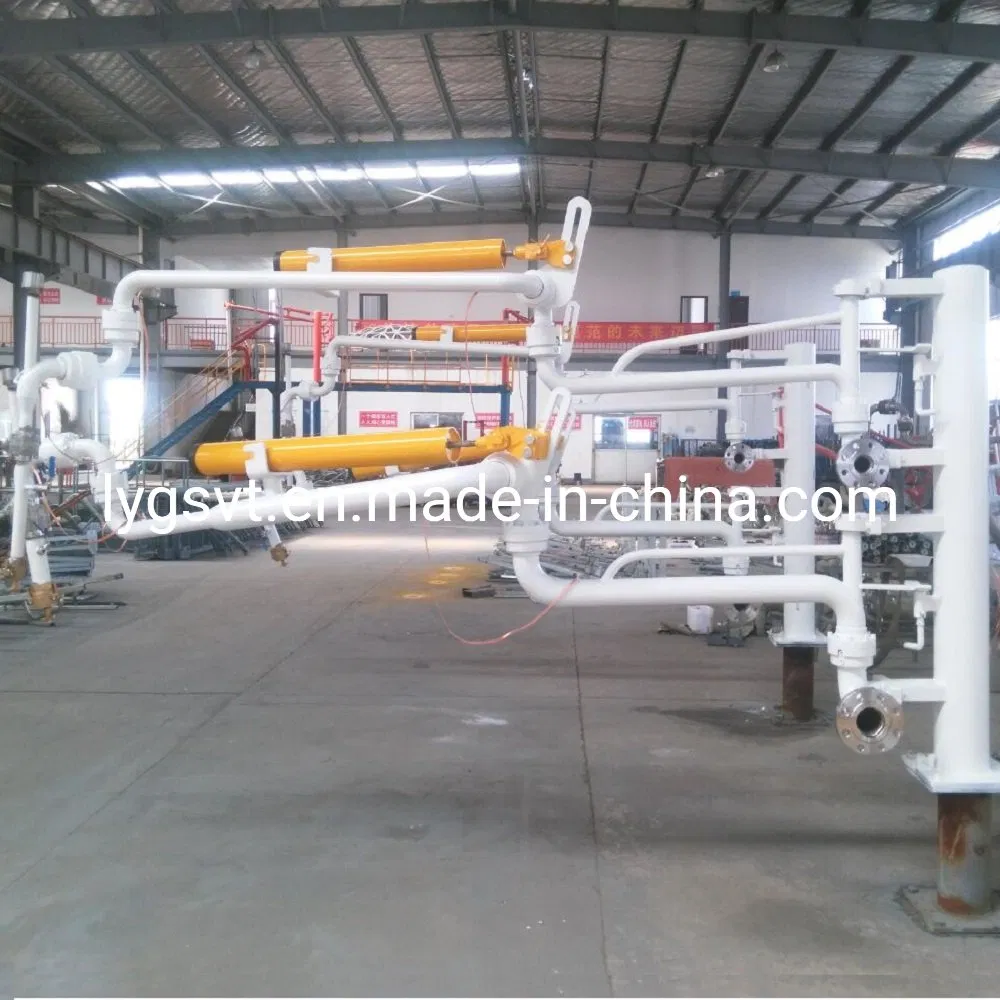

Loading Arm System

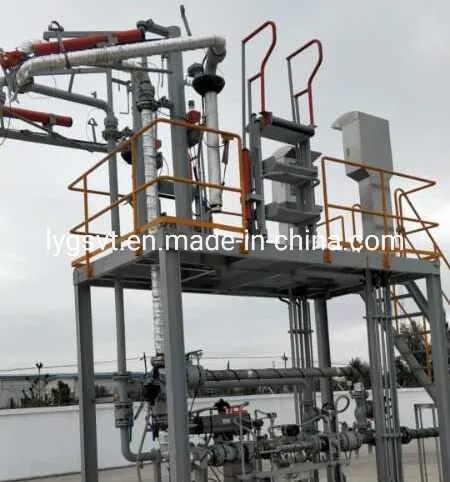

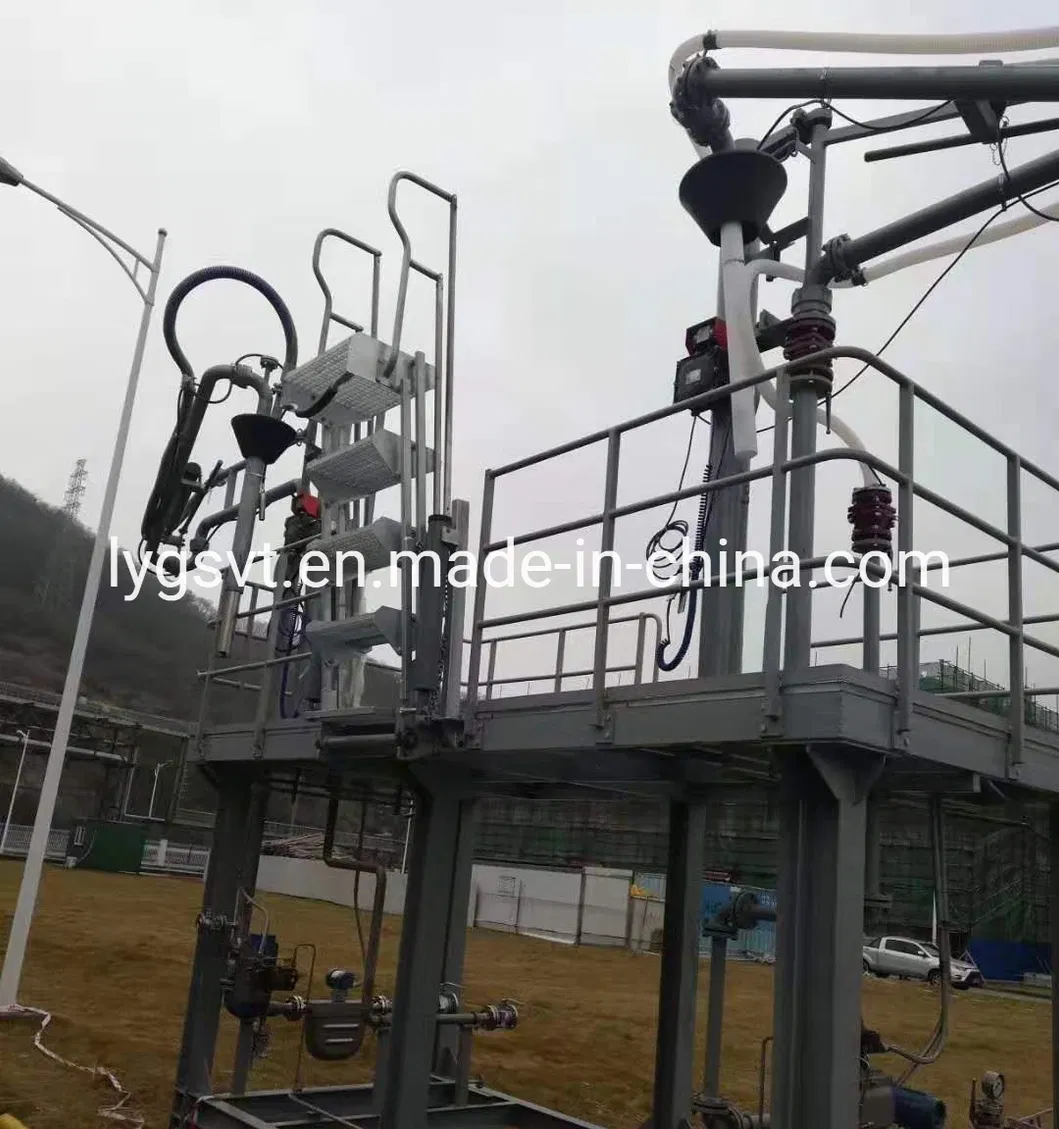

Our land loading arm is especially designed for transporting fluid between piping system and tanker, which shall be designed for different tanker, liquids and site conditions. Equipped with loading platform, folding stairs and safety cage to make the land loading arm into a complete loading system.

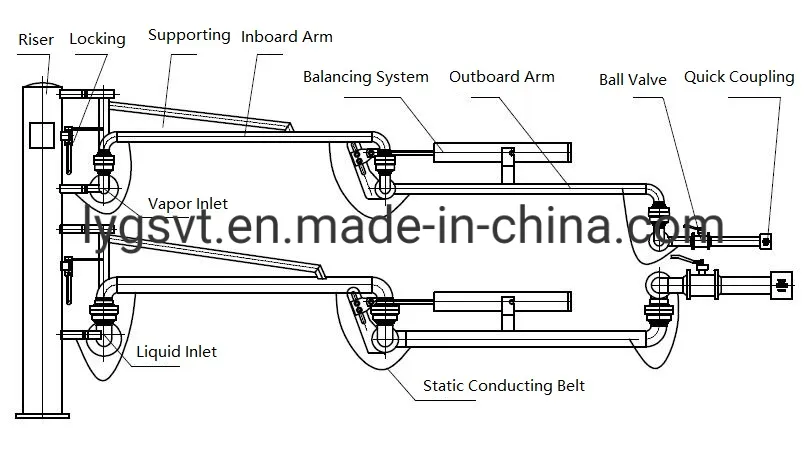

AL2543 Structure Drawing
| Nominal Diameter | Liquid pipe: DN50~DN80 (2", 3") Vapor pipe: DN25~DN50 (1", 2") |
| Design Pressure | -0.06MPa ~ 5.0MPa |
| Design Temperature | -196°C ~ +250°C |
| Balancing Method | Spring balance cylinder |
| Pipeline Material | Carbon steel, Stainless steel, PTFE-lined |
| Service Product | LPG, liquid ammonia, liquefied gas, chemicals etc. |

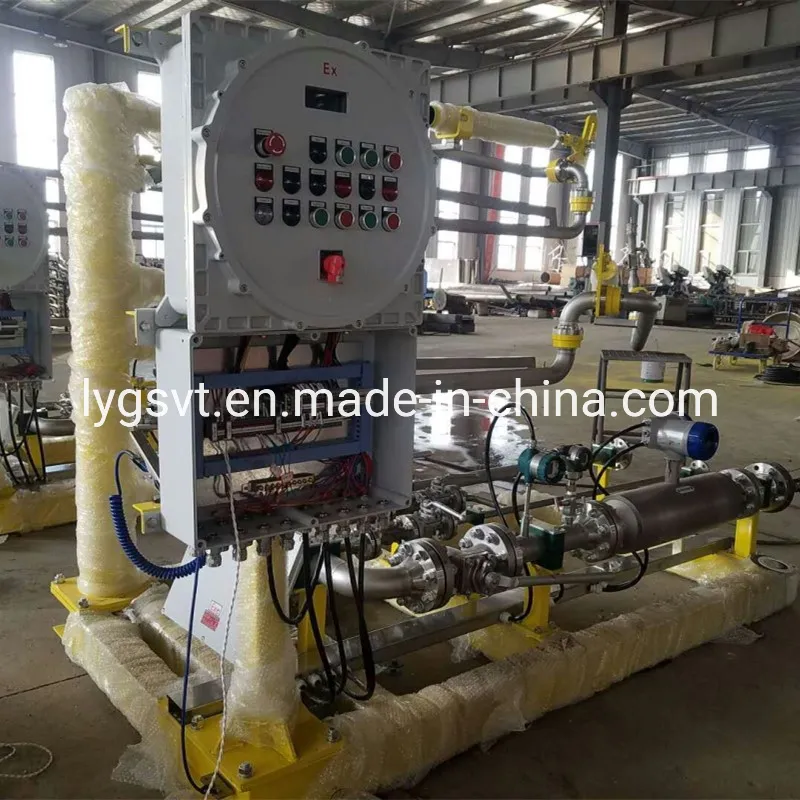

We specialize in the design, manufacture, sale and installation of Land Loading Arm, Marine Loading Arm, Internal Floating Roof, Floating Suction Unit, Folding Stairs and Platform, Gangway Tower, and Automatic Quantitative Loading Systems.
Our professional technical personnel are engaged in mechanical design and engineering construction with a perfect quality assurance system. We strictly perform ISO9001 Quality Management Systems across design, procurement, production, and sales. Equipped with advanced processing, welding, and testing equipment, we provide comprehensive technical support and installation services.
