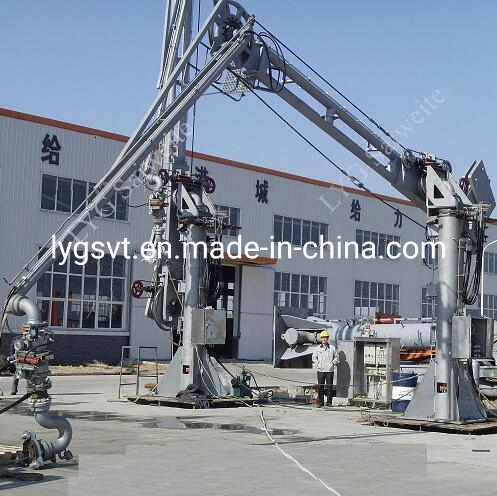

Marine Loading Arm is an articulated pipe system for the transfers of liquids or gases. This may be operated manually or hydraulically.

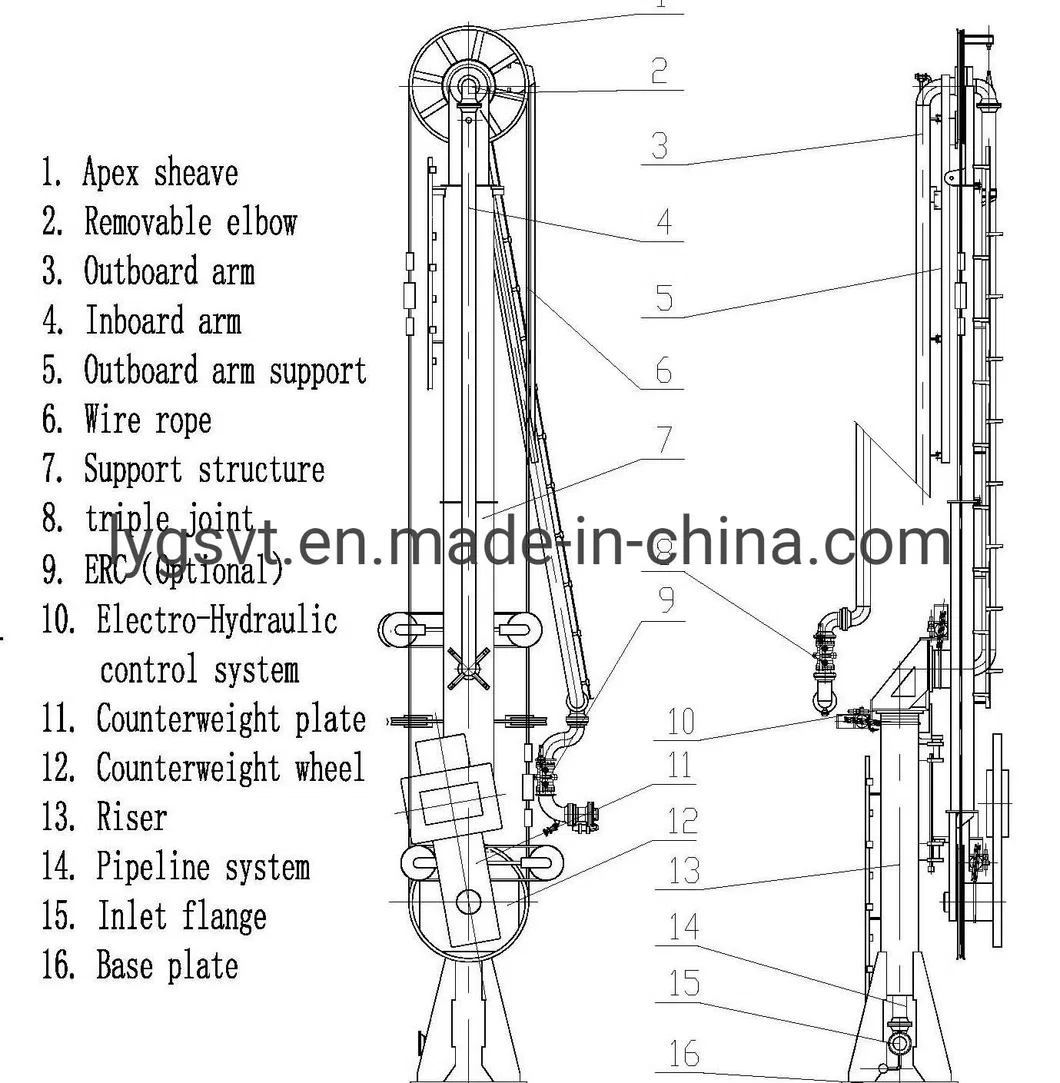

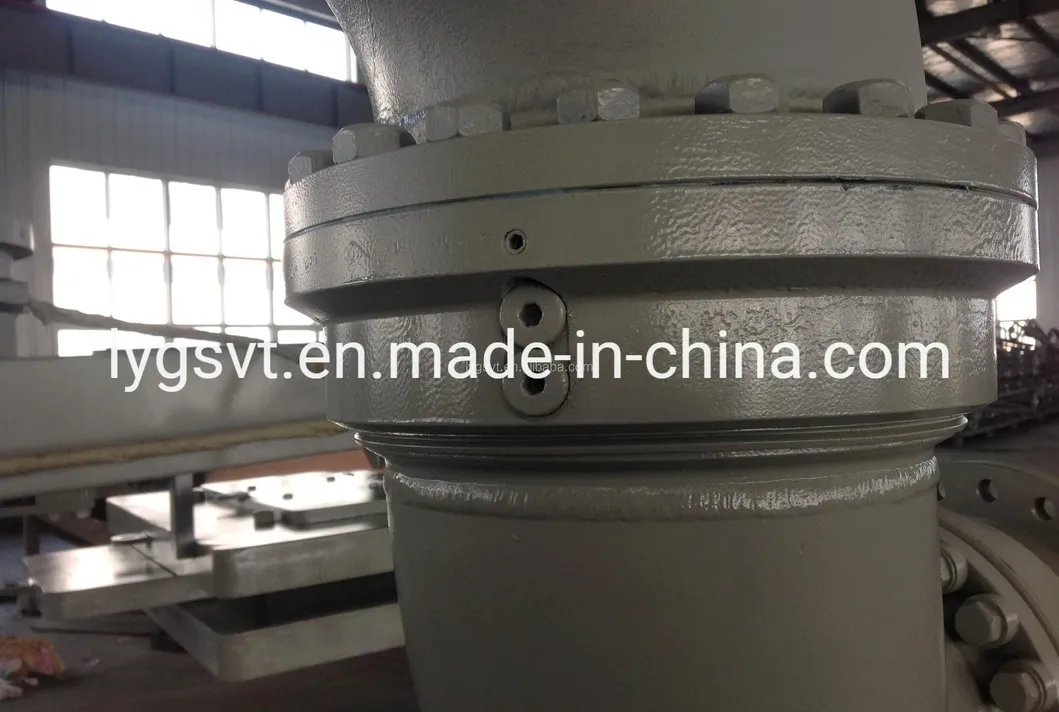

A marine loading arm comprises several components namely: base riser, inboard arm, outboard arm, balancing assembly, supporting structure, and operating system. The articulation is assured by swivel arrangements. These arrangements (or styles) allow for complete movement in all planes. We design and manufacture a wide range of Marine Loading Arms to load and unload almost any liquid and compressed gas product from river barges, ships and ocean going super tankers.

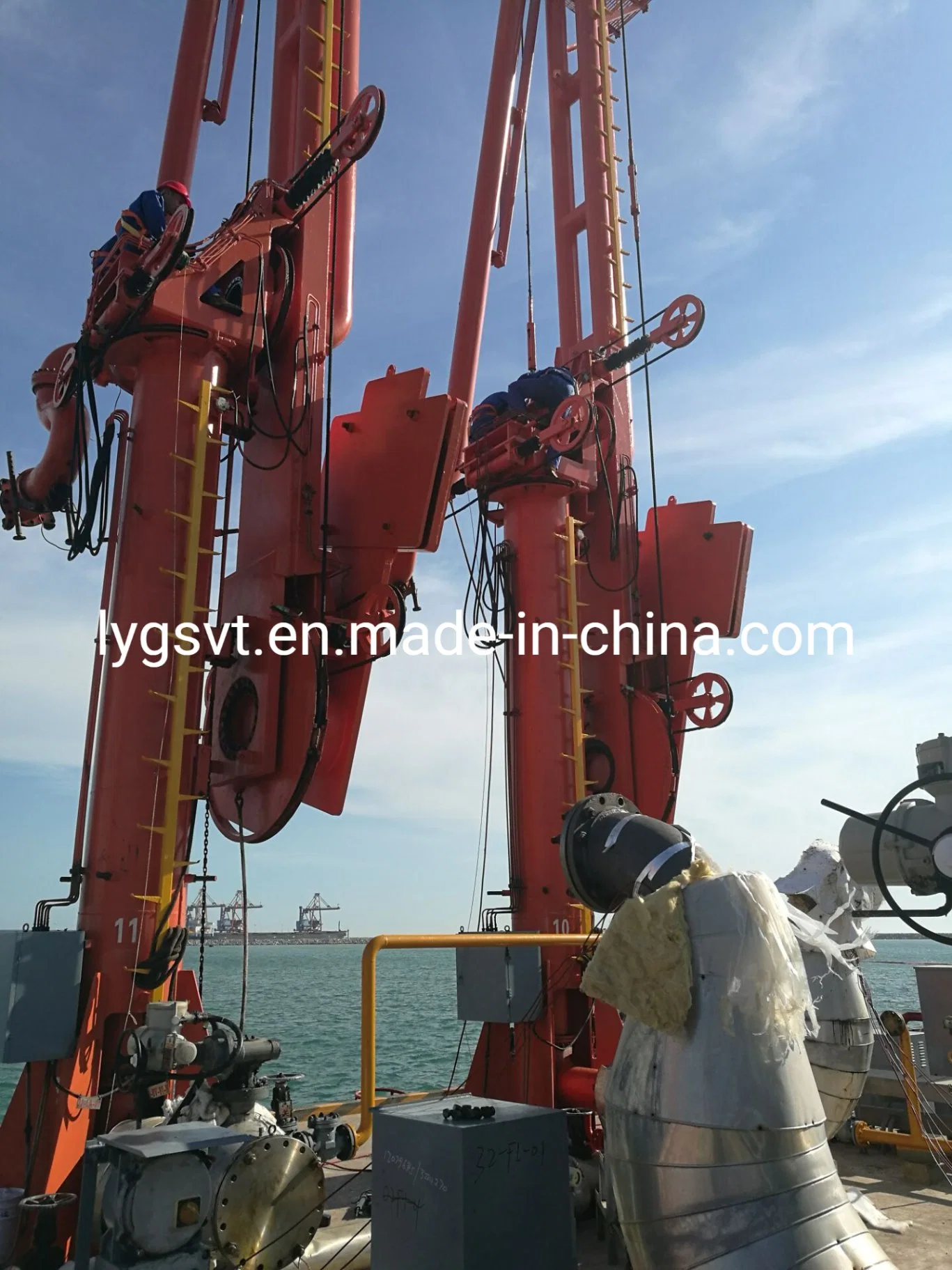

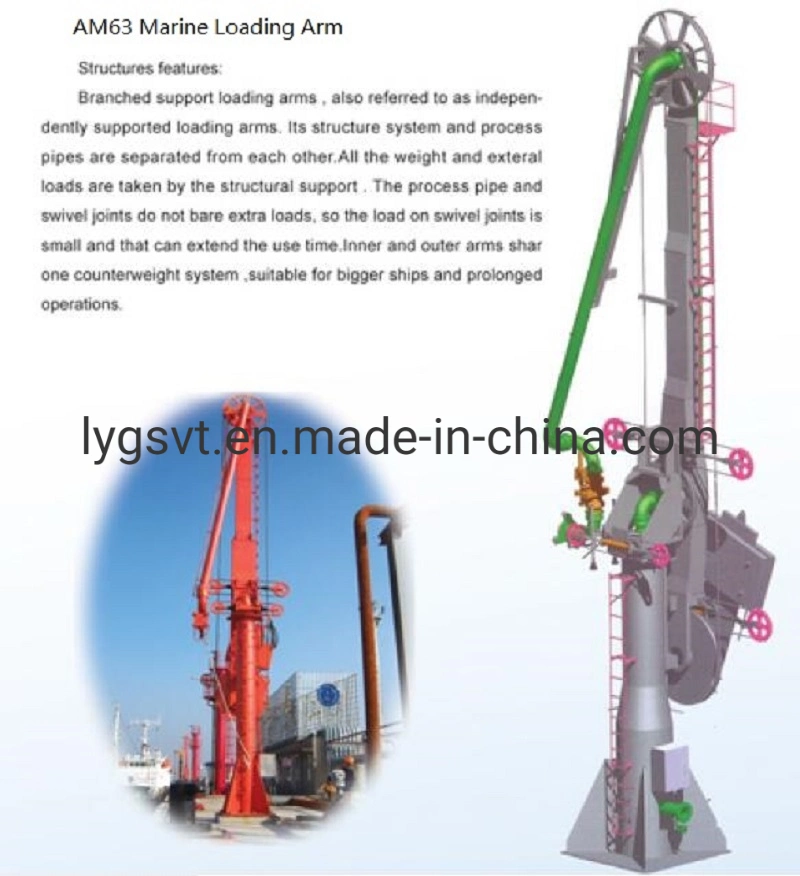

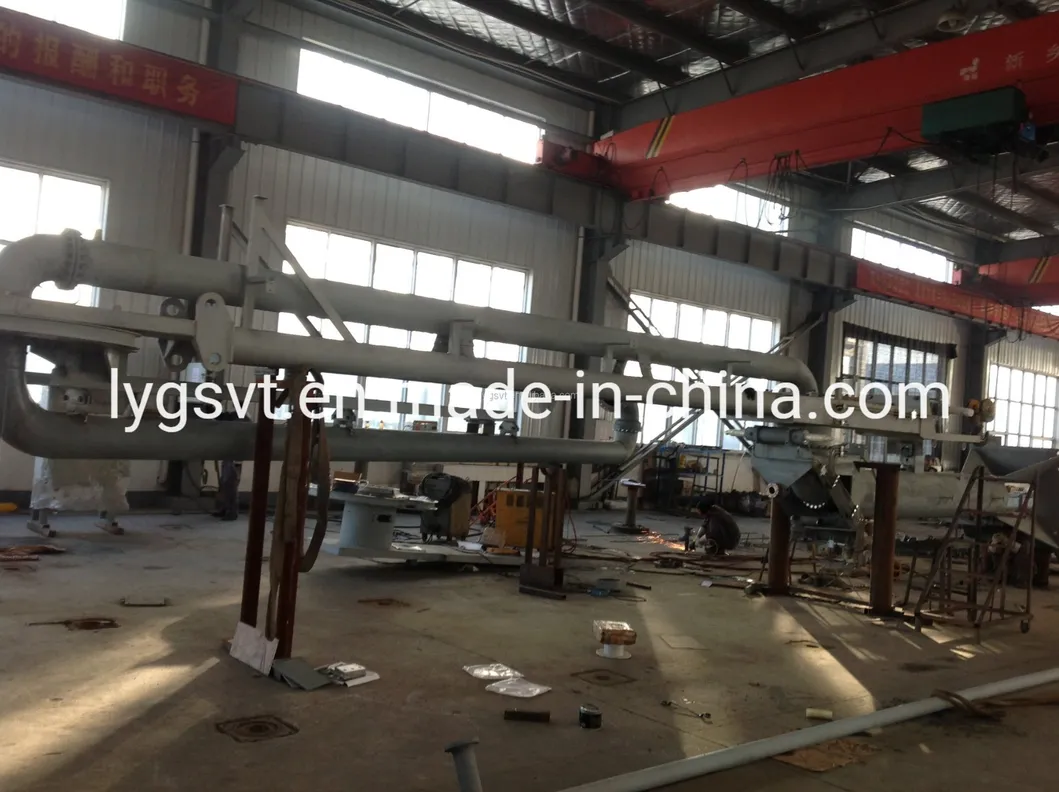

AM63- Single Pipe Marine Loading Arm with Branched Support Structure
| Parameter | Details |
|---|---|
| Product Name | Marine Loading Arm |
| Service Product | Oil, Gasoline, Diesel, LPG, and all kinds of liquid |
| Nominal Diameter | DN150 ~ DN600 (6" to 24") |
| Design Pressure | -0.08 Mpa ~ +2.5 MPa |
| Design Temperature | -196°C~ +250°C |
| Pipe material | Carbon steel, stainless steel, low-temperature steel, line with PTFE |
| Operation method | Manual operated, hydraulic operated |
| Optional Equipment | Position Monintor system (PMS), Hydraulic power units (HPU), Quick Connect/Disconnect Coupler (QC/DC), Unit Control Panel (PLC), Emergency Release System (ERS), etc |
The design varies based on client requirements and environmental factors. Standard design parameters include:

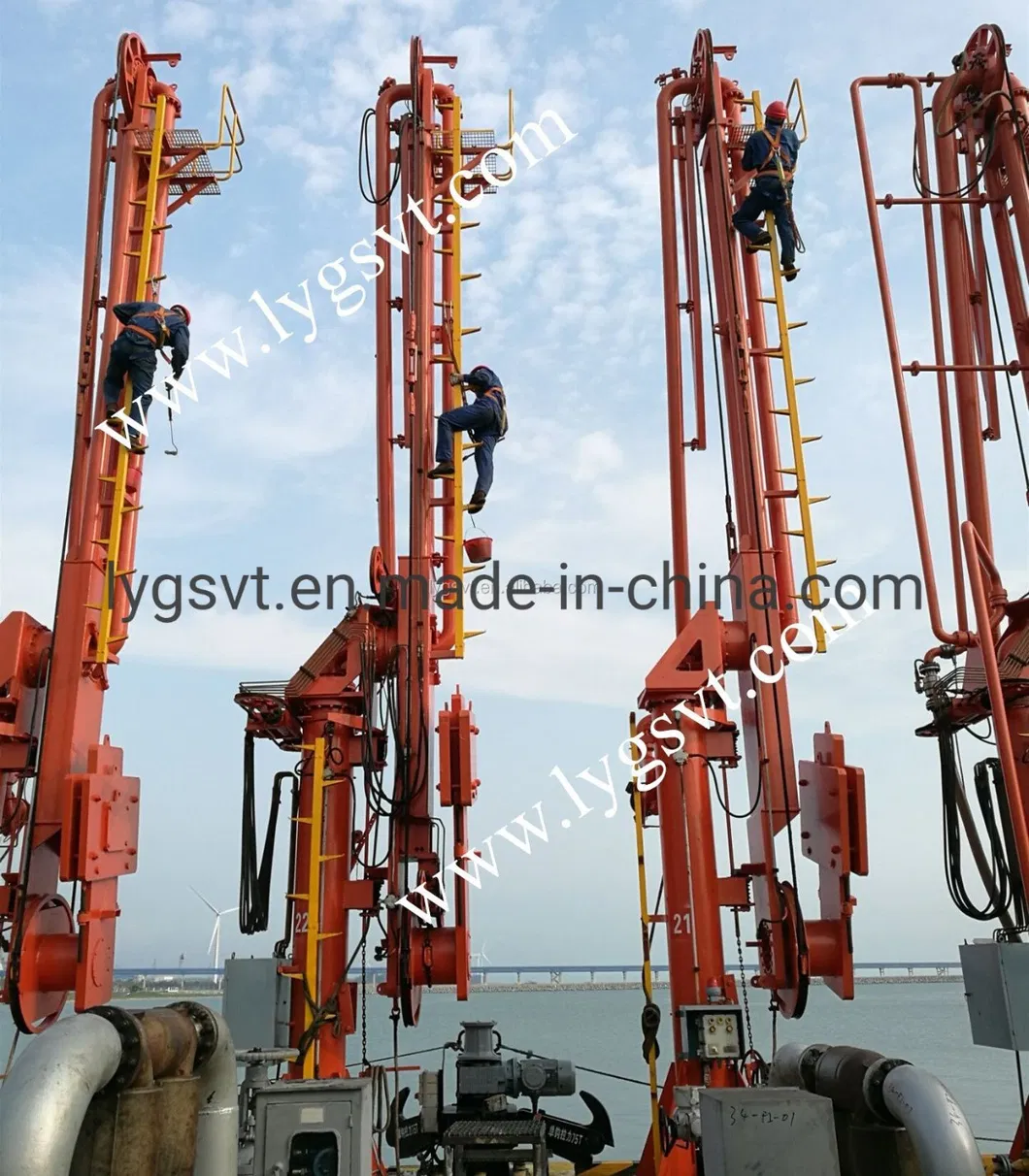

On-site Service and After-sales Service for installation, commissioning, maintenance, and automatic system upgrading are provided for all products.
Warranty: 12 months from the date of startup or 18 months after delivery, whichever happens first.
Our company specializes in the design, manufacture, sale, and installation of Land Loading Arms, Marine Loading Arms, Internal Floating Roofs, Floating Suction Units, Folding Stairs and Platforms, Gangway Towers, Automatic Quantitative Loading Systems, and Shells.
Our Services & Strength: We have professional technical personnel engaged in mechanical design and engineering construction for many years, backed by a perfect quality assurance system. We strictly perform ISO9001 Quality Management Systems across design, procurement, production, sales, and after-sale service. We are fully equipped with various processing, welding, and testing equipment, ensuring worry-free technical support for all customers.
