Gasoline / Diesel / Fuel / Petroleum Oil / Chemical Marine Loading Arm

1 / 5

Gasoline / Diesel / Fuel / Petroleum Oil / Chemical Marine Loading Arm

Customization:	Available
After-sales Service:	Technical Support, Installation Guide, Spare Parts
Warranty:	1.5 Years

Send Inquiry

Product Description

Basic Info.

Model NO.AM63

ConditionNew

CustomizedCustomized

CertificationISO9001

Storage ObjectsLiquid

Nominal DiameterLiquid DN150~DN600

Pipelines' MaterialCarbon Steel, Stainless Steel, Low-Temperature Steel

ApplicationOil, Gasoline, Diesel, LPG, and All Kinds of Liquid

AccessoriesErc (Ers), QC/DC, Pms, Vapor Return

Operation MethodManual Operated, Hydraulic Operated

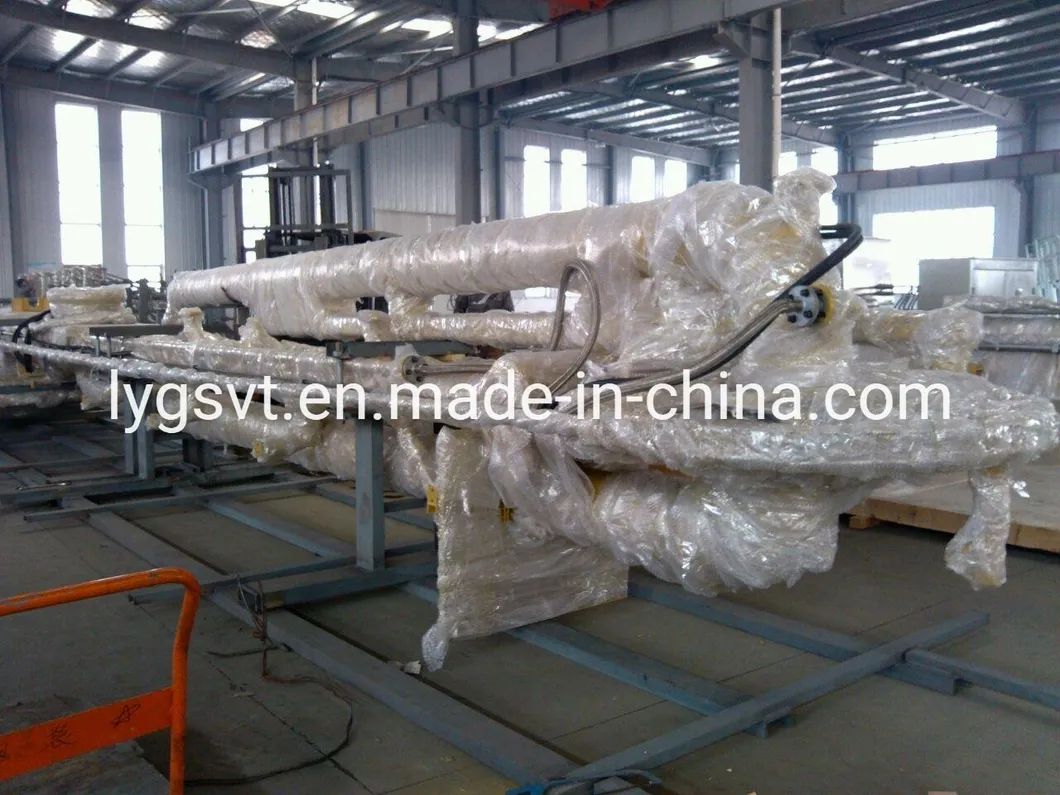

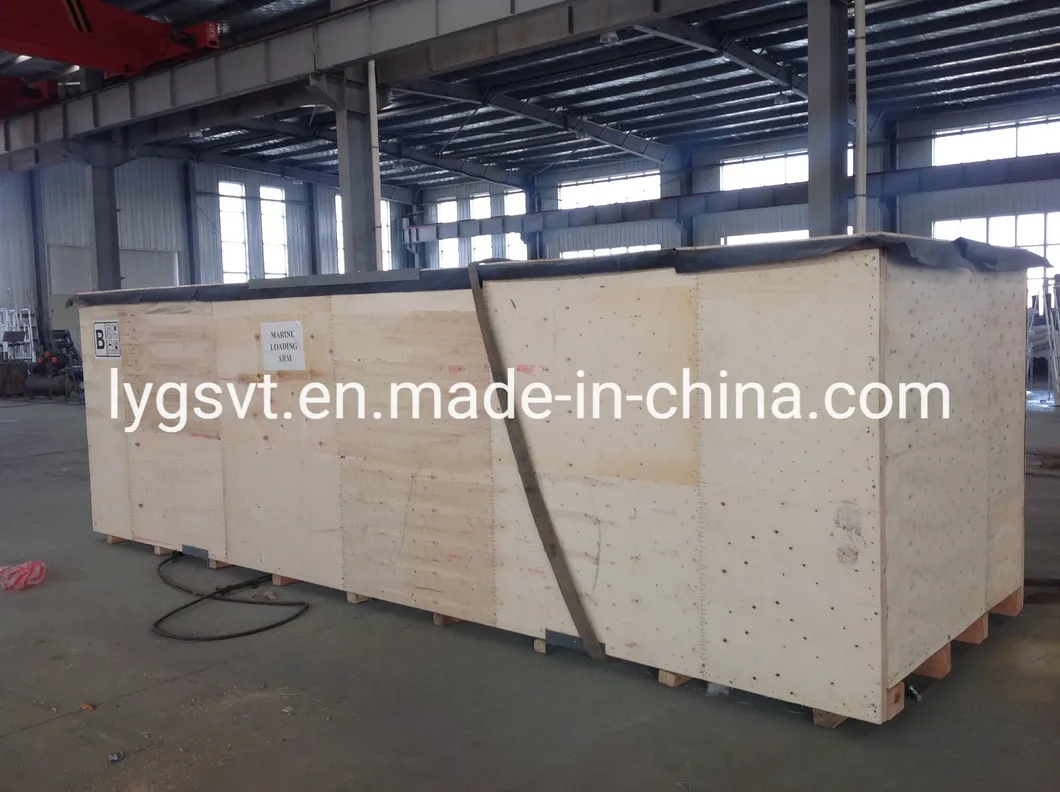

Transport PackageWooden Case, Metal Frame, or Container

Specification6" to 24"

OriginChina

Production Capacity200 Sets/Year

Product Description

Marine Loading Arm

A Marine Loading Arm is an articulated pipe system for the transfers of liquids or gases. This may be operated manually or hydraulically.

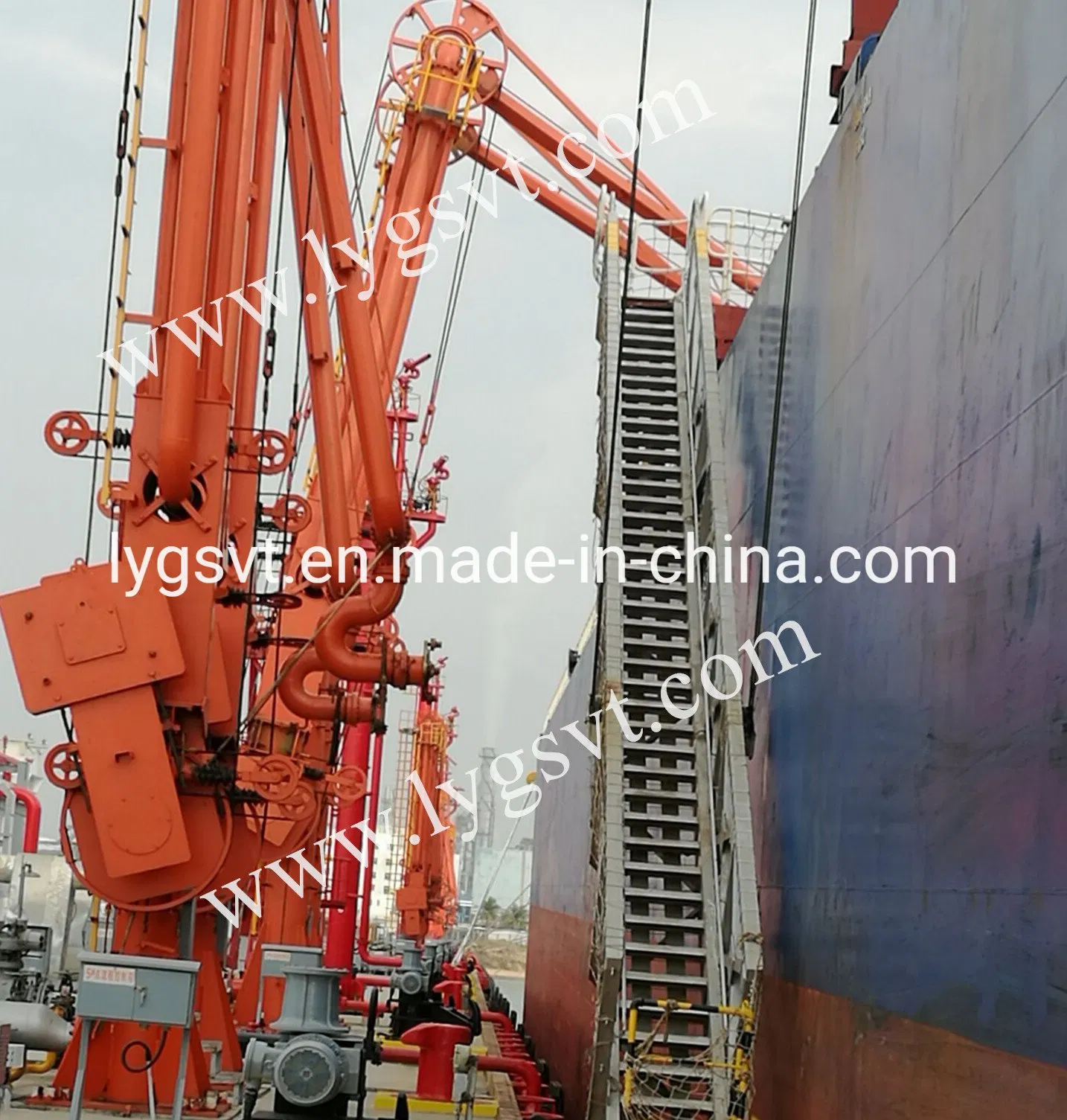

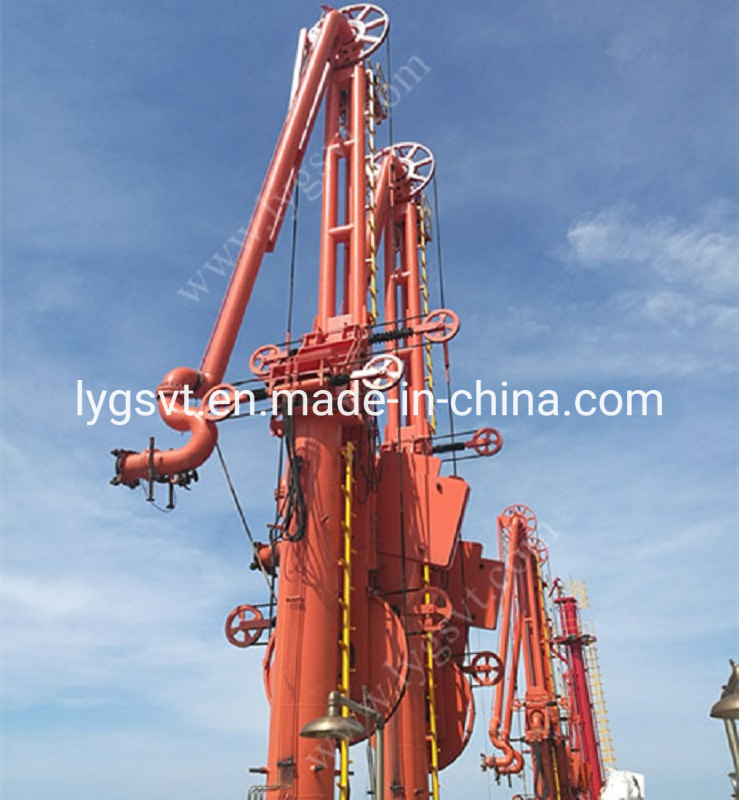

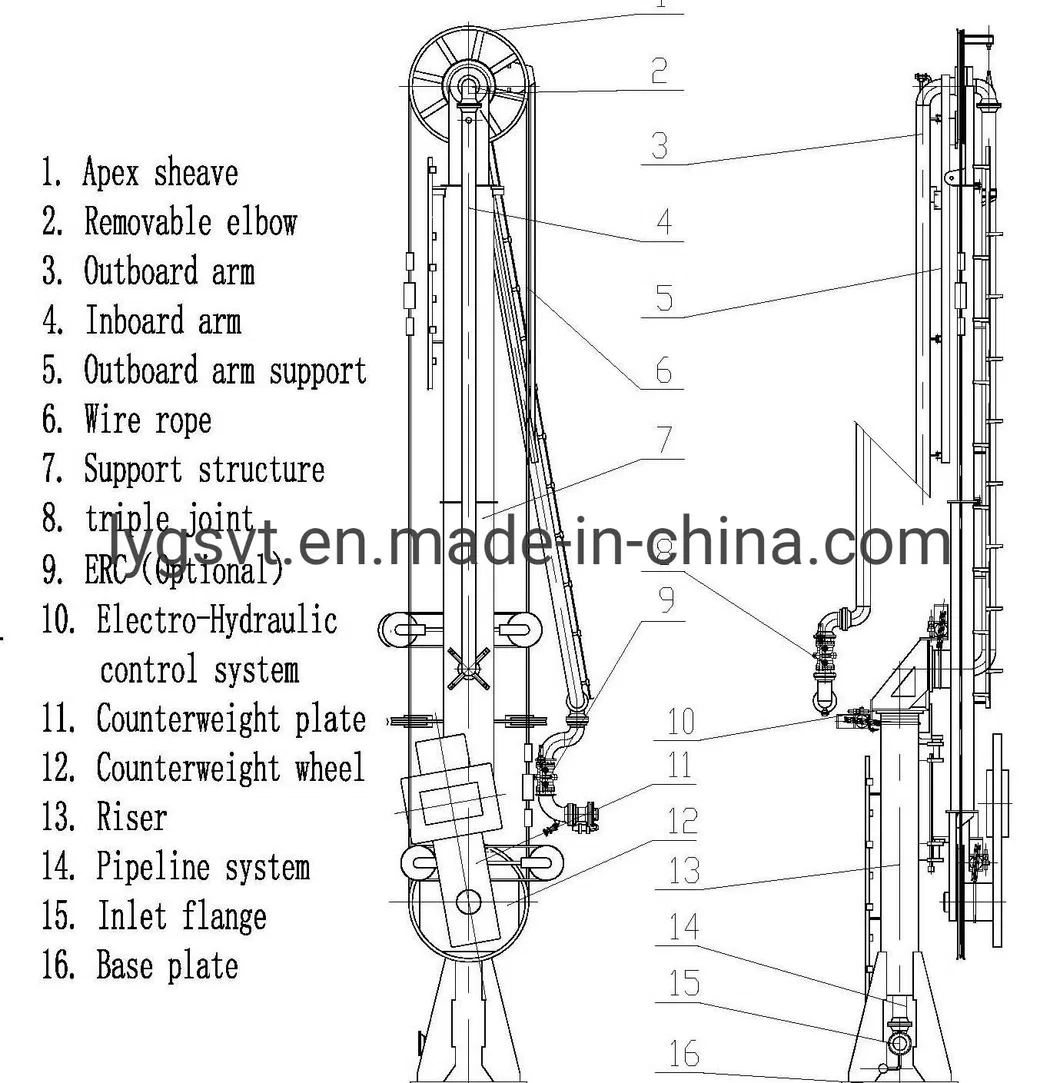

A marine loading arm comprises several components namely: base riser, inboard arm, outboard arm, balancing assembly, supporting structure, and operating system. The articulation is assured by swivel arrangements. These arrangements (or styles) allow for complete movement in all planes. We design and manufacture a wide range of Marine Loading Arms to load and unload almost any liquid and compressed gas product from river barges, ships and ocean going super tankers.

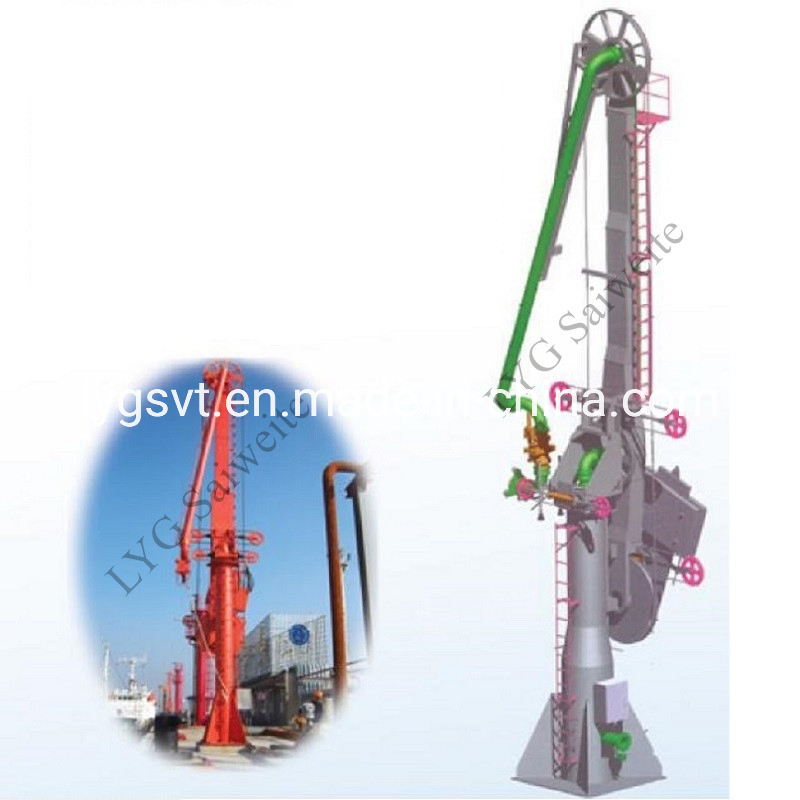

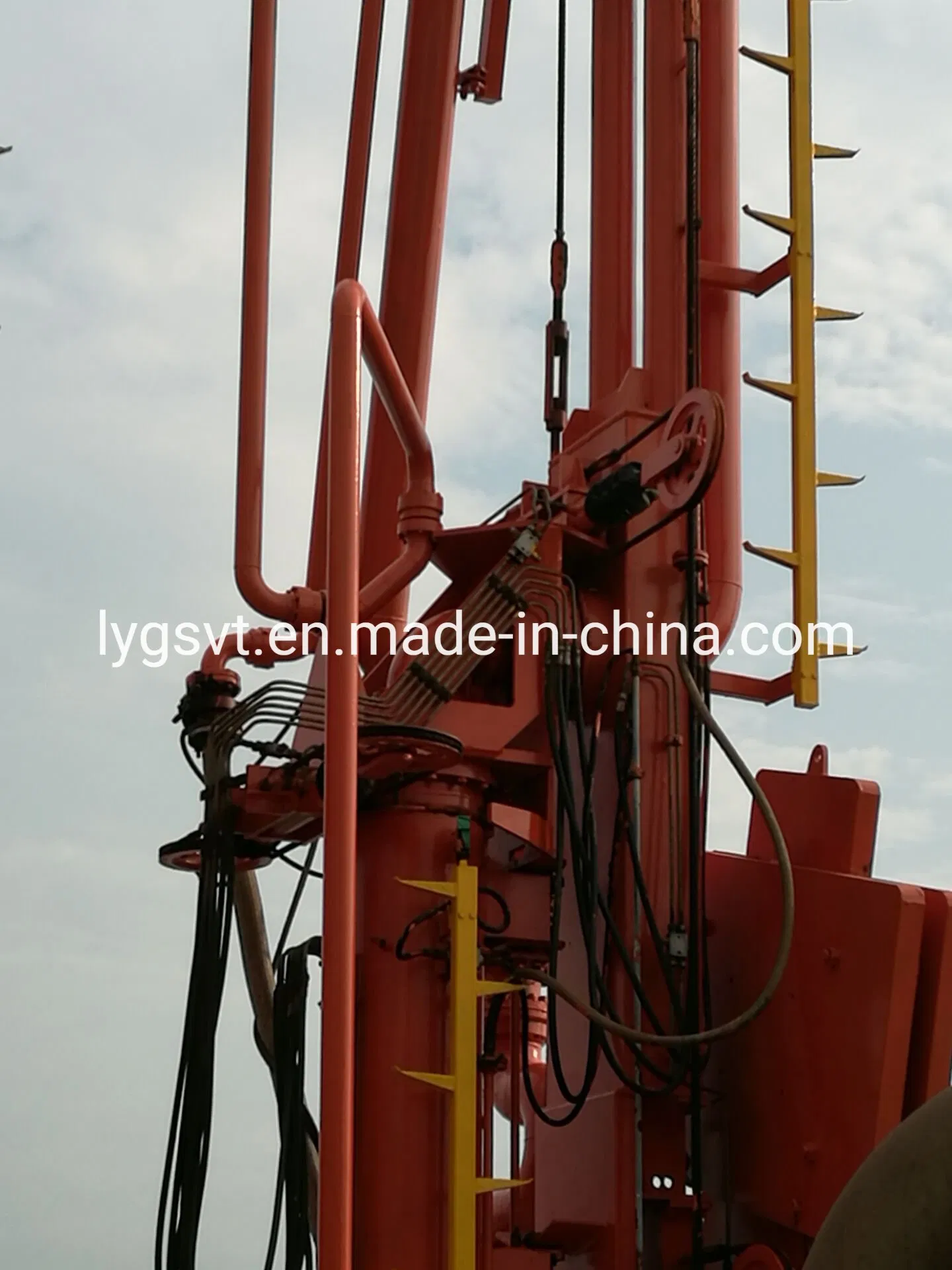

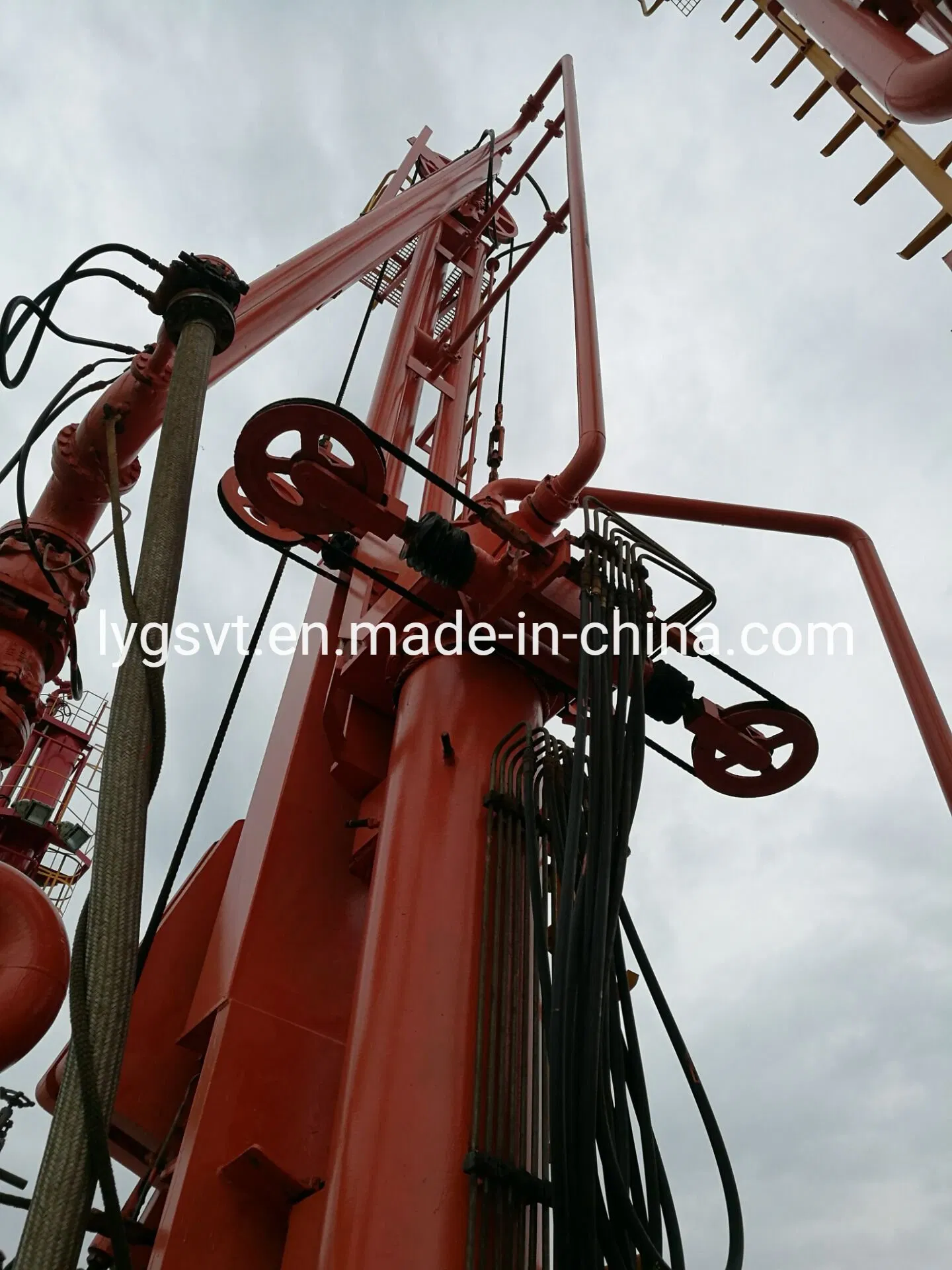

AM63- Single Pipe Marine Loading Arm with Branched Support Structure

Product Parameters

Product Name	Marine Loading Arm
Service Product	Oil, Gasoline, Diesel, LPG, and all kinds of liquid
Nominal Diameter	DN150 ~ DN600 (6" to 24")
Design Pressure	-0.08 Mpa ~ +2.5 MPa
Design Temperature	-196°C ~ +250°C
Pipe material	Carbon steel, stainless steel, low-temperature steel, line with PTFE
Operation method	Manual operated, hydraulic operated
Optional Equipment	Position Monitor system (PMS), Hydraulic power units (HPU), Quick Connect/Disconnect Coupler (QC/DC), Unit Control Panel (PLC), Emergency Release System (ERS), etc.

Design Specifications

Design wind speed (static/stowed): ≤55M/S
Design wind speed (operating): ≤ 16 M/S
Earthquake resistance coefficient: 0.3 G
Total length: Up to 30 M
Vessel Tonnage: 50,000 tons
Operating Mode: Manually or Electro-hydraulically operated

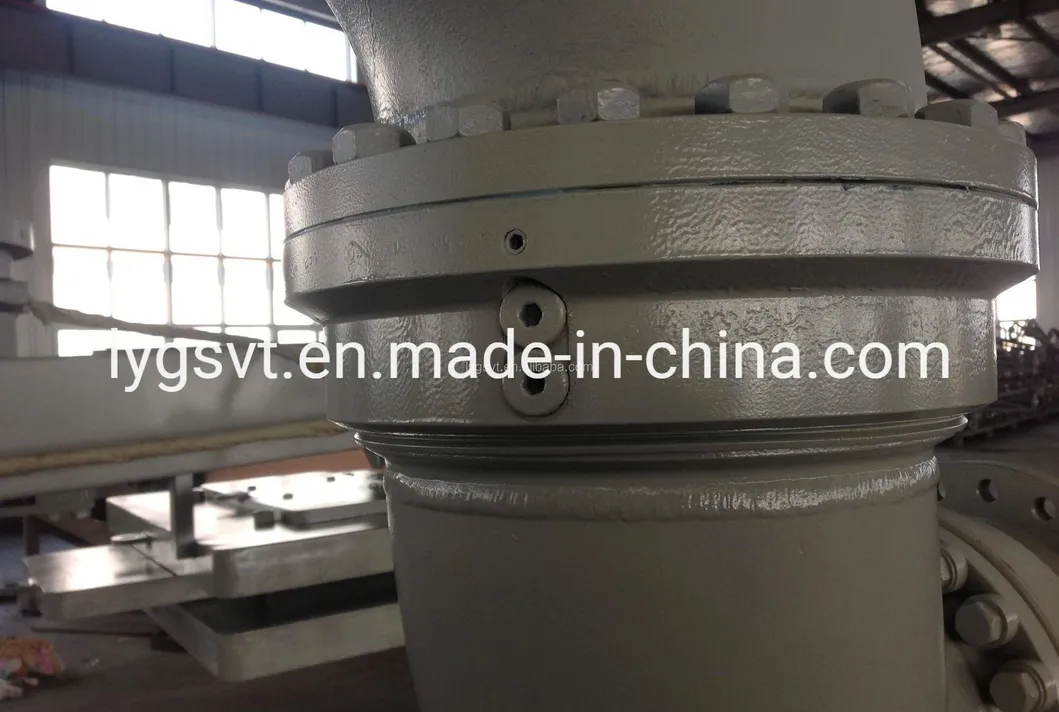

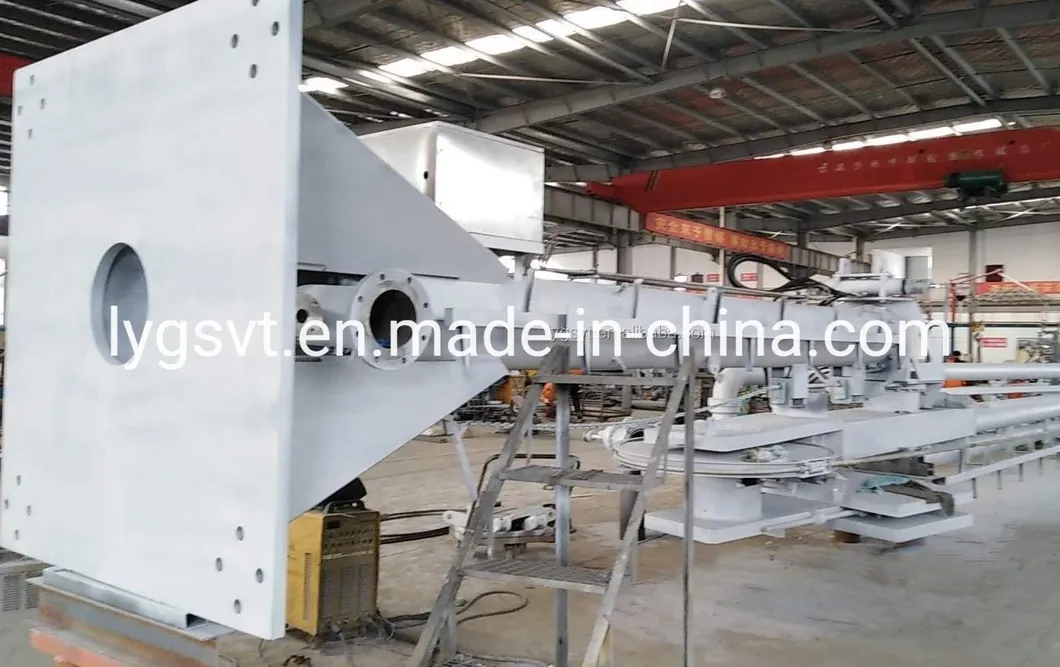

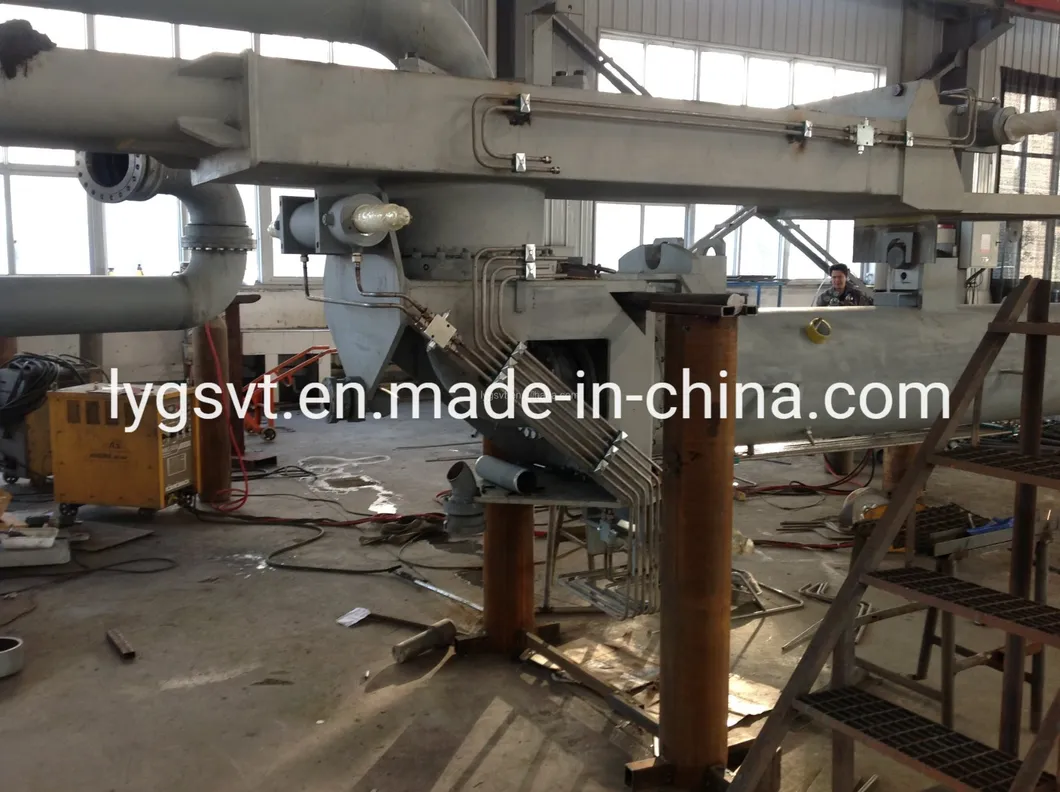

Detailed Photos

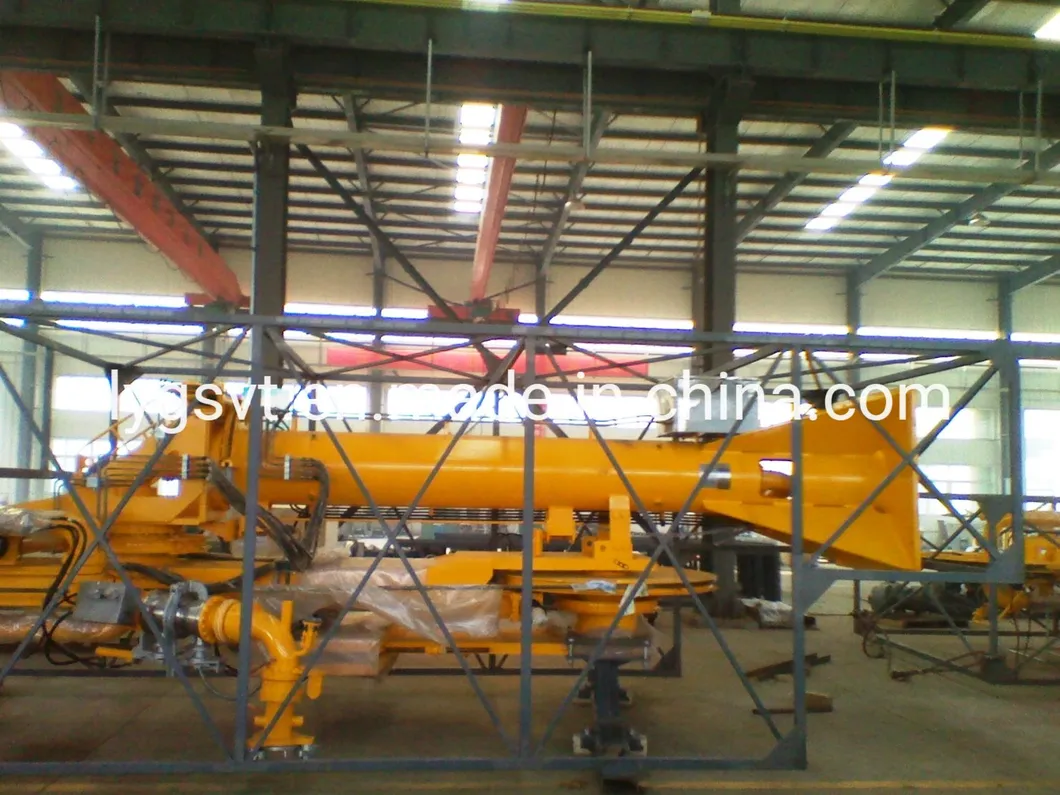

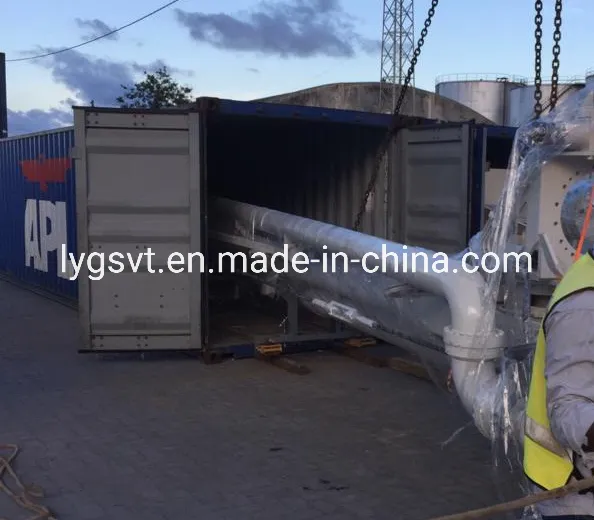

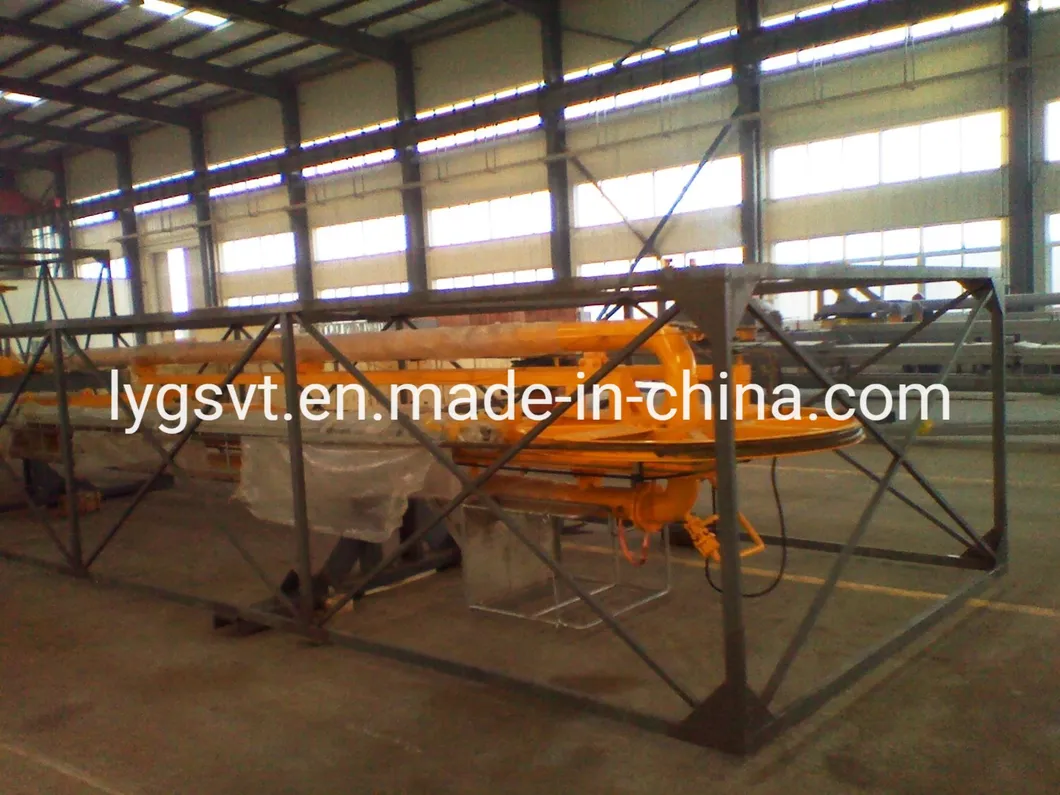

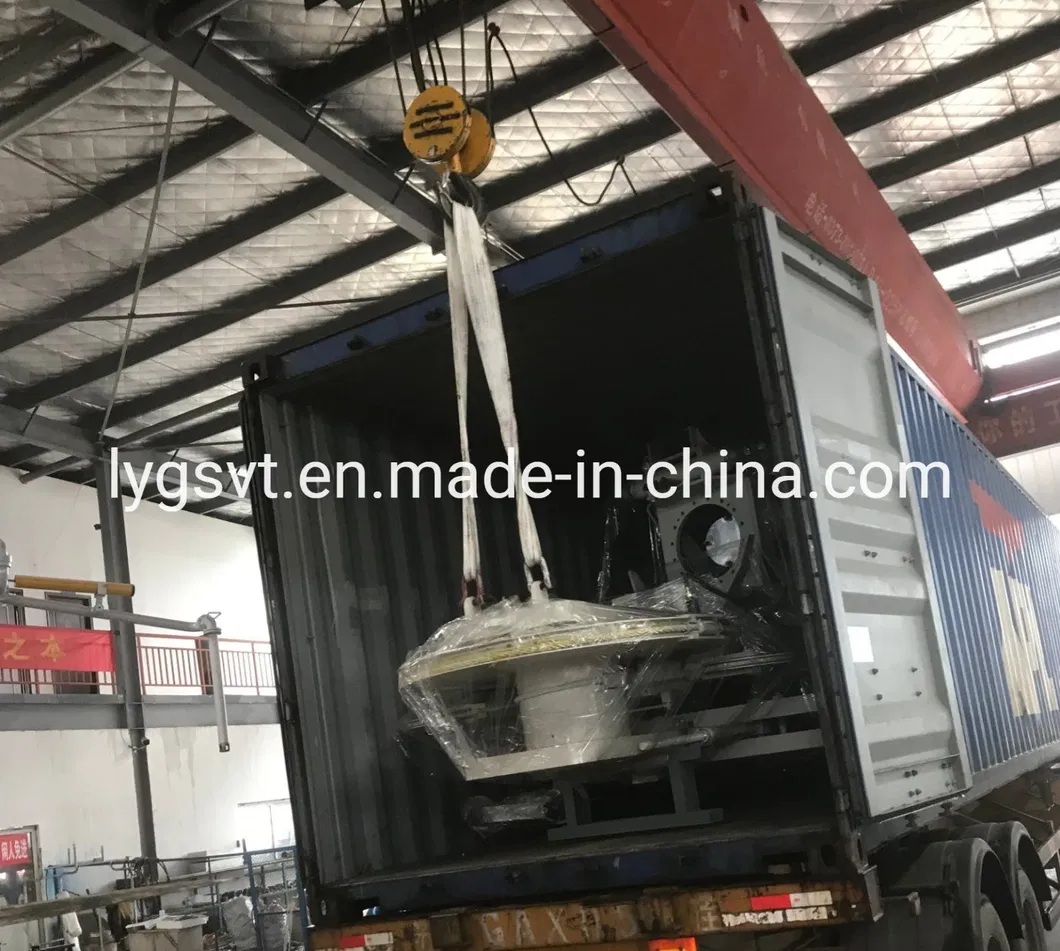

Packaging & Shipping

After Sales Service

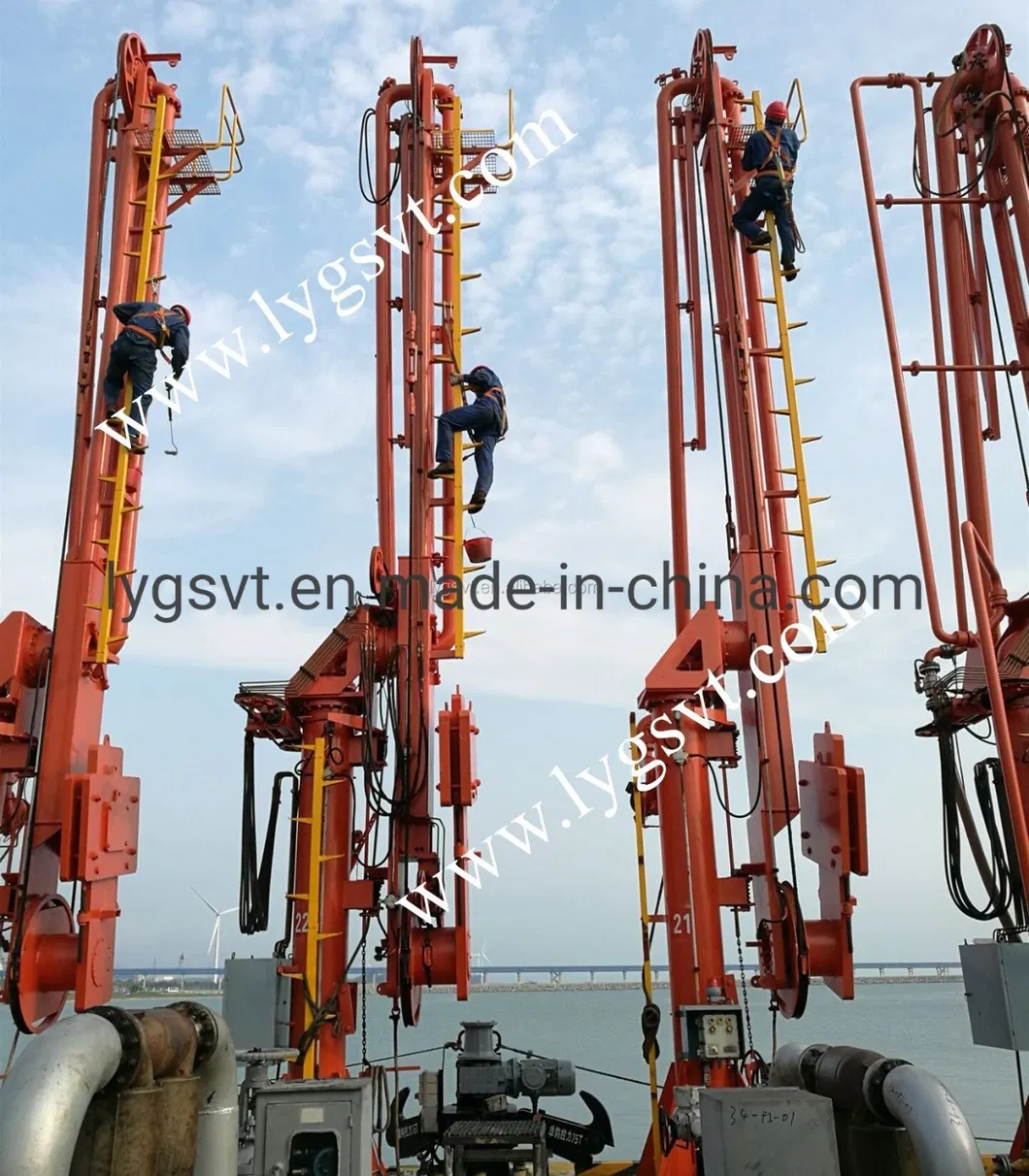

On-site Service and After-sales Service are provided for installation, commissioning, maintenance, and automatic system upgrading for all products.

Warranty Period: 12 months from the date of startup or 18 months after delivery, whichever happens first.

Company Profile

Specializing in the design, manufacture, sale, and installation of Land Loading Arm, Marine Loading Arm, Internal Floating Roof, Floating Suction Unit, Folding Stairs and Platform, Gangway Tower, Automatic Quantitative Loading System, Shell, etc.

Professional technical personnel engaged in mechanical design and engineering construction for many years ensure a perfect quality assurance system. Strictly performing ISO9001 Quality Management Systems from design and procurement to production and after-sale service. Fully equipped with various types of processing, welding, testing, and special processing equipment to provide customers with worry-free technical support.

Frequently Asked Questions

Q1: What types of liquids can the AM63 Marine Loading Arm handle? A1: It is designed to handle a wide range of liquids including Oil, Gasoline, Diesel, LPG, and various chemical fluids.

Q2: What are the available operation methods for the loading arm? A2: The system can be configured for either manual operation or electro-hydraulic operation depending on your terminal requirements.

Q3: What materials are used for the pipeline construction? A3: Pipelines are typically constructed from Carbon Steel, Stainless Steel, or Low-Temperature Steel, and can be lined with PTFE for specific chemical resistance.

Q4: Does the equipment come with safety features? A4: Yes, optional safety equipment includes Emergency Release Systems (ERS), Quick Connect/Disconnect Couplers (QC/DC), and Position Monitoring Systems (PMS).

Q5: What is the standard warranty for this product? A5: The standard warranty is 12 months from the date of startup or 18 months after delivery, whichever comes first.

Q6: Can the design be customized for specific environmental conditions? A6: Yes, we customize designs based on terminal tidal ranges, ship tonnage, wind loads, and earthquake resistance requirements.
