Marine Loading Arm

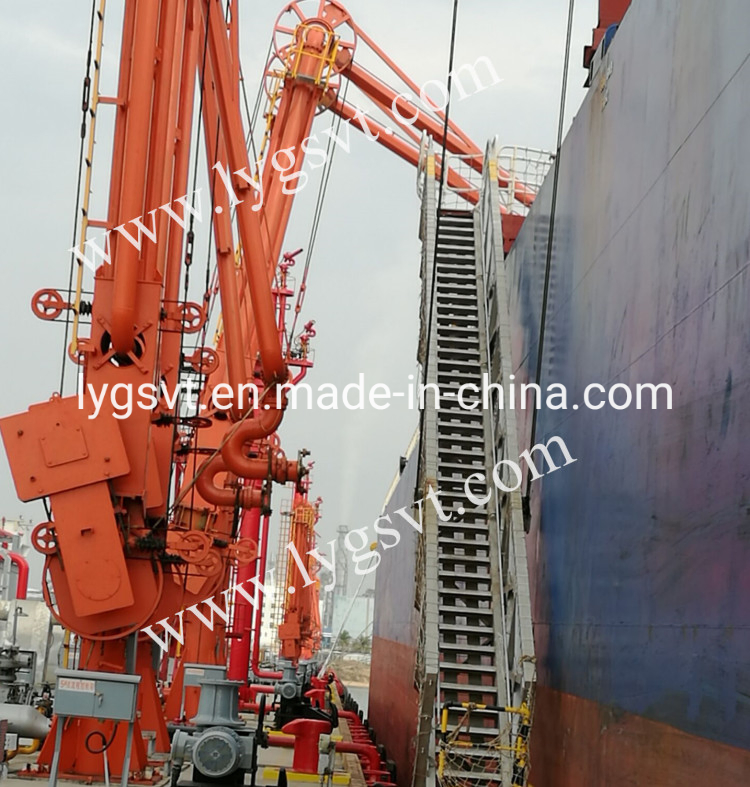

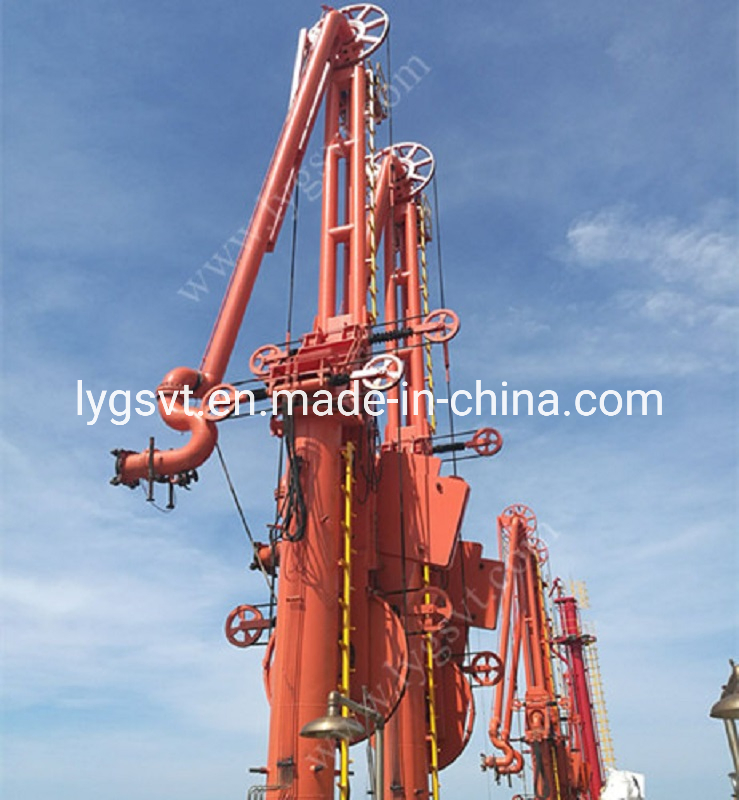

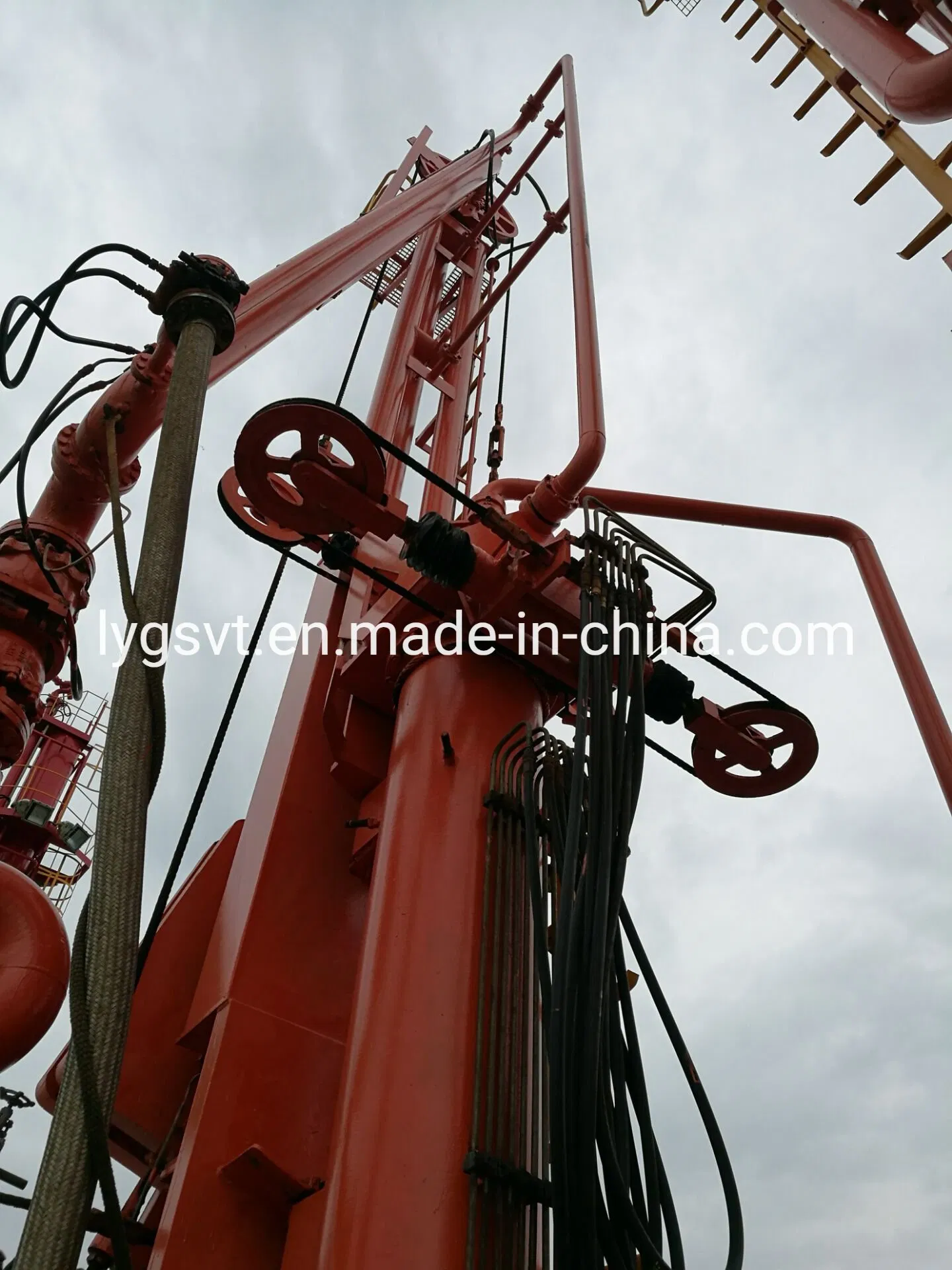

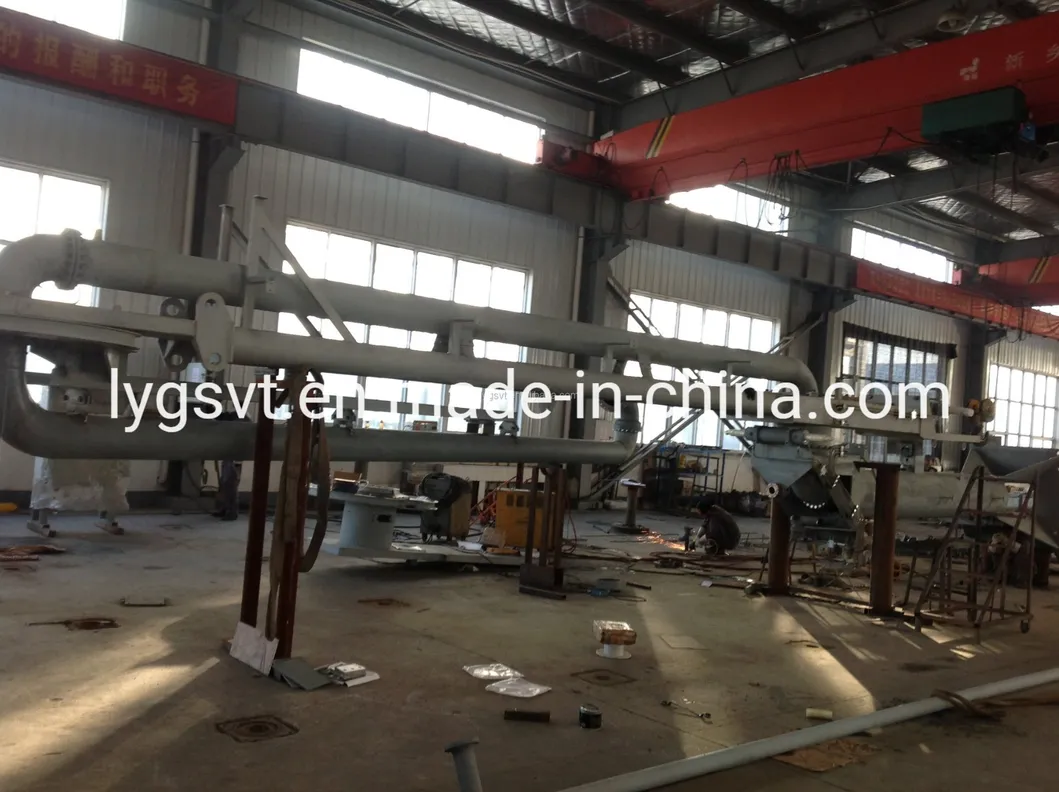

A Marine Loading Arm is an articulated pipe system specifically designed for the safe and efficient transfer of liquids or gases. This system can be operated either manually or hydraulically depending on operational requirements.

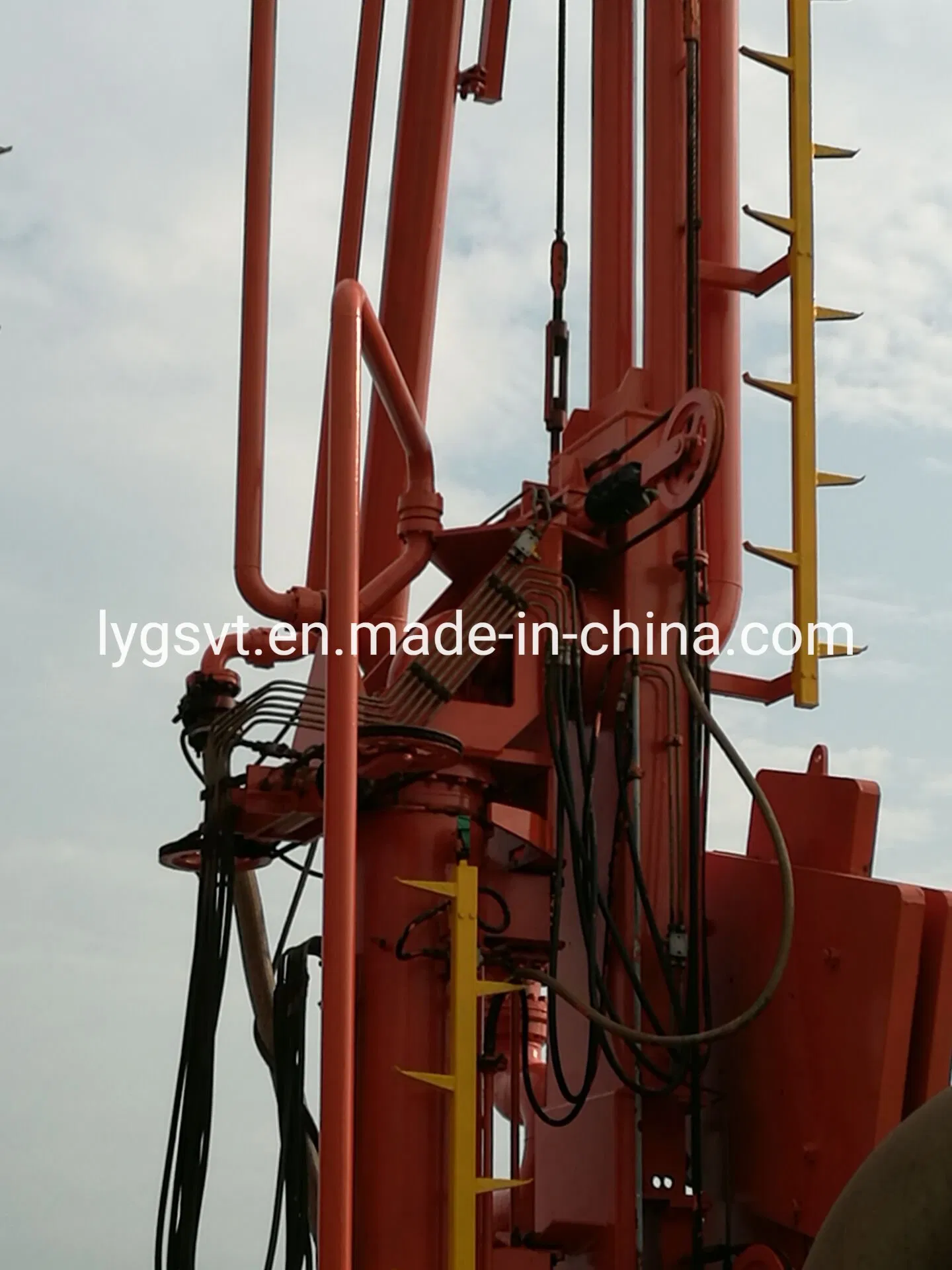

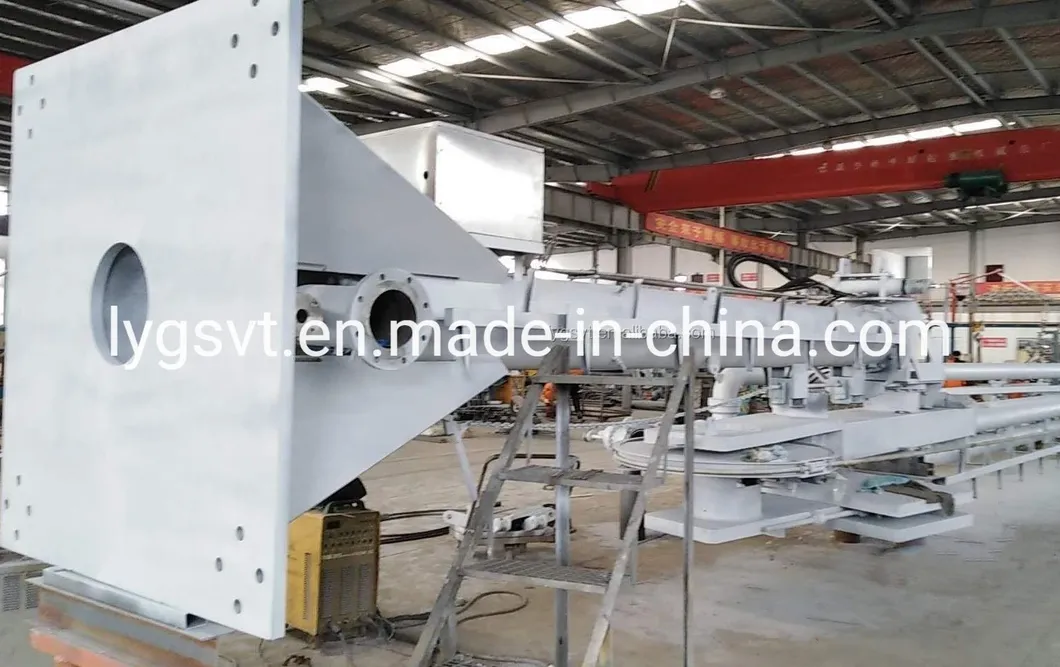

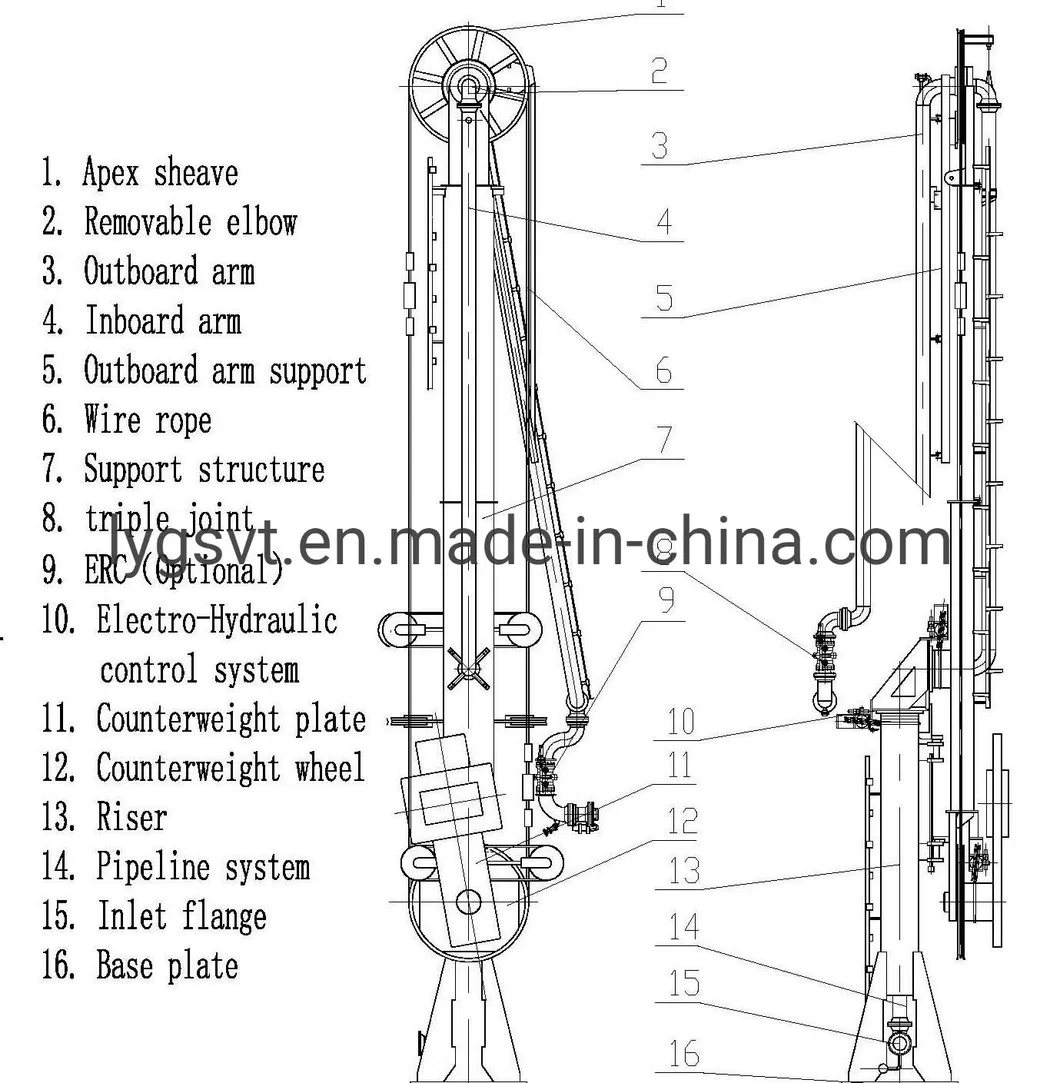

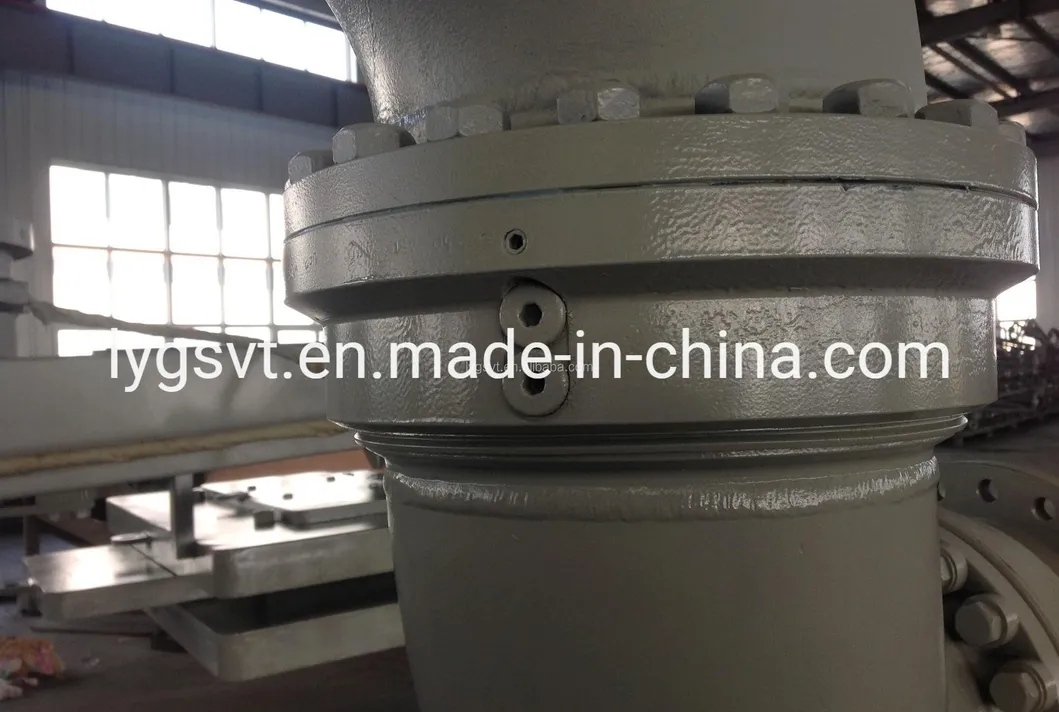

The assembly comprises several key components: base riser, inboard arm, outboard arm, balancing assembly, supporting structure, and an integrated operating system. The articulation is ensured by high-precision swivel arrangements, allowing for complete movement in all planes. These arms are engineered to load and unload almost any liquid and compressed gas product from river barges, ships, and ocean-going supertankers.

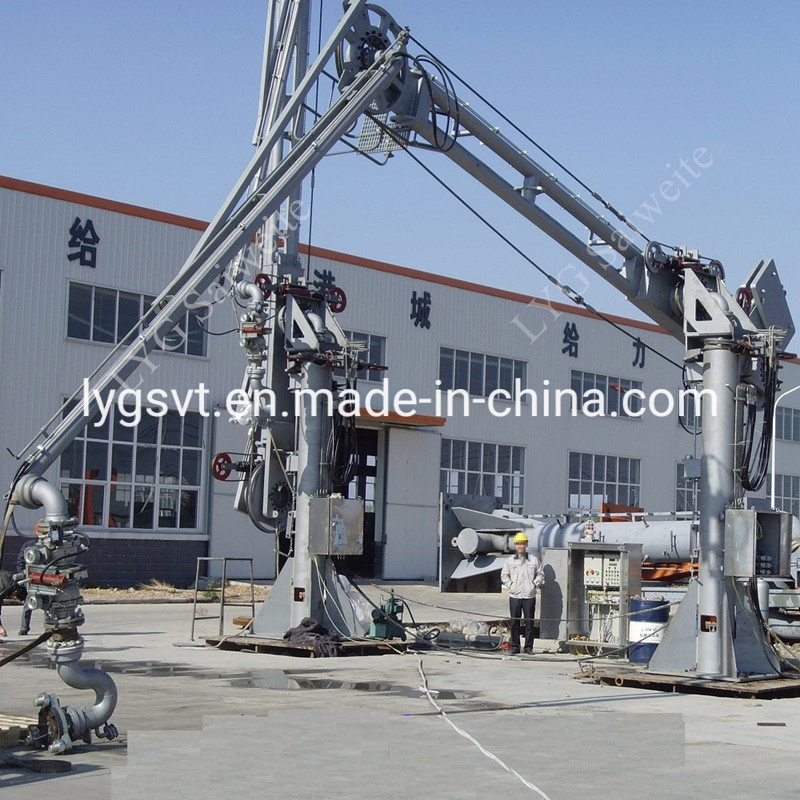

AM63- Single Pipe Marine Loading Arm with Branched Support Structure
| Service Product | Oil, Gasoline, Diesel, LPG, and all kinds of liquid |
| Nominal Diameter | DN150 ~ DN600 (6" to 24") |
| Design Pressure | -0.08 Mpa ~ +2.5 MPa |
| Design Temperature | -196°C~ +250°C |
| Pipe Material | Carbon steel, stainless steel, low-temperature steel, PTFE lining |
| Optional Equipment | PMS, HPU, QC/DC, PLC Control, Emergency Release System (ERS) |
Custom Design Specifications:
The design is customized based on terminal tidal range, ship tonnage, liquid type, and environmental parameters (wind load, temperature, earthquake loads). Standard design parameters include:

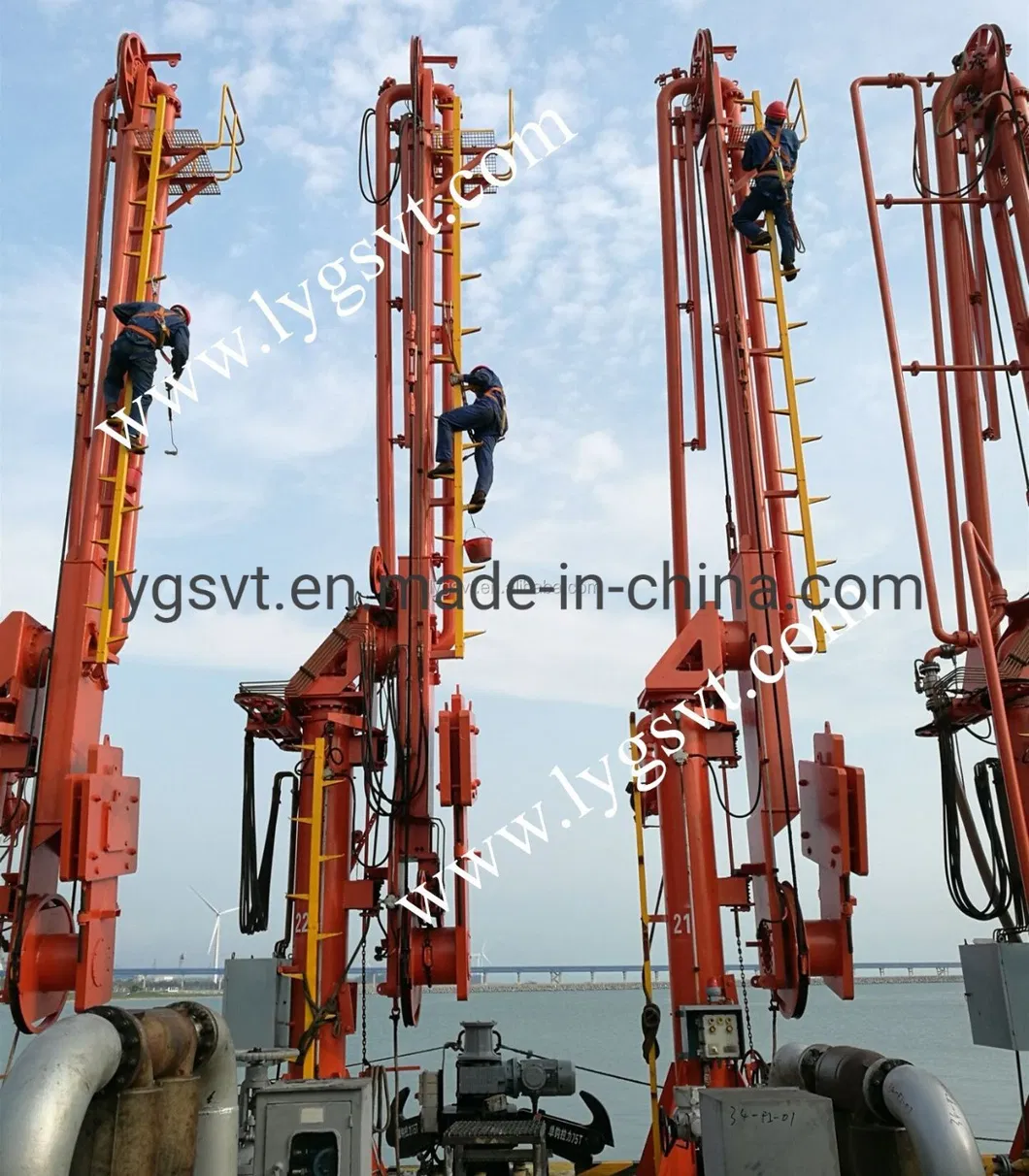

Comprehensive on-site services and after-sales support are provided, including installation, commissioning, maintenance, and automatic system upgrading for all products.
Warranty Policy: The warranty period is 12 months from the date of startup or 18 months after delivery, whichever occurs first.
We specialize in the design, manufacture, sale, and installation of a wide range of fluid equipment, including:
Our team consists of professional technical personnel with extensive experience in mechanical design and engineering construction. We strictly adhere to ISO9001 Quality Management Systems across all stages of production, from procurement to after-sales service, utilizing advanced processing, welding, and testing equipment.
