| Model NO. | AM63, AM64 |
|---|---|
| Certification | ISO 9001:2008 |
| Applicable Medium | Crude Oil, Liquid Service Product |
| Nominal Diameter | 6" to 20" |
| Pipelines Material | Carbon Steel, Stainless Steel |
| Application | Oil, Gasoline, Diesel, LPG, and All Kinds of Liquid |
| Accessories | Erc (Ers), QC/DC, Pms, etc. |
| Operation Method | Manual Operated, Hydraulic Operated |

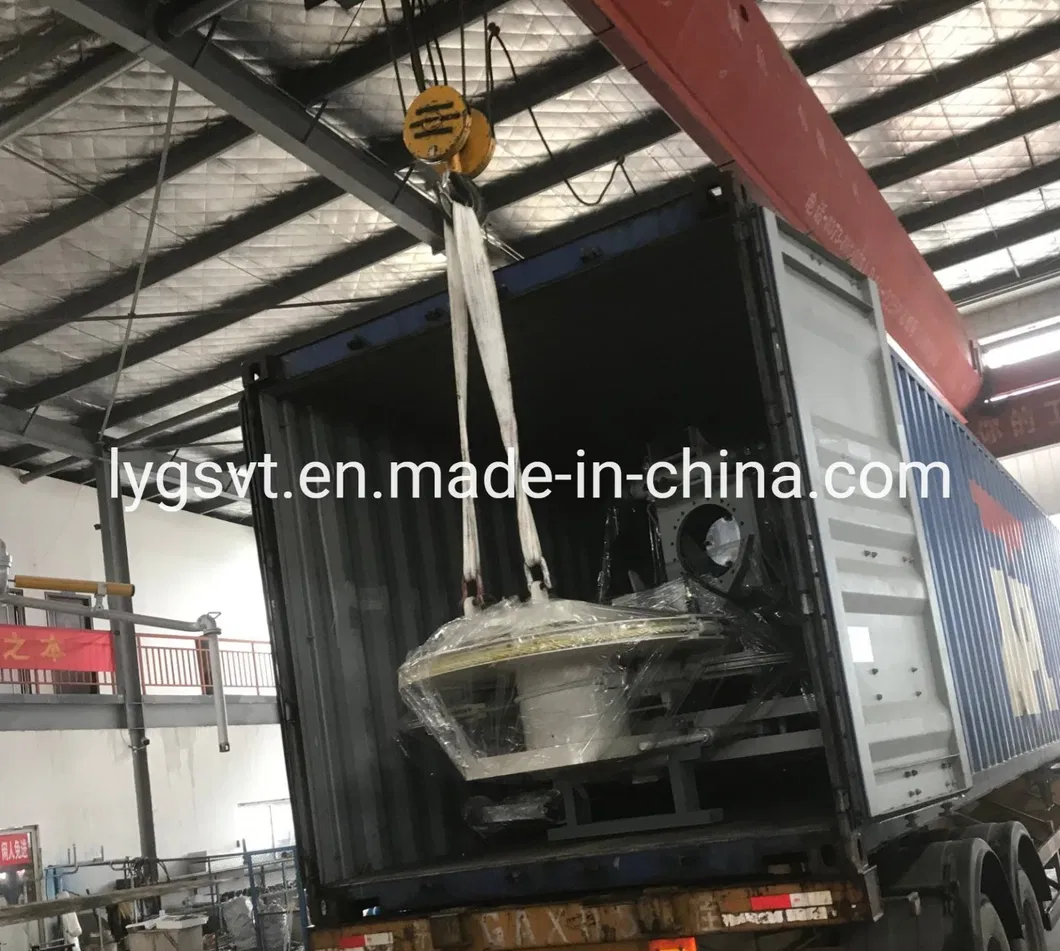

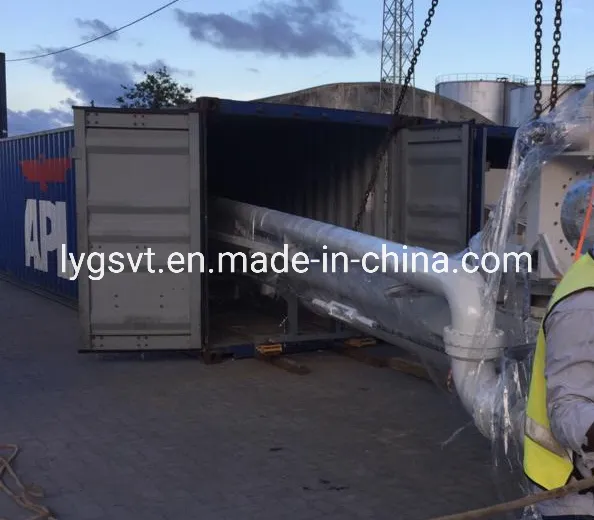

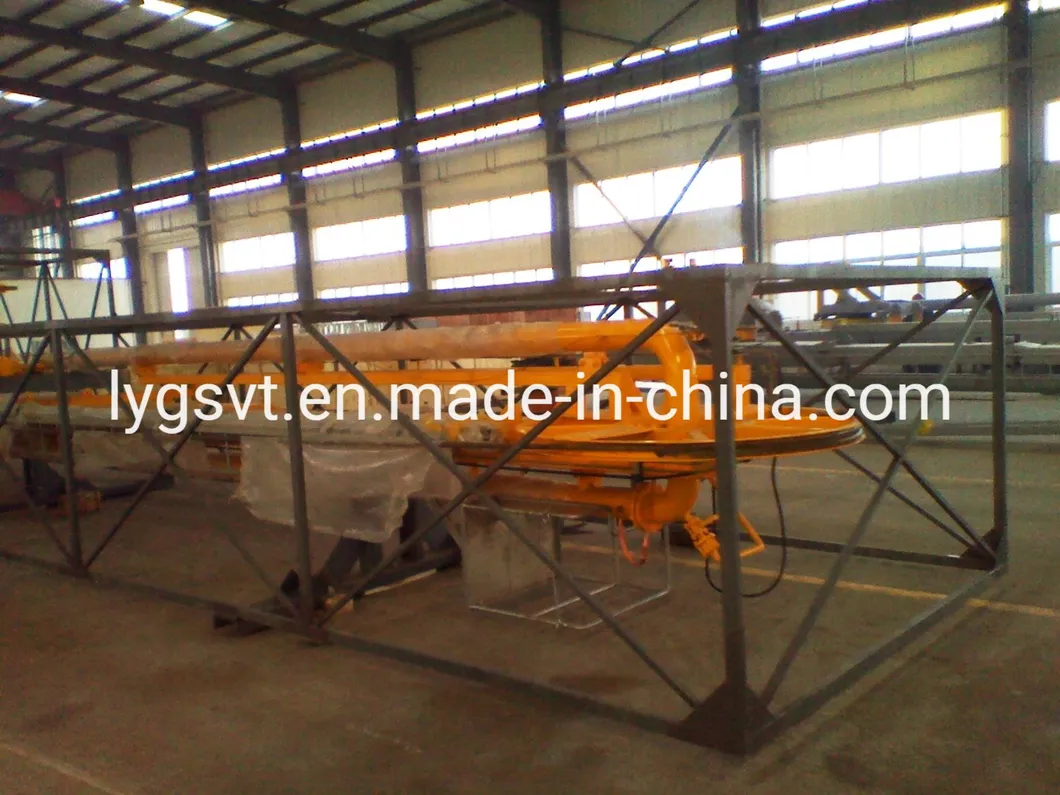

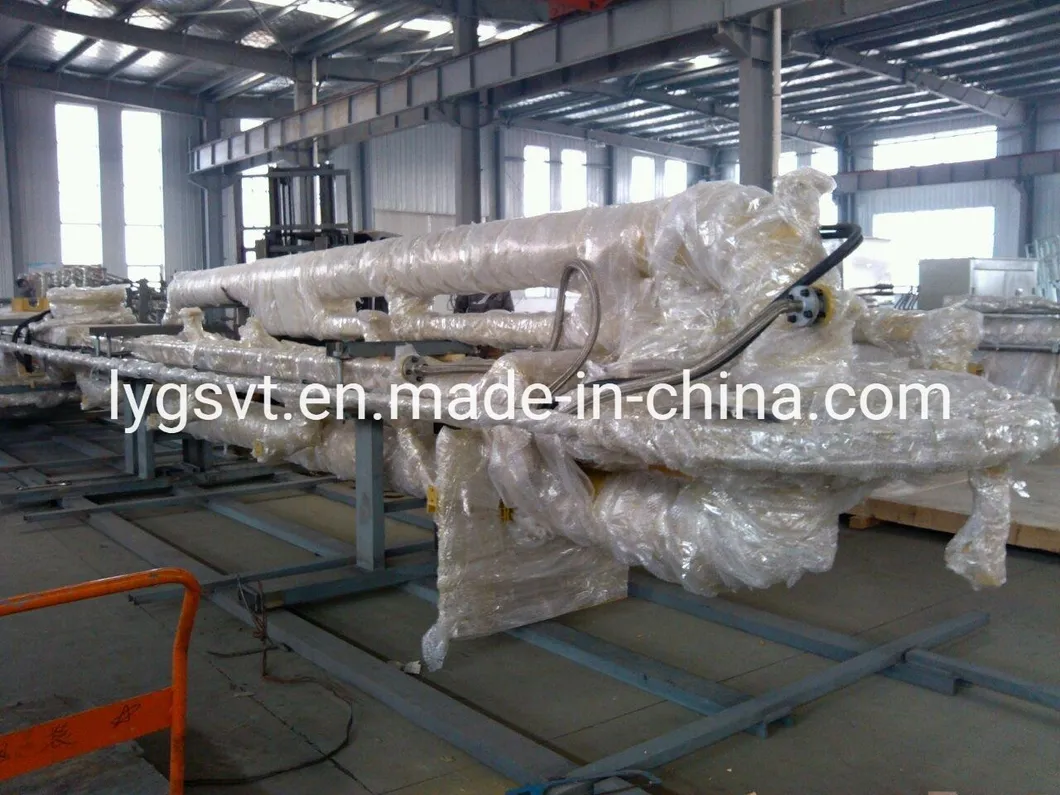

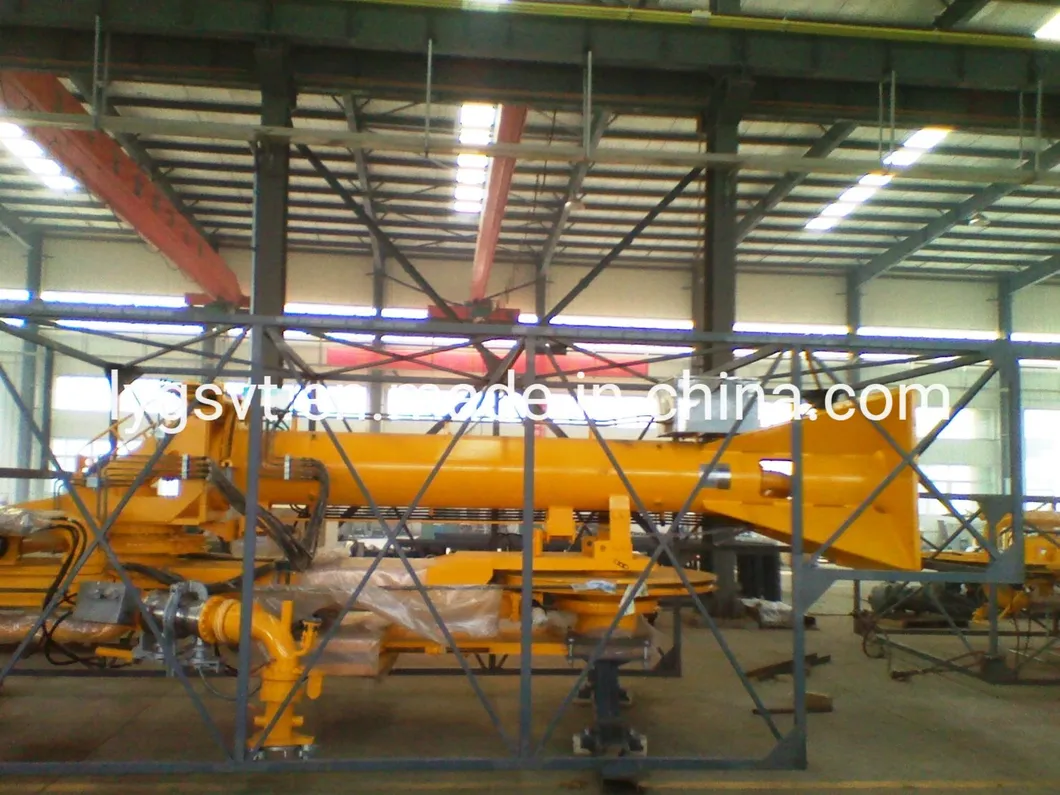

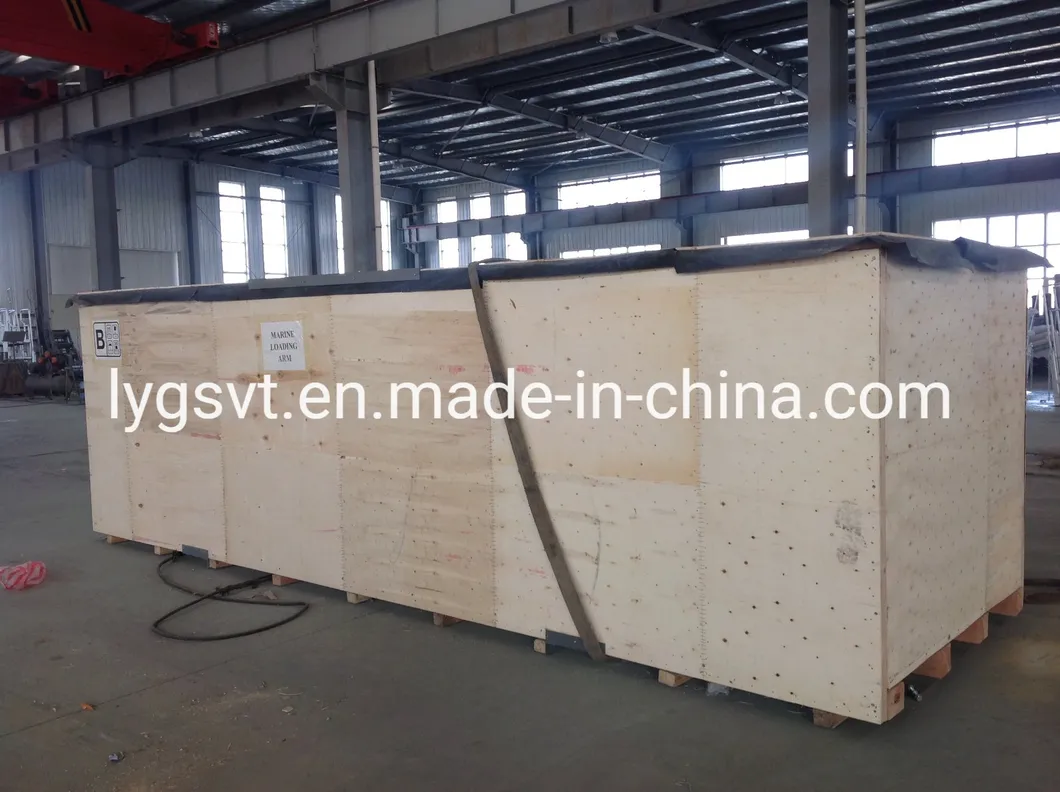

| Transport Package | Wooden Case, Metal Frame, or Container |
| Origin | China |
| Production Capacity | 200 Sets/Year |

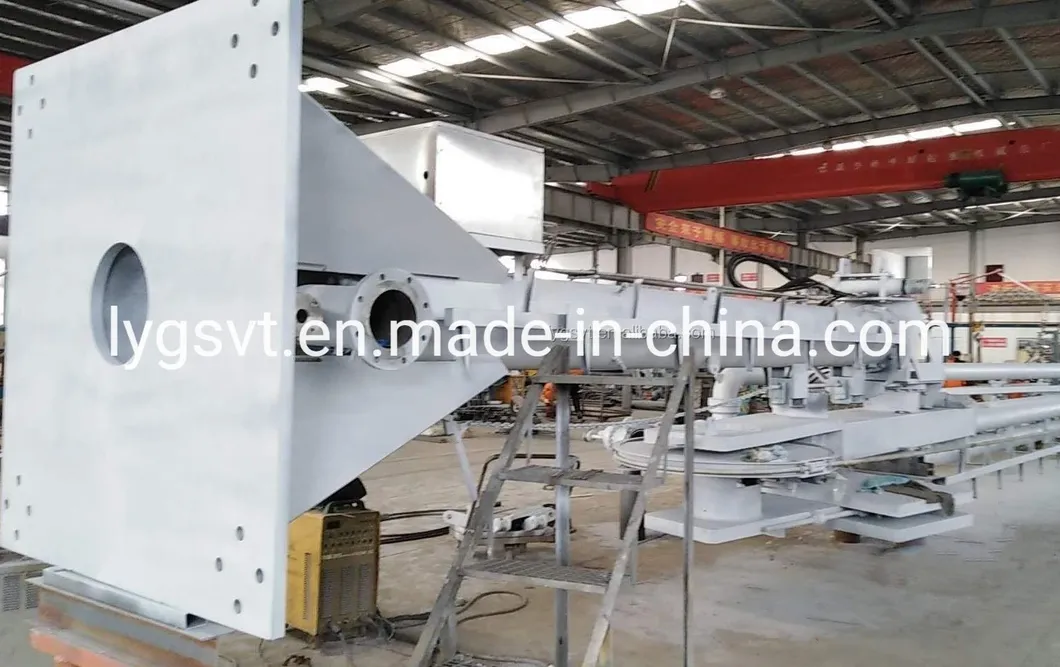

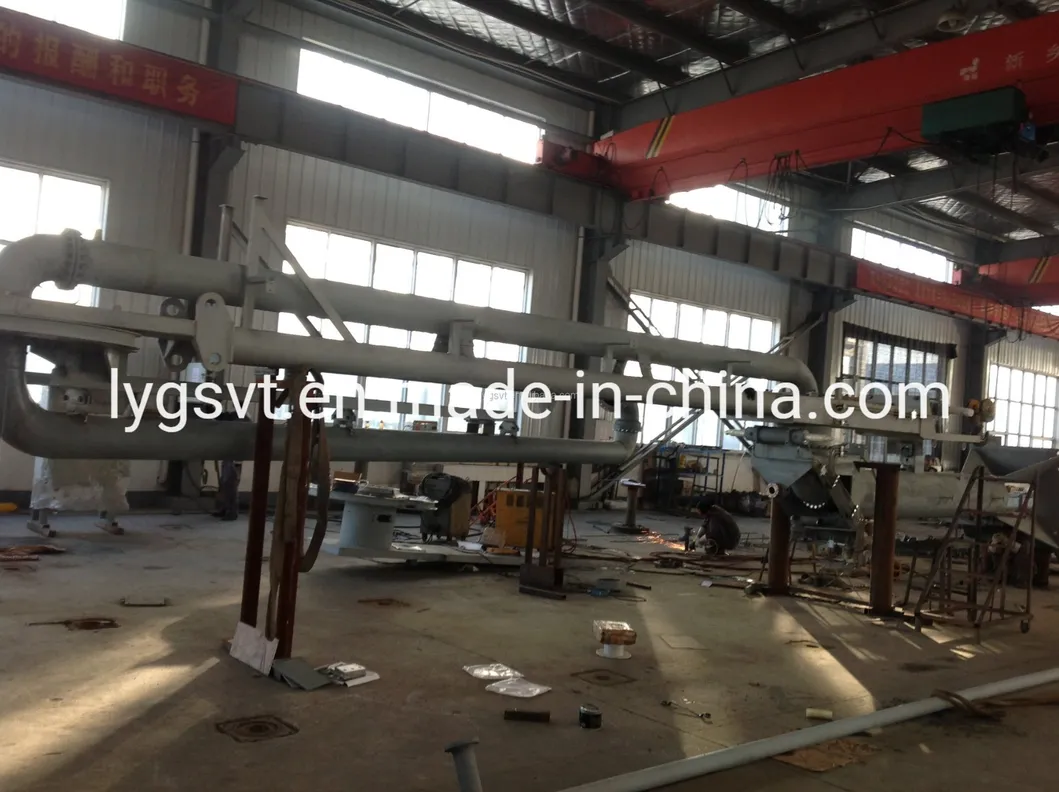

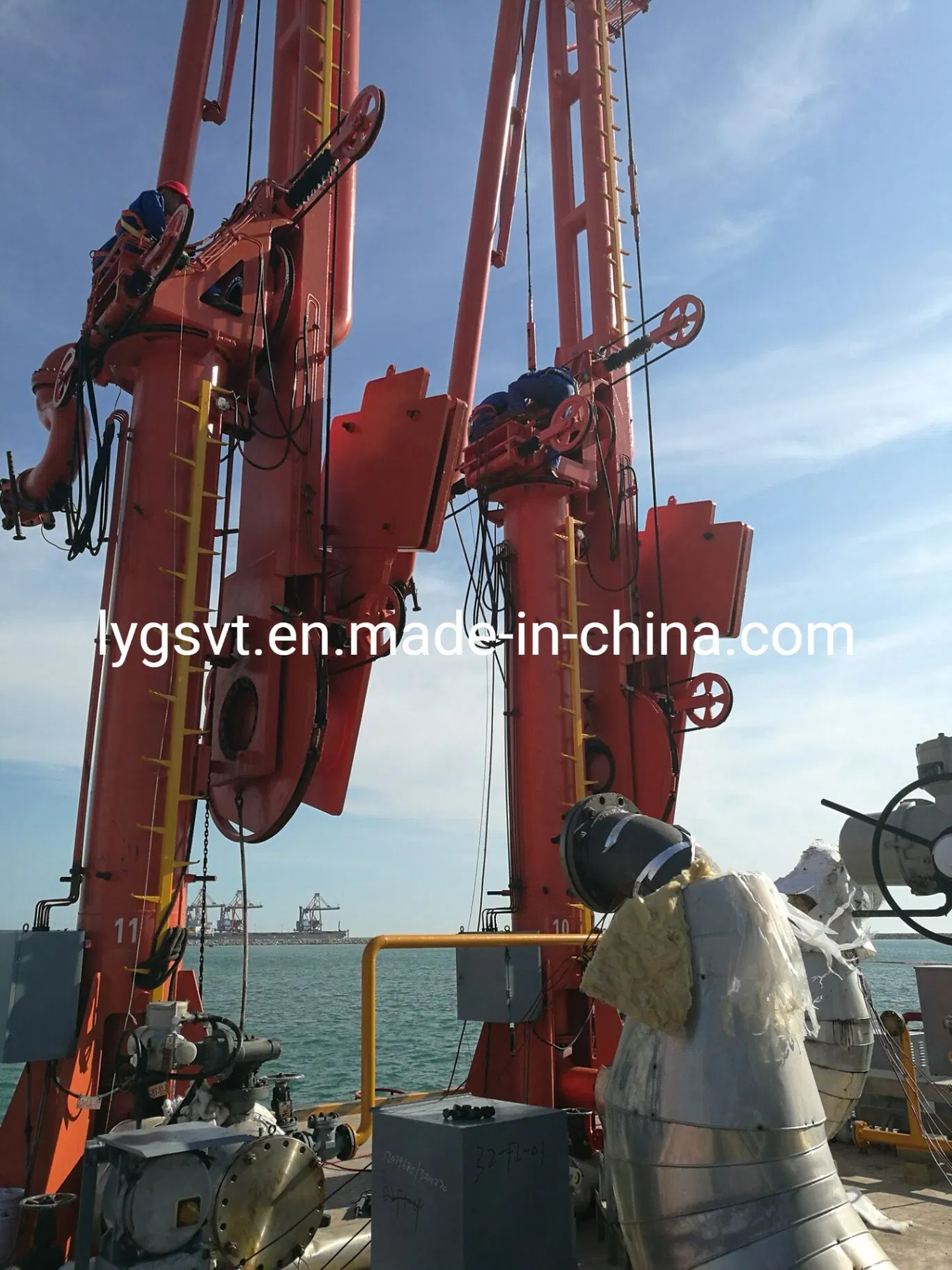

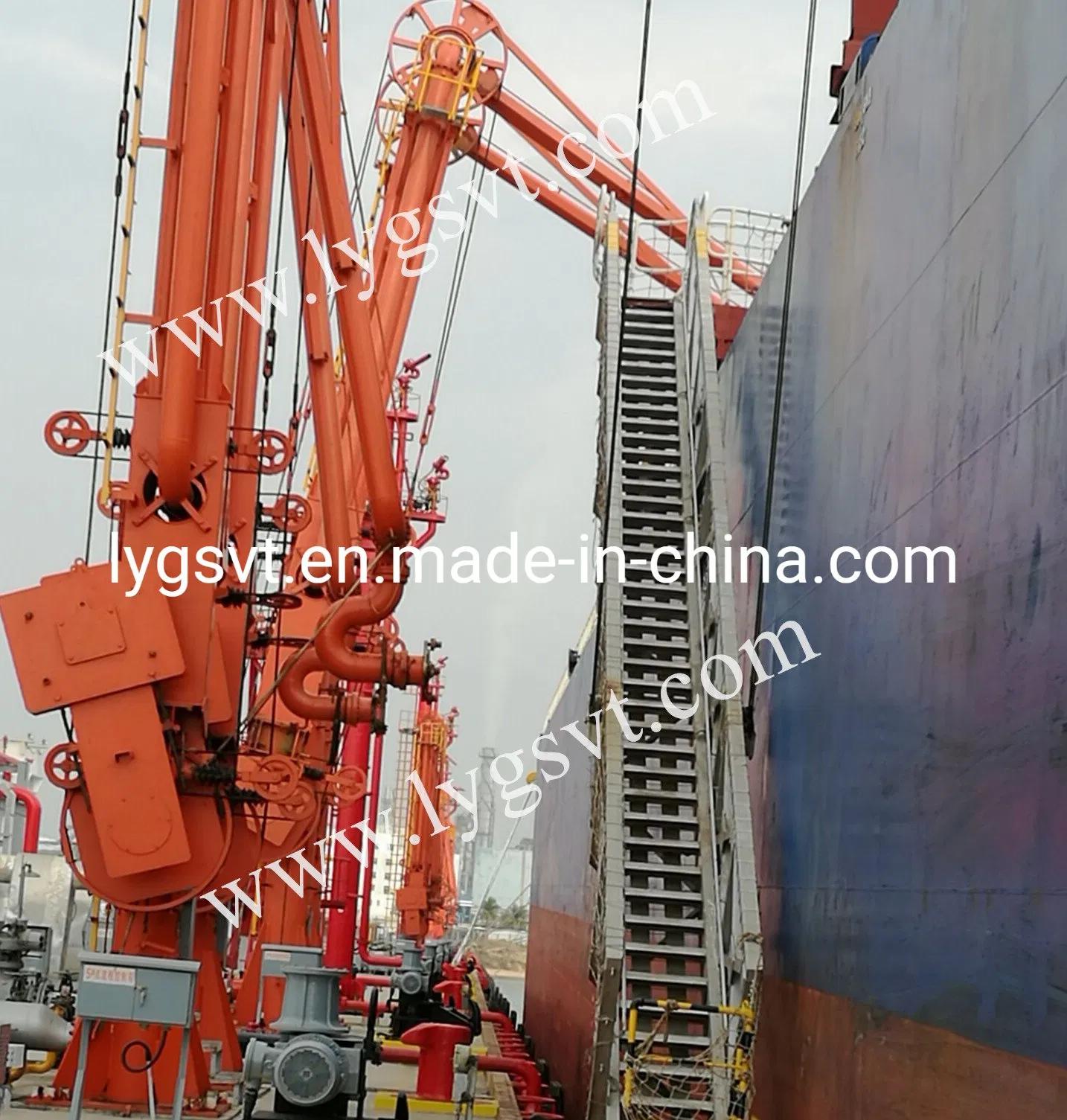

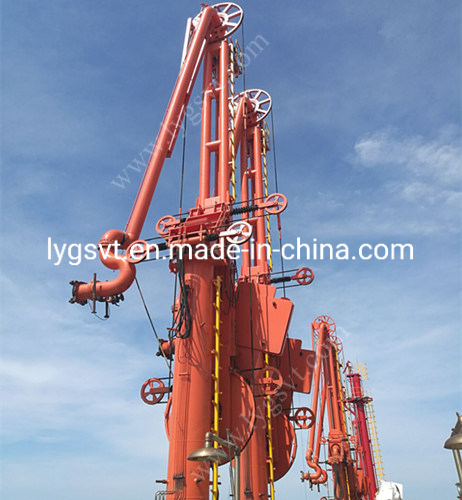

A Marine Loading Arm is an articulated pipe system designed for the safe and efficient transfer of liquids or gases. These systems can be operated manually or hydraulically depending on the specific operational requirements.

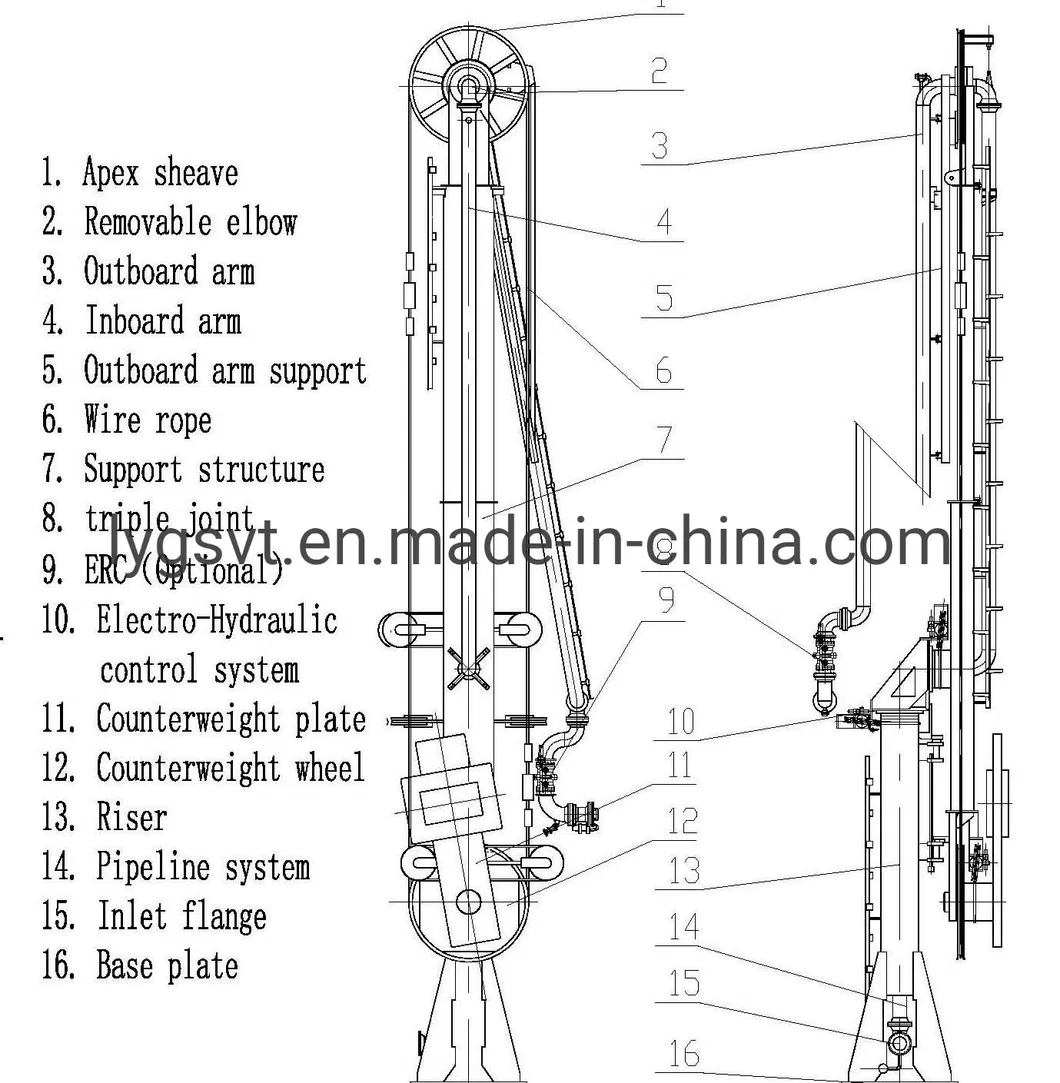

A marine loading arm comprises several key components:

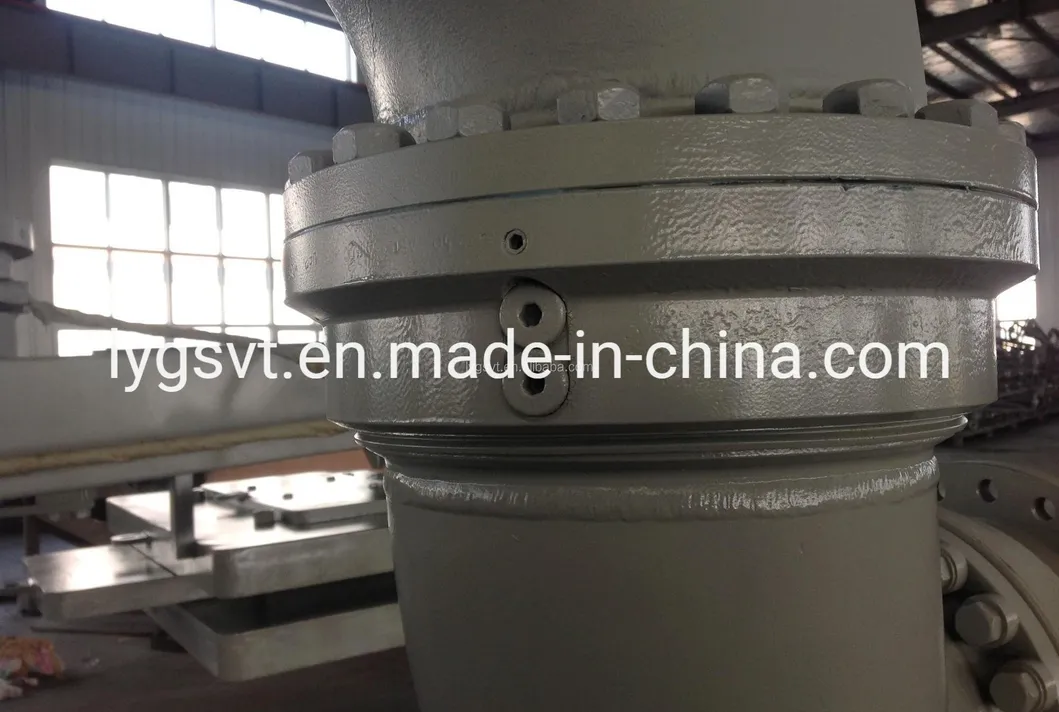

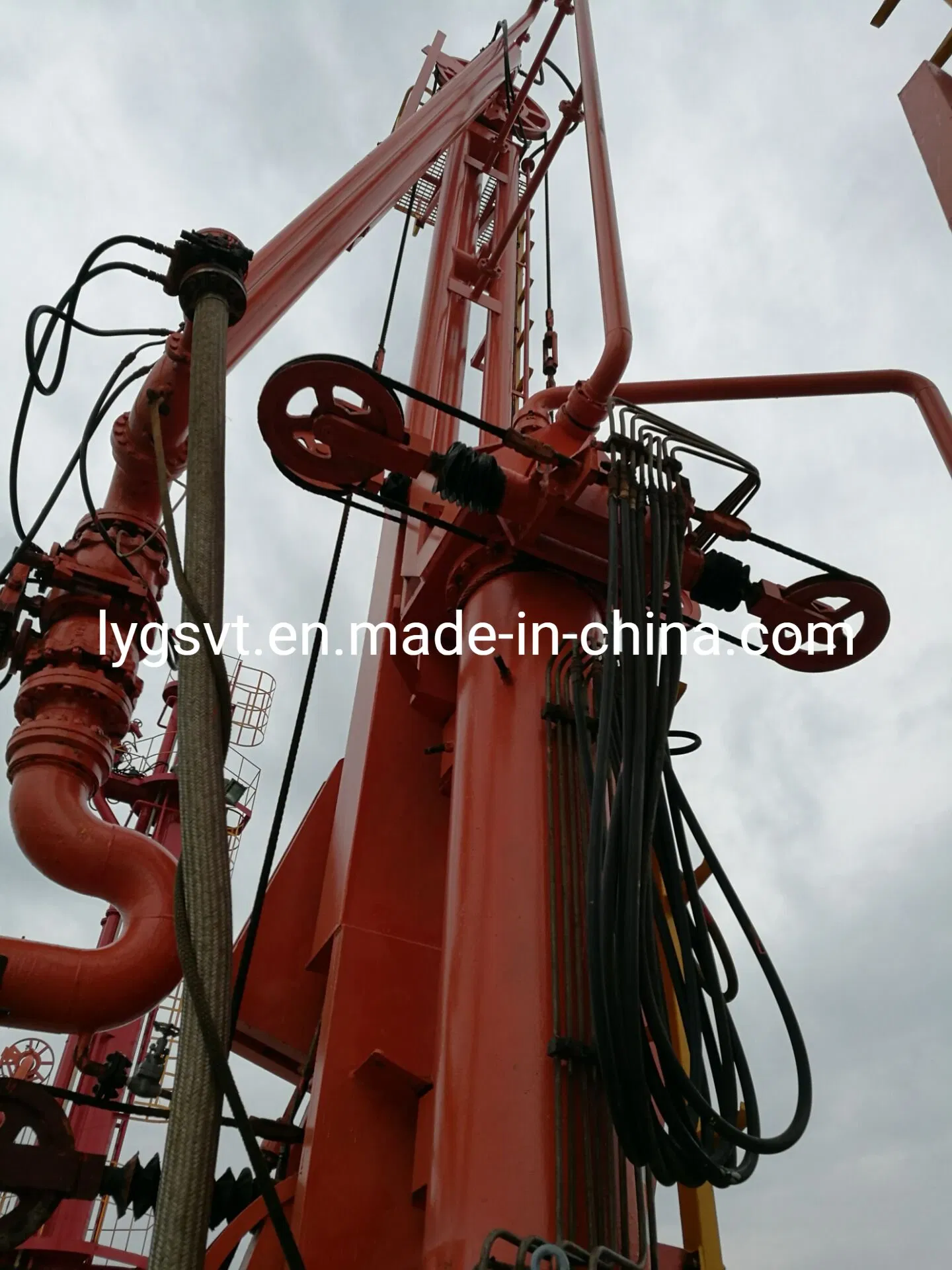

The articulation is assured by high-quality swivel arrangements that allow for complete movement in all planes. These arms are engineered to load and unload almost any liquid and compressed gas product from river barges, ships, and ocean-going super tankers.
| Product Name | Marine Loading Arm |
|---|---|
| Service Product | Oil, Gasoline, Diesel, LPG, and all kinds of liquid |
| Nominal Diameter | DN150 ~ DN600 (6" to 24") |
| Design Pressure | -0.08 Mpa ~ +2.5 MPa |
| Design Temperature | -196°C ~ +250°C |
| Pipe Material | Carbon steel, stainless steel, low-temperature steel, line with PTFE |
| Operation Method | Manual operated, hydraulic operated |

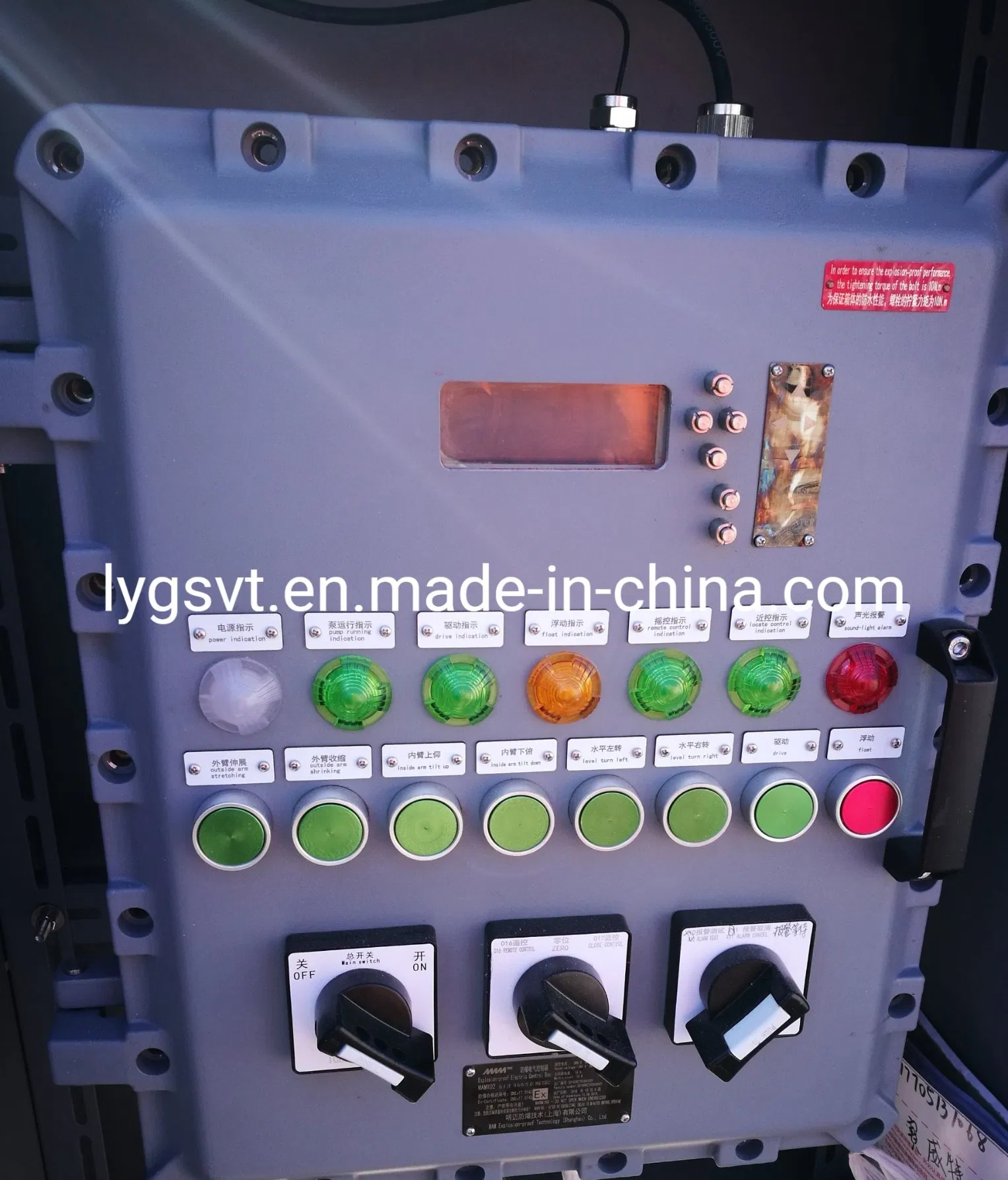

| Optional Equipment | Position Monitor system (PMS), Hydraulic power unit (HPU), Quick Connect/Disconnect Coupler (QC/DC), Unit Control Panel (PLC), Emergency Release System (ERS), etc. |
The design of the marine loading arm is customized based on specific client requirements and environmental conditions. Key data points for design include:

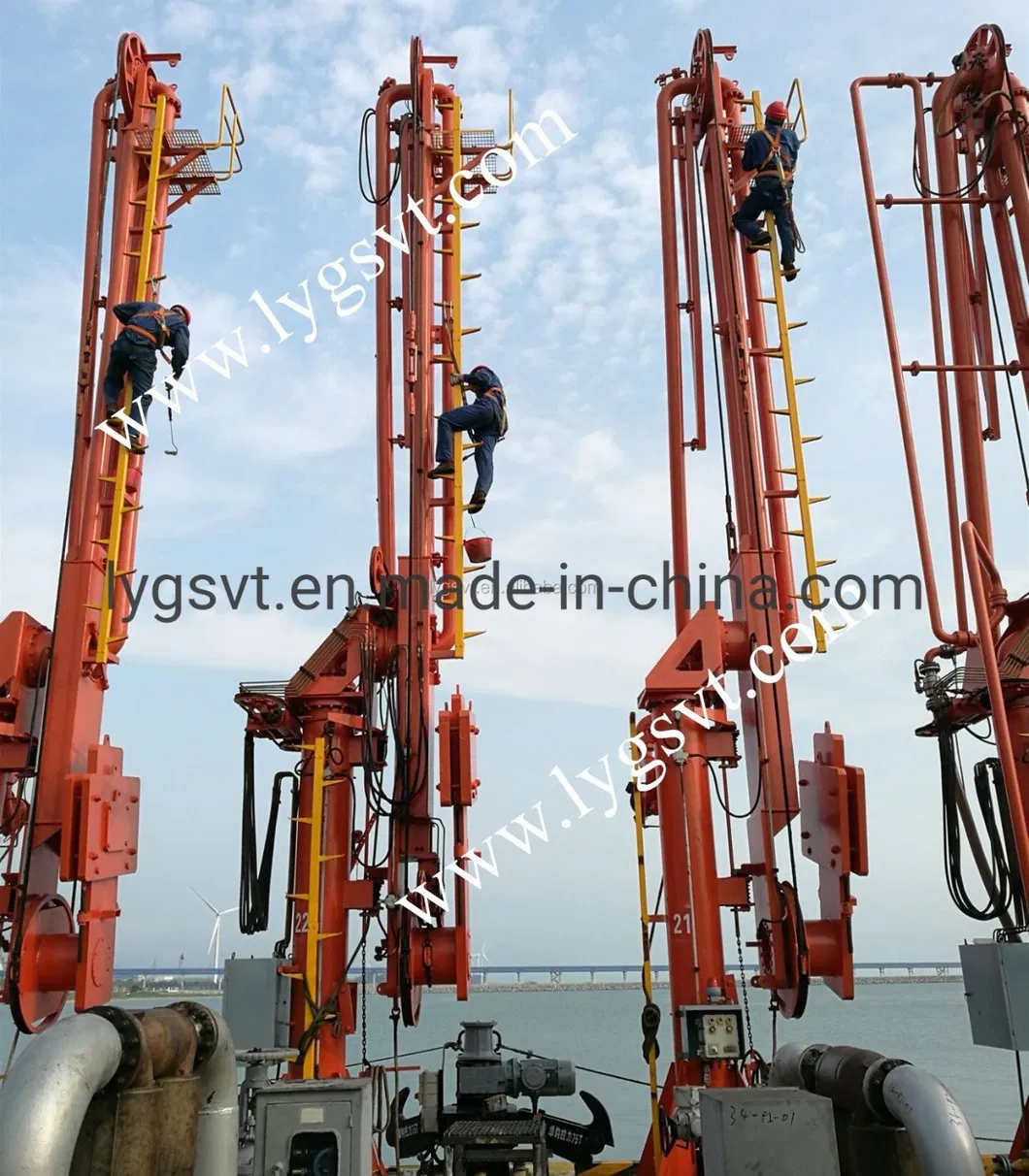

Comprehensive On-site and After-sales Services are provided for installation, commissioning, maintenance, and automatic system upgrading for all fluid equipment products.
Warranty Period: 12 months from the date of startup or 18 months after delivery, whichever occurs first.
Expertise in the design, manufacture, sale, and installation of specialized fluid equipment including:
Our professional technical personnel bring years of experience in mechanical design and engineering construction. We operate under a strict quality management system, covering design, procurement, production, sales, and after-sale support. Equipped with advanced processing, welding, and testing equipment, we ensure worry-free technical support for every client.
