Mobile Skid-Mounted for Refueling Vehicle Container Station on Sale Cost-Efficient Easy Operation Skid-Mounted Type CNG Mobile

📊 Basic Information

Principle

Reciprocating Compressor

Application

Back Pressure Type, Intermediate Back Pressure Type, High Back Pressure Type, Low Back Pressure Type

Performance

Low Noise, Variable Frequency, Explosion-Proof

Mute

Lubrication Style

Customized

Drive Mode

Customized

Compressed Gas

CNG

Flow Rate

1000-7000nm3/H

Inlet Pressure

0.1-10.0MPa

Outlet Pressure

25MPa

Drive Type

Direct Connection

Speed

980r/Min

Voltage

380V/400V/415V/460V/600V or OEM

Motor Brand

Simens, ABB, Weg, Teco or Top Quality

Origin

China

HS Code

8414804990

📸 Detailed Photos

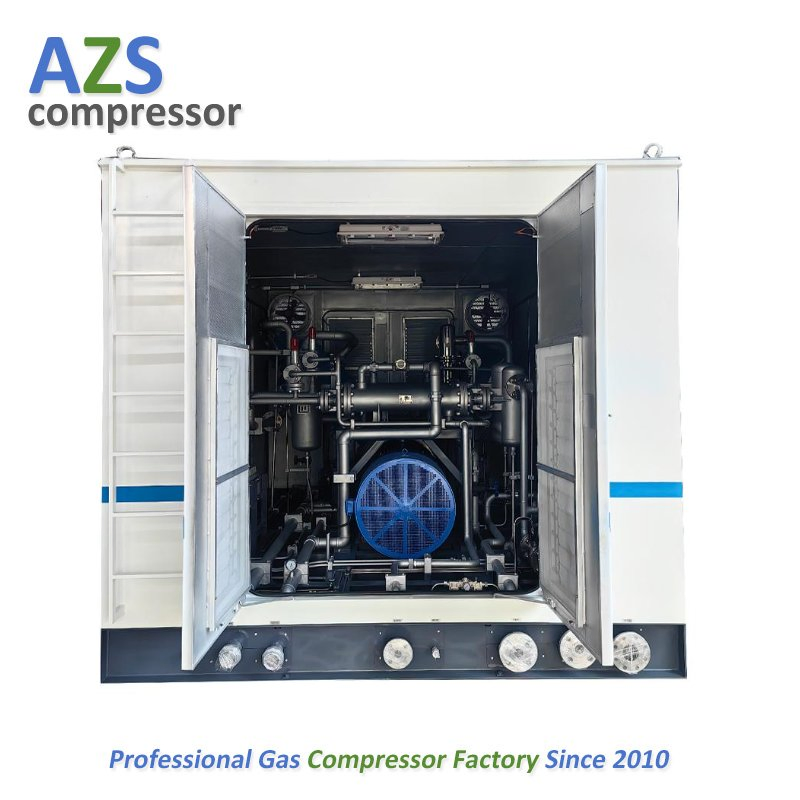

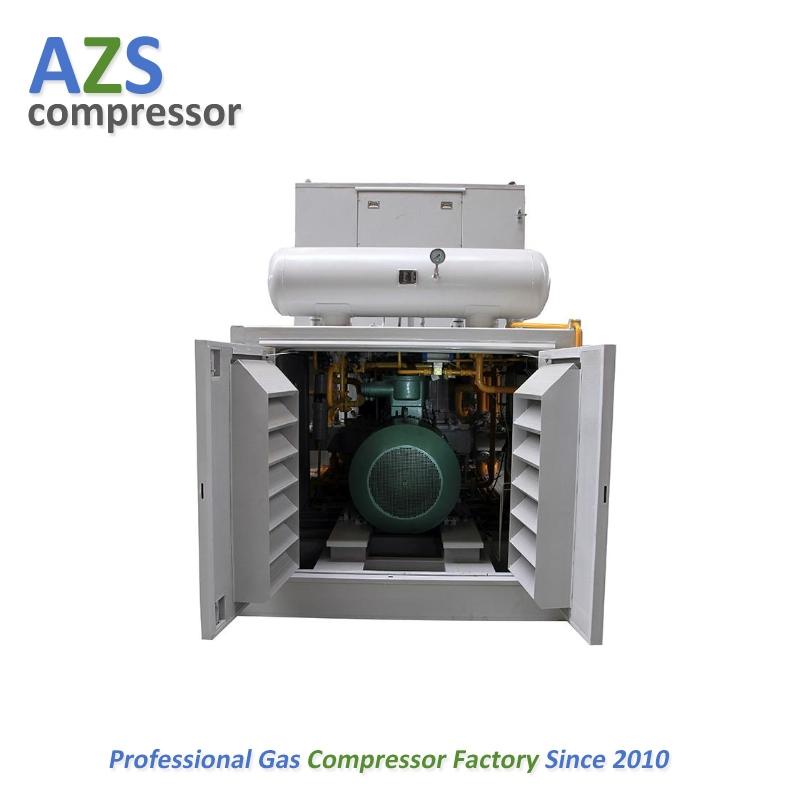

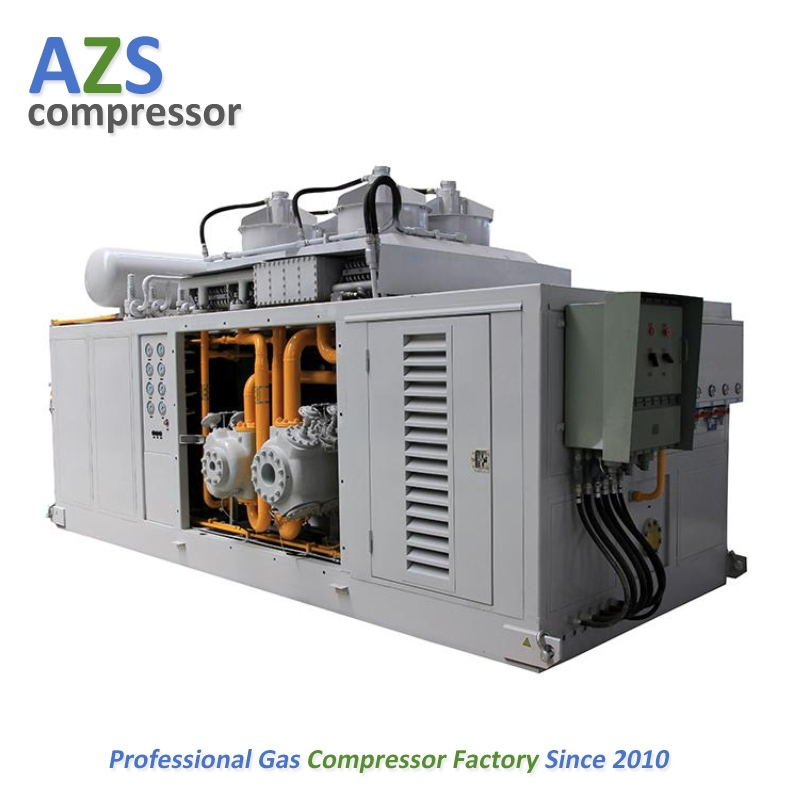

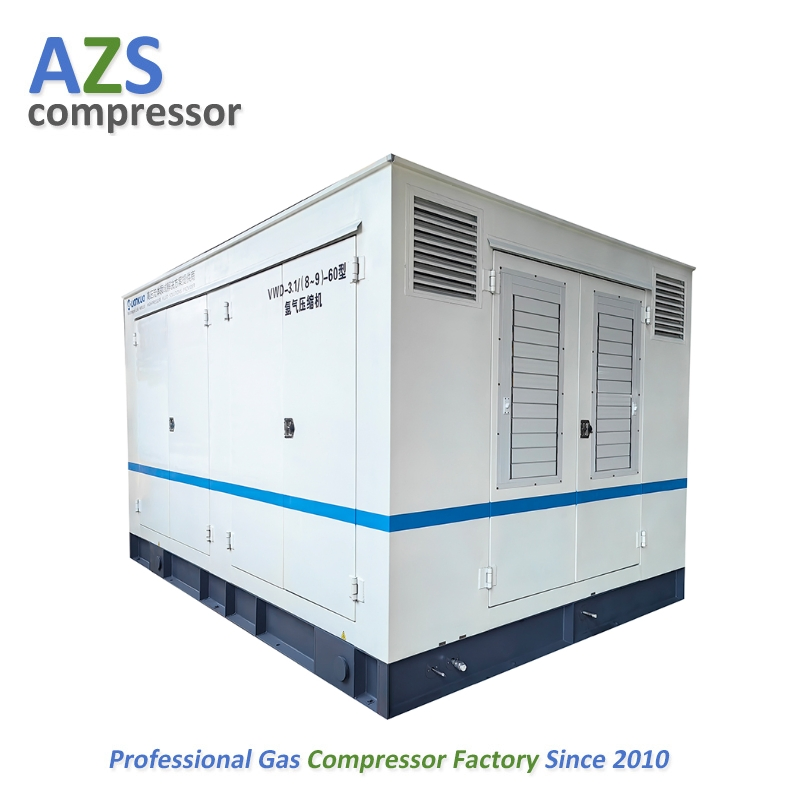

Mobile Skid-Mounted for Refueling Vehicle Container Station on Sale
Cost-Efficient Easy Operation Skid-Mounted Type CNG Mobile

⚙️ Description & Advantages

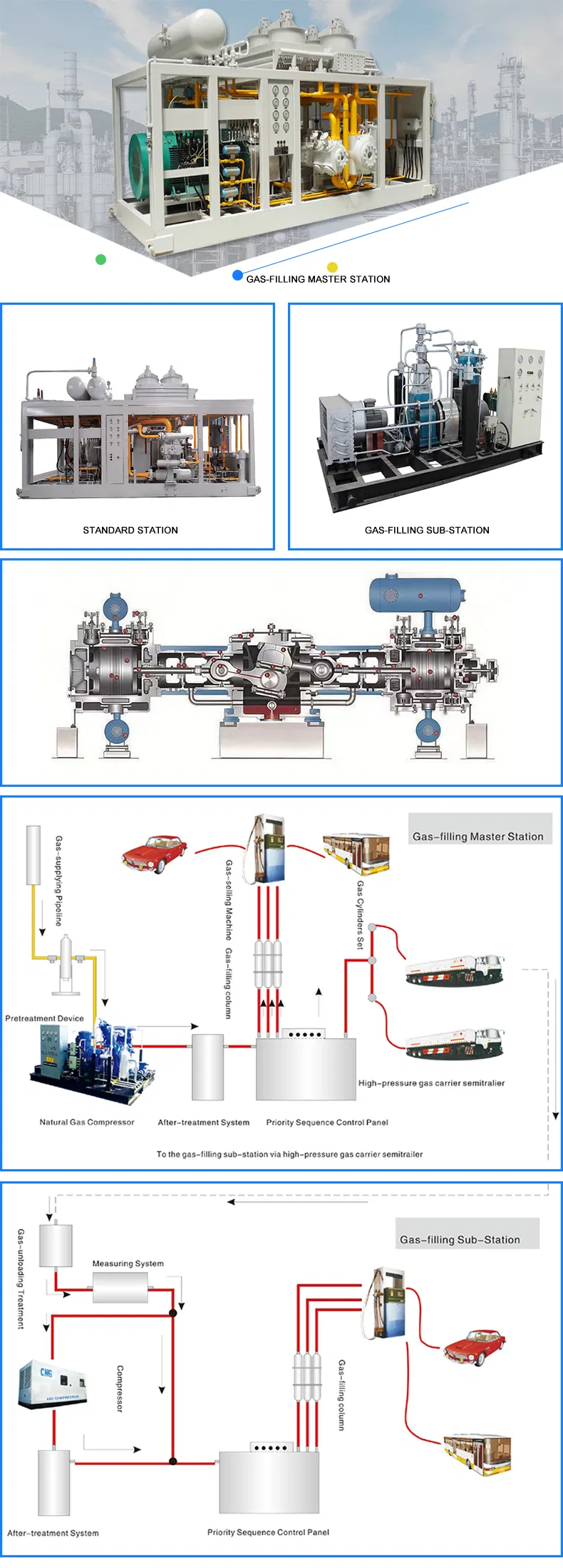

The gas station, which takes natural gas input through pipelines, increases the pressure on-site and then either directly fills or stores the gas in fixed storage cylinder groups (wells) for refueling CNG vehicles with CNG. The process system consists of a pressure regulation and metering device, desulfurization and dehydration equipment, a natural gas compressor, CNG storage facilities, a sequential control device, CNG refueling facilities, safety protection devices, and electrical devices.

Key Advantages:

✓ High reliability incorporating technology from Austria's LMF and Germany's Mannesmann Demag.
✓ Wearable parts like gas valves and piston rings from Hoerbiger, with a lifespan exceeding 8000 hours.
✓ Supports soft starting, allowing frequent start and stop cycles for the compressor.
✓ Wide intake range for broad adaptability and overall skid-mounted structure for low noise.
✓ Equipped with Siemens PLC control system and ABB soft start for high automation.

📋 Product Parameters

Model	Inlet Pressure (Mpa)	Outlet Pressure (Mpa)	Capacity (Nm3/h)	Power (Kw)	Remarks
ZF-0.16/6-250	0.6	25	68	22	-
VF-2.4/8-250	0.8	25	1300	220	-
VF-0.76/10-250	1.0	25	500	Q6135DR1	-
VF-2.2/10-250	1.0	25	1452	220-8	-
VF-3.2/(2.5-4)-250	0.25-0.4	25	670-1000	270	-
VF-2/(10-16)-250	1.0-1.6	25	1320-2000	280	-
VF-2.5/3-210	0.3	21	600	132	-
VF-0.11/(70-200)-250	7-20	25	468-1326	30	-
VF-2.5/(0.8-1.6)-250	0.08-0.16	25	270-390	90	-
VF-2/(2-3)-250	0.2-0.3	25	360-480	110	-
VF-1.1/(5-6)-250	0.5-0.6	25	396-462	90	-
VF-0.54/30-250	3.0	25	1004	110	-
VF-0.8/30-250	3.0	25	1488	160	-
VF-0.28/(40-80)-250	4.0-8.0	25	688-1360	90	-
VFD-0.36/(20-200)-250	2.0-20	25	680-2210	110	Soundproof Cabin
VFD-0.32/(20-200)-250	2.0-20	25	600-1700	90	Soundproof Cabin
VFD-0.28/(20-200)-250	2.0-20	25	525-1430	75	Soundproof Cabin
VFD-0.16/(20-200)-250	2.0-20	25	600	55	Soundproof Cabin

Note: This series of CNG refueling station compressors can be customized with Pressure: 0.2-20Mpa and Flow rate: 400-1200 Nm³/h.

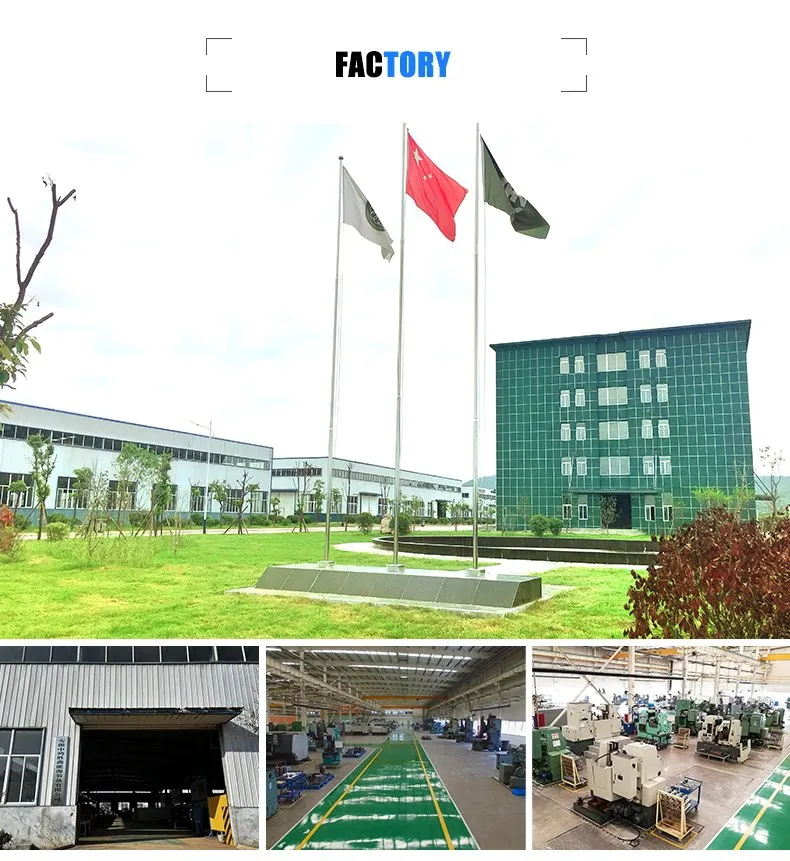

🏭 Our Factory & Customer Visits

📜 Certifications & Related Products

❓ Frequently Asked Questions

1. Are you a manufacturing factory?

Yes, we are a specialized factory focused on manufacturing high-quality Air/Gas Compressors and serve as a primary source for these industrial products.

2. What is the typical delivery time for orders?

Delivery varies by configuration. Standard compressors typically take around 30 days, while customized units usually require 30-45 days.

3. What kind of technical support do you provide?

We offer comprehensive support including remote assistance for installation and commissioning. Our engineers are also available for on-site debugging and post-installation services worldwide.

4. How long is the product warranty period?

The warranty is valid for 18 months from the date of commissioning or 21 months from the date of receipt, whichever comes first, ensuring total reliability.

5. How are the compressors packaged for international shipping?

Smaller units use robust plywood boxes conforming to export specs. Larger units are securely fastened within freight containers to prevent damage during transit.

6. What are the standard payment terms?

Standard terms are 30% down payment via T/T upon PI confirmation, with the balance due after inspection and before shipment. We also accept L/C at sight.
