Multifunctional Piping Fabrication Fitting up System

Customization:	Available
Standard:	GB, ASTM
Material:	C.S, S, S.

i

Basic Information

Model NO.

PPFUM-16A2; PPFUM-24A2; PPFUM-32A2; PPFUM-48A2

Connection

Piping & Fittings

Applicable

Piping and Fittings Fit up

Applications

Oil & Gas

Automation Level

Motorized

Fit up System

Double Head with Multifunction

Color

Red

Operability

Flexibility

Specification

CE, SGS, ISO9001, TUV

HS Code

8468900000

Capacity

20 Sets/Month

P

Product Description

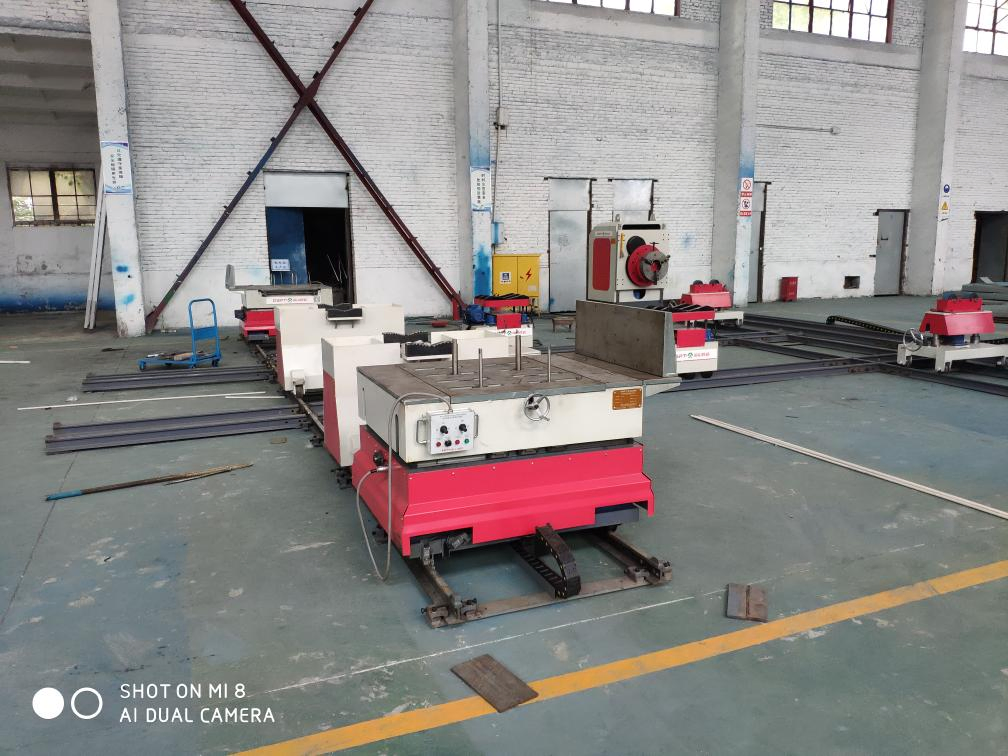

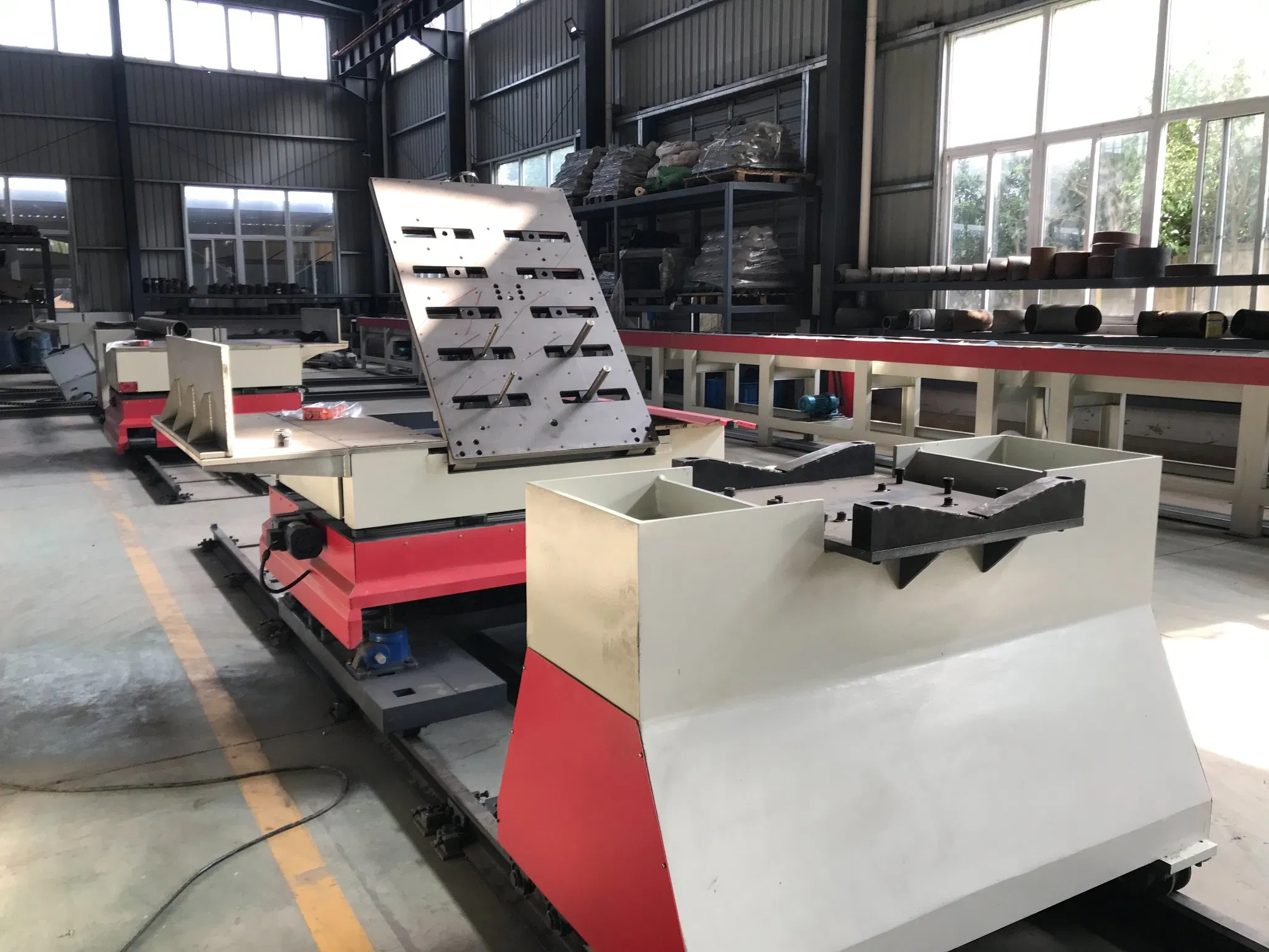

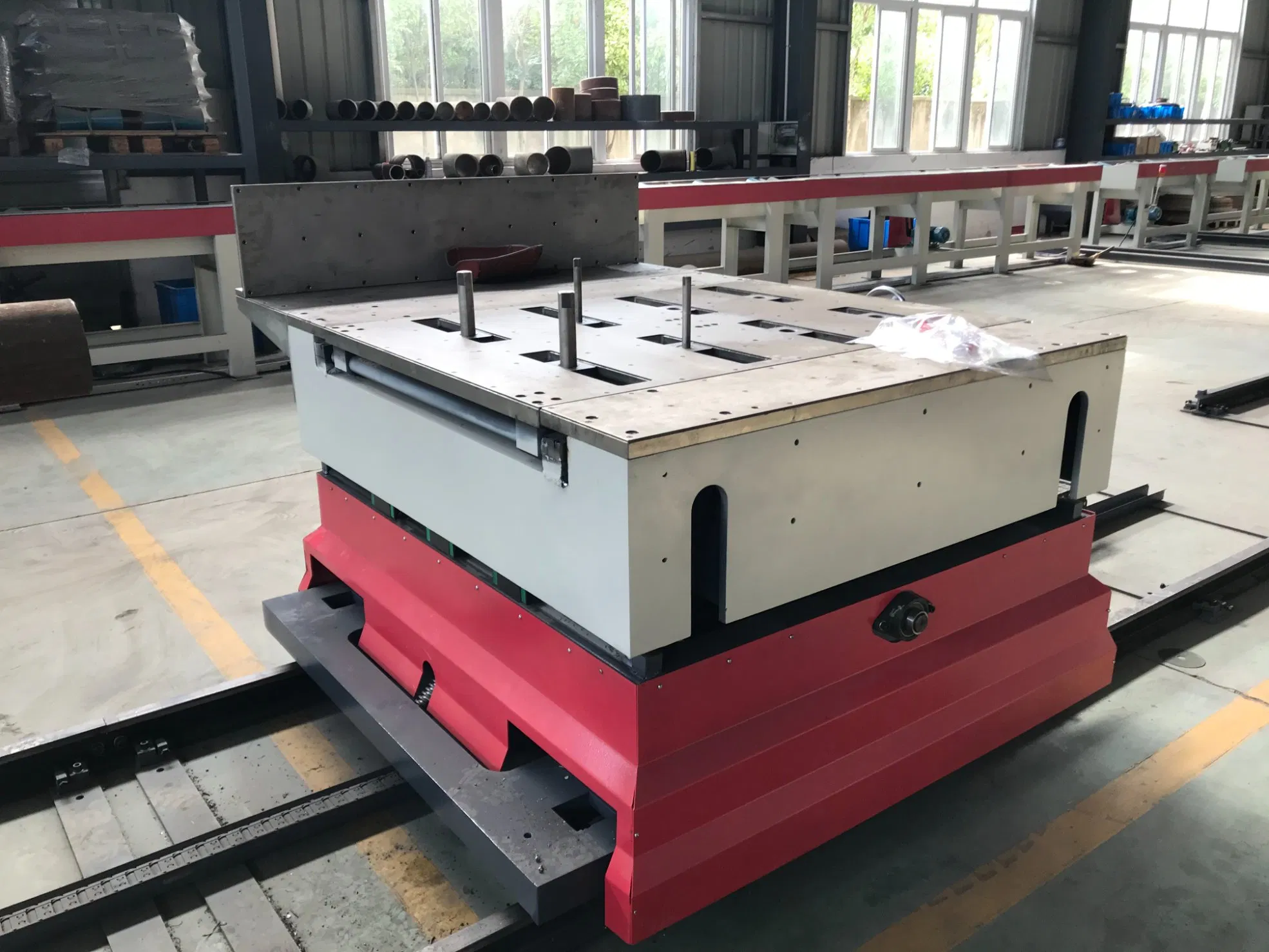

Piping Fabrication Fast Fitting-up Machine (Multifunctional Piping Fitting Up Machine)

Models Available: PPFUM-16A2; PPFUM-24A2; PPFUM-32A2

Applicable Industries: Refinery, Petrochemical, Petroleum, Chemical Industry, Onshore & Offshore, Marine Engg, Shipbuilding & Shipyard, Thermal & Nuclear Power Plant, Boiler, Heat Exchanger Refrigeration, Medical, Voyage, Pressure Vessel, Foodstuff Machinery, Atomic Power, Beverage etc.

Reference List: L & T, KSS, TECHNIP, KEPPEL, CCC, TYCO, CHIYODA, DYNA-MAC, CSCEC, CNPC, SINOPEC, CNOOC, CNCEC, CSIC, CSSC, ASL etc.

★

Performance Features

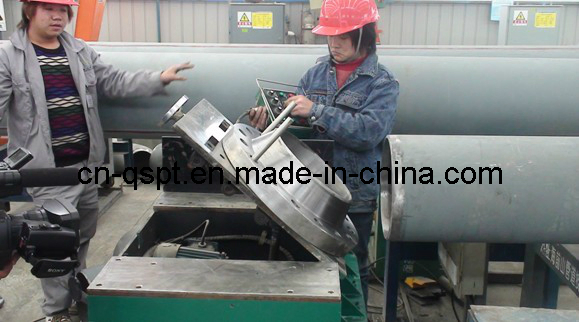

Fit-up and tack welding the straight pipe with fittings such as flange, elbow, tee etc directly.
Increasing the efficiency and quality of pipe to fittings fitting-up.
Needing fewer skills for fitting up pipes and flanges and reducing work difficulty for the operators.
Application Range: Used for standard wall thickness pipes & fittings OR heavy wall thickness pipe & fittings.

T

Technical Parameters

Technical Description	PPFUM-16A2	PPFUM-24A2	PPFUM-32A2	PPFUM-48A2
Pipe diameter applicable	2"-16"	6"-24"	8"-32"	24"-48"
The longest pipe	12m or 6M	12m or 6M	12m or 6M	12m or 6M
Fitting-up system	2 sets or 1 set	2 sets or 1 set	2 sets or 1 set	2 sets or 1 set
Max loading (Fit up table)	750 KGS	1000 KGS	1500 KGS	2000 KGS
Max loading (Supporter)	2500 KGS	3500 KGS	5000 KGS	6000 KGS
Track system	1 set	1 set	1 set	1 set
Track length	7.5M or 15M	7.5M or 15M	7.5M or 15M	7.5M or 15M
Moveable type	Motorized	Motorized	Motorized	Motorized

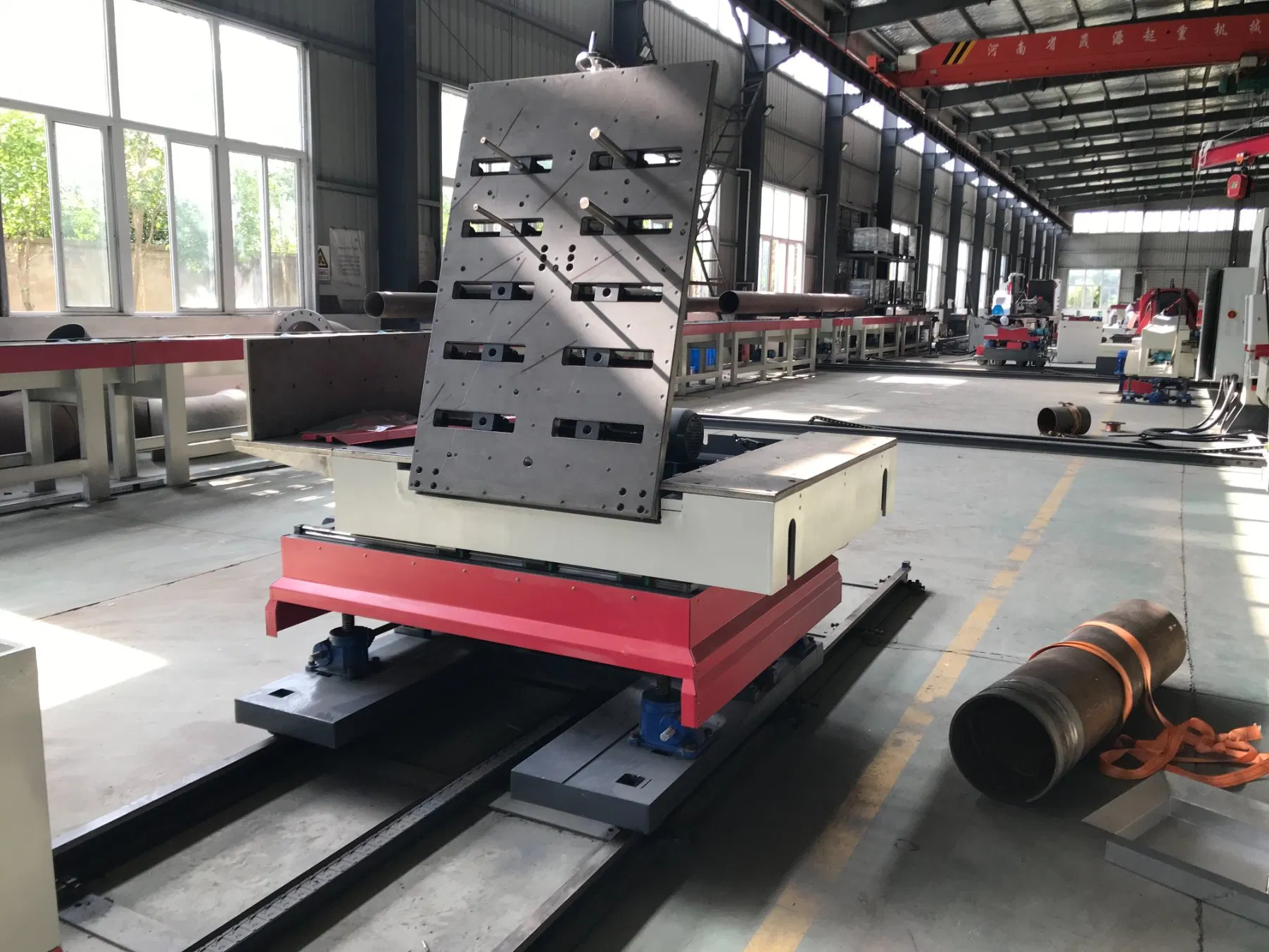

Multifunctional Piping Fabrication Fitting up System

?

Frequently Asked Questions

Q1: What types of pipe fittings can this machine handle? The system is designed to fit up and tack weld straight pipes with various fittings including flanges, elbows, and tees directly.

Q2: What is the range of pipe diameters supported by these models? The models cover a wide range from DN50 (2 inch) up to DN1200 (48 inch), depending on the specific model chosen (16A2 to 48A2).

Q3: Is the machine movement manual or automated? The machine features motorized movement, including electric screw lifters for up/down/vertical turnover and motorized driving for lengthwise movement.

Q4: Can this machine handle heavy-wall thickness pipes? Yes, the machine can be used for both standard and heavy wall thickness pipes and fittings as per specific customer requests.

Q5: What is the maximum pipe length the system can accommodate? Standard configurations support pipe lengths of 6 meters or 12 meters, but this can be adjusted depending on specific project requirements.

Q6: How does this machine improve production efficiency? It reduces the skill level required for operators, simplifies the fit-up process for complex fittings, and ensures higher consistency and quality in tack welding.
