New Design Oil Production Loading Arm (Manufacturers)

Customization:	Available
Certification:	ISO 9001:2000
Power Source:	Manual

📋

Basic Information

Model NO.

AL1402

Operation Pressure

Pn4.0

Applicable Medium

Water, Crude Oil, Gasoline, Diesel etc

Structure

Seamless Pipe with Swivel Joint

Material

Ss, CS, PTFE Lined etc

Color

Light Grey or Customized

Quality Guarantee

1 Year

Seals

PTFE

Application

Truck Tanker, Rail Tanker, Marine

Origin

China

HS Code

8428909090

Production Capacity

5000 Sets / Year

⚙️

Product Description

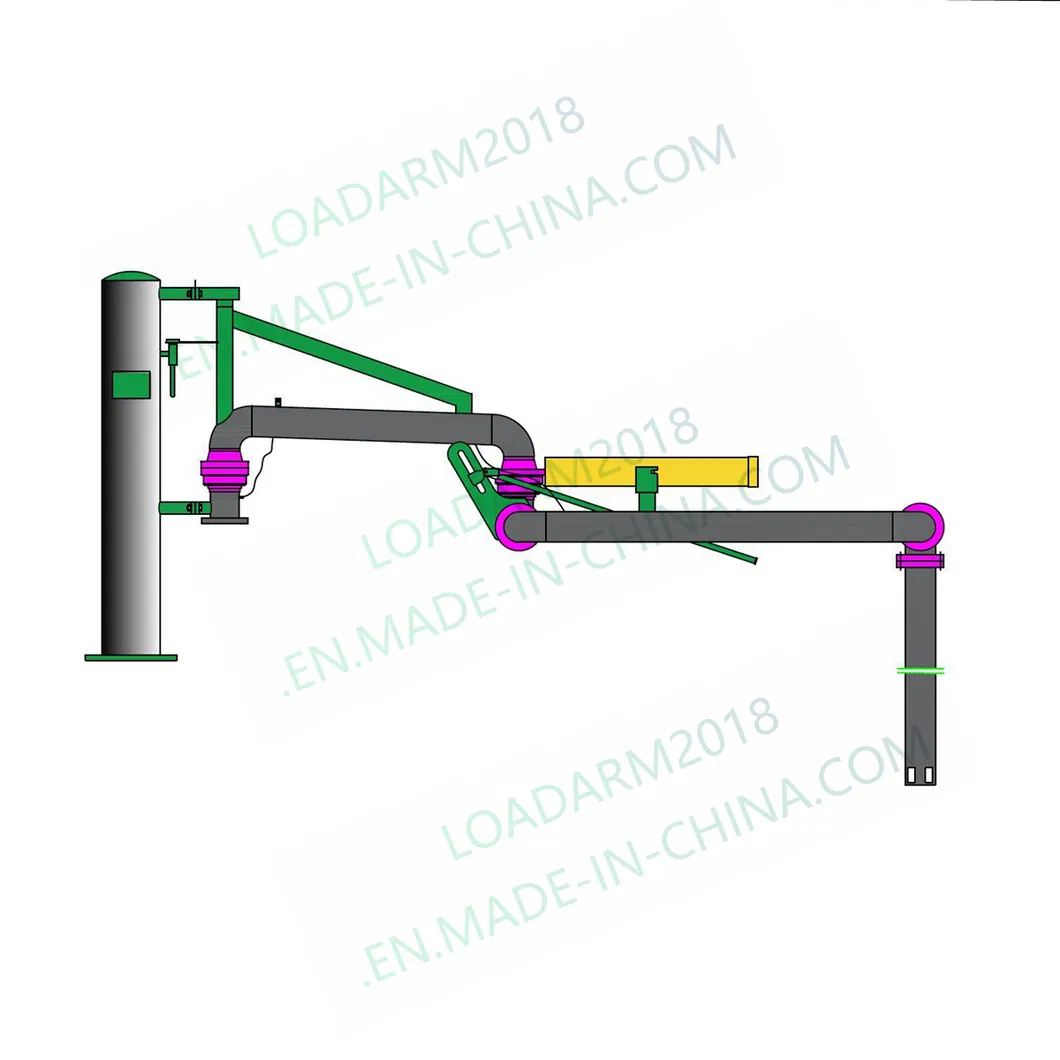

The structure of AL1402 Loading arm:

General Introduction:

Our land loading arm is especially designed for transporting fluid between piping system and tanker, which shall be designed for different tanker, liquids and site conditions. Equipped with loading platform, folding stairs and safety cage to make the land loading arm into a complete loading system. By level location or quantitative monitoring, while fluid level exceed the present value, provide the sound and visual alarm or the remote signal.

According to the products, models and requirements of customers, the operating modes could be manual, pneumatic or hydraulic etc.

📍

On-site Performance

🏭

Workshop & Production

📊

Basic Technical Data

AL1402 Typical Loading Arm Specification
Places Applied	Top open loading
Applications	Product oil, chemicals
Nominal Diameter	DN25~DN200 (1"~8")
Working Temperature	-196~250ºC
Working Pressure	PN1.0~PN4.0
Material of pipeline	Carbon steel, stainless steel, aluminum, low-temperature steel, PTFE lined etc.

🌍

Overseas Project Cases

❓

Frequently Asked Questions

What is your production period or delivery time?

Delivery time can be within 20 days. For special products, it could range between 30-50 days.

What payment terms do you offer?

We accept T/T before shipment or L/C.

Can you provide OEM services or custom name plates?

Yes, we welcome and accept OEM requirements and the use of customer-specified name plates.

How do you ensure the quality of your products?

We maintain a strict quality control process, including inspections at every stage, RT tests, PT tests, and hydraulic tests. We hold ISO, welding, and TUV certificates.

Can you provide documentation and certifications?

Yes, we provide material certificates, inspection reports, and customs clearance documents such as CO, Form E, etc., in compliance with industry standards.

How long is the warranty period?

The warranty is 12 months from commissioning or 18 months from delivery, whichever comes first. Extended 2-year warranties are available in specific cases.
