Loading Arm System

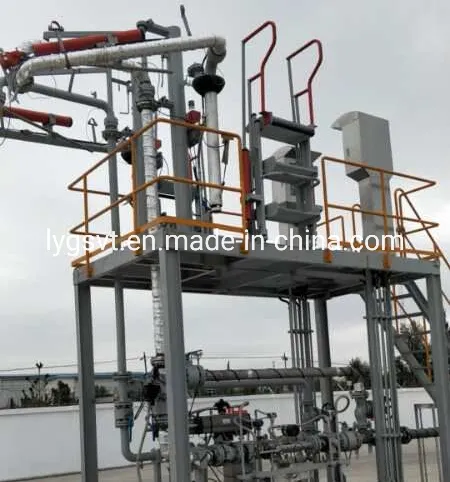

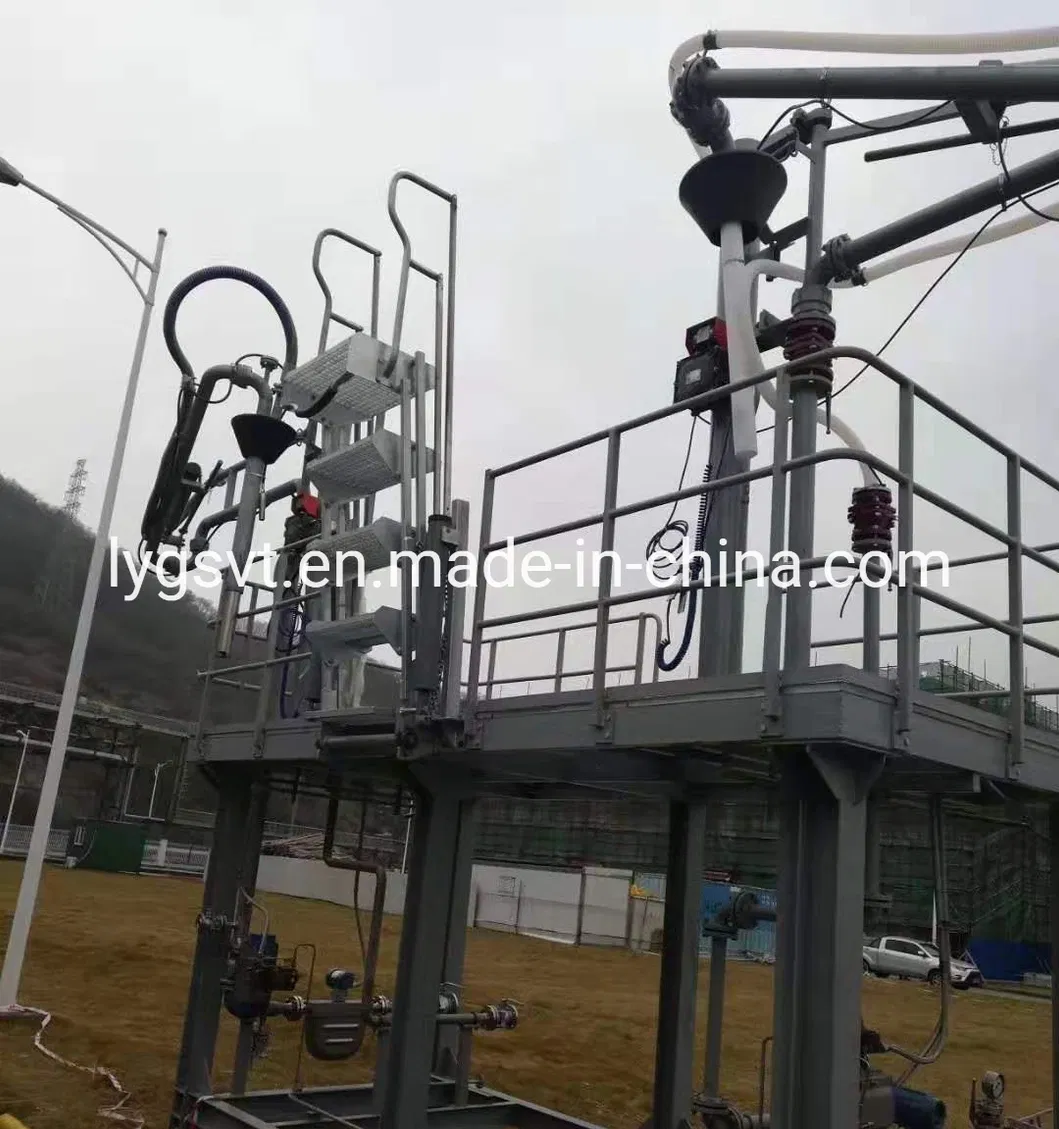

Our land loading arm is especially designed for transporting fluid between piping system and tanker, which shall be designed for different tanker, liquids and site conditions. Equipped with loading platform, folding stairs and safety cage to make the land loading arm into a complete loading system.

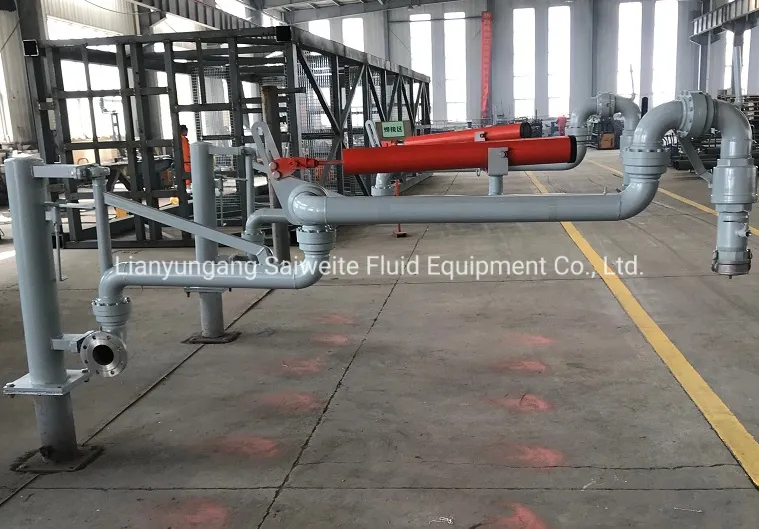

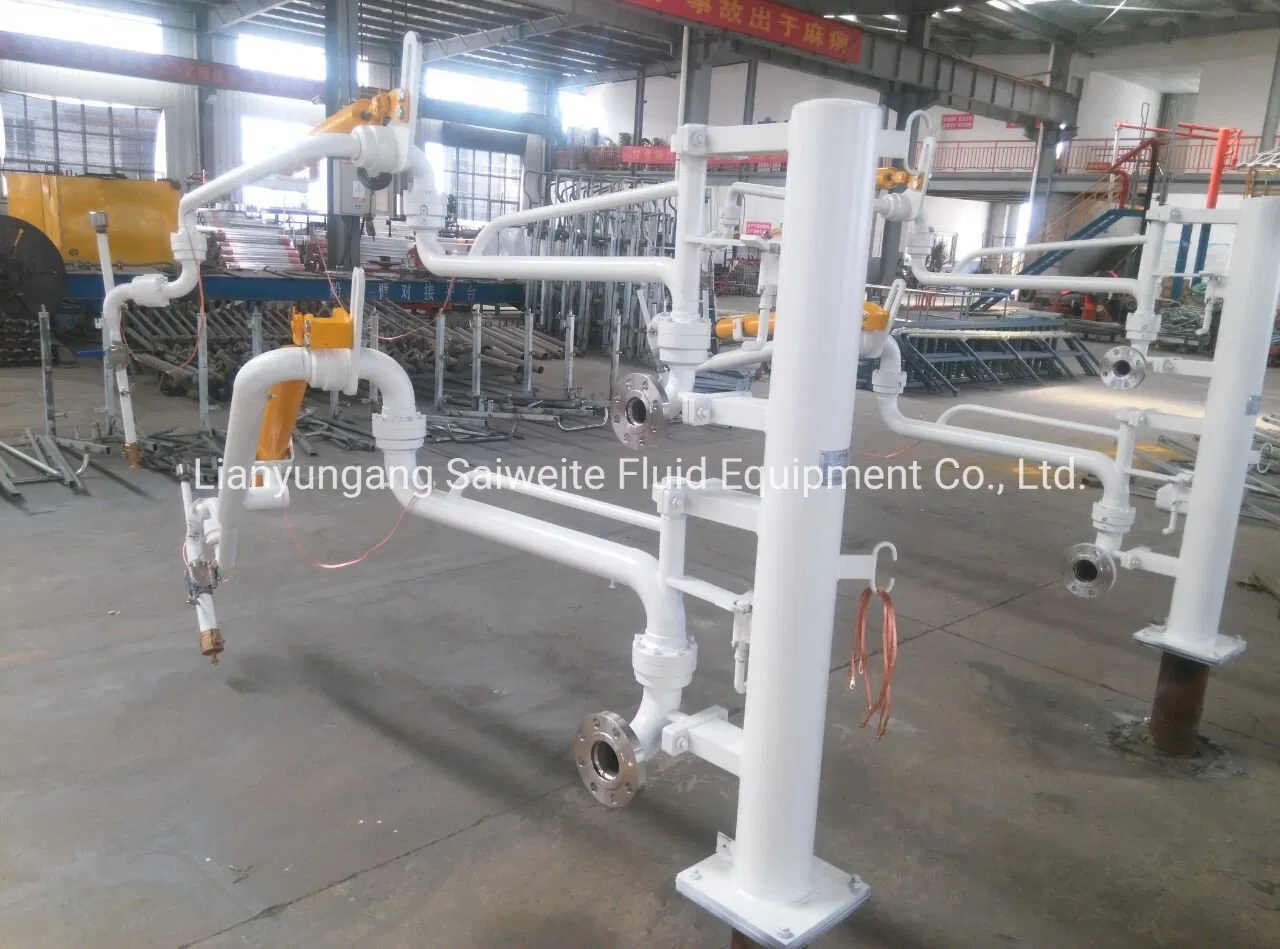

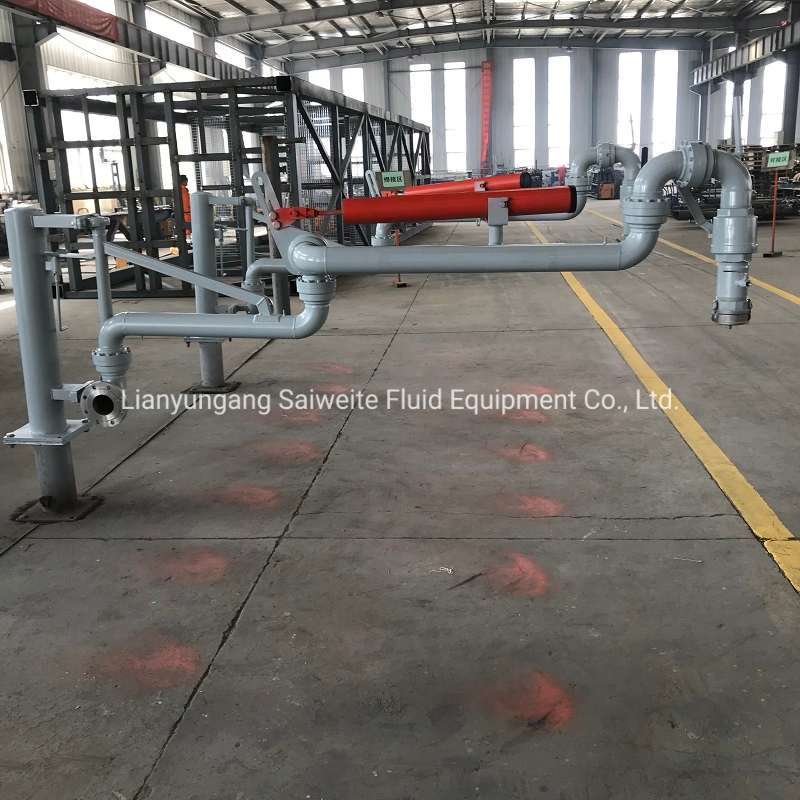

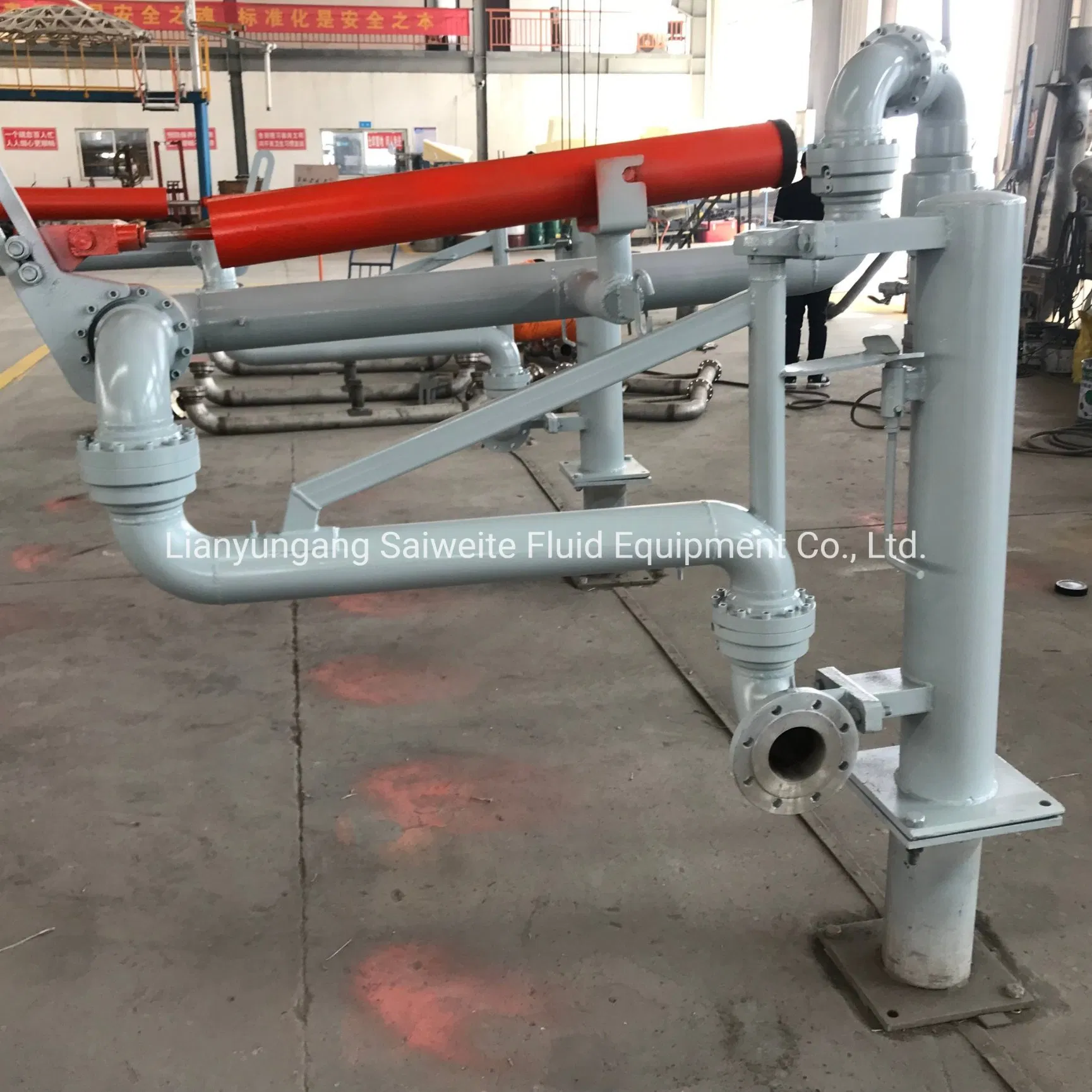

AL2503 Bottom Loading Arm

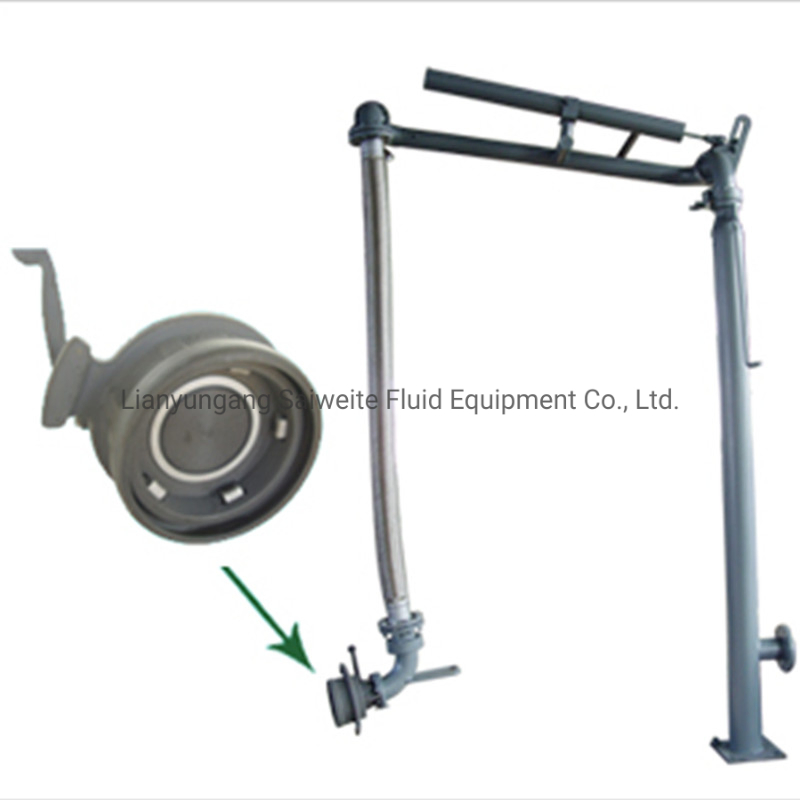

AL2503 is a typical type of bottom loading arms. This type of loading arm usually connects to the tanker by flanges or quick coupling, and it has good sealing performance.

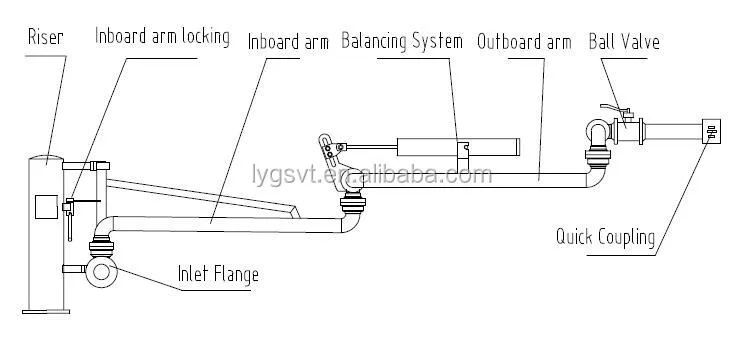

AL2503 Structure Drawing
| Nominal Diameter | Liquid pipe: DN50~DN150 (2"~ 6") |
| Design Pressure | -0.06MPa~5.0MPa |
| Design Temperature | -196°C ~ +250°C |
| Balancing Method | Spring balance cylinder |
| Pipeline Material | Carbon steel, Stainless steel, PTFE-lined |
| Service Product | Chemicals, Oil and other products |
We specialize in the design, manufacture, sale and installation of Land Loading Arm, Marine Loading Arm, Internal Floating Roof, Floating Suction Unit, Folding Stairs and Platform, Gangway Tower, Automatic Quantitative Loading System, and more.
Our Strength: We have professional technical personnel engaged in mechanical design and engineering construction for many years, supported by a perfect quality assurance system. We strictly perform ISO9001 Quality Management Systems across design, procurement, production, and sales. Our facility is fully equipped with advanced processing, welding, and testing equipment to ensure worry-free technical support.
