Pipe Transverse Automatic Conveying System (PHLTS-24A1/A2)

1 / 5

Pipe Transverse Automatic Conveying System (PHLTS-24A1/A2)

Customization:	Available
Material:	Ss or CS or Aluminum Alloy
Surface Treatment:	Baking Paint

Send Inquiry

Product Description

📋

Basic Information

Model NO.

PHLTS-24A1/A2

Motor Type

Frequency Control Motor

Installation

Slope

Pipe Diameter

Custom Made

Conveying Speed

0-10m/Min

Line Height

800mm

Package

Sea Worthy Package

Specification

CE, TUV, SGS

⚙️

Product Description

This system is designed for conveying pipes or spool pieces transversely during beveling or automatic welding processes. It significantly increases the automation level in pipe fabricating plants and minimizes hazards associated with manual hoisting operations.

📏

Technical Parameters

Pipe diameter applicable:	Dn50~600(Φ 60~610)
Conveying length:	≥ 1000mm (Customizable)
Line length:	7.5m (Situation dependent)
Line height:	800mm
Trolley number:	4 sets
Lifter mechanism:	Screw lifter, driven electrically
Lifter route:	± 30mm
Conveying mechanism:	Chain sprocket mechanism
Speed of conveying:	0-10m/min
Max loading capability:	2500kgs / 5000kgs

🖼️

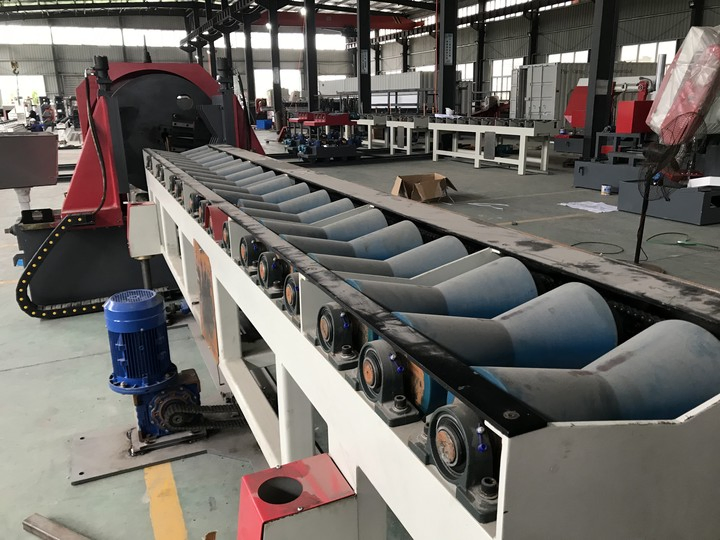

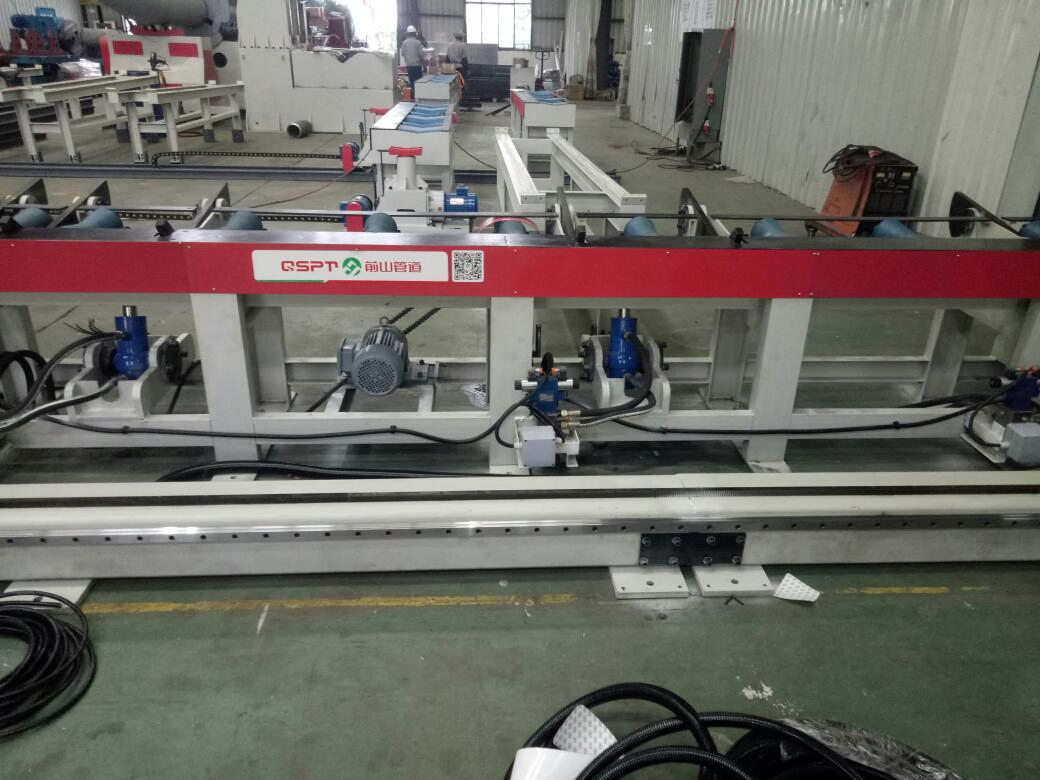

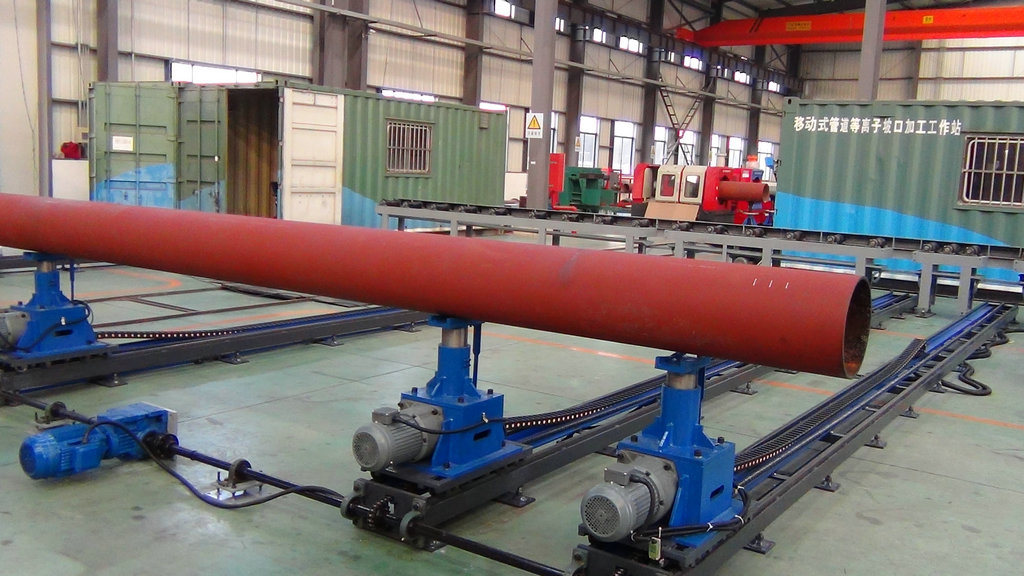

Product Showcase

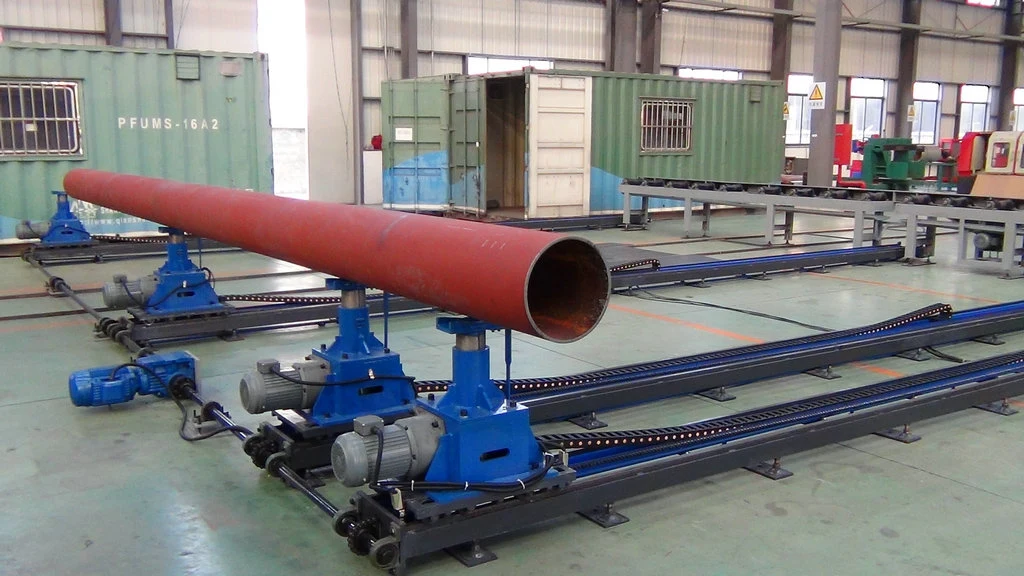

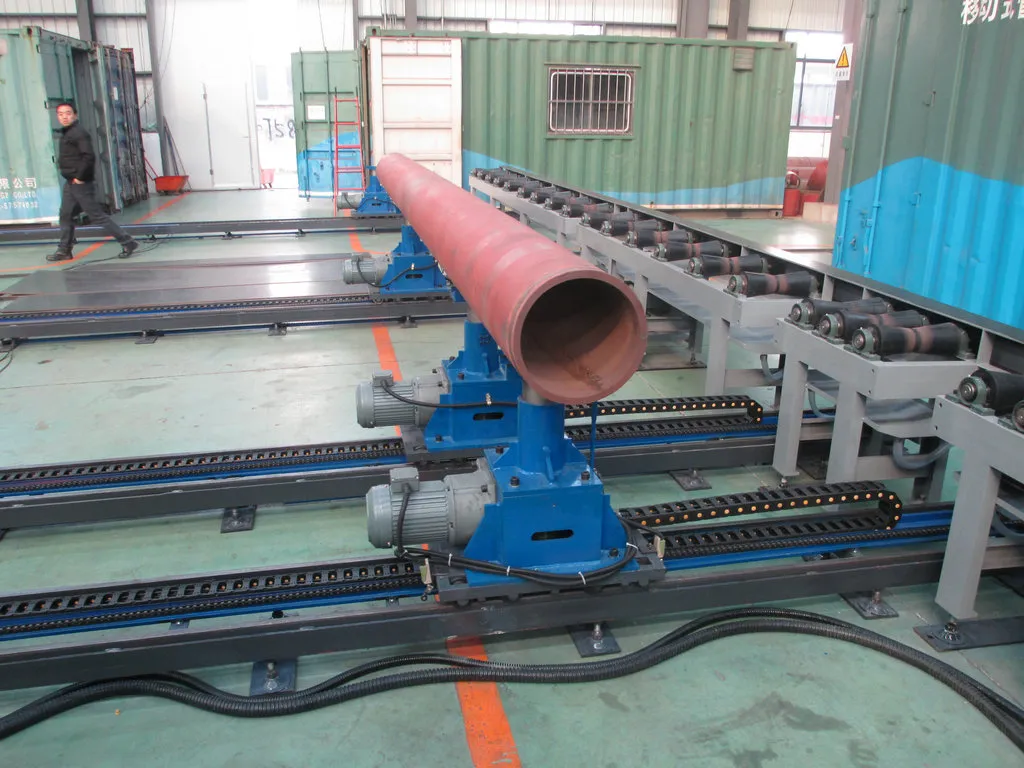

Pipe Transverse Automatic Conveying System 1

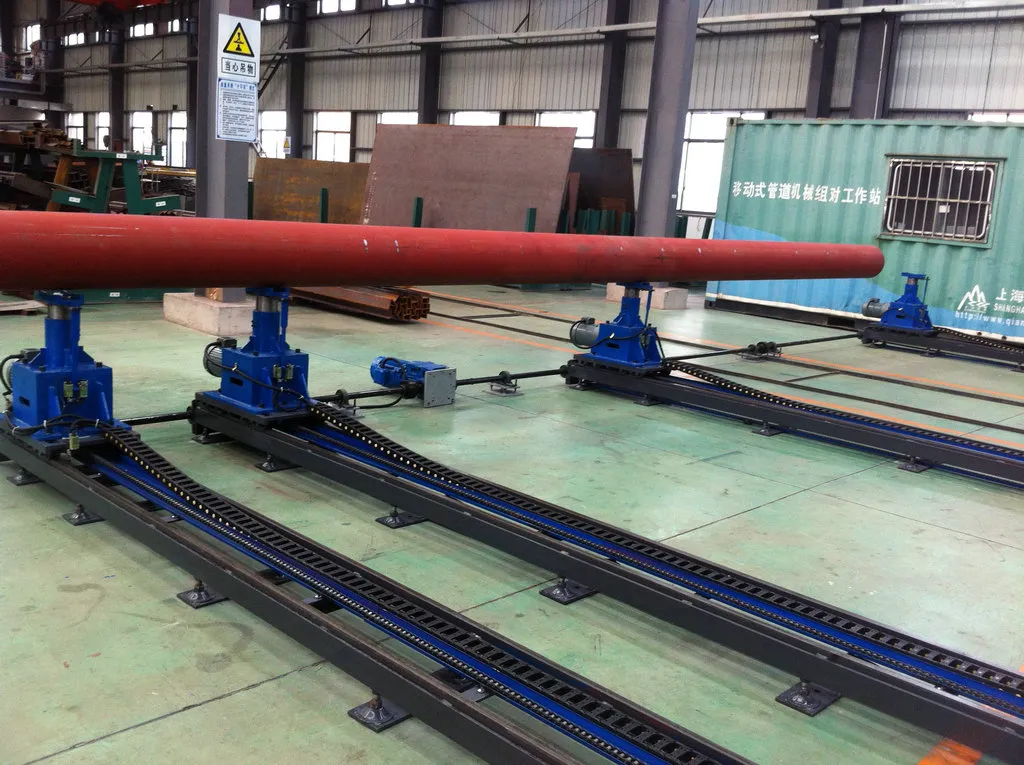

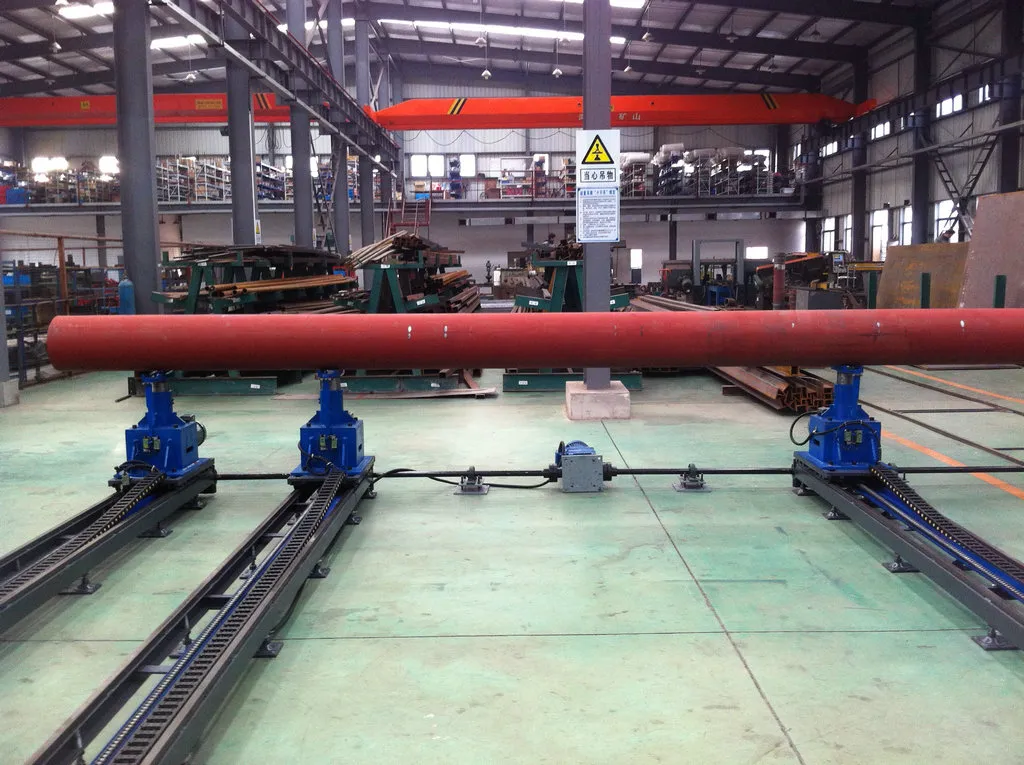

Pipe Transverse Automatic Conveying System 2

Pipe Transverse Automatic Conveying System 3

Pipe Transverse Automatic Conveying System 4

🏢

Profile

We are a professional manufacturer specializing in pipe fabrication machinery. Our expertise includes pipe beveling and chamfering machines, automatic welding solutions, fitting-up equipment, and intelligent fabrication lines. Our products serve diverse industries including Oil & Gas, Petrochemical, Marine Engineering, Nuclear Power, and Shipbuilding, with a global presence across Southeast Asia, Europe, and the Americas.

🛠️

After Sales Service

🌟 Service Aim: Prioritizing customer needs and perspective.
🌟 Standards: Total client satisfaction is our baseline standard.
🌟 Quality: Professional, comprehensive, and detailed support.
🌟 Commitment: Rapid and efficient resolution of all technical issues.

❓

Frequently Asked Questions

QWhat is the primary function of the Transverse Conveying System?

It is designed to move pipes or spool pieces sideways (transversely) between different fabrication stations like beveling or welding to automate the workflow.

QWhat pipe diameters can this system handle?

The standard model handles diameters from Dn50 to 600 (Φ 60~610mm), but custom sizes are available upon request.

QHow is the speed of the conveyor controlled?

The system utilizes a Frequency Control Motor, allowing for adjustable speeds ranging from 0 to 10 meters per minute.

QWhat is the maximum weight capacity of the system?

Depending on the configuration, the system can support loading capabilities of either 2500kg or up to 5000kg.

QWhat are the typical lead times for delivery?

Generally, lead times are 30-40 days for stocked items and 60-80 days for custom orders or items not in stock.

QDoes the system include a lifting mechanism?

Yes, it features an electrically driven screw lifter with a lifting range of ± 30mm to align with other machinery.
