Customization:	Available
Material:	Alloy/Carbon Steel
Surface Treatment:	Polishing

Send Inquiry

Product Description

📋 Basic Information

Model NO.

PHLTS-24A1/A2

Motor Type

Frequency Control Motor

Installation

Horizontal

Structure

Roller Chain

Usage

Transportation Chain

Industry

Oil and Gas

Origin

China

HS Code

8428392000

📦 Packaging & Delivery

Package Size

150.00cm * 150.00cm * 150.00cm

Gross Weight

1000.000kg

Package Type

Sea Worthy Packing

🚀 Product Description

Pipe Transverse Automatic Conveying System (Model: PHLTS-24A1/A2)

✓

Conveying the pipe or spool pieces transversely when they are beveling or automatically welding.

✓

Increases the automatization level in the pipe fabricating plant and decreases hazards during hoisting.

⚙ Technical Parameters

Description	Details
Pipe Diameter Applicable	DN50~600 (φ 60~610)
Conveying Length	≥ 1000MM (Customizable)
Line Length / Height	7.5M / 800MM
Trolley Number	4 sets
Lifter Mechanism	Electrically driven screw lifter (± 30MM route)
Conveying Mechanism	Chain sprocket mechanism
Speed of Conveying	0-10M/min
Max Loading Capability	2500KGS / 5000KGS

📷 Product Display

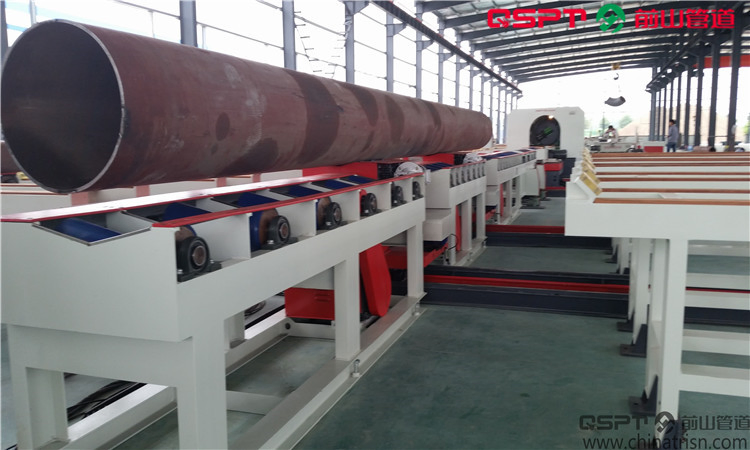

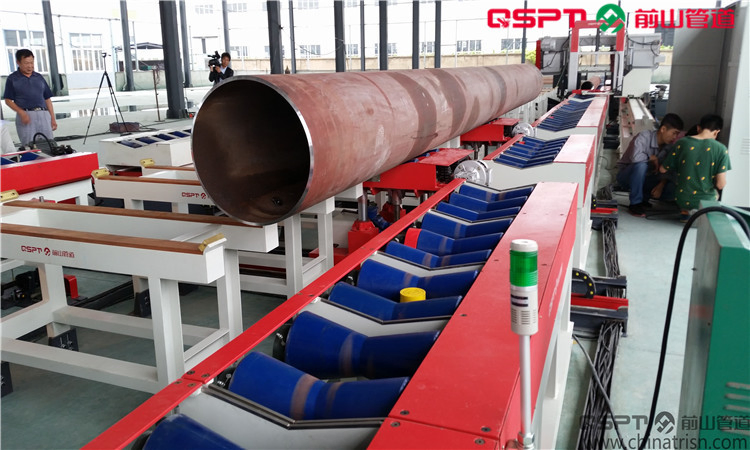

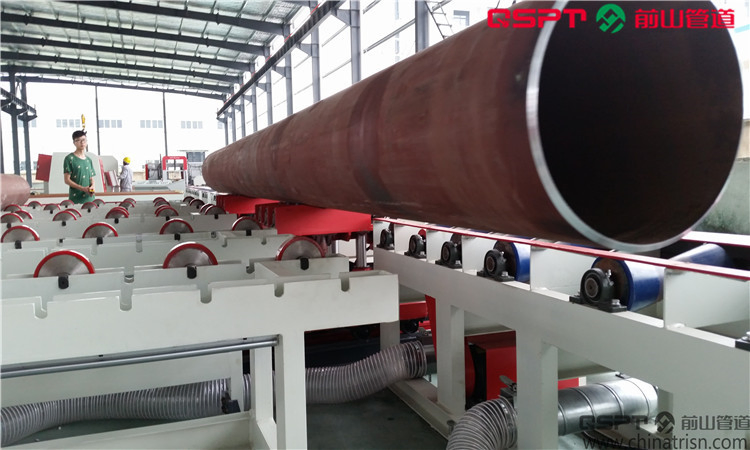

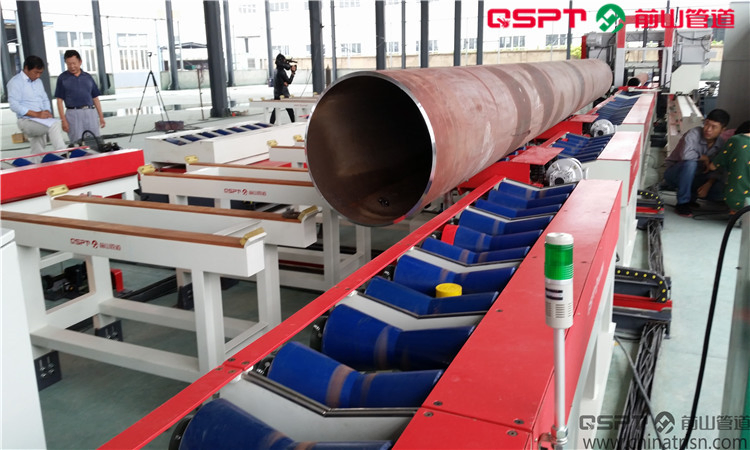

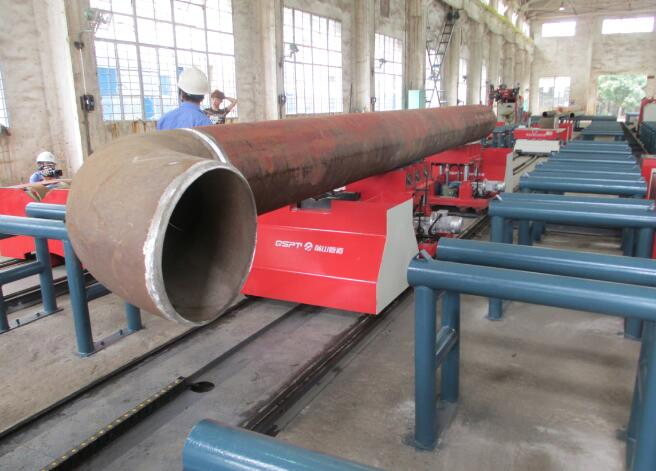

Pipe Prefabrication Lateral Convey System

Lateral Convey System Detail 1

Lateral Convey System Detail 2

Lateral Convey System Detail 3

🔇 After Sales Service

1

Aim: Standing in the customers' shoes to ensure seamless operations.

2

Standard: Client satisfaction is our lowest standard for service quality.

3

Site Service: Professional, comprehensive, and detailed on-site support.

4

Promise: Quickly and efficiently resolve all issues without limitation of cost conditions.

❓ FAQ

Are you a trading company or manufacturer?

We are a factory-based trading company, providing direct manufacturing expertise.

How long is your delivery time?

Generally 30-40 days if in stock, or 60-80 days if not, depending on order quantity.

What are your terms of payment?

Payment ≤ 1000USD, 100% in advance. Payment > 1000USD, 40% T/T in advance, balance before shipment.

Can the conveying length be customized?

Yes, the conveying length and line length can be adjusted based on specific customer requirements.

What is the maximum loading capacity of the system?

The system supports a maximum loading capability of 2500KGS or 5000KGS depending on the configuration.

Does the system include a lifting mechanism?

Yes, it is equipped with an electrically driven screw lifter mechanism with a ± 30MM route.
