Pipe Prefabrication Heavy Rail Conveying System (PPHTS-10T2)

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Basic Information

Model NO.

PPHTS-10T2

Structure

Roller Conveyor

Material

Alloy/Carbon Steel

Material Feature

Heat Resistant

Application

Power Plant

Condition

New

Structure (Chain)

Roller Chain

Usage

Transportation Chain

Color

Solid Color

Origin

China

HS Code

8428392000

Capacity

30 Sets

Pipe Prefabrication Heavy Rail Conveying System

Models: PPHTS-10T2; PPHTS-10T1

Performance Features:

Conveying the pipe spool piece automatically between each workstage and workstation.
Pipe can be removed from the machine with a turning mechanism if necessary.
Increases the automatization level in the pipe fabricating plant.
Significantly decreases hazards during hoisting operations.

Technical Parameters

Pipe Diameter Applicable	DN50~600 (φ 60~610)
Conveying Length	≤ 12000MM (Customizable)
Line Length	50M (Customizable)
Line Height	800MM
Conveying Speed	2~20M/Min

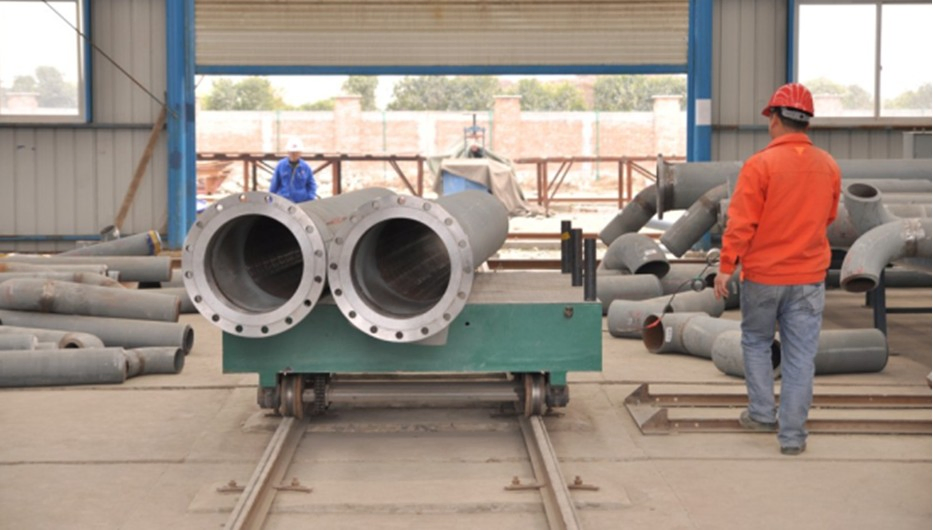

Conveying Way	Carriage movement along the rail & automatic conveying
Driven System	Drive by Storage battery AC motor
Control System	Wire control / Wireless remote control
Loading Weight	10 Tons

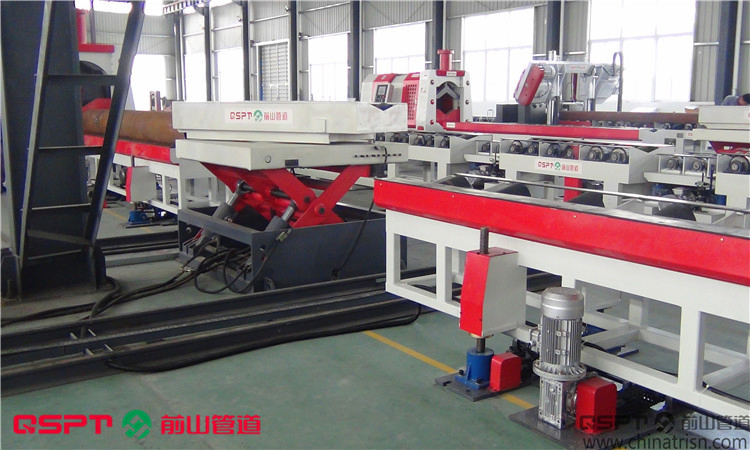

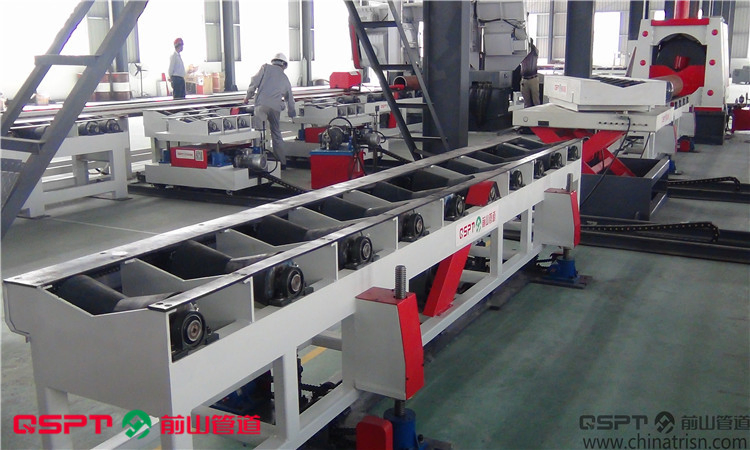

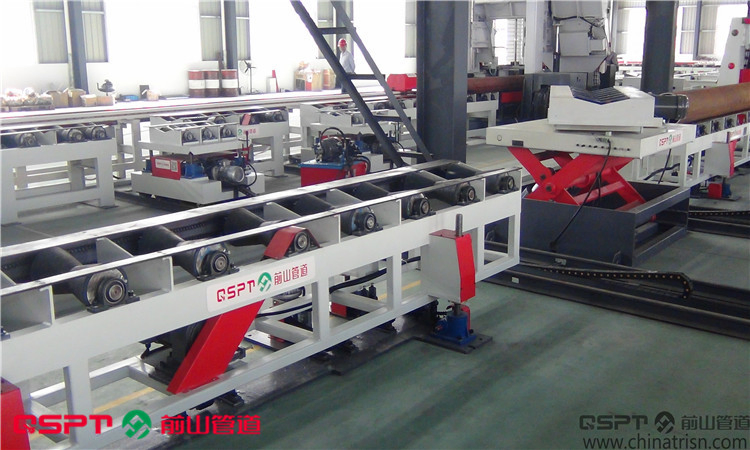

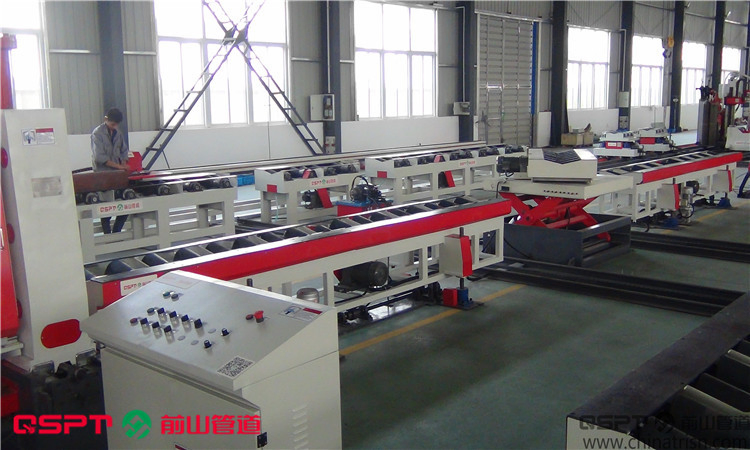

Product Display

Professional Solutions

We are a professional manufacture company specializing in pipe fabrication machines. Our range includes pipe beveling/chamfering machines, pipe welding machines, pipe/elbow/flange fitting-up equipment, intelligent pipe warehouses, and complete pipe fabrication lines.

After Sales Service Commitment:

Aim: Standing in the customers' shoes.
Standard: Client satisfaction is our baseline.
Service: Professional, comprehensive, and detailed site support.
Promise: Quickly and efficiently resolve all issues without cost limitations.

Frequently Asked Questions

Are you a trading company or manufacturer?

We are a factory-based trading company.

How long is the delivery time for the conveying system?

Generally, it is 30-40 days if the goods are in stock. For non-stock items, it is 60-80 days, depending on the order quantity.

What are your standard terms of payment?

For payments ≤ 1000USD, 100% in advance. For payments > 1000USD, 40% T/T in advance, with the balance due before shipment.

What is the maximum loading capacity of the heavy rail system?

The system is designed to handle a loading weight of up to 10 Tons.

What range of pipe diameters can this system handle?

The applicable pipe diameter range is DN50 to DN600 (φ 60mm to 610mm).

How is the conveying speed and direction controlled?
