Pipe Prefabrication Pipe Lateral Convey System

📋 Basic Information

Model NO.

PHLTS-24A1/A2

Structure

Conveyor System

Material

Rubber

Material Feature

Oil Resistant

Application

Chemical Industry

Condition

New

Chain Structure

Roller Chain

Usage

Transportation Chain

Color

Solid Color

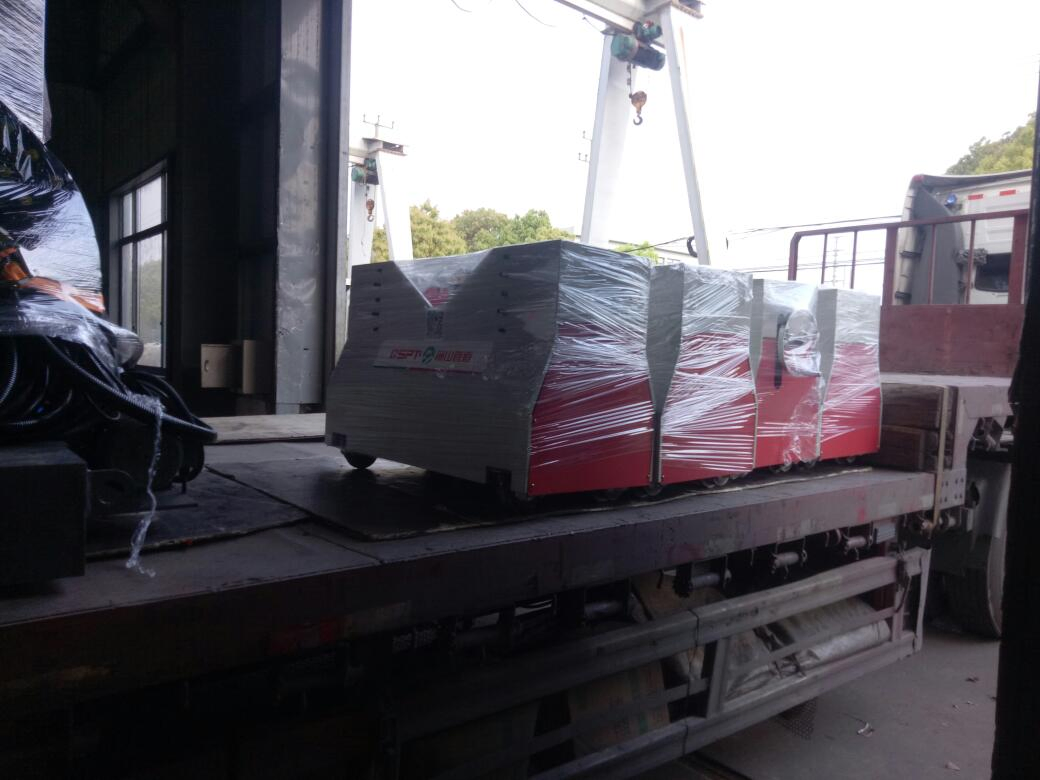

Transport Package

Sea Worthy Packing

Specification

CE, TUV, SGS

Origin

China

⚙️ Product Description

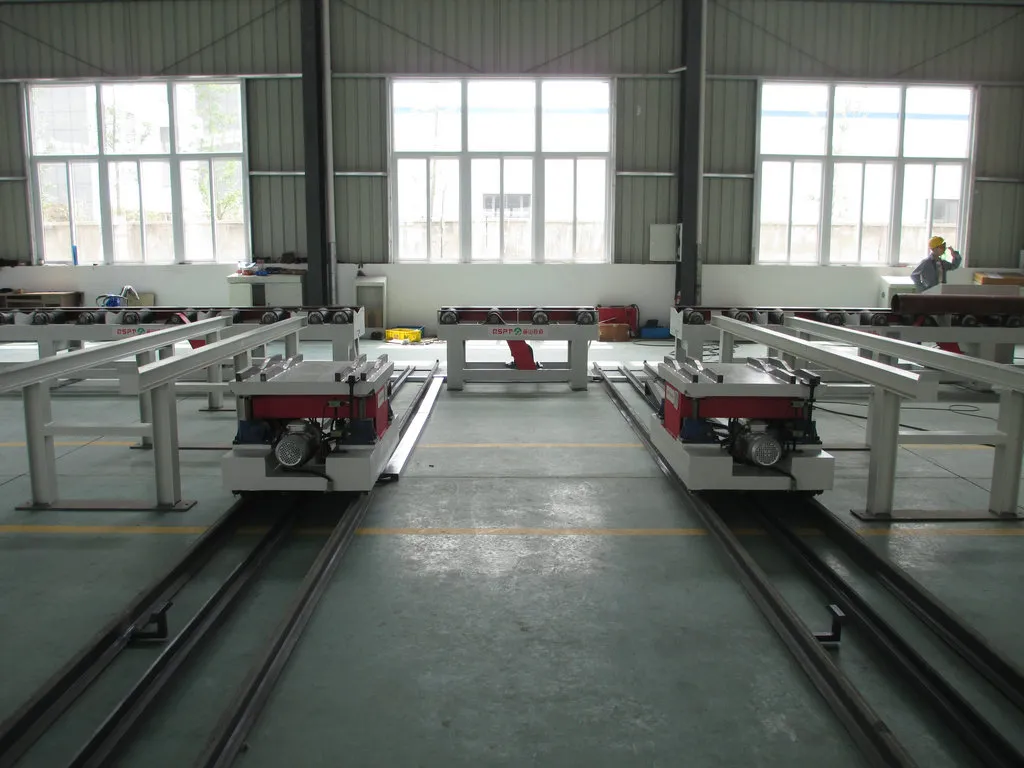

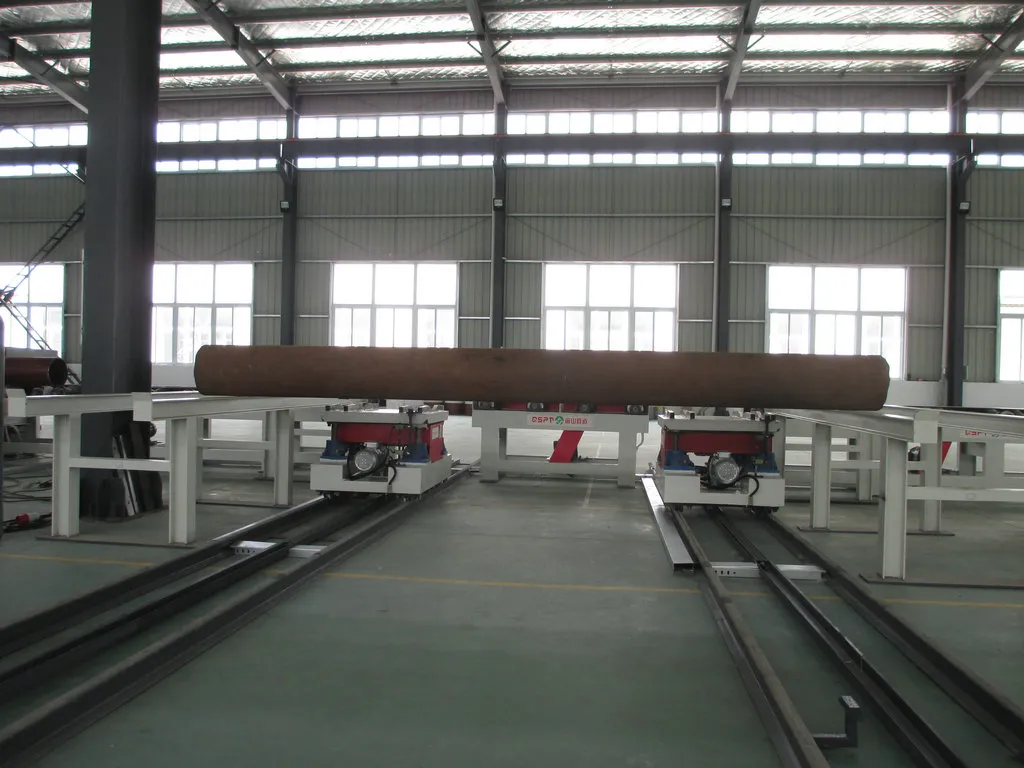

Pipe Transverse Automatic Conveying System

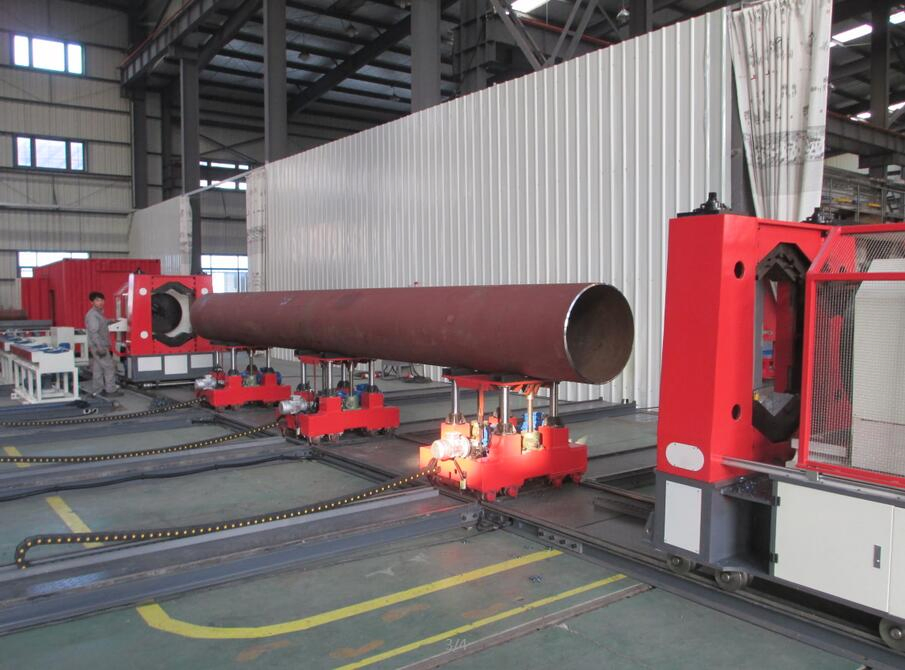

This high-efficiency system is designed for conveying pipe or spool pieces transversely during beveling or automatic welding processes. It significantly enhances the automation level in pipe fabrication plants while reducing hazards associated with manual hoisting.

Technical Parameters

Pipe Diameter: DN50~600 (φ 60~610)
Conveying Length: ≥ 1000MM
Line Length: 7.5M
Line Height: 800MM

Mechanism Details

Trolley Number: 4 sets
Lifter Mechanism: Electric screw lifter
Lifter Route: ± 30MM
Mechanism Type: Chain sprocket
Speed: 0-10M/min
Max Loading: 2500KGS / 5000KGS

🛠️ After Sales Service

Service Aim: Standing in the customers' shoes to ensure seamless operation.

Standard: Client satisfaction is our lowest standard for performance.

Quality: Professional, comprehensive, and detailed support at every stage.

Promise: We commit to resolving all after-sales issues quickly and efficiently, prioritizing solution delivery for our clients.

❓ Frequently Asked Questions

What is the delivery time for this equipment?

Generally, it is 30-40 days if the goods are in stock. For custom or non-stock items, the delivery time ranges from 60-80 days depending on the order quantity.

What are the accepted payment terms?

For orders below 1000 USD, 100% in advance. For orders above 1000 USD, we require 40% T/T in advance, with the balance paid before shipment.

Is the conveying speed adjustable?

Yes, the conveying mechanism features an adjustable speed range of 0-10 meters per minute to suit different fabrication requirements.

What pipe diameters are compatible with this system?

The system is designed to handle pipe diameters ranging from DN50 to DN600 (φ 60~610).

How does the lifting mechanism function?

The system utilizes an electric-driven screw lifter mechanism with a lifting route of ± 30MM for precise positioning.

Does the system comply with international quality standards?

Yes, our equipment is manufactured to meet CE, TUV, and SGS specifications, ensuring high safety and performance standards.
