Pipe Transverse/ Lateral Trolley Conveying System for Cutting and Beveling Station / Fitting up and Welding Station

1 / 5

Pipe Transverse/ Lateral Trolley Conveying System for Cutting and Beveling Station / Fitting up and Welding Station

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

📊

Basic Information

Model NO.

PLTCS-16Bb/24Bb/32Bb/40Bb/48Bb/60Bb

Pltcs-16bb

Dn50-400 Od60-426mm

Pltcs-24bb

Dn50-600 Od60-630mm

Pltcs-32bb

Dn200-800 Od219-830mm

Pltcs-40bb

Dn400-1000 Od406-1016mm

Pltcs-48bb

Dn600-1200 Od610-1219mm

Pltcs-60bb

Dn800-1500 Od813-1524mm

Transport Package

Seaworthy Packing

Specification

CE, SGS, BV, TUV, ISO9001

Production Capacity

200 Sets/Month

⚙️

Product Description

Performance Features

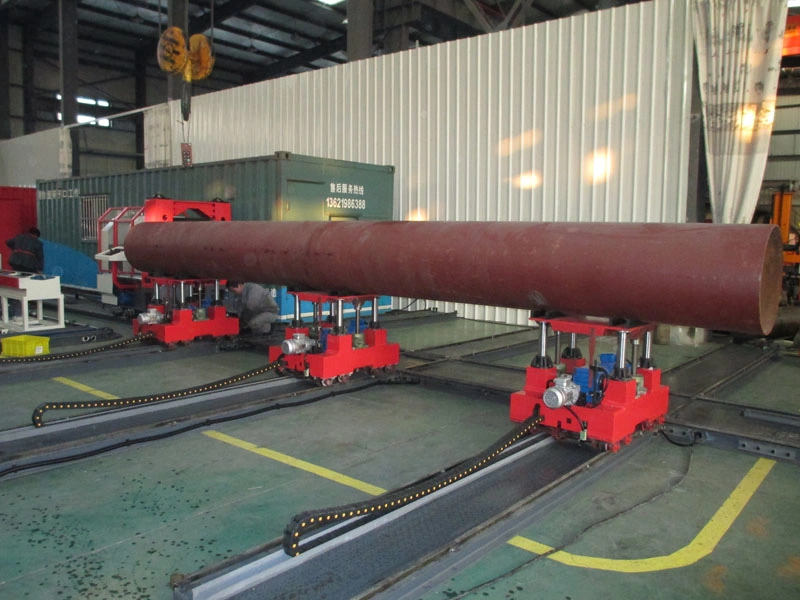

Conveying the pipe or spool pieces transversely during beveling or automatic welding processes.
Significantly increases automation levels in pipe fabrication plants.
Decreases operational hazards during hoisting and manual handling.
Efficiently implements loading and offloading of pipes to roller conveyors for machine entry.

Technical Parameters

Pipe Diameter Applicable	DN50-1500 (φ60-1524mm) depending on model
Conveying Length	≥1000MM (Customizable based on requirements)
Line Height	800MM

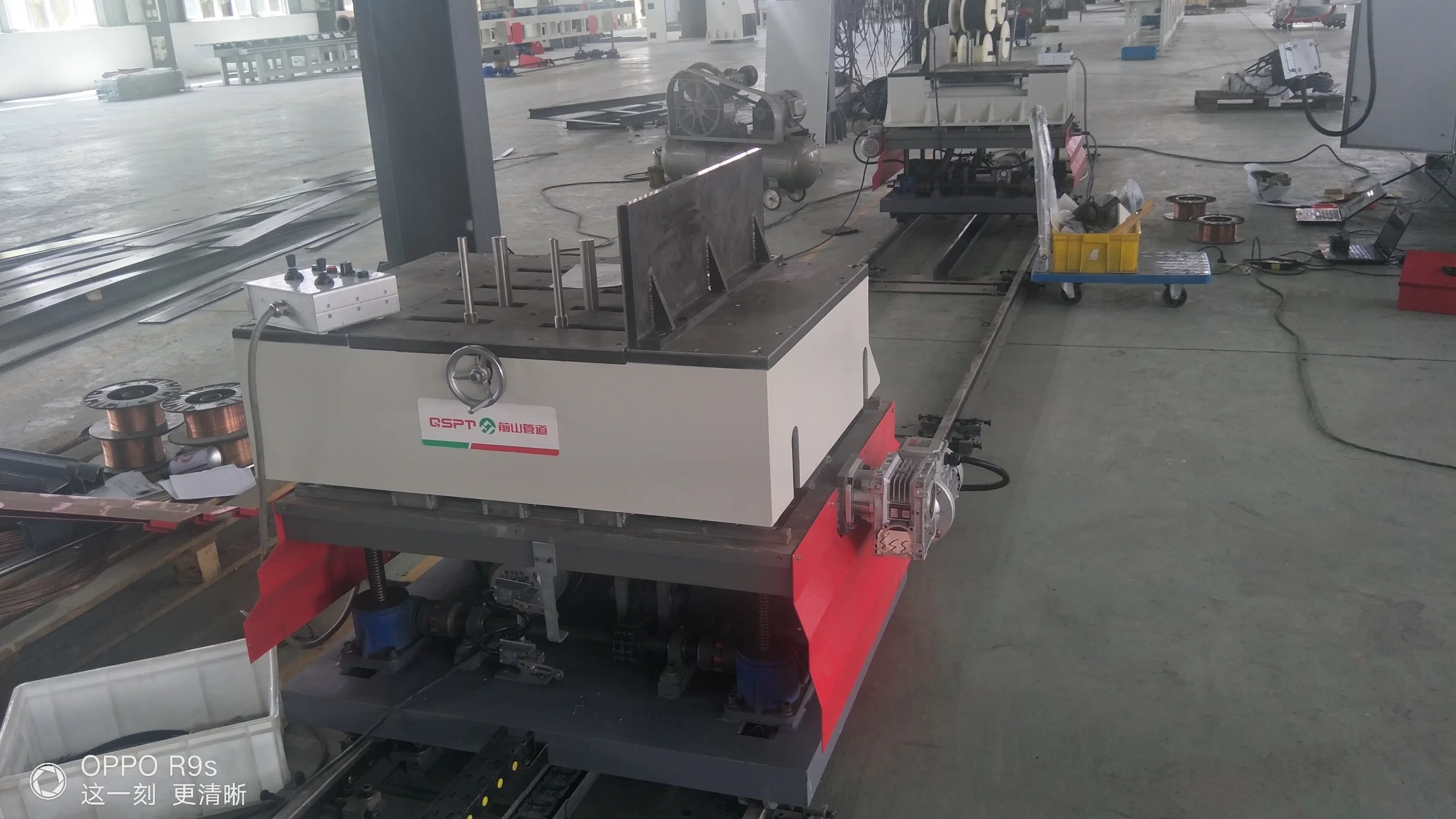

Trolley System	3 sets per line
Lifter Mechanism	Screw lifter, electrically driven (±30MM route)
Conveying Speed	0-10M/min (Chain sprocket mechanism)
Max Loading Capability	10,000KGS to 30,000KGS or as per request
Voltage Support	380V/ 415V/440V/3Ph-50/60Hz (Configurable)

🛠️

After Sales Service

Our Aim Standing in the customers' shoes to provide optimal solutions.

Our Standard Client satisfaction is our baseline for service quality.

Our Promise Quick and efficient resolution of all technical issues without cost limitations.

🖼️

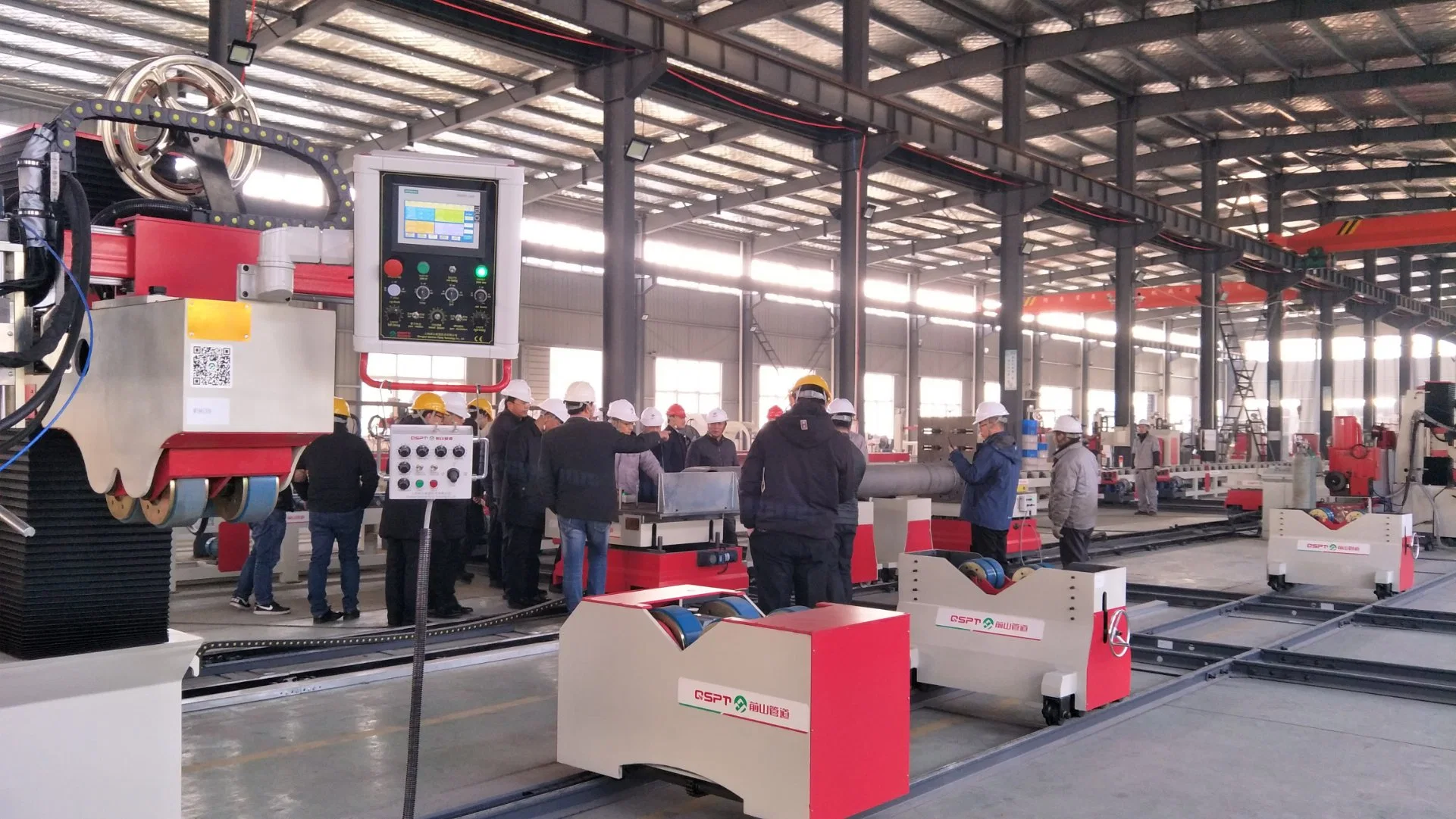

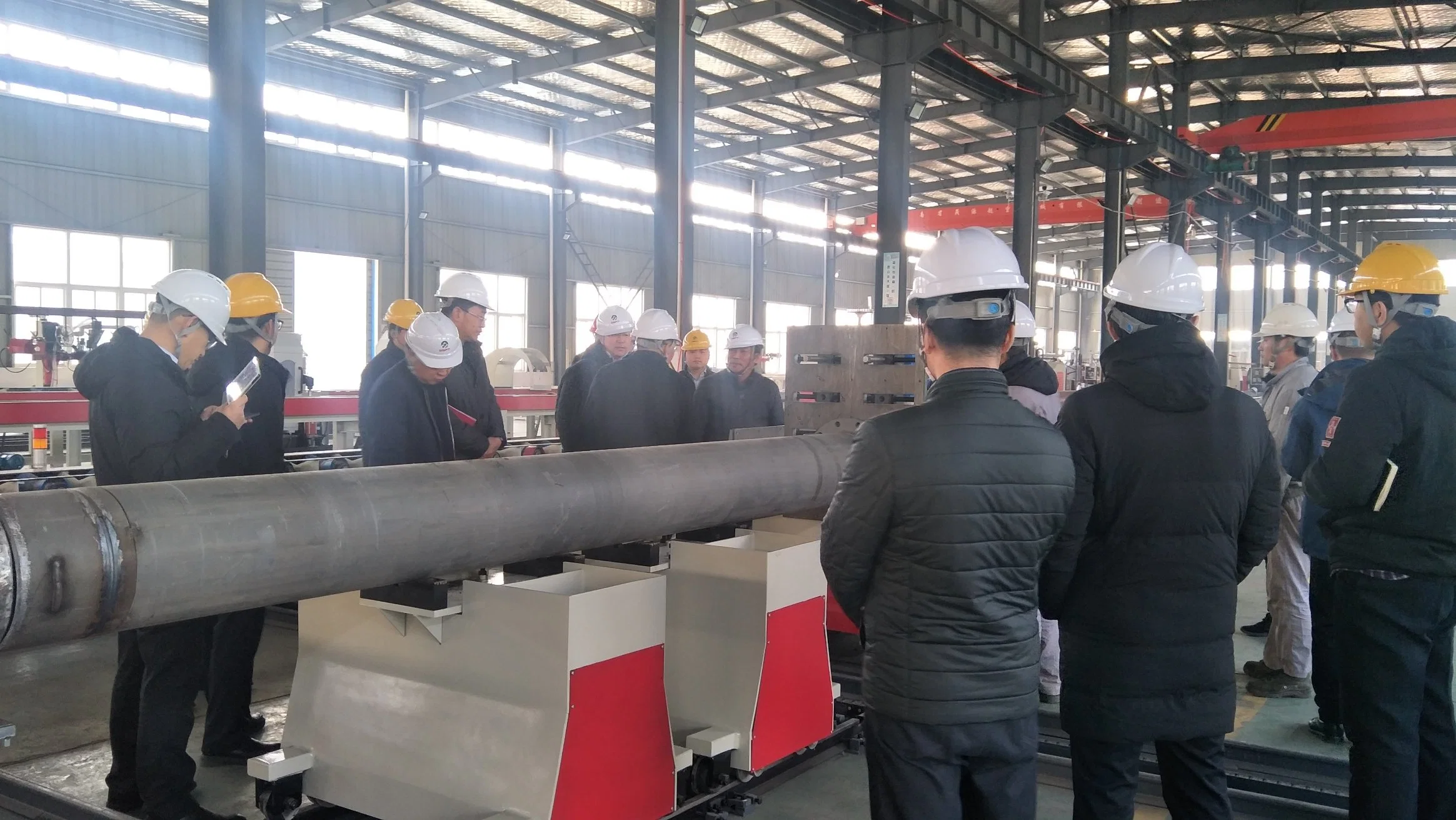

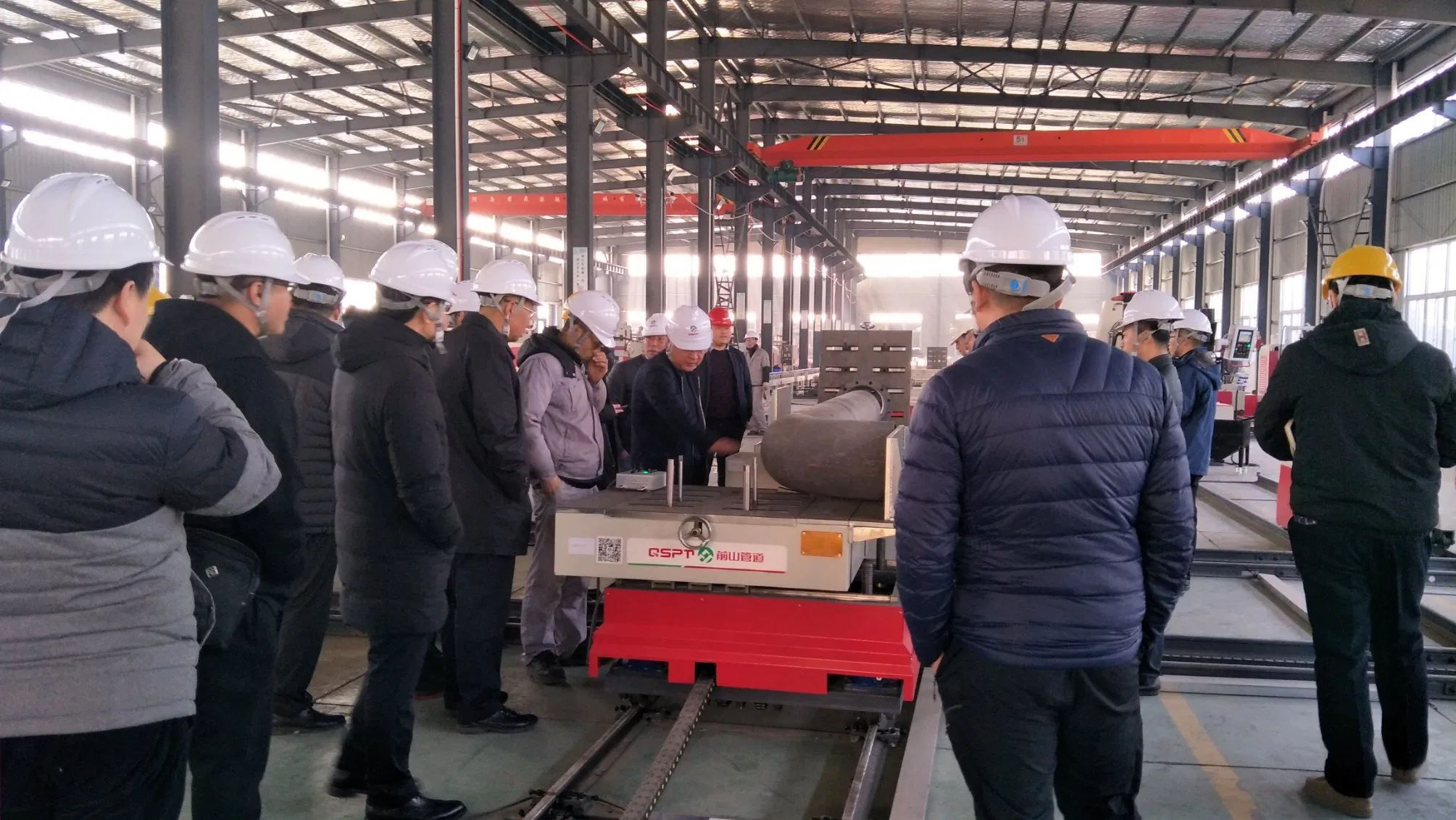

Product Showcase

Frequently Asked Questions

Are you a trading company or a manufacturer?

We are a factory-based company specializing in professional pipe fabrication machinery.

What is the typical delivery time for the conveying system?

Generally, it takes 30-40 days if the components are in stock. For custom configurations or large orders, the lead time is approximately 60-80 days.

What are your standard terms of payment?

For orders above 1000USD, we require 40% T/T in advance, with the remaining balance due before shipment.

Can the system handle different pipe diameters?

Yes, we offer multiple models (from 16Bb to 60Bb) that cover a wide range of diameters from DN50 up to DN1500.

Is the conveying length and loading capacity customizable?

Absolutely. We can adjust the conveying length and max loading capability (up to 30,000KGS or more) based on your specific workshop requirements.

Do you provide technical support for installation?

Yes, our after-sales team provides comprehensive technical guidance and support to ensure the equipment is integrated smoothly into your production line.
