Efficient Pneumatic Cantilever Loading Arm for Heavy Loads

1 / 5

Efficient Pneumatic Cantilever Loading Arm for Heavy Loads

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Technical Specifications

Payload Capacity200 kg

ReachElectric: 4m / Pneumatic: 3m

Column HeightElectric: 4m / Pneumatic: 3.3m

Plate Thickness8-20mm

Board Weight300-1000kg

Power ModePneumatic/Electric

Number of Suction Cups8-10

HS Code8428909090

Product Overview

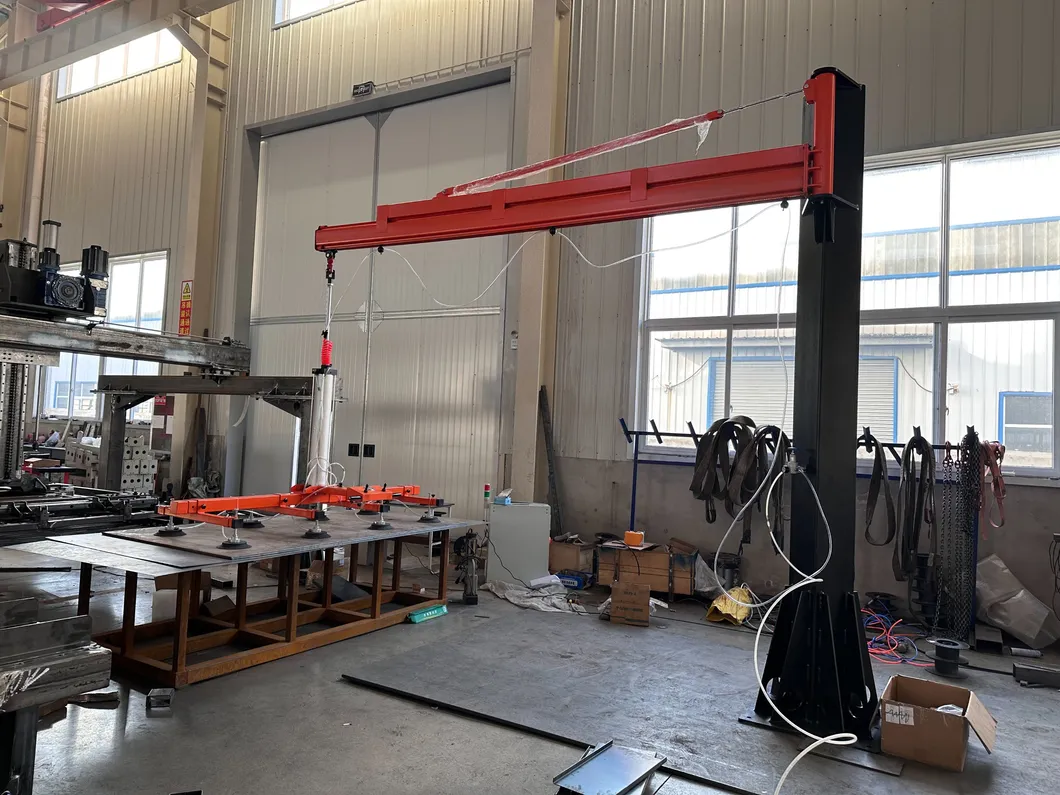

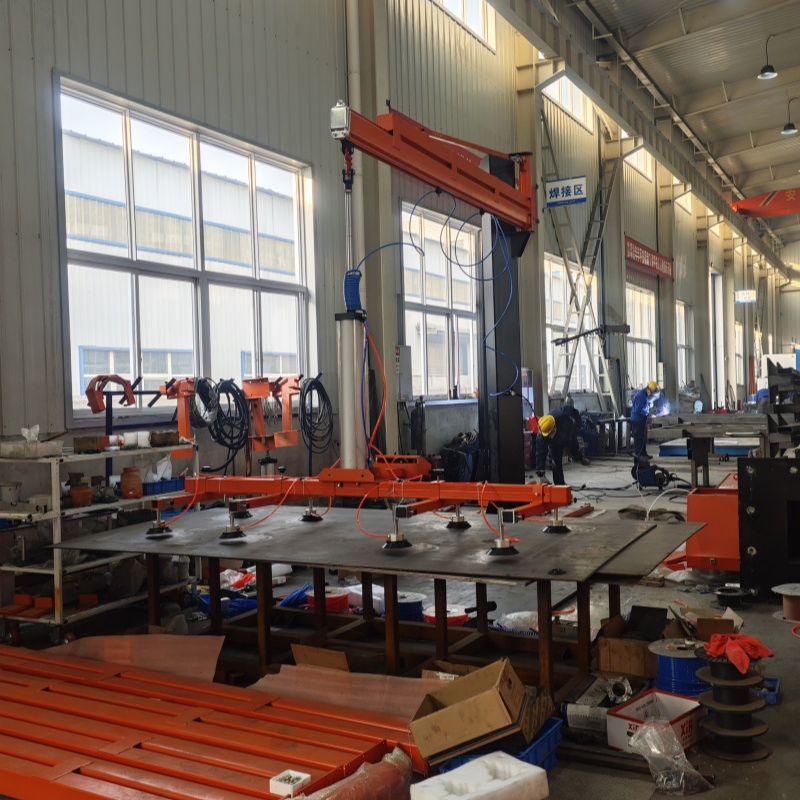

Laser cutting loading machine is automated auxiliary equipment used in laser cutting. Its main function is to automatically transport materials to the work table for precise cutting operations.

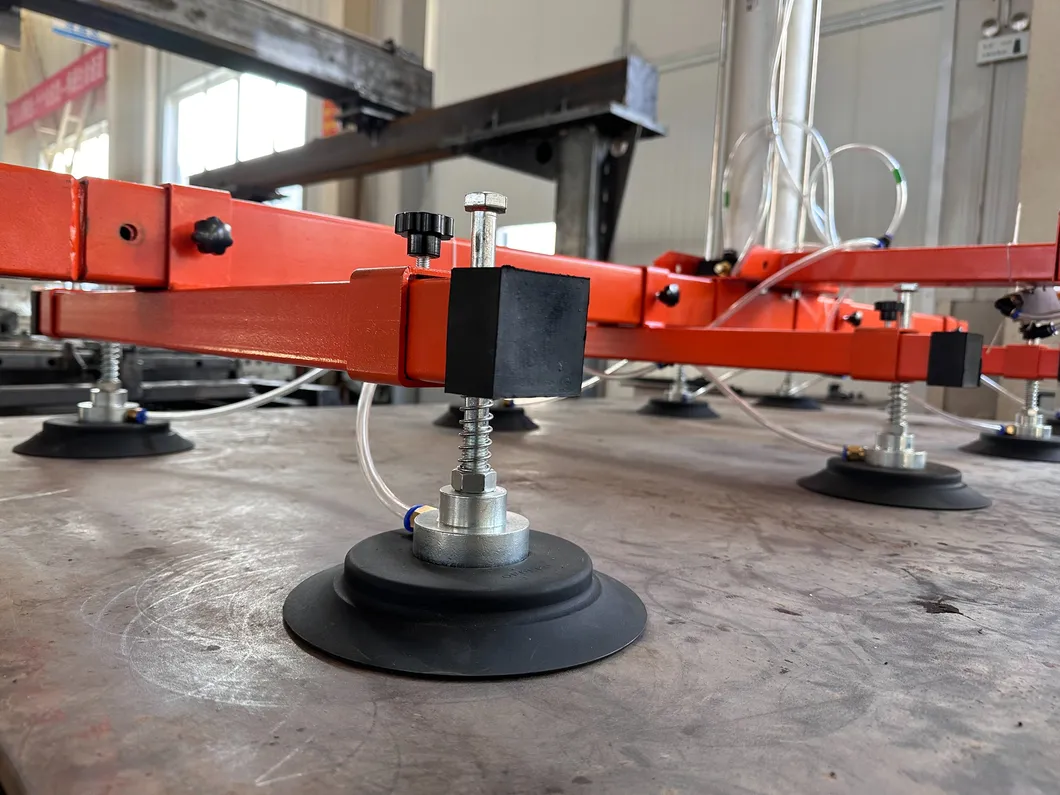

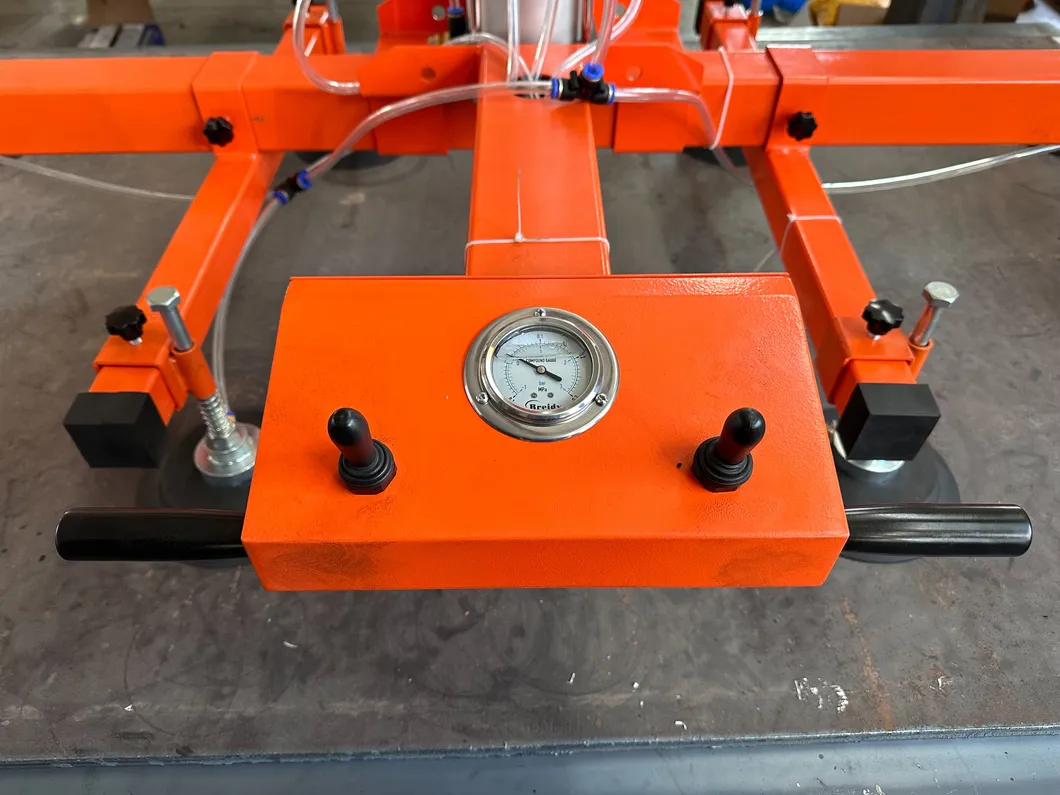

The machine utilizes mechanical transmission, pneumatic, or vacuum adsorption to realize gripping, carrying, and placing materials.

It identifies material position, size, and shape according to preset instructions, ensuring accurate conveyance and positioning for subsequent laser cutting processes.

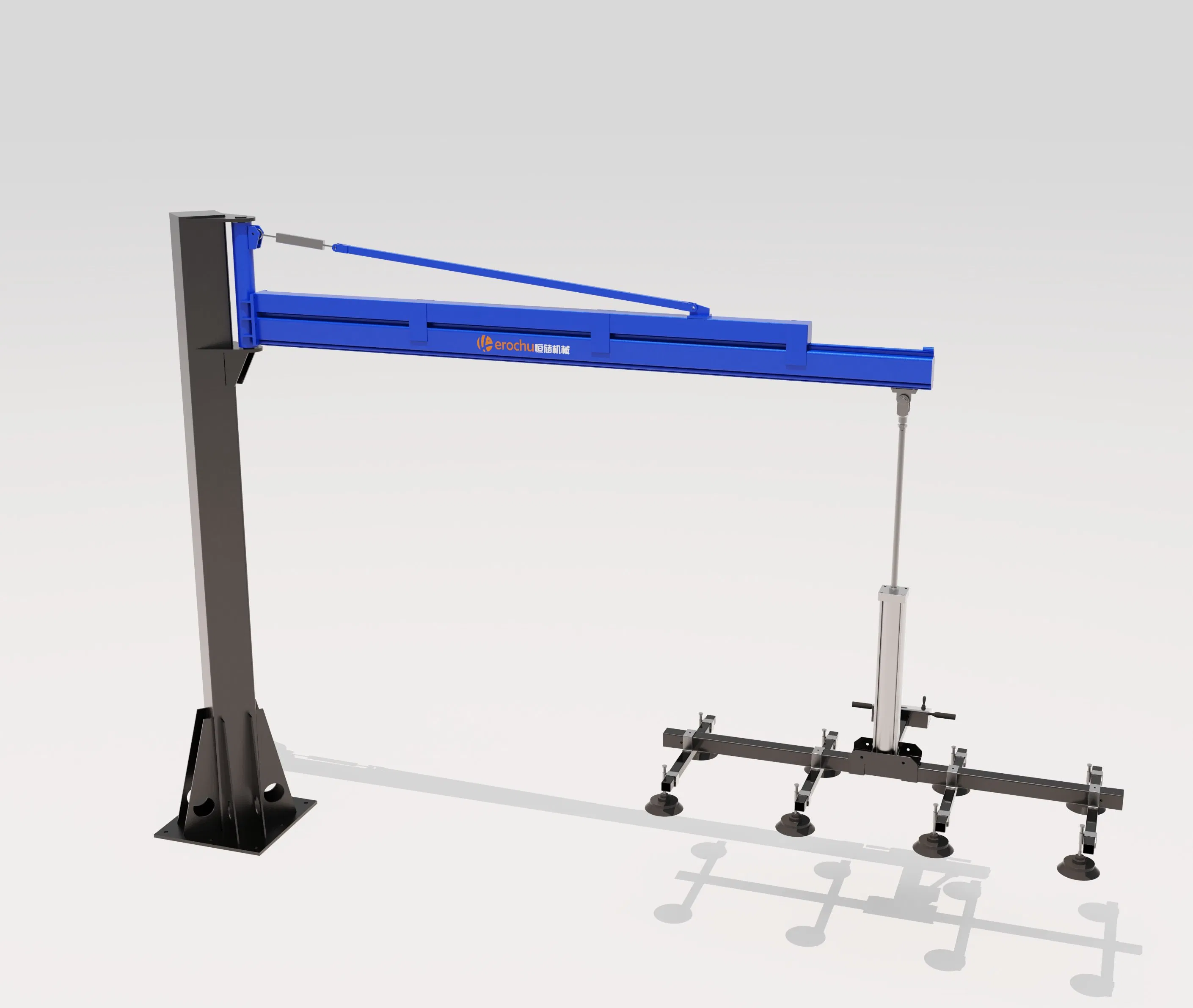

Pneumatic Cantilever Loading Manipulator Specs

Feature	Model A	Model B	Model C
Feeding Plate Thickness	1-8mm	1-12mm	1-20mm
Maximum Feeding Format	4000*1500mm	4000*1500mm	4000*1500mm
Maximum Plate Weight	300KG	500KG	1000KG
Number of Suction Cups	8	8	8
Power Mode	Pneumatic/Electric

Main Advantages

★

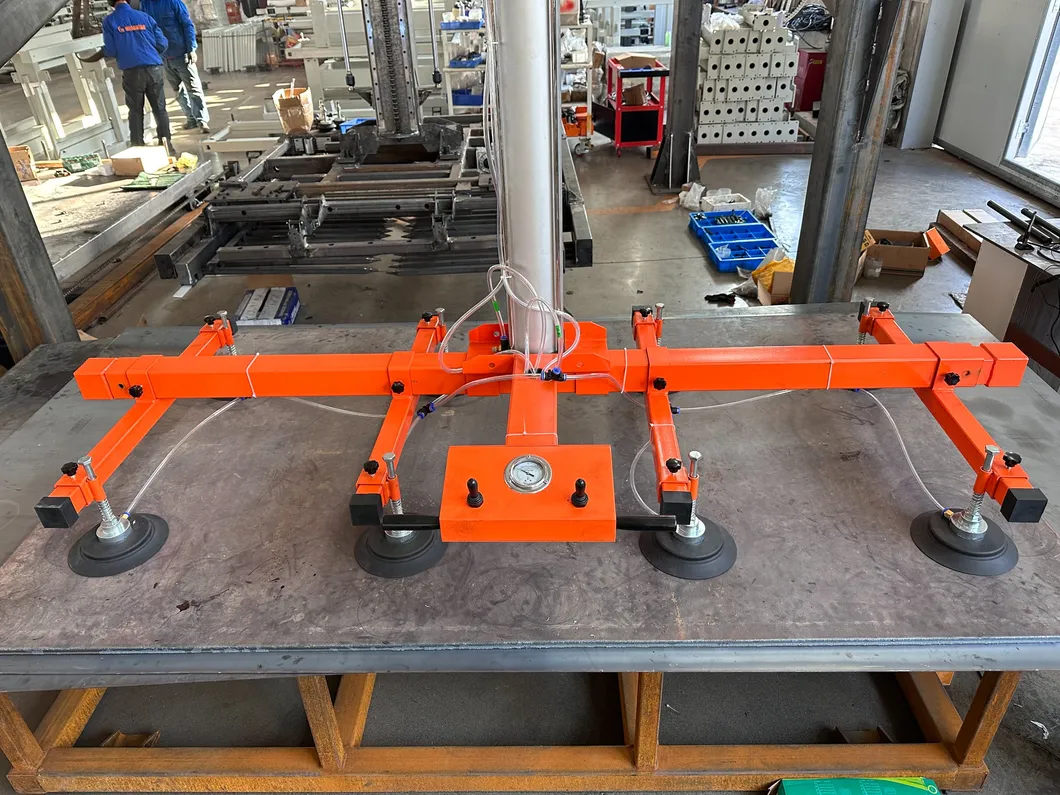

High space utilisation: The cantilever retractable design allows shelves to be adjusted for different material lengths, ideal for pipes, profiles, and long timber.

★

Automated Operating Processes: Continuous loading operation reduces handling time, increases output per unit time, and meets large-scale production needs.

★

Reduces labour costs: Replaces manual handling for heavy and repetitive work, reducing reliance on manpower and operational costs.

Frequently Asked Questions

Q1: How can I proceed with procurement?

You can contact our technical personnel. We will provide a suitable technical solution and quotation based on your parameters. Please provide your contact information for our professional sales team to reach out.

Q2: How do I choose the right robotic arm for my needs?

Please inform us of the materials you intend to transport, including their size, thickness, and weight. Our professional team will provide the best recommendation based on these specifications.

Q3: Do you provide on-site installation and debugging?

Yes, we can send professional personnel to your factory to install and debug the robotic arm until the trial operation is successful. Our team has extensive international service experience.

Q4: How do you ensure product quality?

We implement ISO9001 quality standards and have a dedicated quality inspection department. Every piece of equipment undergoes load testing before leaving the factory to ensure structural safety and stability.

Q5: Can you provide an integrated loading and unloading system?

Yes. We need to know the laser cutting machine table size and your specific loading method (board rack, exchange platform, or material warehouse) to provide a tailored solution.

Q6: What materials can the loading system handle?

It can easily handle various sheets and pipes, whether made of metal, wood, or plastic, achieving stable and efficient loading operations.
