Advanced Pneumatic Robot Arm for Efficient Restaurant Automation

Customization:	Available
Application:	burnishing, polishing, machine loading/unloading a
Control Mode:	Point to Point Control

Send Inquiry

Product Description

📊Basic Information

Model NO.

GSK RB300A1-2850

Drive Mode

Pneumatic, servo drive

Axes

6 Axes

Motion Radius

2850mm

Payload range

300kg

Machine weight

1650kg

Structure

Articulated

Motor model

Servo motor

Mounting Type

Ground, Bracket, Ceiling

Certification

ISO, CE

Warranty

1 year

HS Code

8479501000

🤖Product Description

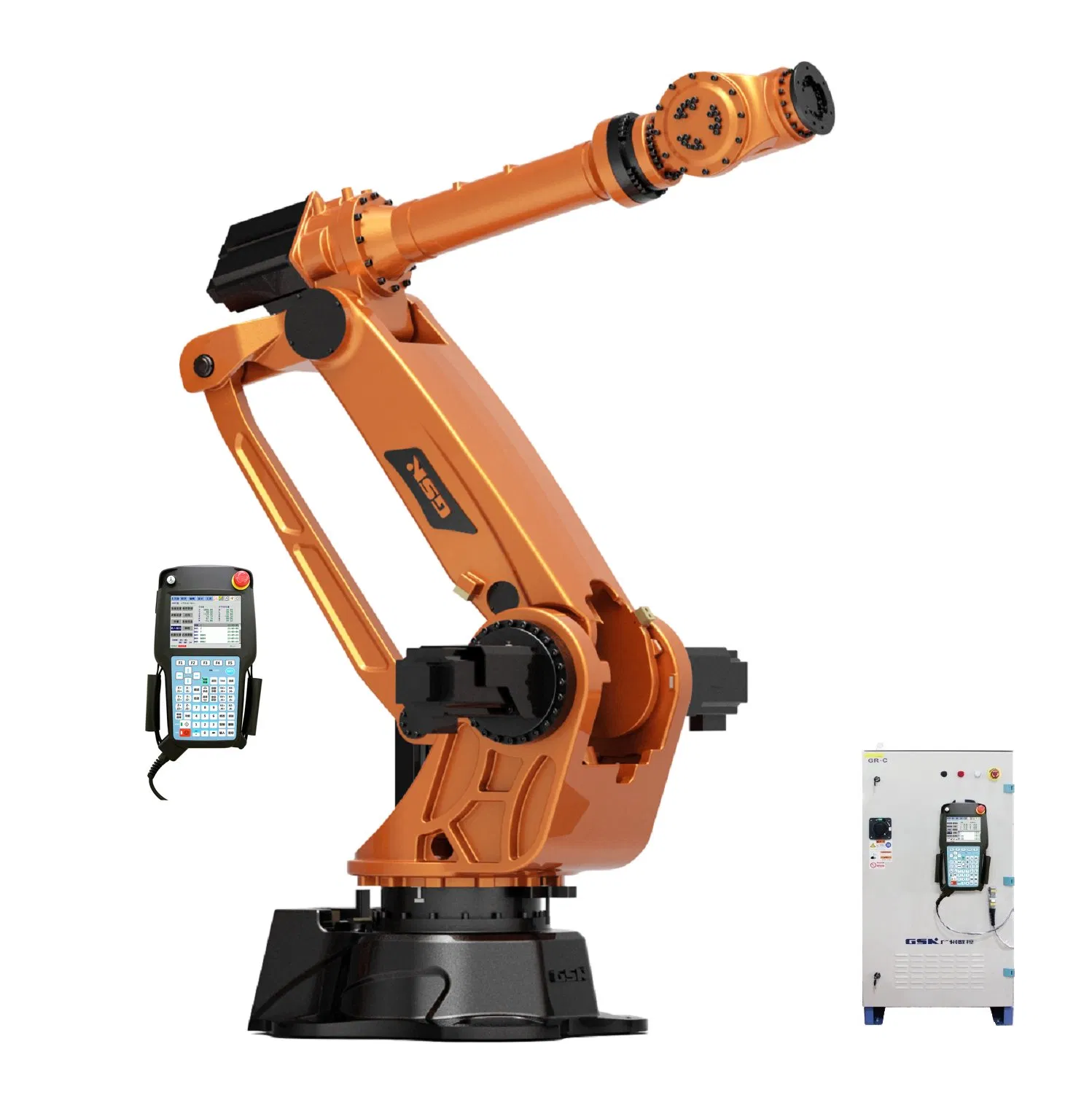

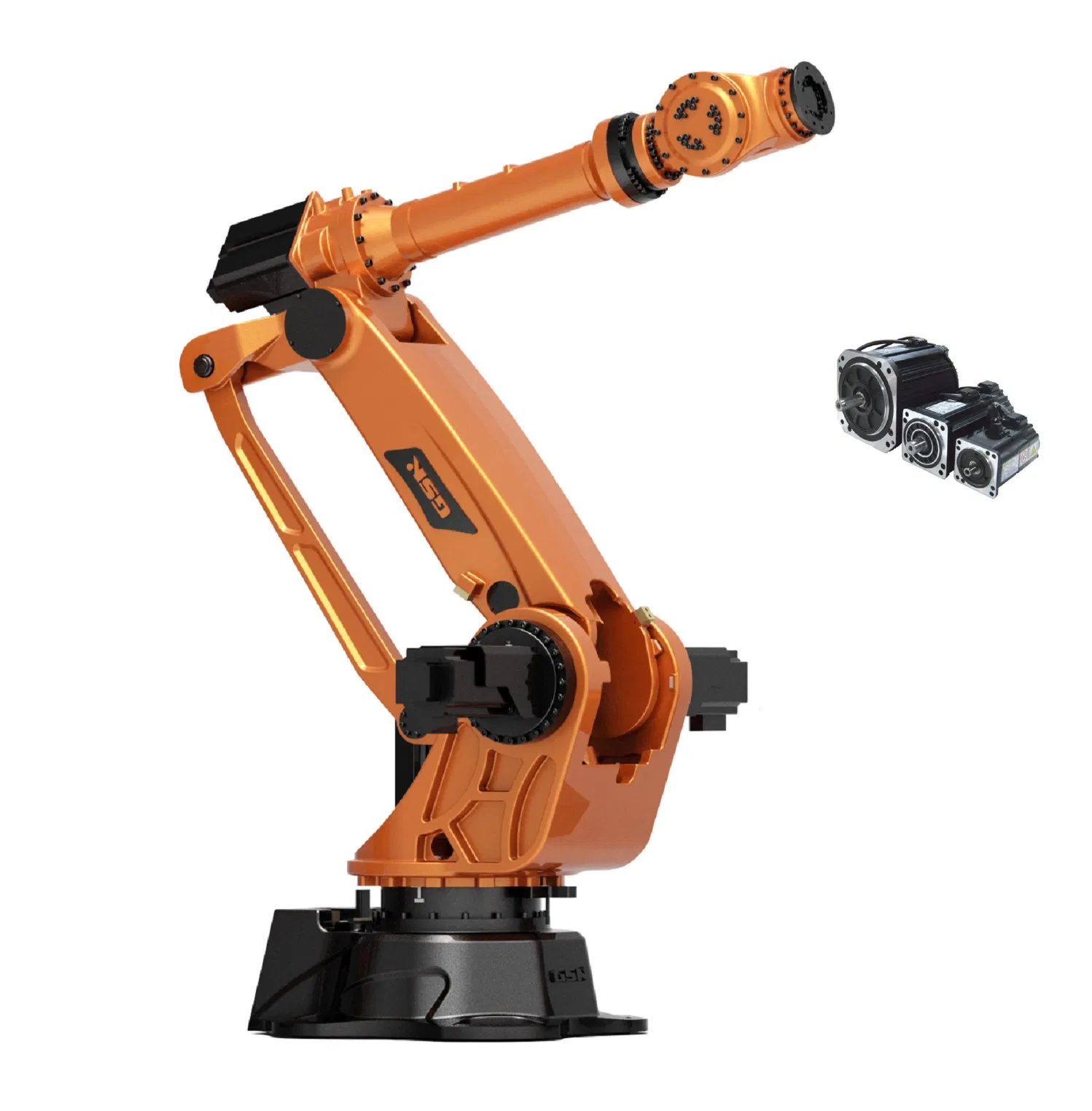

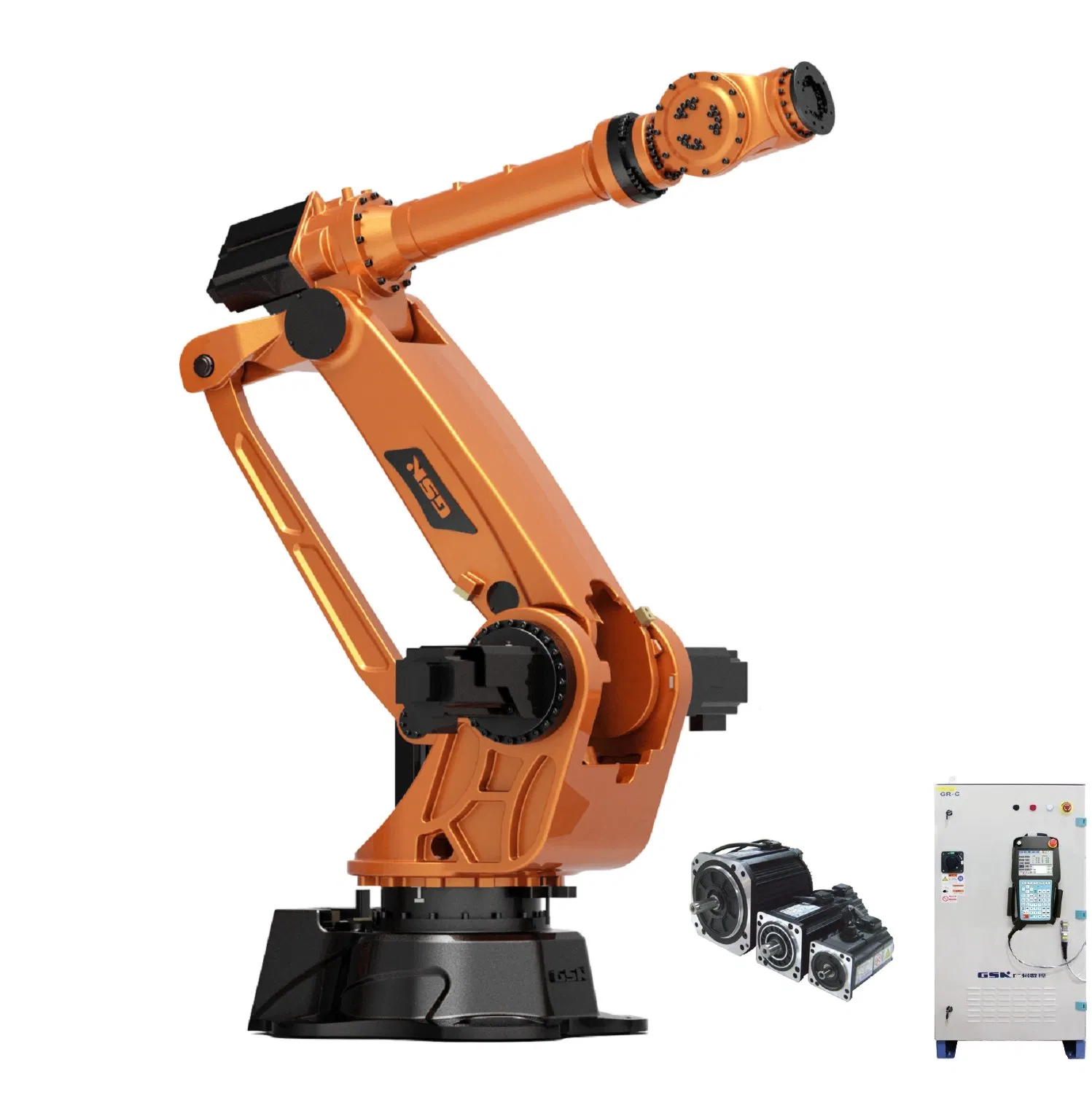

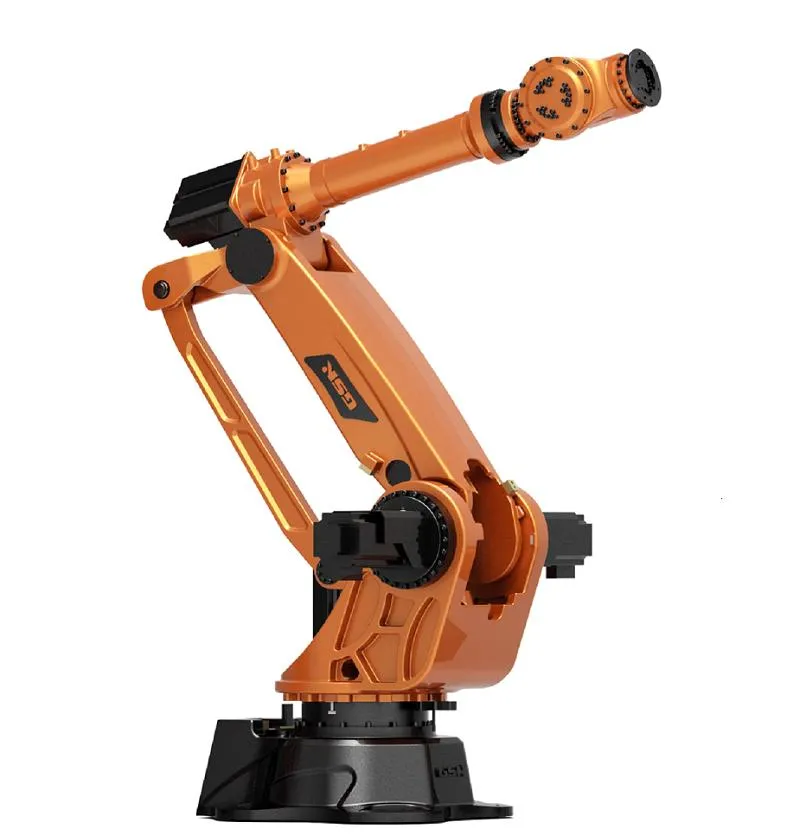

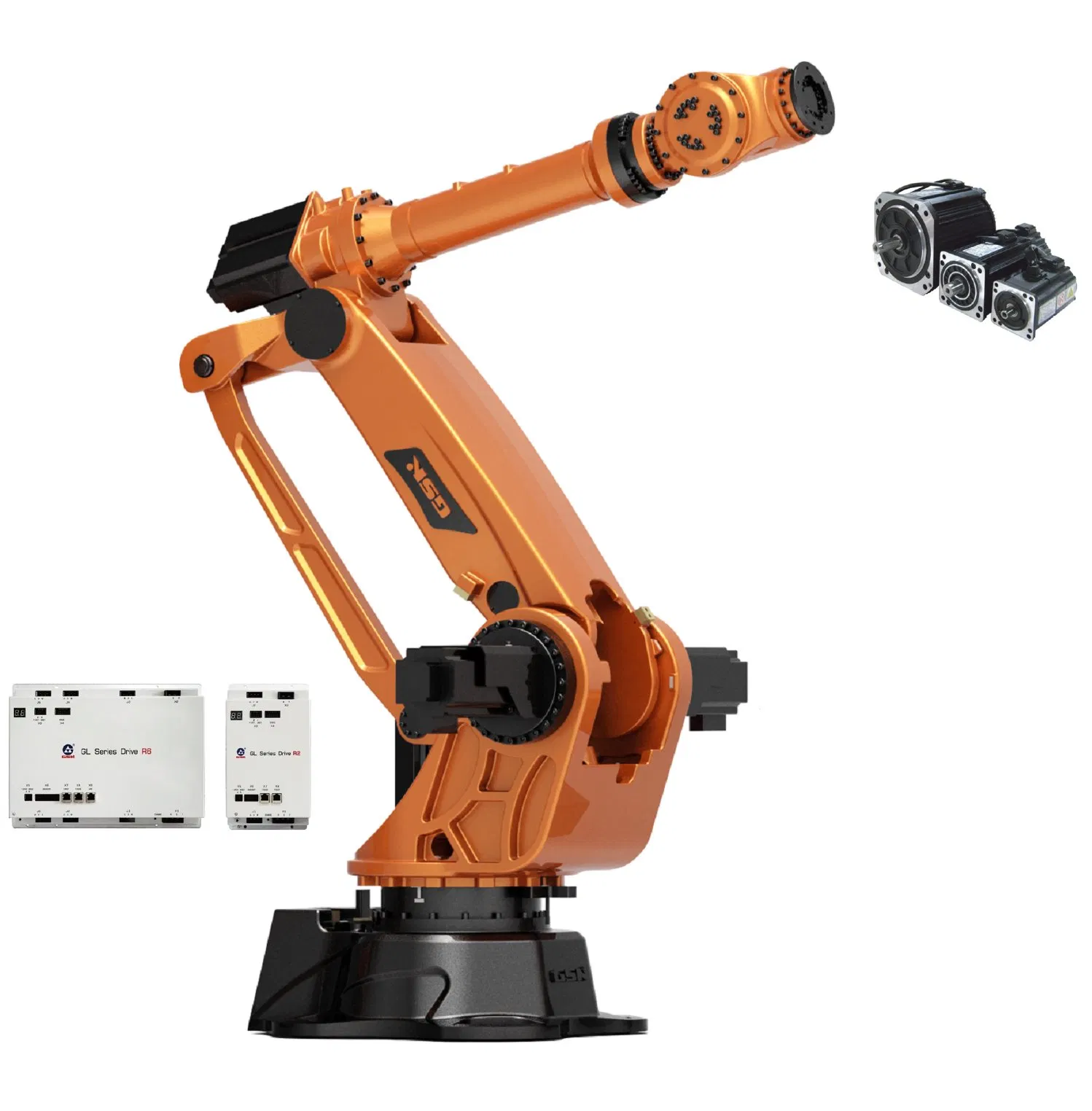

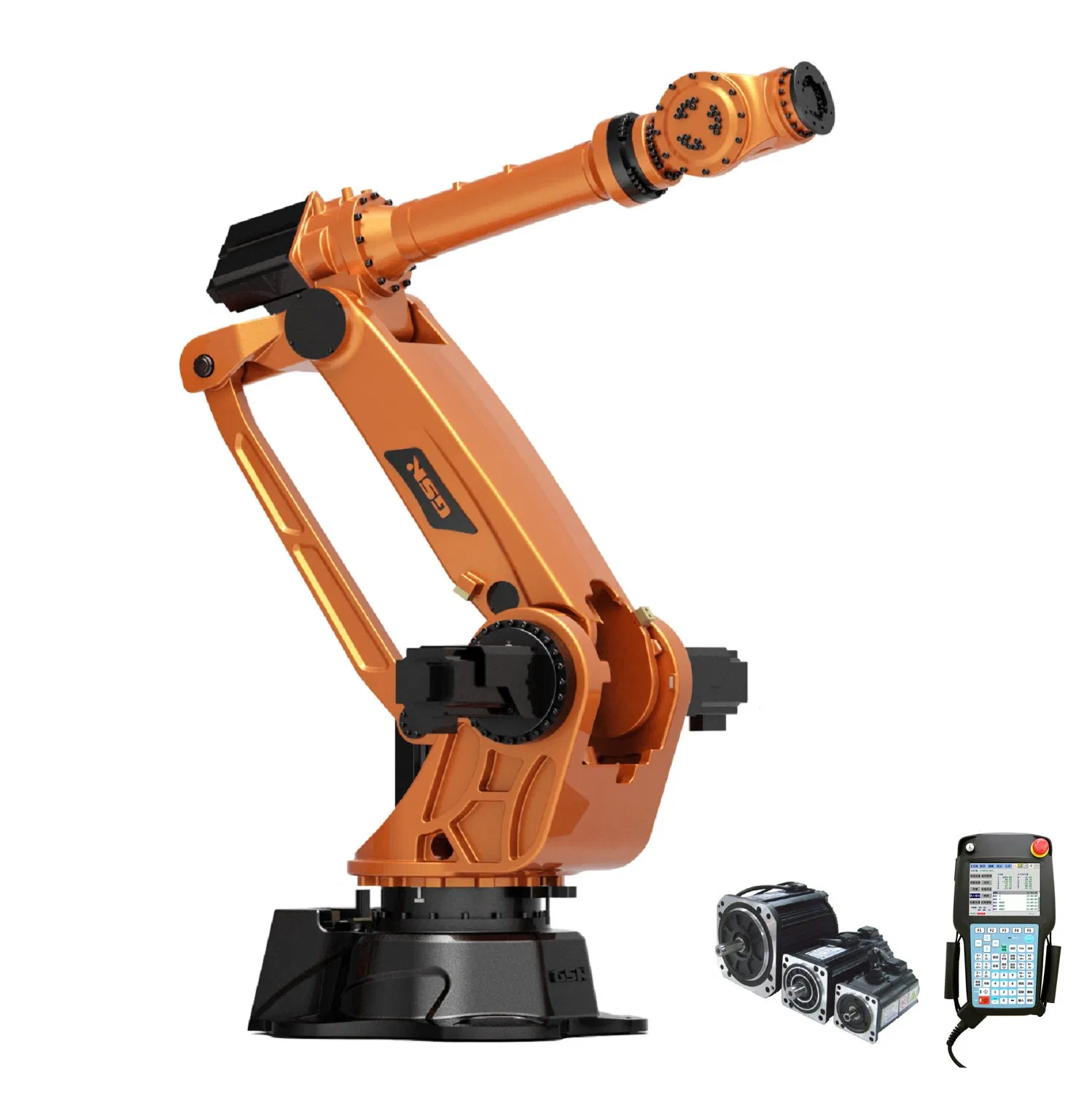

RB300A1-2850 Industrial General Robot (Payload 300kg, Reach 2850mm)

Application field: It is widely used in burnishing, polishing, spraying/painting, machine loading/unloading and automatic transport on punching automation production lines.

💡Product Features

1. Simplified Mechanical Structure: High reliability, stable performance, and good product consistency. The overall performance of the robot is greatly improved.

2. Perfect Seal Design: Local (J4~J6 axis) protection level up to IP65, making the robot highly adaptable to harsh working environments.

3. High Efficiency: High speed and high precision to improve production efficiency and reduce costs.

4. Flexible Range: Different movement radii and loads can meet the needs of various market areas.

📝Technical Specifications

Type	Dof	Payload (kg)	Repeatability (mm)	Motion Radius (mm)	Machine Weight (kg)
RB03A1-562	6	3	±0.02	562	36
RB06-900	6	6	±0.03	900	60
RB08A3-1490	6	8	±0.04	1490	185
RB20A3-1700	6	20	±0.04	1700	265
RB50-1956	6	50	±0.05	1956	650
RB80-2250	6	80	±0.06	2250	680
RB165A1-2790	6	165	±0.08	2790	1350
RB300A1-2850	6	300	±0.1	2850	1650
RB500-2882	6	500	±0.1	2882	3300

⚙️Control Systems

Unit Control System

Utilizes high-speed GSK-LINK bus for CNC and robot connection.
Supports online and offline programming.
Maximizes production efficiency and reduces labor costs.

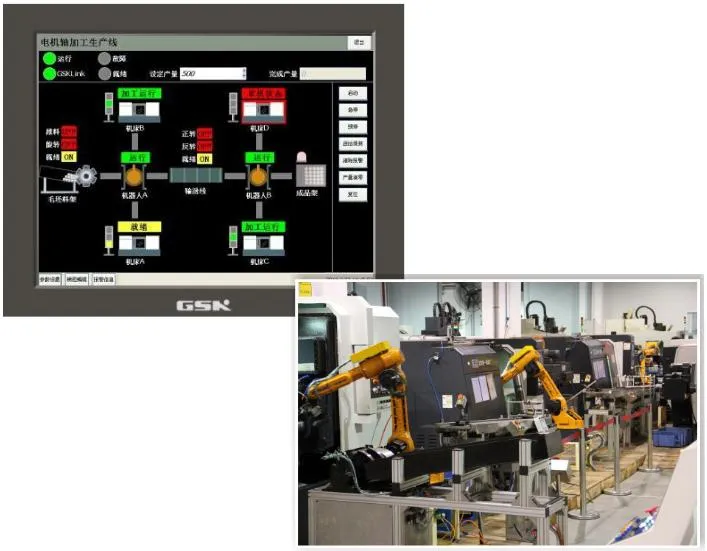

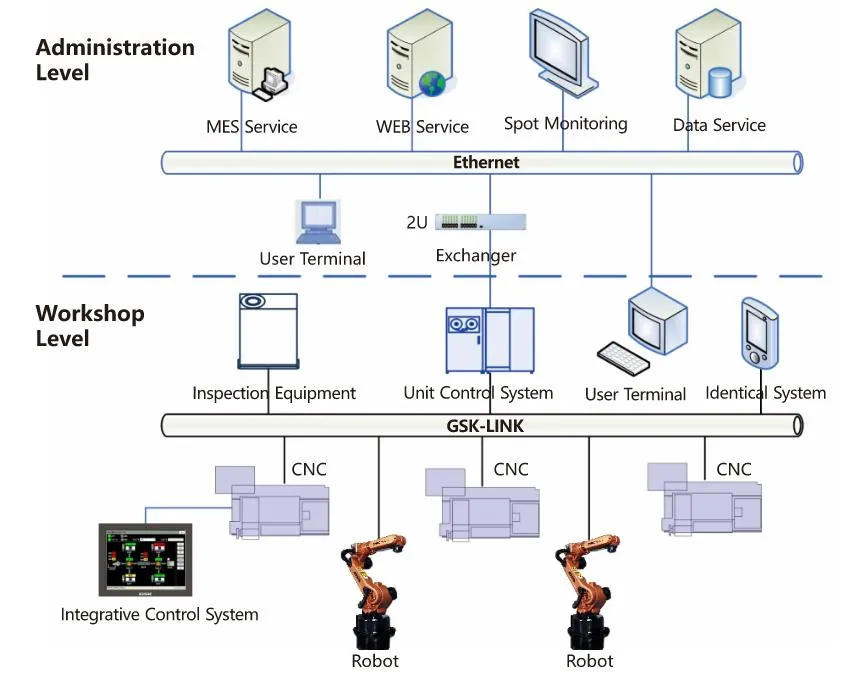

General Control Management

Digitalized factory and intelligent workshop management.
Equipment utilization statistics and production flow monitoring.

🛠️Applications

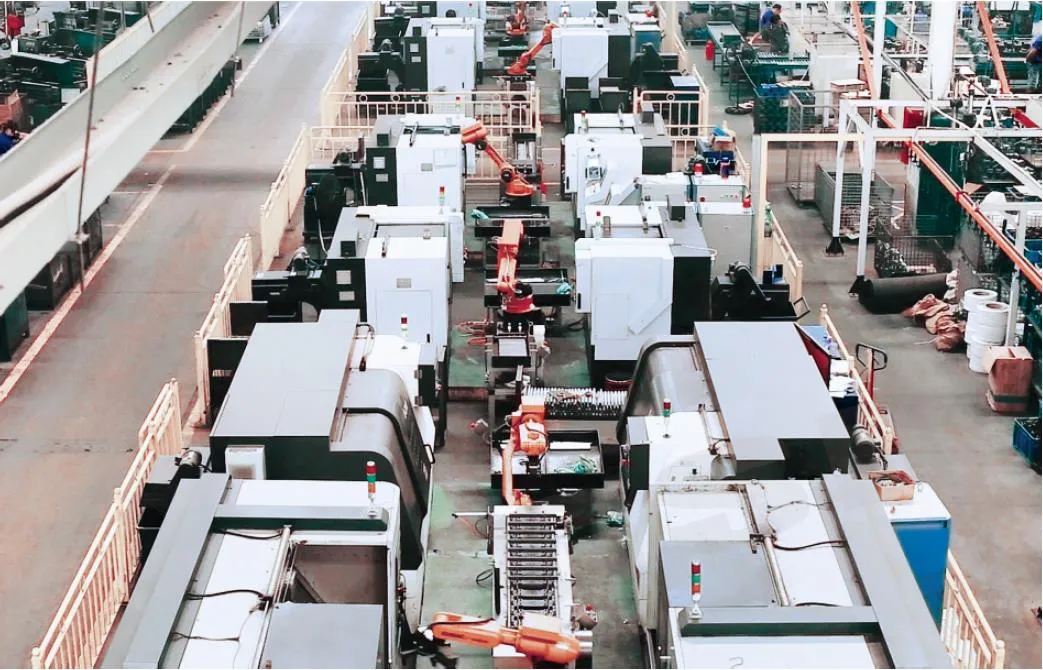

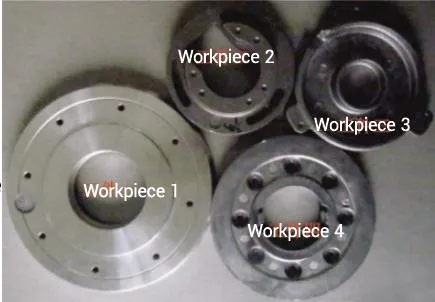

1. Load/Unload for Machine Tool

Ensures high production efficiency, safety, and reliability. Gripper position confirmation switch prevents workpiece dropping during power failure.

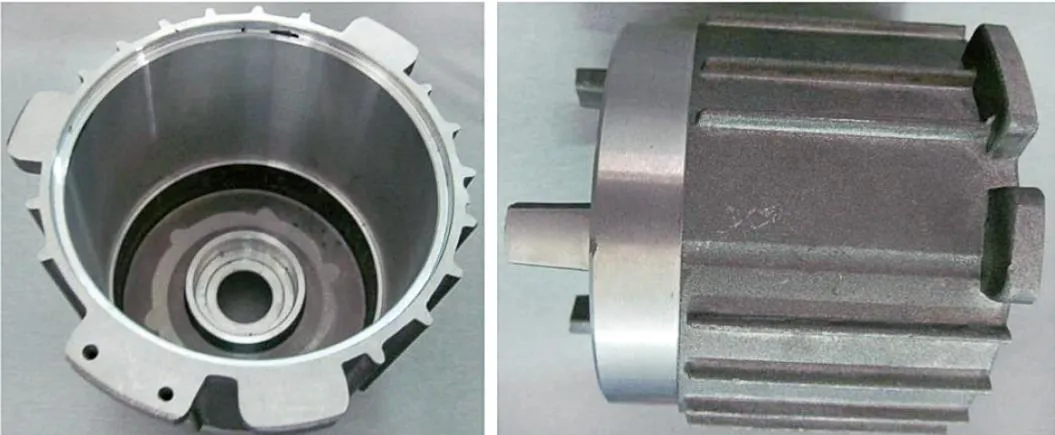

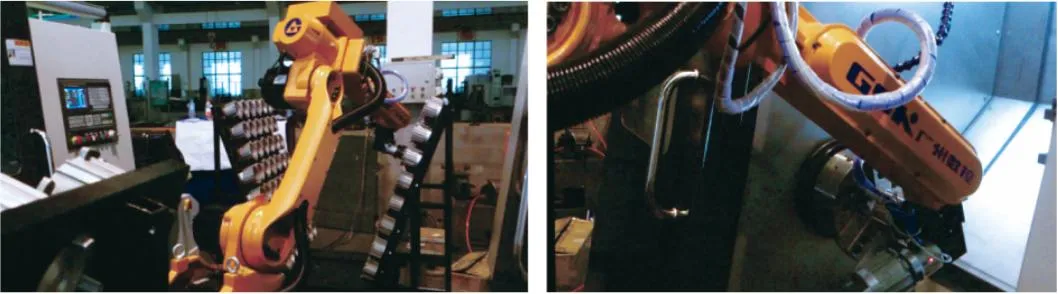

2. Turning Machine Application

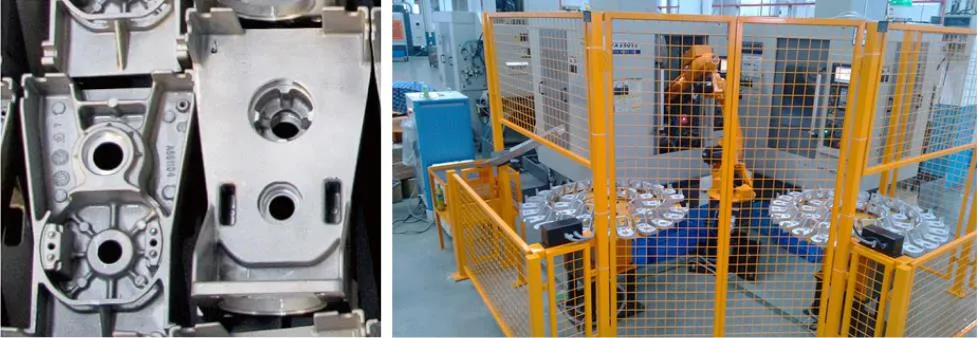

3. Machining Center Automation

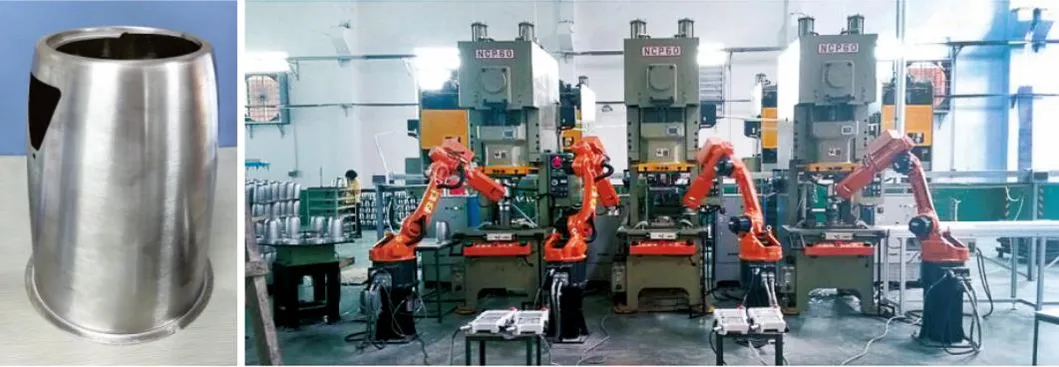

4. Electric Kettle Punching Line

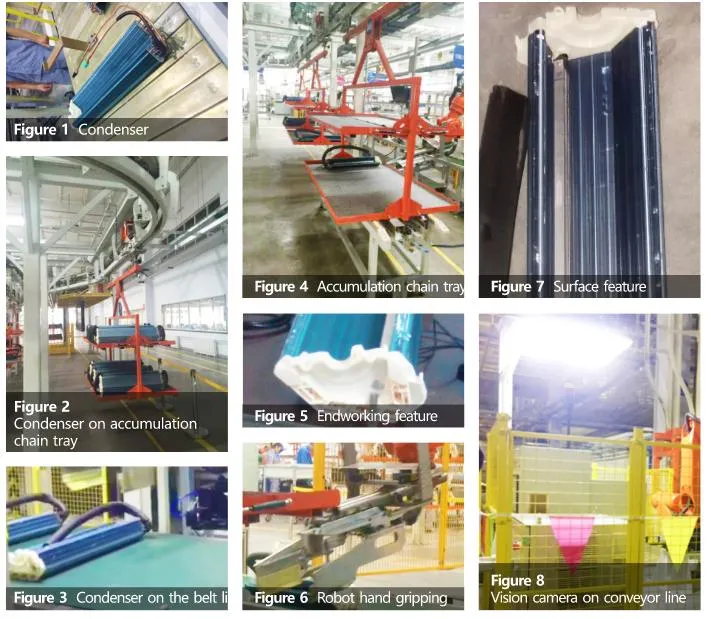

5. 3D Vision-Guided Transfer

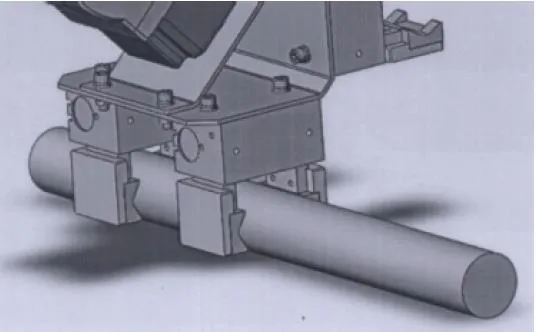

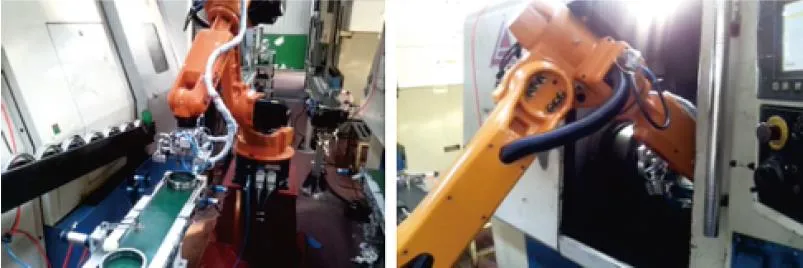

6. Gear Machining & Motor Shafts

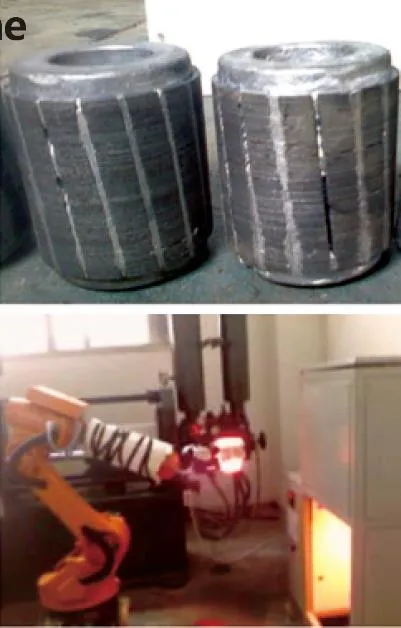

7. Die-Casting Molten Pouring

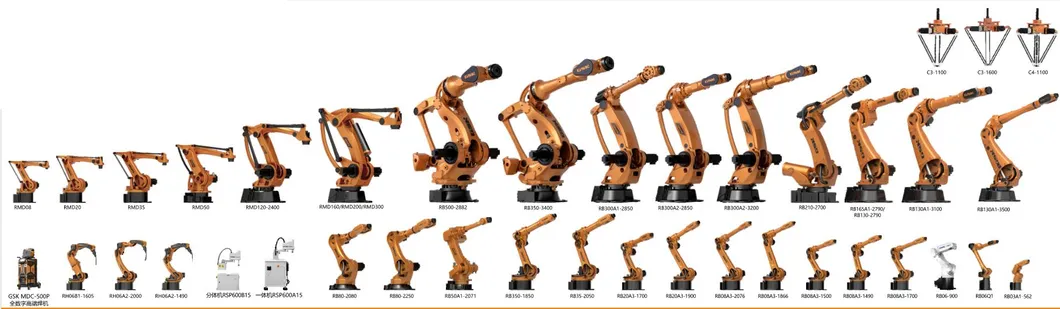

🏢Robot Family & Profile

Industrial robots with independent intellectual property rights, including controllers, servo motors, and drivers. The series covers transportation, welding, polishing, painting, stacking, and paralleling.

Main Product Portfolio

A high-tech enterprise integrating science, education, industry, and trade. Devoted to research and practice of basic equipment industrial development, providing packaged solutions for CNC systems and industrial robotics.

❓Frequently Asked Questions

Q1: What is the payload capacity and motion radius of the RB300A1-2850?

A1: This industrial robot has a massive payload capacity of 300kg and a wide motion radius of 2850mm, making it suitable for heavy-duty tasks.

Q2: Can the robot work in harsh or dusty environments?

A2: Yes, the robot features a perfect seal design with local protection levels up to IP65 (J4~J6 axes), allowing it to adapt to demanding industrial conditions.

Q3: What are the primary application fields for this robot?

A3: It is widely used for burnishing, polishing, spraying, painting, machine tool loading/unloading, and automatic transport on production lines.

Q4: What mounting options are supported?

A4: The robot is highly flexible and supports ground, bracket, and ceiling mounting types to fit various workshop layouts.

Q5: What certifications does the robot carry?

A5: The industrial robot family is manufactured according to high standards and carries ISO and CE certifications.

Q6: What happens if there is a power failure while holding a workpiece?

A6: The gripper system is designed so that workpieces cannot be released or fall out even if the robot is turned off or the gas supply runs out, ensuring workplace safety.
