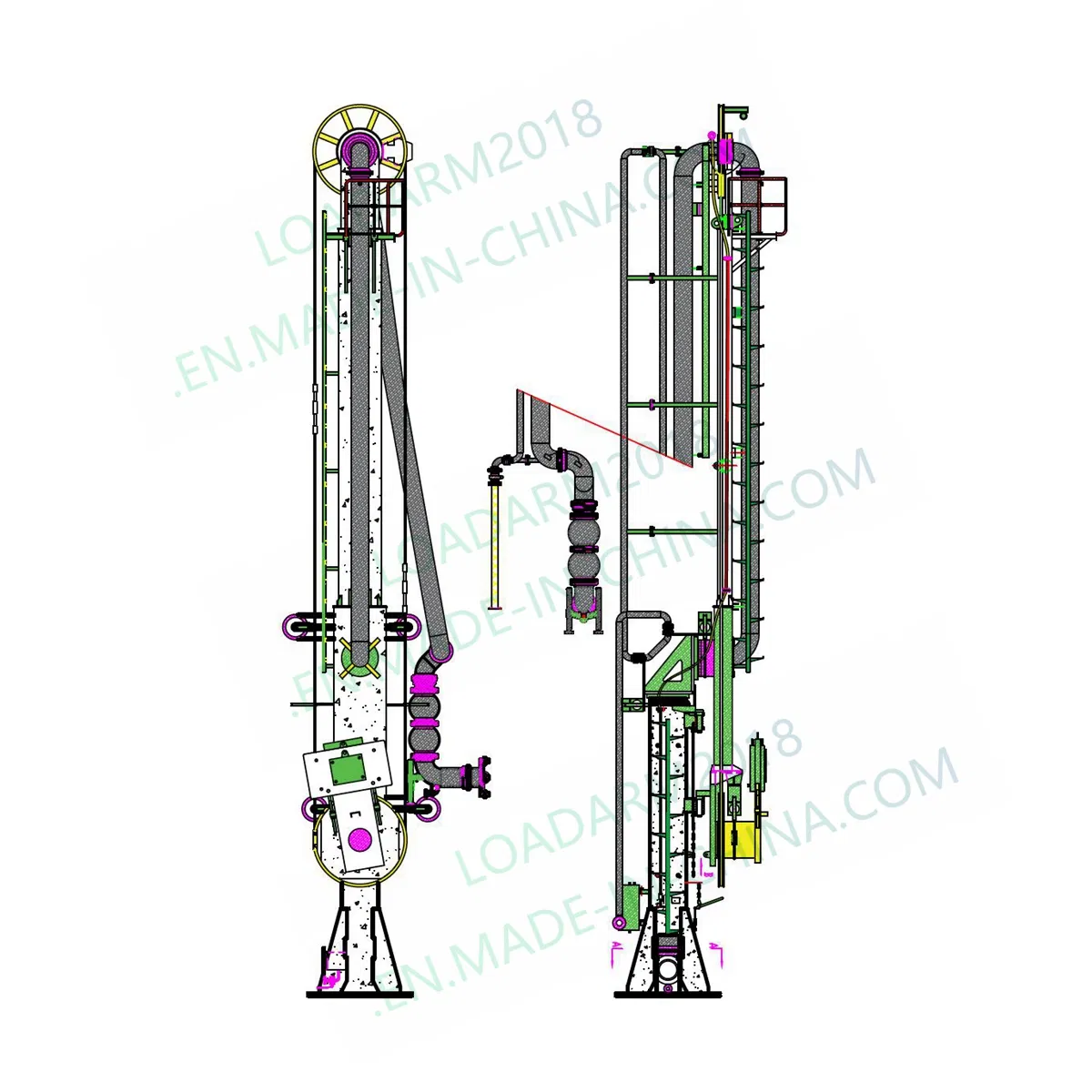

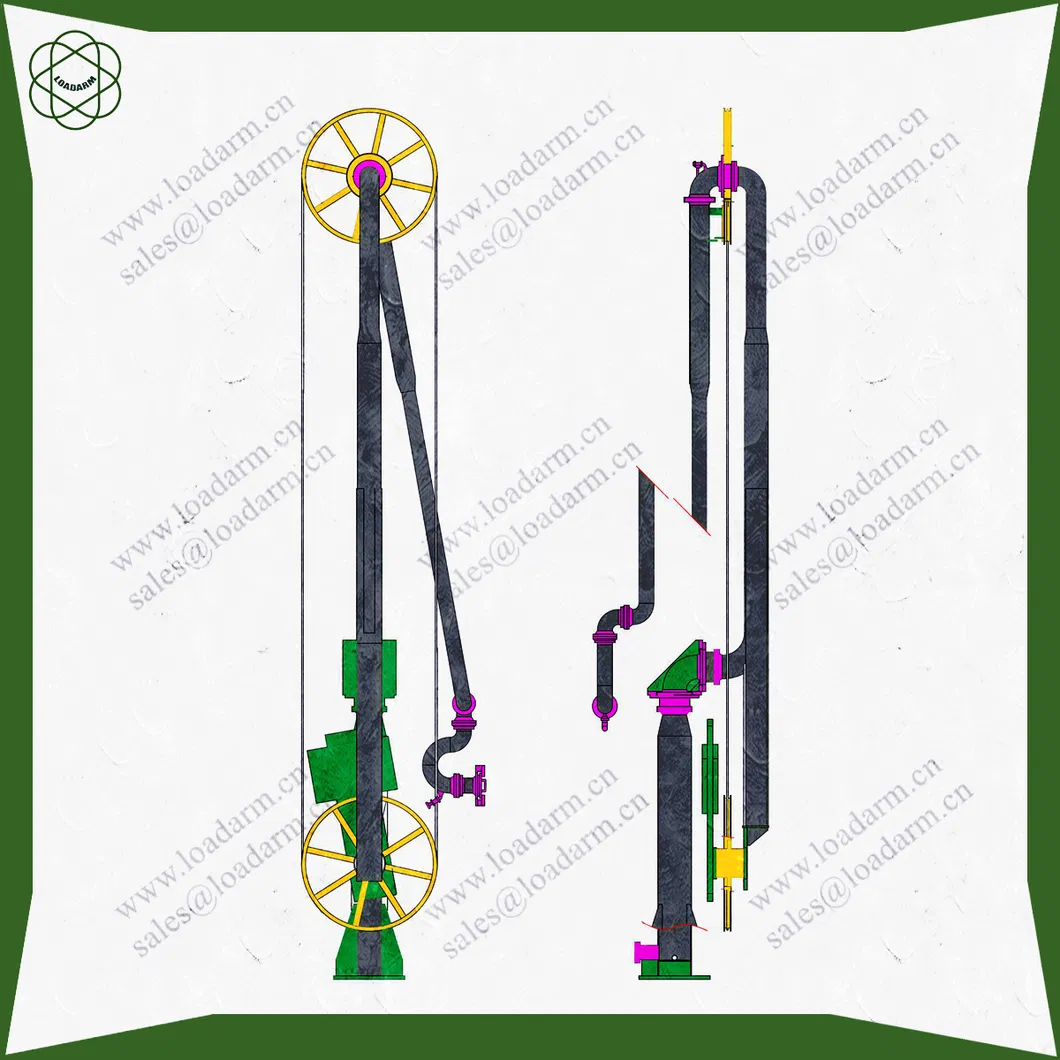

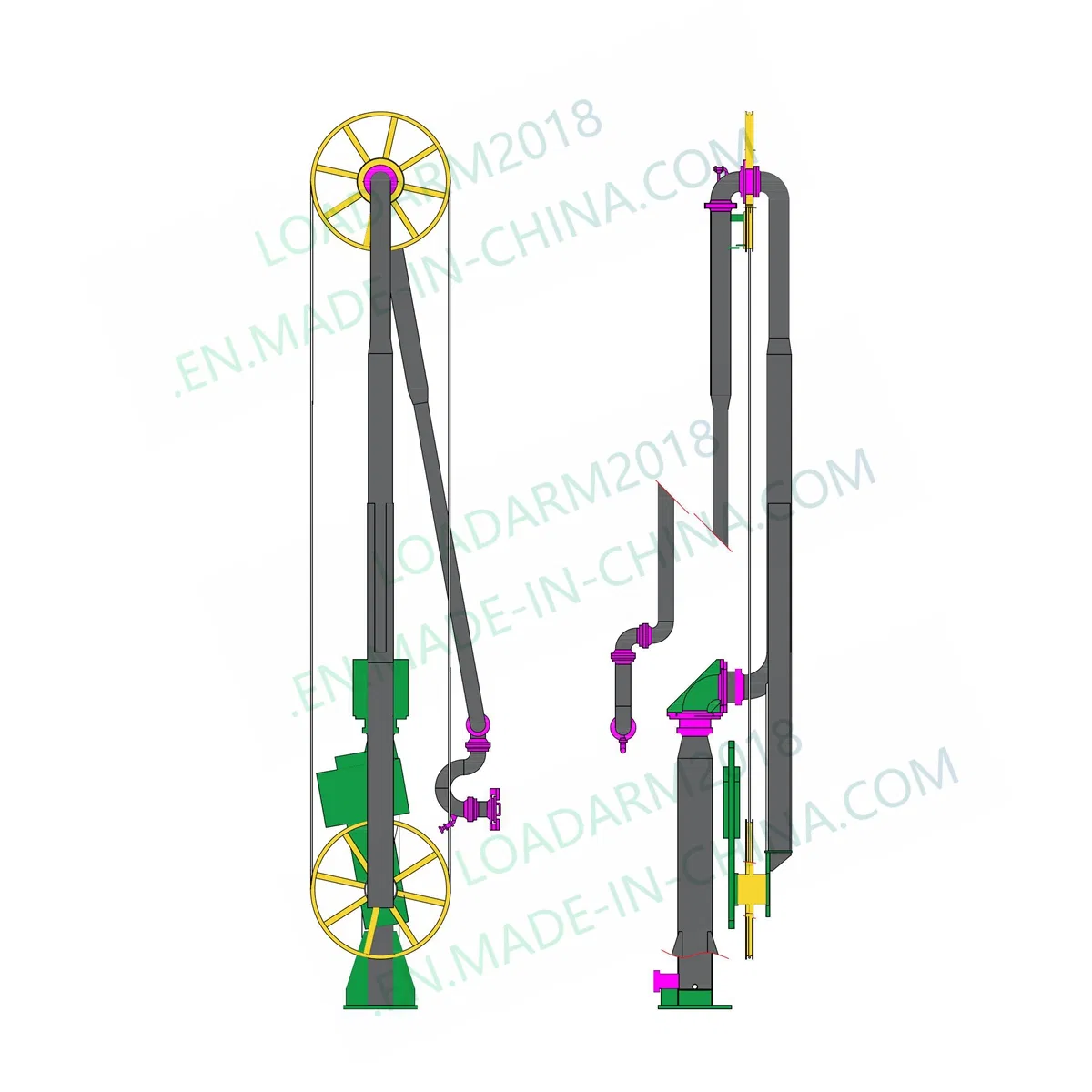

The structure for marine loading arm AM62:
Marine loading arm is the special equipment for loading/unloading fluid materials crossing over the jetty and tanker, with swivel joints connecting pipelines, assisted by a supporting structure, including other accessories such as control systems.
At present, the marine loading/unloading arms have many structural forms in series such as AM61, AM62, AM63 and AM64. According to the difference in physical and chemical features and temperature of the transmission medium, the arms can be designed in many pipe forms such as carbon steel, stainless steel and heat tracing.
Technical Capabilities:
| NORMAL ANTI-CORROSION & COATING | |||
|---|---|---|---|
| NO. | PROCEDURE | COATING NAME | NOTE |
| 1 | Shot blasting | / | Sa2.5 grade |
| 2 | Primmer | Epoxy zinc rich paint | 2 coats |
| 3 | Intermediate coat | MIO epoxy paint | 1 coat |
| 4 | Finish coat | Chlorinated rubber finish paint | 2 coats |
A part of the product pipe provides support to the loading arm, but most weight and loads are supported by an independent body or supporting auxiliary supporting organizations. Inner and outer arms share one counterweight system. Mixed mode support for single-tube loading arms are compactly structured, suitable for large-tonnage vessels.
