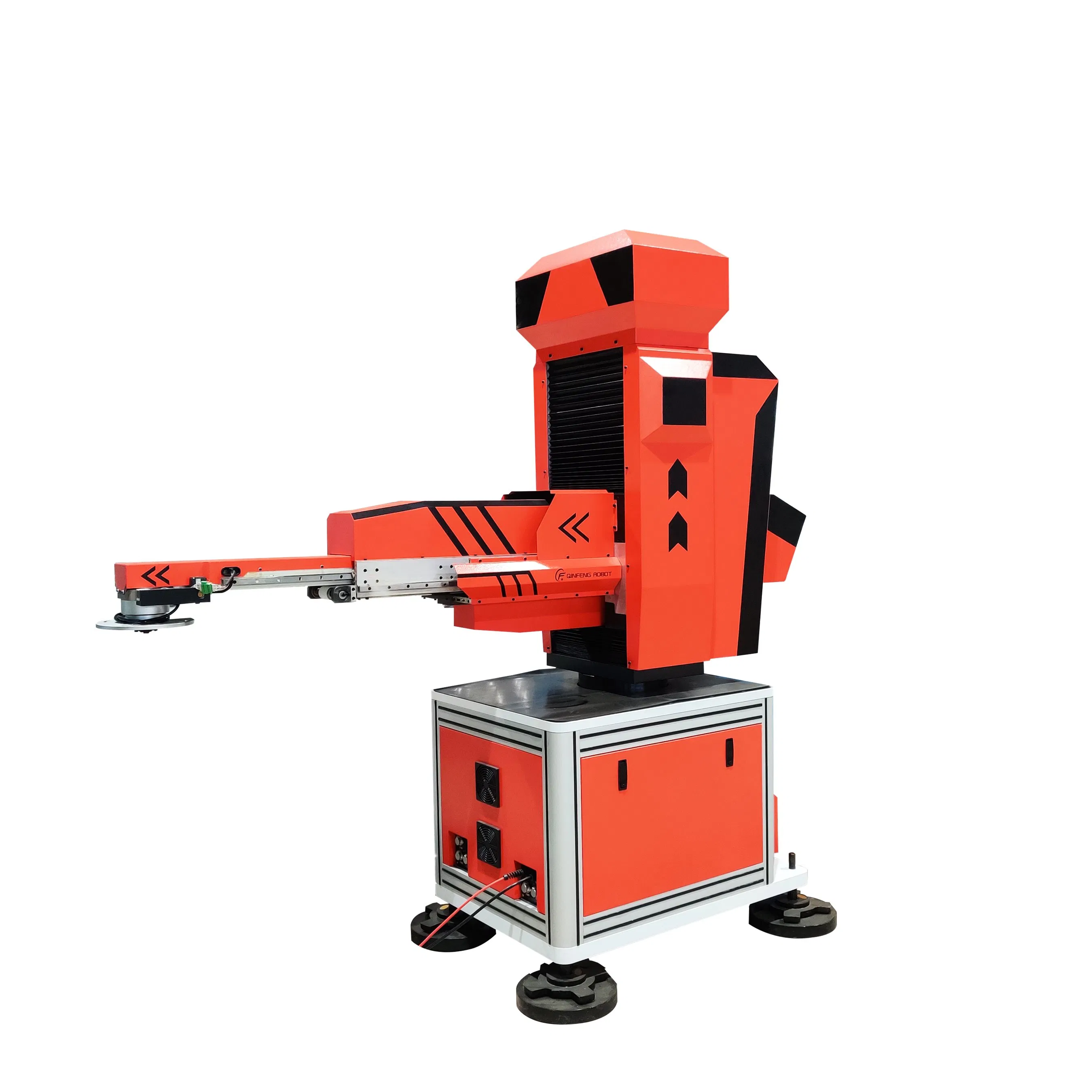

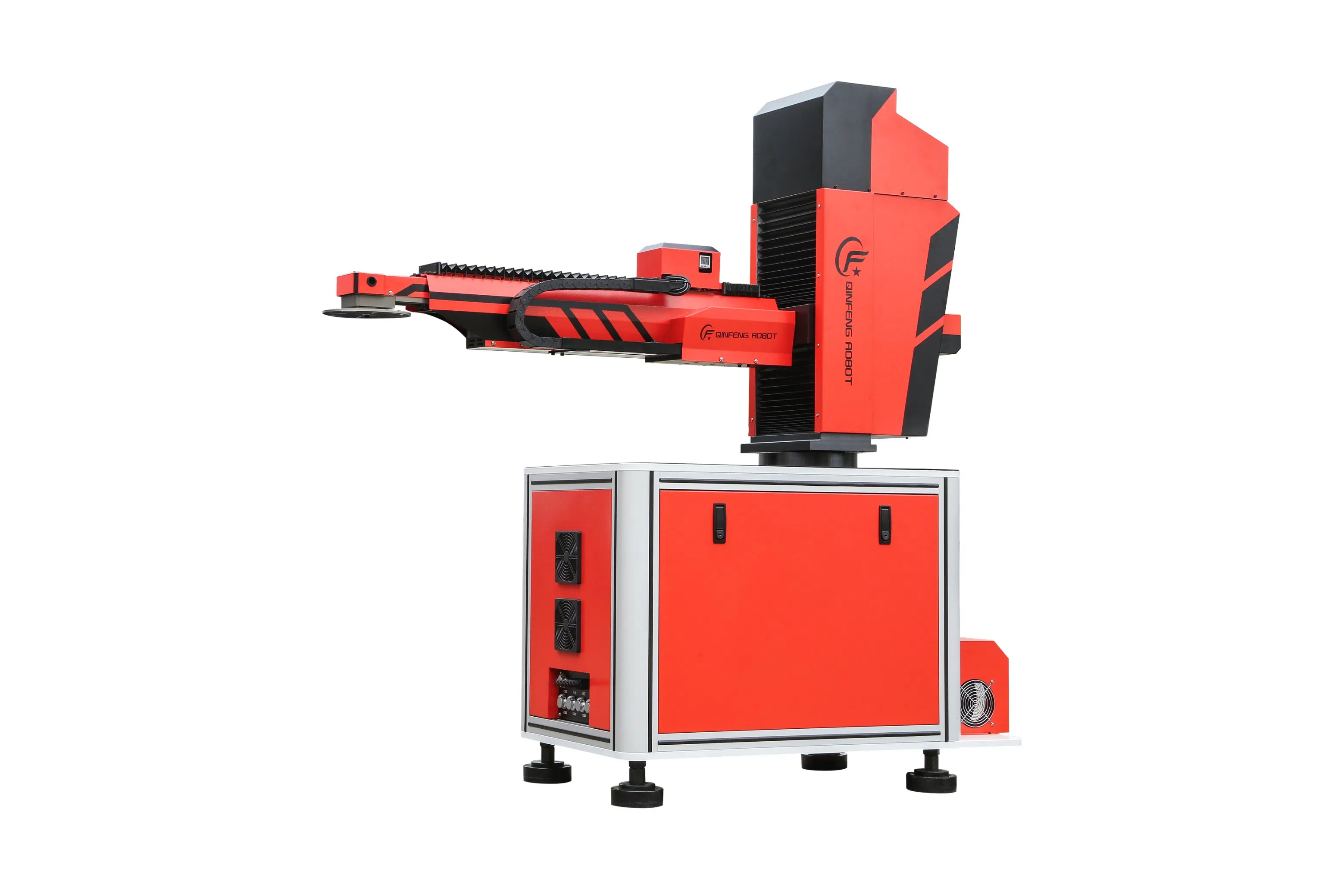

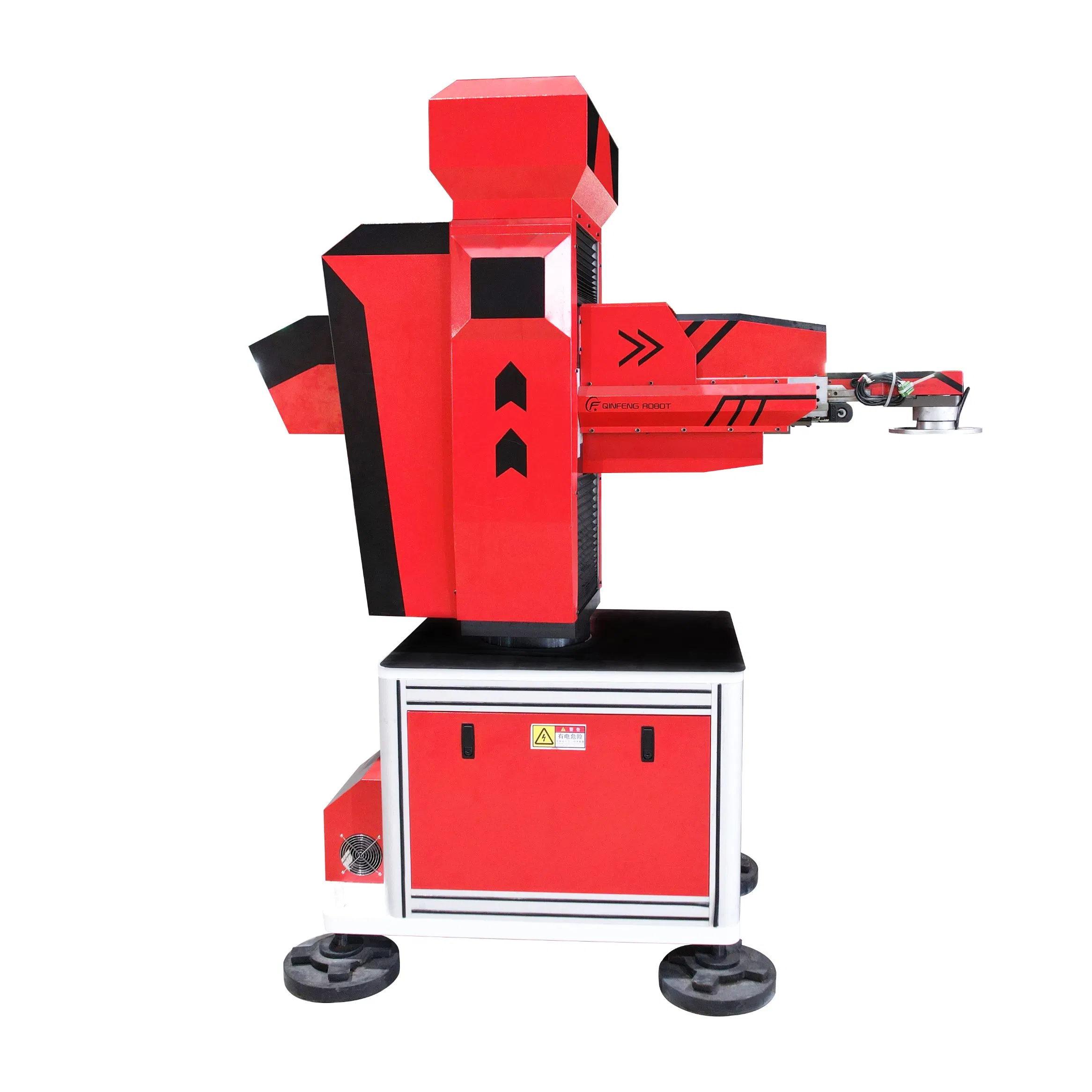

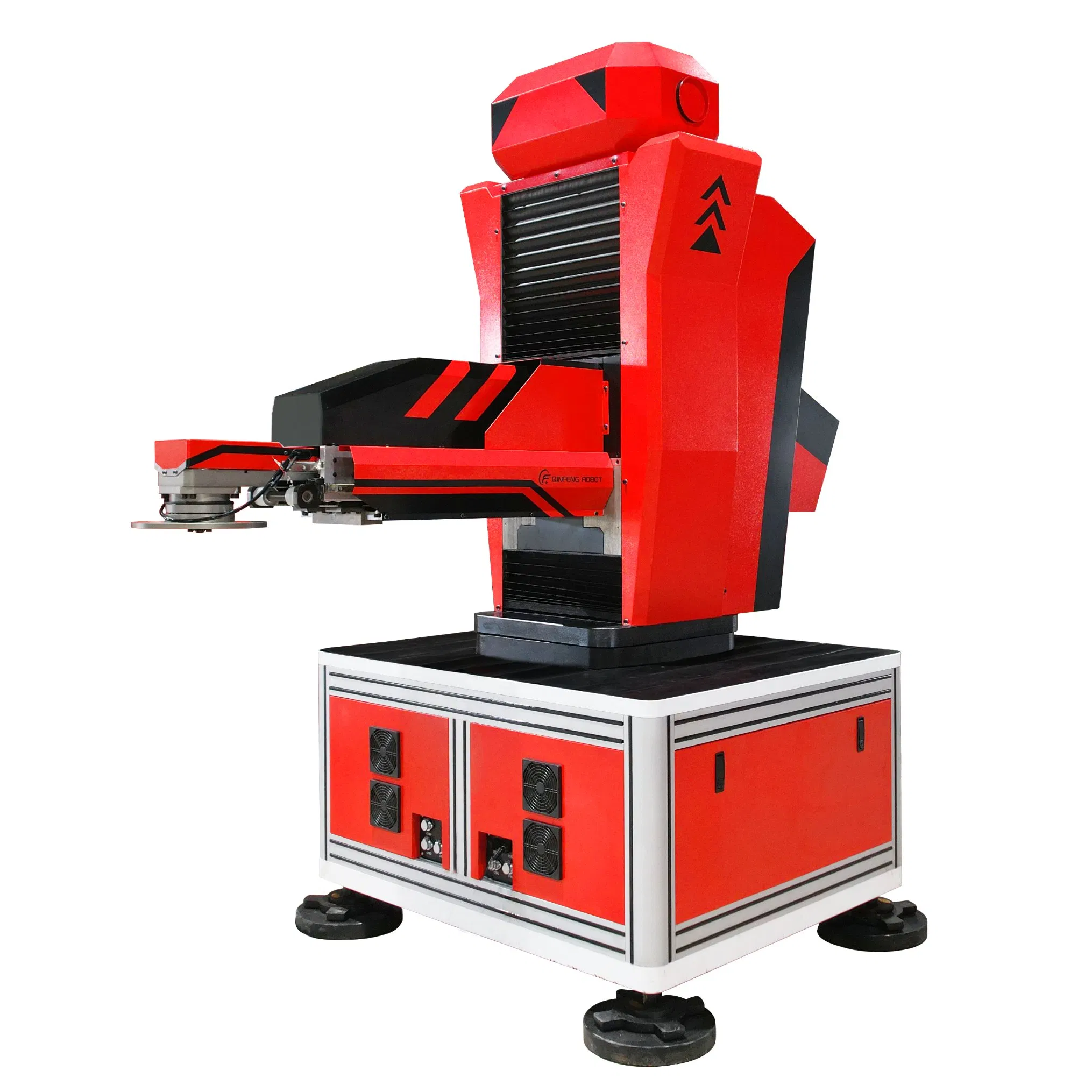

Precise Positioning Swing Arms Manipulator Automatic Robot Arm for Material Handling

1 / 5

Precise Positioning Swing Arms Manipulator Automatic Robot Arm for Material Handling

Customization:	Available
After-sales Service:	Available
Type:	Punch Loading and Unloading

Send Inquiry

Product Description

Basic Specifications

Model NO.

QF-5043-S3-3

Forging Method

Mold Forging

Power Source

Electric

Feature

Automation

Certification

ISO9001, CE

Warranty

12 Months

Condition

New

Max. Radius

1650mm

Voltage

Single Phase 220V

Power

3.5kw

Accuracy

±0.1mm

Shaft

Four-Axis

Payload

≤5kg

HS Code

8428909090

Product Overview

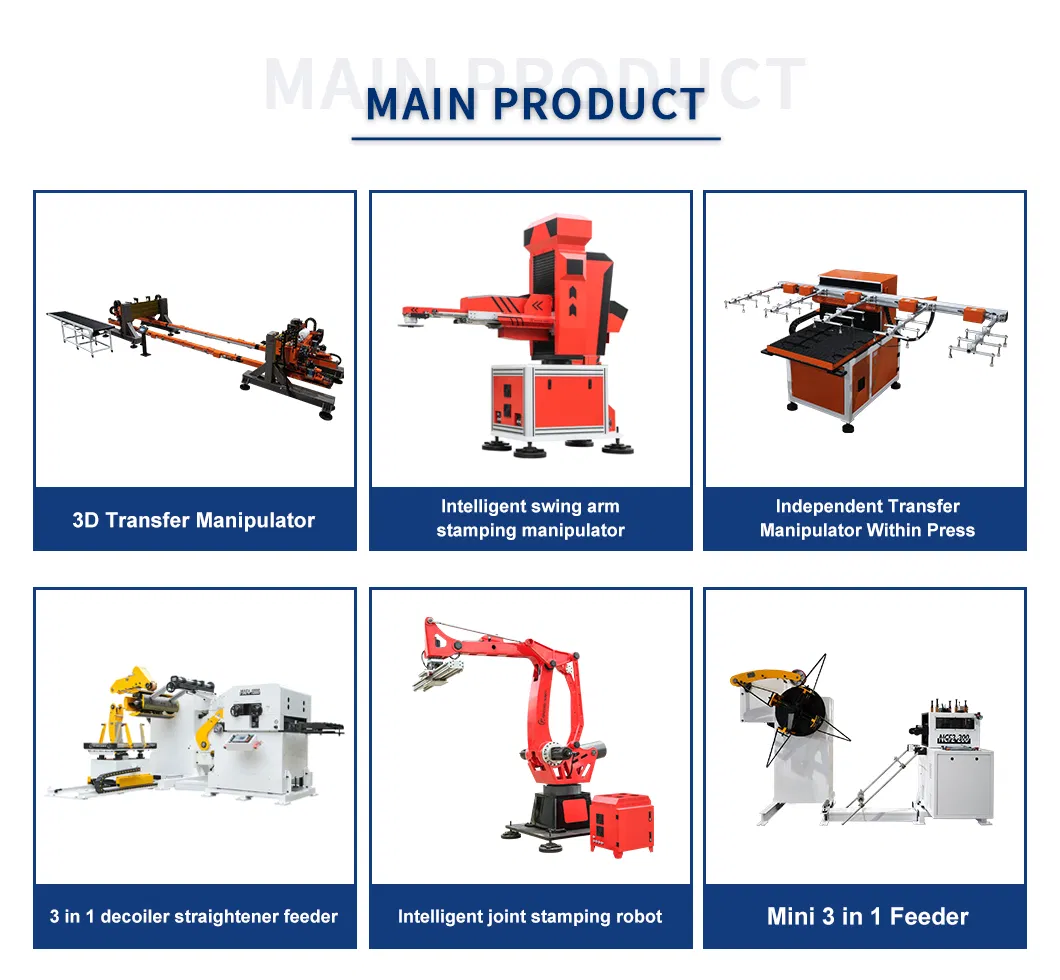

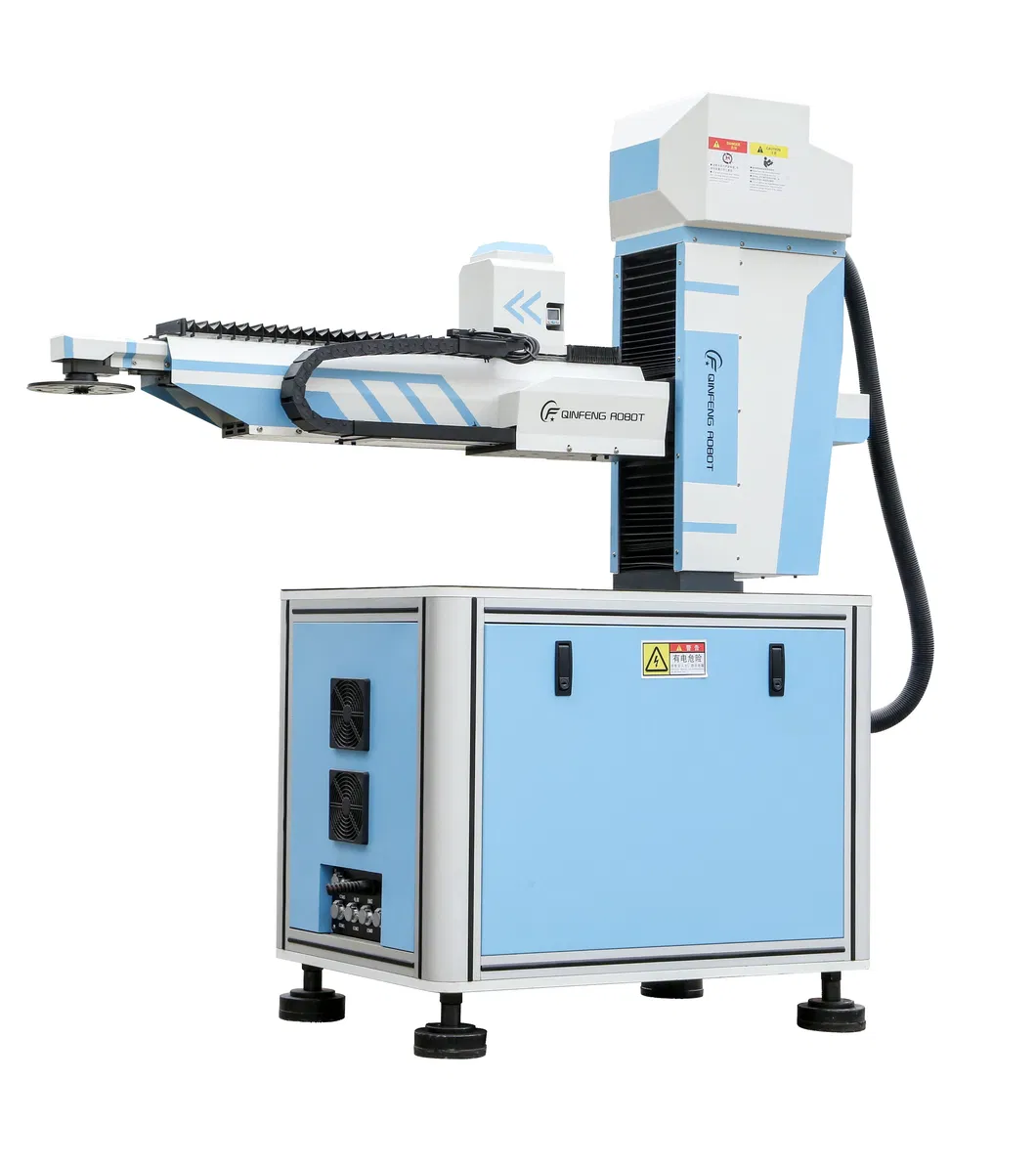

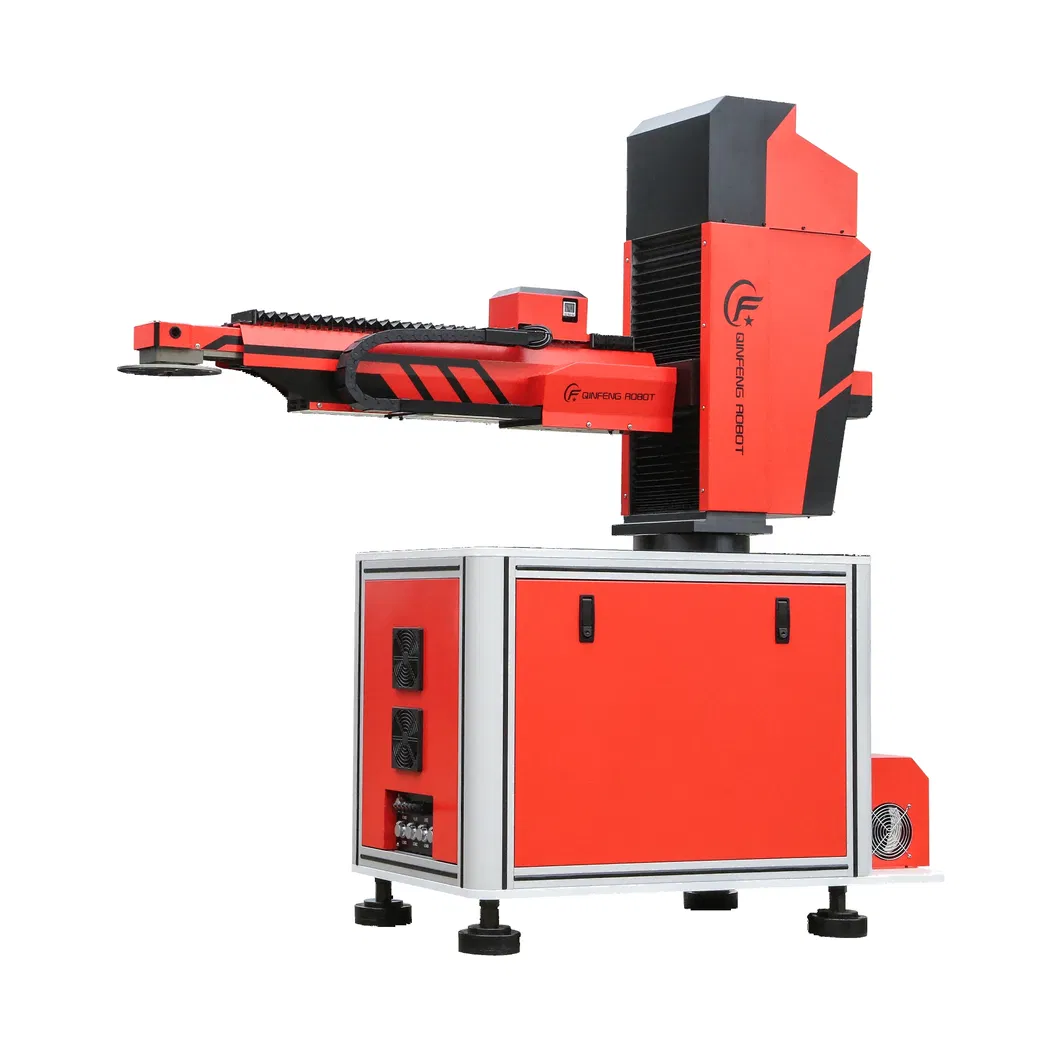

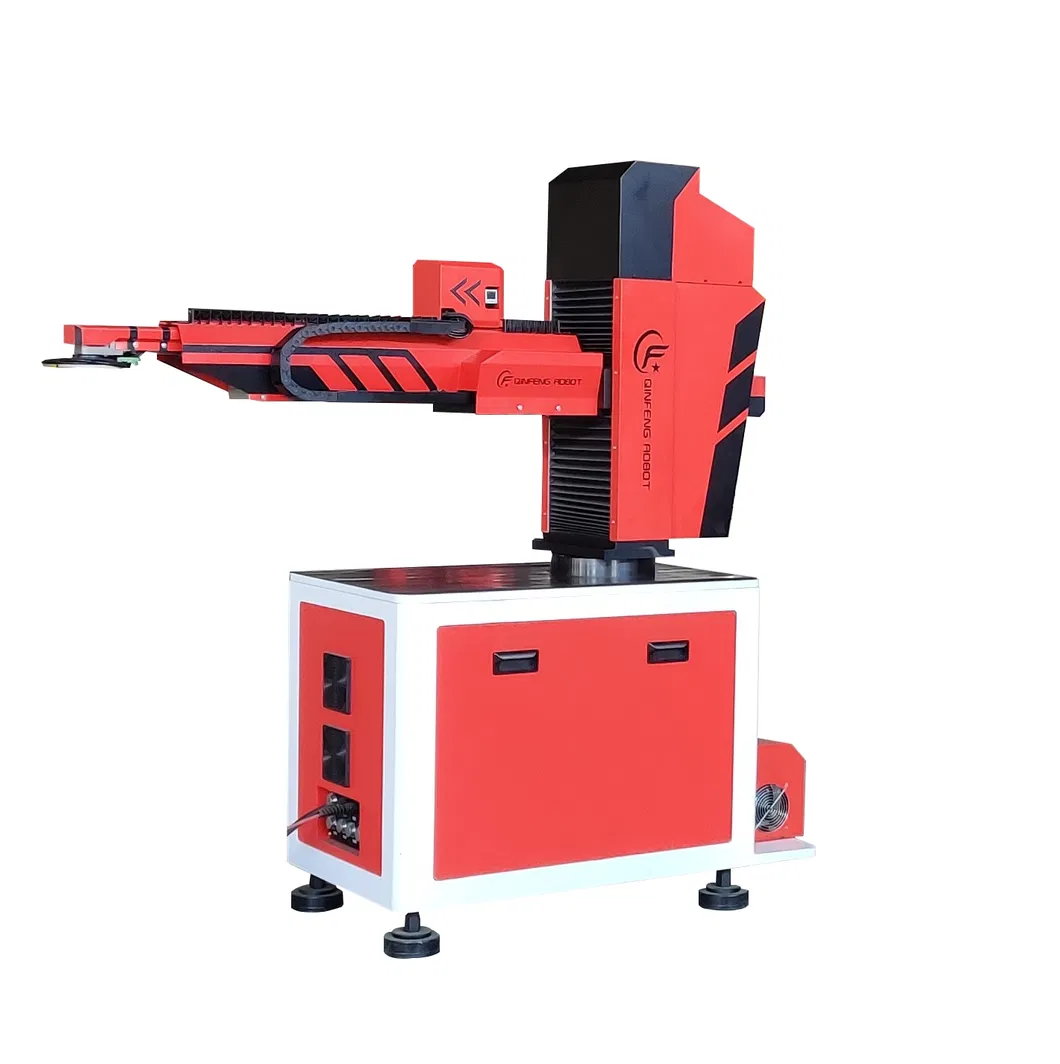

This intelligent robot arm is specifically designed for the stamping sites of electronic products, home appliance parts, and mechanical parts. It effectively solves the requirement for efficient and stable pick-and-place operations for workpieces within 20 kg.

Optimal Motion Track: Self-developed control algorithms automatically generate the most efficient motion paths.
High Flexibility: Supports flipping, scrapping, side hanging, oblique placing, and stacking.
Precision Control: High-performance absolute servo system with power-off position memory.
Universal Compatibility: Connects seamlessly with gear punch presses, pneumatic presses, and hydraulic machines.

Technical Parameters

Parameter	Unit	Index (QF-5045-S3-3)
Voltage	V	220±10%
Power frequency	Hz	50/60
Power	KW	3.5
Working temperature	ºC	-20 ~ 45
Swing axis	degree	±170
Up and down axis	mm	0 ~ 340
Front and rear axis	mm	1120 ~ 1650
Productivity	Pcs/h	800 ~ 1000
Feeder accuracy	mm	±0.2
Payload	kg	≤3
Robot weight	kg	≈350

Frequently Asked Questions

What types of stamping equipment is this robot arm compatible with?

It is compatible with all major types of stamping equipment on the market, including gear punch presses, pneumatic punch presses, and hydraulic presses, regardless of tonnage or machine height.

What is the positioning accuracy and reliability of the system?

The positioning error is strictly controlled at ±0.1mm. Using high-precision core accessories, the failure rate is lower than 1‰, ensuring stable and reliable long-term operation.

Can the motion tracks be customized for specific products?

Yes, the system adopts open programmable technology and supports motion track editing. It can store a variety of product information, allowing for quick interchangeability and long-term use of settings.

What is the expected service life of the manipulator?

With proper maintenance and depending on the production environment, the service life is typically between 8 to 10 years.

How long does the installation and setup take?

The products are highly standardized. You only need to customize the gripper (suction cup, pneumatic, or magnetic). It is easy to install and can typically be ready for mass production within three days of delivery.

Does the system have a memory function for power outages?

Yes, all axes adopt a high-performance absolute servo system which includes a power-off position memory function to avoid the trouble of returning to the origin after a power failure.
