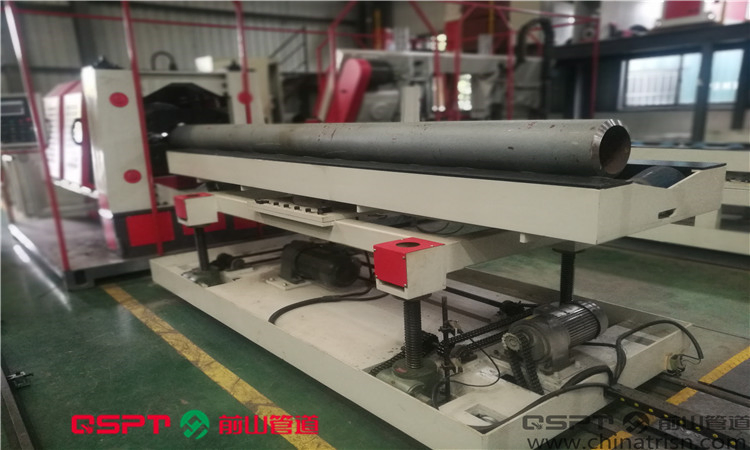

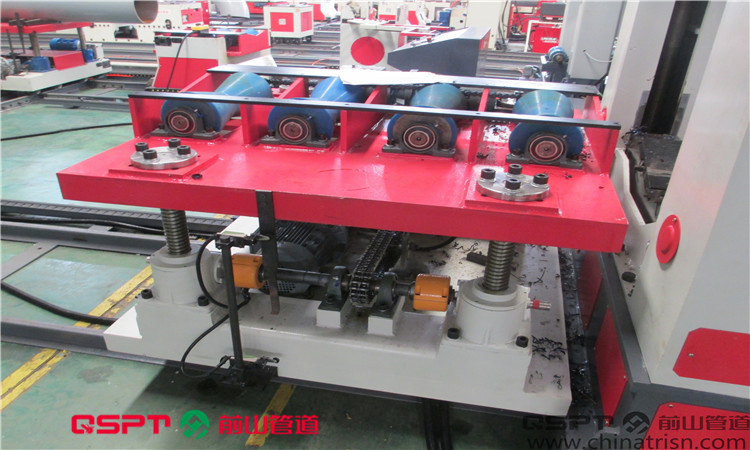

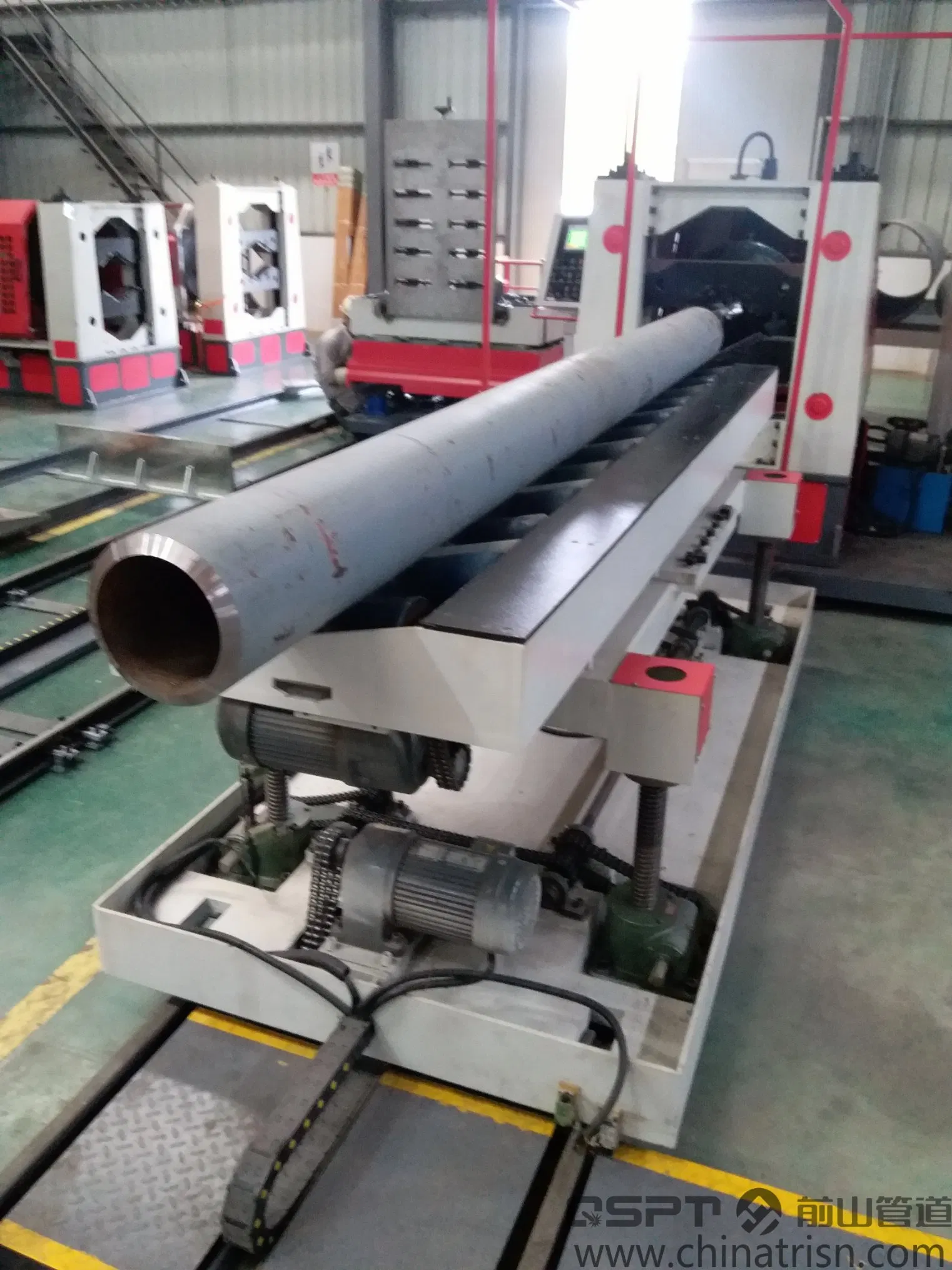

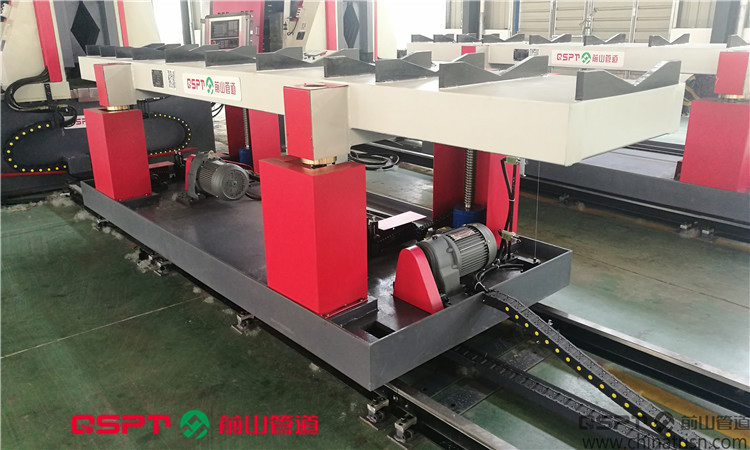

Pipe Prefabrication Light Rail Convey System

1 / 5

Pipe Prefabrication Light Rail Convey System

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.

PPLTS-01T2

Structure

Roller Conveyor

Material

Carbon Steel

Material Feature

Heat Resistant

Application

Chemical Industry

Condition

New

Usage

Transportation Chain

Production Capacity

30 Sets/Month

Product Description

Pipe Prefabrication Light Rail Conveying System (Model: PPLTS-01T2; PPLTS-01T1)

Performance Features:

Conveying the pipe or spool piece automatically between each workstage and workstation.
Equipped with a turning mechanism for pipe removal if necessary.
Increases the automatization level in the pipe fabricating plant.
Decreases hazards during hoisting and manual handling.

Technical Parameters	Details
Pipe diameter applicable	DN50~600 (φ 60~610)
Conveying length	≤ 12000mm (Customizable)
Line length / Height	50M / 800MM
Conveying speed	2~20M/Min
Conveying way	Carriage movement along on the rail & conveying automatically
Driven system	Storage battery AC motor
Control system	Wire control / Wireless remote control
Loading Weight	1T

Product Display

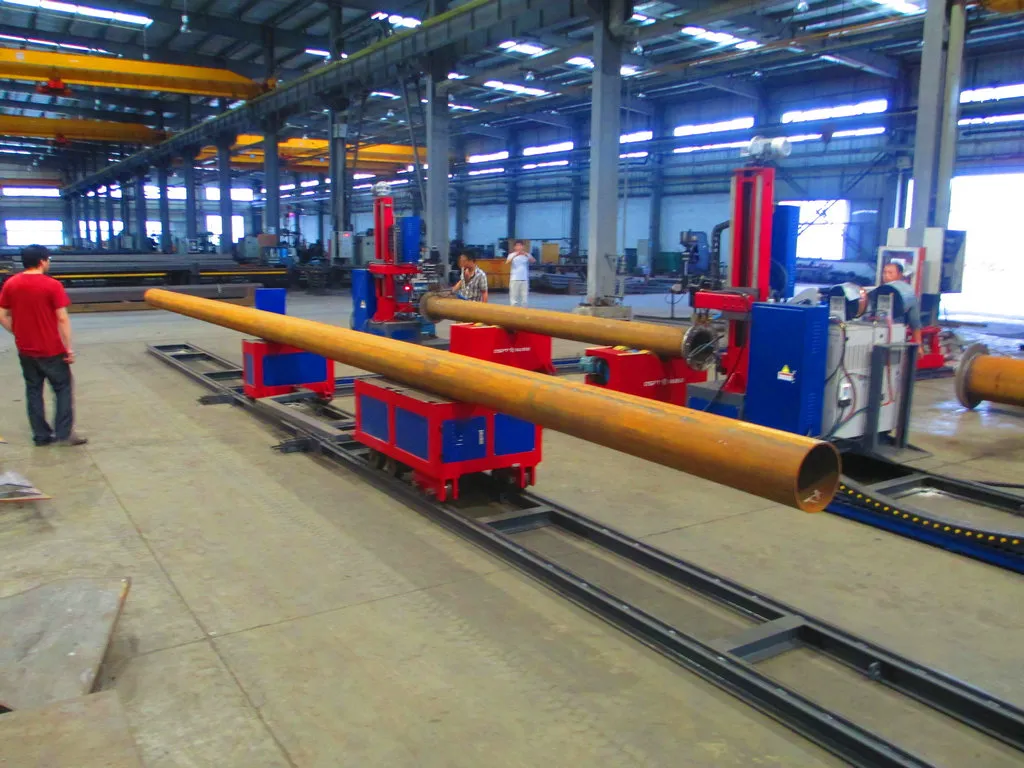

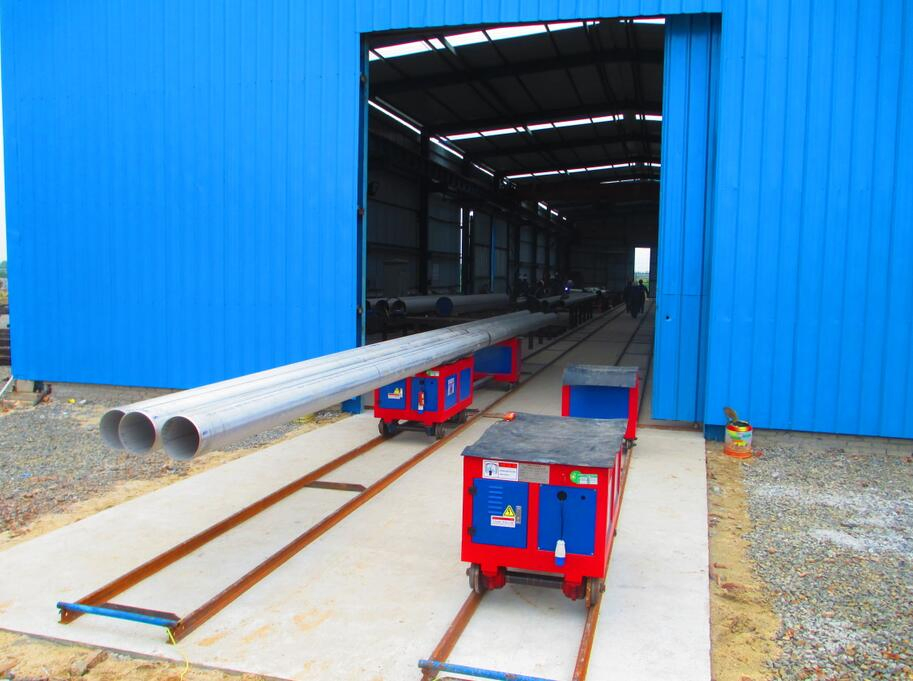

Pipe Prefabrication Light Rail Convey System 1

Pipe Prefabrication Light Rail Convey System 2

Pipe Prefabrication Light Rail Convey System 3

Pipe Prefabrication Light Rail Convey System 4

Company Profile

We are a professional manufacturing company specializing in pipe fabrication machines. Our product range includes pipe beveling/chamfering machines, pipe welding machines, pipe/elbow/flange fitting-up equipment, intelligent pipe warehouses, and complete pipe fabrication lines.

We have established partnerships with numerous global companies across Oil & Gas, Petrochemical, Marine Engineering, Nuclear Energy, and Shipbuilding industries. Our solutions are exported extensively to Southeast Asia, Africa, Europe, and the Americas.

After Sales Service

Service Aim: Standing in the customers' shoes to provide optimal solutions.
Standard: Client satisfaction is our primary benchmark.
Service Quality: Professional, comprehensive, and detailed technical support.
Commitment: Quickly and efficiently resolve all issues raised by clients.

Frequently Asked Questions

Q: Are you a trading company or a manufacturer? A: We are a factory-based trading company with professional manufacturing capabilities.

Q: How long is your delivery time? A: Generally it is 30-40 days if the goods are in stock. For non-stock items, it typically takes 60-80 days depending on the quantity.

Q: What are your terms of payment? A: For orders <= 1000USD, 100% in advance. For orders >= 1000USD, 40% T/T in advance, with the balance due before shipment.

Q: Can the conveying length be customized? A: Yes, the conveying length can be adjusted to ≤ 12000mm or specifically tailored to meet customer requirements.

Q: What control systems are available for the rail system? A: The system supports both wire control and wireless remote control for operational flexibility.

Q: What industries is this system suitable for? A: It is widely used in Chemical Industry, Oil & Gas, Power Plants, and Shipbuilding for efficient pipe fabrication.
