Basic Specifications
| Model NO. | CNG-1000/250-2 | Certification | CE |
| Temperature | Customized | Connection | Flange |
| Valve Seat | Customized | Structure | Skid |
| Material | Stainless Steel | Product Type | RMS / Gas Pressure Reducing Skid |
| Storage Medium | CNG, LNG | Flowrate | 120-15000nm3 |
| Application | CNG / Natural Gas / Industrial Gas | Condition | New |
| Inlet Pressure | ≥250 Barg | Main Components | Filter, Regulator, Heater, Meter |
| Specs | DN50, DN80, DN100, DN150 | Temperature Range | -20℃±60℃ |
| Production Capacity | 10000PCS/Year | HS Code | 8716319000 |
About Our Expertise

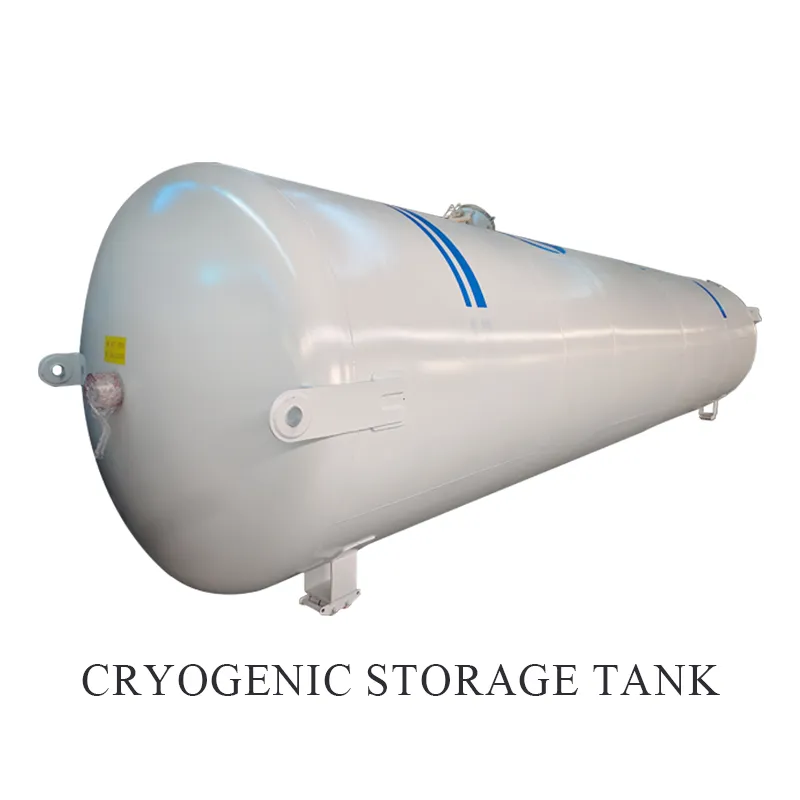

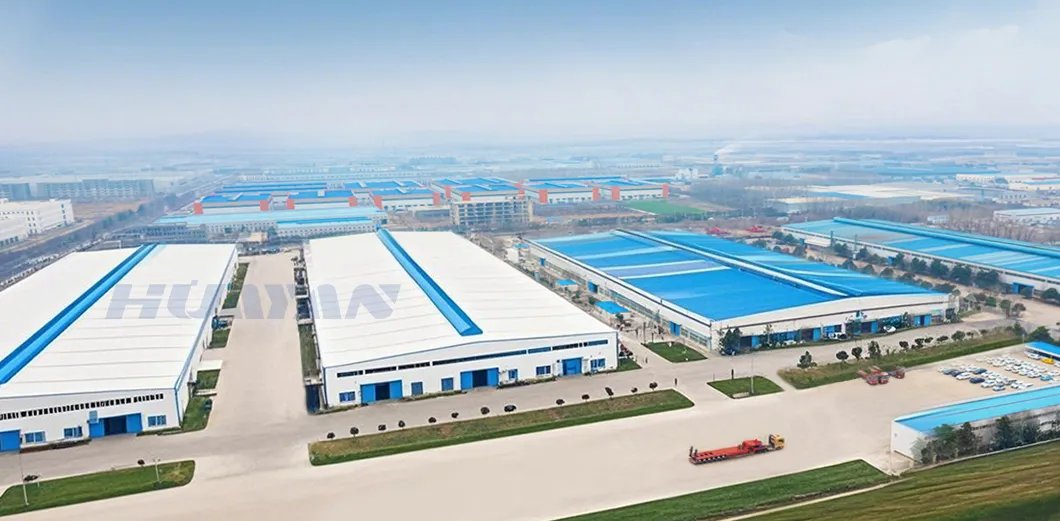

Established in 2005, we are a leading integrated transportation solution provider integrating R&D, production and trade. Covering an area of 222,000 square meters, we utilize advanced automation equipment, a professional R&D team and cutting-edge manufacturing technology to provide high-quality special transportation equipment. This includes gas equipment (pressure reduction skids, cryogenic storage tanks, gasifiers), hydraulic modular trailers, gas pipeline slide container trailers, powder/liquid tankers and a full range of semi-trailers for energy, hazardous chemical transportation and engineering logistics.
Our core hydraulic system is compatible with international standards, ensuring compliance with global technical requirements. With more than 20 years of export experience, we serve more than 30 countries worldwide. We have achieved ISO9001, ASME, and ADR certifications, supported by a R&D team of more than 60 specialists.
Product Description

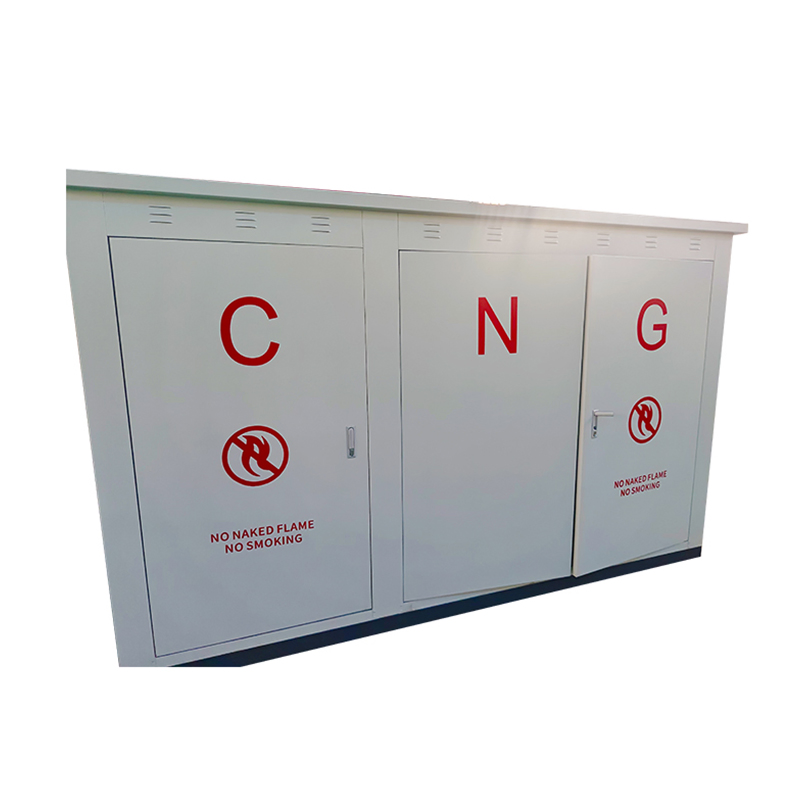

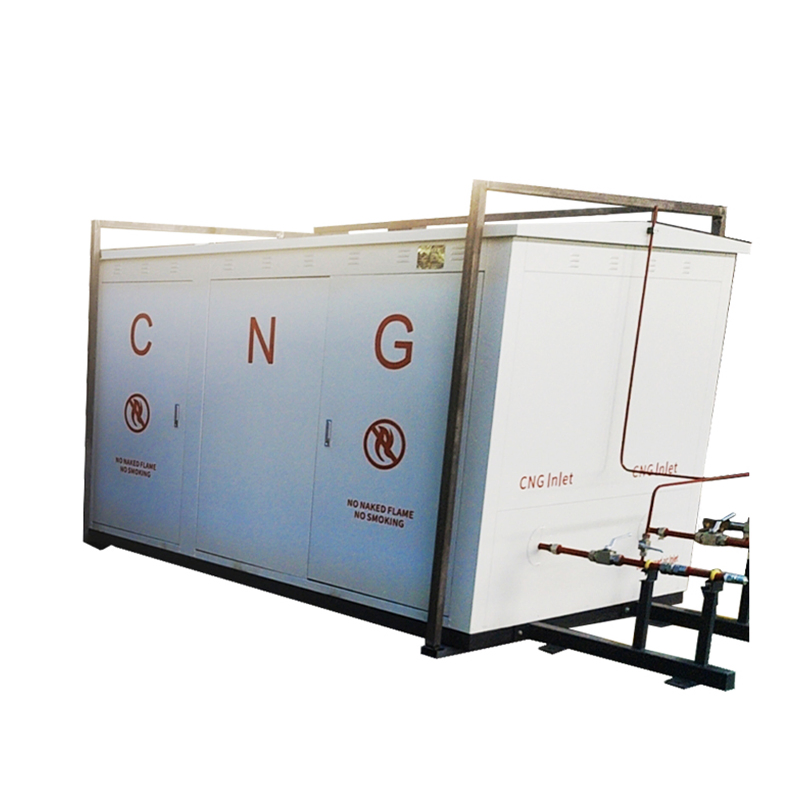

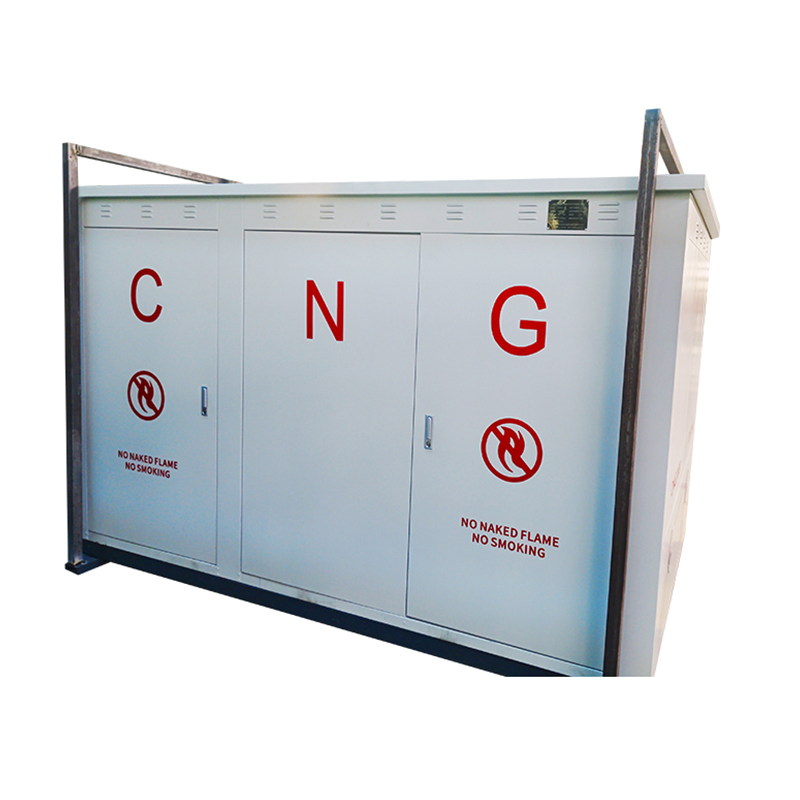

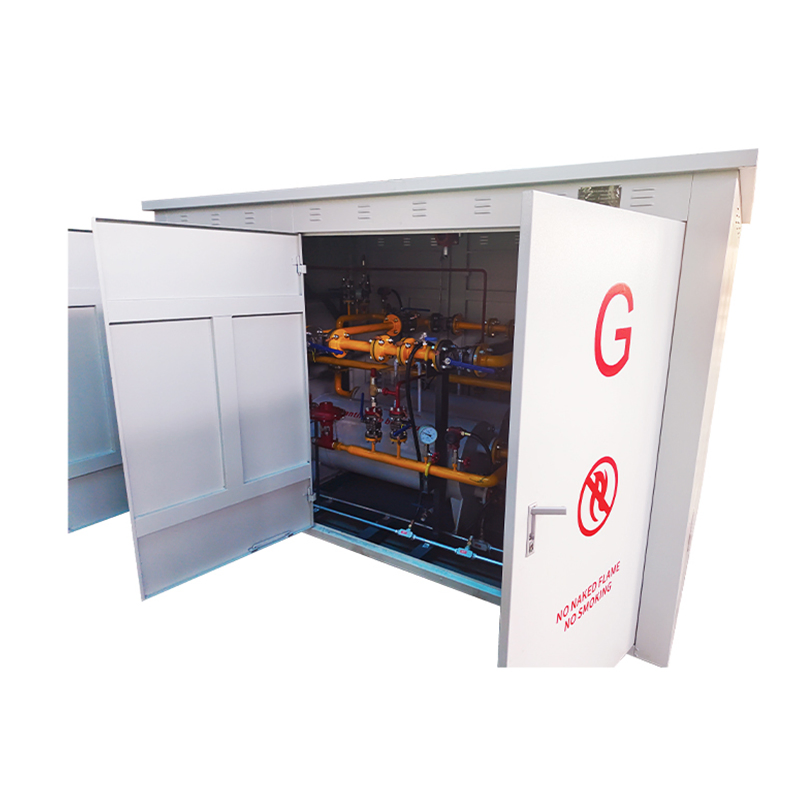

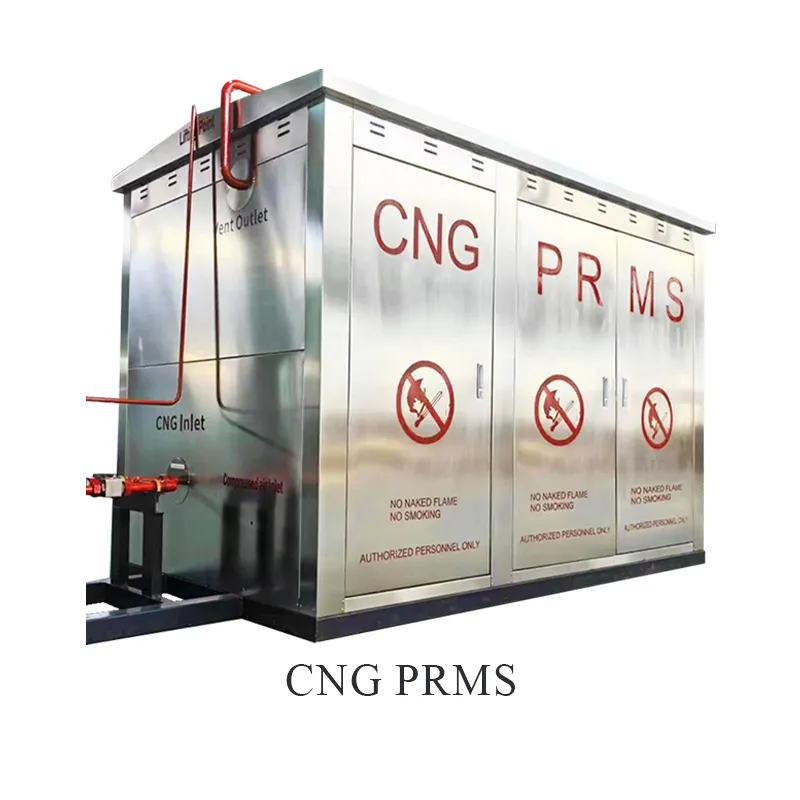

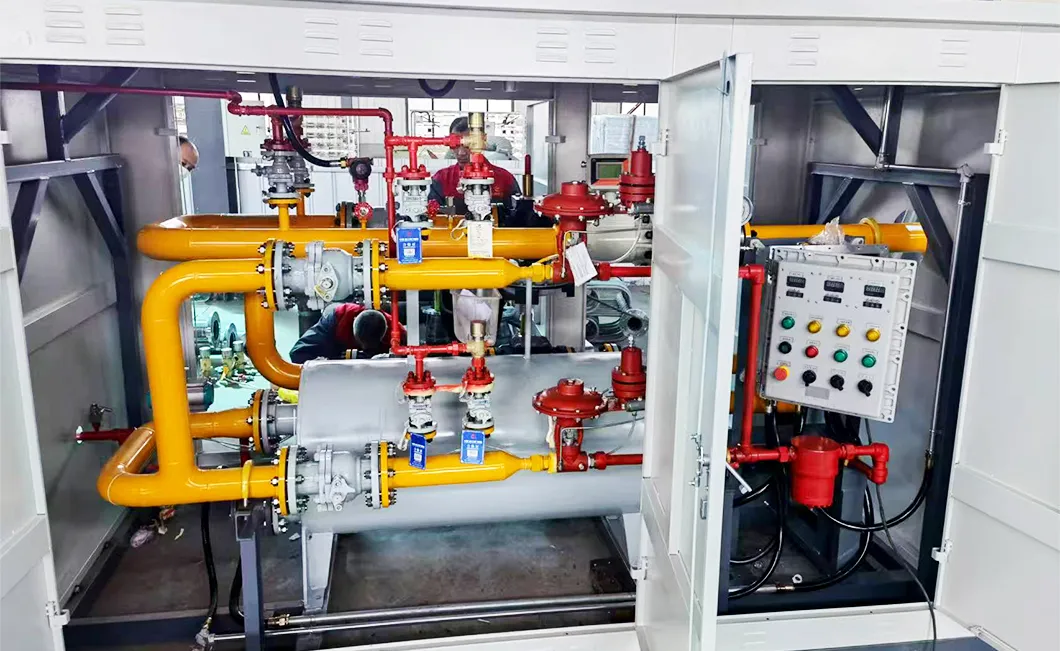

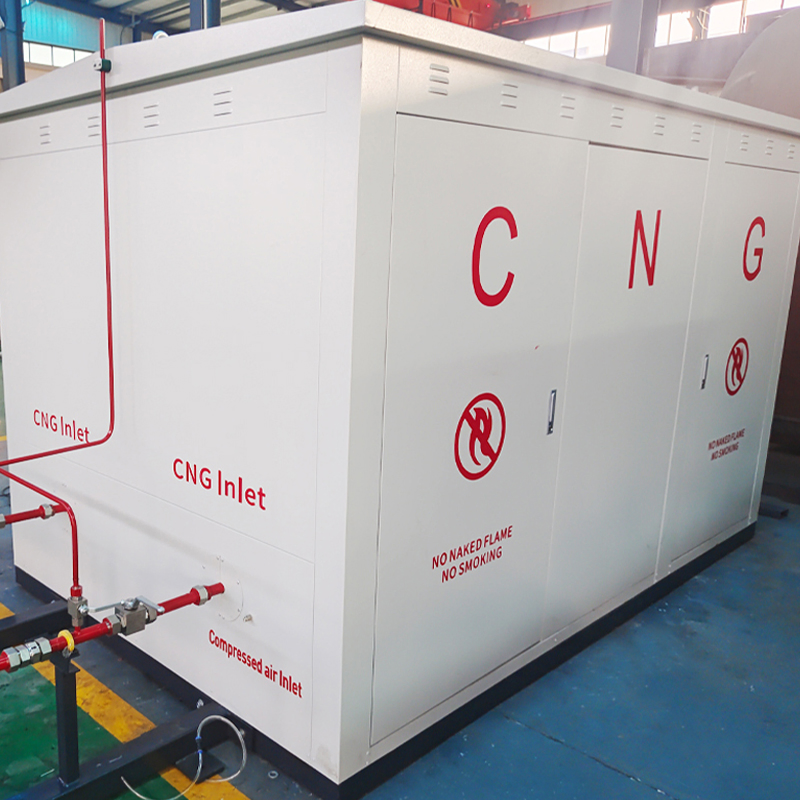

This series of pressure-regulating boxes is primarily designed for medium and low-pressure gas transmission and distribution systems. Each unit includes a filter, pressure regulator (with self-shutoff and release functions), ball valve, pressure gauge, and enclosure. The box features a compact structure, easy maintenance, and reliable safety performance. It is suitable for use in civil buildings and at small to medium-sized sites, such as apartment complexes, hotels, and restaurants.
Technical Parameters
| Structural mode | Two-stage pressure regulation, overall skid-mounted |
| Rated gas supply | 1000m³/h |
| Inlet pressure | 25MPa |
| Outlet pressure | 0.2-0.4MPa |
| Pressure reduction level | 2 levels |
| Heat exchange level | 2 levels |
| Heat exchange temperature | 60-75ºC |
| Outlet temperature | ≥-5ºC |
| Alarm mode | Sound and light dual alarm |
| Medium | Compressed natural gas |
Key Features & Advantages
- Integrated equipment: pressure regulation, metering, filtration, safety cut-off and release.
- Strict performance tests: Air tightness and pressure tests conducted before factory release.
- Compact design: Reasonable structure, small footprint, suitable for indoor/outdoor installation.
- Scalability: Supports gas alarms, data acquisition, and insulation upgrades.
- Durability: Precision-engineered with shot-blasted surfaces and epoxy coatings for rust resistance.
Certifications & Global Presence
Our products have passed ISO9001, 14001, and CE certifications. We provide relevant documentation to meet specific national requirements.
Packing & Delivery
We prepare detailed delivery schedules for every project, backed by robust logistics capabilities for both domestic and international shipping.
Frequently Asked Questions
What are the main components of a CNG PRMS?
The system typically includes a regulator, flowmeter, water heater, various valves, and the necessary pipelines.
What range of products do you provide?

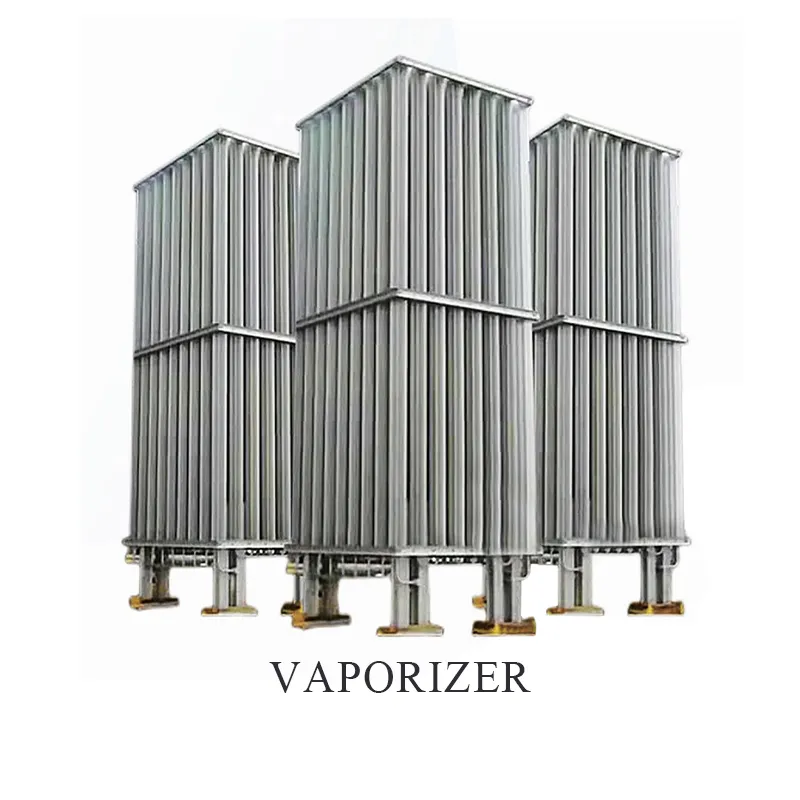

We offer CNG Skid containers, tube trailers, PRMS units, Mobile Stations, Gas Compressors, Vaporizer Equipment (LNG/BOG/EAG), and specialized trailers like hydraulic modular and lowbed trailers.
Can the equipment be customized?
Yes, all products can be customized according to specific technical requirements, working conditions, and national standards.
Do you provide a one-stop service?
Absolutely. By cooperating with our professional team, you gain access to a full suite of services from design and manufacturing to logistics and technical support.
What is the typical delivery time?
Standard models in stock can be shipped within 30 days. Customized orders are generally ready for shipment within 40 days.
How do you ensure product safety before shipping?
Every unit undergoes strict performance tests, including air tightness and pressure tests, to ensure safety and stability before leaving the factory.
