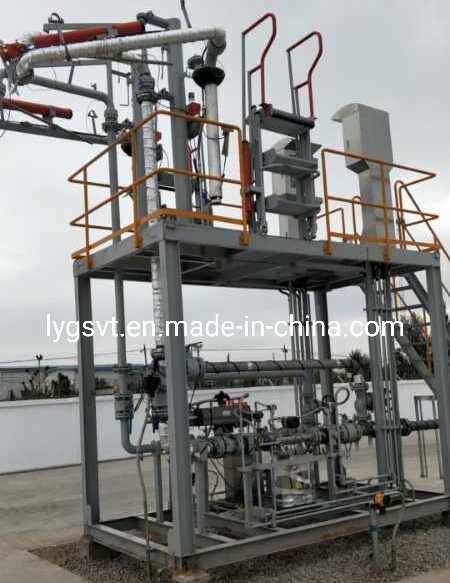

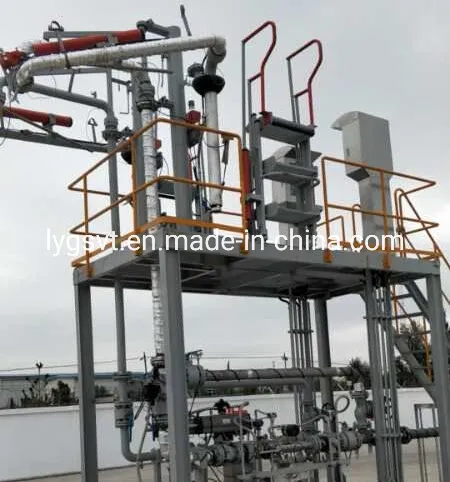

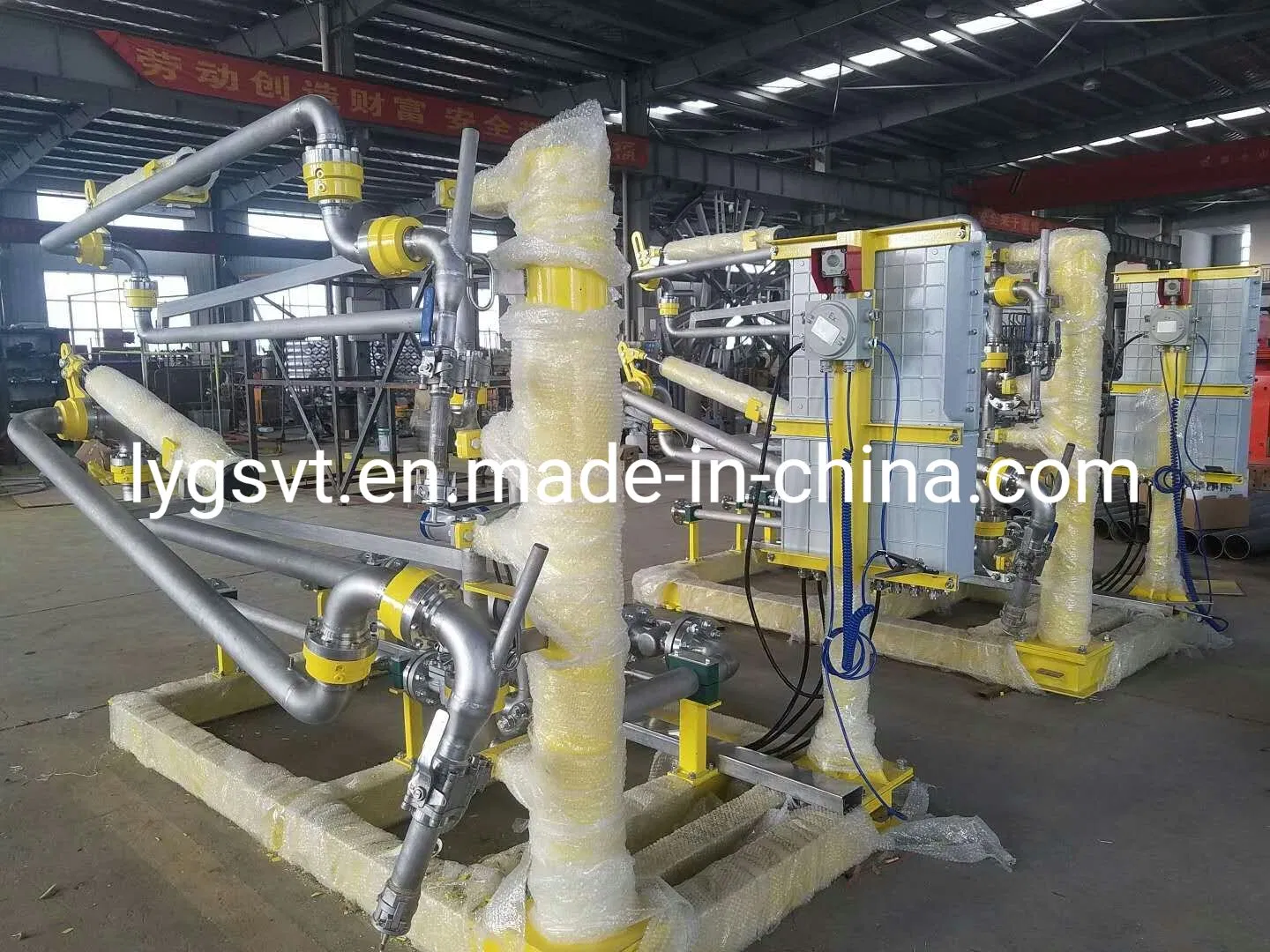

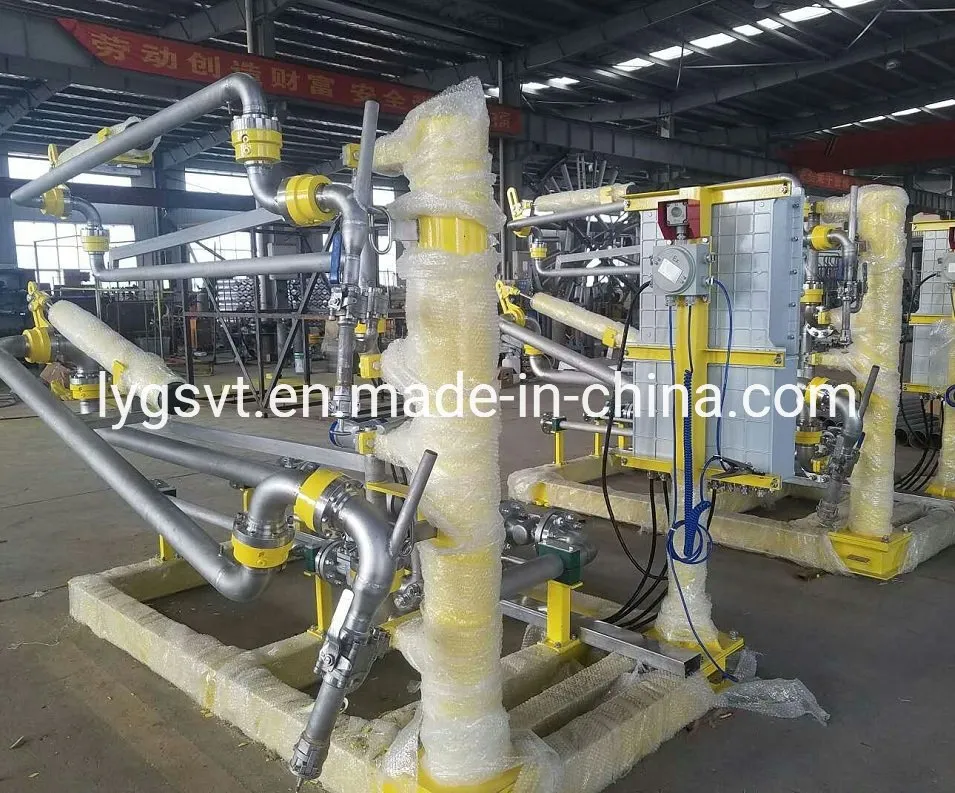

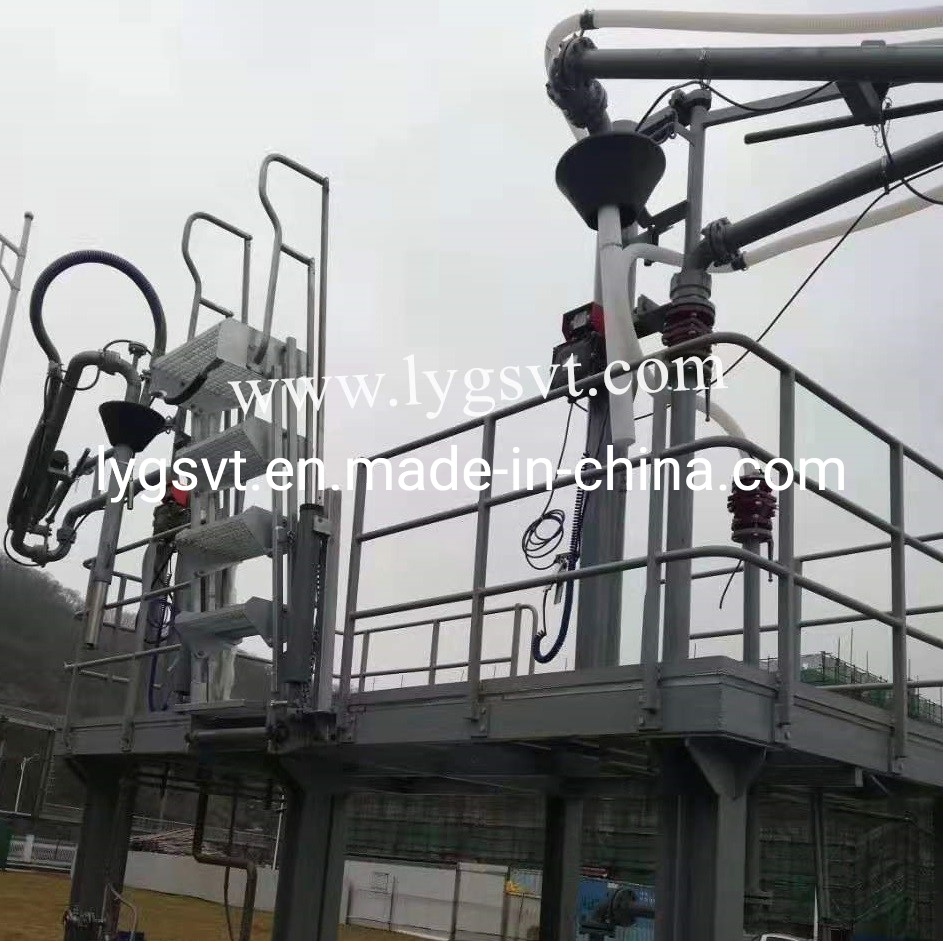

Skid Loading Arm with Metering System (Terminal skids) are specialized for transferring high-value products like crude oil, bunker fuels, refined fuels, LPG, and various chemicals. These systems ensure safe transfer through bulk flow meters for precise measurement during loading into trucks, rail cars, or ships.

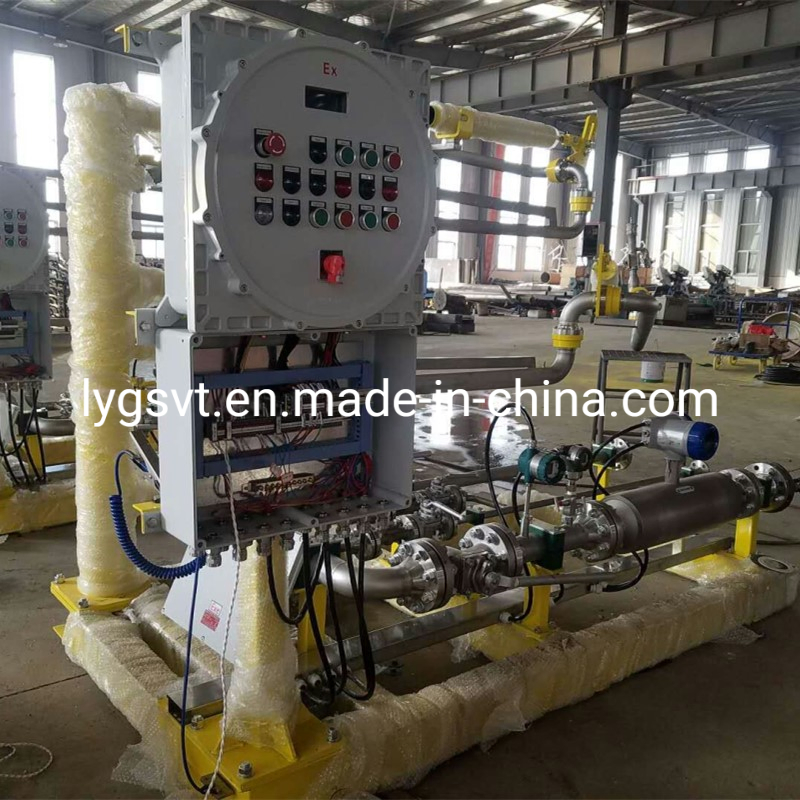

Our loading skids are tailored solutions featuring fully integrated systems. This includes loading arms, flowmeters, pressure gauges, temperature transmitters, flow control valves, and pneumatic shut-off valves, all mounted on a robust, corrosion-resistant steel frame.
| Parameter Item | Specifications |
|---|---|
| Service Product | Gasoline, Diesel, LPG, Liquid Ammonia, Liquid Chemicals |
| Nominal Diameter | DN50 ~ DN150 (2" to 6") |
| Vapor Return Line | DN50, DN80 (2", 3") |
| Design Pressure | -0.08 Mpa ~ +2.5 MPa |
| Design Temperature | -196°C ~ +110°C |
| Pipe Material | Carbon Steel, Stainless Steel, Low-temp Steel, PTFE-lined |

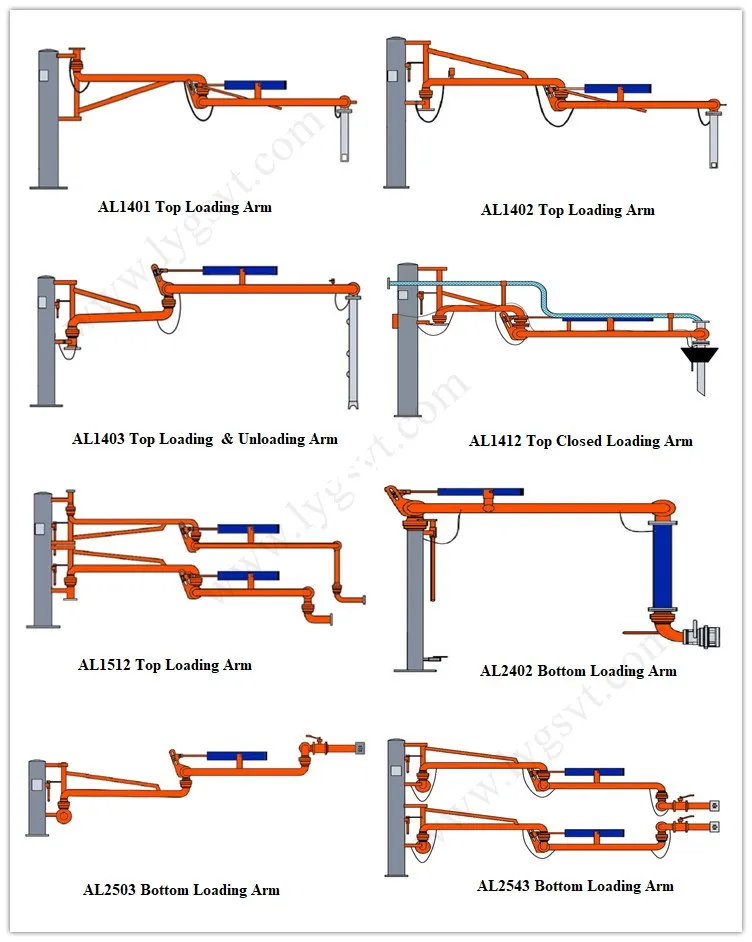

| Skid Loading Type | Bottom and Top Loading |
We specialize in the design, manufacture, and installation of a wide range of fluid equipment, including Land Loading Arms, Marine Loading Arms, Internal Floating Roofs, Floating Suction Units, Folding Stairs, and Automatic Quantitative Loading Systems.
Our strength lies in our professional technical personnel and a strict quality assurance system. We adhere to ISO9001 standards across design, procurement, production, and after-sales service. With advanced processing, welding, and testing equipment, we provide customers with comprehensive technical support.
