Liftora Arm
1 / 5
| Model NO. | AL1401 |
| Certification | ISO 9001:2000 |
| Power Source | Manual |
| Operation Pressure | Pn4.0 |
| Applicable Medium | Mud, Water, Crude Oil, Gasoline, Diesel |
| Structure | Seamless Pipe with Swivel Joint |
| Material | Stainless Steel, Carbon Steel, PTFE Lined etc |
| Quality Guarantee | 1 Year |
| Application | Truck Tanker, Rail Car, Marine |
| Specification | DN50, DN80, DN100, DN150 |
| Production Capacity | 5000 Sets / Year |

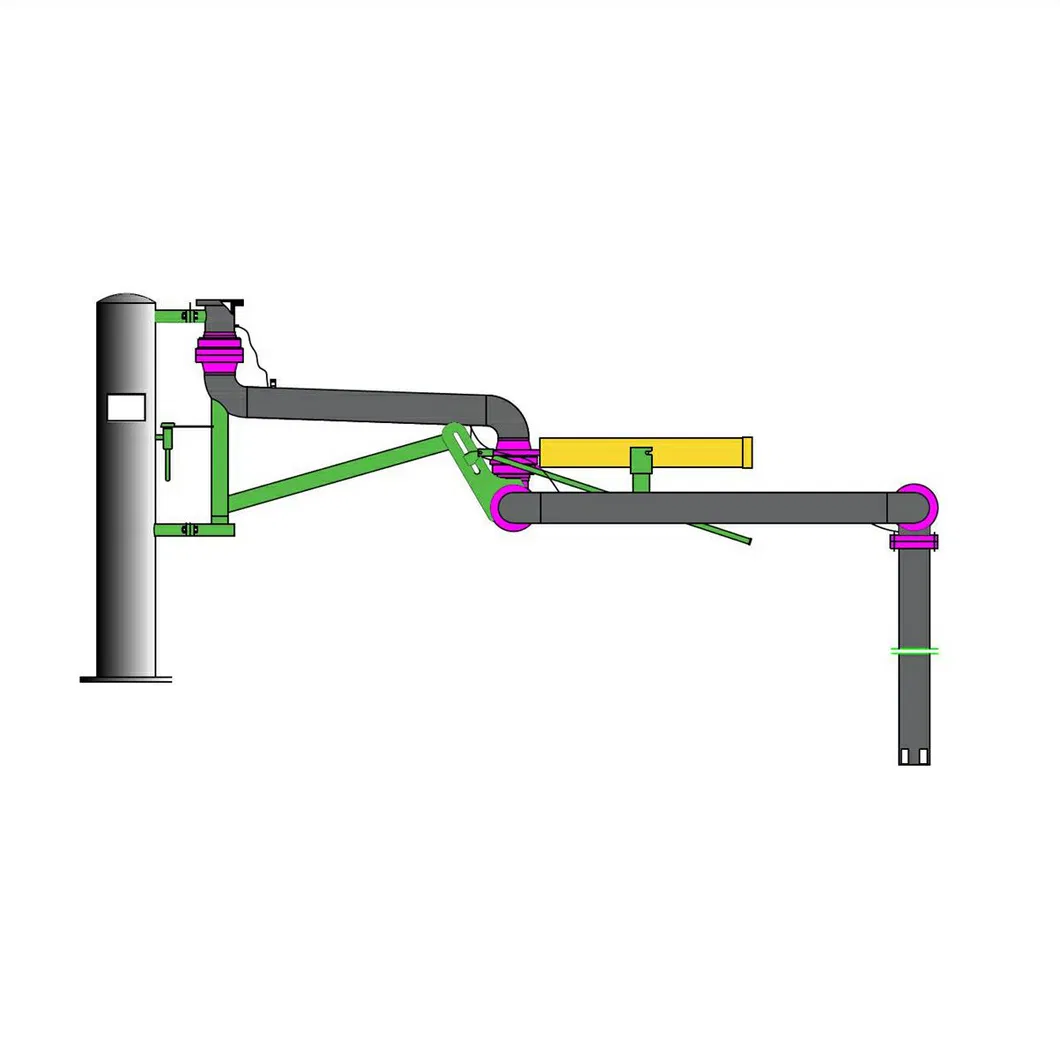

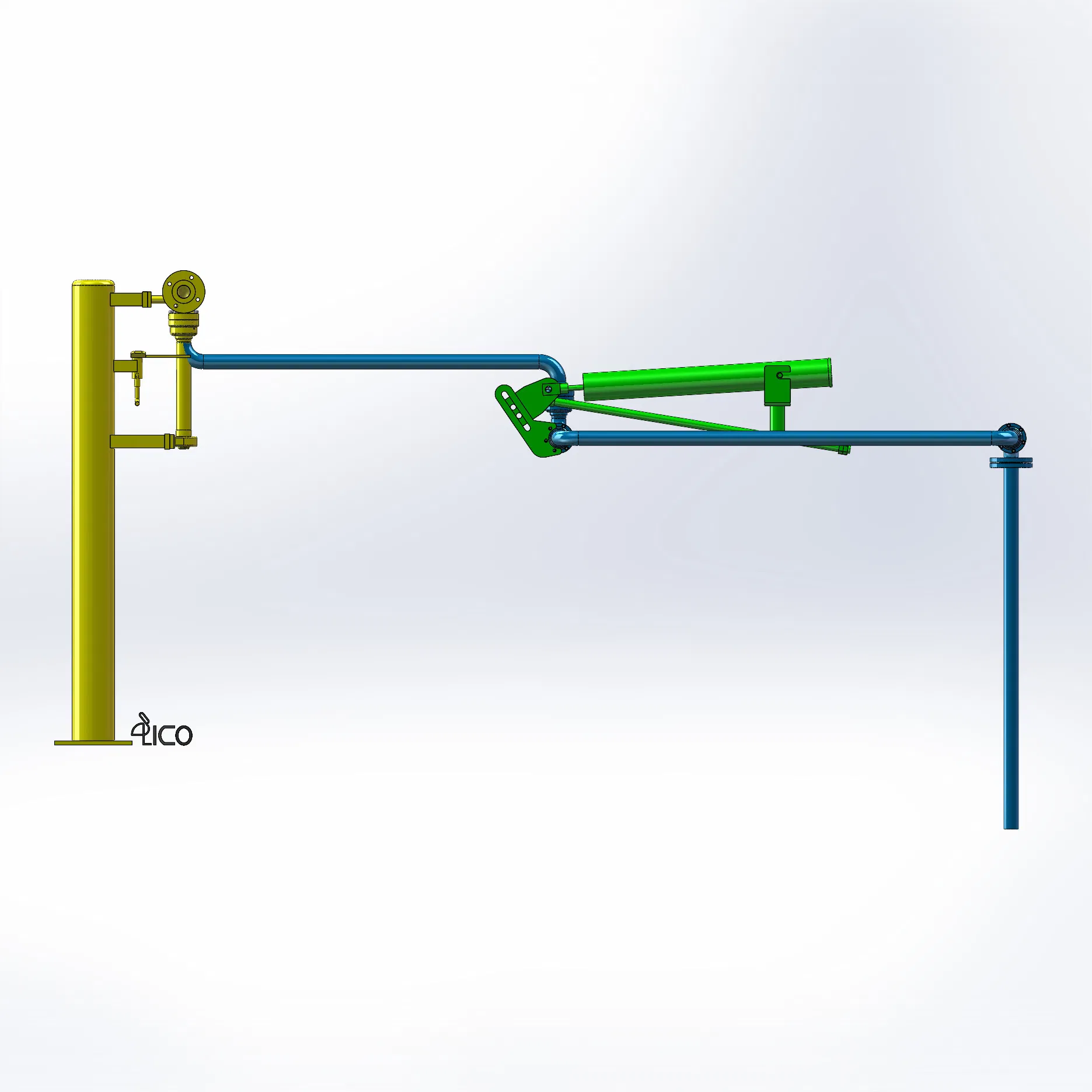

The structure for loading arm AL1401:
Crane AL1401 is often used for open-top loading of tank trucks and is suitable for crude oil, refined oil, chemical media, etc. The working pressure ranges from 1.0Mpa to 2.5Mpa, and the design temperature ranges from -19ºC to +110ºC. The pipeline material can be selected from carbon steel, stainless steel, etc., which can meet various working conditions.
Our land loading arm is especially designed for transporting fluid between piping system and tanker, which shall be designed for different tanker, liquids and site conditions.
| AL1401 Technical Specifications | |
|---|---|
| Places Applied | Top open loading |
| Applications | Product oil, chemicals |
| Nominal Diameter | DN25~DN200 (1"~8") |
| Working Temperature | -196~250ºC |
| Working Pressure | PN1.0~PN4.0 |
| Material of pipeline | Carbon steel, stainless steel, aluminum, low-temperature steel, PTFE lined etc. |

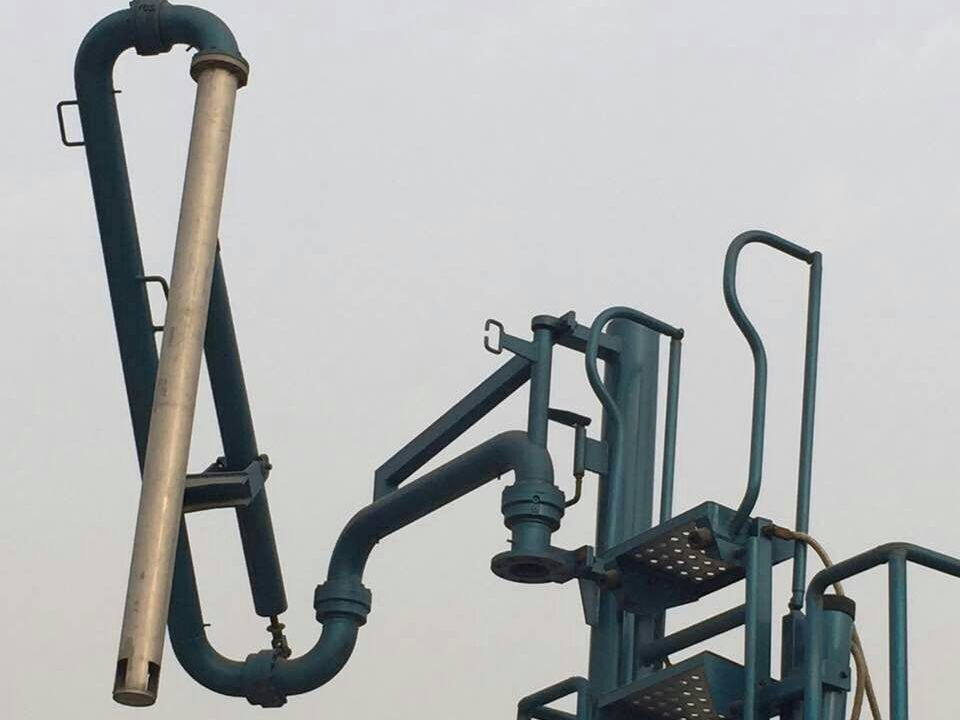

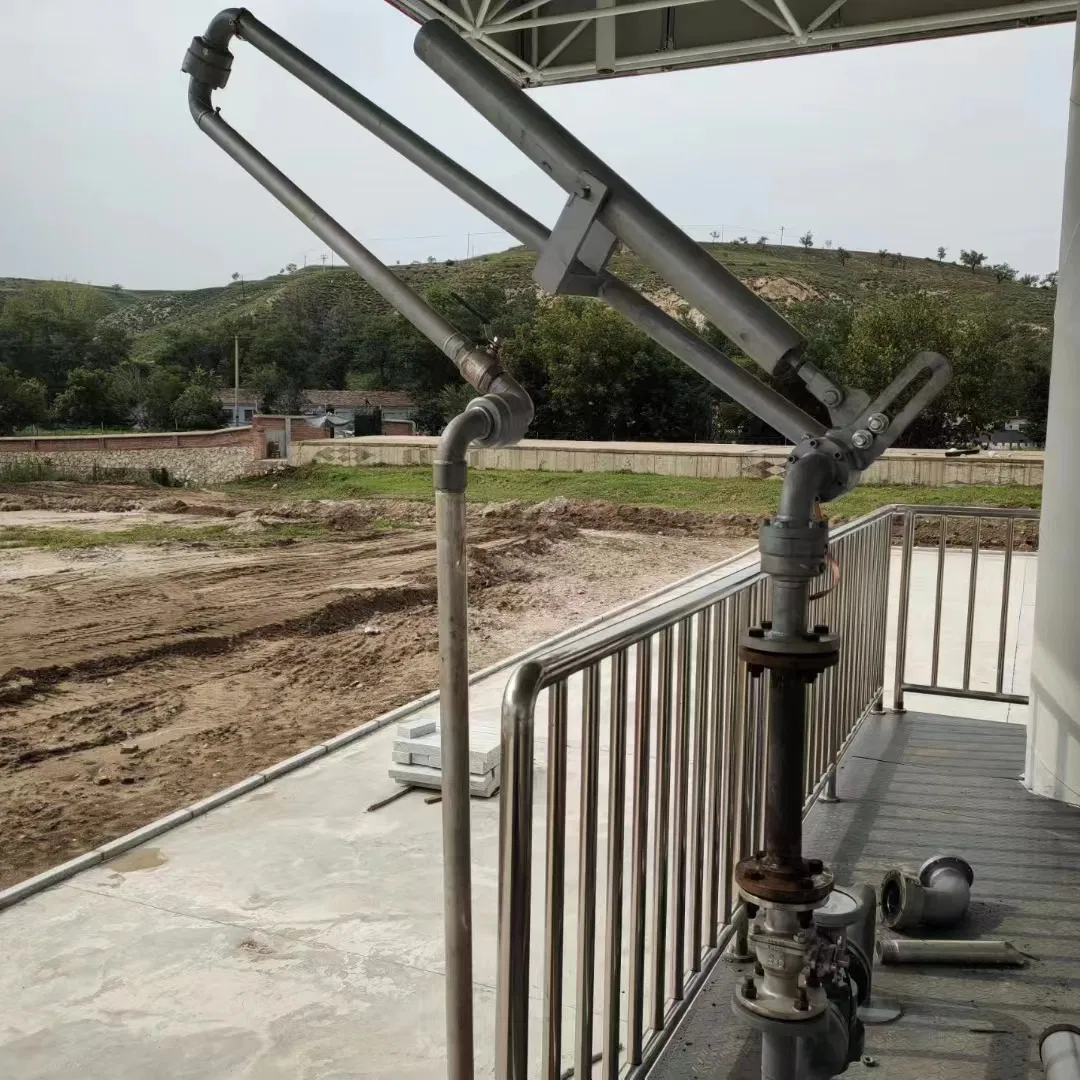

Loading arm on site:

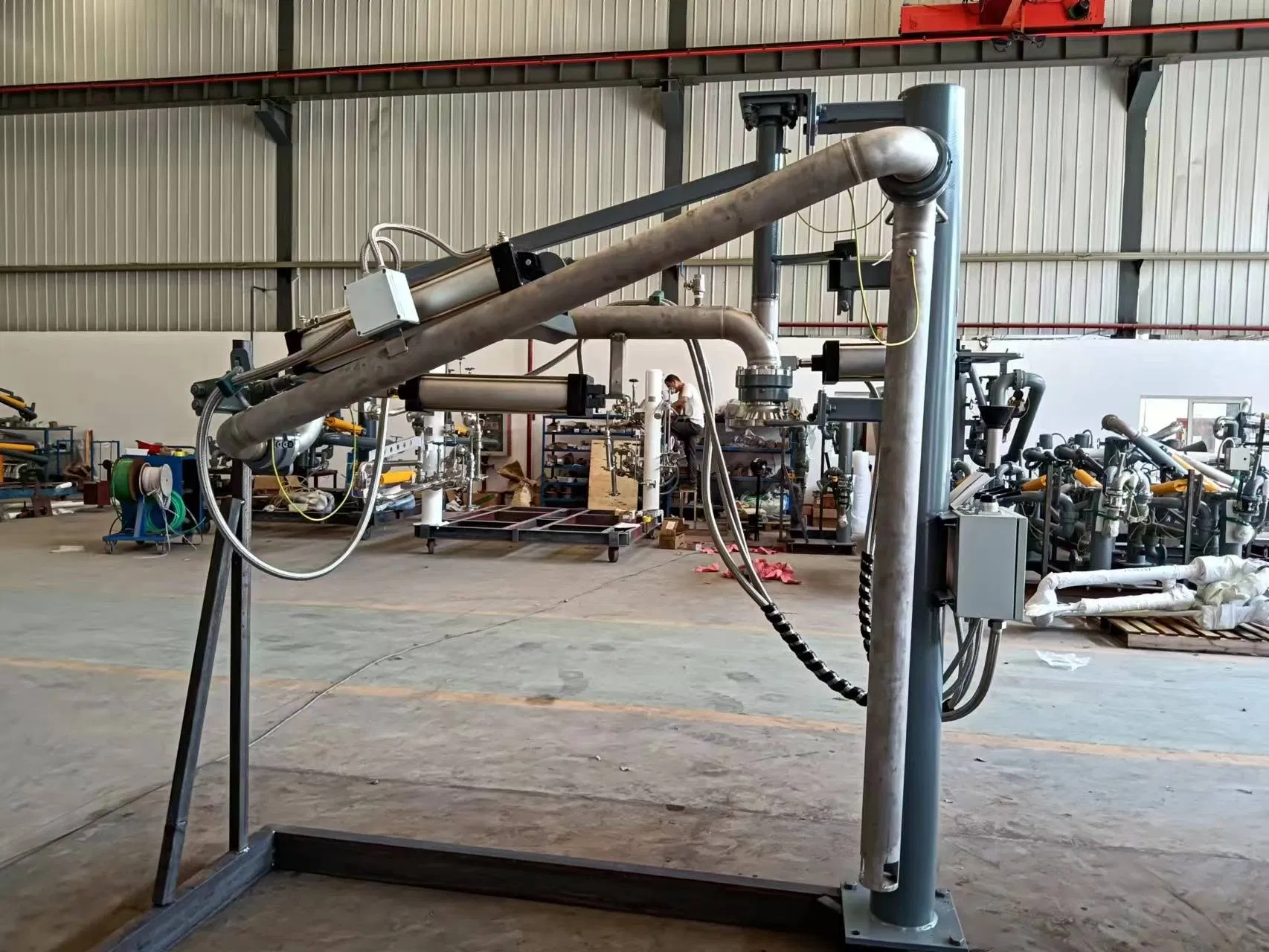

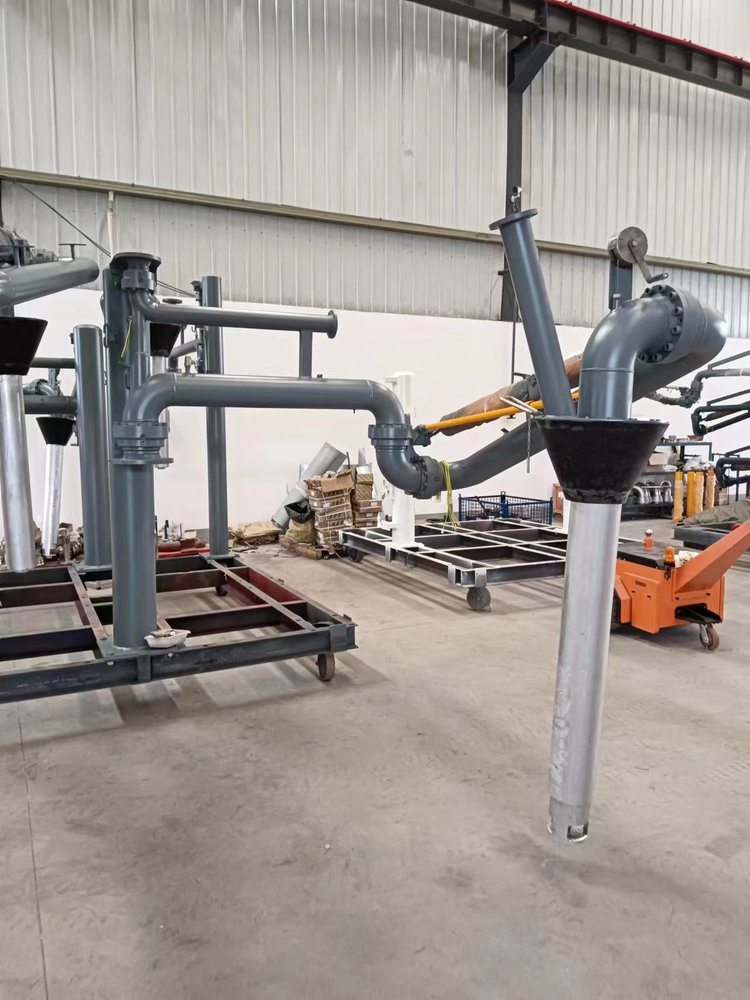

Detailed View:
| Package Size | 6000.00cm * 2300.00cm * 2500.00cm |
| Package Gross Weight | 3000.000kg |
| Transport Package | Pallet or Wooden Case |
Overseas Project Cases:
Our company is mainly engaged in the R&D, design, manufacturing, sales and maintenance of petrochemical storage and transportation equipment and accessories, as well as petrochemical storage and transportation automation control systems. Our products include loading arms, floating roofs, marine arms, network shells, movable ladders, loading control systems, skid-mounted equipment, etc.
As a professional manufacturer, our products are widely used in large and medium-sized petrochemical enterprises. We export to various international markets including Vietnam, Indonesia, France, Nigeria, South Africa, Italy, Saudi Arabia, etc. We attach great importance to talent development and strictly control product quality, regarding quality as the cornerstone of our development.
We continue to adhere to technological innovation, tracking the development of domestic and foreign equipment to provide high-quality, energy-saving, and environmental protection solutions.
