Robotic Arm Robot Lifting Glass Hoist Vacuum Lifter Pneumatic Pick Place Arm for Glass Production Line

1 / 5

Robotic Arm Robot Lifting Glass Hoist Vacuum Lifter Pneumatic Pick Place Arm for Glass Production Line

Customization:	Available
Application:	Automotive Industry, Glass Processing Industry
Control System:	PLC

Send Inquiry

Product Description

Basic Specifications

Model NO.SFZT3020

Glass Thickness4-19mm

Maximum Glass Size3000X2000mm

Minimum Glass Size400X400mm

Warranty1 Year

Turning Recycle1-3PCS/Min

SystemIntelligent

TypeGlass Loading Machine

CertificationCE, ISO

StructureVertical

ConditionNew

HS Code846420

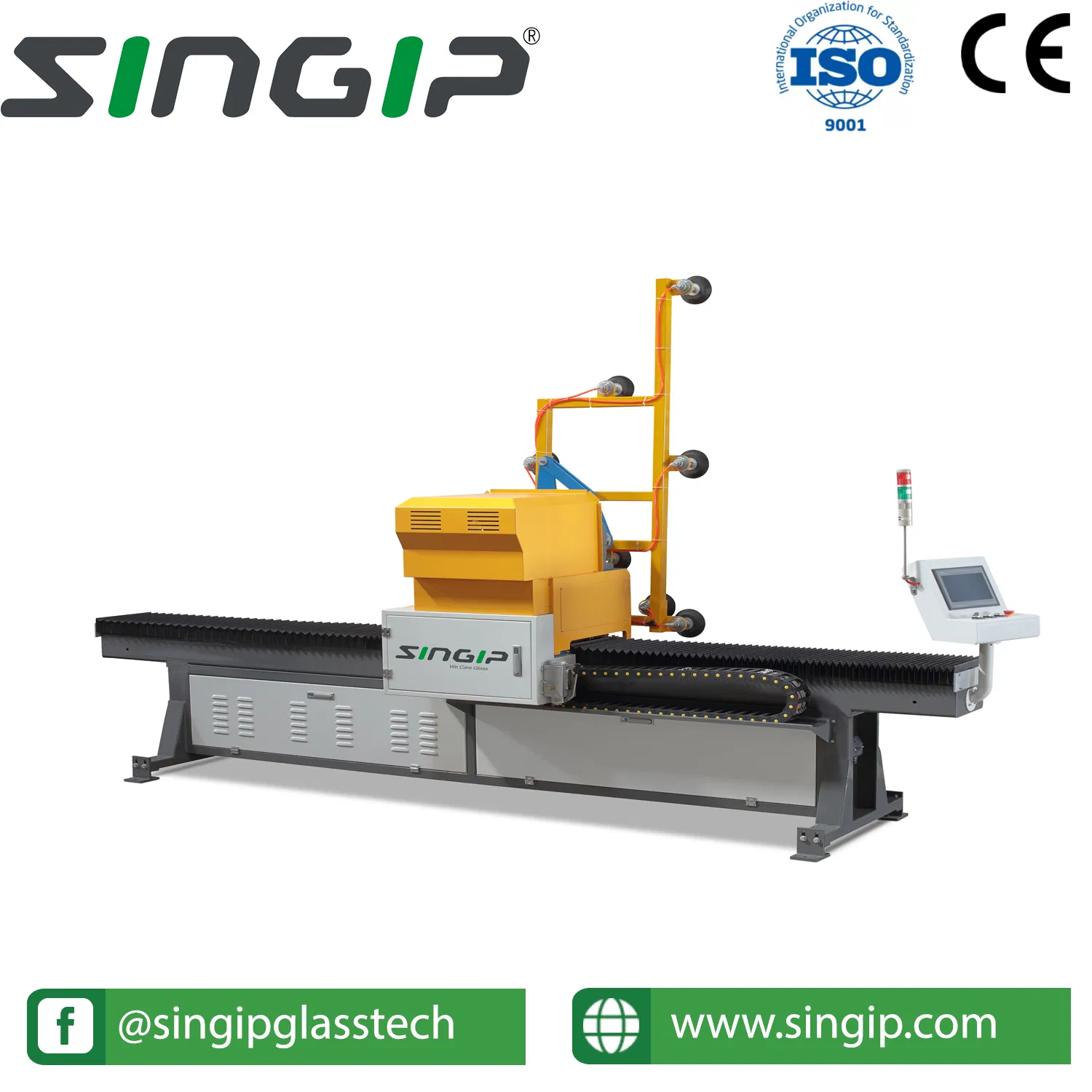

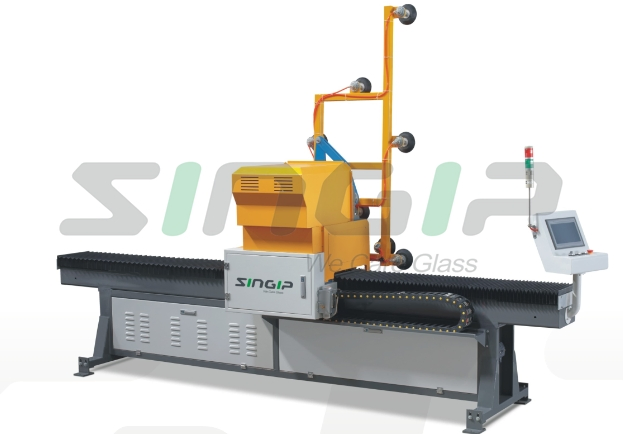

SZFT Glass Robot Turning Arm

The Automatic Turning Robot Arm is engineered specifically for integration with straight-line edging machines. By connecting two glass straight-line edging machines, it significantly optimizes production workflows and maximizes the efficiency of the single edging process.

Model Performance Data

Model	Weight Capacity	Rotation Time	Feature	Size Limit
SFZT3020	Max. 120kgs	15 sec per pcs	I-shape rotation; Space-saving design	Min: 400x400mm; Max: 3000x2000mm

Main Configuration

Component Name	Specification / Brand
Transfer Worm Gear Case	ZHUJIANG
Air Cylinder	AirTAC
Linear Guide Rail	Hiwin
Human Interface	MCGS
PLC Control System	DELTA
Servo Driver	DELTA
Rotary Encoder	Autonics
Contactor & Relay	Schneider
Intermediate Relay	OMRON
Vacuum Pump	Joysun

Technical Details & Components

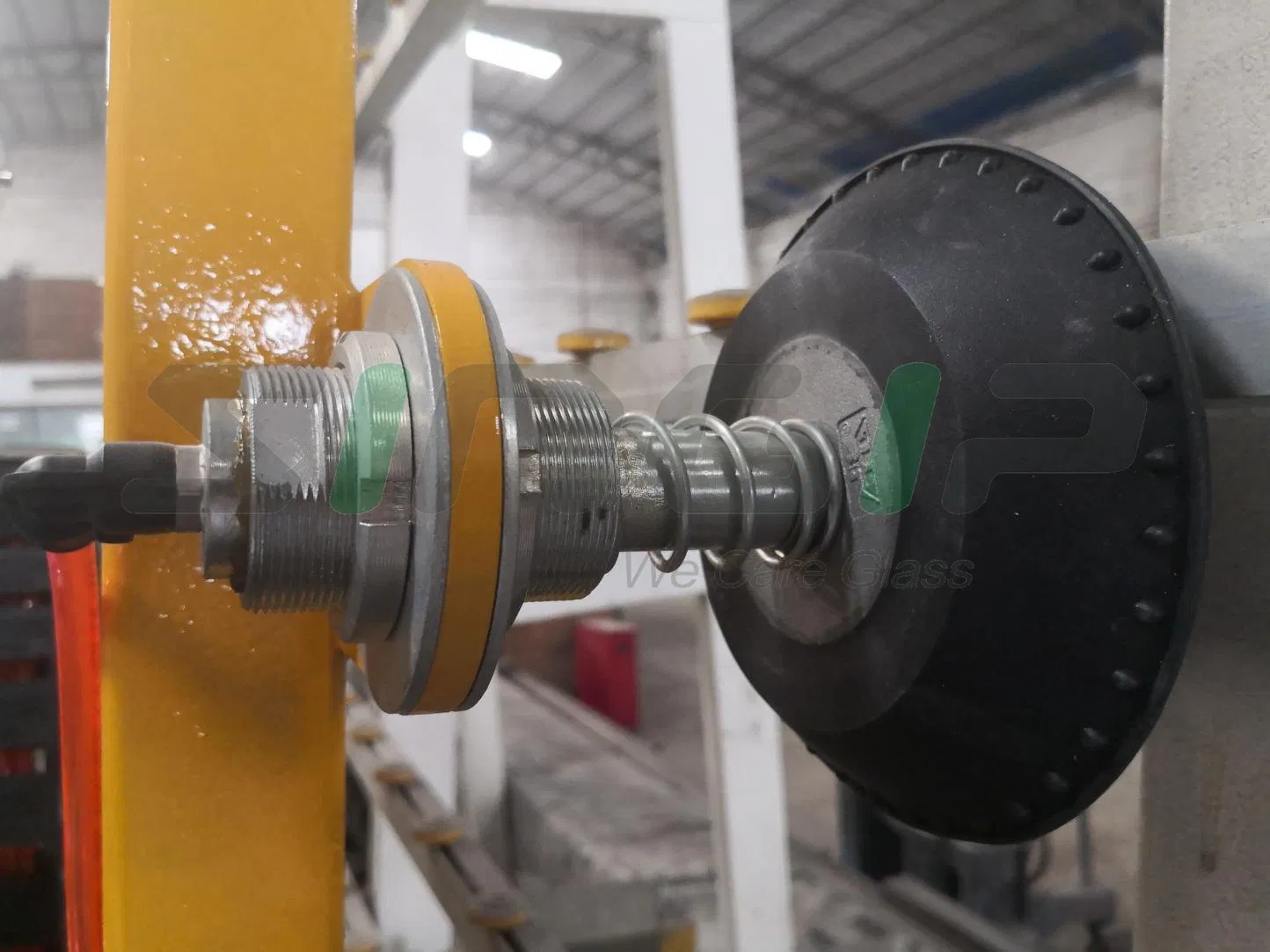

1. Suction Structure

Spring structure ensures glass is caught without impact or crash.

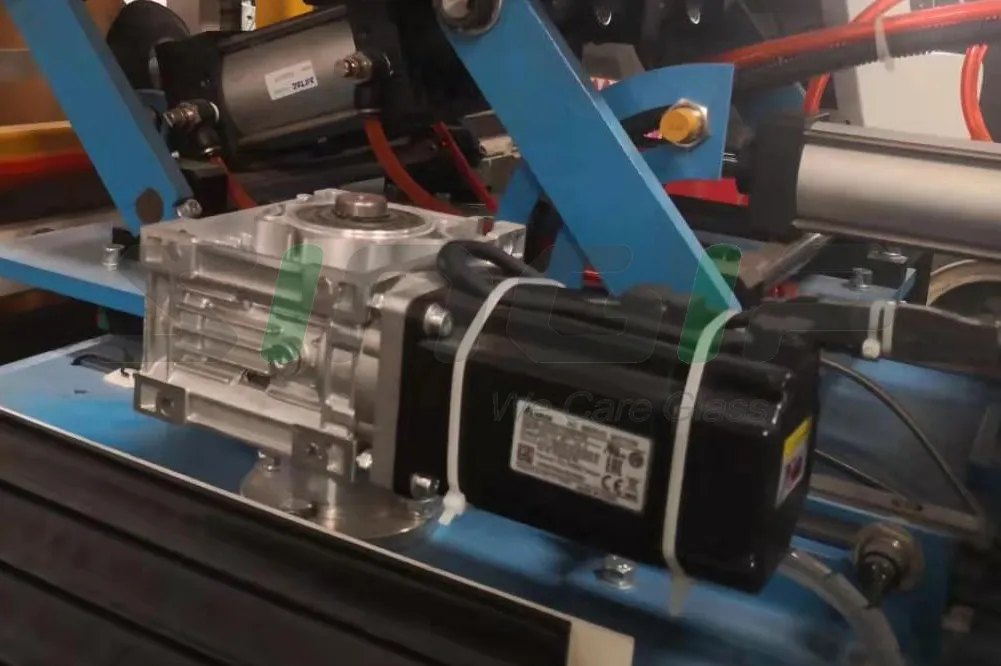

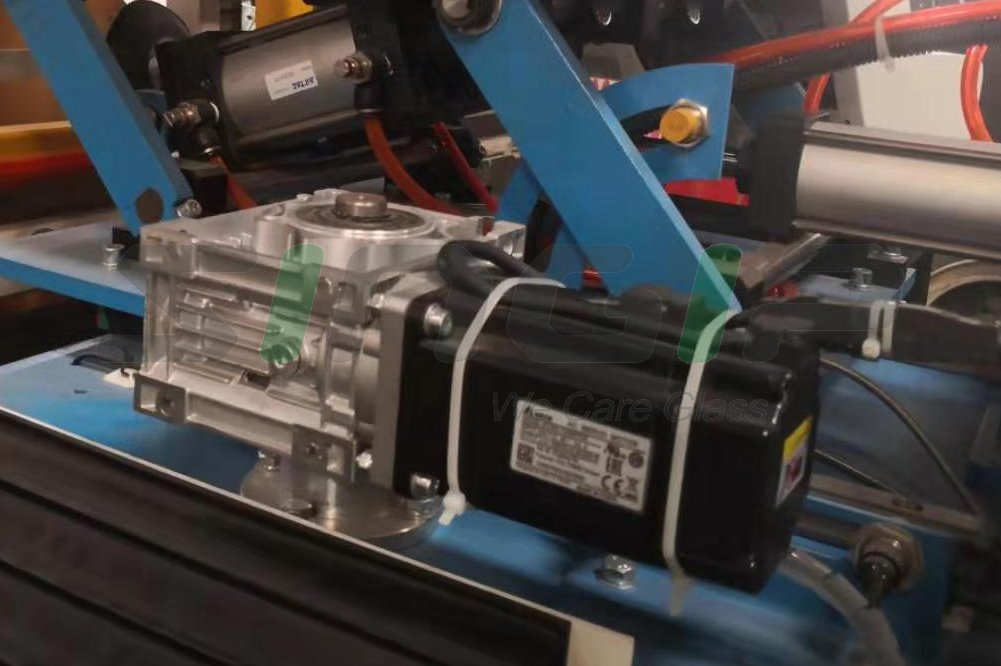

2. Servo Motor Transmission

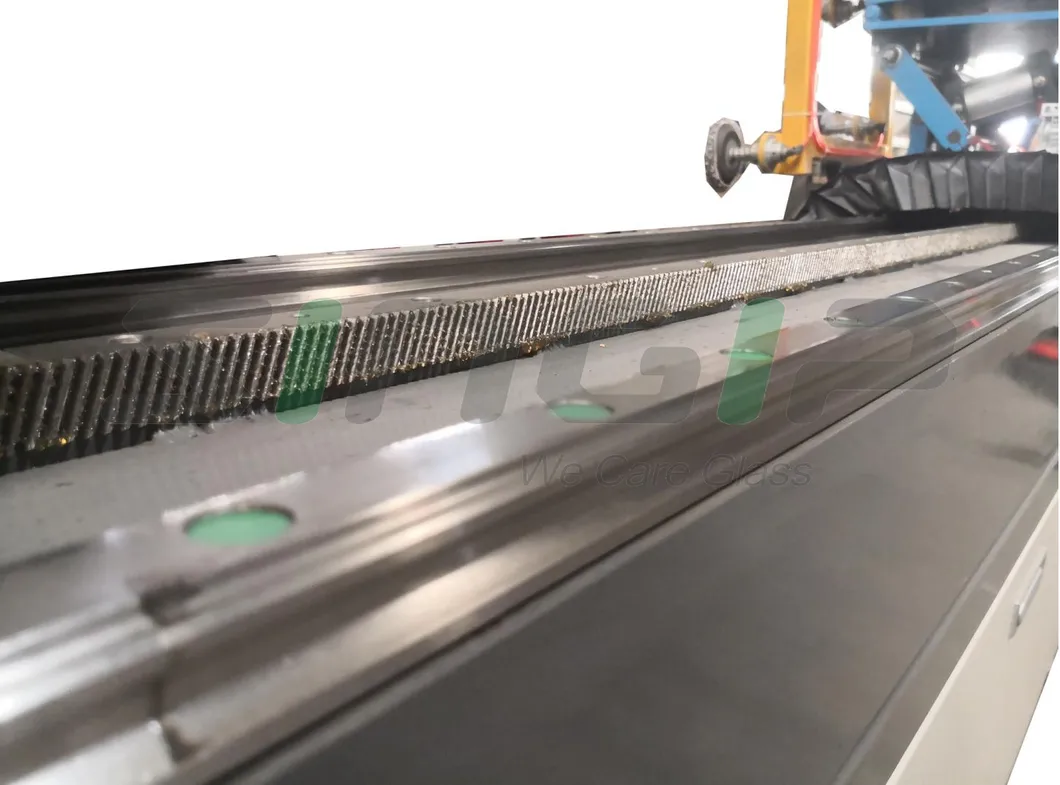

3. HIWIN Linear Guideway

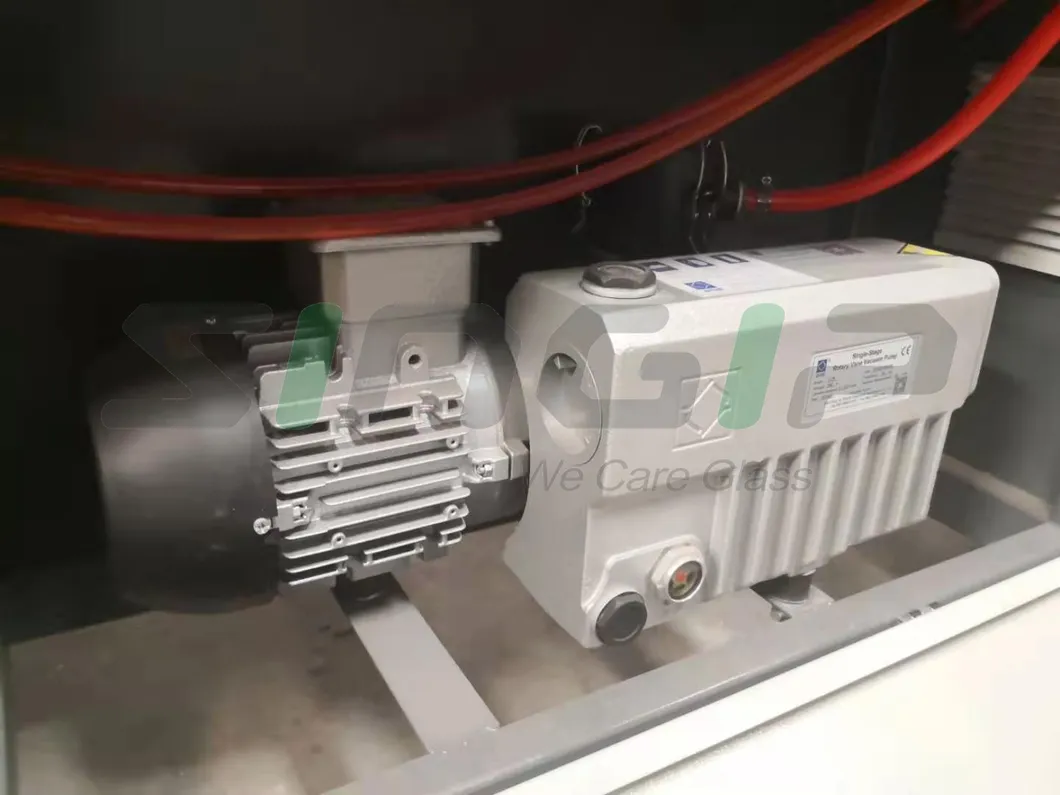

4. Vacuum Pump System

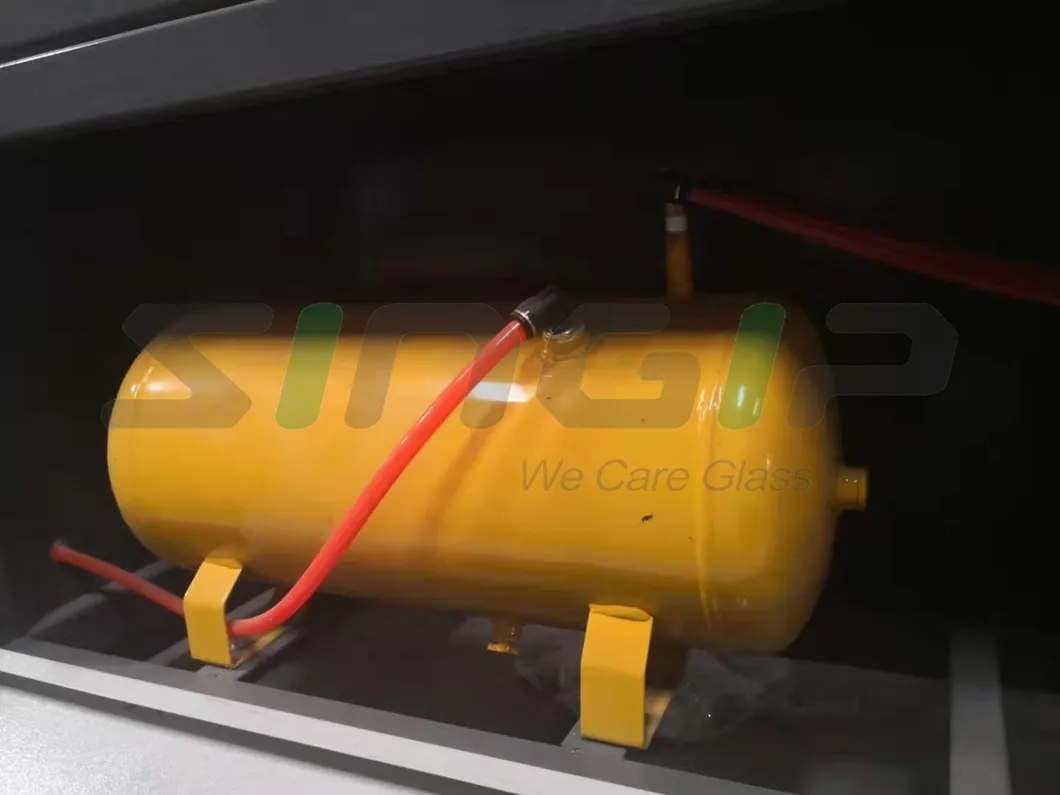

5. Air Holder

Balances air pressure during blowing valve operation.

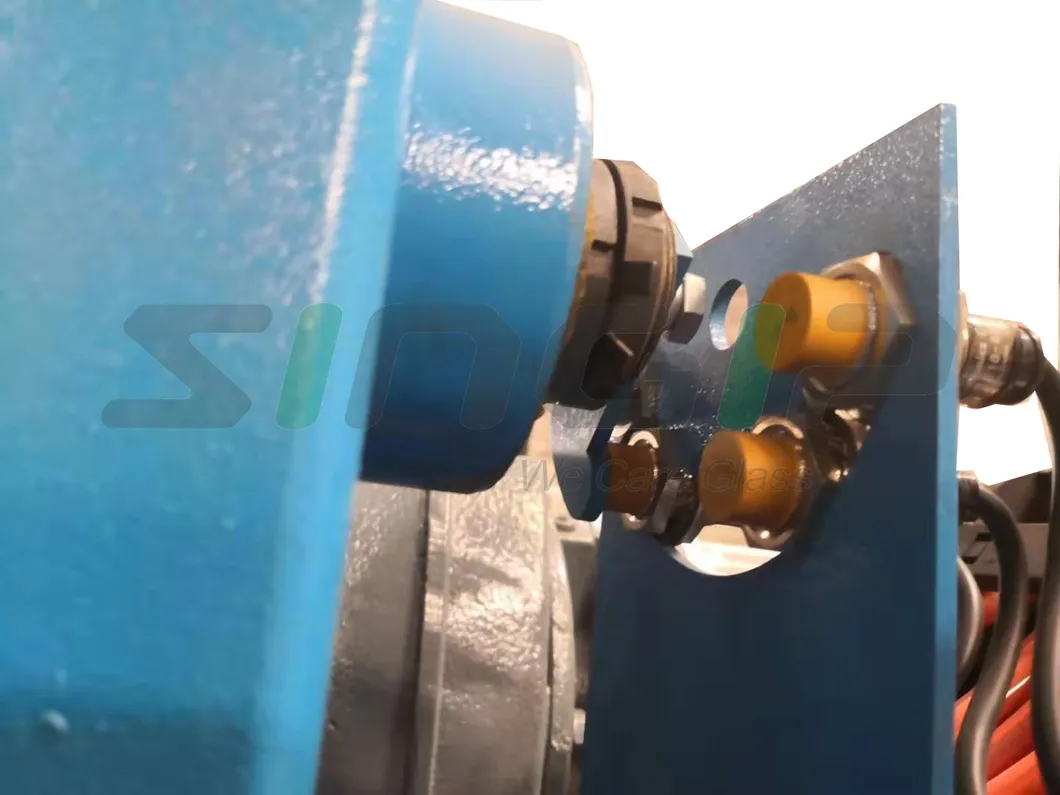

6. Rotation Sensor

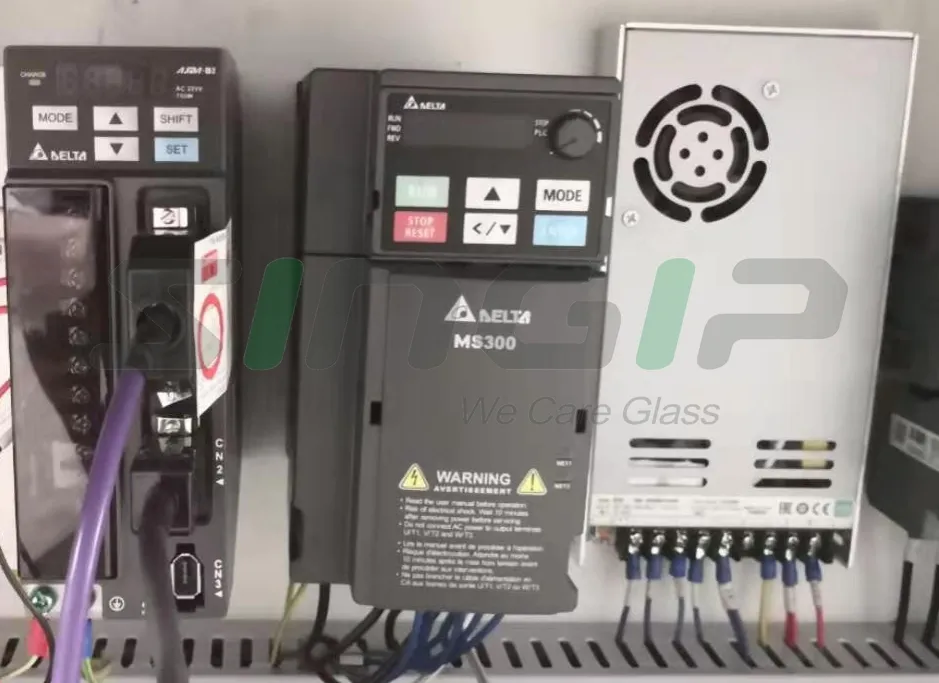

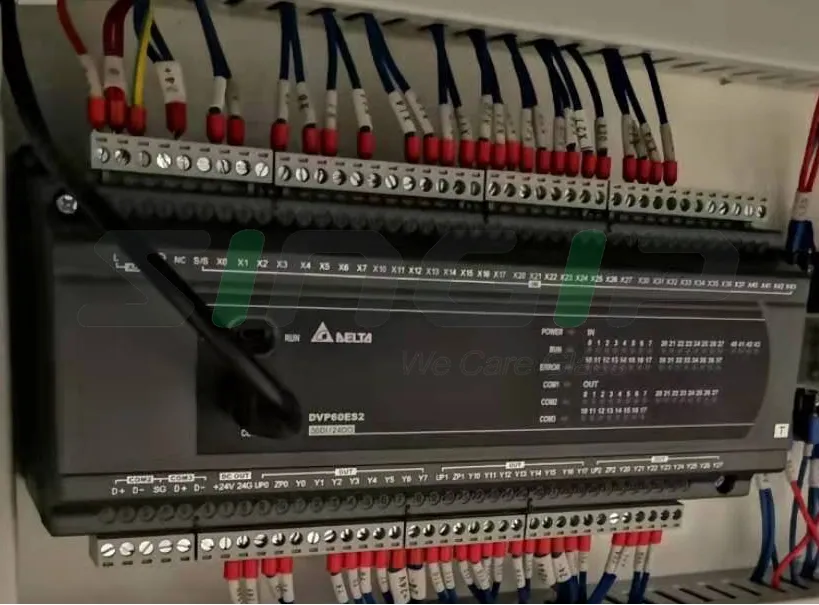

7. Delta PLC and Frequency Inverter

Technical Parameters

Max. Glass Size: 3000X2000mm (Customizable)
Min. Glass Size: 400X400mm
Glass Thickness: 4 - 19 mm
Max. Loading Weight: 125 kgs
Vacuum Suctions: 7 high-quality pieces
Turning Cycle Speed: 12-15 seconds / cycle
Total Power: 3.75kw
Air Supply Requirement: 0.6MPA
Overall Dimensions: 6000x1100x2500mm
Standard Working Height: 750mm

Frequently Asked Questions

Q1: What is the primary function of the Glass Robot Turning Arm? A: It is designed to connect two straight-line edging machines, automatically turning and transferring glass to improve production line efficiency.

Q2: What is the maximum glass size and weight this machine can handle? A: The standard maximum size is 3000x2000mm with a loading capacity of up to 125kgs.

Q3: Does the suction system damage the glass surface? A: No, the system uses a specialized spring-buffered suction structure to ensure a soft catch without any surface impact or crashes.

Q4: Which brands are used for the control system? A: The machine is equipped with high-end components including Delta PLC, Delta Servo drivers, and Hiwin linear guide rails.

Q5: How fast is the turning cycle? A: The turning cycle is highly efficient, completed within approximately 12 to 15 seconds per piece.

Q6: What are the air supply and power requirements? A: The machine requires a 0.6MPA air supply and has a power rating of 3.75kw.
