Factory Manufacturing Sealed Top Loading Arms with Couplings for Land, Road and Railway Applications

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.

AL2503

Certification

ISO 9001:2000

Power Source

Manual

Operation Pressure

Pn4.0

Applicable Medium

Water, Crude Oil, Gasoline, Diesel etc

Structure

Seamless Pipe with Swivel Joint

Material

SS, CS, PTFE Lined etc

Color

Light Grey or Customized

Quality Guarantee

1 Year

Seals

Viton or PTFE

Application

Truck Tanker, Rail Tanker, Marine

Specification

DN50, DN80, DN100, DN150

📦

Packaging & Delivery

Package Size

1000.00cm * 1000.00cm * 800.00cm

Gross Weight

888.000kg

Transport Package

Pallet or Plywood Case

Production Capacity

5000 Sets / Year

⚙️

Product Description

The structure of AL1402 Loading arm:

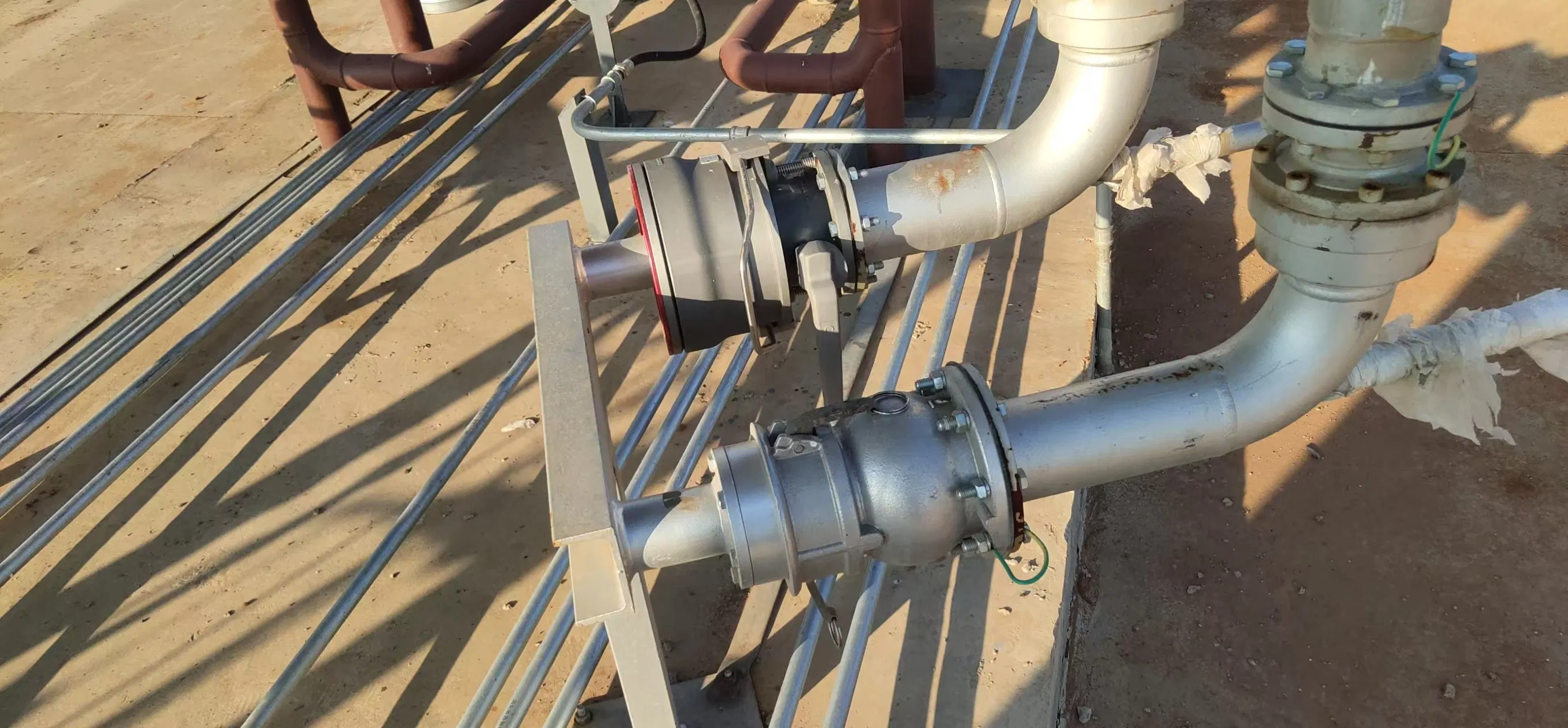

Our loading arm on site:

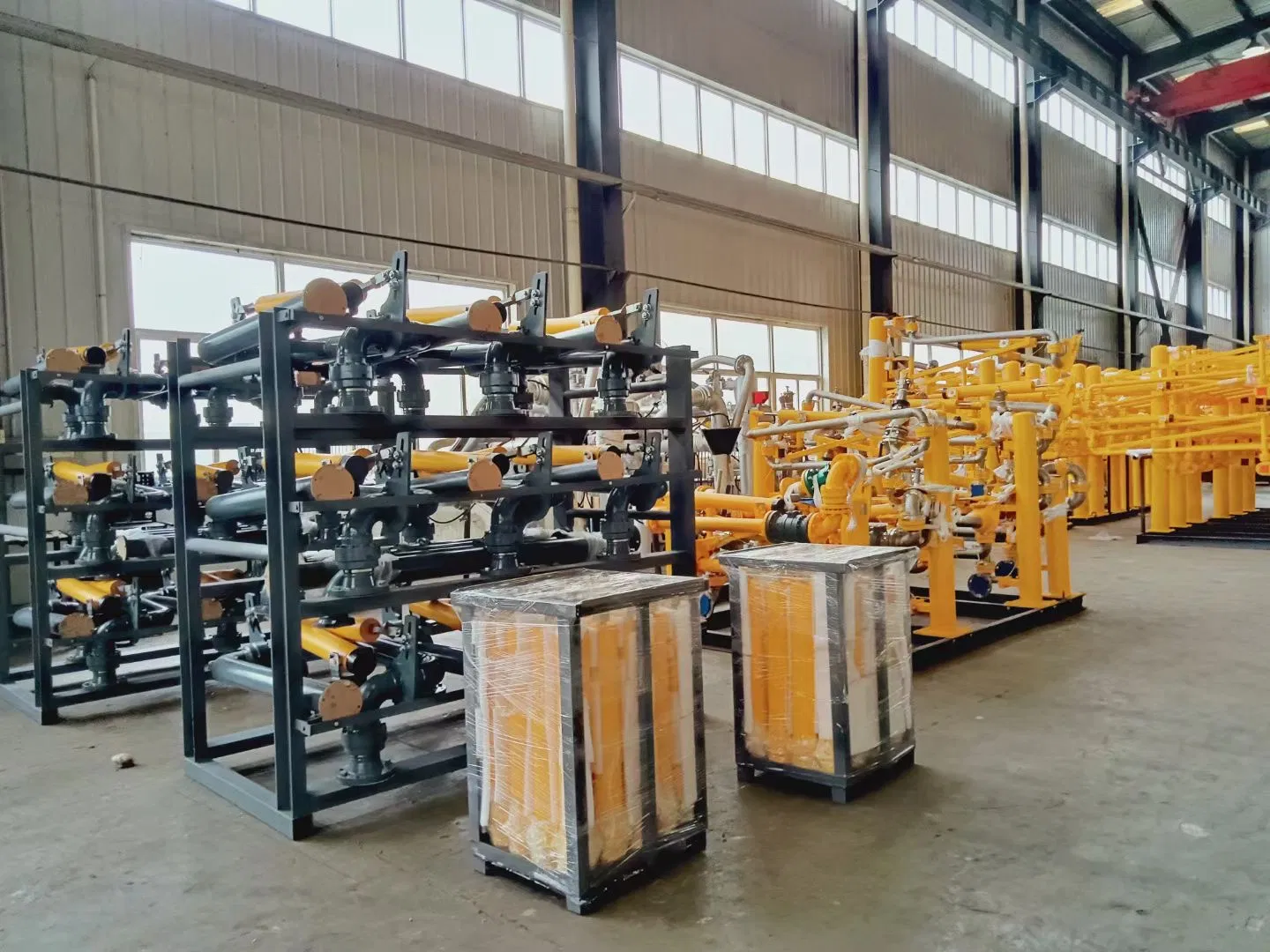

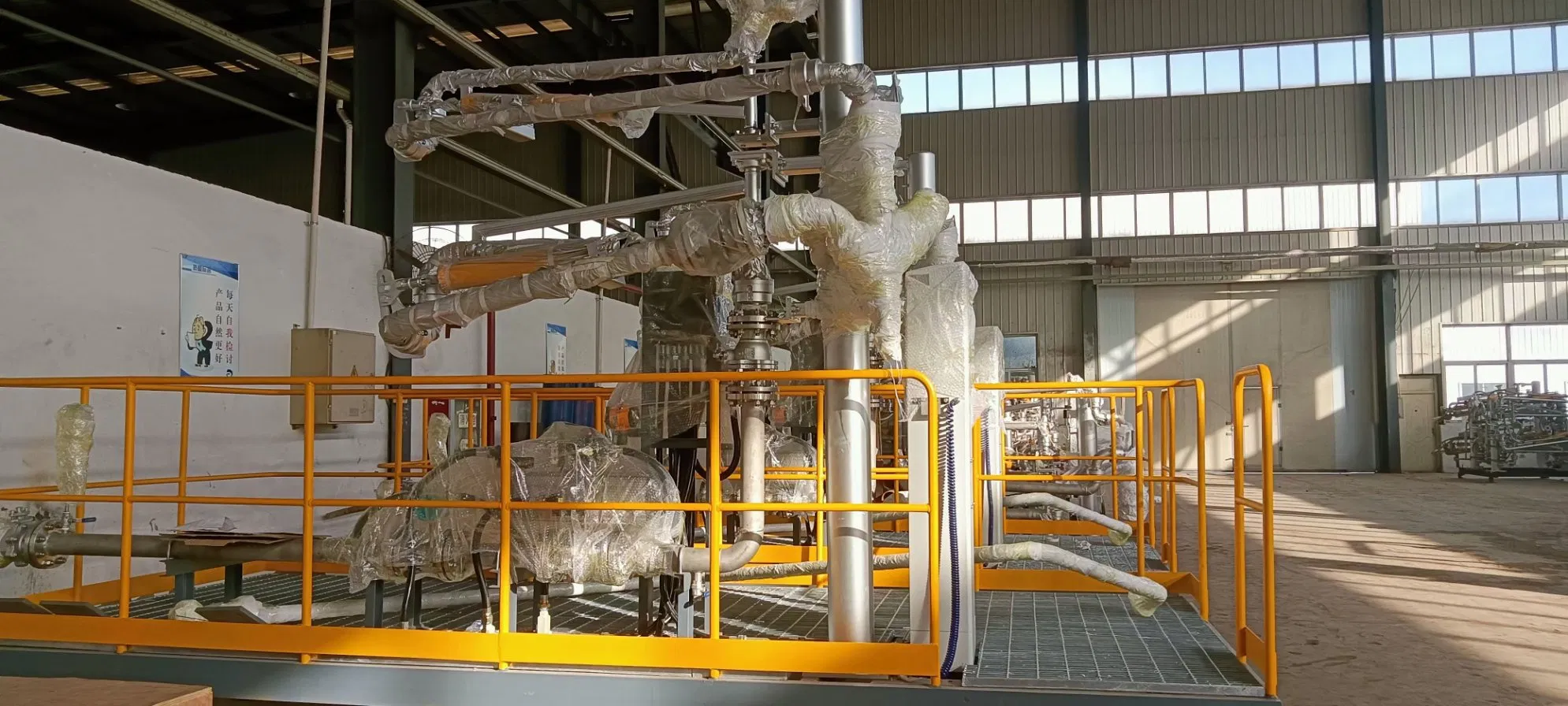

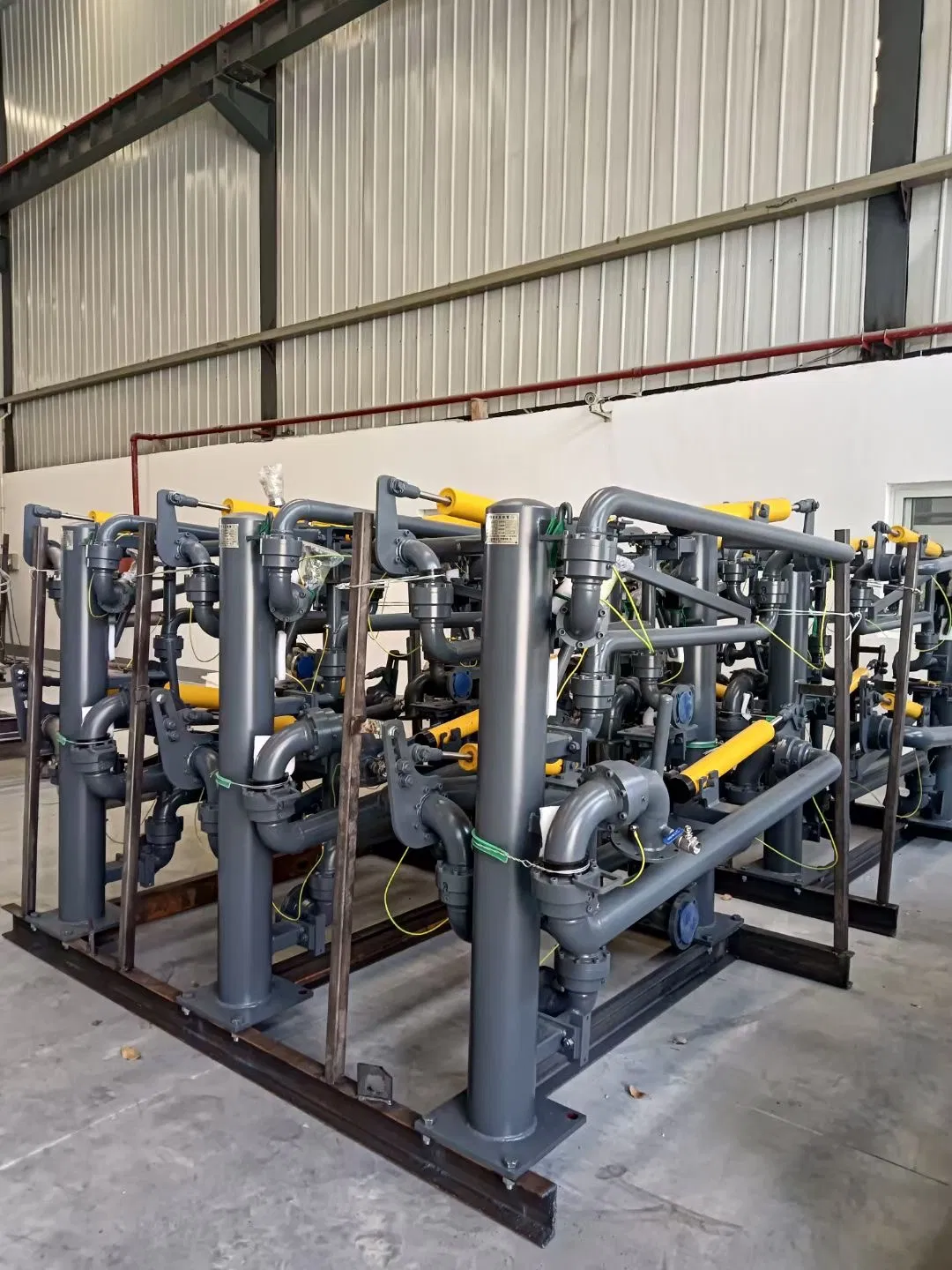

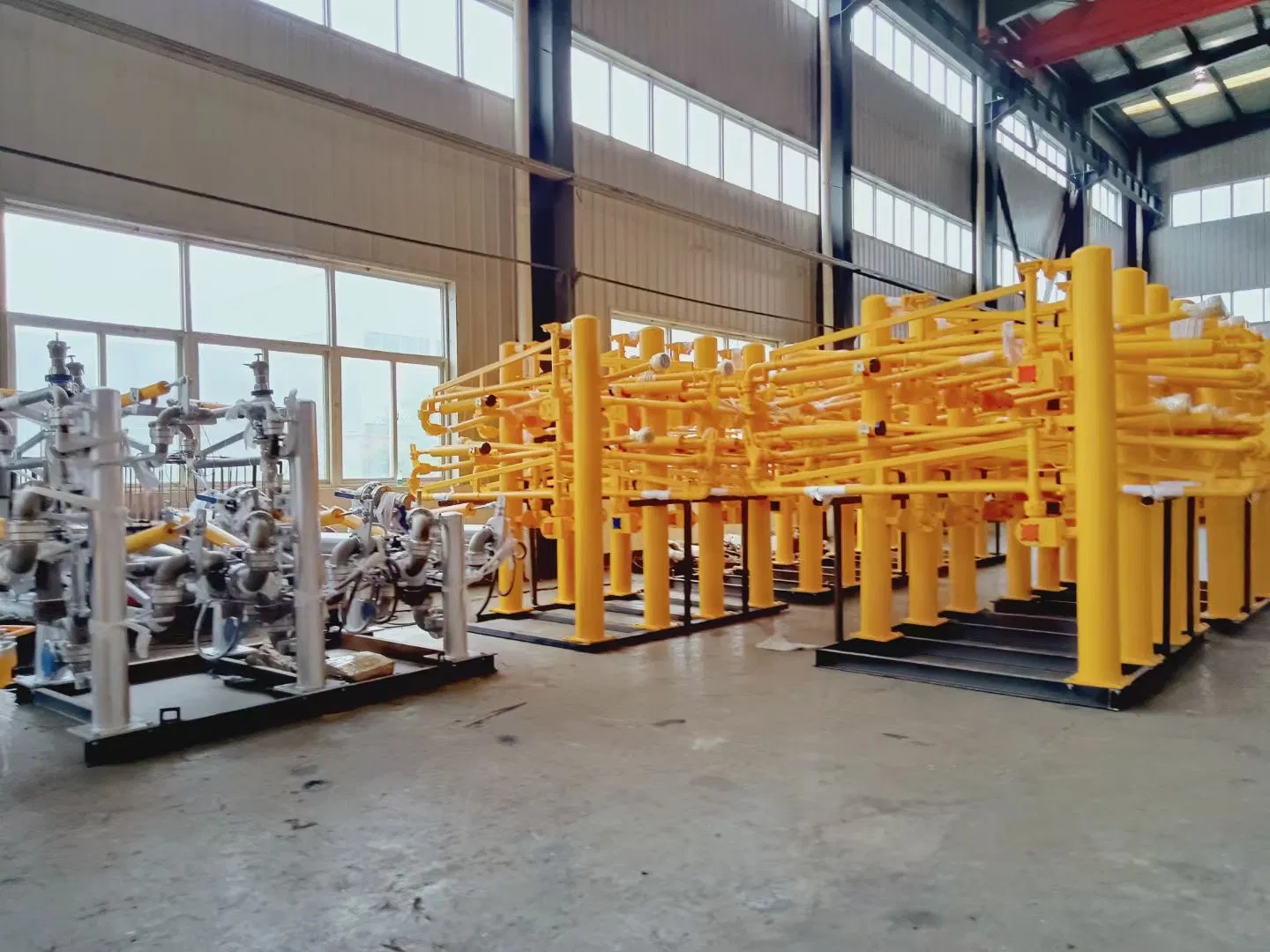

Our loading arm in the workshop:

General Introduction for land loading arm

Our land loading arm is especially designed for transporting fluid between piping system and tanker, which shall be designed for different tanker, liquids and site conditions. Equipped with loading platform, folding stairs and safety cage to make the land loading arm into a complete loading system. By level location or quantitative monitoring, while fluid level exceed the present value, provide the sound and visual alarm or the remote signal.

According to the products, models and requirements of customers, the operating modes could be manual, pneumatic or hydraulic etc.

AL1402 Technical Specifications
Places Applied	Top open loading
Applications	Product oil, chemicals
Nominal Diameter	DN25~DN200 (1"~8")
Working Temperature	-196~250ºC
Working Pressure	PN1.0~PN4.0
Material of pipeline	Carbon steel, stainless steel, aluminum, low-temperature steel, PTFE lined etc.

Overseas project cases:

Frequently Asked Questions

What is your production period or delivery time?

Delivery time can be within 20 days. For special products, it could be within 30-50 days.

What payment terms do you offer?

T/T before shipment or L/C can be accepted.

Can you do OEM or use the customer's name plate for the product?

Yes, we can accept and welcome OEM requirements.

How do you make sure of the quality of your products?

We have a strict quality control process in factory, including inspections at every stage of production, RT test, PT test and hydraulic test etc. We have ISO certification, welding certificate and welder certificate from TUV.

Can you provide documentation and certifications for your products?

Yes, we can provide all necessary documentation and certifications, including material certificates, inspection reports, and also the customs clearance certificate such as CO, Form E etc and compliance with industry standards.

How long is your warranty period?

12 months from commissioning or 18 months from delivery, whichever comes first. In some cases, we can supply a 2-year warranty.
