Overview & Basic Info
Certification
ISO9001, QS, TUV
Type
Single-Arm, Double-Arm
Product Service
Petroleum Product, Gasoline, Diesel, and Chemical
Pipeline Material
CS, Ss, Low-Temp. CS, Lined with PTFE.
Accessories
Erc (Ers), QC/DC, Pms, etc.
Nominal Diameter
DN80~DN400(3''~16'')
Design Pressure
-0.06~10MPa
Operating Mode
Manual / Electro-Hydraulic
Production Capacity
200 Sets/Year

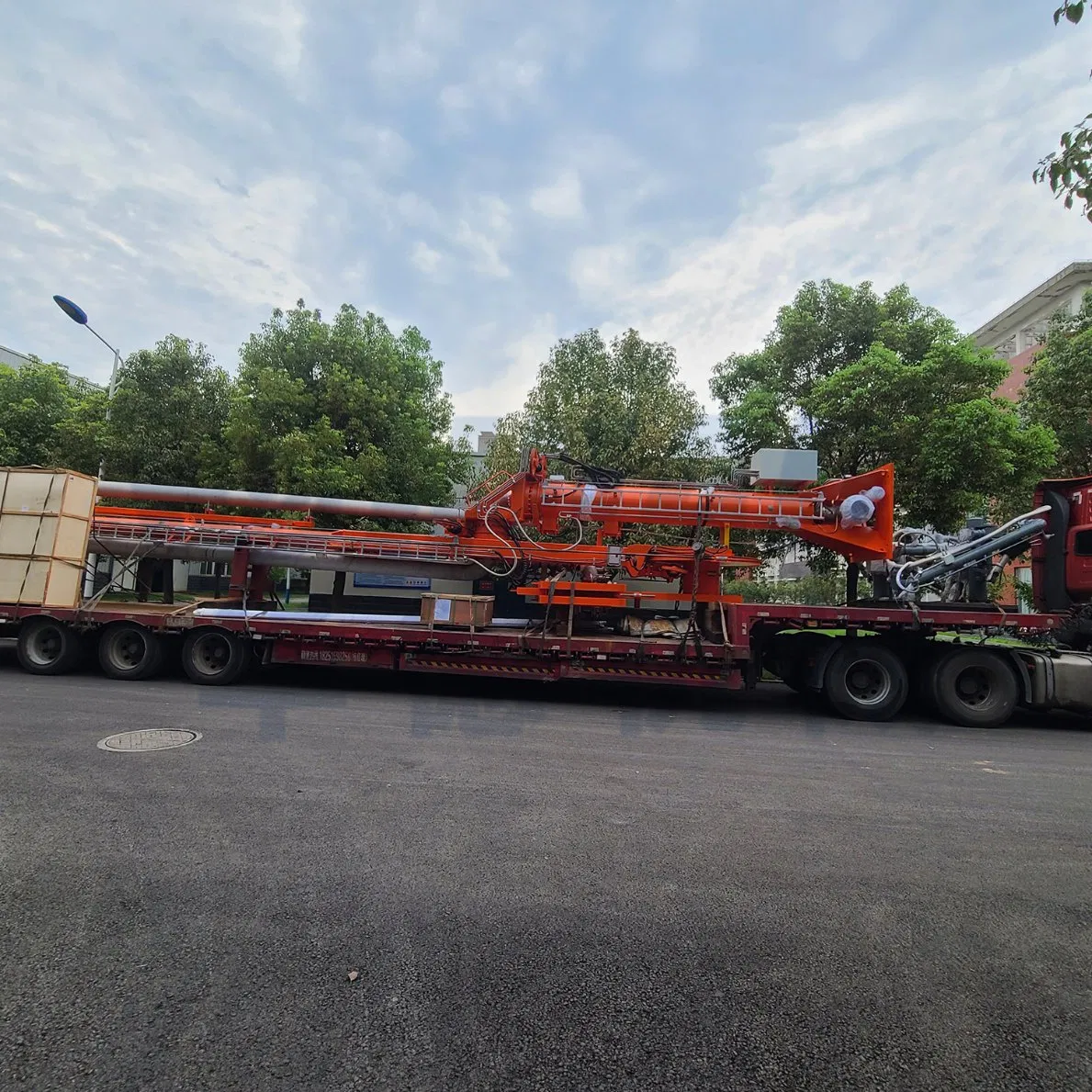

Packaging & Delivery
Package Size: 1800.00cm * 200.00cm * 200.00cm
Package Gross Weight: 25000.000kg
Product Description

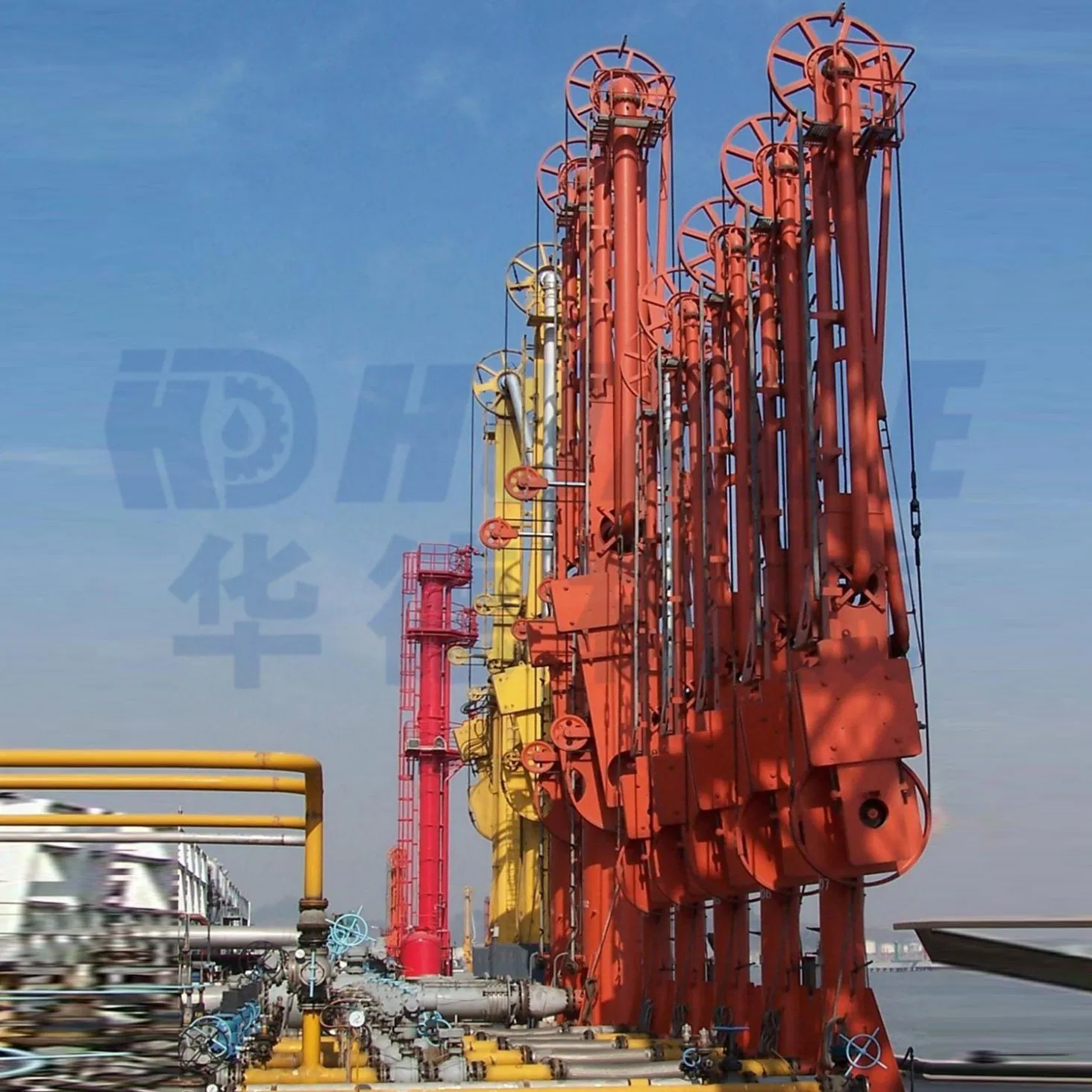

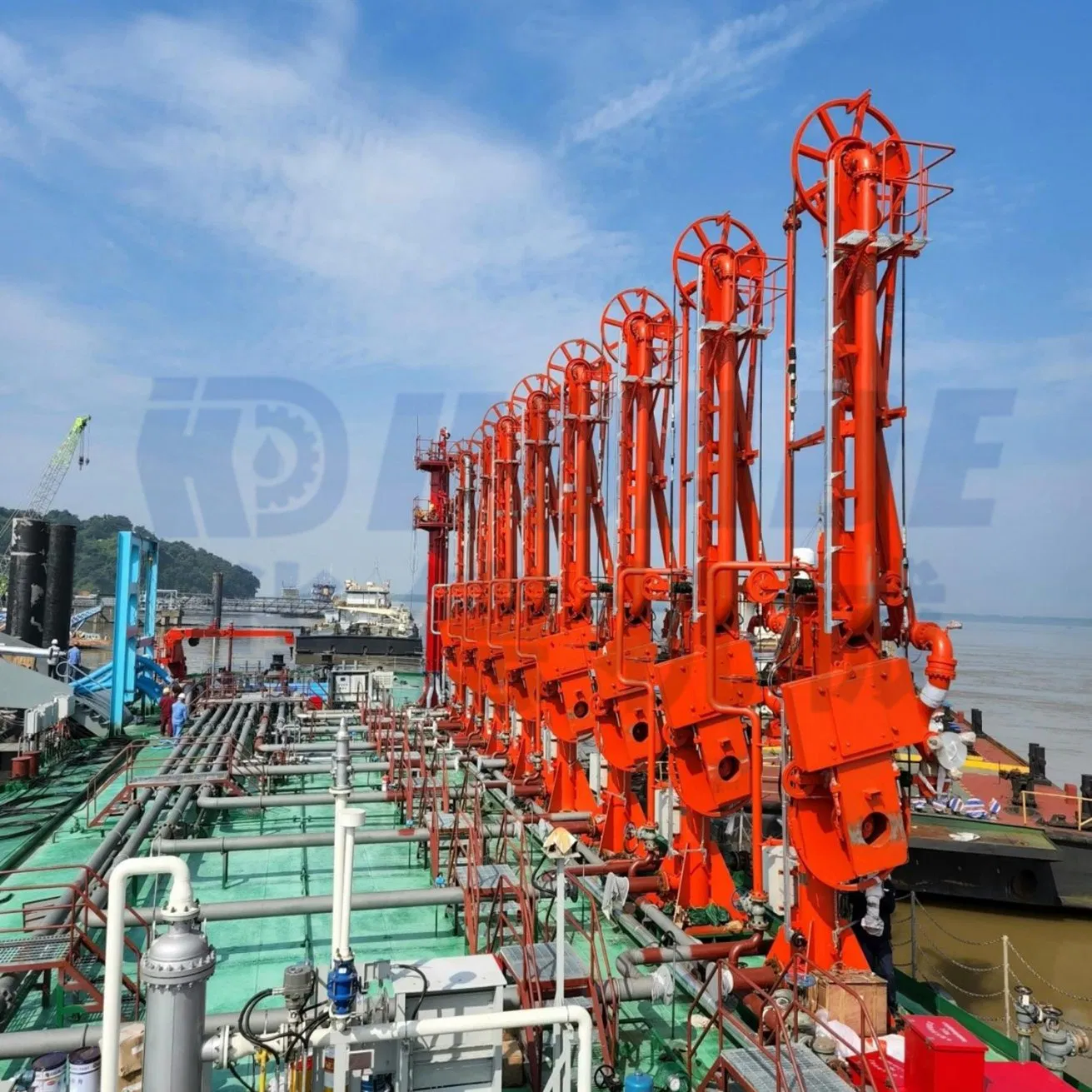

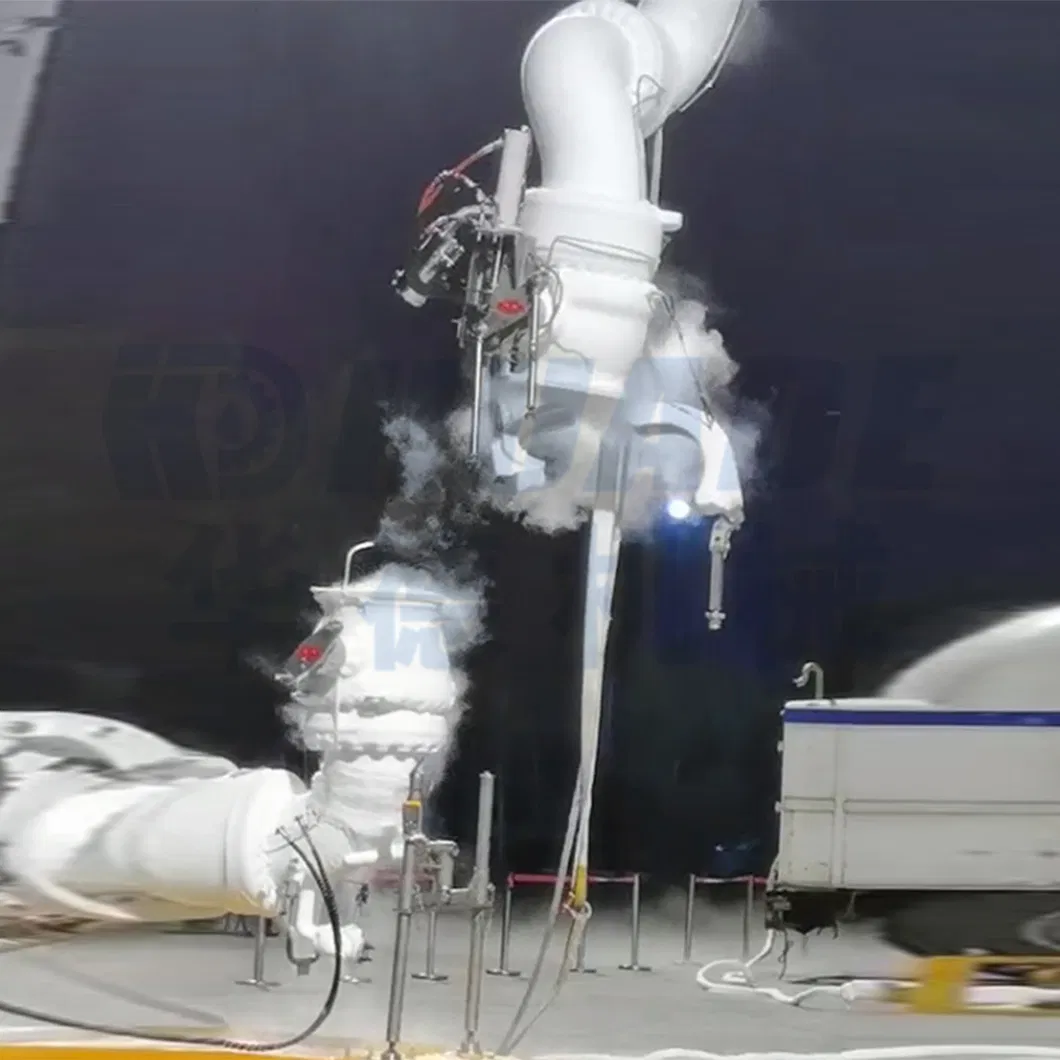

Marine Loading Arms (MLAs) are essential for transferring various fluids such as oil, chemicals, LPG, and LNG between ships and storage facilities.
- High Efficiency: Designed to handle large volumes, reducing loading/unloading times.
- Safety: Advanced features like ERS and QC/DC to prevent spills.
- Durability: Robust materials for harsh marine environments.
- Flexibility: Customizable for ship sizes and tidal conditions.
- Environmental Protection: Zero-emission technologies to minimize impact.

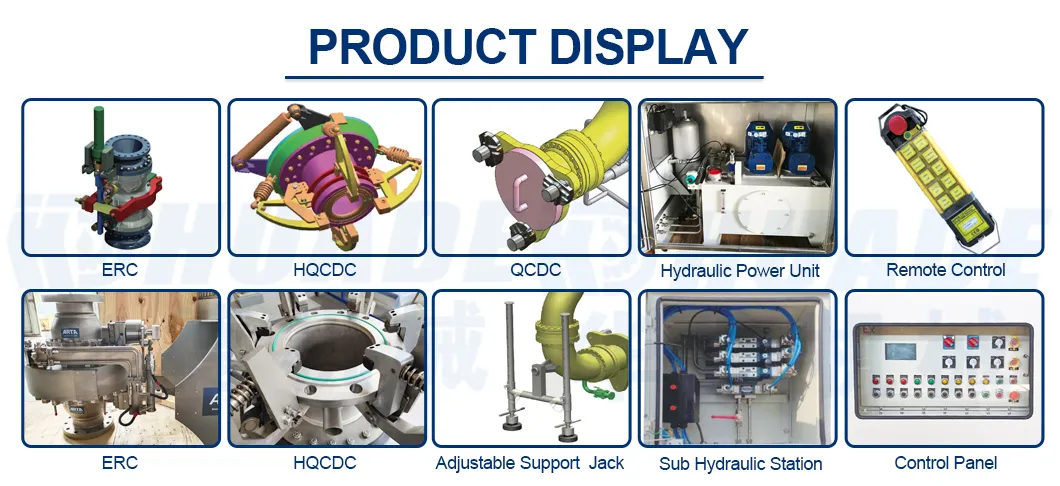

Emergency Release Coupler (ERC)
Protects MLA from major damage and avoids pollution during fire, typhoons, or ship drifting.
Quick Connect/Disconnect Coupler (QCDC)
Provides quick connection to tanker flange without bolts or nuts, saving manpower.
Electro-hydraulic Control System
Includes Local Control Panel (LCP), HPP, and Wireless Control. PLC applied for easy maintenance and monitoring.
Product Parameters
| Item |
Data |
| Nominal Diameter | DN80~DN400(3''~16'') |
| Design Pressure | -0.06~10MPa |
| Design Temp. | -196~250ºC |
| Pipeline Material | Carbon Steel, Stainless Steel, Low-Temperature Steel, Lined with PTFE |
| Product Service | Petroleum Product, Gasoline, Diesel, and Chemical |
| Operating Mode | Manual / Electro-hydraulic |

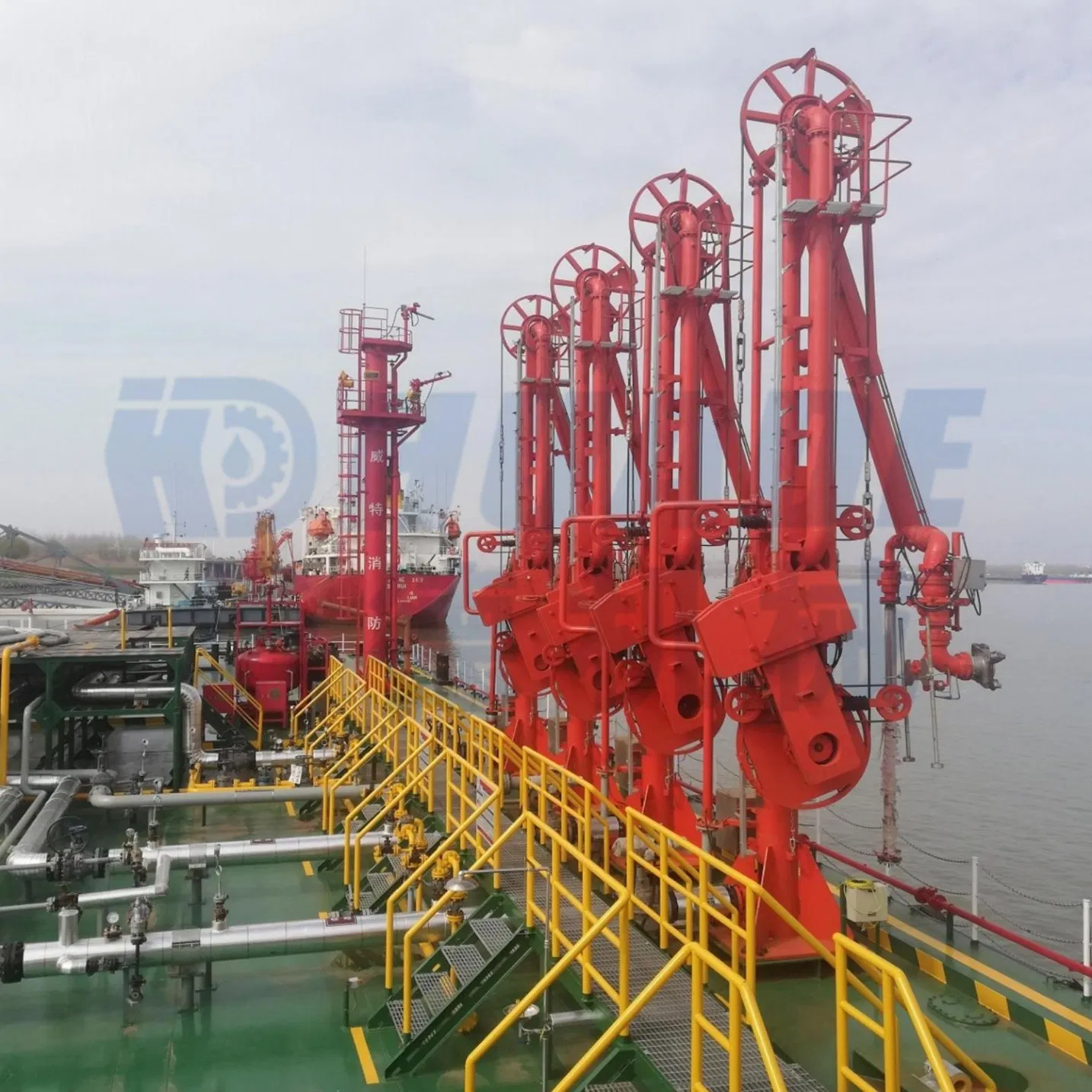

Typical Structure:
- AM61M: Manual operation, double counterweight, for inland river/small jetties (<8").
- AM63M: Manual, rotary counterweight, easy seal change (<10").
- AM63H: Electro-hydraulic, rotary counterweight, up to 16".
- AM64H: Electro-hydraulic, includes liquid and vapor lines, up to 16".

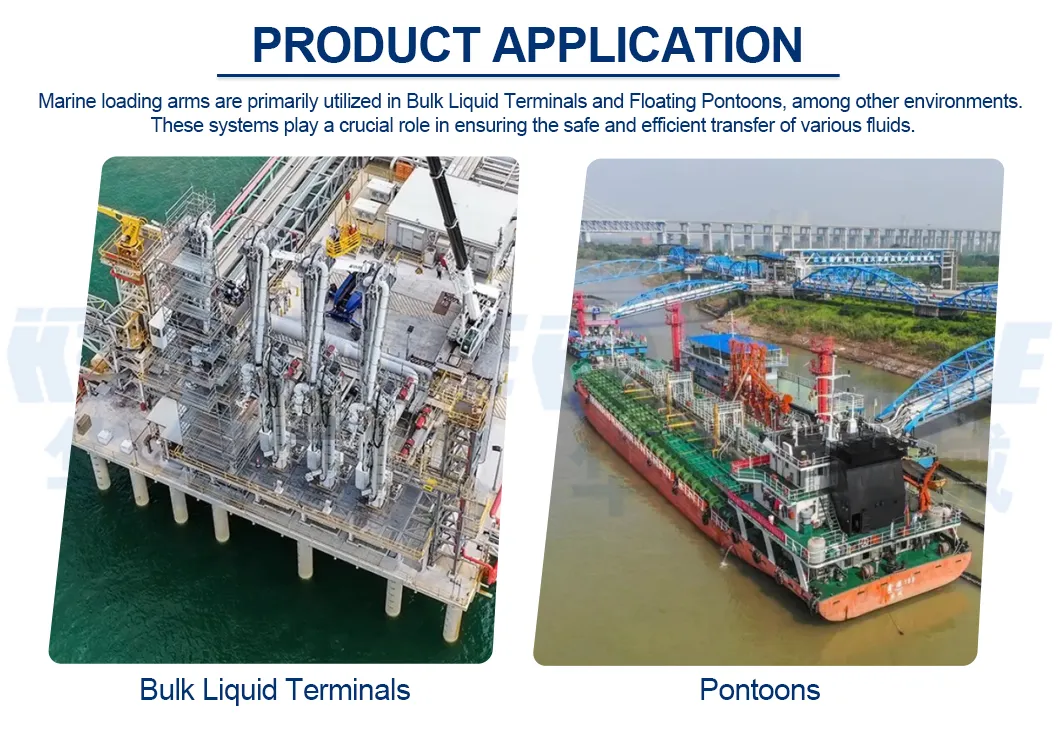

Application Areas
Bulk Liquid Terminals
Storage and transfer of crude oil, refined products, and chemicals with secure transfer systems.
Pontoons
Floating structures for cargo transfer in harbors or offshore where fixed infrastructure is impractical.
Profile

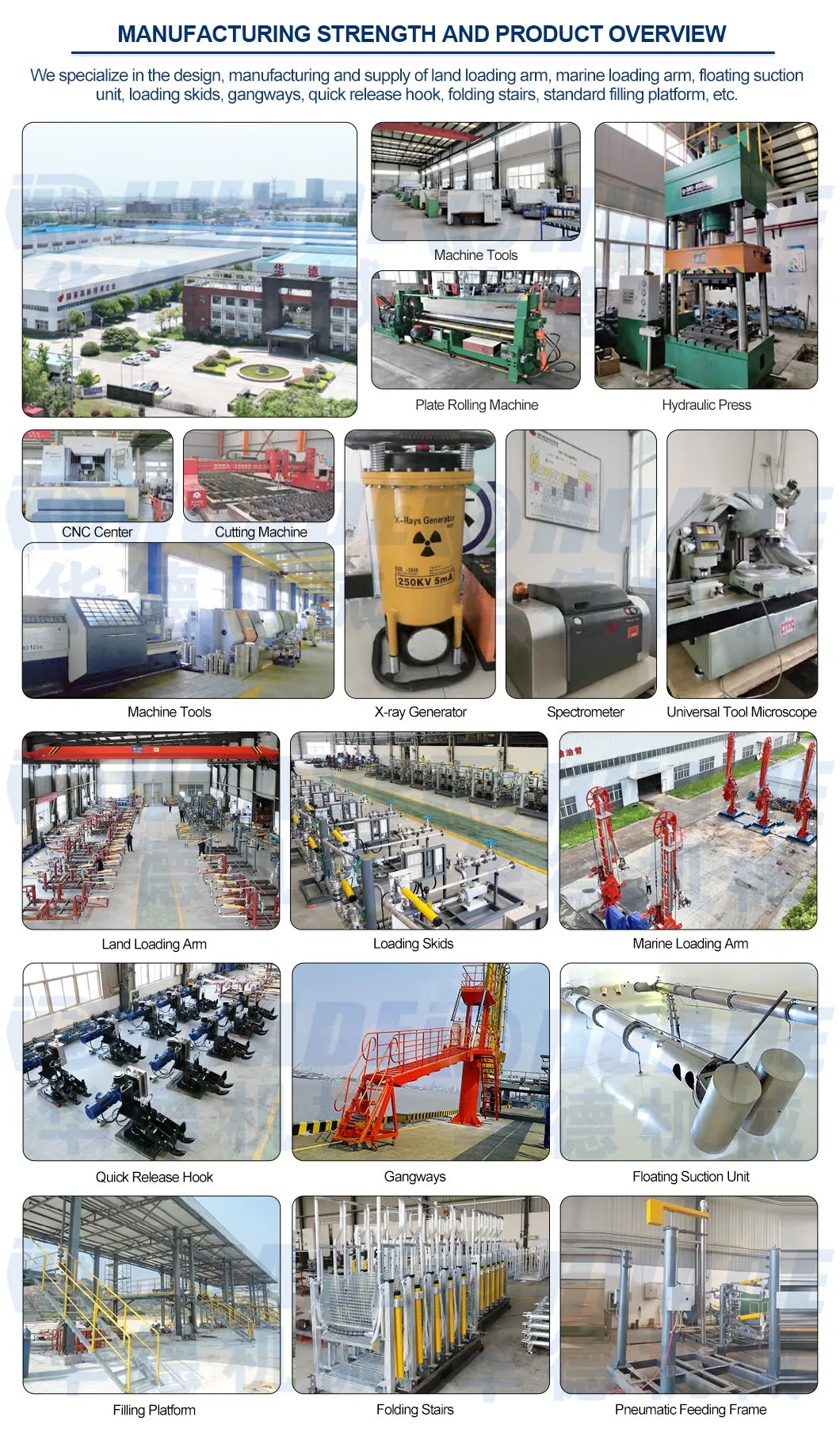

Our company is a leading manufacturer for loading arms, jetty and petrochemical equipment. We specialize in the design, manufacturing and supply of land loading arm, marine loading arm, floating suction unit, loading skids, gangways, quick release hook, folding stairs, etc.
Currently, we have a factory area of more than 12 acres, workshop area of 20,000m², and more than 120 sets of advanced manufacturing and testing equipment. We hold ISO9001/ISO14001/ISO45001 certificates and are authorized as a National High-Tech Enterprise.
FAQ
What is your production lead time?
It depends on the specific product, but generally, delivery can be made within 30-60 days.
What payment terms do you offer?
We typically offer payment terms of 30% deposit and 70% before shipment, but this can be negotiated based on order details.
Can you apply the customer's brand to the product?
Certainly, we can do that.
How do you ensure the quality of your products?
We have a strict quality control process in place, including inspections at every stage of production, to ensure high quality standards.
Can you provide documentation and certifications?
Yes, we provide material certificates, inspection reports, and compliance documentation with industry standards.
How long is your warranty?
12 months from commissioning or 18 months from delivery, whichever comes first.
