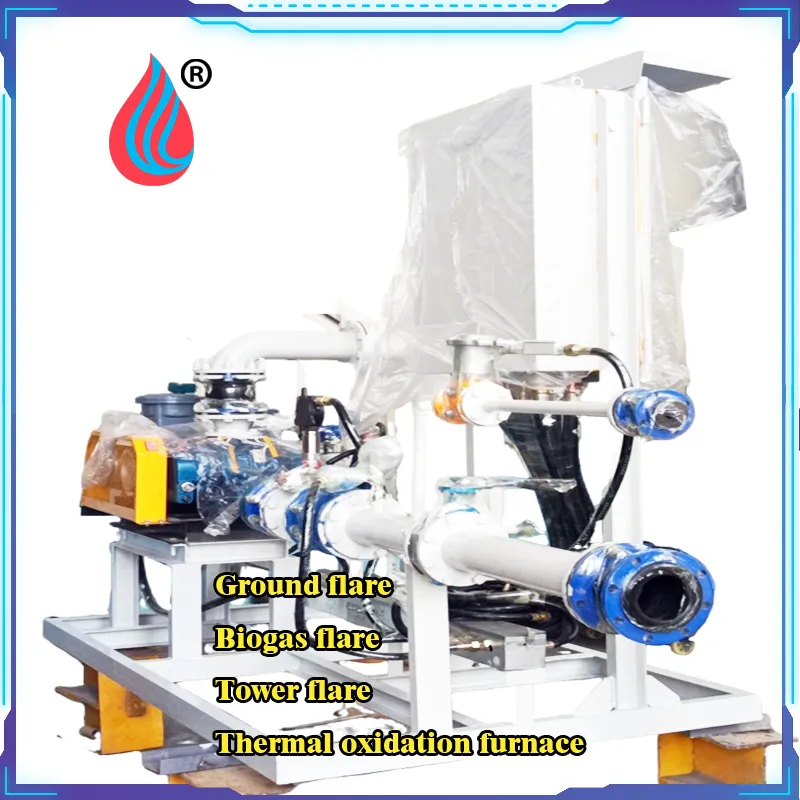

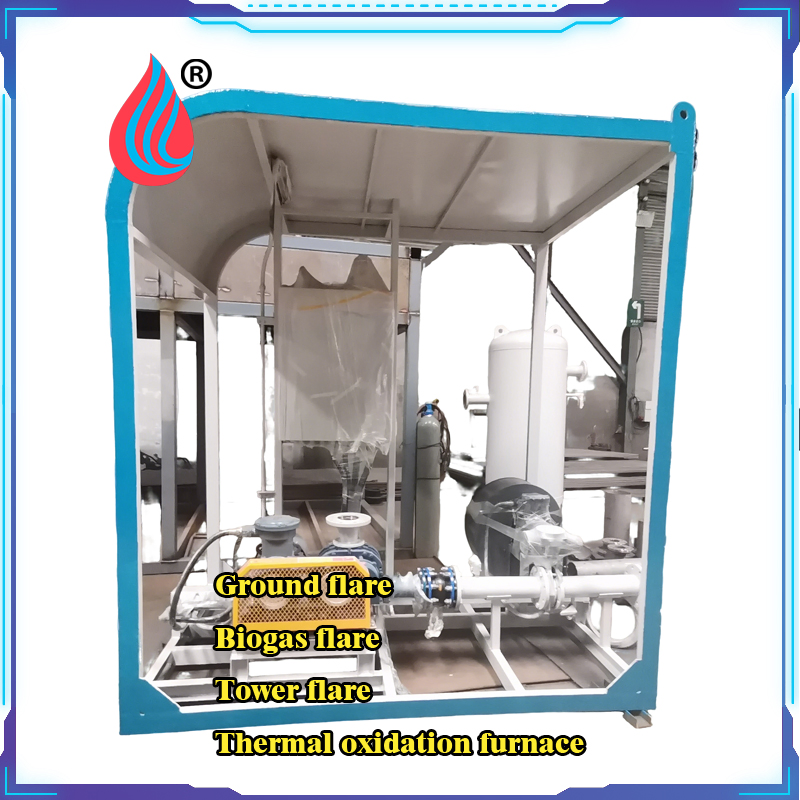

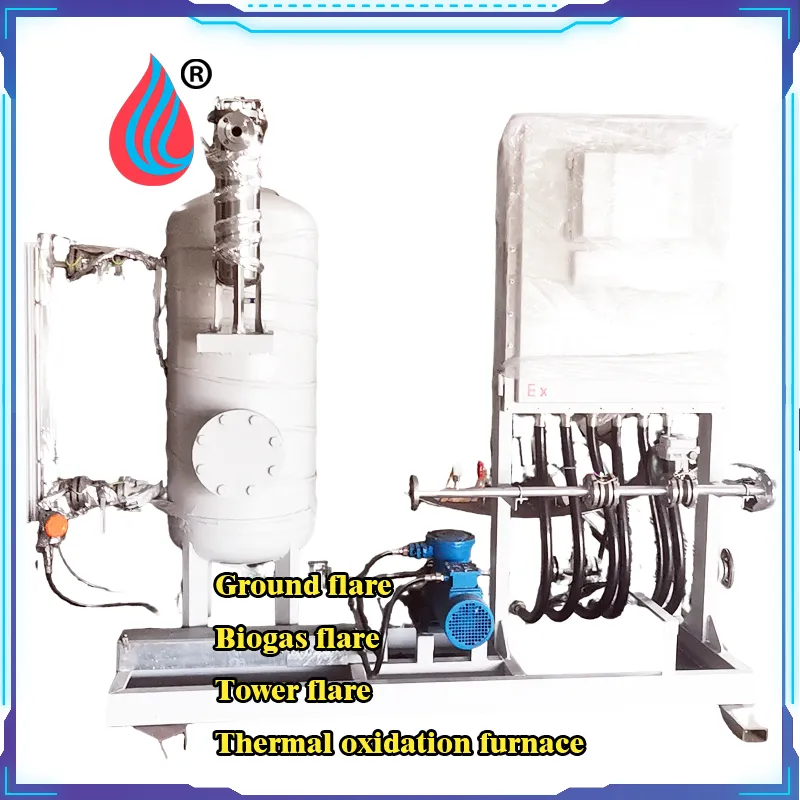

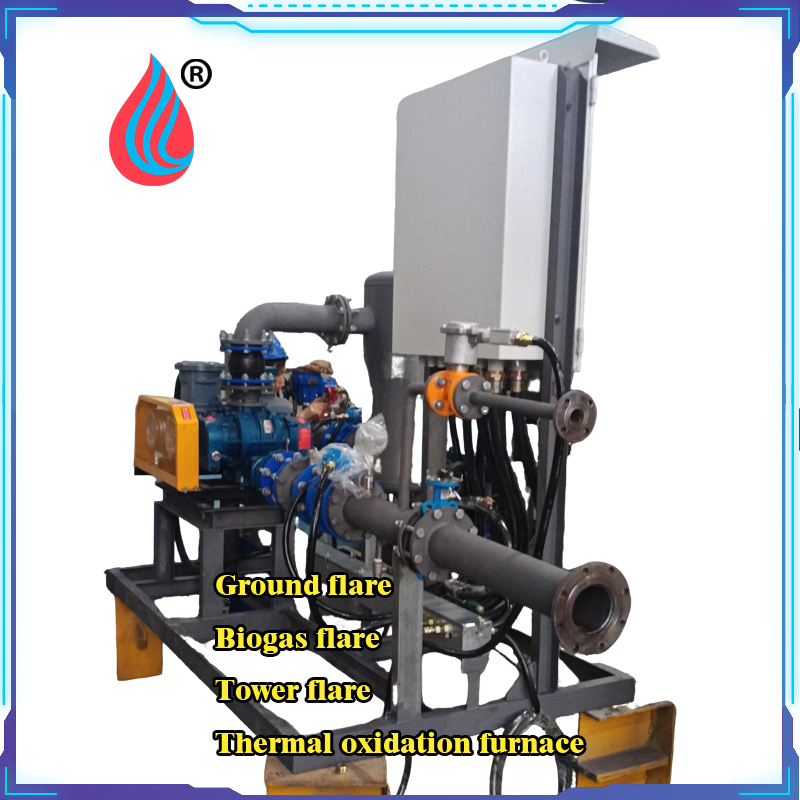

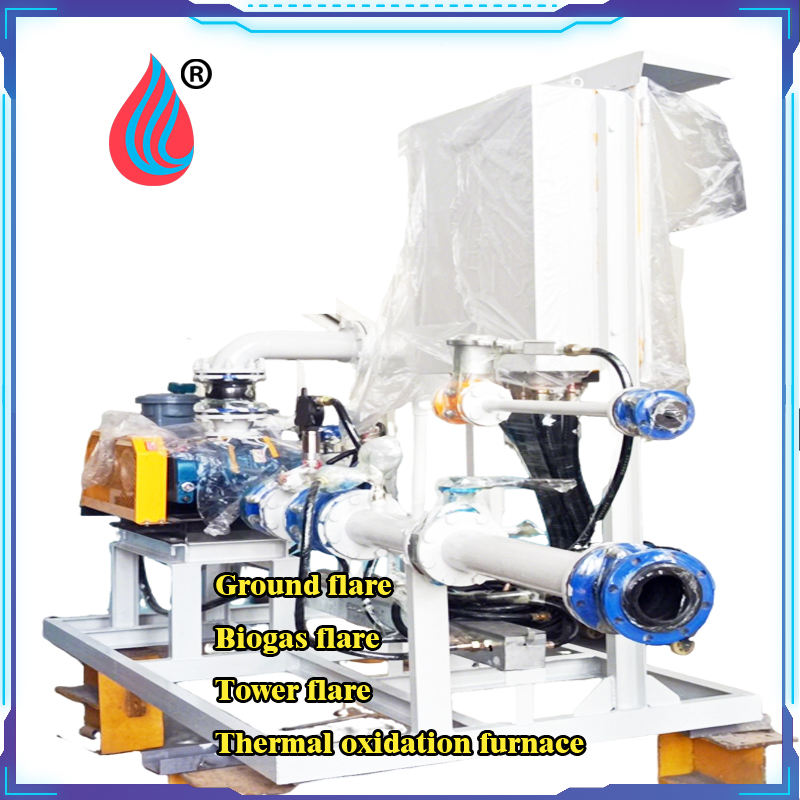

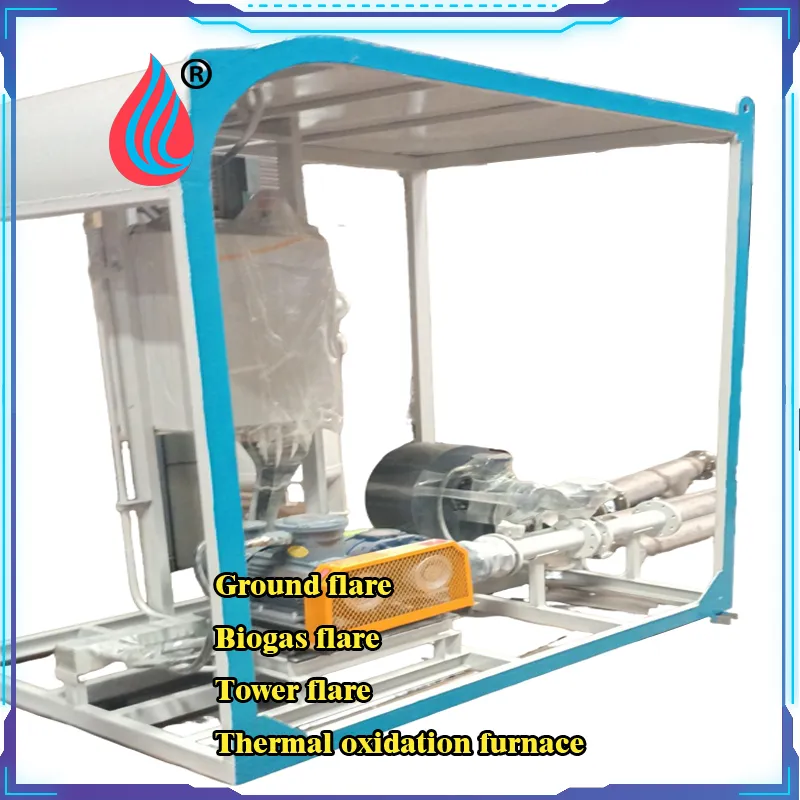

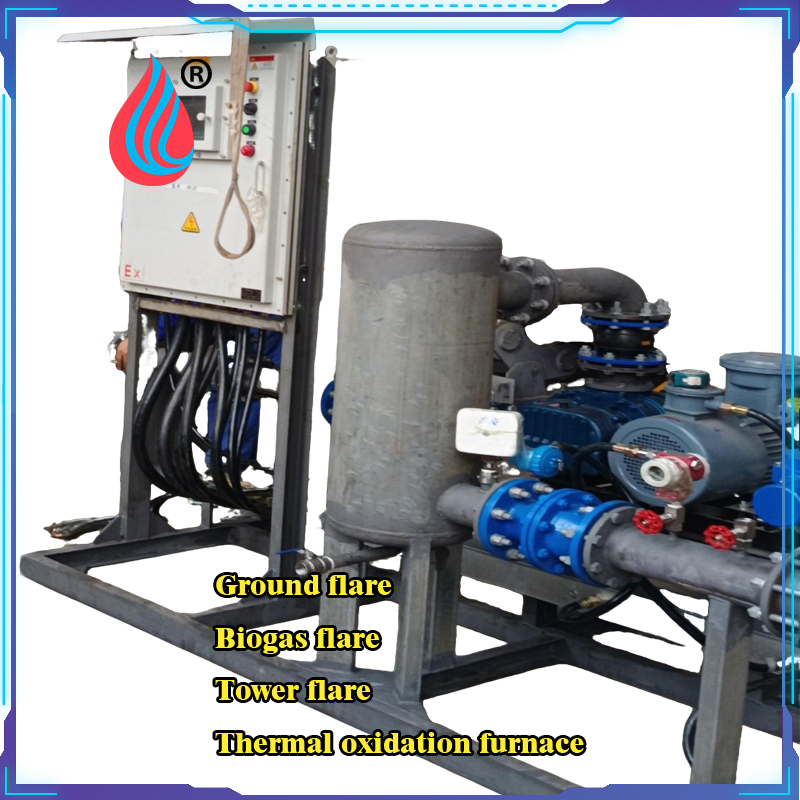

A combustion skid is a highly integrated modular combustion equipment. It typically integrates burners, fuel supply systems, control systems, safety devices, and auxiliary modules into a movable skid-mounted frame, enabling rapid deployment and plug-and-play functionality.
It integrates low-nitrogen combustion technologies (such as staged combustion and flue gas recirculation) and supports multi-fuel compatibility (natural gas, low-concentration gas, biogas, etc.).
Special designs, such as cold-wall protective gas inlets, isolate the high-temperature combustion zone from the combustion chamber lining through cold airflow, reducing the lining temperature to a safe range and prolonging the equipment's service life.
It adopts PLC or DCS systems to realize dynamic adjustment of combustion parameters (e.g., excess air ratio λ≤1.3), safety interlocking (flameout protection, gas leakage detection), and remote monitoring.
Integrated with AI algorithms and combined with acoustic temperature measurement, it generates real-time 2D temperature distribution images, reducing NOx emissions by 50% and urea consumption by 40%-50%.
Fuel characteristics: Select corresponding burners based on calorific value (e.g., natural gas: 35MJ/m³), pressure (0.1-0.8MPa), and impurity content (e.g., H2S≤20mg/m³).
Thermal power: Covering 500kW to 24.5MW, model selection is combined with boiler capacity (3-30 tons) and process temperature (e.g., 1200ºC for aluminum melting furnaces).
Basic Requirements: Levelness deviation of the skid-mounted base ≤2mm/m; 1.5m maintenance channel reserved. Gas pipelines equipped with filters (≤50μm) and pressure regulators.
Electrical Connection: Grounding resistance ≤4Ω; leak detectors independently powered; precise neutral and live wire wiring for burners.
Business type: Manufacturer/factory, trading company
Business scope: Manufacturing and processing machinery
Management system certification: ISO9001:2015, ISO45001:2018, ISO14001:2015
Main products: Ground flare, Biogas flares, flare stack, Thermal Oxidation Furnace, Flue gas purification equipment.
Specializing in the manufacture of environmental protection equipment, industrial automation technology application, and intelligent instruments. We provide comprehensive solutions for ground torches, elevated torches, waste gas venting torches, and VOCs treatment equipment. Services include design, manufacturing, installation, commissioning, and one-stop after-sales support.
