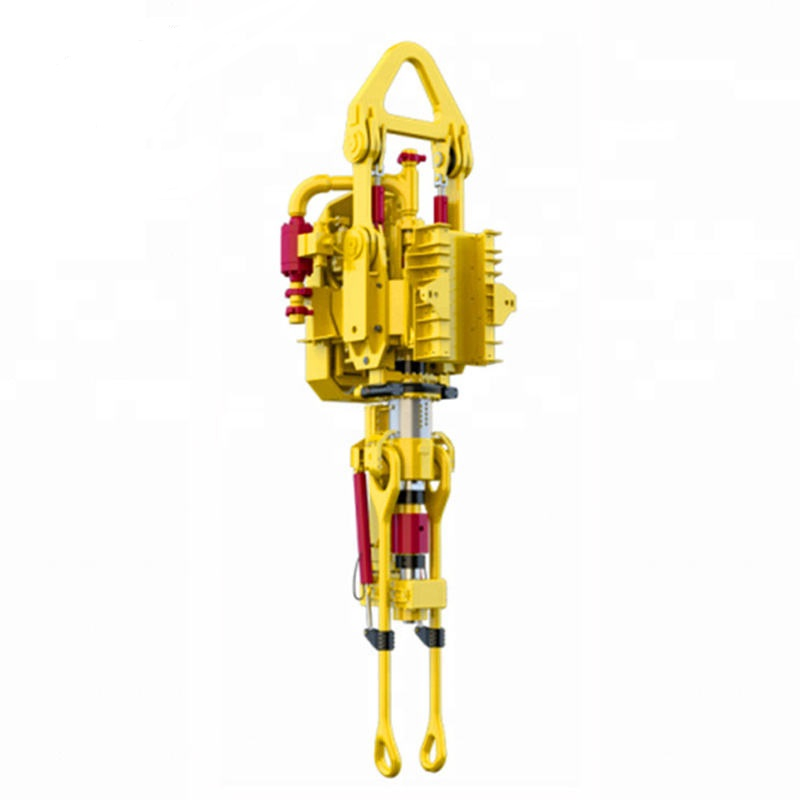

TDS 70BS Top Drive System for Oil Drilling Rigs Zj70

1 / 5

TDS 70BS Top Drive System for Oil Drilling Rigs Zj70

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

📋 Basic Info.

Model NO.

JJT

Manufacturing Process

Casting

Surface Treatment

Spray-Paint

Operation Pressure

Atmospheric Pressure

Material

Cast Steel

Color

Yellow or Customized

Feature

Antiseptic, Explosion-Proof

Hydraulic Winch Brake

Manually and Hydraulic Operated Band Brake

Application

Oil and Gas Well Drilling

Hydraulic Winch Config.

Single in Vertical / Horizontal / Double

Transport Package

Pallet Tray

Specification

250-500tons

HS Code

84314310

Production Capacity

50PCS

📦 Packaging & Delivery

Package Size

57.00cm * 48.00cm * 48.00cm

Package Gross Weight

2000.000kg

⚙ Product Description

Our electric top drive drilling system is a high-performance, intelligent core solution designed for demanding onshore and offshore drilling operations. Built on 15 years of independent R&D, this system integrates mechanical, hydraulic, electrical, and digital control technologies into one seamless platform—fully compliant with API Spec 8C and CNPC standards.

Available in four depth-rated models (DQ30BS, DQ40BS, DQ50BS, DQ70BS) covering 3000m to 7000m, our top drives are compatible with standard land rigs and have been successfully deployed across multiple regions.

📊 Specification

Parameter	Details
Model Series	DQ40BS / DQ50BS / DQ70BS
Max Hole Depth	4000m / 5000m / 7000m
Drive Type	AC variable frequency electric drive
Control System	Digital HMI + PLC + Remote diagnostics
Certifications	API Spec 8C, CNPC, ISO 9001
Operating Modes	Local, remote (driller cabin), wireless handheld
Safety Features	Emergency stop, torque limit, anti-collision, fault self-diagnosis

🚀 Key Components

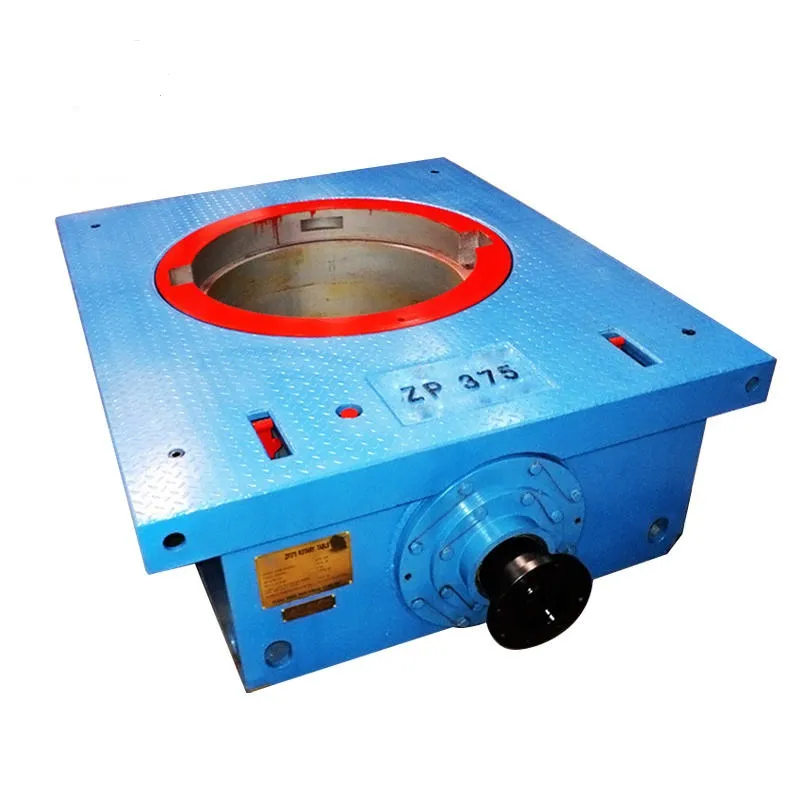

Rotary Table

The rotary table is an essential part of the drilling rig. Its function is to slow down a pair of bevel gear pairs during drilling operations, providing speed and torque output to drive drilling tools.

Meets API 7K requirements.
Spiral bevel gear drive for higher loading capacity and smooth running.
Casting and welding structure for superior rigidity.
Splash lubrication for gears and bearings.

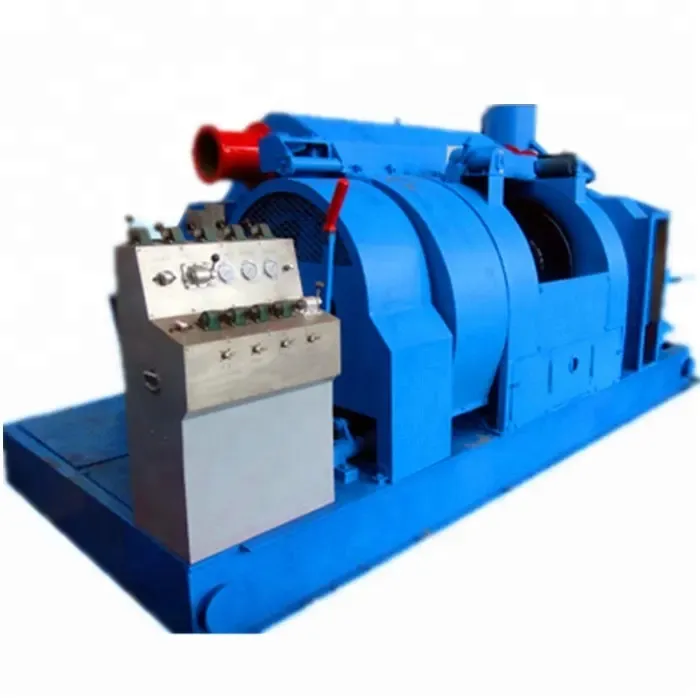

Drawworks

The primary hoisting mechanism on a drilling rig. It acts as a large winch that spools the drilling line to raise or lower the drill stem and bit.

Alloy steel shafts and high-strength pressure-lubricated chains.
Drum equipped with spiral grooves and ventilating air clutches.
Water-cooled brake rim with intermediate frequency quenching.
Main band/disc brake plus auxiliary eddy current brake.

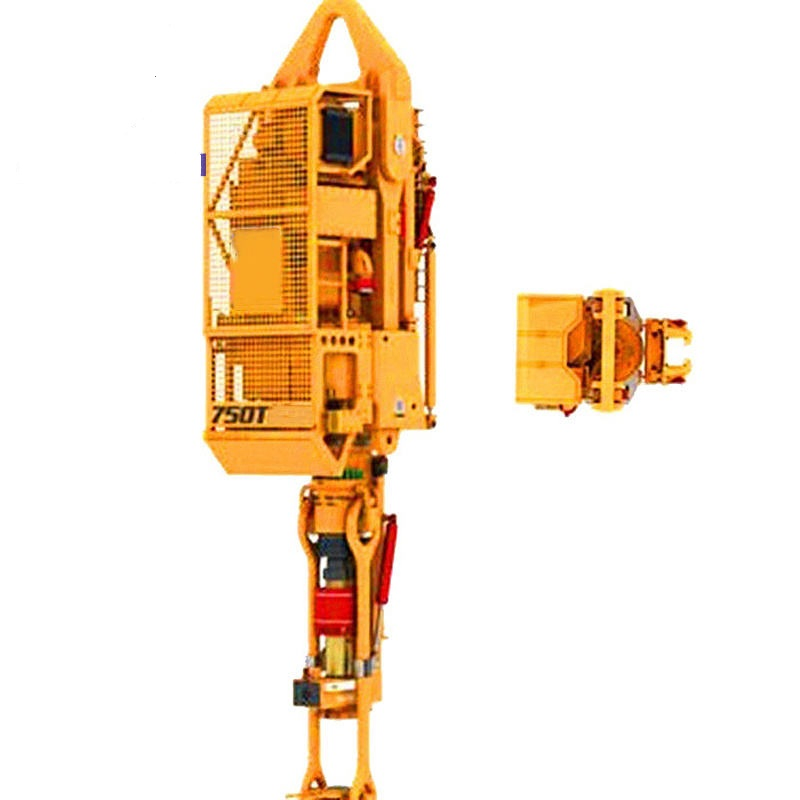

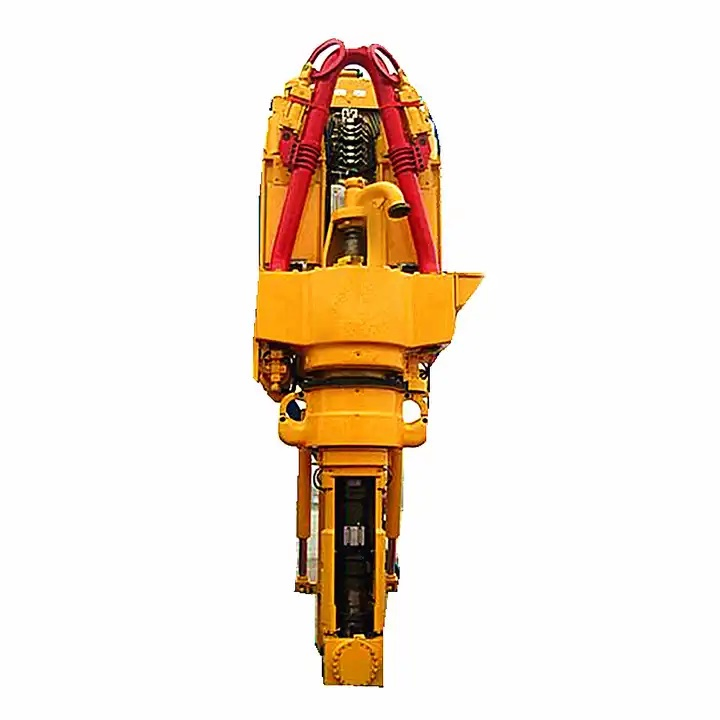

Top Drive System (TDS)

TDS is one of the greatest technological revolutions in petroleum equipment, replacing the Kelly and rotary table. It allows for drilling with triples instead of singles, reducing makeup/breakout work by two-thirds.

Standard: API SPEC 8C

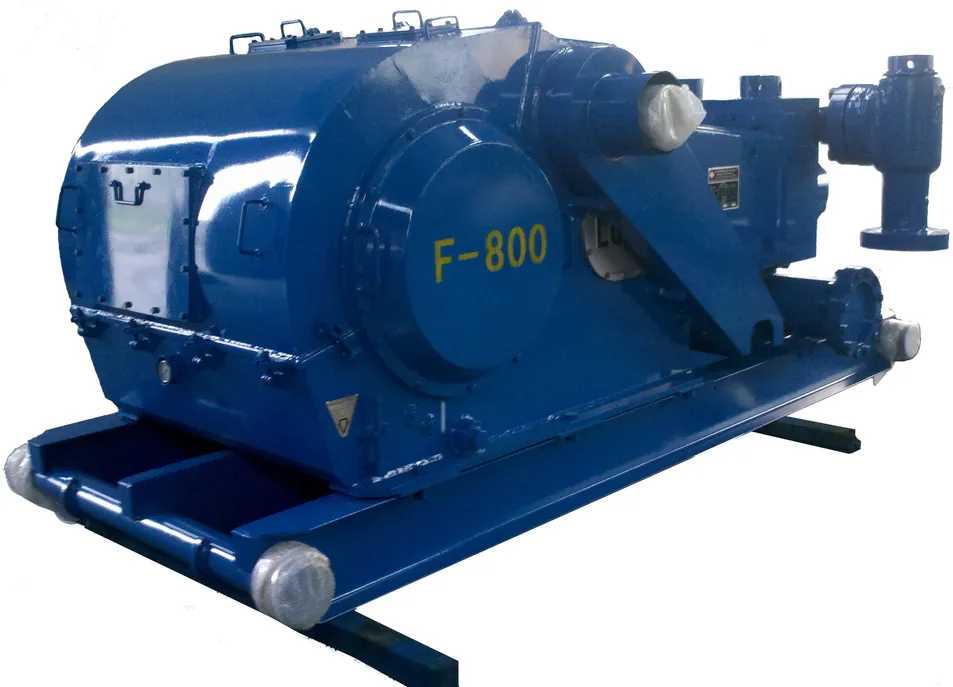

Mud Pumps (F Series & 3NB Series)

API Spec 7K standard products with interchangeable fluid end parts. Designed for high pump pressure and large displacement requirements.

Sturdy, compact structure with reliable performance.
Longer stroke for lower-speed operation, extending consumable life.
Advanced suction pulsation damper for optimal performance.
Models available: F-500 to F-1600 and 3NB350 to 3NB1600A.

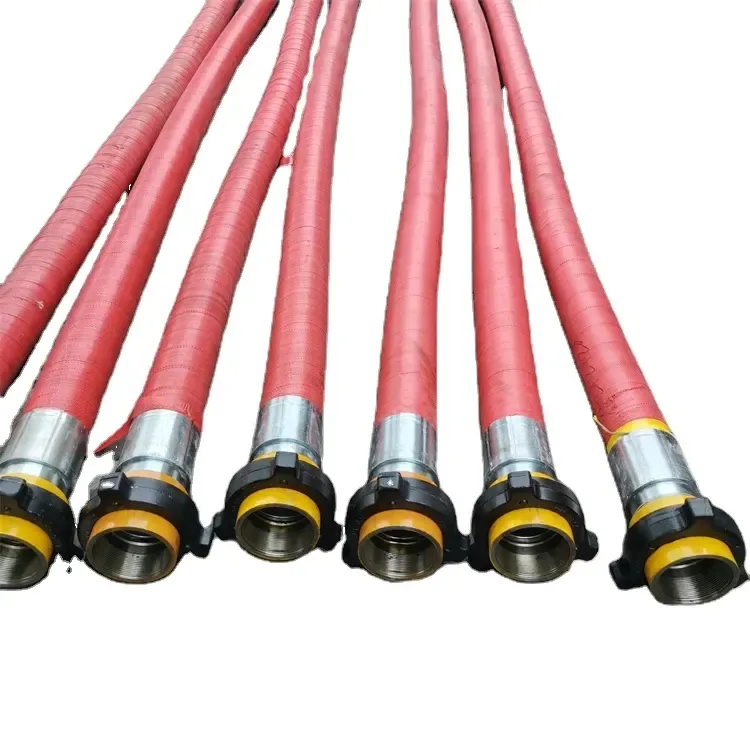

Rotary Drilling Hose

Flexible connection for high-pressure mud delivery. Resists corrosion from hydrogen sulfide and handles water-based or oil-based muds.

Reinforced with steel wire or steel link lines.
Carbon fiber outer sub and stainless steel armor options.
Min. aniline point at 66ºC.

❓ Frequently Asked Questions

What is the maximum drilling depth for these systems?

The system is available in various models (DQ40BS, DQ50BS, DQ70BS) capable of reaching depths of 4000m, 5000m, and up to 7000m respectively.

Which industry standards do the products comply with?

All equipment is fully compliant with API Spec 8C, API Spec 7K, CNPC standards, and ISO 9001 quality management certifications.

What are the primary safety features of the Top Drive System?

The system includes an emergency stop, torque limiting, anti-collision technology, and a comprehensive fault self-diagnosis system for safe operations.

Can the mud pump parts be easily replaced?

Yes, the F series mud pumps are designed so that consumable parts at the fluid end are interchangeable with standard parts that comply with API specifications.

What drive technology is used in the Top Drive?

The system utilizes an AC variable frequency electric drive, controlled via a digital HMI and PLC system with remote diagnostic capabilities.

Is the equipment suitable for harsh environments?

Yes, the components feature antiseptic and explosion-proof properties, and the drilling hoses are designed to resist corrosion from hydrogen sulfide.
