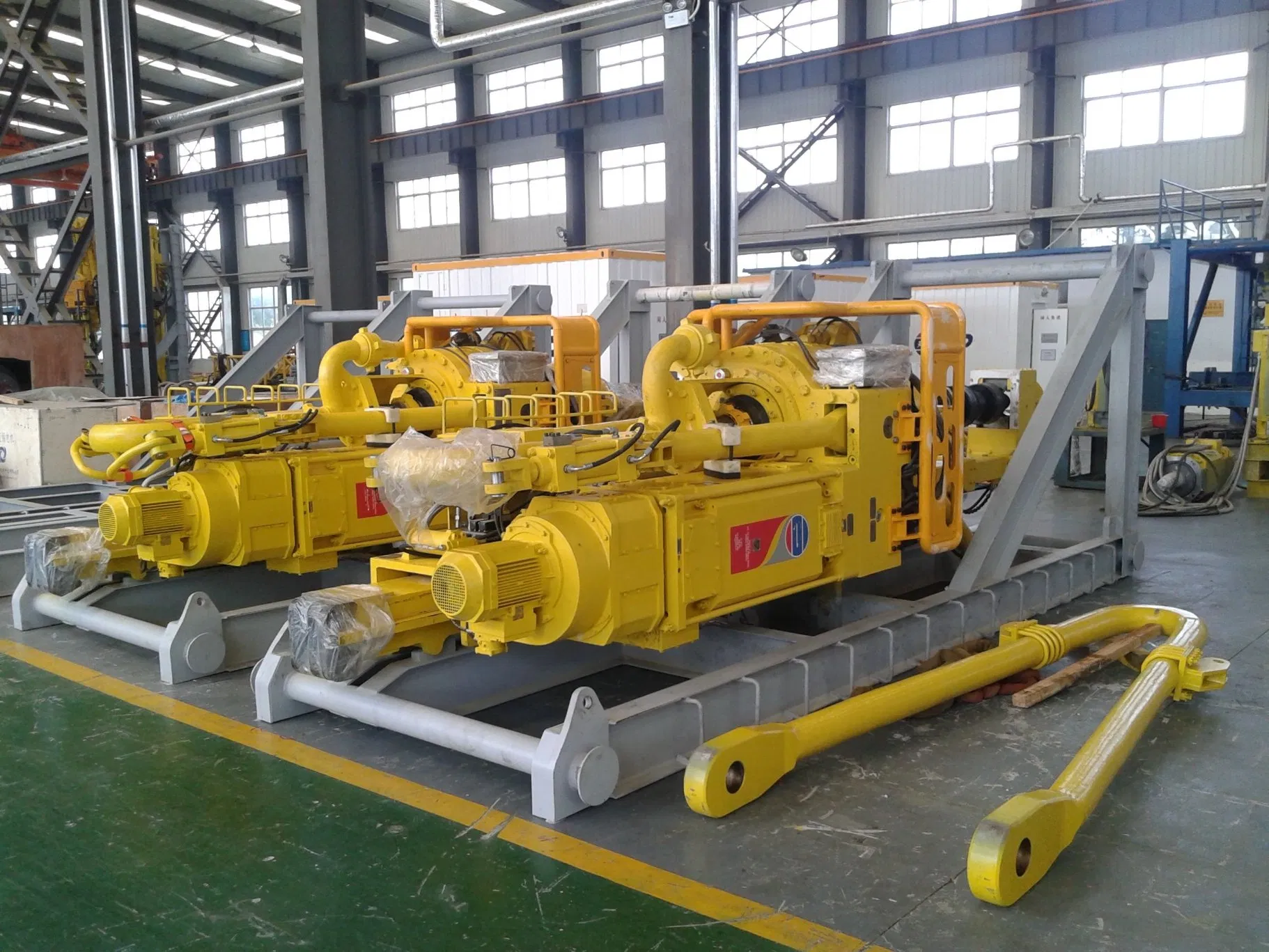

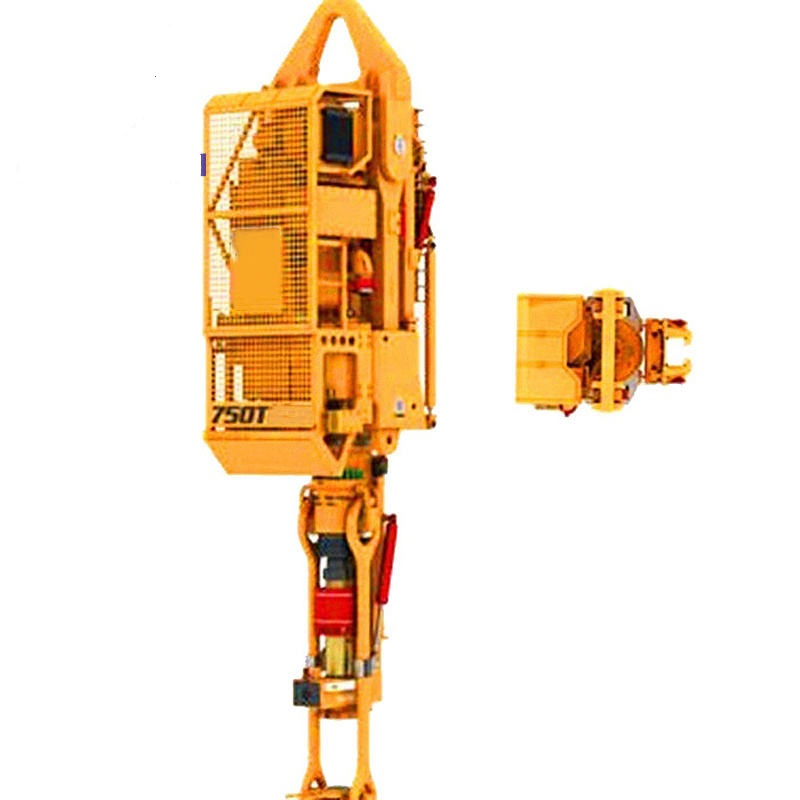

TDS250 Top Drive System 500kw 600V for Oilfield Operations

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Basic Information

Model NO.

JJT

Manufacturing Process

Casting

Surface Treatment

Spray-Paint

Operation Pressure

Atmospheric Pressure

Material

Cast Steel

Color

Yellow or Customized

Feature

Antiseptic, Explosion-Proof

Application

Oil and Gas Well Drilling

Specification

250-500tons

Origin

China

Product Description

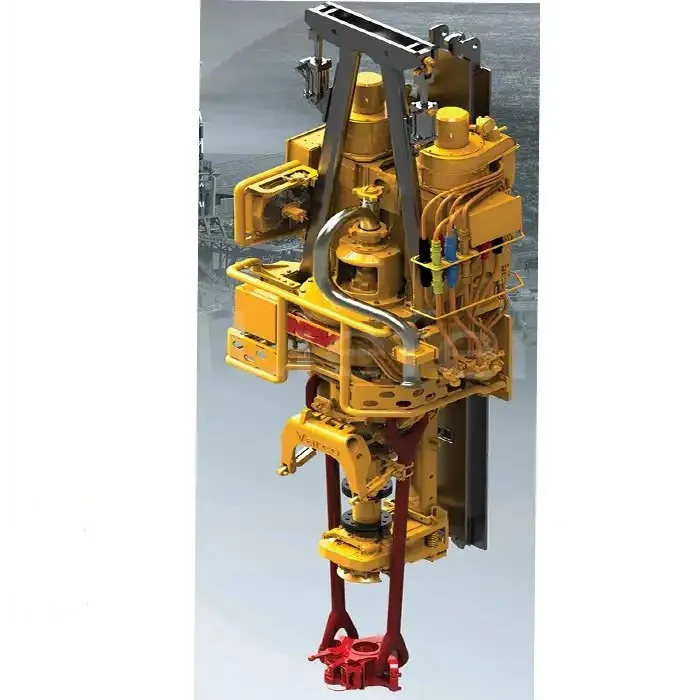

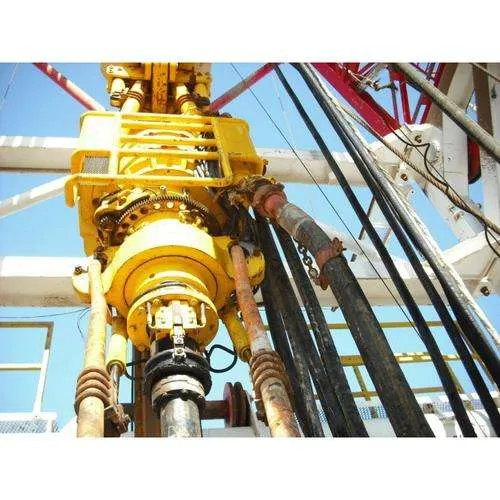

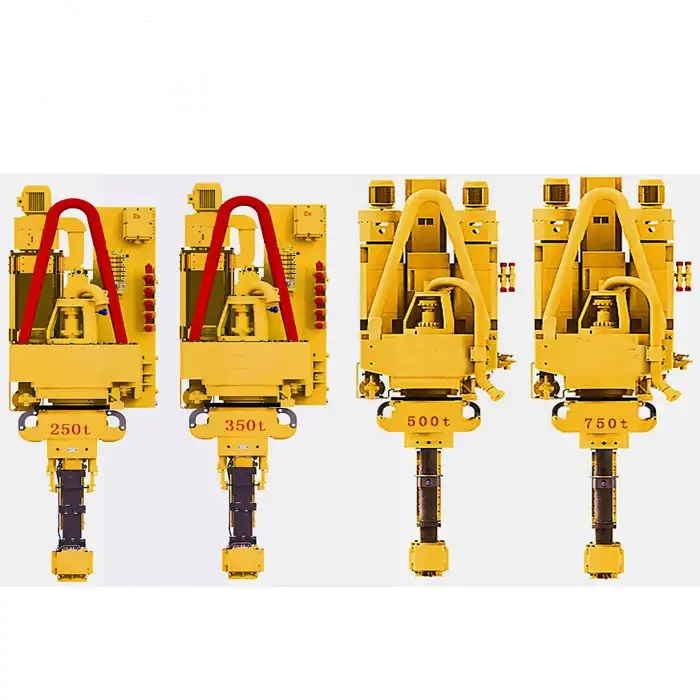

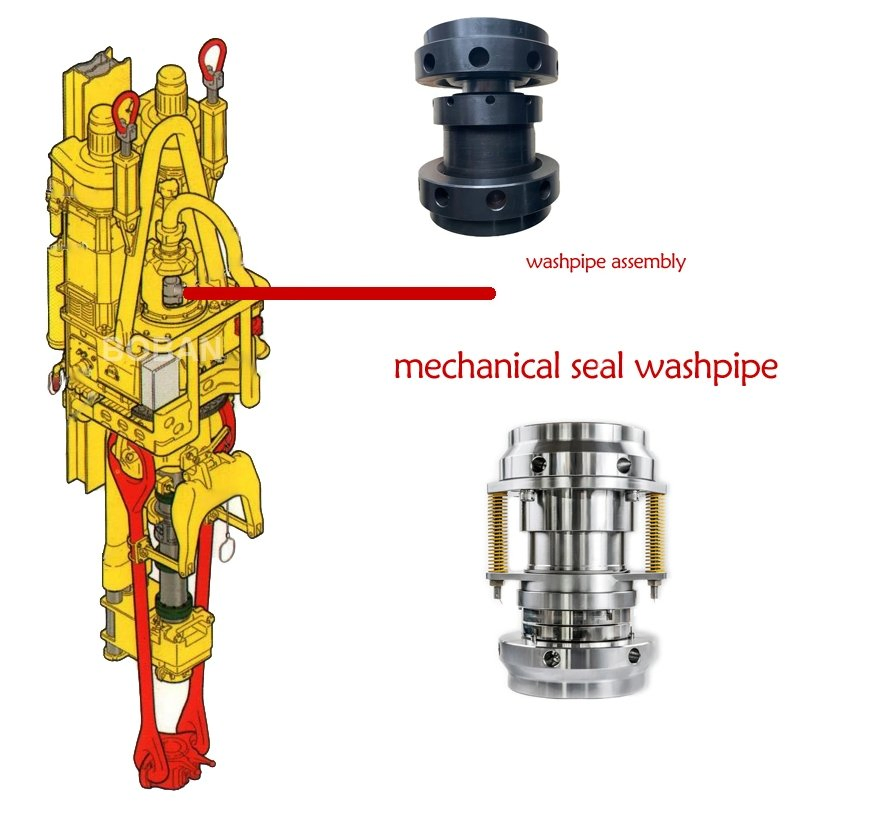

Our electric top drive drilling system is a high-performance, intelligent core solution designed for demanding onshore and offshore drilling operations. Built on 15 years of independent R&D, this system integrates mechanical, hydraulic, electrical, and digital control technologies into one seamless platform—fully compliant with API Spec 8C standards. Available in four depth-rated models (DQ30BS, DQ40BS, DQ50BS, DQ70BS) covering 3000m to 7000m, our top drives are compatible with standard land rigs and have been successfully deployed across multiple regions.

Technical Specifications

Model Series	DQ40BS / DQ50BS / DQ70BS
Max Hole Depth	4000m / 5000m / 7000m
Drive Type	AC variable frequency electric drive
Control System	Digital HMI + PLC + Remote diagnostics
Certifications	API Spec 8C, ISO 9001
Operating Modes	Local, remote (driller cabin), wireless handheld
Safety Features	Emergency stop, torque limit, anti-collision, fault self-diagnosis

Core Components

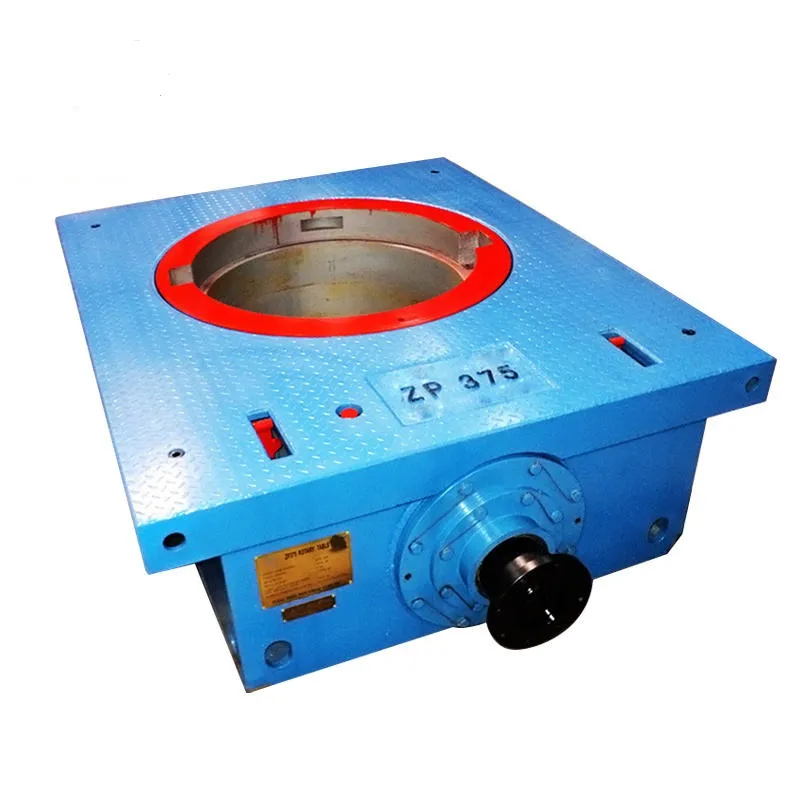

Rotary Table

The rotary table is a critical part of the drilling rig, slowing down bevel gear pairs to provide specific speed and torque for drilling tools. Features include spiral bevel gear drive for higher loading capacity and smooth operation.

Meets API 7K requirements
Spiral bevel gear for long service life
Casting and welding structure for high rigidity
Splash lubrication for gears and bearings

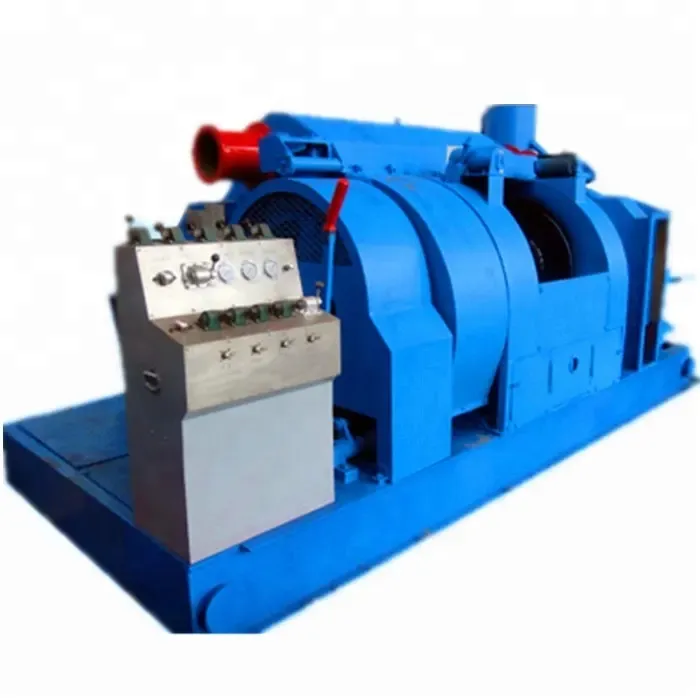

Drawworks

The primary hoisting mechanism for the rig, functioning as a large winch to raise or lower the drill stem. Shafts are made of high-strength alloy steel with rolling bearings.

Pressure lubricated high-accuracy chains
Water-cooled brake rim for extended life
Ventilating air clutch for drum shaft ends
Auxiliary eddy current brake options

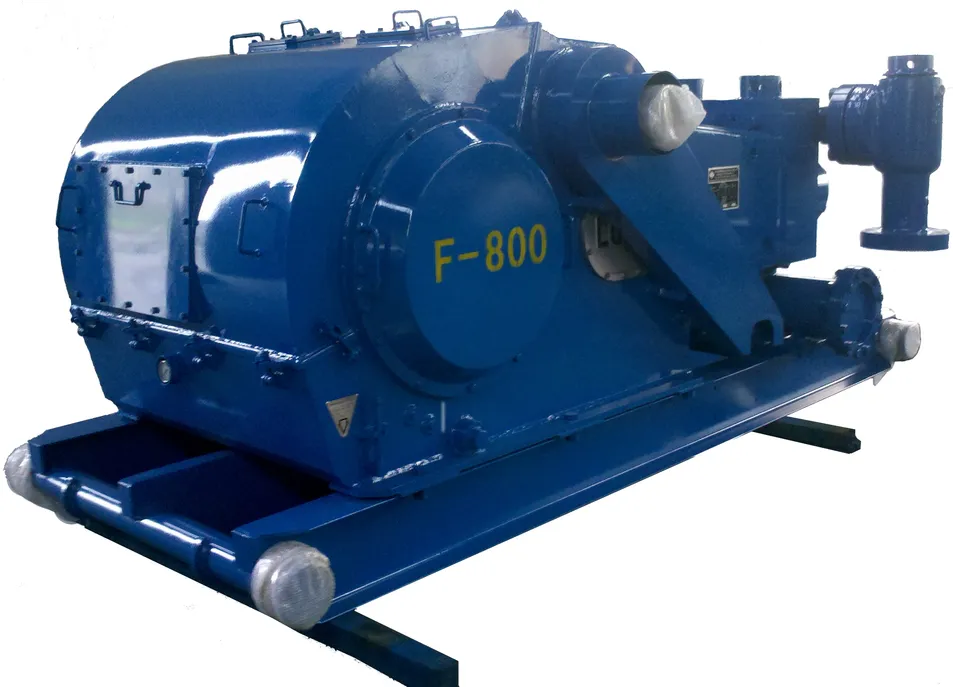

F-Series Mud Pumps

API Spec 7K standard products with interchangeable fluid end parts. Designed for high pump pressure and large displacement requirements in demanding oil fields.

Compact structure with reliable performance
Longer stroke for improved water supply
Advanced suction pulsation damper
Available in F-500 to F-1600 models

Equipment Gallery

Frequently Asked Questions

What drilling depths can the electric top drive system handle?

The system is available in multiple models (DQ30BS to DQ70BS) capable of handling drilling depths ranging from 3000m to 7000m.

What international standards does the equipment follow?

All equipment is fully compliant with API Spec 8C, API Spec 7K, and ISO 9001 quality management standards.

What are the primary safety features of the Top Drive System?

The system includes emergency stop functions, torque limiting, anti-collision technology, and a comprehensive fault self-diagnosis system.

Are the mud pump consumables easily replaceable?

Yes, the F-series mud pumps are designed so that fluid end consumable parts are interchangeable with standard parts complying with API specifications.

What drive technology is utilized in these systems?

The systems utilize advanced AC variable frequency electric drive technology for precise control and efficiency.

Can the system be operated remotely?

Yes, the control system supports local operation, remote operation from the driller's cabin, and wireless handheld control modes.
