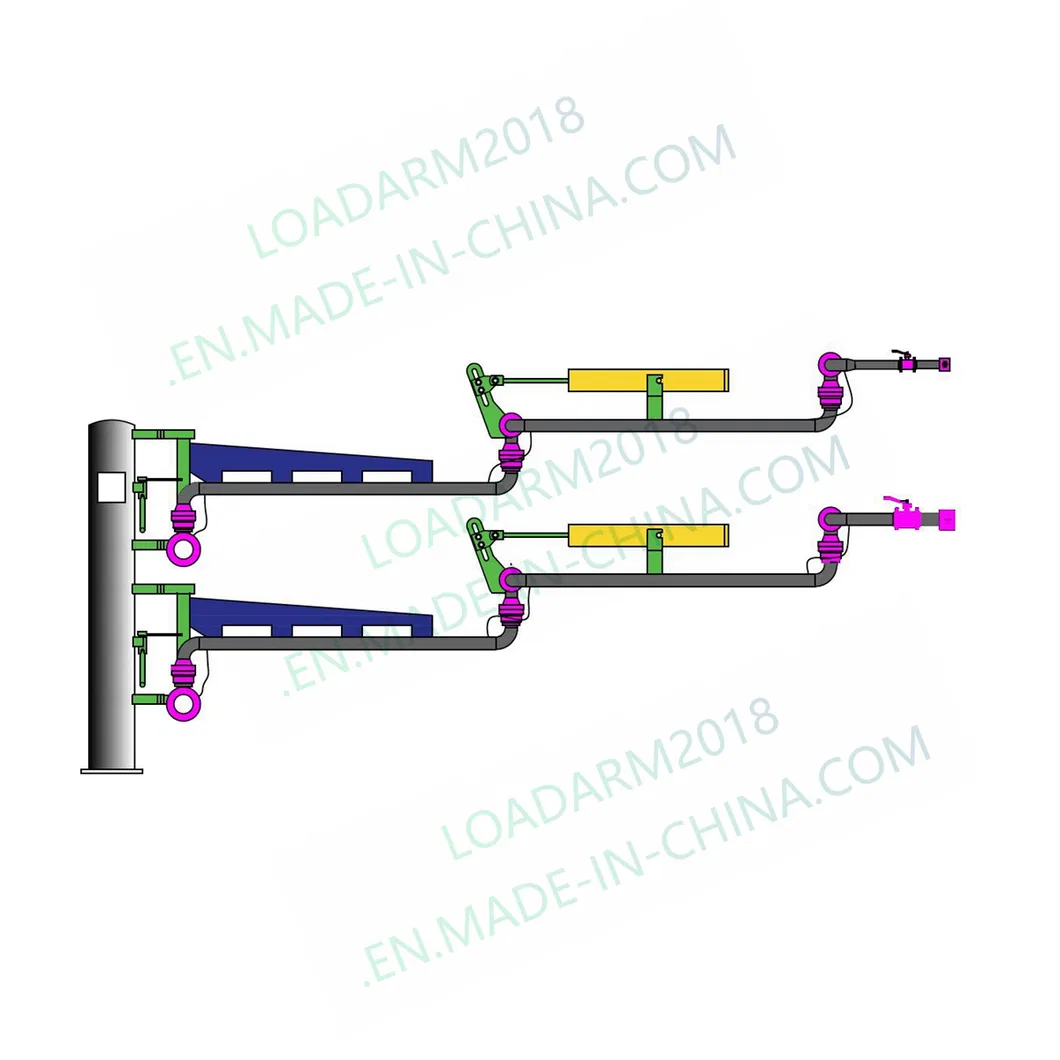

Structure of AL2513 Land Loading Arm
General Introduction
Our land loading arm is especially designed for transporting fluid between piping system and tanker, which shall be designed for different tanker, liquids and site conditions. Equipped with loading platform, folding stairs and safety cage to make the land loading arm into a complete loading system. By level location or quantitative monitoring, while fluid level exceed the present value, provide the sound and visual alarm or the remote signal.
According to the products, models and requirements of customers, the operating modes could be manual, pneumatic or hydraulic etc.
Technical Data for AL2513 Loading Arm

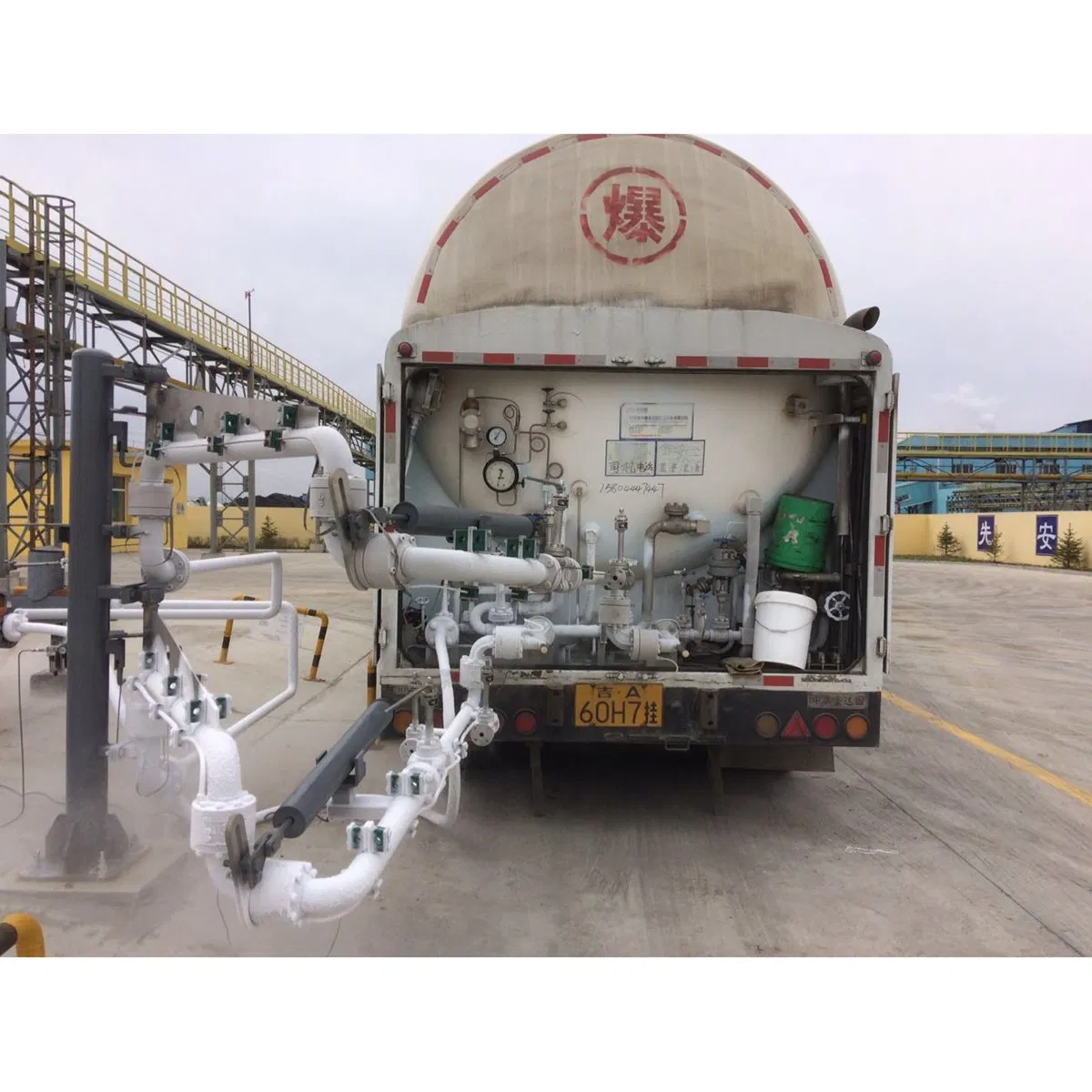

| AL2513 is a typical of bottom loading arms, mainly for products such as LPG, liquid ammonia, liquid chlorine, etc. It connects to tanker by flanges or quick coupling with excellent sealing performance. |
| Places Applied |
Bottom closed loading or unloading |
| Applications |
Products easy to gasify at normal temperature and pressure. |
| Nominal Diameter |
DN50~DN80 (liquid), DN25~DN50 (vapour) |
| Working Temperature |
-196~250ºC |
| Working Pressure |
PN1.0~PN4.0 |
| Material of Pipeline |
Carbon steel, stainless steel, aluminum, low-temperature steel, PTFE lined etc. |

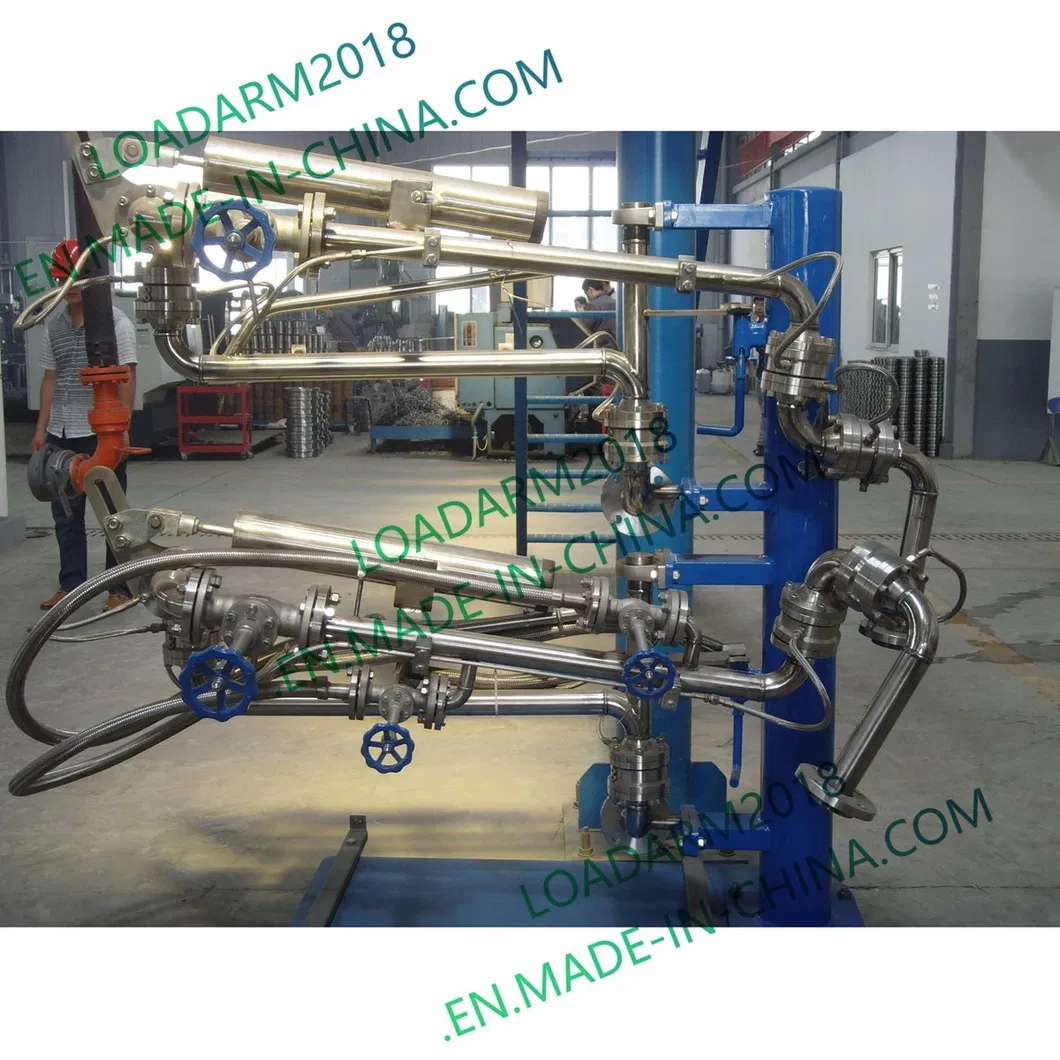

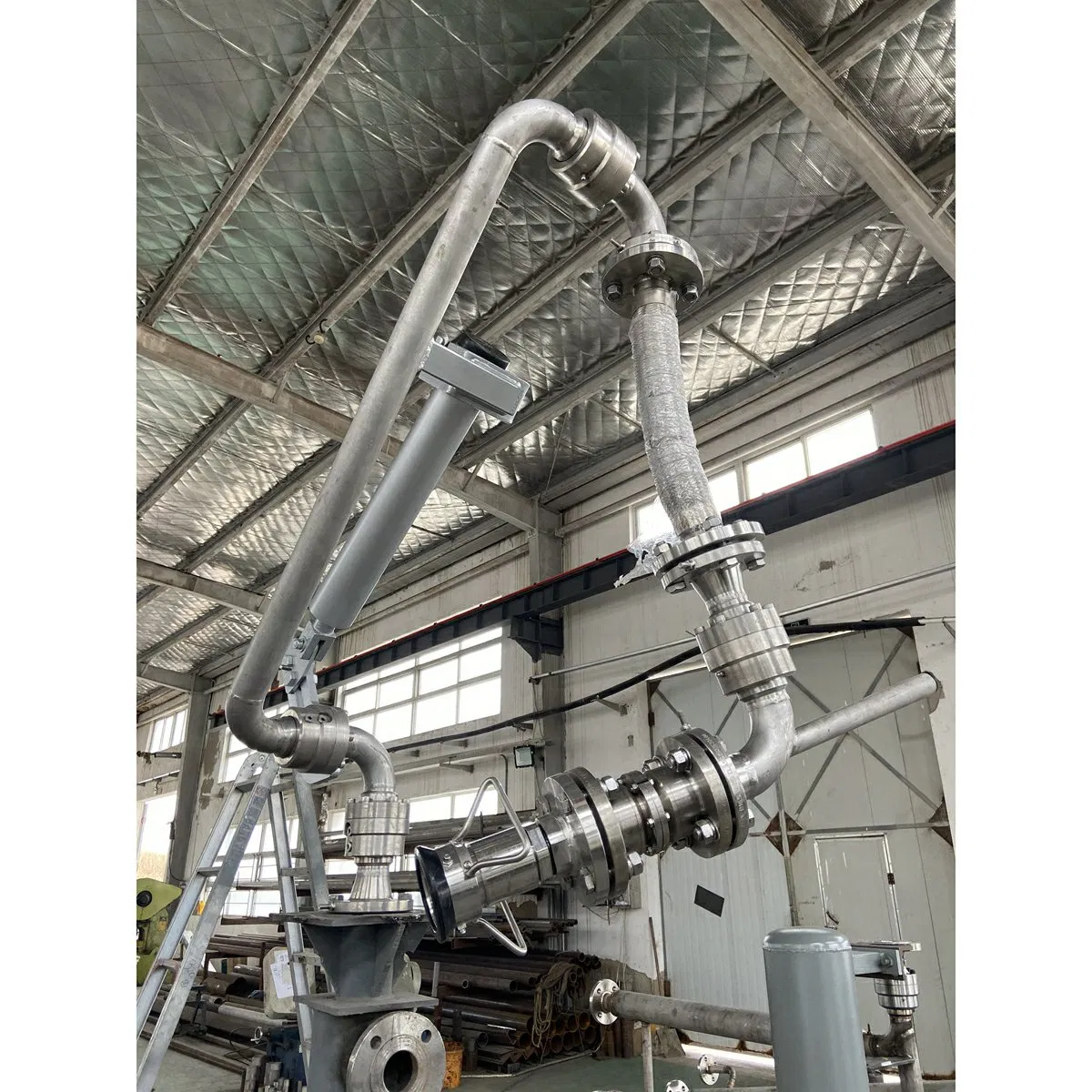

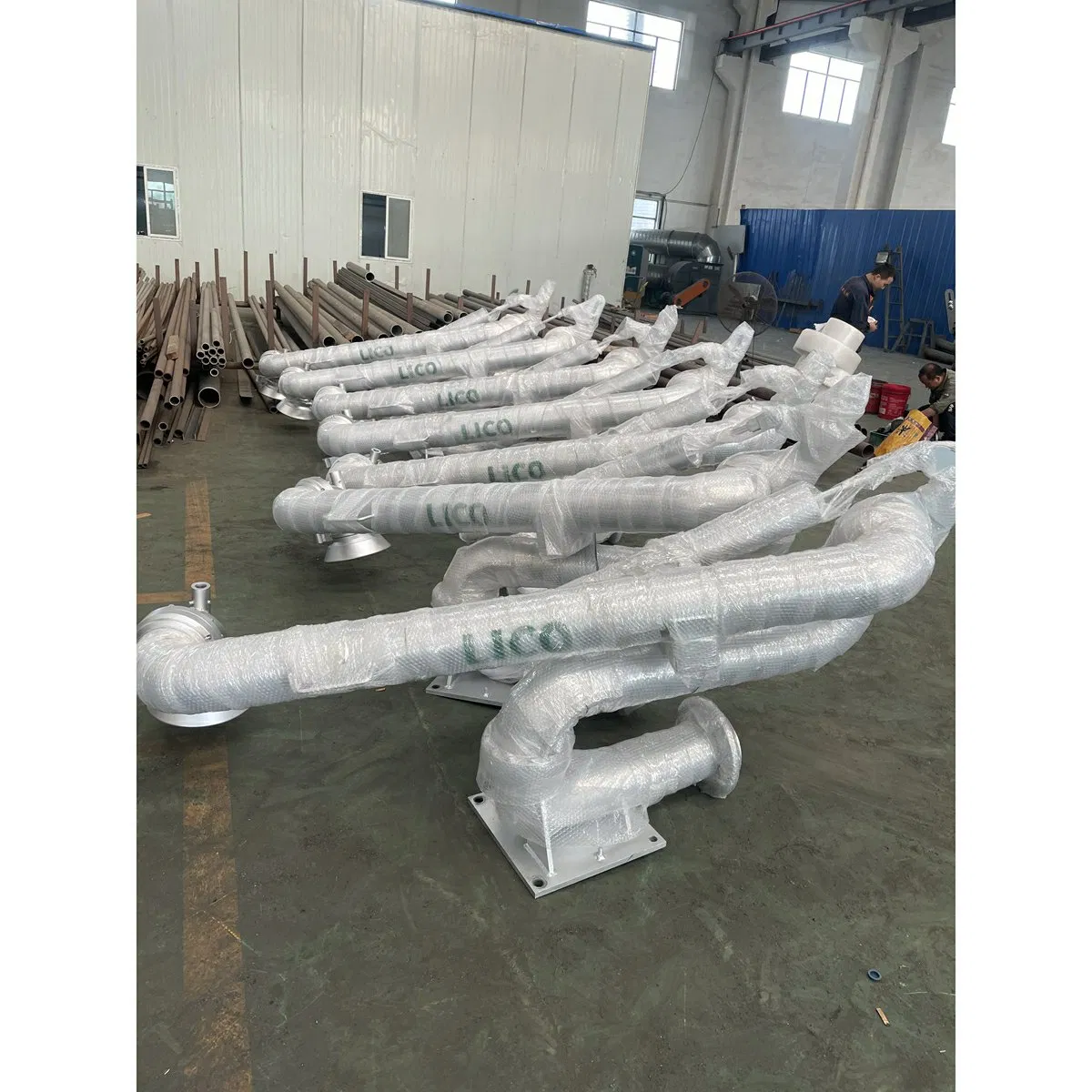

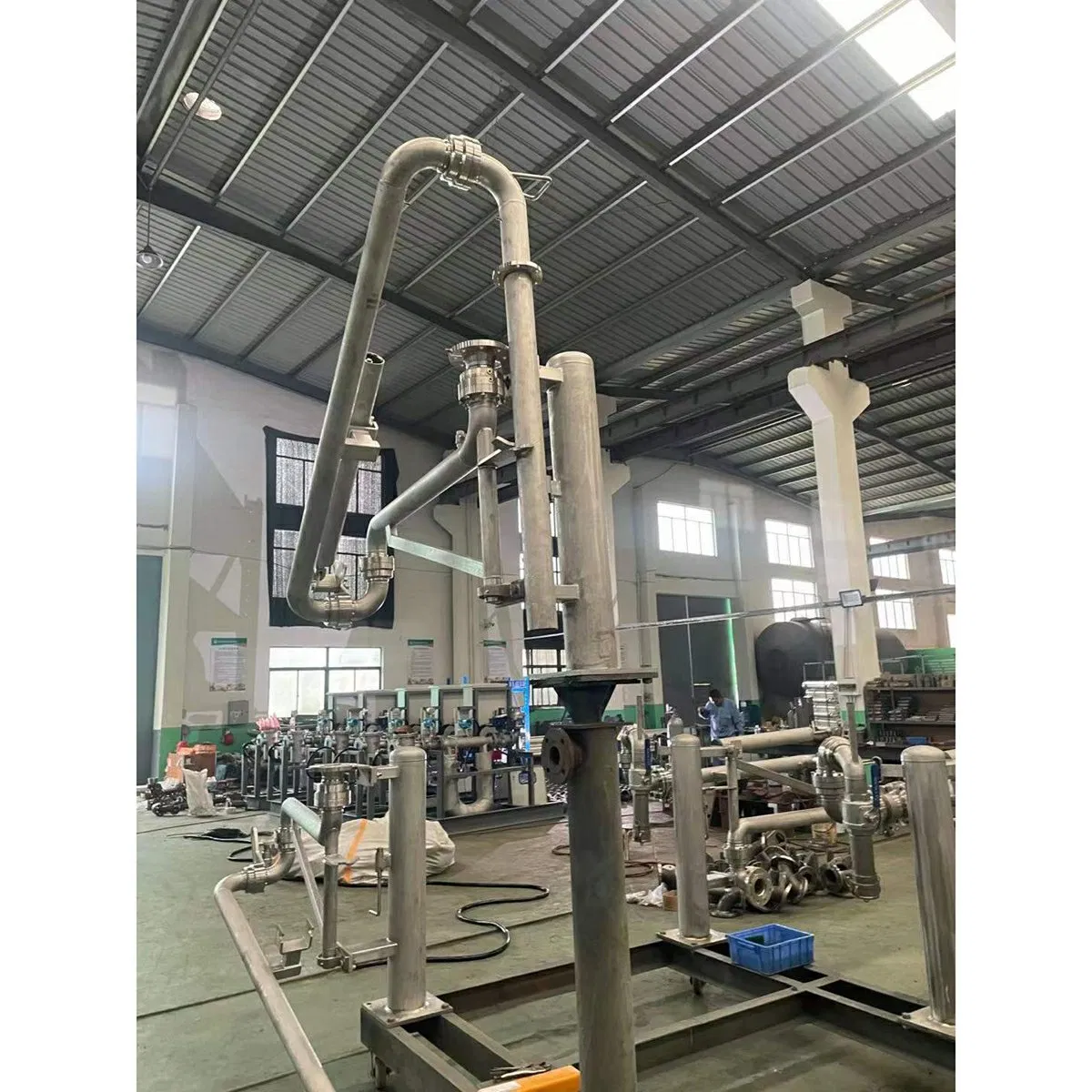

Workshop & Site Display

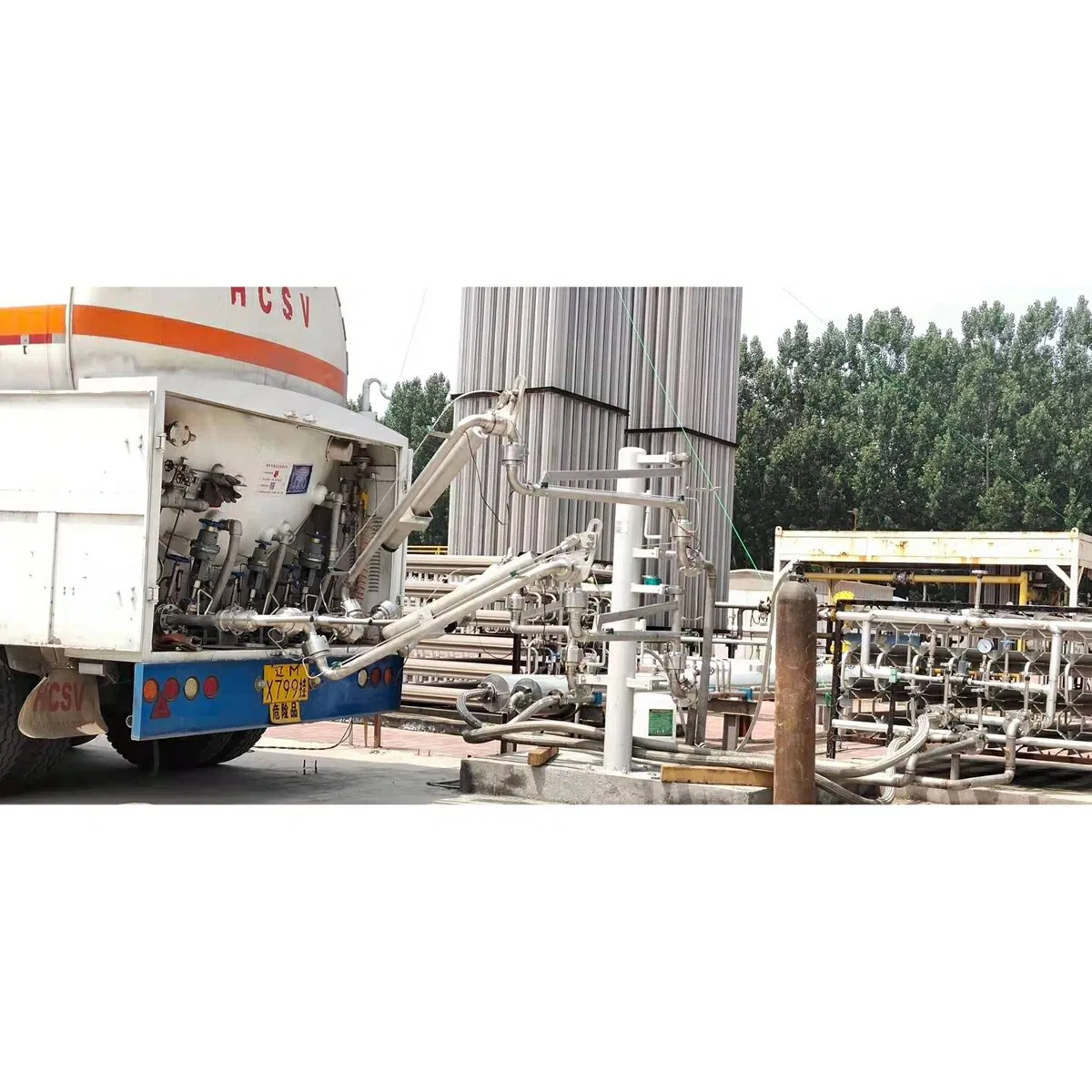

Overseas Project Cases
?
Frequently Asked Questions
What is your production period or delivery time?
Delivery time can be within 20 days. For special products, it could be within 30-50 days.
What payment terms do you offer?
T/T before shipment or L/C can be accepted.
Can you do OEM or use the customer's name plate for the product?
Yes, we can accept and welcome OEM requirements.
How do you make sure of the quality of your products?
We have a strict quality control process in factory, including inspections at every stage of production, RT test, PT test and hydraulic test etc. We have ISO certification, welding certificates and welder certificates from TUV.
Can you provide documentation and certifications for your products?
Yes, we can provide all necessary documentation including material certificates, inspection reports, customs clearance certificates (CO, Form E, etc.), and compliance with industry standards.
How long is your warranty period?
12 months from commissioning or 18 months from delivery, whichever comes first. In some cases, we can supply a 2-year warranty.
