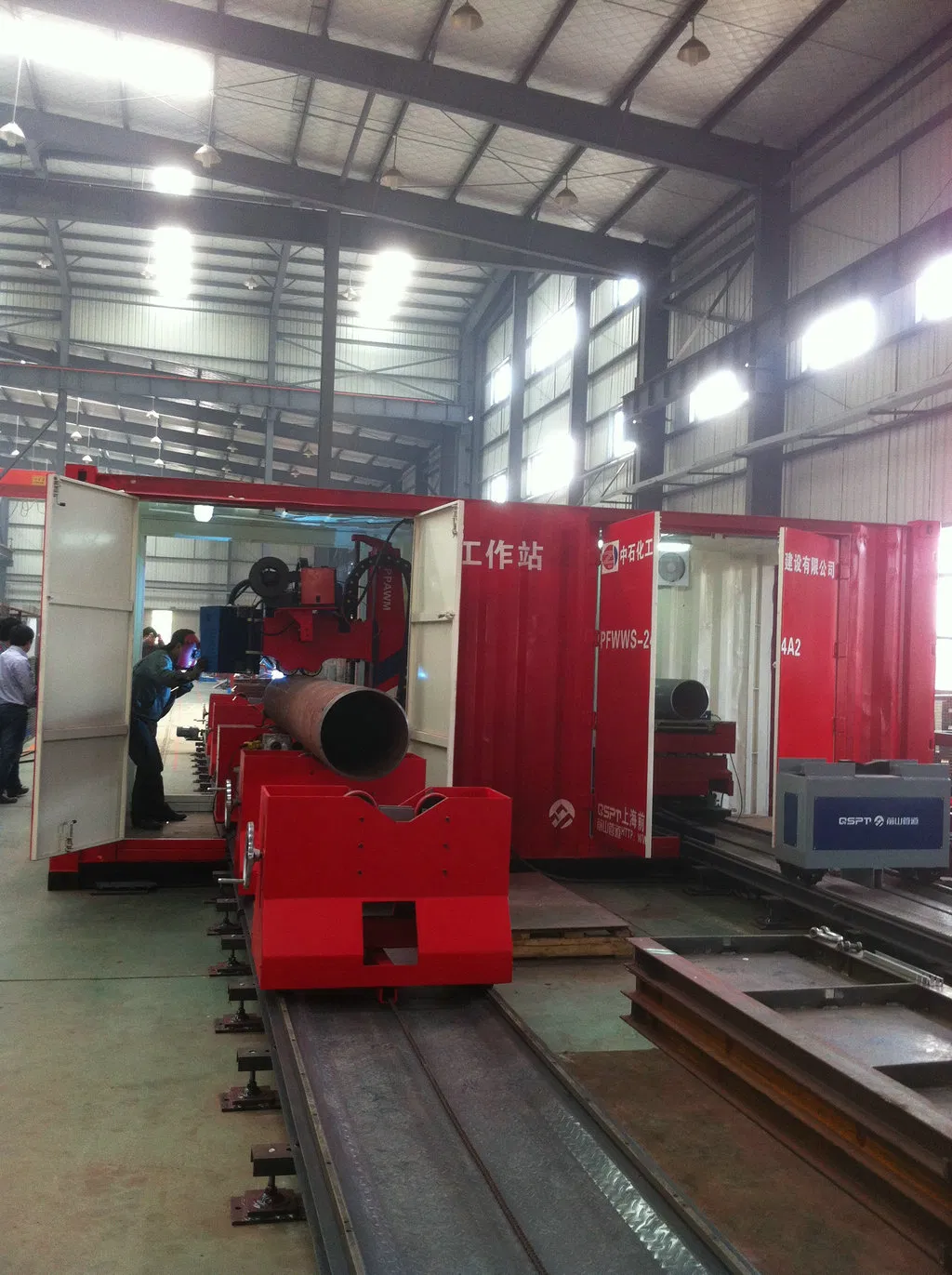

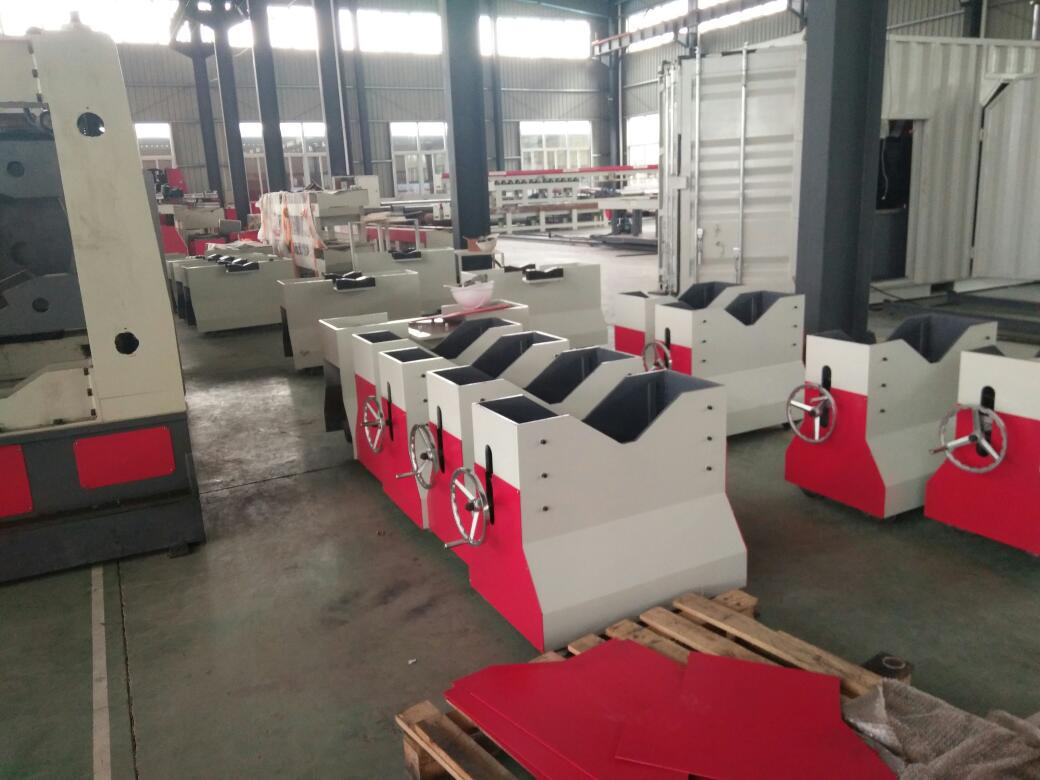

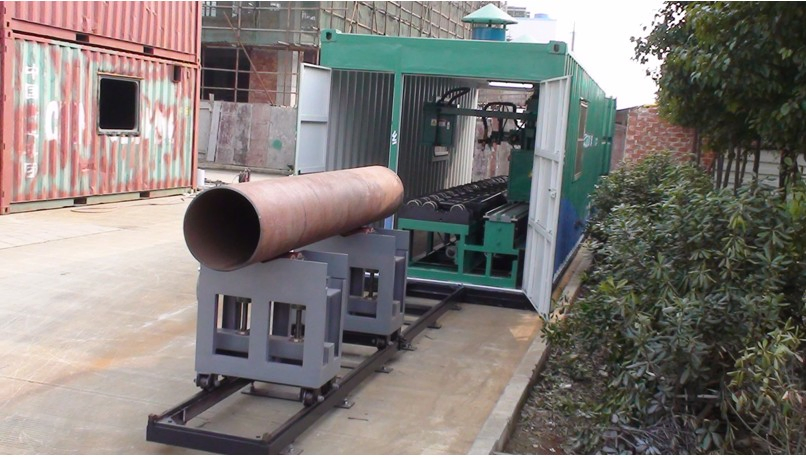

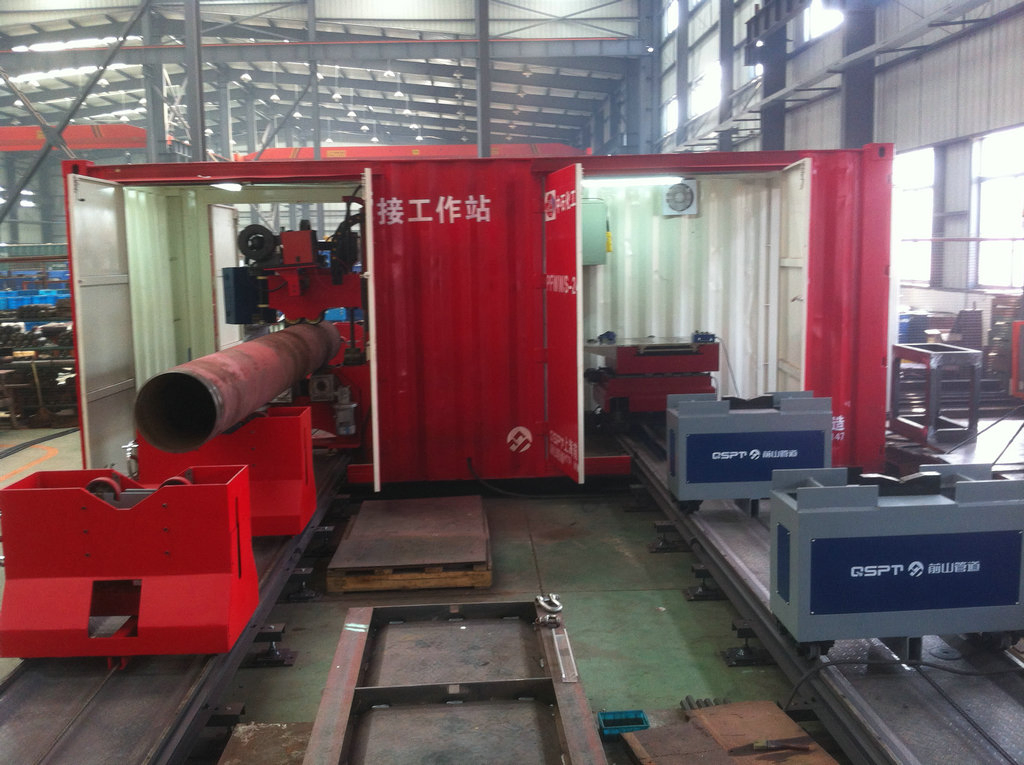

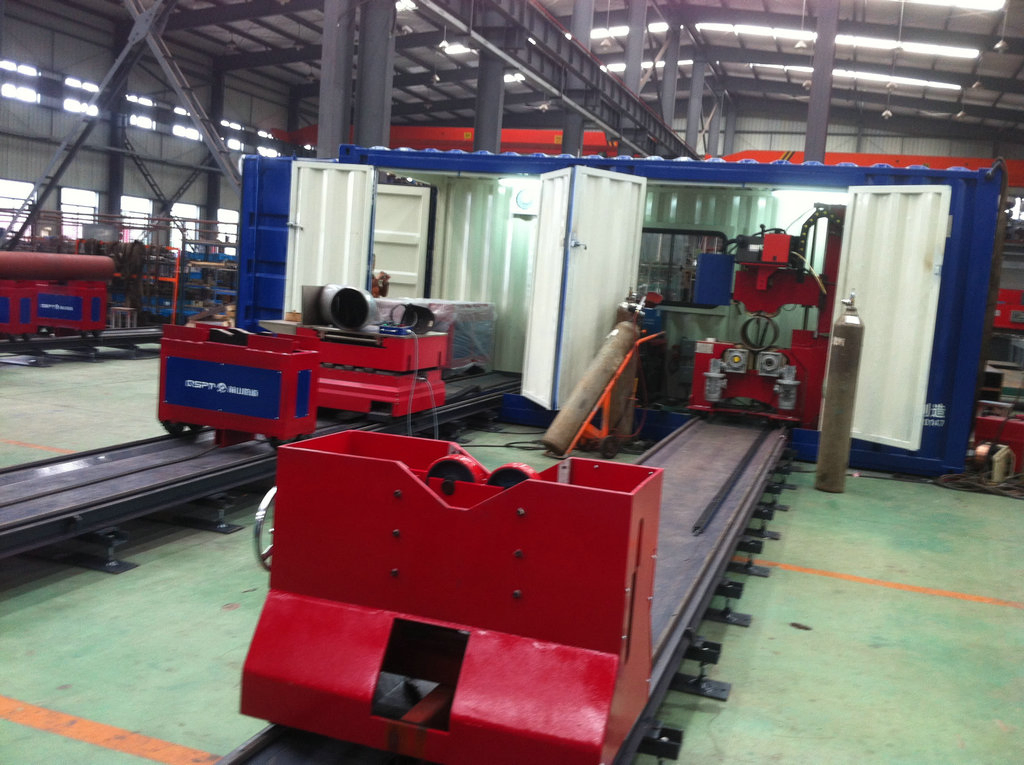

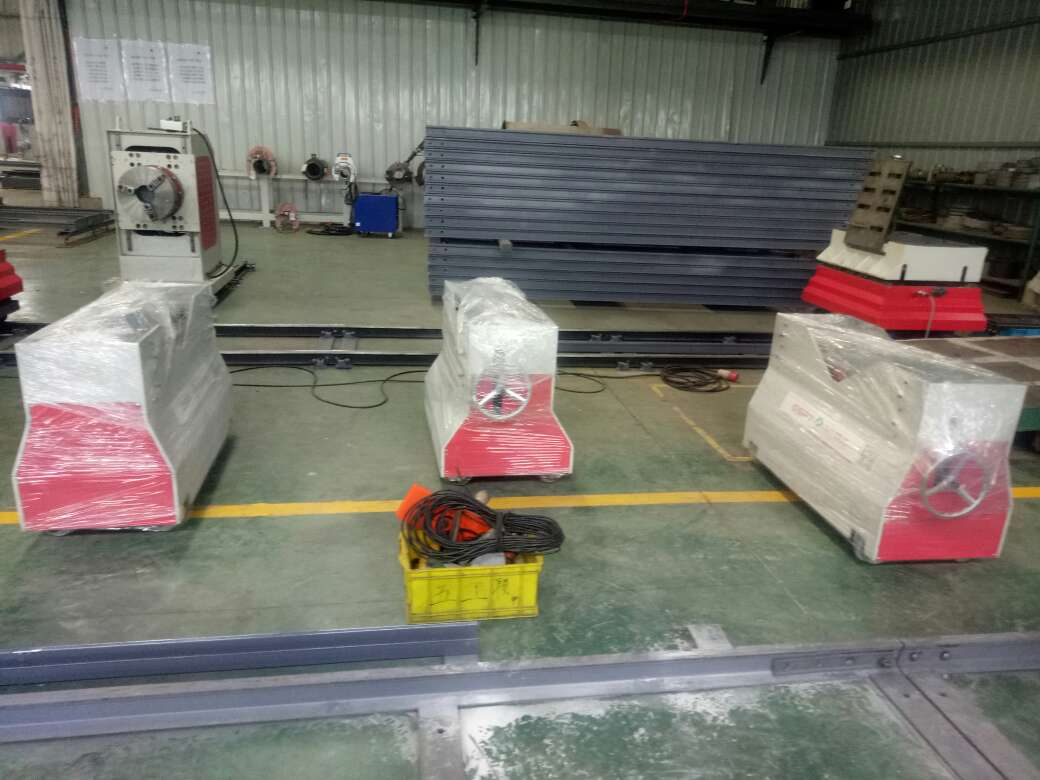

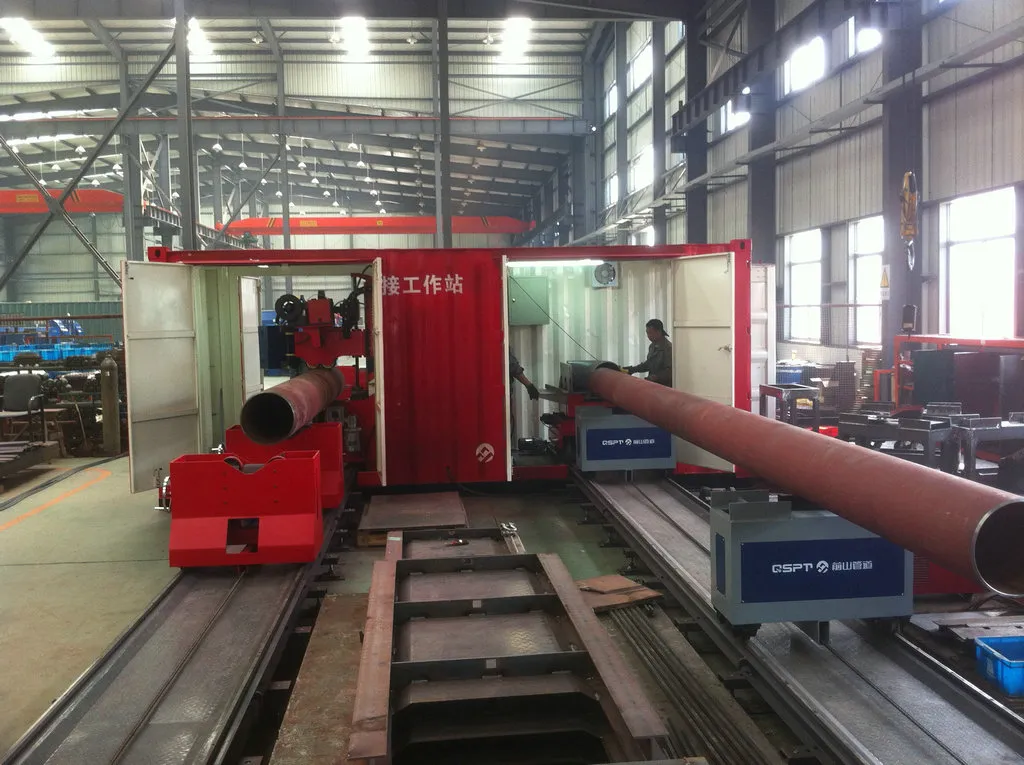

Track (Rail) & Trolley (Carriage) Conveying System
Performance Features:
- Designed for conveying and lifting pipe or spool pieces during automatic welding, flame/plasma cutting, band saw cutting, and beveling processes.
- Significantly increases automation levels in pipe fabrication plants.
- Reduces safety hazards associated with manual hoisting and movement.
Pipe Diameter
DN50-600 (φ 60-610)
Line Length
7.5M (Customizable)
Moving Up/Down
Screw lifter, manual (A1/A2) or electric (A3/A4)
Bracket System
Supporting rotator (A1/A3) or rolling roller (A2/A4)
Roller Material
Blue-treated carbon steel (Rubber coating available)
Track Type
Square-steel + Channel-steel (Height adjustable)
We are a professional manufacturer specializing in pipe fabrication machinery, providing high-quality solutions including pipe beveling, welding, and fitting-up equipment, as well as intelligent warehouse systems. Our products are exported globally across Southeast Asia, Africa, Europe, and the Americas.
After-Sales Commitment:
- Professional, comprehensive, and detailed site service.
- Quick and efficient resolution of all technical issues.
- Client satisfaction is our primary standard.
❓ FAQ
What is the applicable pipe diameter for this system?
The system supports pipe diameters ranging from DN50 to DN600 (φ 60-610mm).
What is the maximum load capacity of the trolley?
The system is designed with a maximum loading capacity of 1000KG.
What is the difference between A1/A2 and A3/A4 models?
A1 and A2 models feature manual screw lifters for vertical movement, while A3 and A4 models are equipped with electric lifting systems.
Can the roller material be customized?
Yes, the standard rollers are blue-treated carbon steel, but they can be coated with rubber if required for specific material handling.
What is the typical delivery time for orders?
Generally, it is 30-40 days if the goods are in stock, and 60-80 days for custom production depending on the quantity.
What are your standard payment terms?
For orders over 1000 USD, we require a 40% T/T advance payment, with the remaining balance due before shipment.
